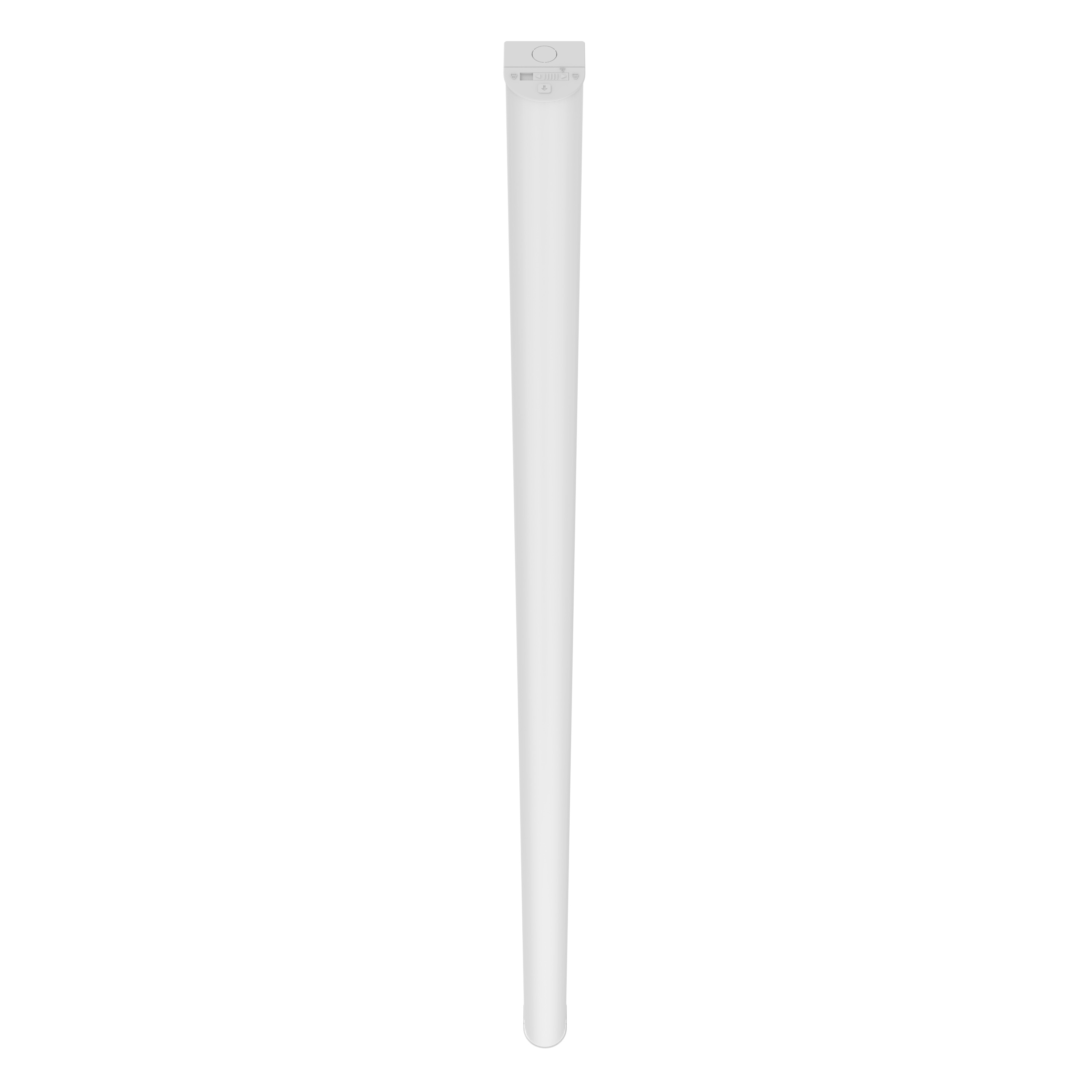

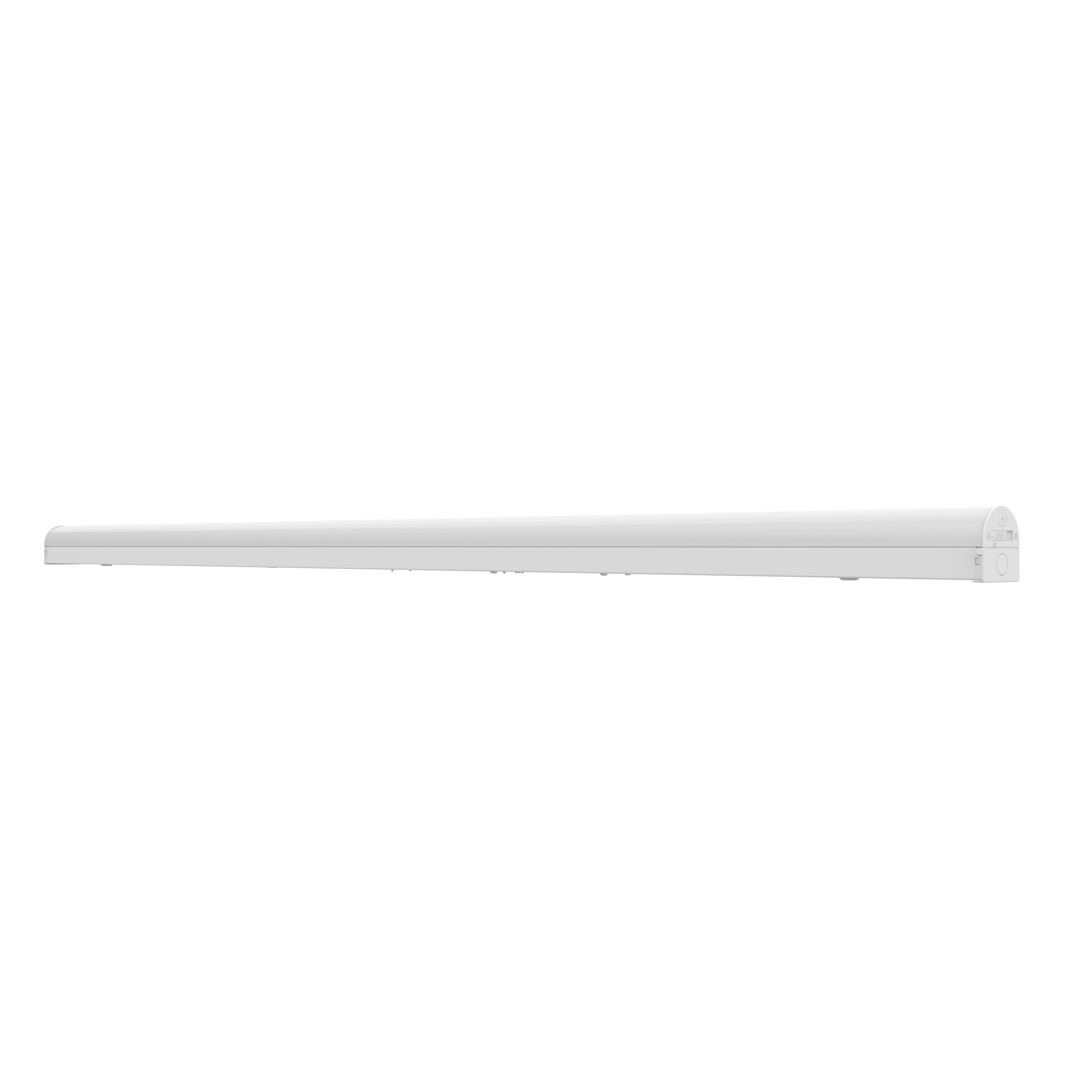

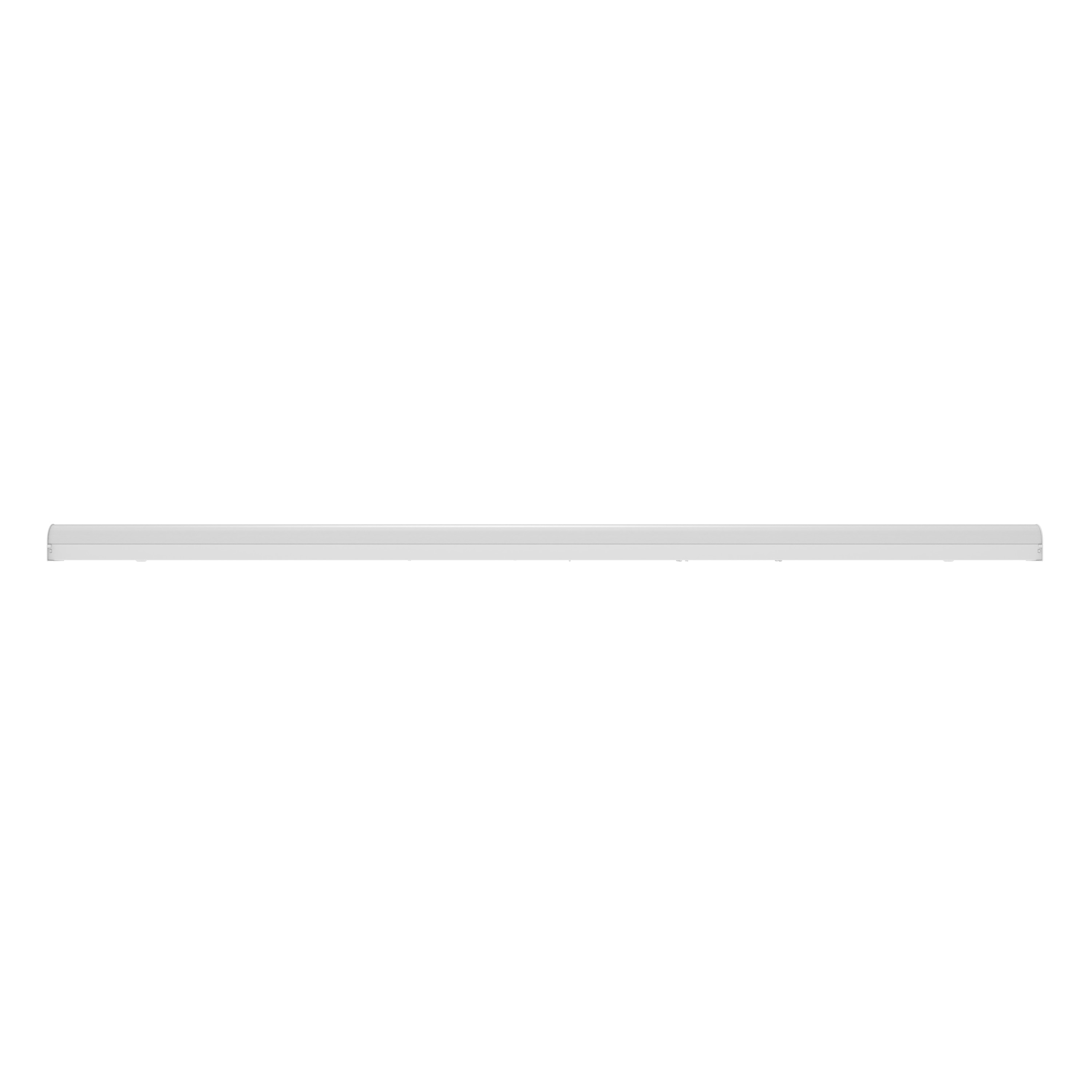

BAT CBO 1800 V 65W MS 840 IP20 WT

GTIN: 4099854529030 Folding box / 1 Show all packages

Tools

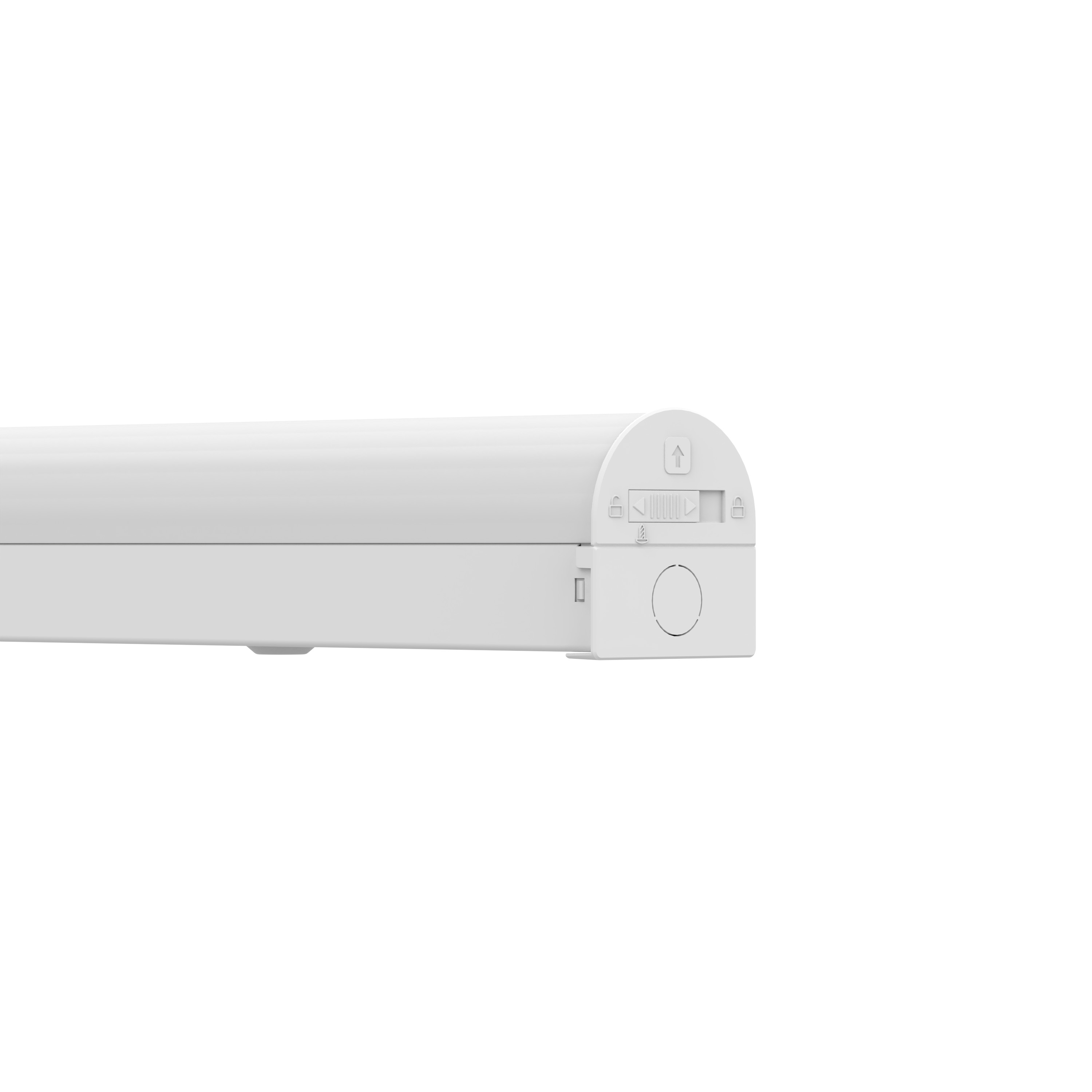

Highly versatile due to selectable CCT and power steps (Multi Color / Multi Lumen) on the driver
Plug & Upgrade concept for easy conversion to sensor or emergency luminaire
Replacement of conventional T8 luminaires with up to 9,750 lm
Robust structure with IK08

Plug & Upgrade high frequency sensor and emergency kit separately available
DP BAT CBO EL KIT only compatible with 1200, 1500 and 1800 versions (not with 600 version)
Mounting screws and dowels included

Values of type of protection, impact resistance and ambient temperature range may differ depending on the installation of the components.
All electrical connections must be made by a qualified person.
Caution, risk of electric shock.
Product in protection class I. All electrically conductive, metallic housing parts that can absorb voltage during operation or during maintenance in the event of a fault must be continuously connected to the protective earthing conductor.

Nominal wattage	65 W / 33 W
Nominal voltage	220…240 V
Mains frequency	50…60 Hz
Nominal current	290mA / 195 mA
Inrush current	20 A
Inrush current time T_h50	118 µs
Max. number of luminaires per miniature circuit breaker B16	33
Max. number of luminaires per miniature circuit breaker C10	25
Max. number of luminaires per miniature circuit breaker C16	40
Power factor λ	> 0.90
Total harmonic distortion	< 20 %
Protection class	I
Operating mode	Integrated LED driver

Luminous flux	9750 lm / 5050 lm
Luminous efficacy	150 lm/W / 153 lm/W
Color temperature	4000 K / 6500 K
Light color (designation)	Cool White, Cool Daylight
Color rendering index Ra	≥80
Standard deviation of color matching	< 5 sdcm
Low flicker	Yes
Flickering metric (Pst LM)	< 1
Stroboscope effect metric (SVM)	< 0.4
Photobiological safety group acc. to EN62778	RG1
Beam angle	110 °

Nominal wattage	Color temperature	Luminous flux	Luminous efficacy
33 W	4000 K	5050 lm	153 lm/W
33 W	6500 K	5050 lm	153 lm/W
65 W	4000 K	9750 lm	150 lm/W
65 W	6500 K	9750 lm	150 lm/W

Product color	White
Housing color	White
Body material	Polycarbonate (PC)
Cover material	Polycarbonate (PC)
Light emitting surface material	Polycarbonate (PC)
Glow Wire Test according to IEC 60695-2-12	650 °C
Mercury content	0.0 mg

Ambient temperature range	-20…+40 °C
Temperature range at storage	-20…+80 °C
Type of connection	Push-in
Protection class IK (shock resistance)	IK08
Dimmable	No
Mounting type	Surface
Mounting location	Wall, Ceiling
Application environment	Indoor
Adjustable	No
With light source	Yes
Replaceable light source	No

¹⁾ t[h]: L70 / B50 @ 25 °C (Ta), t[h]: L80 / B10 @ 25 °C (Ta), t[h]: L90 / B10 @ 25 °C (Ta)

ECG - Output ripple current

< 5 %

Type of Emergency Lighting (EL)

Optional EL unit (battery and controller) for decentral operation available separately

Standards	CE, CB, ERP, UKCA, EAC
Ball shot safe	No
Replaceable light source (EPREL)	Not replaceable

Product remark	Available from June 2025
Added function	MULTI SELECT

Minimum rate of recycled material in packaging	80 % ¹⁾
Minimum percentage of recycled content in the product	0 % ¹⁾
Product recyclability	Mostly recyclable product ¹⁾
Packaging recyclability	Mostly recyclable packaging ¹⁾
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage	No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage	No
