LINEAR SURFACE IP44 EMERGENCY
LN SF IP44 EM 1200 36 W 4000 K WT
GTIN: 4058075402973
Folding box / 1
Show all packages
Our warranty conditions
PRODUCT DETAILS
Product benefits
- Seamless integration of luminaires with emergency lighting function into general lighting
- Easy wiring thanks to included prewired driver and battery for Emergency lighting function
- Simple testing of luminaires with emergency lighting function thanks to integrated automatic test function
- Convenient visualization of results of automatic test with an included control LED
- Operation of integrated emergency lighting function with long life LiFePO4 battery with 3h battery discharge time
- High luminous efficacy in normal operation
- 3 years guarantee
- Low maintenance and low operational costs
- Cable entry on the back of the luminaire and on each end-caps for easy electrical connection
- Easy and quick installation
- Low flicker light thanks to special electronic control gear
Areas of application
- Emergency illumination of escape routes
- Antipanic lighting
- Buildings requiring up to 3 h emergency light operation
- Efficient replacement for traditional T8 and T5 luminaires
- Public buildings
- Corridors, stairways
Product features
- Certified according to European norms (EN 60598-1:2015; EN 60598-2-22:2014)
- Luminaire suited for normal lighting and emergency lighting
- Self-contained luminaires
- Emergency lighting function: battery discharge time of 3 h
- Function test of emergency lighting: automatic (AT)
- Battery technology: LiFePO4
- Ambient temperature in operation: 5°…+40 C
- Surface mounted luminaires with direct light emission
- Type of protection: IP44
- Impact resistance: IK08
- Available in 2 different lengths: 1200 mm and 1500 mm
- High luminous efficacy: up to 115 lm/W
Equipment / Accessories
- Accessories for suspension available
- Mounting screws and dowels included
References / Links
- For Guarantee see www.ledvance.com/guarantee
Electrical data
| Nominal wattage | 36.00 W |
| Nominal voltage | 220…240 V |
| Mains frequency | 50…60 Hz |
| Nominal current | 180 mA |
| Inrush current | 15.6 A |
| Inrush current time Th50 | 265 µs |
| Max. number of luminaires per miniature circuit breaker B16 | 16 |
| Max. number of luminaires per miniature circuit breaker C10 | 16 |
| Max. number of luminaires per miniature circuit breaker C16 | 25 |
| Power factor λ | ≥0.90 |
| Total harmonic distortion | ≤ 20 % |
| Protection class | I |
| Operating mode | Integrated LED driver |
Photometrical data
| Luminous flux | 4000 lm |
| Luminous efficacy | 100 lm/W |
| Color temperature | 4000 K |
| Light color (designation) | Cool White |
| Color rendering index Ra | ≥80 |
| Standard deviation of color matching | ≤4 sdcm |
| Luminous intensity | - |
| Low flicker | Yes |
| Flickering metric (Pst LM) | - |
| Stroboscope effect metric (SVM) | - |
| Photobiological safety group acc. to EN62778 | RG1 |
| Photobiological safety group acc. to EN62471 | RG0 |
| Beam angle | 120 ° |
Dimensions & Weight
| Length | 1199.00 mm |
| Height | 64.50 mm |
| Width | 145.00 mm |
| Product weight | 2400.00 g |
Materials & Colors
| Product color | White |
| Housing color | White |
| Body material | Stainless steel |
| Cover material | Polycarbonate (PC) |
| Light emitting surface material | Polycarbonate (PC) |
| Glow Wire Test according to IEC 60695-2-12 | 650 °C |
| Mercury content | 0.0 mg |
Application & Mounting
| Ambient temperature range | +5…+40 °C |
| Temperature range at storage | 5…+35 °C |
| Type of connection | Screwless terminal, 5-Pole (L, N, PE, DA+, DA-) |
| Type of protection | IP44 |
| Protection class IK (shock resistance) | IK08 |
| Dimmable | No |
| Mounting type | Surface/Suspended |
| Mounting location | Ceiling |
| Application environment | Indoor |
| With light source | Yes |
Lifespan
| Lifespan L70/B50 at 25 °C | 60000 h 1) |
| Lifespan L80/B10 at 25 °C | 40000 h 1) |
| Lifespan L90/B10 at 25 °C | 25000 h |
| Number of switching cycles | 25000 |
1) t[h]: L70 / B50 @ 25 °C (Ta), t[h]: L80 / B10 @ 25 °C (Ta), t[h]: L90 / B10 @ 25 °C (Ta)
Control gear
| Output current | 1050 mA |
BATTERY
| Type of Battery | LiFePO4 |
| Battery size [GMS] | Others |
| Nominal voltage of battery | 3.2 V |
| Nominal capacity of battery | 4500 mAh |
| Battery charging time | < 24 h |
Emergency lighting
| Area of emergency application | Anti-panic lighting, Escape route lighting |
| Type of emergency light operation | Maintained, Non-maintained |
| Type of emergency operation test | Automatic |
| Wattage in maintained operation mode | 36 W |
| Wattage in emergency operation mode | 3,0 W |
| Luminous flux in maintained operation mode | 4000 lm |
| Luminous flux in emergency operation mode | 350 lm |
| Battery life in emergency operation mode | 3 h |
| Integrated test switch | No |
Certificates & Standards
| Standards | CE, CB, ENEC, TÜV SÜD, EAC |
| Luminaire with limited surface temperature, "D sign" | No |
| Ball shot safe | No |
| Replaceable light source (EPREL) | Not replaceable |
Additional product data
| Number of illuminants | - |
PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS
| Minimum rate of recycled material in packaging | 80 % 1) |
| Minimum percentage of recycled content in the product | 0 % 1) |
| Product recyclability | Mostly recyclable product 1) |
| Packaging recyclability | Mostly recyclable packaging 1) |
| List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage | No |
| Contains substances of very high concern in concentrations greater than 0.1% by mass percentage | Yes |
| List of substances of very high concern in concentrations greater than 0.1% in mass percentage | Lead (7439-92-1) |
1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)
| Product code | Packaging unit (Pieces/Unit) | Dimensions (length x width x height) | Gross weight | Volume |
|---|---|---|---|---|
| 4058075402973 | Folding box 1 |
1,207 mm x 150 mm x 77 mm | 2621.00 g | 13.94 dm³ |
| 4058075402980 | Shipping box 4 |
1,228 mm x 319 mm x 183 mm | 11774.00 g | 71.69 dm³ |
User instruction / safety instructions
UI_Linear Surface Emergency
UI_Linear Surface Emergency
Legal information
LINEAR SURFACE EMERGENCY
LINEAR SURFACE EMERGENCY
Declarations of conformity
LN SF WT IP44 EM
LN SF WT IP44 EM

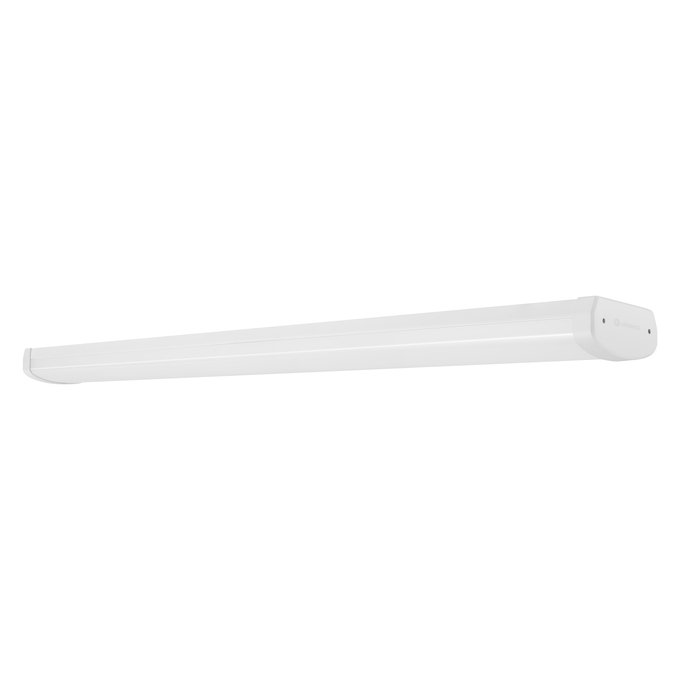

Product image: white background, diagonal
LINEAR SURFACE
LINEAR SURFACE

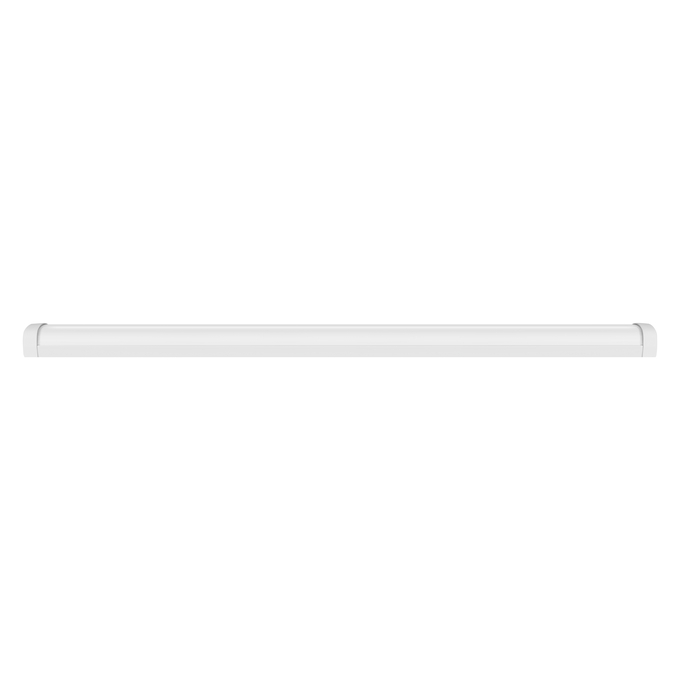

Product image: white background, horizontal
LN SF 1200 36W
LN SF 1200 36W
Product image: white background, upright
LN SF 1200 36W
LN SF 1200 36W
Product line drawing with letters
LN SF 1200 36W
LN SF 1200 36W
Product line drawing with numbers
LN SF 1200 36W
LN SF 1200 36W
Product line drawing, front, no dimensions
LN SF 1200 36W
LN SF 1200 36W
IES file (IES)
LN SF 1200 36W 4000K WT IP44 EM
LN SF 1200 36W 4000K WT IP44 EM
LDT file (Eulumdat)
LN SF 1200 36W 4000K WT IP44 EM
LN SF 1200 36W 4000K WT IP44 EM
ULD file (DIALux)
LN SF 1200 36W-4000K WT IP44
LN SF 1200 36W-4000K WT IP44
ROLF file (RELUX)
LN SF 1200 36W-4000K
LN SF 1200 36W-4000K
UGR file (UGR table)
LN SF 1200 36W 4000K WT IP44 EM
LN SF 1200 36W 4000K WT IP44 EM
Light distribution curve type cone
LN SF 1200 36W 4000K
LN SF 1200 36W 4000K
Light distribution curve type cone
LN SF 1200 36W 4000K WT IP44 EM
LN SF 1200 36W 4000K WT IP44 EM
Light distribution curve type cone
LN SF 1200 36W 4000K WT IP44 EM
LN SF 1200 36W 4000K WT IP44 EM
Light distribution curve type polar
LN SF 1200 36W 4000K
LN SF 1200 36W 4000K
Light distribution curve type polar
LN SF 1200 36W 4000K WT IP44 EM
LN SF 1200 36W 4000K WT IP44 EM
Light distribution curve type polar
LN SF 1200 36W 4000K WT IP44 EM
LN SF 1200 36W 4000K WT IP44 EM
CAD STEP 3D
LN SF IP44 G1 1200
LN SF IP44 G1 1200
Tender documents
LINEAR SURFACE IP44 EMERGENCY 1200 36 W 4000 K WT-EN
LINEAR SURFACE IP44 EMERGENCY 1200 36 W 4000 K WT-EN
| EAN | SEG number | ELDAS number |
|---|---|---|
| 4058075402973 | 7215494 | 941304020 |
