LINEAR SURFACE IP44 DALI
LN SF IP44 DALI 1500 P 45W 840 WT
GTIN: 4058075733374
Folding box / 1
Show all packages
Our warranty conditions
PRODUCT DETAILS
Product benefits
- Low maintenance and low operational costs
- Protection against cover falling, theft and vandalism thanks to safety screws
- Cable entry on the back of the luminaire and on each end-caps for easy electrical connection
- Easy and quick installation
- Low flicker light thanks to special electronic control gear
- 5 years guarantee
Areas of application
- Efficient replacement for traditional T8 and T5 luminaires
- Public buildings
- General illumination
- Libraries, schools
Product features
- Surface mounted luminaires with direct light emission
- Type of protection: IP44
- Impact resistance: IK08
- Available in 3 different lengths: 600 mm, 1200 mm and 1500 mm
- High luminous efficacy: up to 137 lm/W
- Through-wiring cable already installed
- Lifetime (L80/B10): 70,000 h (at 25 °C)
- White painted steel housing (like RAL: 9003)
- Diffusor material: UV-stable polycarbonate
- End caps (made of polycarbonate) screwed to the housing
Equipment / Accessories
- Equipped with through-wiring cables and connectors
- Tool-free cable strain reliefs included
References / Links
- For Guarantee see www.ledvance.com/guarantee
Electrical data
| Nominal wattage | 45.00 W |
| Nominal voltage | 220…240 V |
| Mains frequency | 50…60 Hz |
| Nominal current | 200 mA |
| Inrush current | < 21 A |
| Inrush current time Th50 | 230 µs |
| Max. number of luminaires per miniature circuit breaker B16 | 20 |
| Max. number of luminaires per miniature circuit breaker C10 | 21 |
| Max. number of luminaires per miniature circuit breaker C16 | 35 |
| Power factor λ | > 0.90 |
| Total harmonic distortion | < 20 % |
| Protection class | I |
| Operating mode | Integrated LED driver |
Photometrical data
| Luminous flux | 6165 lm |
| Luminous efficacy | 137 lm/W |
| Color temperature | 4000 K |
| Light color (designation) | Cool White |
| Color rendering index Ra | > 80 |
| Standard deviation of color matching | < 3 sdcm |
| Low flicker | Yes |
| Flickering metric (Pst LM) | < 1 |
| Stroboscope effect metric (SVM) | < 0.4 |
| Photobiological safety group acc. to EN62778 | RG0 |
| Beam angle | 110 ° |
Dimensions & Weight
| Length | 1476.00 mm |
| Height | 63.00 mm |
| Width | 166.00 mm |
| Product weight | 3000.00 g |
Materials & Colors
| Product color | White |
| Housing color | White |
| Body material | Steel |
| Cover material | Polycarbonate (PC) |
| Light emitting surface material | Polycarbonate (PC) |
| Glow Wire Test according to IEC 60695-2-12 | 650 °C |
| Mercury content | 0.0 mg |
Application & Mounting
| Ambient temperature range | -20…+40 °C |
| Temperature range at storage | -40…+80 °C |
| Type of connection | Screwless terminal, 5-Pole (L, N, PE, DA+, DA-) |
| Type of protection | IP44 |
| Protection class IK (shock resistance) | IK08 |
| Dimmable | Yes |
| Type of dimming | DALI2 |
| IoT ready | Support of DALI data type PART 251, 252, 253 1) |
| Mounting type | Surface |
| Mounting location | Wall, Ceiling |
| Application environment | Indoor |
| Adjustable | No |
| With light source | Yes |
| Replaceable light source | No |
1) Internet of Things. Supports data transfer via gateway to cloud-based monitoring platforms, such as LEDVANCE VIVARES Cloud
Lifespan
| Lifespan L70/B50 at 25 °C | 70000 h 1) |
| Lifespan L80/B10 at 25 °C | 70000 h 1) |
| Lifespan L90/B10 at 25 °C | 50000 h |
| Number of switching cycles | 100000 |
1) t[h]: L70 / B50 @ 25 °C (Ta), t[h]: L80 / B10 @ 25 °C (Ta), t[h]: L90 / B10 @ 25 °C (Ta)
Control gear
| Output current | 1050 mA |
| ECG - Output ripple current | < 10 % |
| Recommended control gear | OTi DALI 50/220-240/1A4 NFC L |
Certificates & Standards
| Standards | CE, CB, ENEC, TÜV SÜD, UKCA, EAC |
| Luminaire with limited surface temperature, "D sign" | No |
| Ball shot safe | No |
| Replaceable light source (EPREL) | Not replaceable |
Additional product data
| Added function | VIVARES |
PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS
| Quantity of precious metals | Contains at least 10 mg |
| Quantity of rare earths | Contains at least 1 mg |
| Minimum rate of recycled material in packaging | 80 % 1) |
| Minimum percentage of recycled content in the product | 0 % 1) |
| Product recyclability | Mostly recyclable product 1) |
| Packaging recyclability | Mostly recyclable packaging 1) |
| List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage | No |
| Contains substances of very high concern in concentrations greater than 0.1% by mass percentage | Yes |
| List of substances of very high concern in concentrations greater than 0.1% in mass percentage | Lead (7439-92-1) |
1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)
| Product code | Packaging unit (Pieces/Unit) | Dimensions (length x width x height) | Gross weight | Volume |
|---|---|---|---|---|
| 4058075733374 | Folding box 1 |
1,489 mm x 172 mm x 70 mm | 3750.00 g | 17.93 dm³ |
| 4058075733381 | Shipping box 4 |
1,503 mm x 302 mm x 200 mm | 16185.00 g | 90.78 dm³ |
| Product image | Product name | EAN |
|---|---|---|
|
OTi DALI 50/220...240/1A4 NFC L | 4062172074988 |
User instruction / safety instructions
UI LN SF IP44 DALI
UI LN SF IP44 DALI
Legal information
Light Source Insert LN SF P WT IP44 DALI
Light Source Insert LN SF P WT IP44 DALI
Legal information
Legal insert LN SF P IP44 DALI
Legal insert LN SF P IP44 DALI
Legal information
Informationstext 18 Abs 4 ElektroG
Informationstext 18 Abs 4 ElektroG
Declarations of conformity
LN SF P WT IP44 DALI
LN SF P WT IP44 DALI
Certificates
ENEC LN SF IP44 DALI
ENEC LN SF IP44 DALI
Product image: white background, diagonal
LN SF P IP44
LN SF P IP44

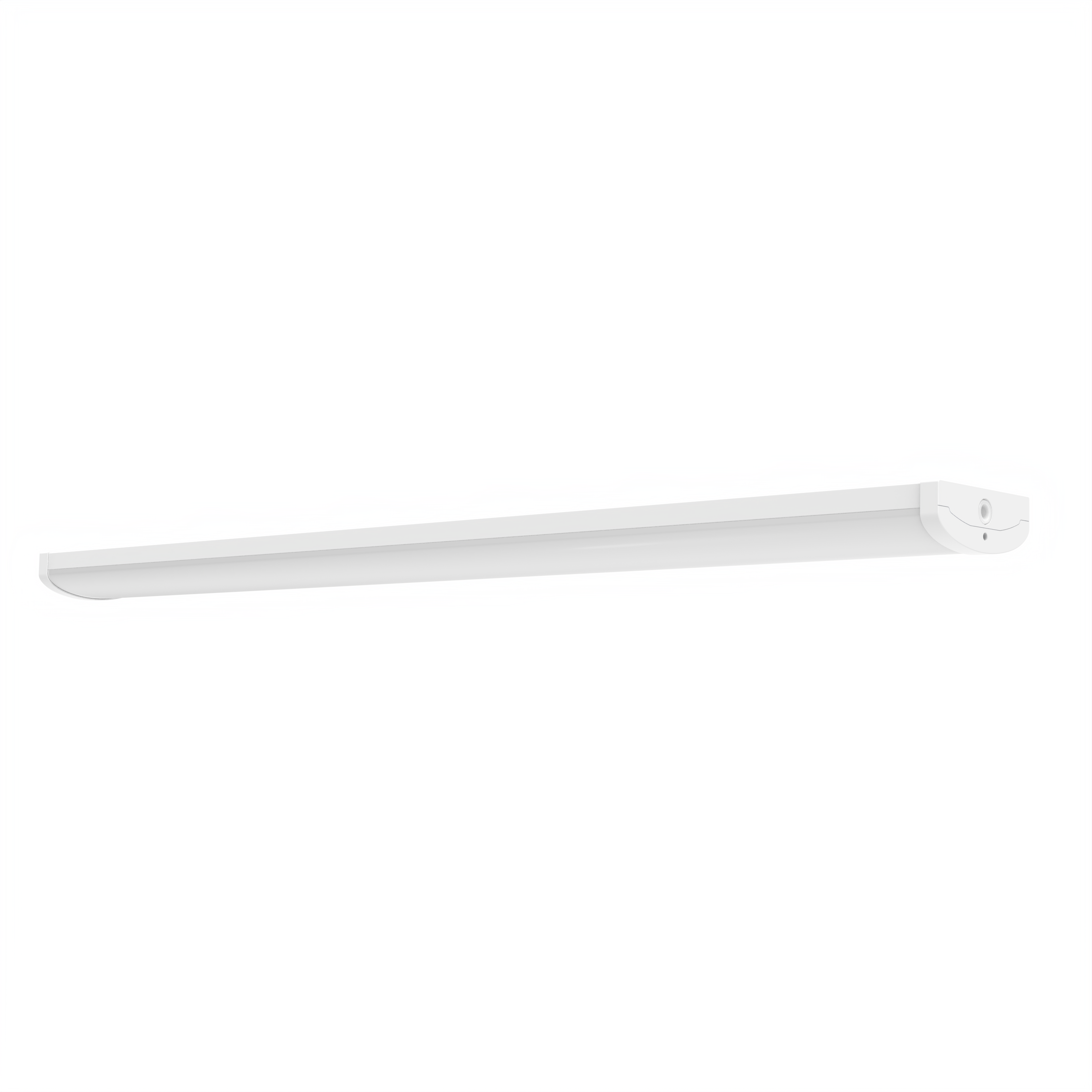

Product image: white background, horizontal
LN SF 1500 P IP44
LN SF 1500 P IP44
Product image: white background, upright
LN SF 1500 P IP44
LN SF 1500 P IP44
Product line drawing with letters
LN SF 1500 P 45W WT IP44
LN SF 1500 P 45W WT IP44
Product line drawing with numbers
LN SF 1500 P 45W WT IP44
LN SF 1500 P 45W WT IP44
Product line drawing - technical
LN SF 1500 P 45W WT IP44
LN SF 1500 P 45W WT IP44
Packaging image, spacial
LinearSurface150043WWT IP44
LinearSurface150043WWT IP44
Catalog info 1
LN SF P WT IP44
LN SF P WT IP44
Catalog info 2
LN SF P WT IP44
LN SF P WT IP44
Catalog info 3
LN SF P IP44
LN SF P IP44
Catalog info 4
LN SF P WT IP44
LN SF P WT IP44
Catalog info 5
LN SF P WT IP44
LN SF P WT IP44
Catalog info 6
LN SF P WT IP44
LN SF P WT IP44
IES file (IES)
LN SF 1500 P 45W 840 WT IP44 DALI
LN SF 1500 P 45W 840 WT IP44 DALI
LDT file (Eulumdat)
LN SF 1500 P 45W 840 WT IP44 DALI
LN SF 1500 P 45W 840 WT IP44 DALI
ULD file (DIALux)
LN SF 1500 P 45W 840 WT IP44 DALI
LN SF 1500 P 45W 840 WT IP44 DALI
ROLF file (RELUX)
LN SF 1500 P 45W 840 WT IP44 DALI
LN SF 1500 P 45W 840 WT IP44 DALI
UGR file (UGR table)
LN SF 1500 P 45W 840 WT IP44 DALI
LN SF 1500 P 45W 840 WT IP44 DALI
Light distribution curve type cone
LN SF 1500 P 45W 840 WT IP44 DALI
LN SF 1500 P 45W 840 WT IP44 DALI
Light distribution curve type polar
LN SF 1500 P 45W 840 WT IP44 DALI
LN SF 1500 P 45W 840 WT IP44 DALI
BIM Revit 3D
Linear Surface IP44 G2
Linear Surface IP44 G2
CAD STEP 3D
LN SF IP44 G2 1500
LN SF IP44 G2 1500
Tender documents
LINEAR SURFACE IP44 DALI 1500 P 45W 840 WT-EN
LINEAR SURFACE IP44 DALI 1500 P 45W 840 WT-EN
| EAN | SEG number | STK number | ELDAS number |
|---|---|---|---|
| 4058075733374 | 7217732 | 4324773 | 941006700 |
