PANEL VALUE 1200x600 TPB
PANEL VALUE 1200x600 TPB 65 W 4000 K WT
GTIN: 4058075384361
Folding box / 1
Show all packages
Our warranty conditions
PRODUCT DETAILS
Product benefits
- Value for money luminaire
- 3 years guarantee
- Low flicker light thanks to special electronic control gear
- External driver for extended flexibility and easy installation
- Emergency lighting possible with LEDVANCE Emergency Conversion Box
Areas of application
- Direct replacement for luminaires with fluorescent lamps
- Offices, conference rooms
- Reception areas, foyers, corridors, elevators
- Suitable for recessed ceiling systems with grid size of 1200 x 600 mm
Product features
- Lifetime (L70/B50): 50,000 h (at 25 °C)
- Extruded aluminum frame
- Polystyrene diffuser (TP(B) rated)
Equipment / Accessories
- Accessories for several mounting options available
- External control gear included
References / Links
- For Guarantee see www.ledvance.com/guarantee
Electrical data
| Nominal wattage | 65.00 W |
| Nominal voltage | 220…240 V |
| Mains frequency | 50…60 Hz |
| Nominal current | 300.000 mA |
| Inrush current | 13.2 A |
| Inrush current time Th50 | 300 µs |
| Max. number of luminaires per miniature circuit breaker B16 | 14 |
| Max. number of luminaires per miniature circuit breaker C10 | 14 |
| Max. number of luminaires per miniature circuit breaker C16 | 22 |
| Power factor λ | ≥0.95 |
| Total harmonic distortion | < 20 % |
| Protection class | II |
| Operating mode | External LED driver |
Photometrical data
| Luminous flux | 5850 lm |
| Luminous efficacy | 90 lm/W |
| Color temperature | 4000 K |
| Light color (designation) | Cool White |
| Color rendering index Ra | > 80 |
| Standard deviation of color matching | 5 sdcm |
| Luminous intensity | - |
| Flickering metric (Pst LM) | - |
| Stroboscope effect metric (SVM) | - |
| Photobiological safety group acc. to EN62778 | RG0 |
| Beam angle | 120 ° |
Dimensions & Weight
| Length | 1195.00 mm |
| Height | 34.00 mm |
| Width | 595.00 mm |
| Product weight | 3600.00 g |
Materials & Colors
| Product color | White |
| Housing color | White |
| Body material | Steel |
| Cover material | Polystyrene (PS) |
| Light emitting surface material | Polystyrene |
| Glow Wire Test according to IEC 60695-2-12 | 650 °C |
| Mercury content | 0.0 mg |
Application & Mounting
| Ambient temperature range | -10…+45 °C |
| Type of connection | Screwless terminal |
| Type of protection | IP40 |
| Protection class IK (shock resistance) | IK02 |
| Dimmable | No |
| Mounting type | Recessed/Suspended/Surface |
| Mounting location | Ceiling, Wall |
| Application environment | Indoor |
| Mounting length | 1180 mm |
| Mounting width | 580 mm |
| Mounting depth | 50,0 mm |
| Replaceable light source | No |
Lifespan
| Lifespan L70/B50 at 25 °C | 50000 h 1) |
| Lifespan L80/B10 at 25 °C | 50000 h 1) |
| Lifespan L90/B10 at 25 °C | 50000 h |
| Number of switching cycles | 25000 |
1) t[h]: L70 / B50 @ 25 °C (Ta), t[h]: L80 / B10 @ 25 °C (Ta), t[h]: L90 / B10 @ 25 °C (Ta)
Control gear
| ECG - Output ripple current | ≤ 5 % |
Certificates & Standards
| Standards | CE, CB |
| Luminaire with limited surface temperature, "D sign" | No |
| Ball shot safe | No |
| Replaceable light source (EPREL) | Not replaceable |
PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS
| Quantity of precious metals | Contains at least 10 mg |
| Quantity of rare earths | Contains at least 1 mg |
| Minimum rate of recycled material in packaging | 80 % 1) |
| Minimum percentage of recycled content in the product | 0 % 1) |
| Product recyclability | Mostly recyclable product 1) |
| Packaging recyclability | Mostly recyclable packaging 1) |
| List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage | No |
| Contains substances of very high concern in concentrations greater than 0.1% by mass percentage | No |
1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)
| Product code | Packaging unit (Pieces/Unit) | Dimensions (length x width x height) | Gross weight | Volume |
|---|---|---|---|---|
| 4058075384361 | Folding box 1 |
602 mm x 40 mm x 1,248 mm | 4303.00 g | 30.05 dm³ |
| 4058075384378 | Shipping box 3 |
1,267 mm x 142 mm x 634 mm | 16980.00 g | 114.07 dm³ |
User instruction / safety instructions
PANEL
PANEL
Legal information
LSI PL PFM AND VAL
LSI PL PFM AND VAL
Legal information
Legal Insert
Legal Insert

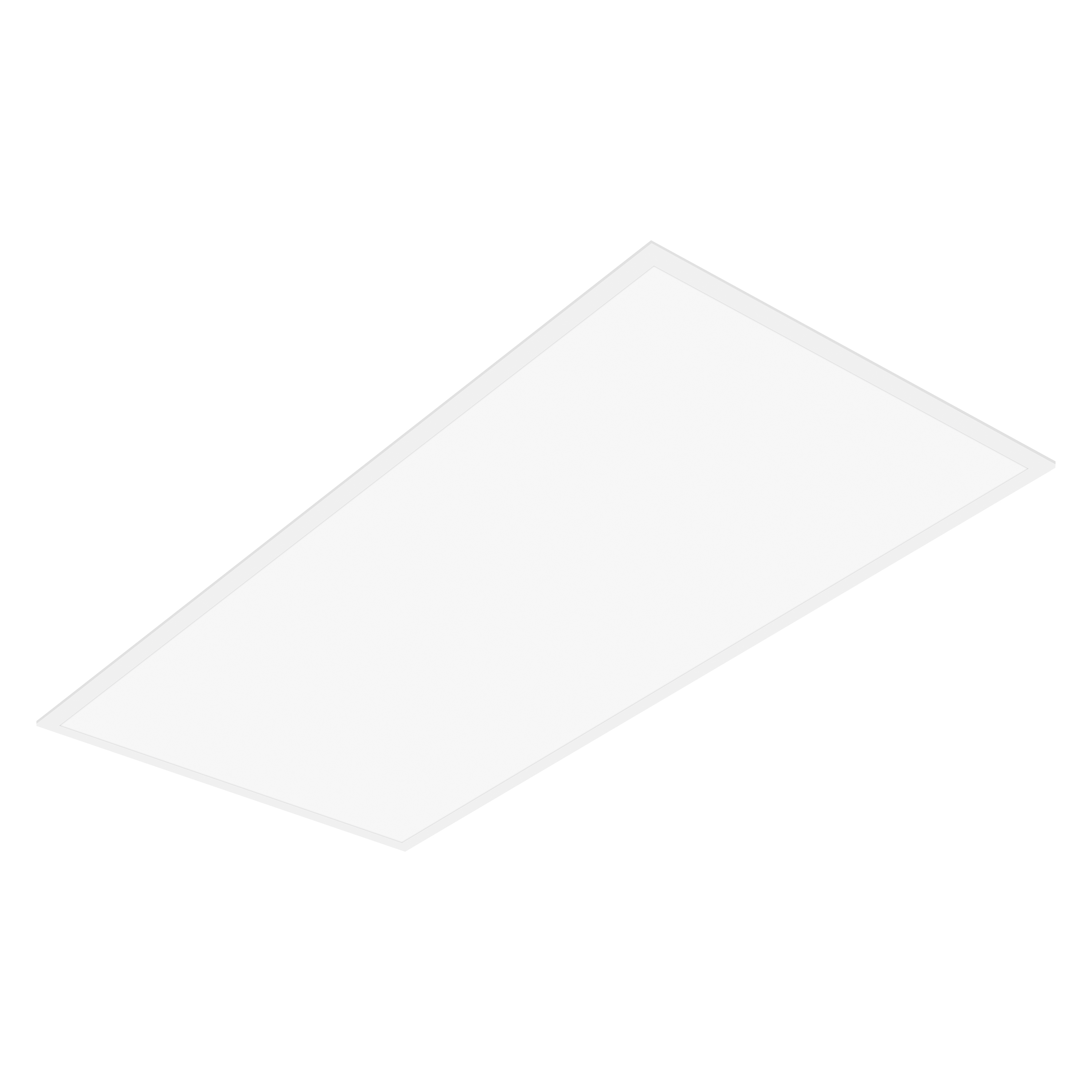

Product image: white background, diagonal
PL VAL 1200X600 65W
PL VAL 1200X600 65W

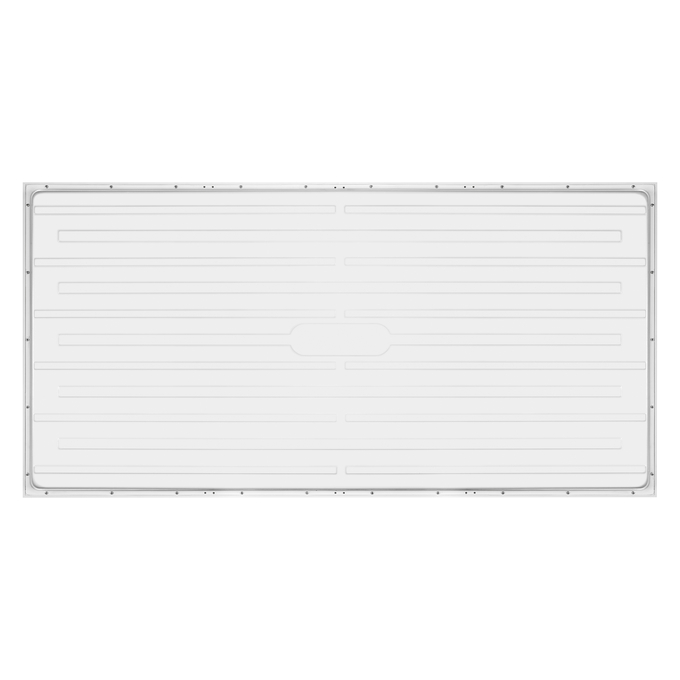

Product image: white background, horizontal
PL VAL 1200X600 65W
PL VAL 1200X600 65W

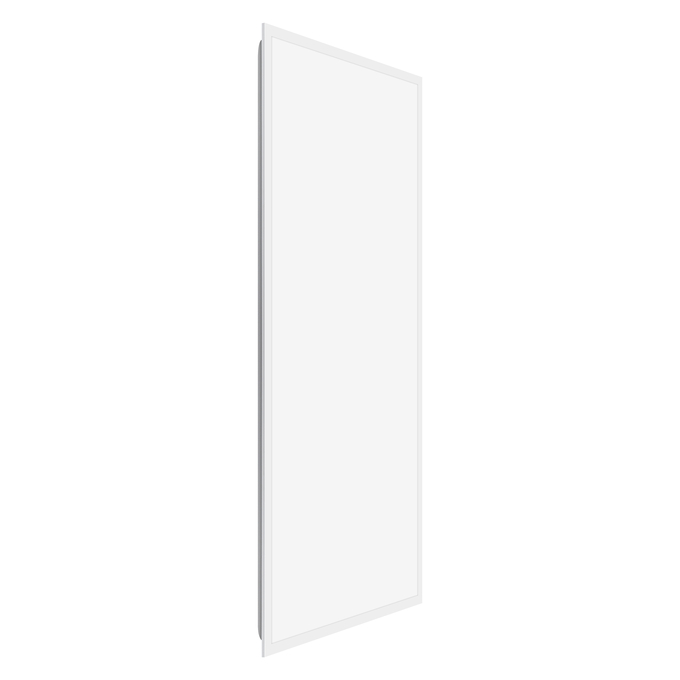

Product image: white background, upright
PL VAL 1200X600 65W
PL VAL 1200X600 65W
Product line drawing with letters
PL VAL 1200X600 65W
PL VAL 1200X600 65W
Product line drawing with numbers
PL VAL 1200X600 65W
PL VAL 1200X600 65W

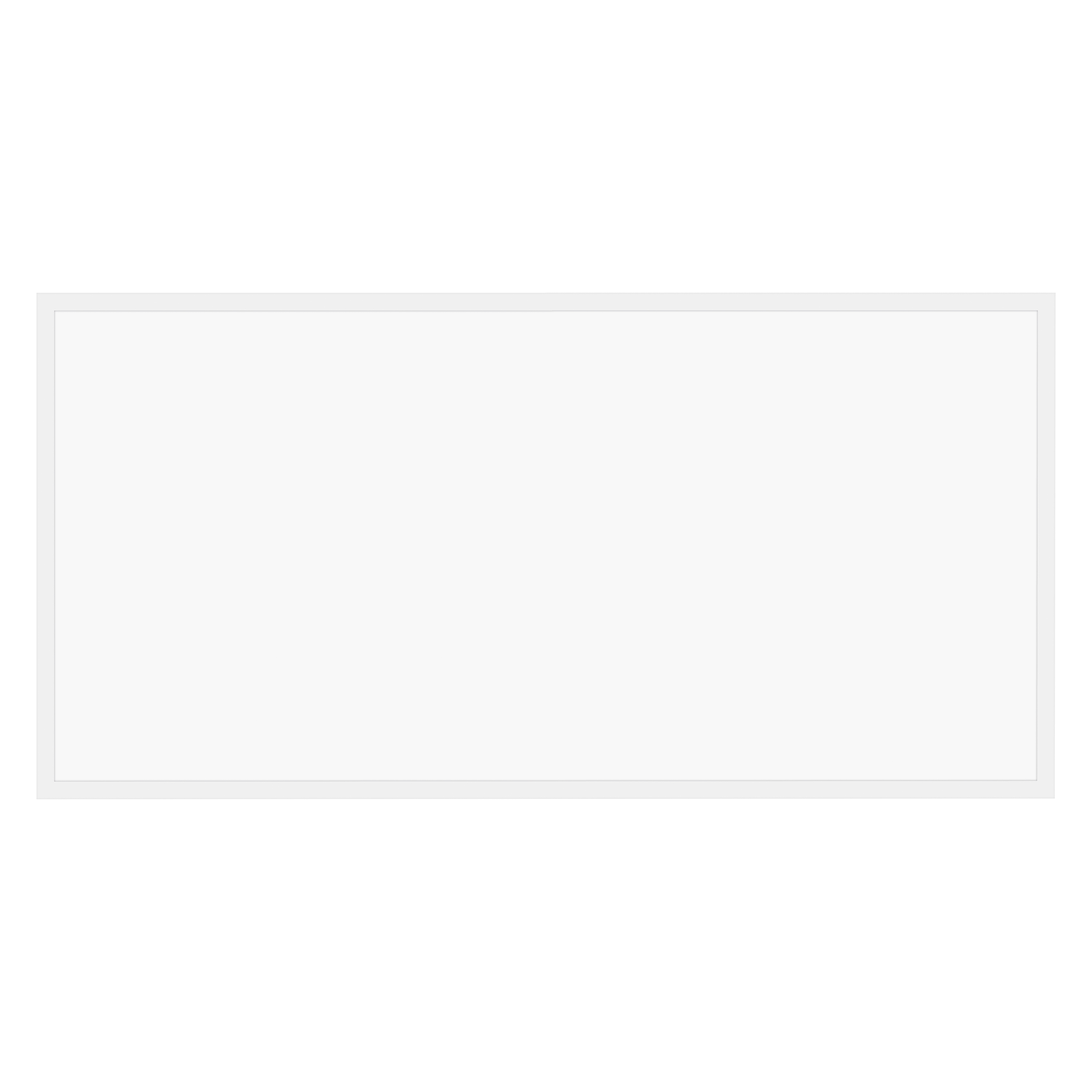

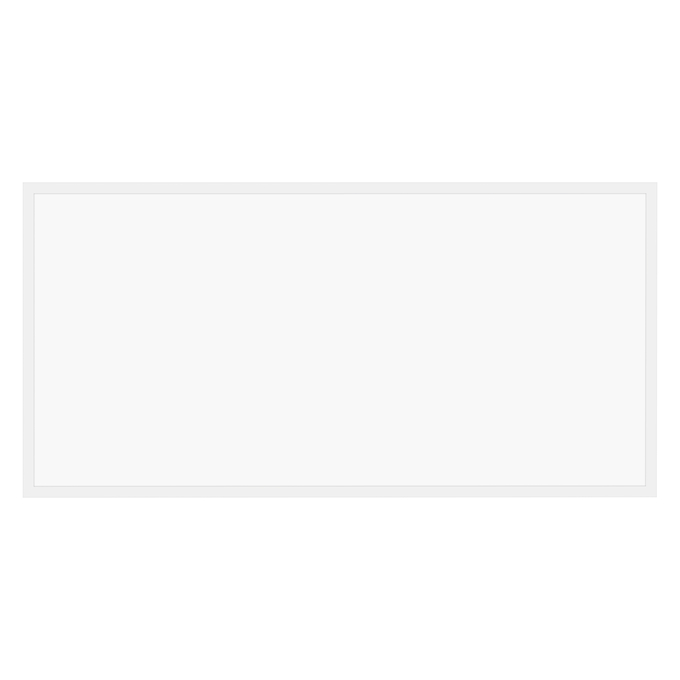

Product line drawing, front, no dimensions
PL VAL 1200X600 65W
PL VAL 1200X600 65W

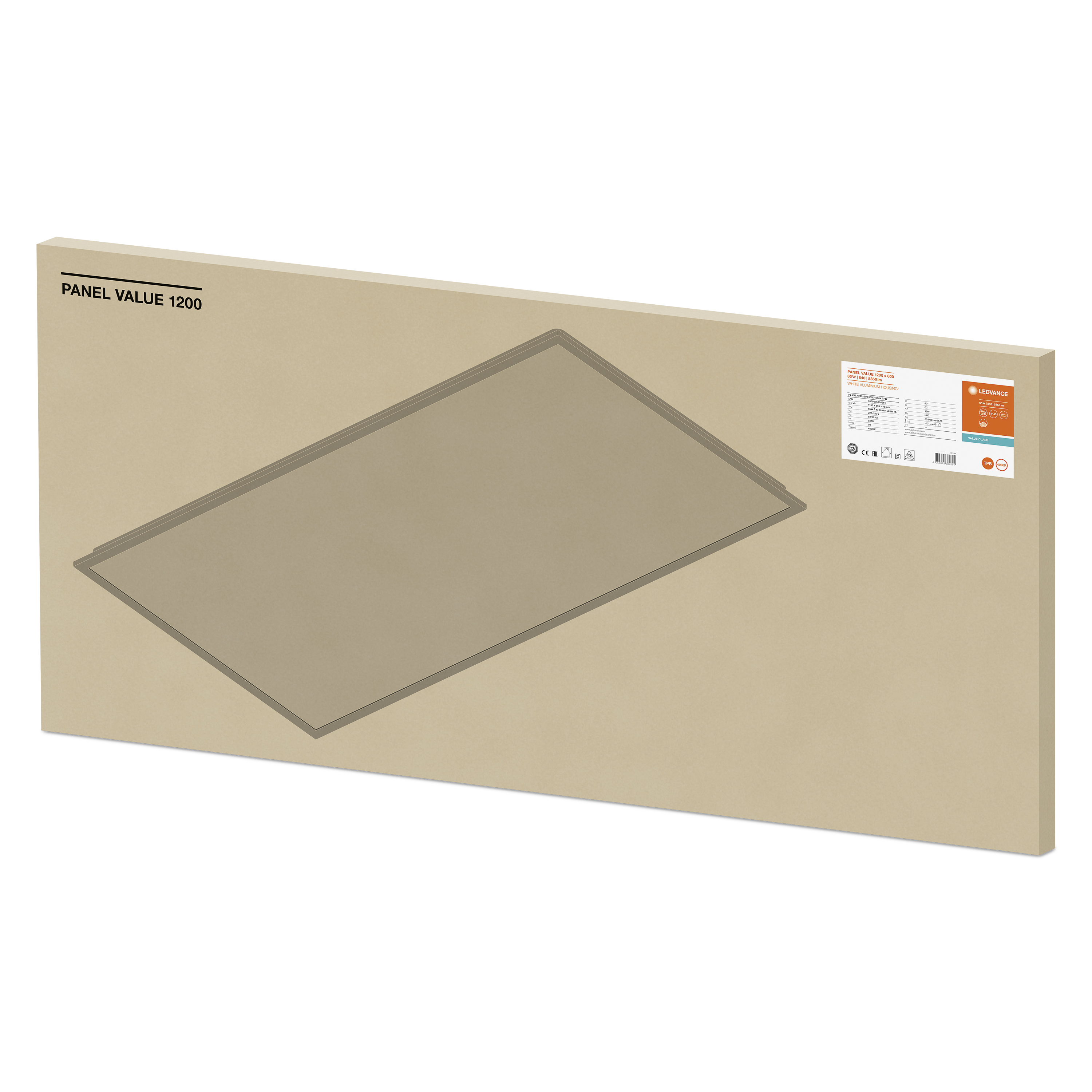

Packaging image, spacial
Panel VAL 1200x600 white 65W 840 TPB MiCh
Panel VAL 1200x600 white 65W 840 TPB MiCh
IES file (IES)
PL VAL 1200X600 65W4000K TPB
PL VAL 1200X600 65W4000K TPB
LDT file (Eulumdat)
PL VAL 1200X600 65W4000K TPB
PL VAL 1200X600 65W4000K TPB
ULD file (DIALux)
PL VAL 1200X600 65W-4000K
PL VAL 1200X600 65W-4000K
ROLF file (RELUX)
PL VAL 1200
PL VAL 1200

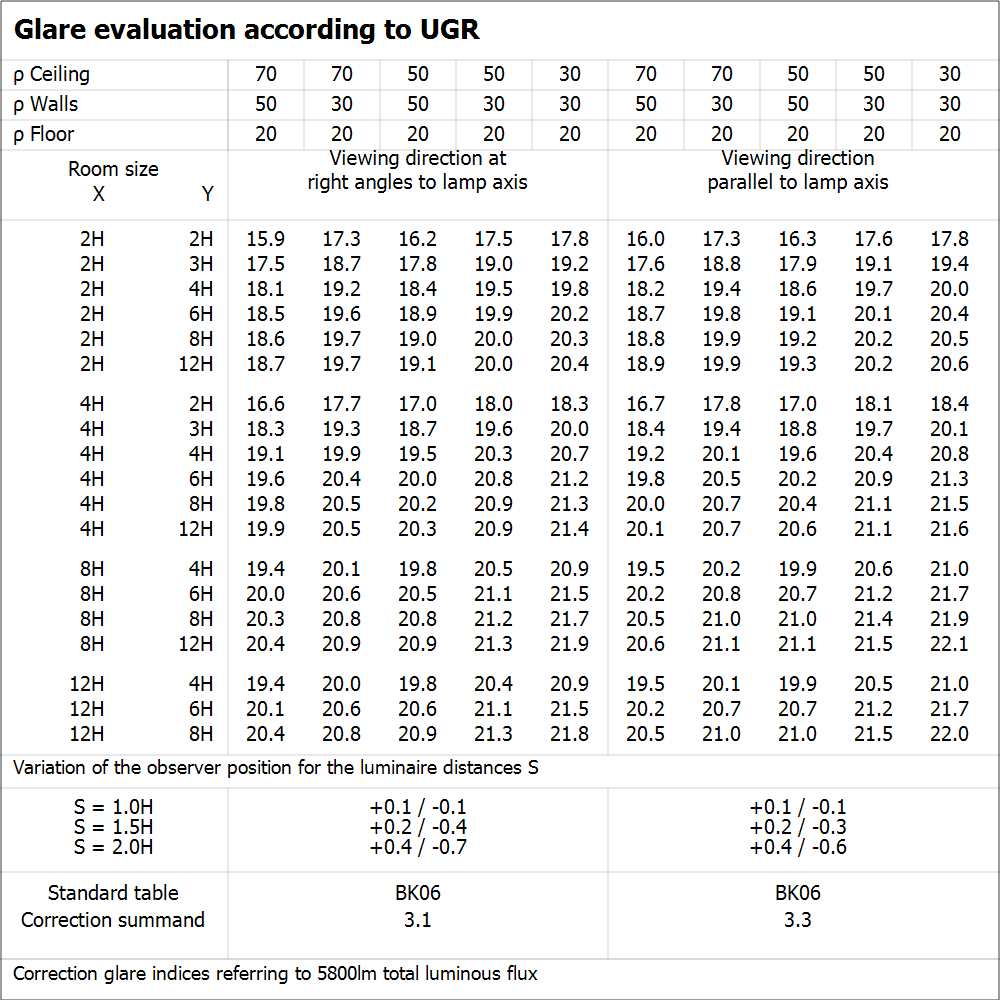

UGR file (UGR table)
