SPOT MULTI 2x30W
SPOT MULTI 2 x 30W 3000K FL WT/BK
GTIN: 4058075113961
Folding box / 1
Show all packages
Our warranty conditions
PRODUCT DETAILS
Product benefits
- Low flicker light thanks to special electronic control gear
- High luminous efficacy
- Covering against other ceiling installations thanks to closed sheet steel housing
- Easy replacement of external driver thanks to plug with bayonet lock
- Functional and minimalistic design
- 5 years guarantee
Areas of application
- Accent- and general lighting for all kind of salesrooms
- Fashion shops, accessories shops
- Shops, boutiques
- Hotel rooms
- Cafés
Product features
- Large faceted reflector for high light output
- Beam angle: 38°
- Gimbal adjustment angle: +/- 25°
Equipment / Accessories
- Driver included
Safety advice
- All electrical connections must be made by a qualified person.
- Caution, risk of electric shock.
- The luminaires are not suitable for covering with thermally insulated material.
References / Links
- For Guarantee see www.ledvance.com/guarantee
Electrical data
| Nominal wattage | 2*30 W |
| Nominal voltage | 220…240 V |
| Mains frequency | 50…60 Hz |
| Nominal current | 270 mA |
| Inrush current | 46 A |
| Inrush current time Th50 | < 3.4 µs |
| Max. number of luminaires per miniature circuit breaker B16 | 16 |
| Max. number of luminaires per miniature circuit breaker C10 | 13 |
| Max. number of luminaires per miniature circuit breaker C16 | 20 |
| Power factor λ | ≥0.90 |
| Total harmonic distortion | < 15 % |
| Protection class | II |
| Operating mode | External LED driver |
Photometrical data
| Luminous flux | 2*2700 lm |
| Luminous efficacy | 90 lm/W |
| Color temperature | 3000 K |
| Light color (designation) | Warm White |
| Color rendering index Ra | > 80 |
| Standard deviation of color matching | ≤4 sdcm |
| Luminous intensity | - |
| Low flicker | Yes |
| Flickering metric (Pst LM) | - |
| Stroboscope effect metric (SVM) | - |
| Photobiological safety group acc. to EN62778 | RG1 |
| Beam angle | 38 ° |
Dimensions & Weight
| Length | 330.00 mm |
| Height | 135.00 mm |
| Width | 173.00 mm |
| Product weight | 2700.00 g |
Materials & Colors
| Product color | White |
| Housing color | White |
| Body material | Aluminum |
| Cover material | Polymethylmethacrylate (PMMA) |
| Glow Wire Test according to IEC 60695-2-12 | 650 °C |
Application & Mounting
| Ambient temperature range | -10…+40 °C |
| Type of connection | Screw terminal, 2-Pole (L,N) |
| Type of protection | IP20 |
| Protection class IK (shock resistance) | IK03 |
| Dimmable | No |
| Mounting type | Recessed |
| Mounting location | Ceiling |
| Application environment | Indoor |
| Mounting length | 320 mm |
| Mounting width | 160 mm |
| Mounting depth | 250 mm |
| Adjustable | Yes |
| With light source | Yes |
Lifespan
| Lifespan L70/B50 at 25 °C | 50000 h 1) |
| Lifespan L80/B10 at 25 °C | 45000 h 1) |
| Lifespan L90/B10 at 25 °C | 30000 h |
| Number of switching cycles | 50000 |
1) t[h]: L70 / B50 @ 25 °C (Ta), t[h]: L80 / B10 @ 25 °C (Ta), t[h]: L90 / B10 @ 25 °C (Ta)
Control gear
| ECG - Length | 113 mm |
| ECG - Width | 40 mm |
| ECG - Height | 25 mm |
Certificates & Standards
| Standards | CE, CB, ENEC, TÜV SÜD, RoHS |
| Luminaire with limited surface temperature, "D sign" | No |
| Ball shot safe | No |
| Replaceable light source (EPREL) | Not replaceable |
PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS
| Quantity of precious metals | Contains at least 10 mg |
| Quantity of rare earths | Contains at least 1 mg |
| Minimum rate of recycled material in packaging | 80 % 1) |
| Minimum percentage of recycled content in the product | 0 % 1) |
| Product recyclability | Mostly recyclable product 1) |
| Packaging recyclability | Mostly recyclable packaging 1) |
| List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage | No |
| Contains substances of very high concern in concentrations greater than 0.1% by mass percentage | No |
| List of substances of very high concern in concentrations greater than 0.1% in mass percentage | Additional info can be provided per individual request |
1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)
| Product code | Packaging unit (Pieces/Unit) | Dimensions (length x width x height) | Gross weight | Volume |
|---|---|---|---|---|
| 4058075113961 | Folding box 1 |
210 mm x 355 mm x 175 mm | 2810.00 g | 13.05 dm³ |
| 4058075113978 | Shipping box 4 |
730 mm x 220 mm x 355 mm | 11996.00 g | 57.01 dm³ |
User instruction / safety instructions
UI Spot Multi
UI Spot Multi
On-Pack-Info
Legal Insert Spot LED
Legal Insert Spot LED
Legal information
LSI SP MULTI
LSI SP MULTI
Legal information
Informationstext 18 Abs 4 ElektroG
Informationstext 18 Abs 4 ElektroG
Declarations of conformity
EU Declaration of Conformity Spot Multi LEDV
EU Declaration of Conformity Spot Multi LEDV
Declarations of conformity
Attestation-of-Conform ity SP SQ and Multi TÜV
Attestation-of-Conform ity SP SQ and Multi TÜV
Product image: white background, diagonal
SP MULTI 2 x 30W
SP MULTI 2 x 30W
Product image: white background, upright
SP MULTI 2 x 30W
SP MULTI 2 x 30W
Product line drawing with letters
SP MULTI 2 x 30W
SP MULTI 2 x 30W
Product line drawing with numbers
SP MULTI 2 x 30W
SP MULTI 2 x 30W
Product line drawing - technical
SP MULTI 2 x 30W
SP MULTI 2 x 30W
Combo Shot = Product Beauty Shot + Packaging Image
Spot Multi 2x 30W 830 FL white MiCh Side
Spot Multi 2x 30W 830 FL white MiCh Side

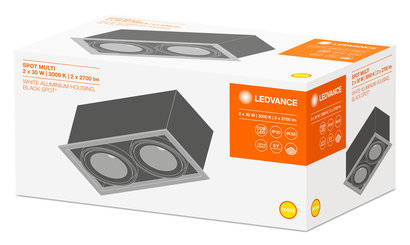

Packaging image, spacial
Spot Multi 2x 30W 830 FL white MiCh Side
Spot Multi 2x 30W 830 FL white MiCh Side
Catalog info 1
Spot Multi 1x 30W 830
Spot Multi 1x 30W 830
Catalog info 2
Spot Multi 1x 30W 830
Spot Multi 1x 30W 830
Catalog info 6
Spot Multi 1x 30W 830
Spot Multi 1x 30W 830
IES file (IES)
SP MULTI 2 x 30W3000K FL WT
SP MULTI 2 x 30W3000K FL WT
LDT file (Eulumdat)
SP MULTI 2 x 30W3000K FL WT
SP MULTI 2 x 30W3000K FL WT
ULD file (DIALux)
SPOTMULTI2x30W3000KFLW TBK
SPOTMULTI2x30W3000KFLW TBK
ROLF file (RELUX)
SP MULTI 2X30W-3000K
SP MULTI 2X30W-3000K
UGR file (UGR table)
SP MULTI 2 x 30W3000K FL WT
SP MULTI 2 x 30W3000K FL WT
Light distribution curve type cone
SP MULTI 2 x 30W3000K FL WT
SP MULTI 2 x 30W3000K FL WT
Light distribution curve type polar
SP MULTI 2 x 30W3000K FL WT
SP MULTI 2 x 30W3000K FL WT
BIM Revit 3D
Spot Multi
Spot Multi
CAD STEP 3D
SP MULTI 2x30W
SP MULTI 2x30W
Tender documents
SPOT MULTI 2x30W 3000K FL WTBK-EN
SPOT MULTI 2x30W 3000K FL WTBK-EN
Application pictures
Shop Spot Multi, Spot Vario, Tracklight Spot
Shop Spot Multi, Spot Vario, Tracklight Spot
| EAN | SEG number | STK number | EFO number | ELDAS number |
|---|---|---|---|---|
| 4058075113961 | 7451222 | 4231933 | 3201943 | 941400570 |
