ECO AREA HIGH POWER
ECO AREA SPD 150W 840 IP66 GY
GTIN: 4058075557956
Folding box / 1
Show all packages
Our warranty conditions
PRODUCT DETAILS
Product benefits
- Functional and minimalistic design
- Low maintenance and operation costs due to long lifetime of LED
- 5 years guarantee
Areas of application
- Road lighting
- Streets
- Car parks
- Area lighting
Product features
- Asymmetric light distribution for various application areas
- Robust die-cast aluminum housing
- Side-entry mounting for 48…60 mm poles
- Surge protection: 10 kV (L/N-PE)
- Integrated wide voltage driver, suitable for 100 - 240 VAC
- Pre-installed, flexible 0.5 m cable (H05RN-F), wrapped 3 x 1.0 mm² single wires
References / Links
- For Guarantee see www.ledvance.com/guarantee
Electrical data
| Nominal wattage | 150.00 W |
| Nominal voltage | 100…240 V |
| Mains frequency | 50…60 Hz |
| Nominal current | 750 mA |
| Inrush current time Th50 | 1400 µs |
| Max. number of luminaires per miniature circuit breaker B16 | 4 |
| Max. number of luminaires per miniature circuit breaker C10 | 5 |
| Max. number of luminaires per miniature circuit breaker C16 | 8 |
| Power factor λ | > 0.95 |
| Total harmonic distortion | < 20 % |
| Protection class | I |
| Operating mode | Mains voltage |
Photometrical data
| Luminous flux | 19500 lm |
| Luminous efficacy | 130 lm/W |
| Color temperature | 4000 K |
| Light color (designation) | Cool White |
| Color rendering index Ra | > 80 |
| Standard deviation of color matching | ≤5 sdcm |
| Photobiological safety group acc. to EN62778 | RG1 |
| Photobiological safety group acc. to EN62471 | RG1 |
| Beam angle | 150 ° x 85 ° |
Dimensions & Weight
| Length | 653.00 mm |
| Height | 91.00 mm |
| Width | 274.00 mm |
| Product weight | 4400.00 g |
| Cable length | 500 mm |
Materials & Colors
| Product color | Gray |
| Housing color | Gray |
| Body material | Aluminum |
| Cover material | Polycarbonate (PC) |
| Mercury content | 0.0 mg |
Application & Mounting
| Ambient temperature range | -30…+50 °C |
| Temperature range at storage | -35…+70 °C |
| Type of connection | Cable, 3-pole |
| Type of protection | IP66 |
| Protection class IK (shock resistance) | IK08 |
| Dimmable | No |
| Mounting type | Side entry |
| Mounting location | Pole |
| Application environment | Outdoor |
| With light source | Yes |
Lifespan
| Lifespan L70/B50 at 25 °C | 50000 h 1) |
| Lifespan L80/B10 at 25 °C | 35000 h 1) |
| Number of switching cycles | 100000 |
1) t[h]: L70 / B50 @ 25 °C (Ta), t[h]: L80 / B10 @ 25 °C (Ta), t[h]: L90 / B10 @ 25 °C (Ta)
Certificates & Standards
| Standards | CE, EAC, ENEC |
| Luminaire with limited surface temperature, "D sign" | No |
| Replaceable light source (EPREL) | Not replaceable |
PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS
| Quantity of precious metals | Contains at least 10 mg |
| Quantity of rare earths | Contains at least 1 mg |
| Minimum rate of recycled material in packaging | 80 % 1) |
| Minimum percentage of recycled content in the product | 0 % 1) |
| Product recyclability | Mostly recyclable product 1) |
| Packaging recyclability | Mostly recyclable packaging 1) |
| List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage | No |
| Contains substances of very high concern in concentrations greater than 0.1% by mass percentage | Yes |
| List of substances of very high concern in concentrations greater than 0.1% in mass percentage | Lead (7439-92-1) |
1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)
| Product code | Packaging unit (Pieces/Unit) | Dimensions (length x width x height) | Gross weight | Volume |
|---|---|---|---|---|
| 4058075557956 | Folding box 1 |
684 mm x 128 mm x 311 mm | 4890.00 g | 27.23 dm³ |
| 4058075557963 | Shipping box 2 |
699 mm x 274 mm x 355 mm | 10692.00 g | 67.99 dm³ |
User instruction / safety instructions
ECO AREA SPD IP66 GY
ECO AREA SPD IP66 GY
Addon technical information
ECO AREA SPD IP66 GY
ECO AREA SPD IP66 GY
Legal information
Informationstext 18 Abs 4 ElektroG
Informationstext 18 Abs 4 ElektroG
Legal information
ECO AREA SPD IP66 GY
ECO AREA SPD IP66 GY
Declarations of conformity
ECO AREA SPD
ECO AREA SPD
Product image: white background, diagonal with LEDVANCE logo
ECO AREA SPD 150W EUE
ECO AREA SPD 150W EUE
Product image: white background, diagonal with LEDVANCE logo
ECO CLASS AREA 150W
ECO CLASS AREA 150W
Product image: white background, upright LEDVANCE logo
ECO ARE SPD 150W EUE
ECO ARE SPD 150W EUE
Product image: white background, spacial
ECO AREA SPD 150W EUE
ECO AREA SPD 150W EUE
Product line drawing with letters
ECO AREA SPD 150W
ECO AREA SPD 150W
Product line drawing with numbers
ECO AREA SPD 150W
ECO AREA SPD 150W
Light distribution curve type polar
ECO AREA SPD 150W
ECO AREA SPD 150W
Application pictures

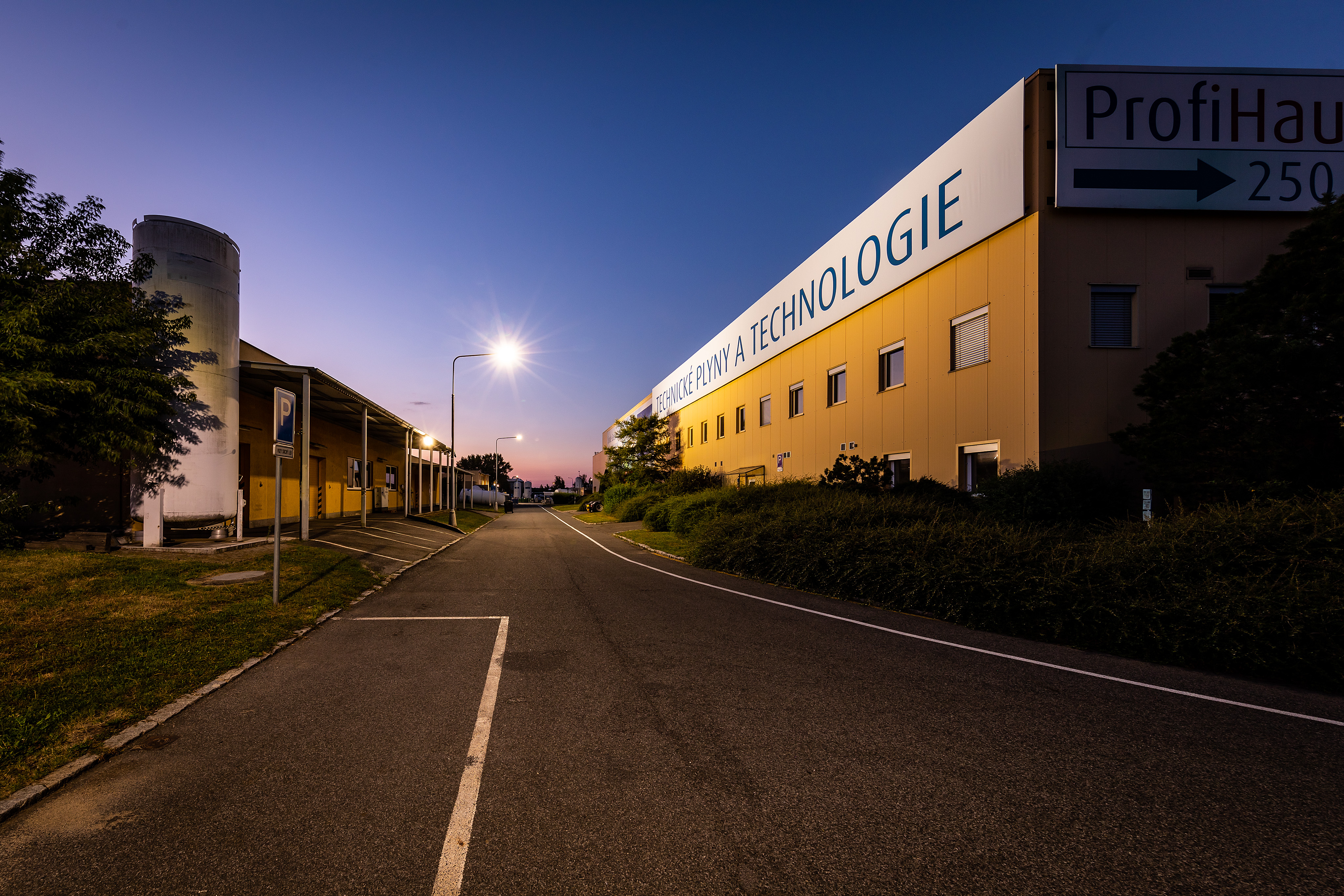

Streetlighting Case Study Linde 6
