NIGHTLUX CARTOON

NIGHTLUX Cartoon Sensor

GTIN: 4058075575592 Blister / 1 Show all packages
Our warranty conditions

PRODUCT DETAILS

Product benefits
  • Automatically switches on and off according to the amount of available daylight
  • Economical operation due to low power consumption
  • Easy and fast mounting on nearly every surface (adhesive tape or screws)
  • Accessories for flexible mounting options included
Areas of application
  • Kitchens, workspaces
  • Children's bedrooms
  • Nightlight
Product features
  • PIR motion detector and daylight sensor
  • Exchangeable motifs included
Safety advice
  • This product is not a toy. It should not be left unattended in the hands of children or operated by children.
  • Not designed as a replacement for conventional lighting in private household.
  • Battery Warning: Keep out of reach for children. Swallowing can lead to chemical burns, perforation of soft tissue, and death. Severe burns can occur within 2 hours of ingestion. Seek medical attention immediately.
  • If the battery compartment (if applicable) does not close securely, stop using the product and keep it away from children. If you think batteries might have been swallowed or placed inside any part of the body, seek immediate medical attention.
  • Please avoid: Maximal ambient temperature: +35 °C. Replacement of a battery with an incorrect type that can defeat safeguard (for example, in the case of some lithium battery types). Altitude during operation: 2000 m. Disposal of a battery into fire or a hot oven, or mechanically crushing or cutting of a battery, that can result in an explosion.
Electrical data
Nominal wattage 0.20 W
Nominal voltage 4,5 V
Mains frequency 50…60 Hz
Nominal current 45.000 mA
Max. number of luminaires per miniature circuit breaker C10 -
Protection class III
Operating mode Battery
Photometrical data
Luminous flux 10 lm
Color temperature 3000 K
Light color (designation) Warm White
Color rendering index Ra ≥80
Standard deviation of color matching < 6 sdcm
Photobiological safety group acc. to EN62778 RG1
Photobiological safety group acc. to EN62471 RG1
Beam angle 120 °
Dimensions & Weight
Length 60.00 mm
Height 80.00 mm
Width 24.00 mm
Product weight 120.00 g
Materials & Colors
Product color White
Housing color White
Body material Plastic
Mercury content 0.0 mg
Application & Mounting
Ambient temperature range -20…+40 °C
Temperature range at storage -20…+80 °C
Type of protection IP20
Dimmable No
Mounting type Surface
Mounting location Wall
Application environment Indoor
With light source Yes
Replaceable light source No
Lifespan
Lifespan L70/B50 at 25 °C 15000 h 1)
Number of switching cycles 15000
1) t[h]: L70 / B50 @ 25 °C (Ta), t[h]: L80 / B10 @ 25 °C (Ta), t[h]: L90 / B10 @ 25 °C (Ta)
Sensor
Type of sensor Light, Motion
Sensor detection angle 110 °
Sensor controlled switching time 30 s
Detection range of motion sensor 2.7 m
Detection threshold of daylight sensor 25 lx
BATTERY
Type of Battery Alkaline
Battery size [GMS] AAA
Number of included batteries 3
Nominal voltage of battery 1.5 V
Certificates & Standards
Standards CE, UKCA
Replaceable light source (EPREL) Not replaceable
PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS
Minimum rate of recycled material in packaging 80 % 1)
Minimum percentage of recycled content in the product 0 % 1)
Product recyclability Mostly recyclable product 1)
Packaging recyclability Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage Yes
List of substances of very high concern in concentrations greater than 0.1% in mass percentage Lead (7439-92-1)
1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)
Product code Packaging unit (Pieces/Unit) Dimensions (length x width x height) Gross weight Volume
4058075575592 Blister
1
36 mm x 160 mm x 400 mm 244.00 g 2.30 dm³
4058075575608 Shipping box
6
423 mm x 241 mm x 186 mm 1930.00 g 18.96 dm³
Declarations of conformity
EC_NIGHTLUX_DOT-IT NURSERY

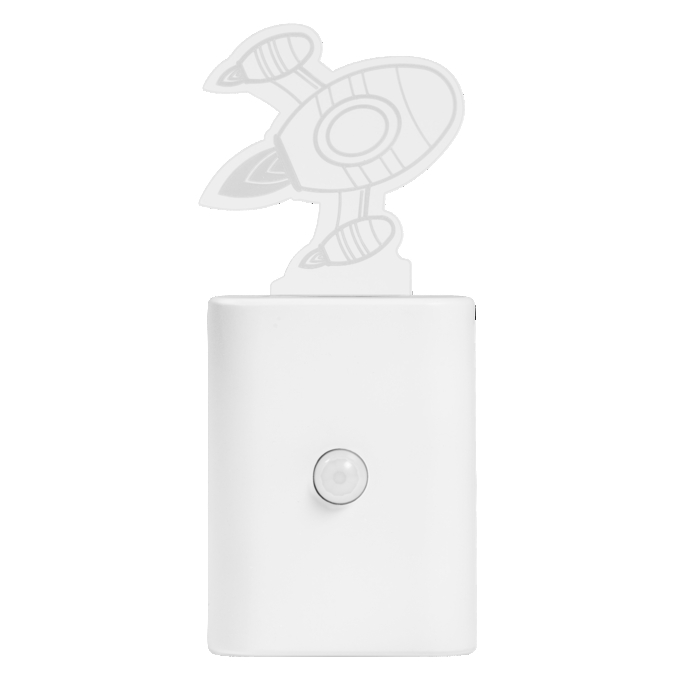

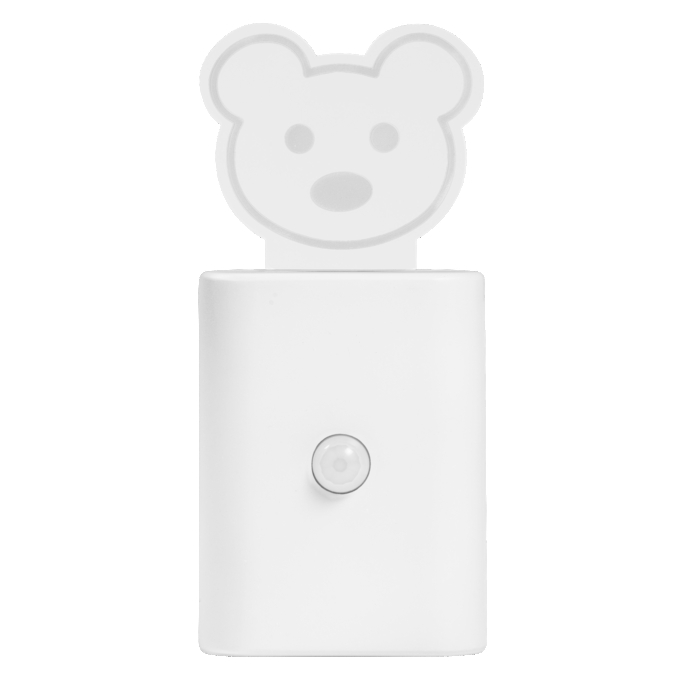

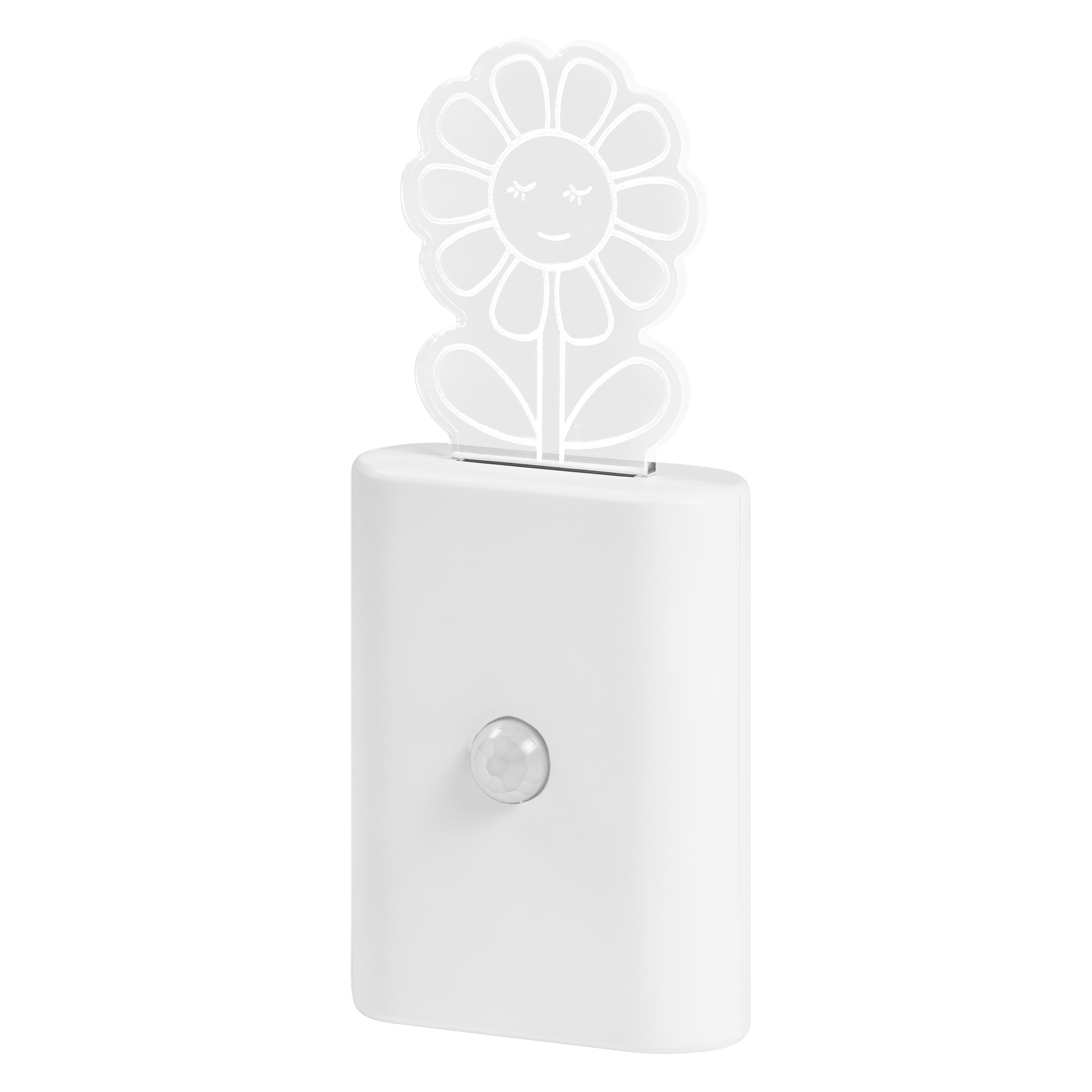

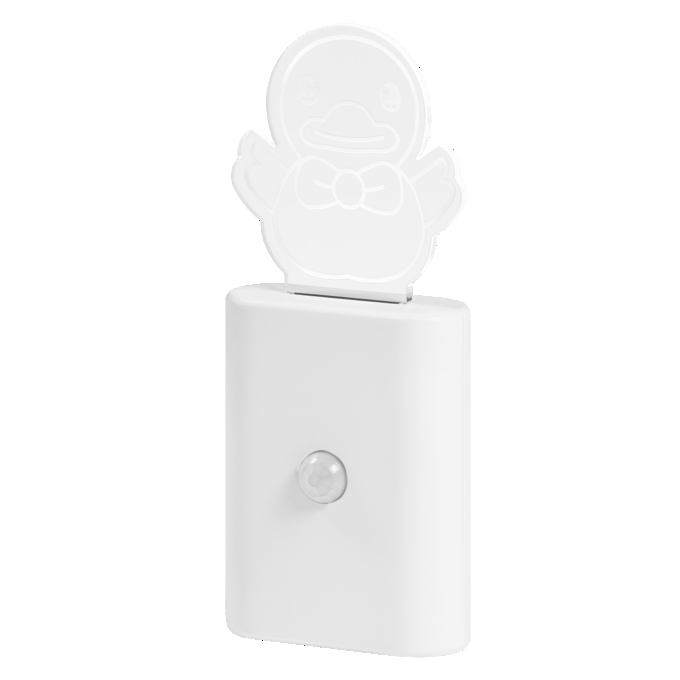

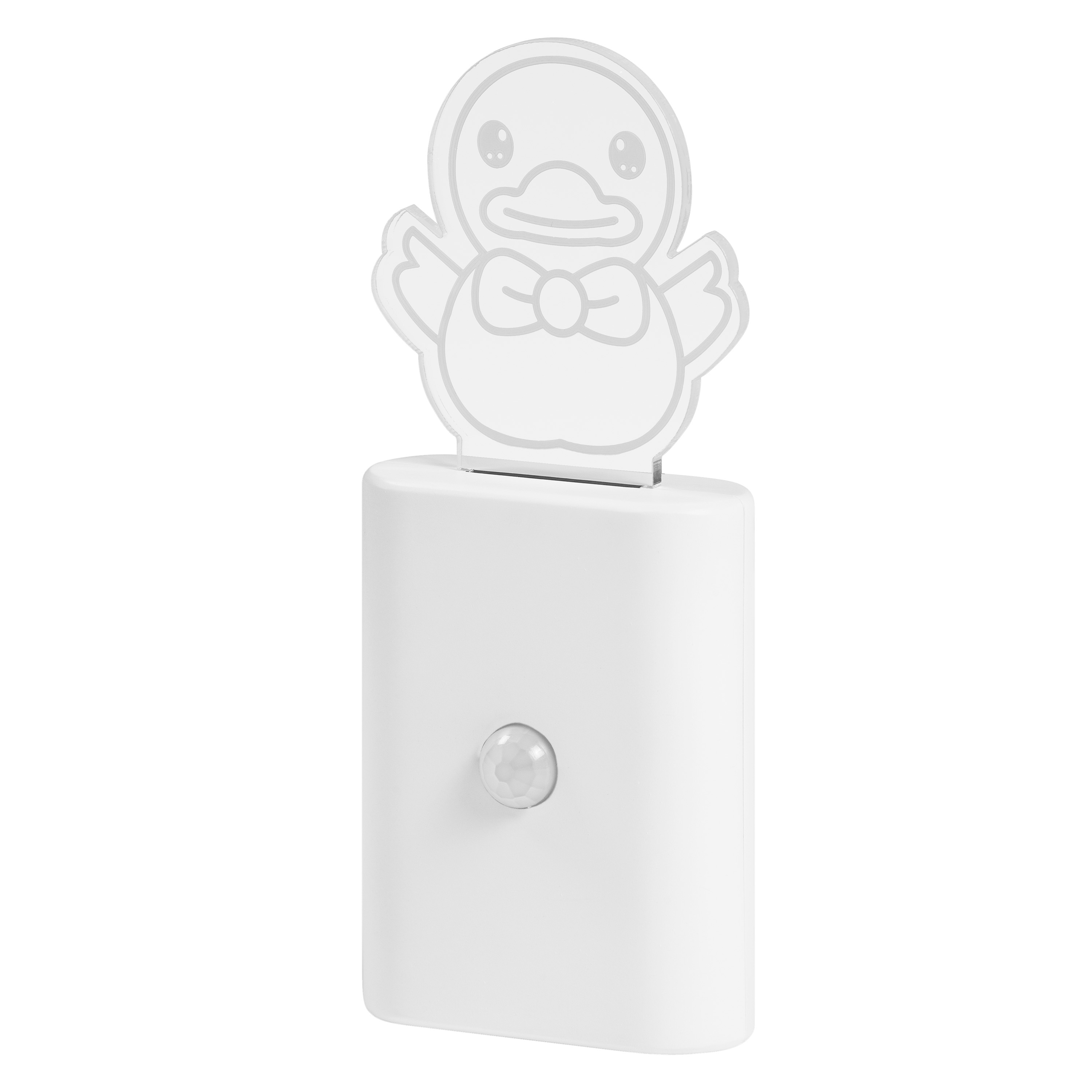

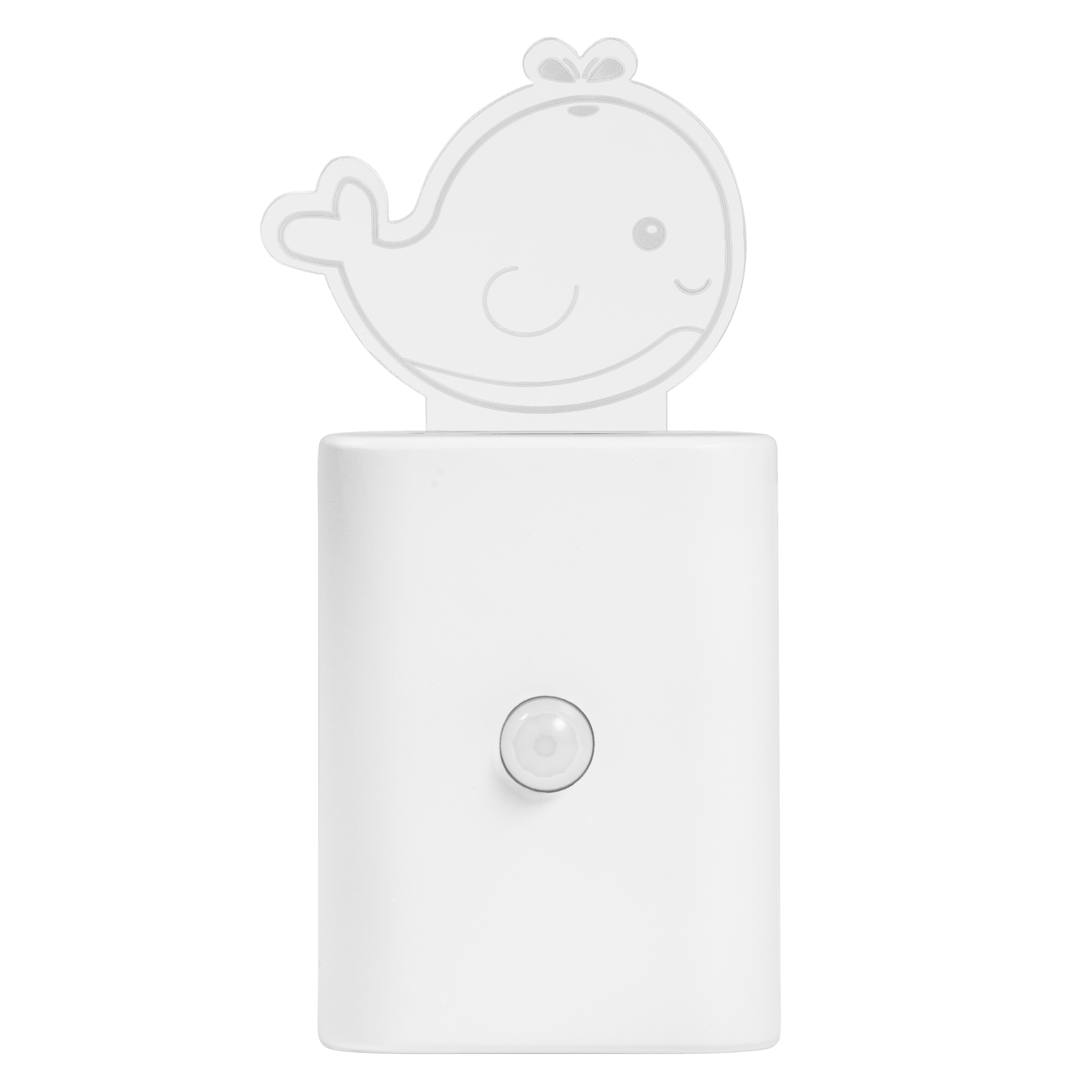

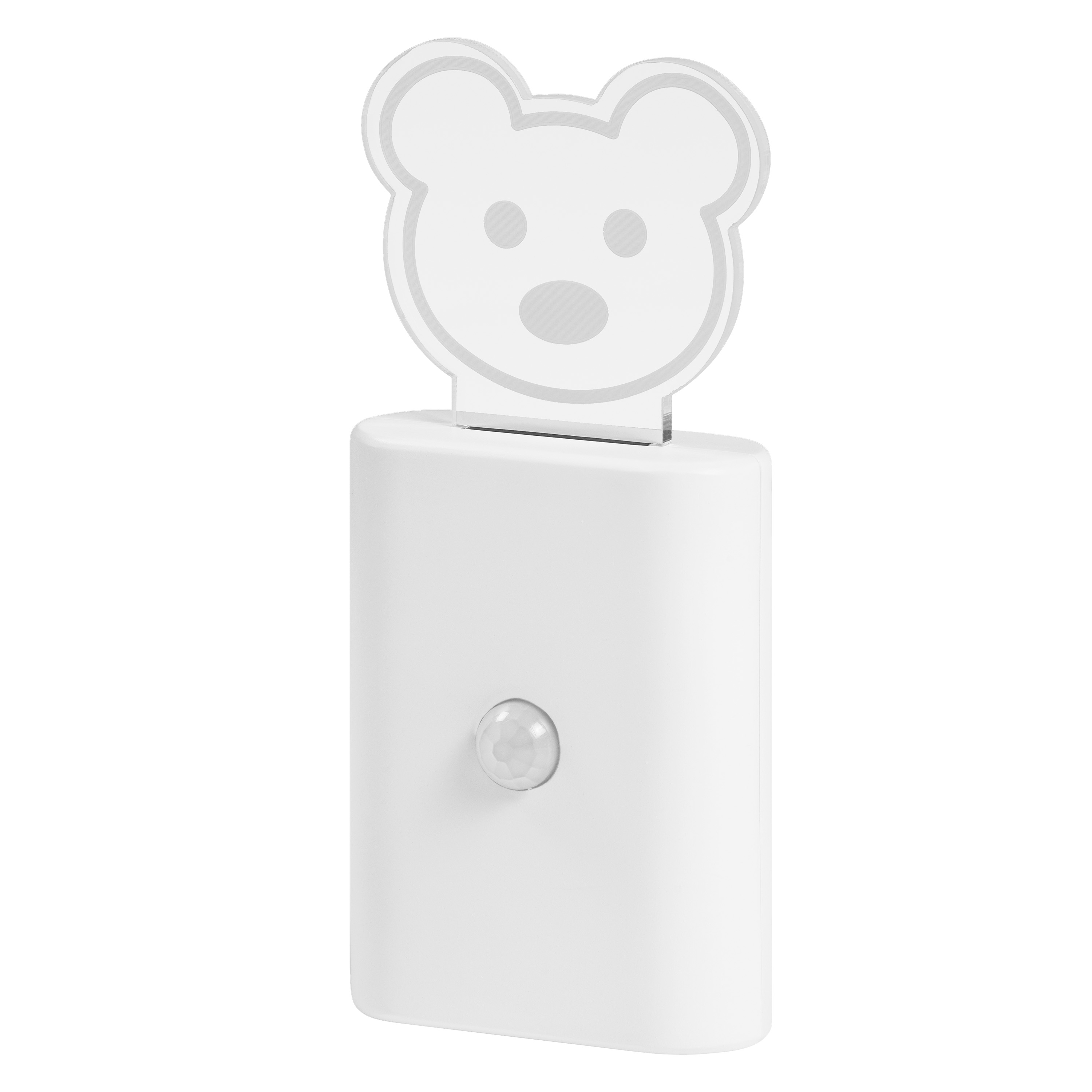

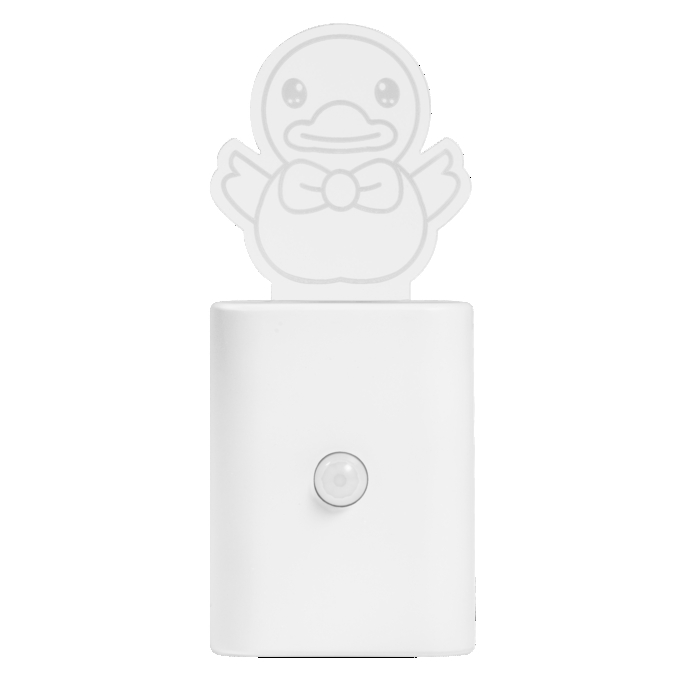

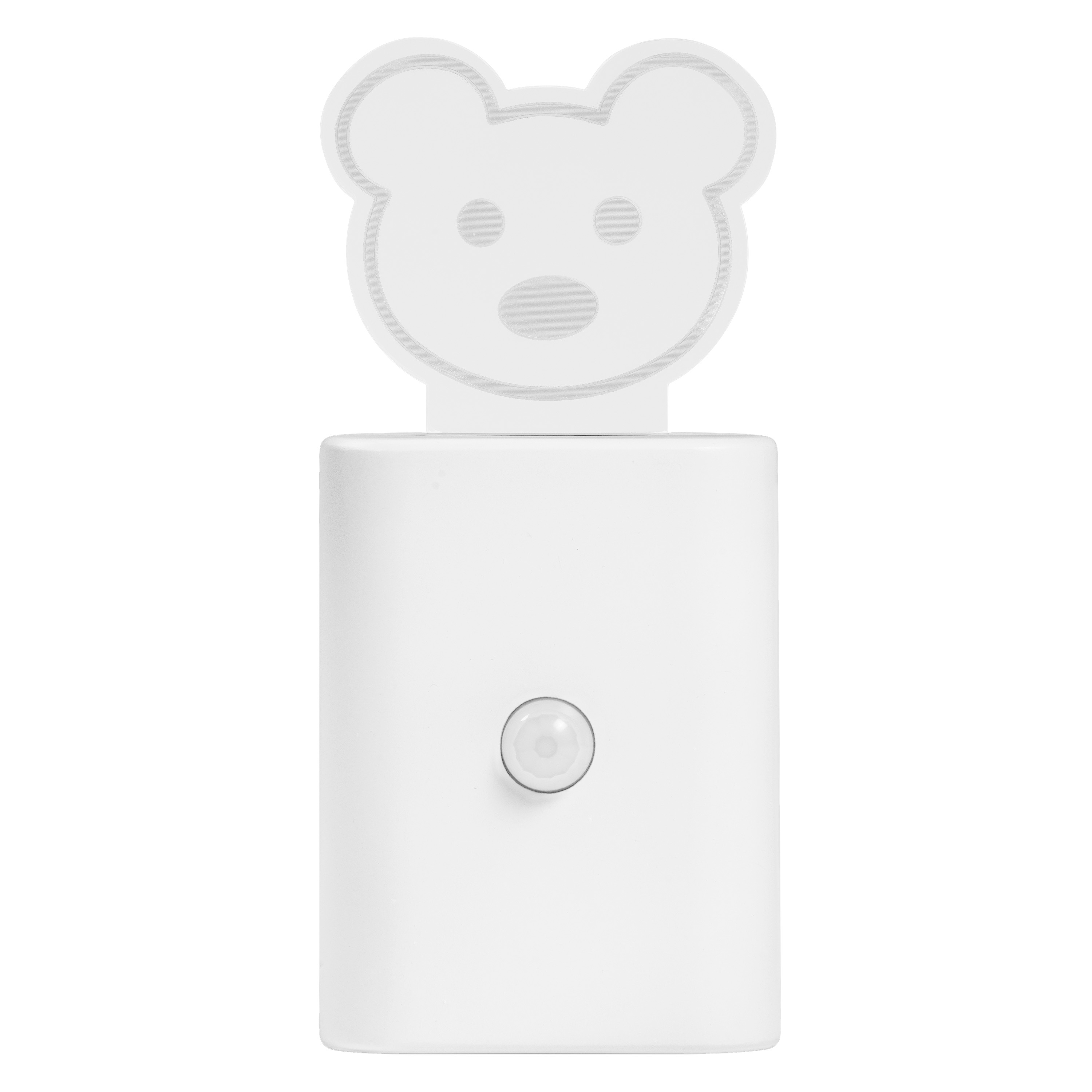

Product image: white background, upright
NIGHTLUX CARTOON SEN 840 WT
Product image: white background, upright
NIGHTLUX CARTOON SEN 840 WT
Product image: white background, upright
NIGHTLUX CARTOON SEN 840 WT
Product image: white background, upright
NIGHTLUX CARTOON SEN 840 WT

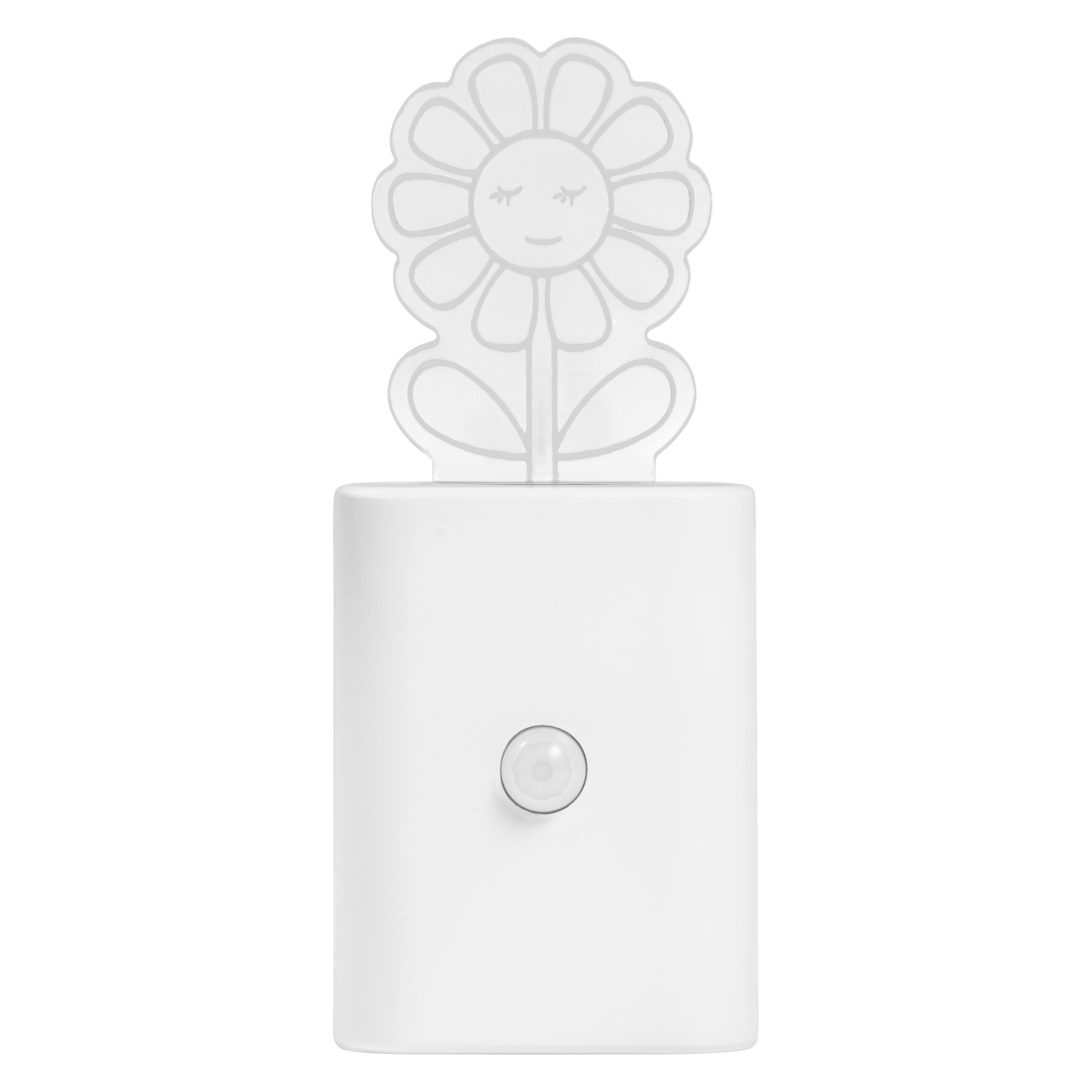

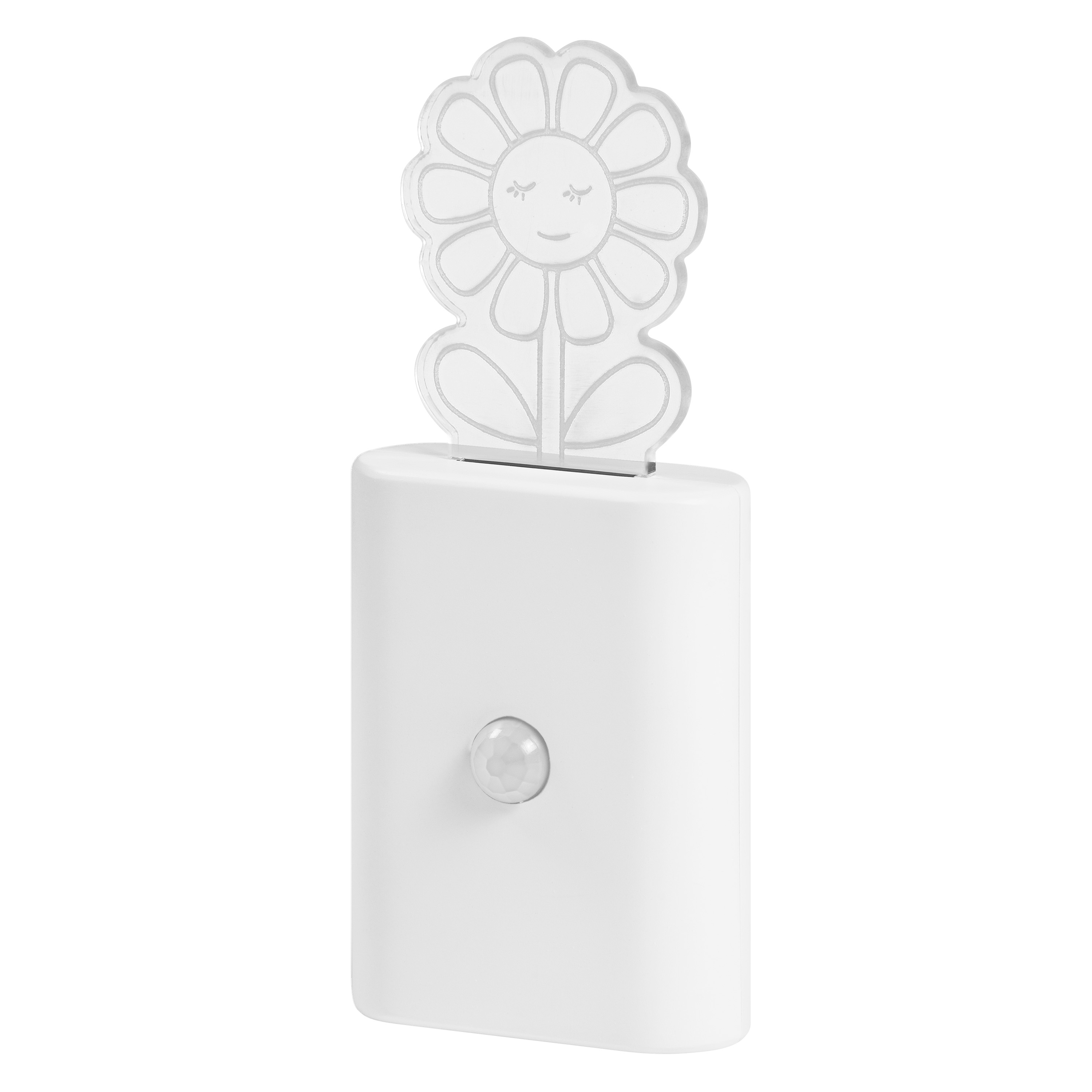

Product image: white background, upright
NIGHTLUX CARTOON SEN WT

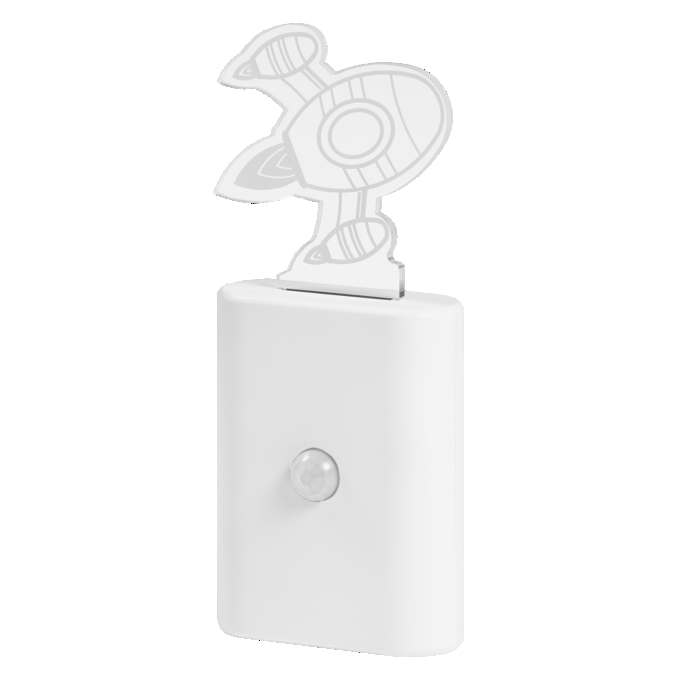

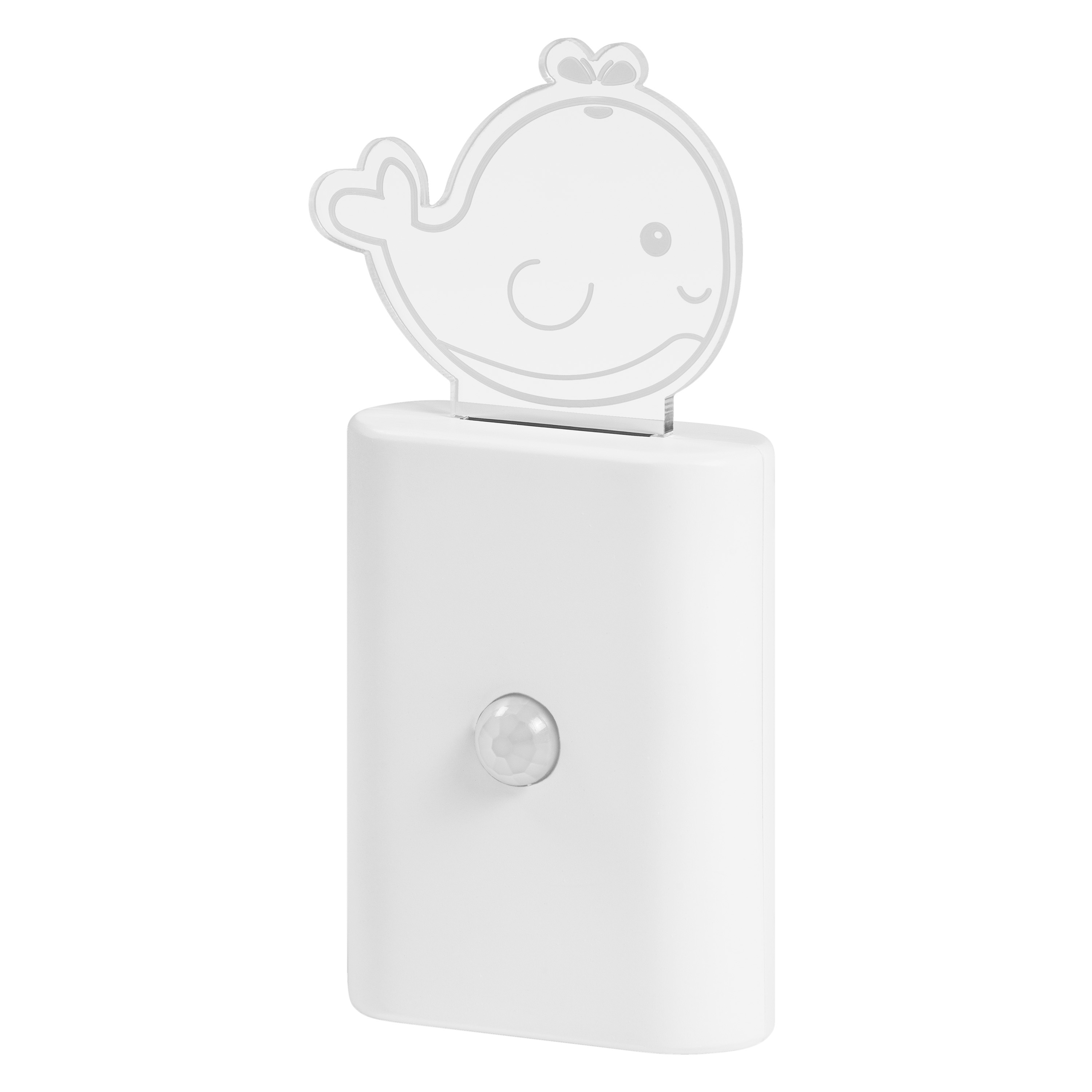

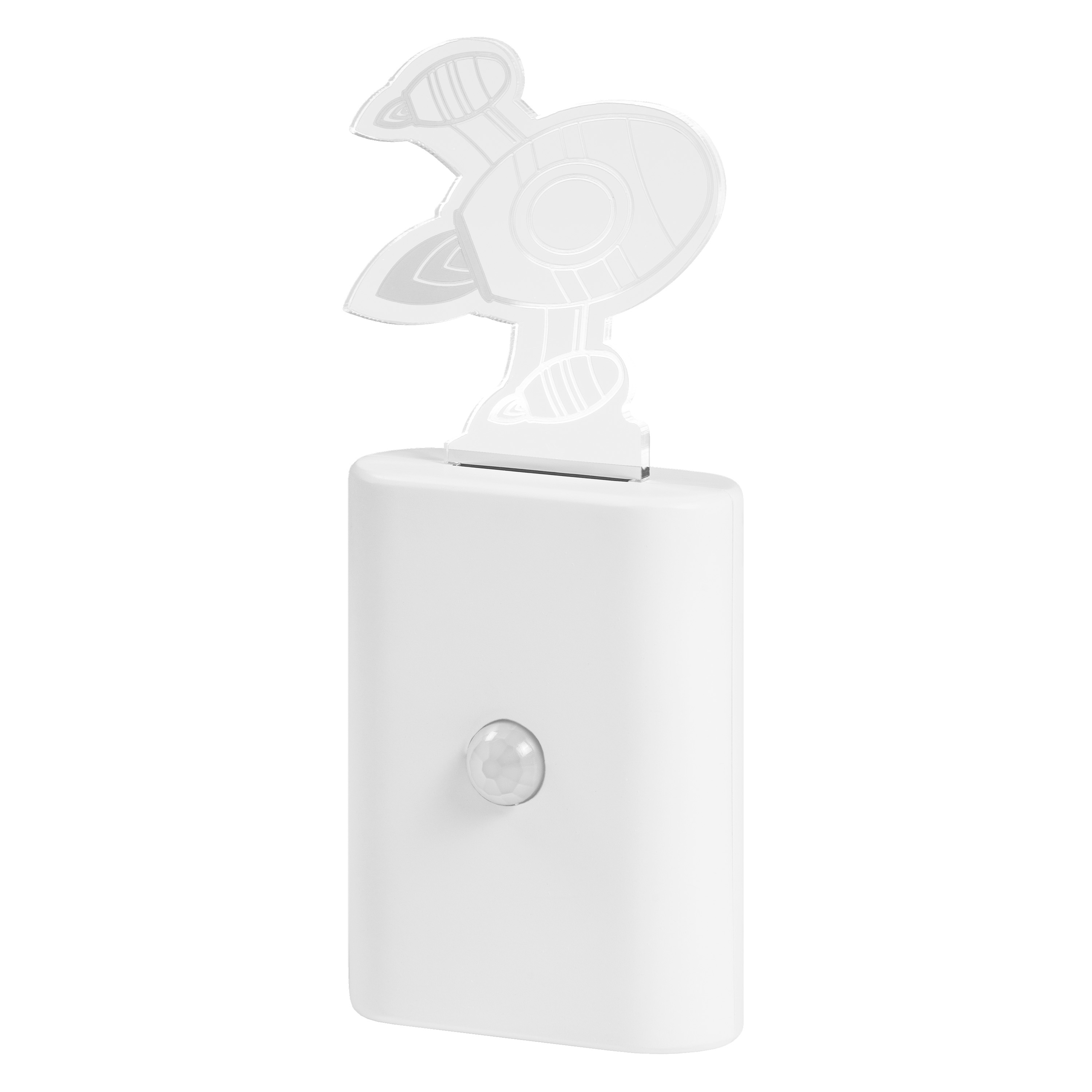

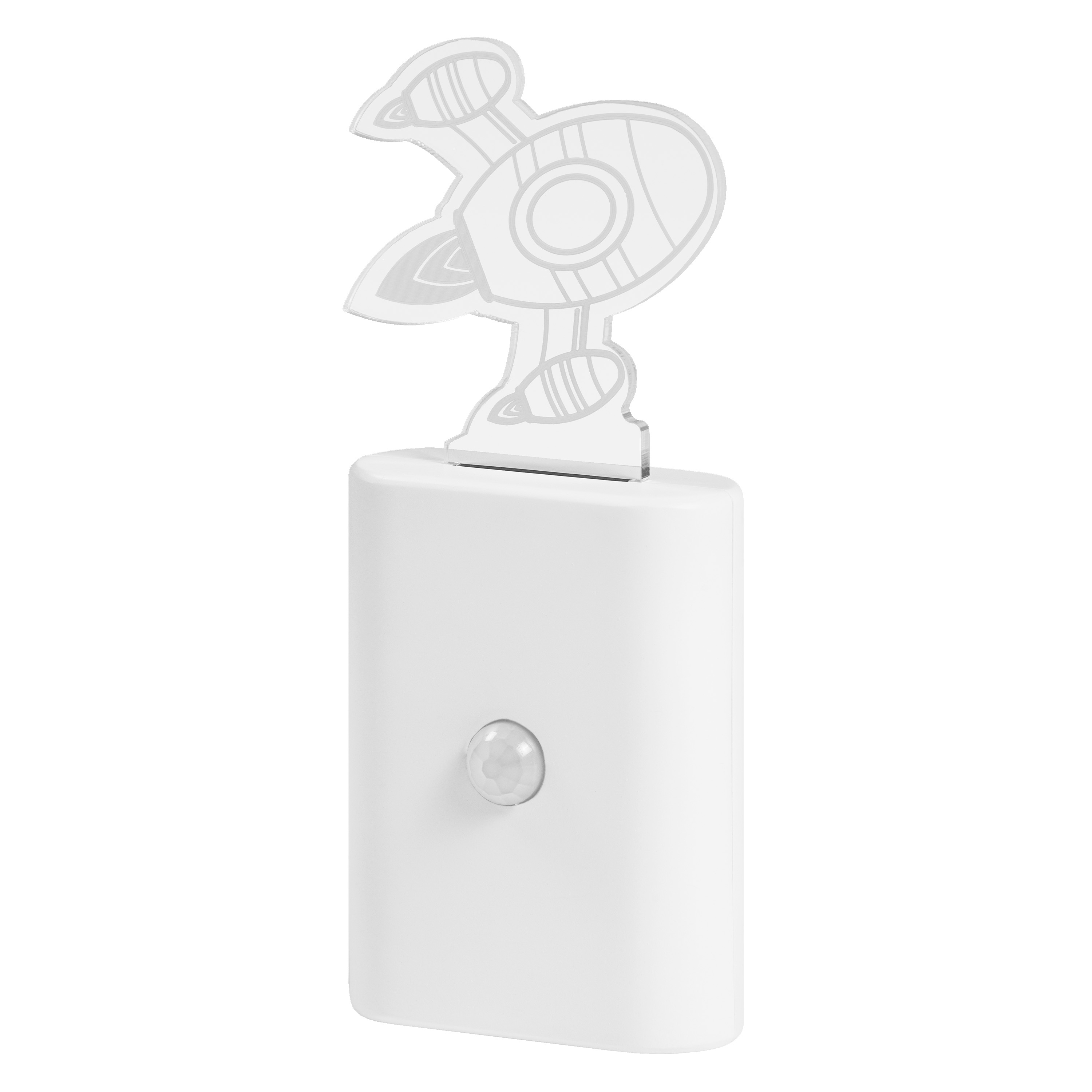

Product image: white background, upright, alternative image
NIGHTLUX CARTOON SEN 840 WT
Product image: white background, upright, alternative image
NIGHTLUX CARTOON SEN 840 WT
Product image: white background, upright, alternative image
NIGHTLUX CARTOON SEN 840 WT
Product image: white background, upright, alternative image
NIGHTLUX CARTOON SEN 840 WT
Product image: white background, upright, alternative image
NIGHTLUX CARTOON SEN WT

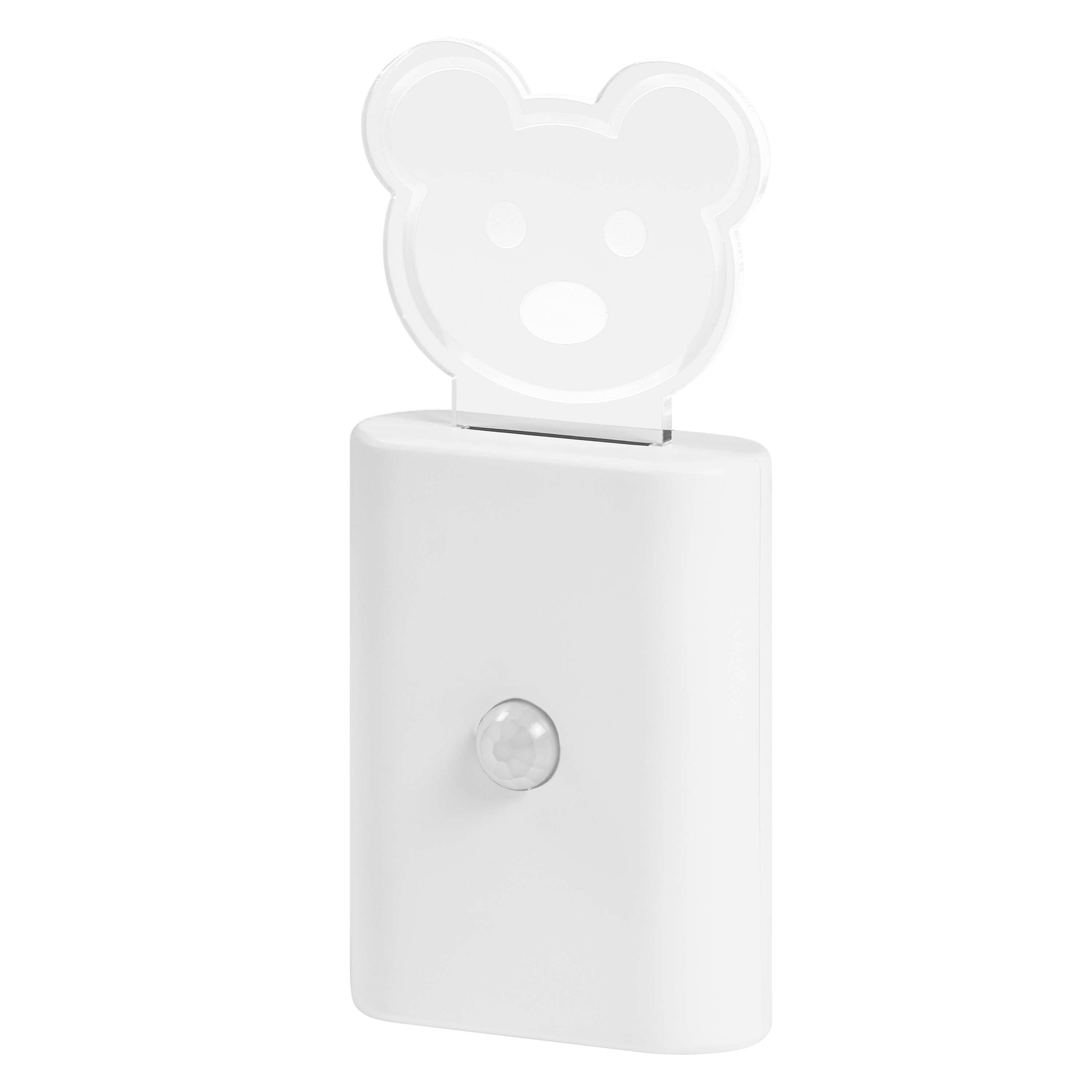

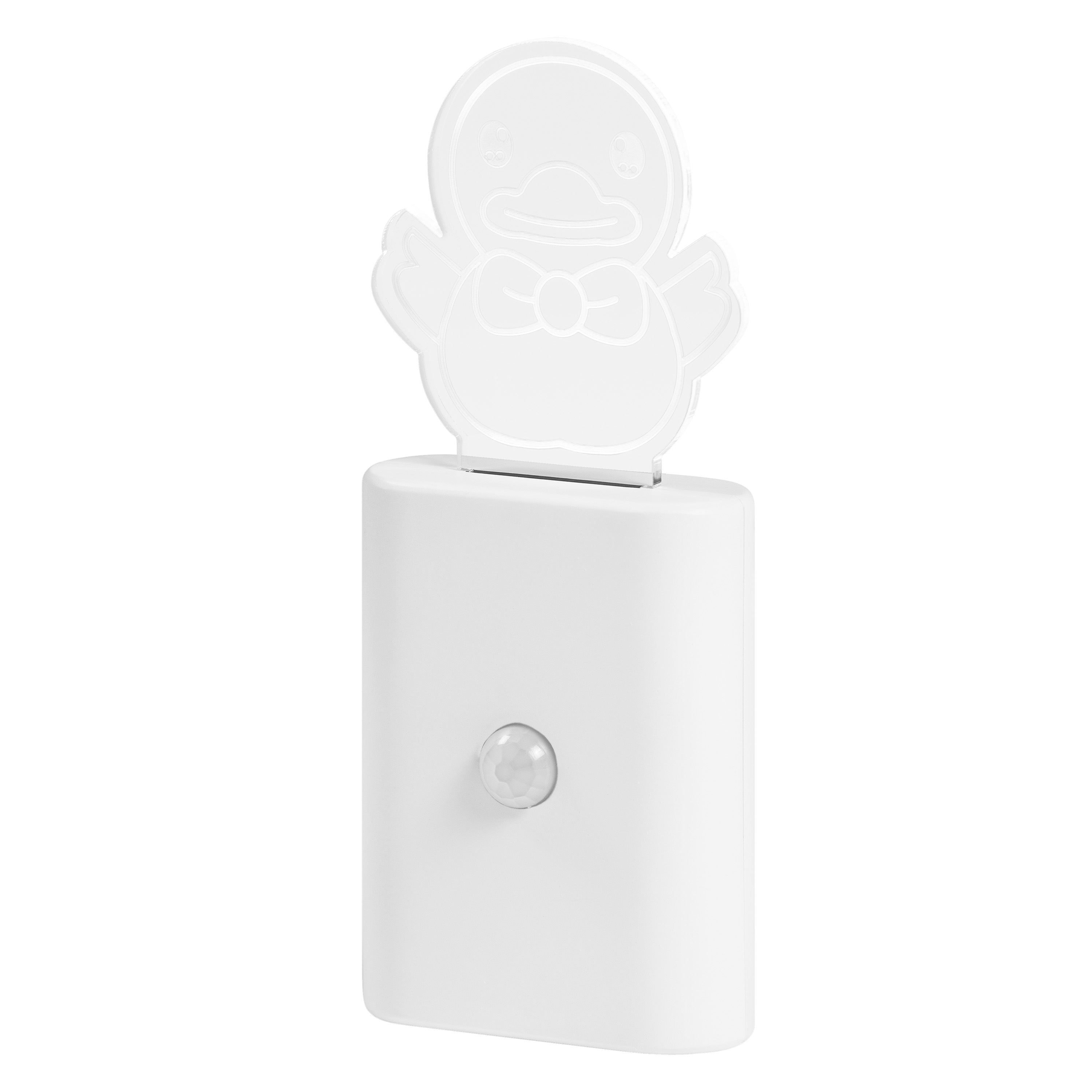

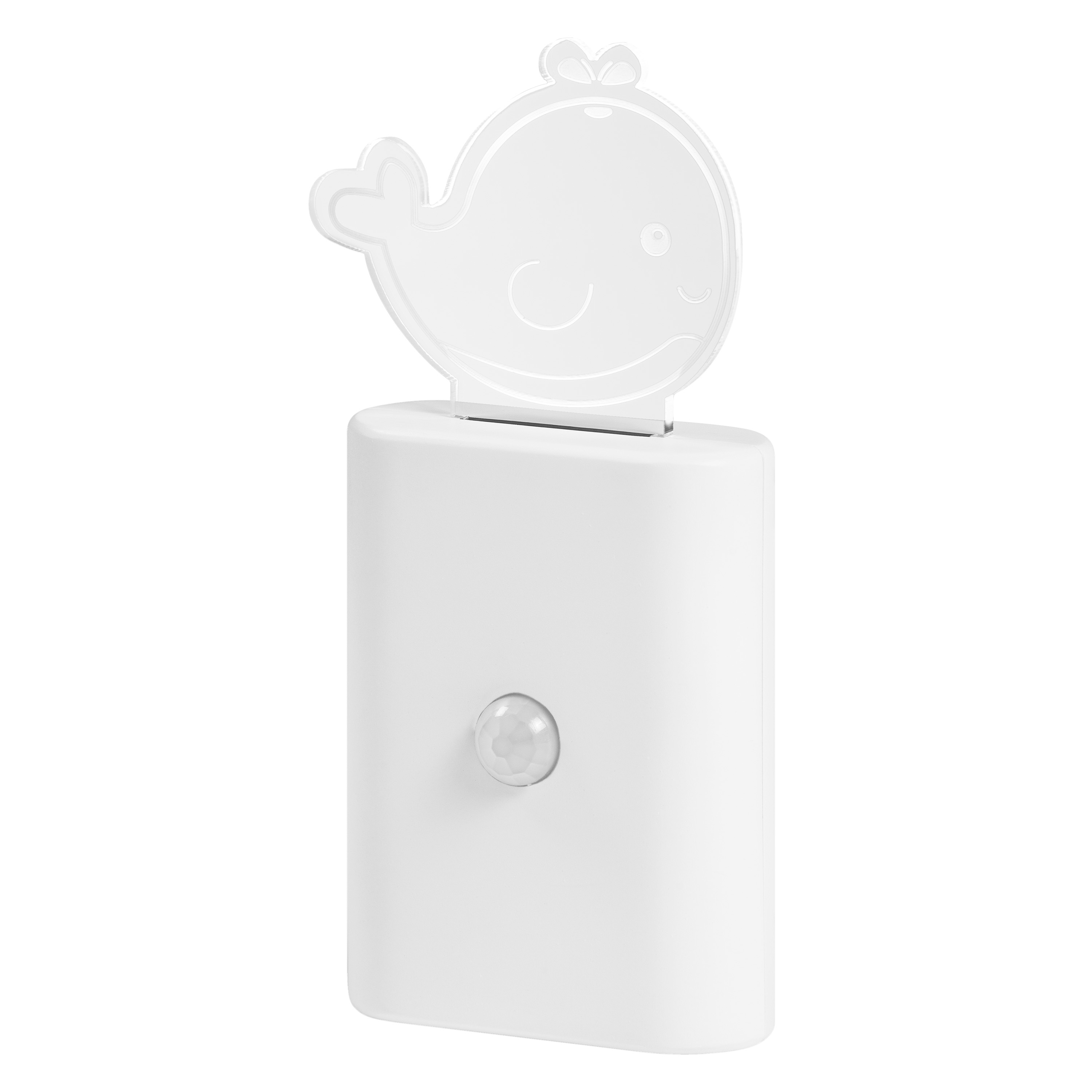

Product image: white background, upright, switched on
NIGHTLUX CARTOON SEN 840 WT
Product image: white background, upright, switched on
NIGHTLUX CARTOON SEN 840 WT
Product image: white background, upright, switched on
NIGHTLUX CARTOON SEN 840 WT
Product image: white background, upright, switched on
NIGHTLUX CARTOON SEN 840 WT
Product image: white background, upright, switched on
NIGHTLUX CARTOON SEN WT
Product line drawing with letters
NIGHTLUX CARTOON SEN 840 WT
Product line drawing with numbers
NIGHTLUX CARTOON SEN 840 WT
Product line drawing, front, no dimensions
NIGHTLUX CARTOON SEN 840 WT

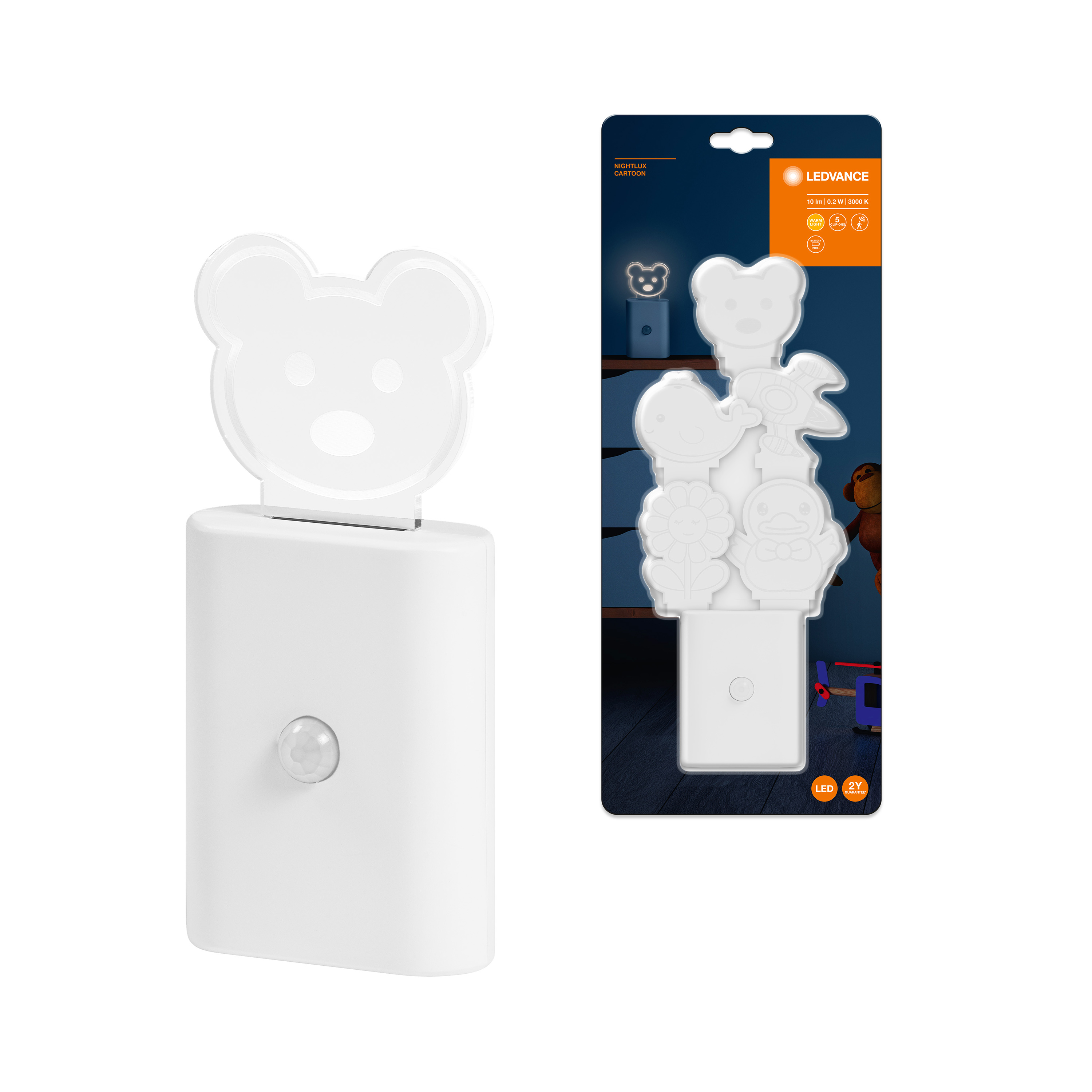

Combo Shot = Product Beauty Shot + Packaging Image
NIGHTLUX CARTOON SEN 830 WT LEDV
Packaging image, frontal
LUM BLI NIGHTLUX CARTOON SEN MiPRC
Application pictures Getty
INDOOR LUNETTA CARTOON BEAR

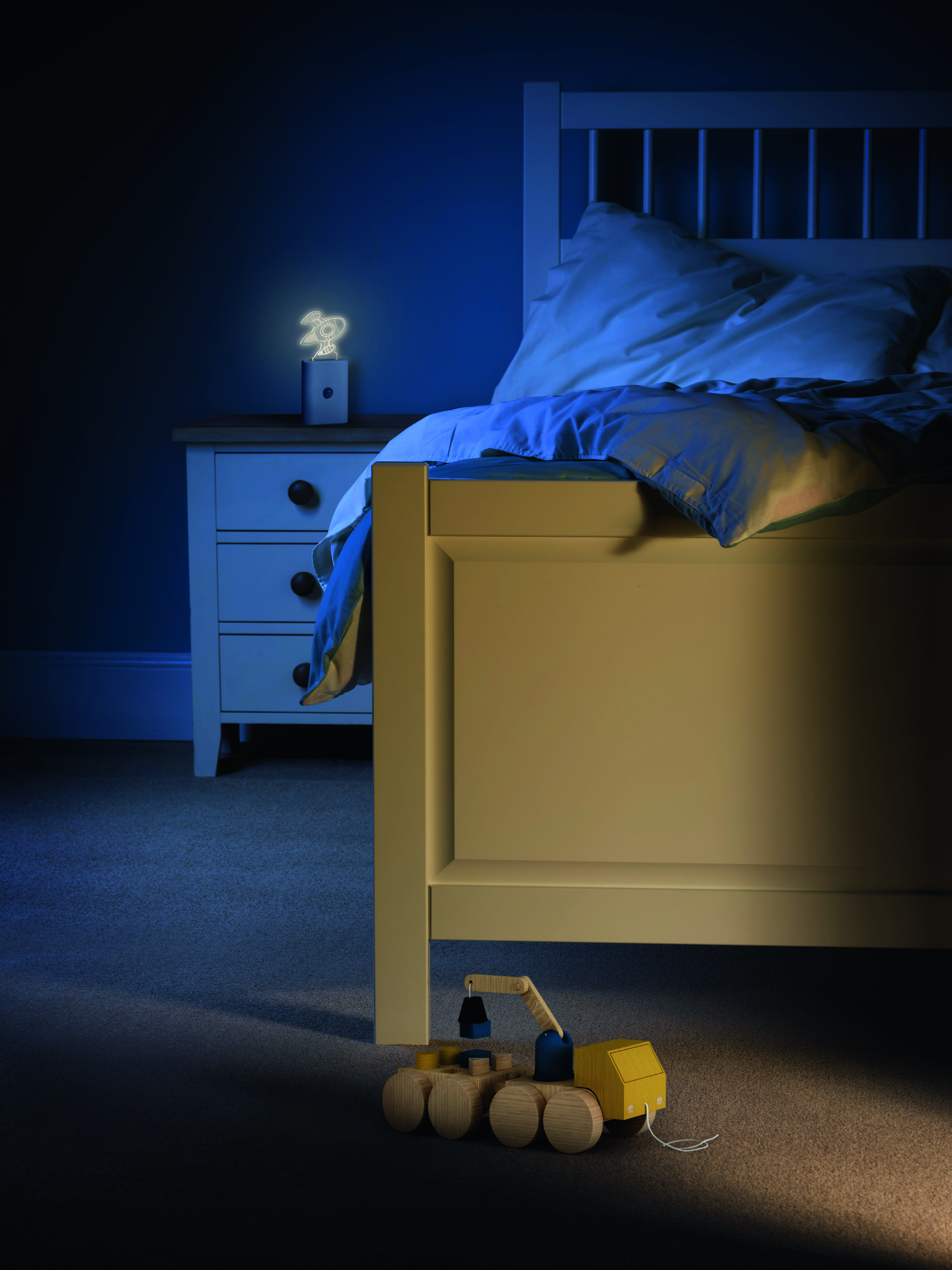

Application pictures Getty
