Lunetta Edge USB A&C
Lunetta Edge Sensor 3000K White
GTIN: 4099854088513
Blister / 1
Show all packages
Our warranty conditions
PRODUCT DETAILS
Product benefits
- Automatically switches on and off according to the amount of available daylight
- Plug and Play due to EU Plug
- Energy-efficient thanks to LED technology
Areas of application
- Bedrooms
- Children's bedrooms
- Corridors, stairways
- Nightlight
- For indoor use only
Product features
- USB A and C port with charging function
- Integrated day/night sensor
- Light color: Warm White
- Supply voltage: 220…240 V
Safety advice
- This product is not a toy. It should not be left unattended in the hands of children or operated by children.
- Not designed as a replacement for conventional lighting in private household.
Electrical data
| Nominal wattage | 12.50 W |
| Nominal voltage | 220…240 V |
| Mains frequency | 50…60 Hz |
| Nominal current | 115.000 mA |
| Power factor λ | > 0.4 |
| Total harmonic distortion | < 20 % |
| Protection class | II |
| Operating mode | Mains voltage |
Photometrical data
| Luminous flux | 9 lm |
| Luminous efficacy | 18 lm/W |
| Color temperature | 3000 K |
| Light color (designation) | Warm White |
| Color rendering index Ra | > 80 |
| Standard deviation of color matching | 6 sdcm |
| Photobiological safety group acc. to EN62778 | RG1 |
| Beam angle | 180 ° |
Dimensions & Weight
| Length | 58.00 mm |
| Height | 70.00 mm |
| Width | 60.00 mm |
| Product weight | 80.00 g |
Materials & Colors
| Product color | White |
| Housing color | White |
| Body material | Acrylonitrile butadiene styrene (ABS) |
| Cover material | Polyamide (PA)|Polycarbonate (PC) |
| Glow Wire Test according to IEC 60695-2-12 | 650 °C |
| Mercury content | 0.0 mg |
Application & Mounting
| Ambient temperature range | -20…+40 °C |
| Temperature range at storage | -20…+80 °C |
| Type of connection | Plug type C (EU) |
| Type of protection | IP20 |
| Dimmable | No |
| Mounting type | Surface |
| Mounting location | Socket |
| Application environment | Indoor |
| With light source | Yes |
| Replaceable light source | No |
Lifespan
| Lifespan L70/B50 at 25 °C | 30000 h 1) |
| Number of switching cycles | 25000 |
1) t[h]: L70 / B50 @ 25 °C (Ta), t[h]: L80 / B10 @ 25 °C (Ta), t[h]: L90 / B10 @ 25 °C (Ta)
Sensor
| Type of sensor | Light |
| Detection threshold of daylight sensor | 0…30 lx |
Certificates & Standards
| Standards | CE |
| Replaceable light source (EPREL) | Not replaceable |
PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS
| Minimum rate of recycled material in packaging | 80 % 1) |
| Minimum percentage of recycled content in the product | 0 % 1) |
| Product recyclability | Mostly recyclable product 1) |
| Packaging recyclability | Mostly recyclable packaging 1) |
| List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage | No |
| Contains substances of very high concern in concentrations greater than 0.1% by mass percentage | Yes |
| List of substances of very high concern in concentrations greater than 0.1% in mass percentage | Lead (7439-92-1) |
1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)
| Product code | Packaging unit (Pieces/Unit) | Dimensions (length x width x height) | Gross weight | Volume |
|---|---|---|---|---|
| 4099854088513 | Blister 1 |
64 mm x 140 mm x 195 mm | 106.00 g | 1.75 dm³ |
| 4099854088520 | Shipping box 6 |
405 mm x 153 mm x 220 mm | 866.00 g | 13.63 dm³ |
Legal information
Legal Insert LUNETTA
Legal Insert LUNETTA
Declarations of conformity
CE Declaration Lunetta Edge SEN
CE Declaration Lunetta Edge SEN

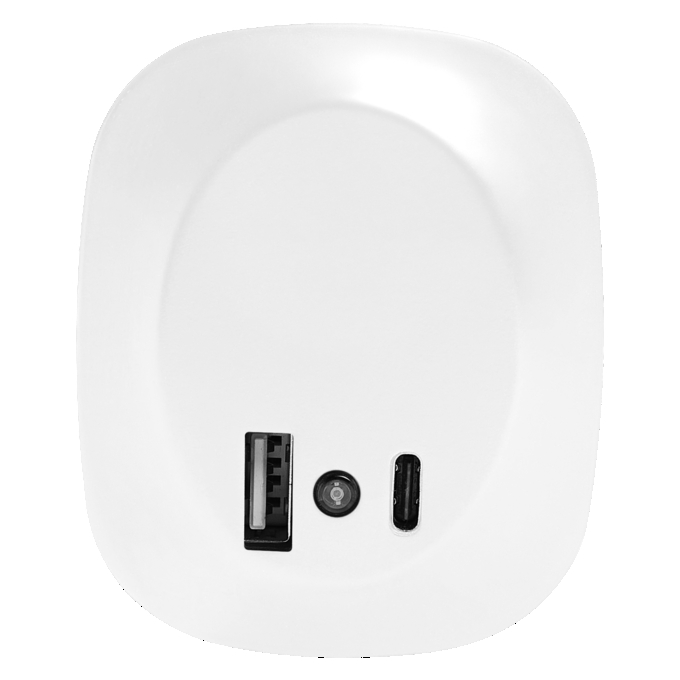

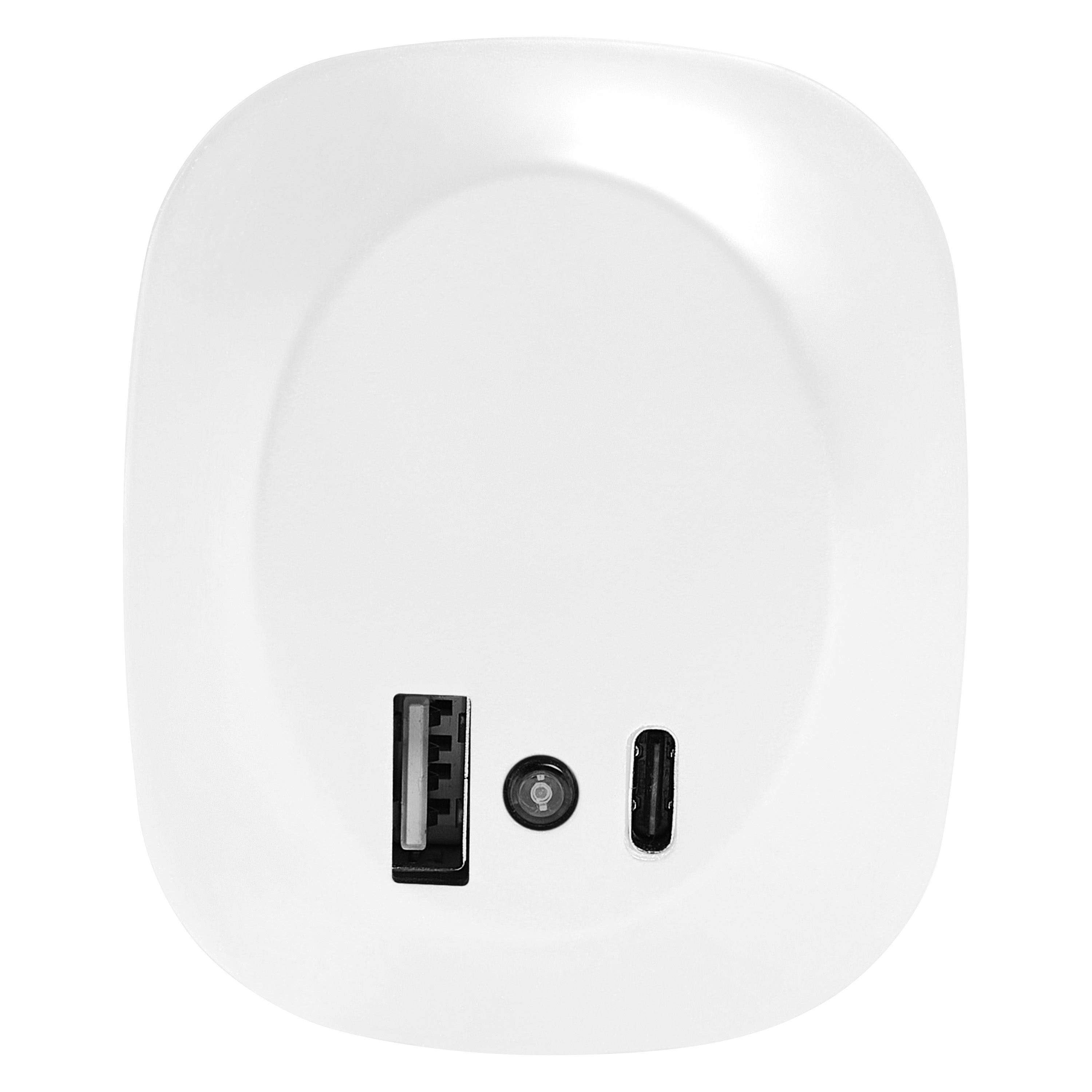

Product image: white background, upright
LUNETTA EDGE SEN BL 830 USB A C WT
LUNETTA EDGE SEN BL 830 USB A C WT

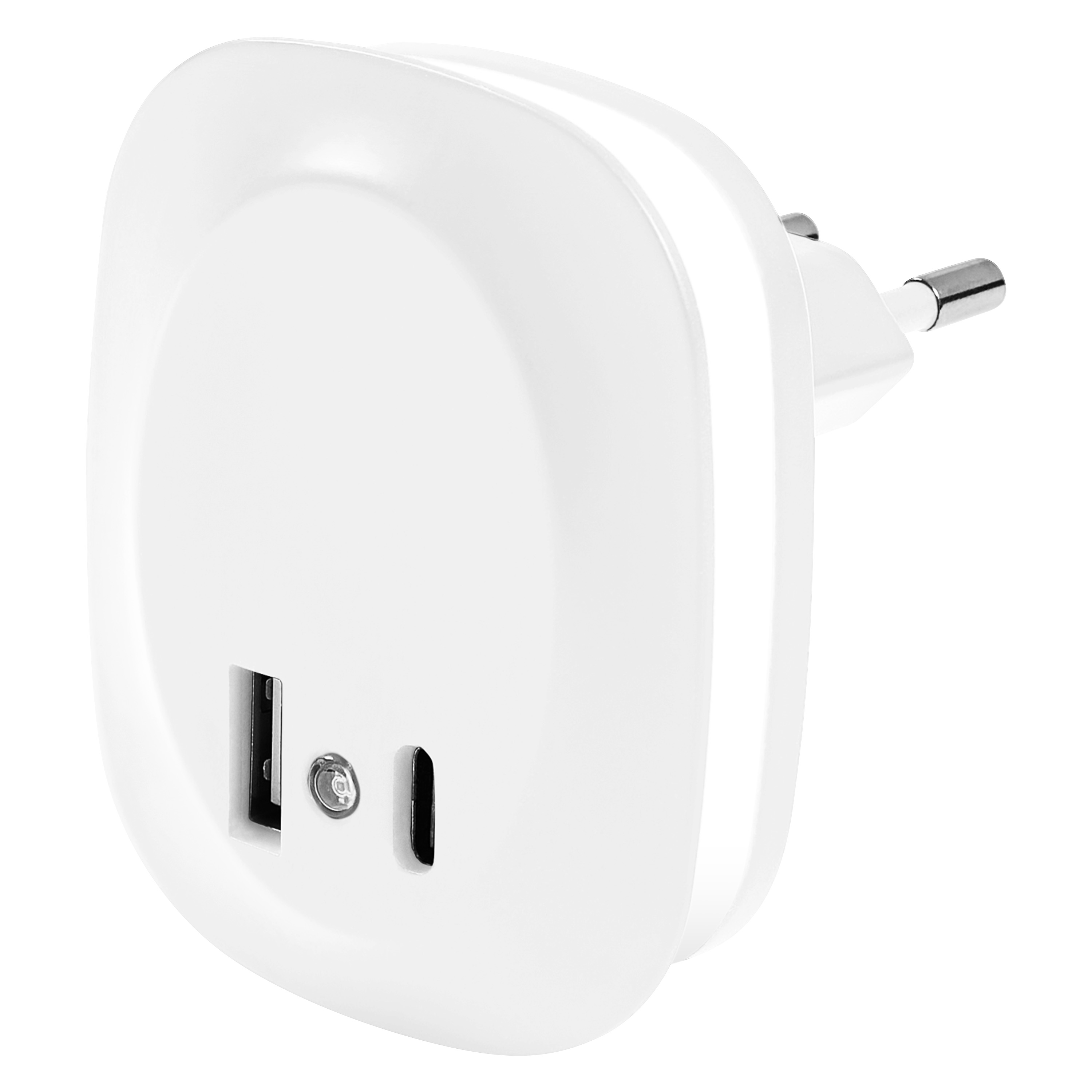

Product image: white background, upright, alternative image
LUNETTA EDGE SEN BL 830 USB A C WT
LUNETTA EDGE SEN BL 830 USB A C WT

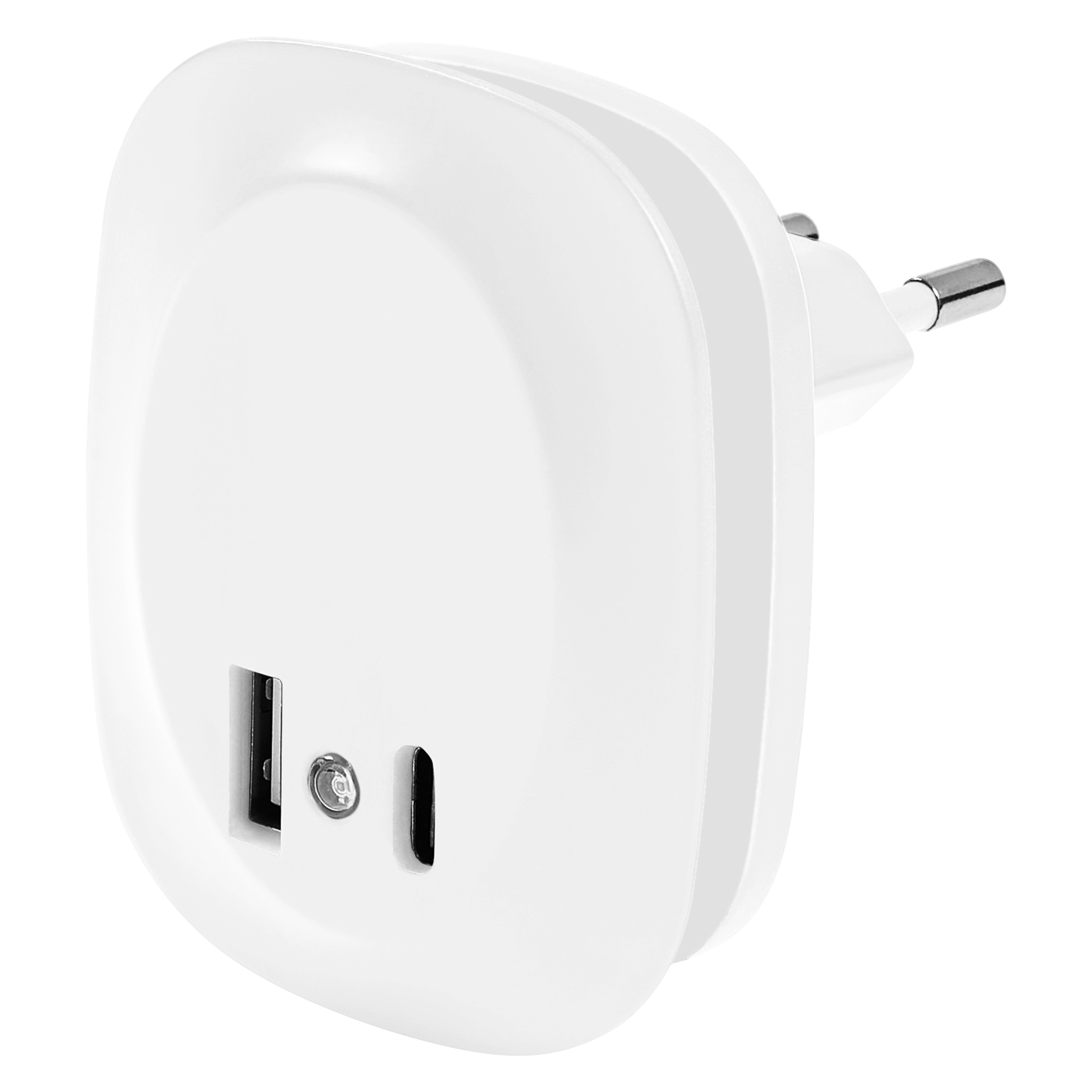

Product image: white background, upright, switched on
