SMART+ WiFi Filament Classic Dimmable

SMART+ Filament Classic Dimmable 53 6 W/2400 K E27

GTIN: 4058075610521 Folding box / 1 Show all packages
Our warranty conditions

PRODUCT DETAILS

Product benefits
  • Wireless control via app
  • Easy to install and use
  • Contains no mercury
  • Lower energy consumption than incandescent or halogen lamps
Areas of application
  • General illumination
  • Residential interiors
  • Professional (hotels, bars, boutiques etc.)
  • Outdoor use in suitable outdoor luminaires only
Product features
  • Controllable via LEDVANCE SMART+ App (with minimum Android™️ 8.0 or iOS 14.0)
  • Controllable via Google Assistant and Amazon Alexa possible
  • Network protocol: WiFi
  • Dimmable
  • Lifetime up to 15,000 h
  • Light color: Warm White (2,700 K)
Equipment / Accessories
  • For control via LEDVANCE SMART+ App, a smartphone or tablet is required (with minimum Android 8.0 or iOS 14.0)
Safety advice
  • Do not touch the lamp if broken.
  • Must not be used if outer bulb is defective.
References / Links
  • Further information and frequently asked questions (FAQs) at www.ledvance.com/consumer/smart/faq
Electrical data
Nominal wattage 6 W
Construction wattage 6.00 W
Nominal voltage 220…240 V
Nominal current 50 mA
Operating frequency 50…60 Hz
Mains frequency 50…60 Hz
Power factor λ > 0.50
Claimed equiv. conventional lamp power 53 W
Operating mode AC Mains
Photometrical data
Light color (designation) Warm White
Lumen main.fact.at end of nom.life time 0.93
Standard deviation of color matching ≤6 sdcm
Nominal luminous flux 680 lm
Luminous flux 680 lm
Luminous efficacy 113 lm/W
Adjustable color temperature 2400 K
Color temperature 2400 K
Color rendering index Ra 80
Flickering metric (Pst LM) 1.0
Stroboscope effect metric (SVM) 0.4
Light technical data
Beam angle 300 °
Starting time < 0.5 s
Warm-up time (60 %) ‹ 0.50 s
Dimensions & Weight
Product weight 31.00 g
Diameter 60.00 mm
Maximum diameter 60 mm
Length 105.00 mm
Width 60.00 mm
Height 60.00 mm
Outer bulb [PICOS] A60
Lifespan
Number of switching cycles 100000
Lifespan 15000 h
Colors & materials
Product color Gold
Temperatures & operating conditions
Ambient temperature range -20…+40 °C
Additional product data
Mercury-free Yes
Product remark All technical parameters apply to the entire lamp, Due to the complex production process for light-emitting diodes, the typical values shown for the technical LED parameters are purely statistical values that do not necessarily match the actual technical parameters of each individual product, which can vary from the typical value
Base (standard designation) E27
Capabilities
Dimmable Yes 1)
Compatible smart home technology Amazon Alexa, Google Assistant
1) Via App
Certificates & Standards
Energy efficiency class E 1)
Energy consumption 6.00 kWh/1000h
Standards CE
Type of protection IP20
1) Energy efficiency class (EEC) on a scale of A (highest efficiency) to G (lowest efficiency)
Energy labelling regulation data acc EU 2019/2015
Lighting technology used LED
Non-directional or directional NDLS
Mains or non-mains MLS
Light source cap-type (or other electric interface) E27
Connected light source (CLS) Yes
Color-tuneable light source No
Envelope No
High luminance light source No
Anti-glare shield No
Correlated colour temperature type SINGLE_VALUE
Standby power 0.5 W
Networked standby power for CLS 0.50
Claim of equivalent power Yes
Chromaticity coordinate x 0.494
Chromaticity coordinate y 0.424
R9 Colour rendering index 0.00
Beam angle correspondence SPHERE_360
Survival factor 0.90
Displacement factor 0.50
LED light source replaces a fluorescent light source No
EPREL ID 644676
Model number AC32966
PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS
Quantity of precious metals Contains at least 10 mg
Quantity of rare earths Contains at least 1 mg
Minimum rate of recycled material in packaging 80 % 1)
Minimum percentage of recycled content in the product 0 % 1)
Product recyclability Mostly recyclable product 1)
Packaging recyclability Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage Yes
List of substances of very high concern in concentrations greater than 0.1% in mass percentage Lead (7439-92-1)
1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)
Product code Packaging unit (Pieces/Unit) Dimensions (length x width x height) Gross weight Volume
4058075610521 Folding box
1
66 mm x 96 mm x 154 mm 116.00 g 0.98 dm³
4058075610538 Shipping box
4
210 mm x 165 mm x 145 mm 577.00 g 5.02 dm³
Extended installation guide
SH Insert WIFI StartUpG Lamps DIM LDV
Declarations of conformity
EU Declaration of Conformity – Smart Filament WiFi CL
Product image: white background, diagonal
SMART BT FIL A60 E27 GD DIM 230V
Product image: white background, upright
SMART BT FIL A60 E27 GD DIM 230V
Product infographic (application image with text and graphic)
Solar assortment E-Com-Grafik V2 1200x1200 2023 EN
Product line drawing, front, no dimensions
SMART BT FIL A60 E27 GD DIM 230V

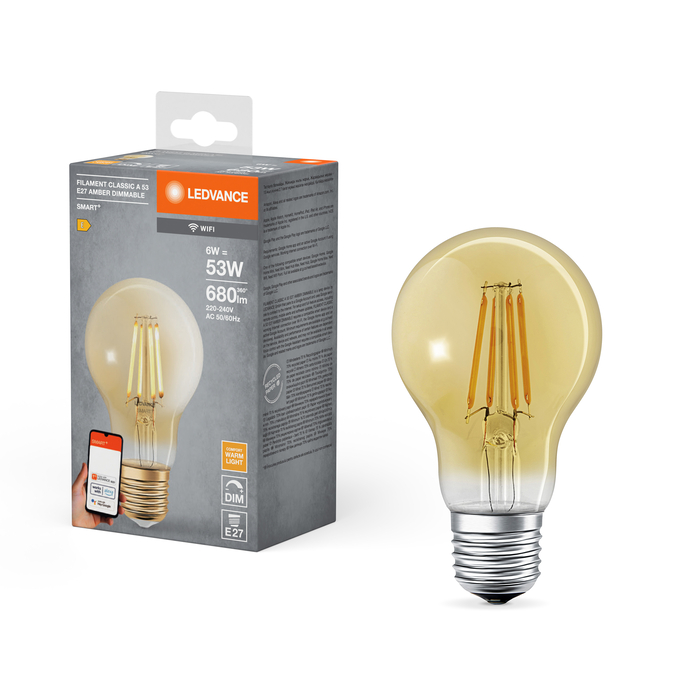

Combo Shot = Product Beauty Shot + Packaging Image
SH FC WIFI A53D 6 824 FIGD E27 MiPRC
Combo Shot = Product Beauty Shot + Packaging Image
SH FC WIFI A53D 6 824 FIGD E27 MiPRC

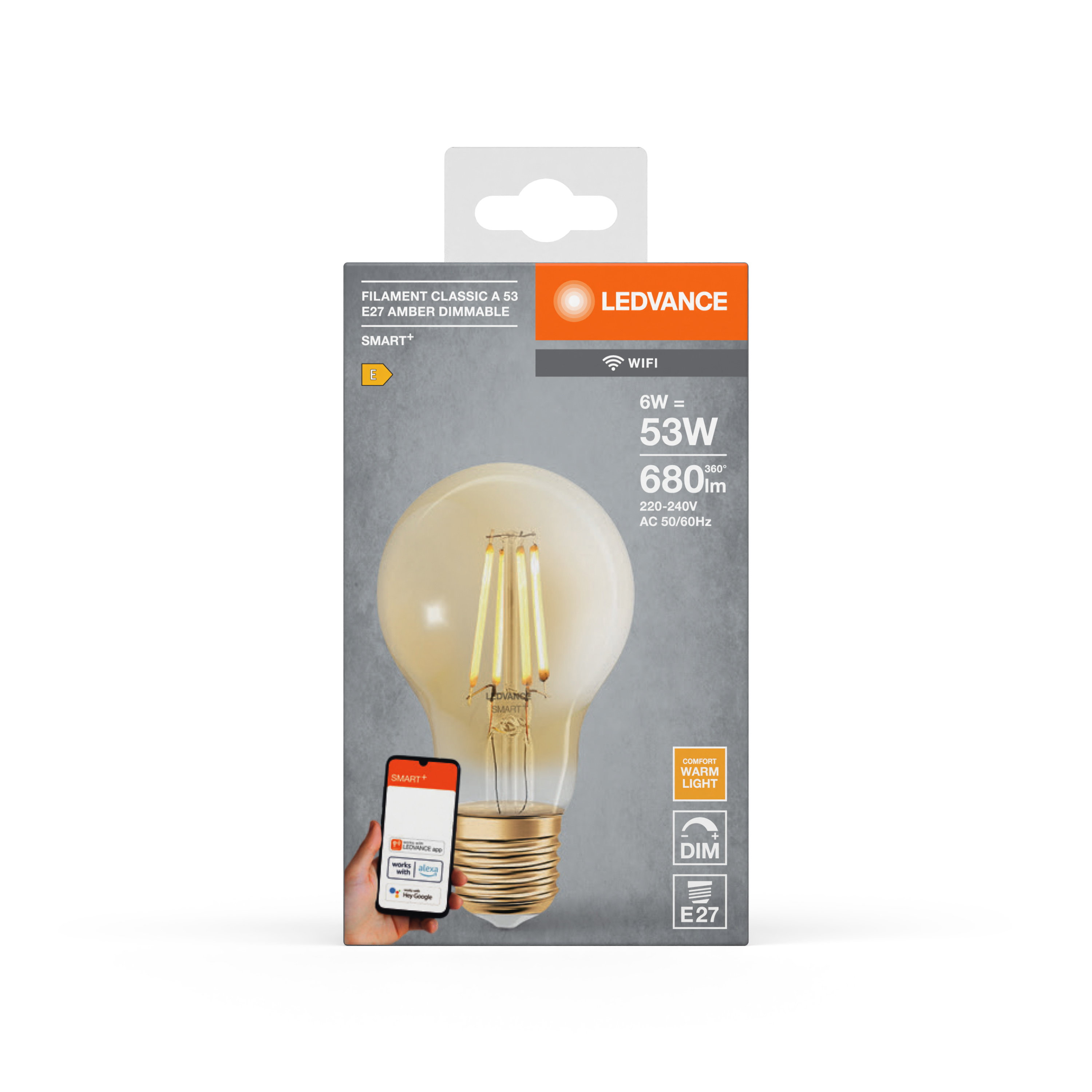

Packaging image, frontal
SH FC WIFI A53D 6 824 FIGD E27 MiPRC
Packaging image, spacial
SH FC WIFI A53D 6 824 FIGD E27 MiPRC
Energy label
EL-4058075610521-AC329 66
Spectral power distribution
LISO spectral power distribution 2700K CRI80 v1
EAN EFO number ELDAS number
4058075610521 3768096 941841320
