SMART+ WiFi Mini Bulb Dimmable
SMART+ WiFi Mini bulb 40 4.9 W/2700 K E14

GTIN: 4058075485952
Folding box / 3
Show all packages
Our warranty conditions
PRODUCT DETAILS
Product benefits
- Wireless control via app
- Easy to install and use
- Contains no mercury
Areas of application
- General illumination
- Residential interiors
- Professional (hotels, bars, boutiques etc.)
- Outdoor applications only in suitable luminaires
Product features
- Controllable via LEDVANCE SMART+ App (with minimum Android™️ 8.0 or iOS 14.0)
- Controllable via Google Assistant and Amazon Alexa possible
- Network protocol: WiFi
- Dimmable
- Lifetime: up to 20,000 h
Equipment / Accessories
- For control via LEDVANCE SMART+ App, a smartphone or tablet is required (with minimum Android 8.0 or iOS 14.0)
Safety advice
- Do not touch the lamp with bare fingers.
- Must not be used if outer bulb is defective.
References / Links
- Further information and frequently asked questions (FAQs) at www.ledvance.com/consumer/smart/faq
Electrical data
Nominal wattage | 4.9 W |
Construction wattage | 4.90 W |
Nominal voltage | 230 V |
Nominal current | 45 mA |
Operating frequency | 50…60 Hz |
Mains frequency | 50…60 Hz |
Power factor λ | > 0.5 |
Claimed equiv. conventional lamp power | 40 W |
Photometrical data
Light color (designation) | Warm White |
Lumen main.fact.at end of nom.life time | 0.70 |
Standard deviation of color matching | ≤6 sdcm |
Nominal luminous flux | 470 lm |
Luminous flux | 470 lm |
Luminous efficacy | 95 lm/W |
Color temperature | 2700 K |
Color rendering index Ra | 80 |
Flickering metric (Pst LM) | 1.0 |
Stroboscope effect metric (SVM) | 0.9 |
Light technical data
Beam angle | 180 ° |
Dimensions & Weight
Product weight | 32.00 g |
Diameter | 46.50 mm |
Length | 89.50 mm |
Width | 46.50 mm |
Height | 46.50 mm |
Outer bulb [PICOS] | P46 |
Lifespan
Lifespan | 20000 h |
Lumen maintenance at end of service lifetime | 0.70 |
Colors & materials
Housing color | White |
Temperatures & operating conditions
Ambient temperature range | -20…+40 °C |
Additional product data
Mercury-free | Yes |
Product remark | All technical parameters apply to the entire lamp, Due to the complex production process for light-emitting diodes, the typical values shown for the technical LED parameters are purely statistical values that do not necessarily match the actual technical parameters of each individual product, which can vary from the typical value |
Base (standard designation) | E14 |
Capabilities
Dimmable | Yes 1) |
Compatible smart home technology | Google Assistant, Amazon Alexa |
1) Via App
Certificates & Standards
Energy efficiency class | F 1) |
Energy consumption | 5.00 kWh/1000h |
Standards | CE |
Type of protection | IP20 |
1) Energy efficiency class (EEC) on a scale of A (highest efficiency) to G (lowest efficiency)
Energy labelling regulation data acc EU 2019/2015
Lighting technology used | LED |
Non-directional or directional | NDLS |
Mains or non-mains | MLS |
Light source cap-type (or other electric interface) | E14 |
Connected light source (CLS) | Yes |
Color-tuneable light source | No |
Envelope | No |
High luminance light source | No |
Anti-glare shield | No |
Correlated colour temperature type | SINGLE_VALUE |
Standby power | 0.50 |
Networked standby power for CLS | 0.50 |
Claim of equivalent power | Yes |
Chromaticity coordinate x | 0.463 |
Chromaticity coordinate y | 0.420 |
Beam angle correspondence | SPHERE_360 |
Survival factor | 0,9 |
Displacement factor | 0.50 |
LED light source replaces a fluorescent light source | No |
EPREL ID | 1403140,528209 |
Model number | AC33922,AC27516 |
PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS
Quantity of precious metals | Contains at least 10 mg |
Quantity of rare earths | Contains at least 1 mg |
Minimum rate of recycled material in packaging | 80 % 1) |
Minimum percentage of recycled content in the product | 0 % 1) |
Product recyclability | Mostly recyclable product 1) |
Packaging recyclability | Mostly recyclable packaging 1) |
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage | No |
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage | No |
List of substances of very high concern in concentrations greater than 0.1% in mass percentage | Additional info can be provided per individual request |
1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)
Product code | Packaging unit (Pieces/Unit) | Dimensions (length x width x height) | Gross weight | Volume |
---|---|---|---|---|
4058075485952 | Folding box 3 |
61 mm x 96 mm x 154 mm | 170.00 g | 0.90 dm³ |
4058075485969 | Shipping box 12 |
210 mm x 165 mm x 135 mm | 801.00 g | 4.68 dm³ |

Extended installation guide
SMART+ WIFI INSTALLATION GUIDE
SMART+ WIFI INSTALLATION GUIDE

Declarations of conformity
EC Declaration of Conformity SMART+ WIFI CLB CLP HS
EC Declaration of Conformity SMART+ WIFI CLB CLP HS

Product image: white background, diagonal with LEDVANCE logo
SMARTWIFIP40 5W/827 230VDIMFRE14
SMARTWIFIP40 5W/827 230VDIMFRE14

Product image: white background, upright LEDVANCE logo
SMARTWIFIP40 5W/827 230VDIMFRE14
SMARTWIFIP40 5W/827 230VDIMFRE14

Product infographic (application image with text and graphic)
SmartPlus assortment E-Com-Grafik V2 1200x1200 2023 EN
SmartPlus assortment E-Com-Grafik V2 1200x1200 2023 EN

Product infographic (application image with text and graphic)
SmartPlus assortment E-Com-Grafik V3 1200x1200 2023 EN
SmartPlus assortment E-Com-Grafik V3 1200x1200 2023 EN
Product line drawing with letters
SMARTWIFIP40 5W/827 230VDIMFRE14
SMARTWIFIP40 5W/827 230VDIMFRE14
Product line drawing with numbers
SMARTWIFIP40 5W/827 230VDIMFRE14
SMARTWIFIP40 5W/827 230VDIMFRE14
Product line drawing, front, no dimensions
SMARTWIFIP40 5W/827 230VDIMFRE14
SMARTWIFIP40 5W/827 230VDIMFRE14

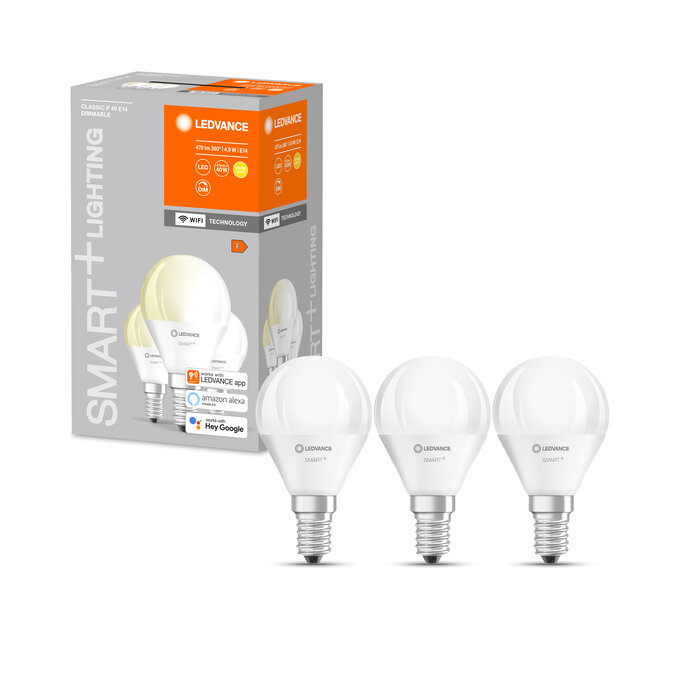

Combo Shot = Product Beauty Shot + Packaging Image
