Smart+ Solar Spot Multicolor

SMART+ BT Solar Spot Light RGB + TW

GTIN: 4058075763883 Folding box / 1 Show all packages
Our warranty conditions

PRODUCT DETAILS

Product benefits
  • Easy and quick installation
  • Colorful garden lighting with smart and intelligent control options
  • Demand based lighting and energy saving thanks to daylight sensor
  • High-quality materials
  • Flexible mounting, also without use of ground spikes
Areas of application
  • Outdoor use (IP44)
  • Gardens
  • Patios, balconies
Product features
  • Solar powered outdoor LED luminaire
  • RGB color control, approx. 16 million color options adjustable
  • Dimmable
  • Battery charging via solar panel
  • Network protocol: Bluetooth
  • Type of protection: IP44
  • Controllable via SMART+ App (with minimum Android 8.0 or iOS 14.0)
Equipment / Accessories
  • For control via SMART+ App, a smartphone or tablet is required (with minimum Android 8.0 or iOS 14.0)
Safety advice
  • If the battery compartment (if applicable) does not close securely, stop using the product and keep it away from children. If you think batteries might have been swallowed or placed inside any part of the body, seek immediate medical attention.
  • Please avoid: Maximal ambient temperature: +35 °C. Replacement of a battery with an incorrect type that can defeat safeguard (for example, in the case of some lithium battery types). Altitude during operation: 2000 m. Disposal of a battery into fire or a hot oven, or mechanically crushing or cutting of a battery, that can result in an explosion.
References / Links
  • Further information and frequently asked questions (FAQs) at www.ledvance.com/consumer/smart/faq
Electrical data
Nominal wattage 0.60 W
Nominal voltage 3,7 V
Nominal current 160.000 mA
Power factor λ > 0.5
Protection class III
Photometrical data
Luminous flux 45 lm
Total luminous flux of contained light sources 60 lm
Luminous efficacy 75 lm/W
Color temperature 3000…6500 K
Light color (designation) Tunable White, RGB
Color rendering index Ra > 80
Standard deviation of color matching 6 sdcm
Flickering metric (Pst LM) -
Stroboscope effect metric (SVM) -
Photobiological safety group acc. to EN62778 RG0
Beam angle 58.00 °
Dimensions & Weight
Length 92.00 mm
Height 348.00 mm
Width 245.00 mm
Product weight 438.00 g
Materials & Colors
Product color Black
Housing color Black
Body material Acrylonitrile butadiene styrene (ABS)
Glow Wire Test according to IEC 60695-2-12 650 °C
Mercury content 0.0 mg
Application & Mounting
Ambient temperature range -20…+40 °C
Type of protection IP44
Dimmable Yes
Type of dimming Bluetooth
Mounting type Ground spike
Application environment Outdoor
Adjustable Yes
With light source Yes
Lifespan
Lifespan L70/B50 at 25 °C 15000 h
Number of switching cycles 1000
BATTERY
Type of Battery Lithium ion
Battery size [GMS] 18650
Number of included batteries 1
Nominal voltage of battery 3.7 V
Nominal capacity of battery 1500 mAh
Battery charging time 8 h
Certificates & Standards
Standards CE, UKCA
Luminaire with limited surface temperature, "D sign" No
Ball shot safe No
Replaceable light source (EPREL) Not replaceable
Additional product data
Product remark Reset settings to default by switching the product on for three seconds and off for three seconds and repeating this five times.
PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS
Quantity of precious metals Contains at least 10 mg
Quantity of rare earths Contains at least 1 mg
Minimum rate of recycled material in packaging 80 % 1)
Minimum percentage of recycled content in the product 0 % 1)
Product recyclability Mostly recyclable product 1)
Packaging recyclability Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage No
1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)
Product code Packaging unit (Pieces/Unit) Dimensions (length x width x height) Gross weight Volume
4058075763883 Folding box
1
102 mm x 187 mm x 204 mm 564.00 g 3.89 dm³
4058075763890 Shipping box
4
390 mm x 215 mm x 230 mm 2685.00 g 19.29 dm³
User instruction / safety instructions
SMART+ SOLAR SPOT LIGHT
Legal information
Legal insert SMART OUTD ENDURA SOLAR WORKLIGHT BAT
Declarations of conformity
SMART OUTD BT SOLAR RGBTW

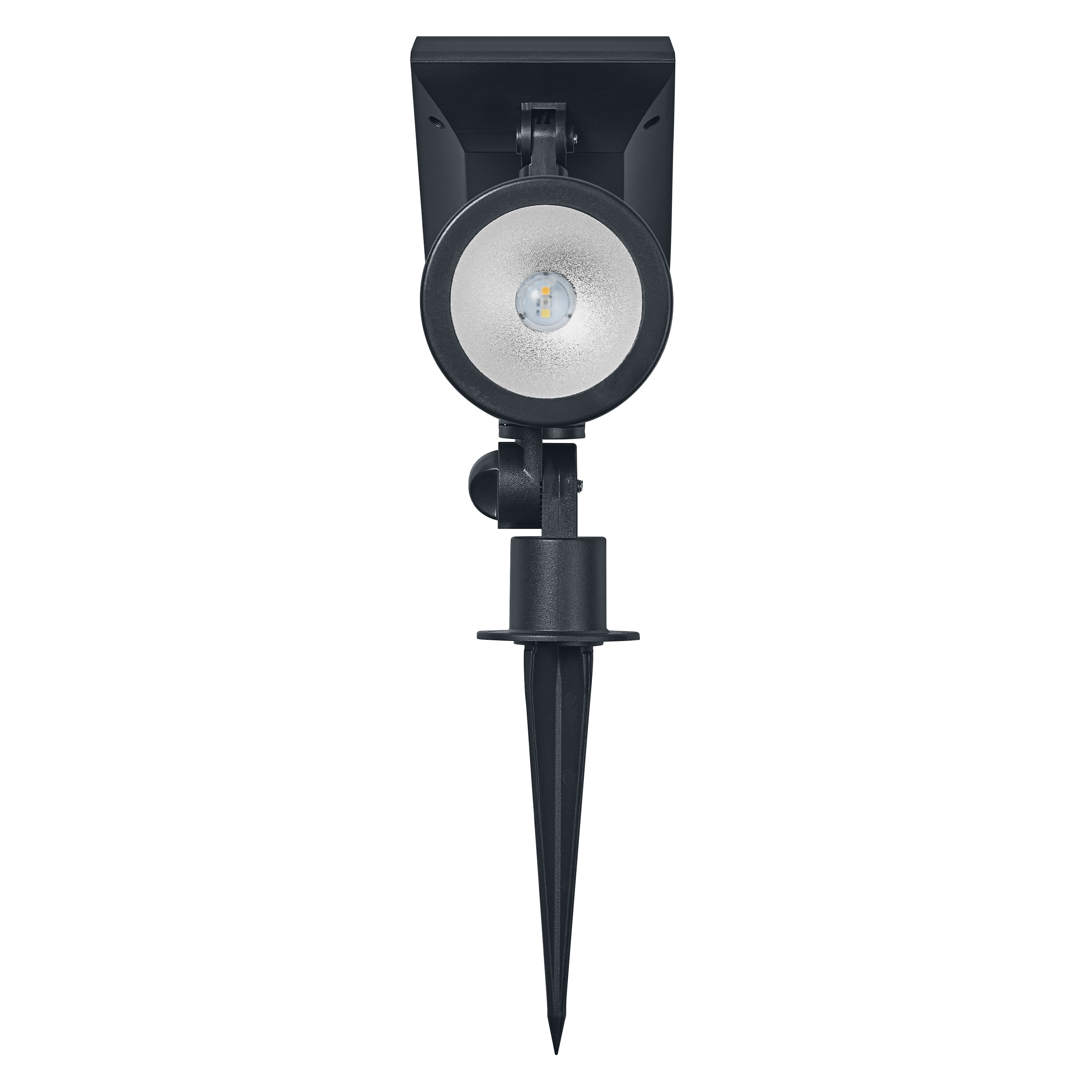

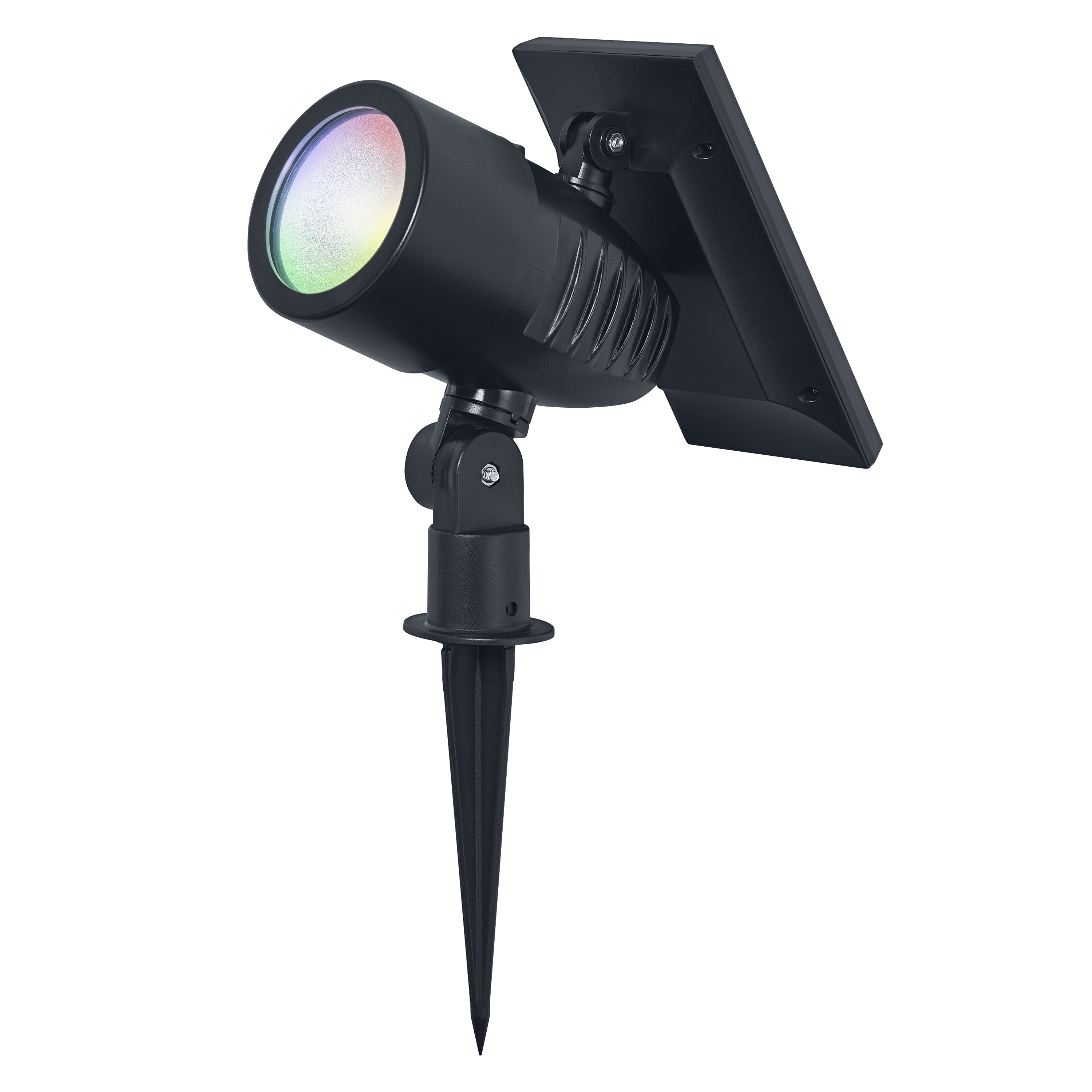

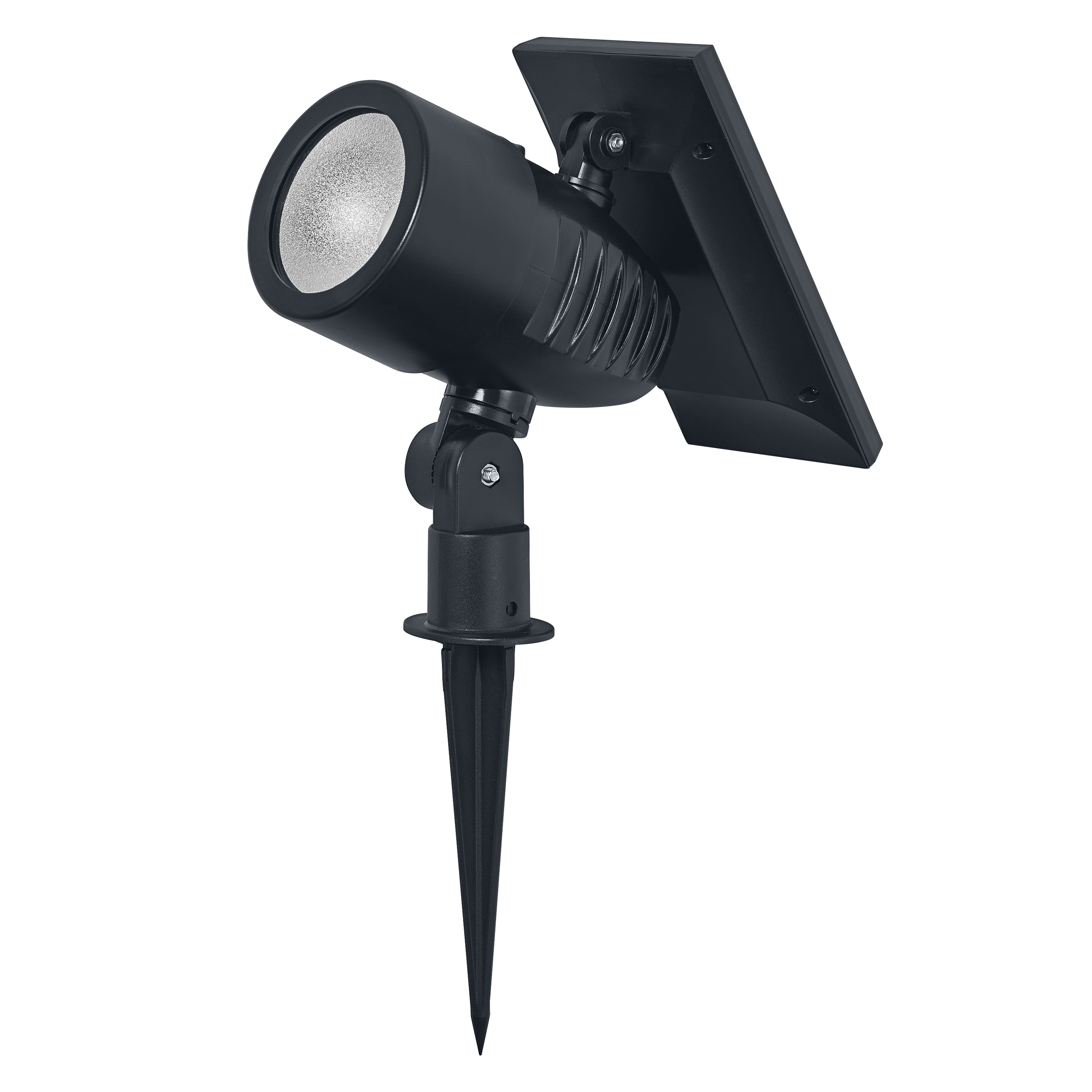

Product image: white background, upright
SMART OUTD BT SOLAR SPOT RGBTW
Product image: white background, upright, alternative image
SMART OUTD BT SOLAR SPOT RGBTW
Product image: white background, upright, switched on
SMART OUTD BT SOLAR SPOT RGBTW
Product infographic (application image with text and graphic)
SmartPlus assortment E-Com-Grafik V3 1200x1200 2023 EN
Product infographic (application image with text and graphic)
Solar assortment E-Com-Grafik V2 1200x1200 2023 EN

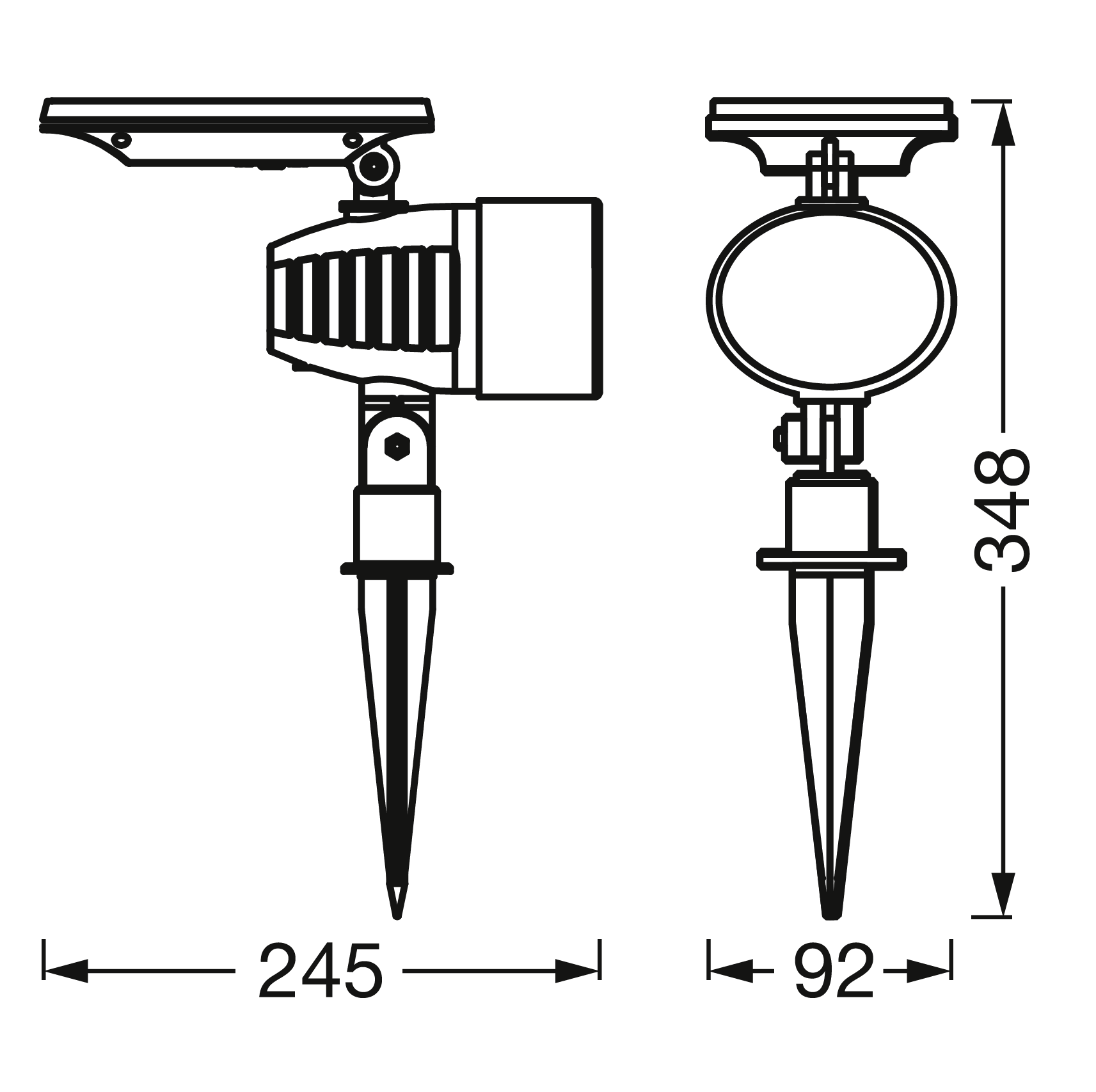

Product line drawing with letters
SMART OUTD BT SOLAR SPOT RGBTW
Product line drawing with numbers
SMART OUTD BT SOLAR SPOT RGBTW
Product line drawing, front, no dimensions
SMART OUTD BT SOLAR SPOT RGBTW

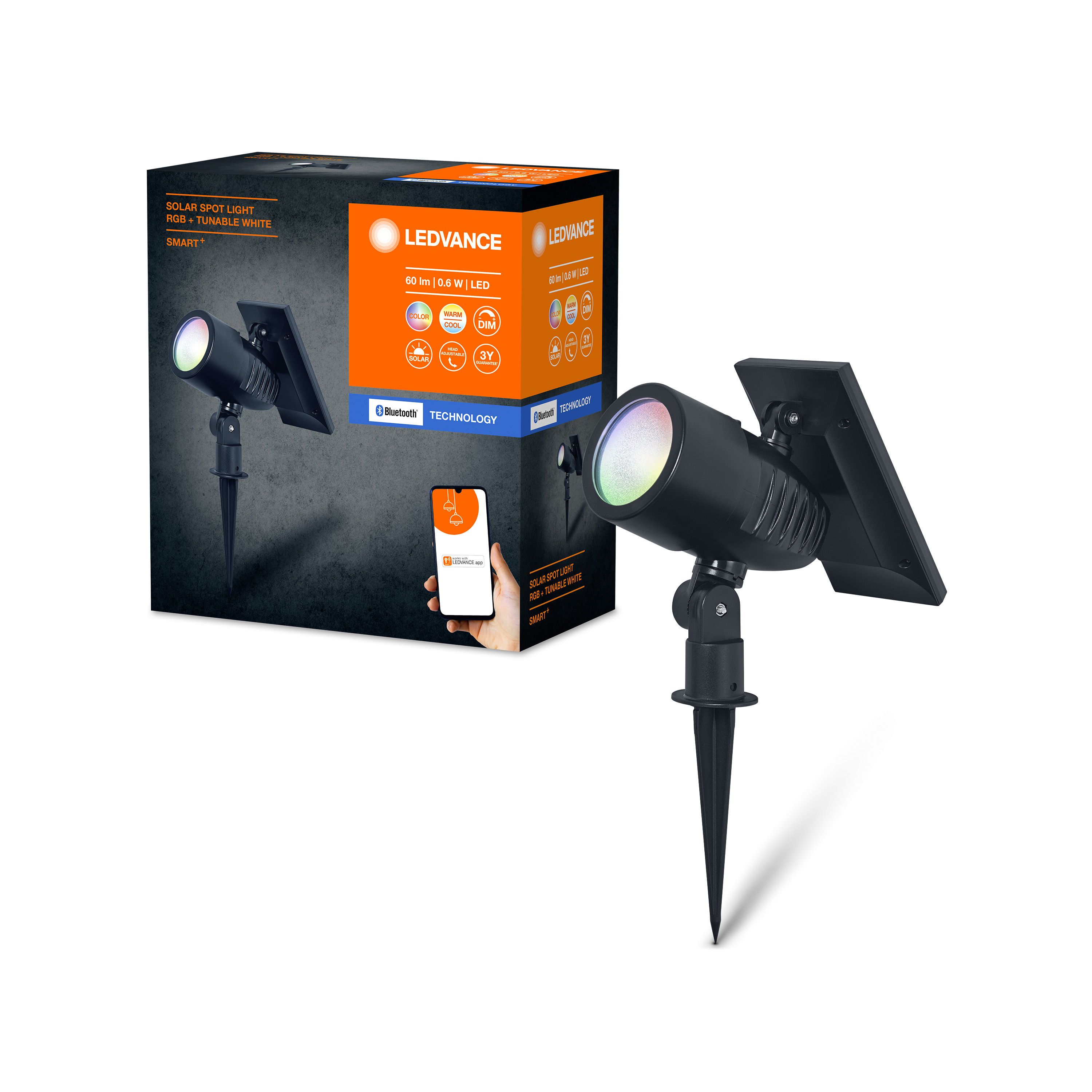

Combo Shot = Product Beauty Shot + Packaging Image
SH FC BT OD SOLAR SPOT RGBTW MiPRC

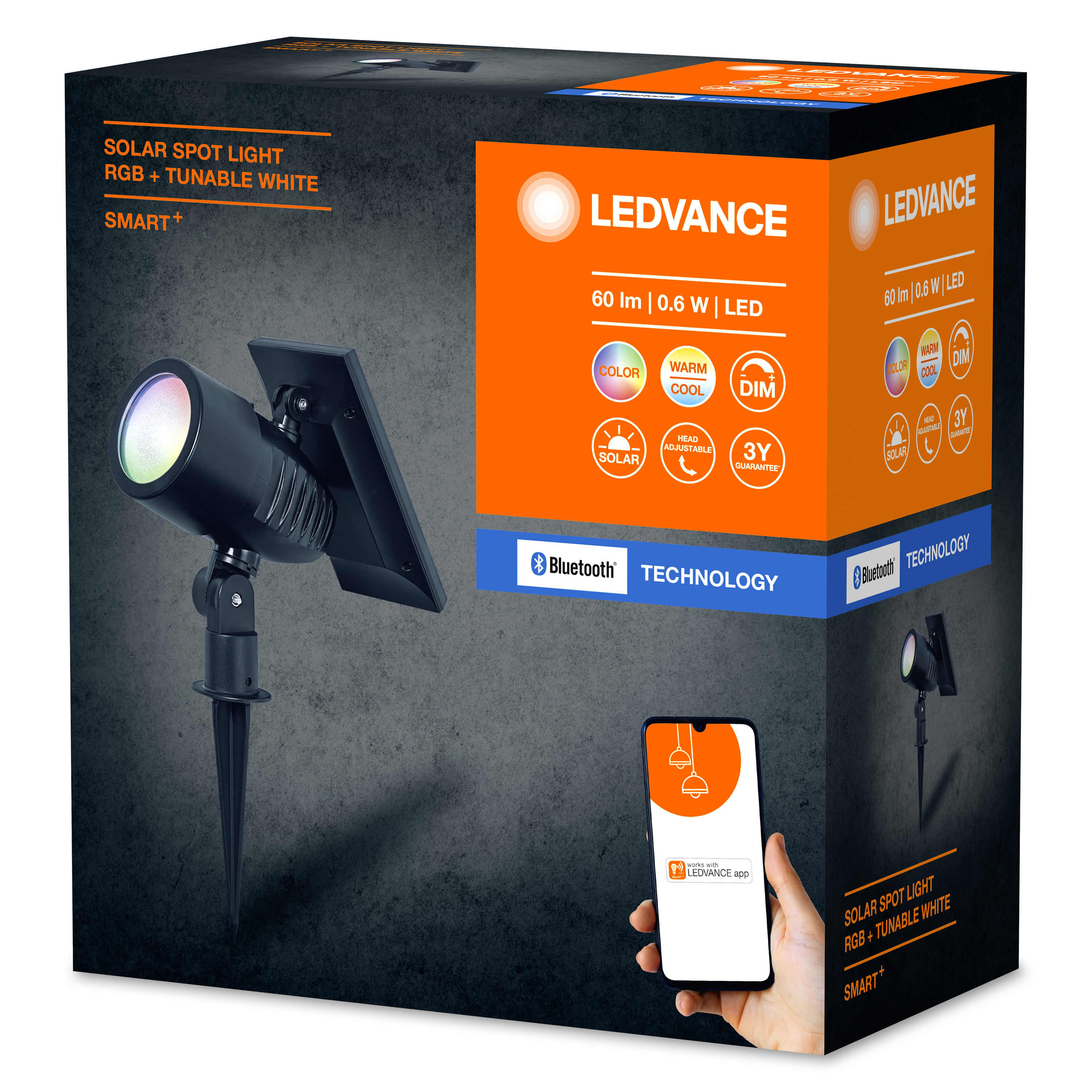

Packaging image, frontal
SH FC BT OD SOLAR SPOT RGBTW MiPRC
Packaging image, spacial
SH FC BT OD SOLAR SPOT RGBTW MiPRC
Application pictures
05 wohnfirlefanz 20230809 213628

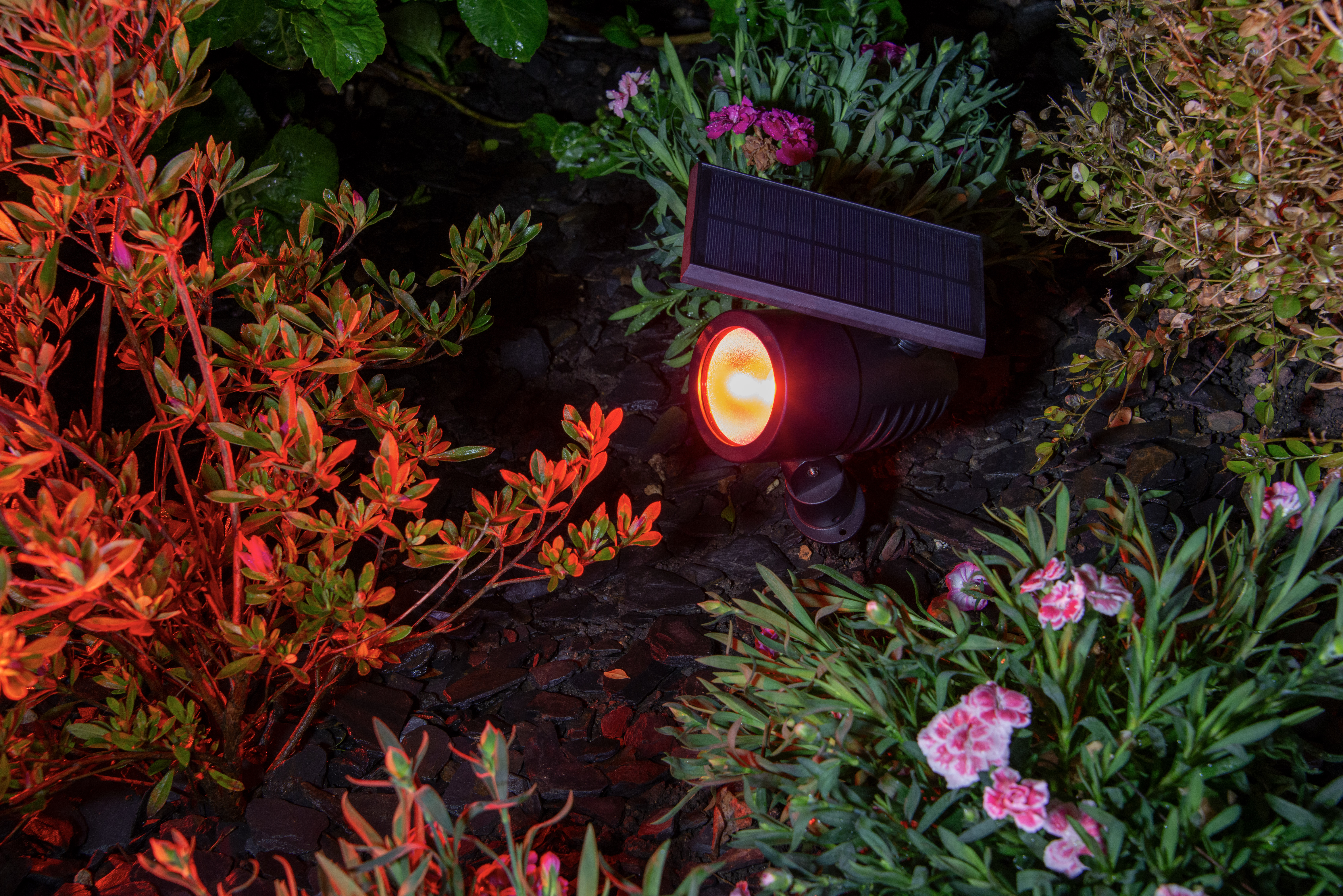

Application pictures
Smart Solar Spot close-up RGB 01

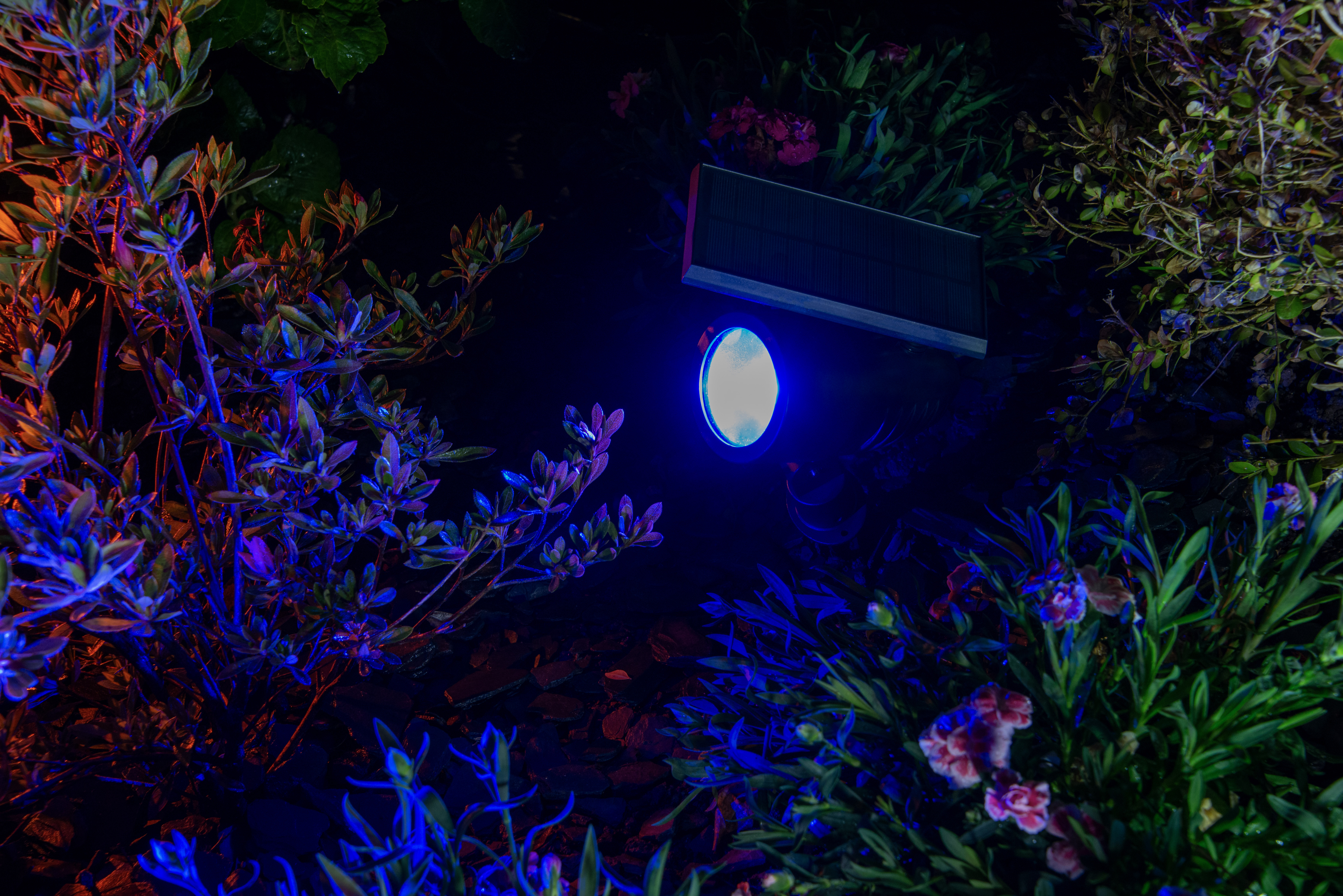

Application pictures
Smart Solar Spot close-up RGB 02

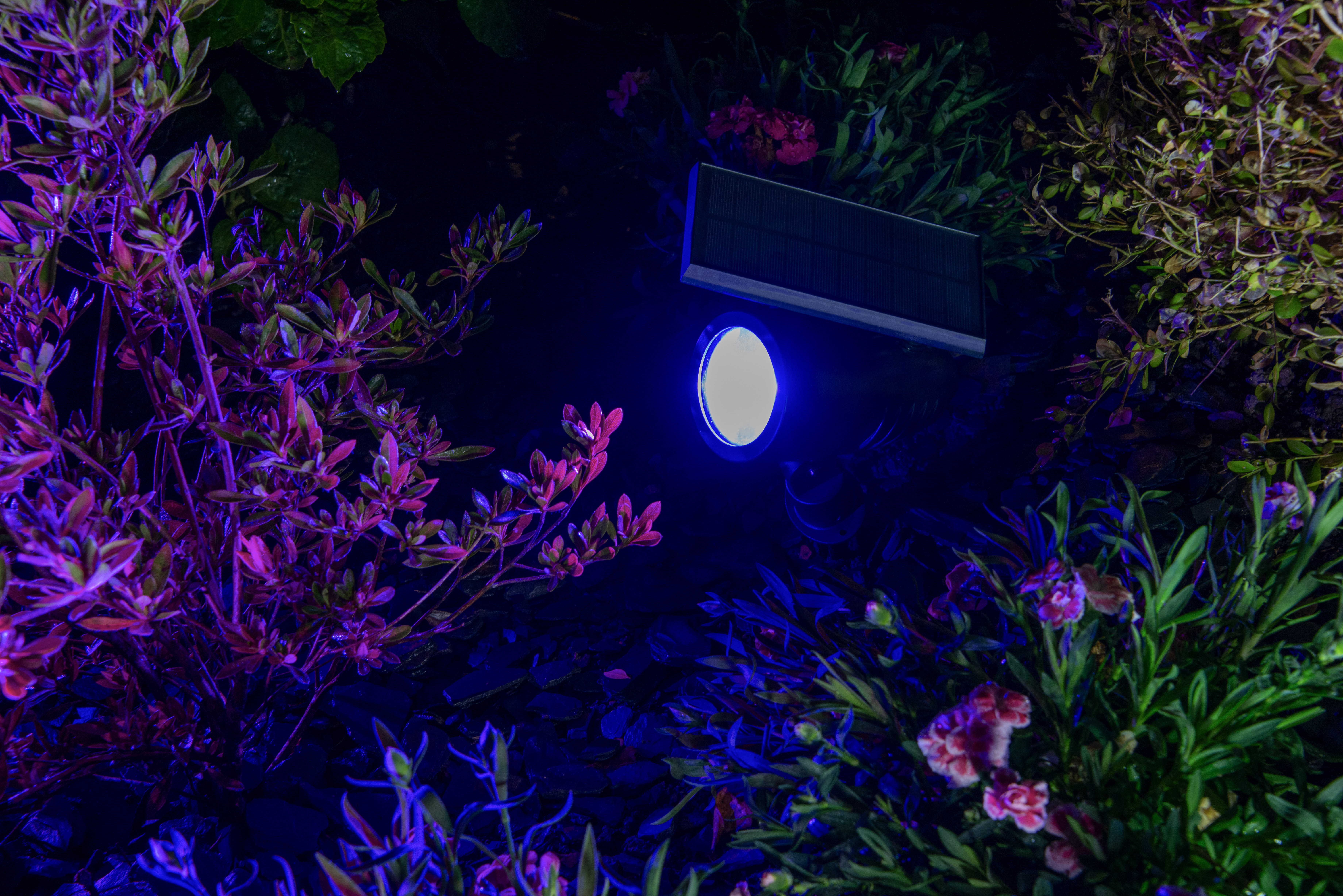

Application pictures
Smart Solar Spot close-up RGB 03
Application pictures

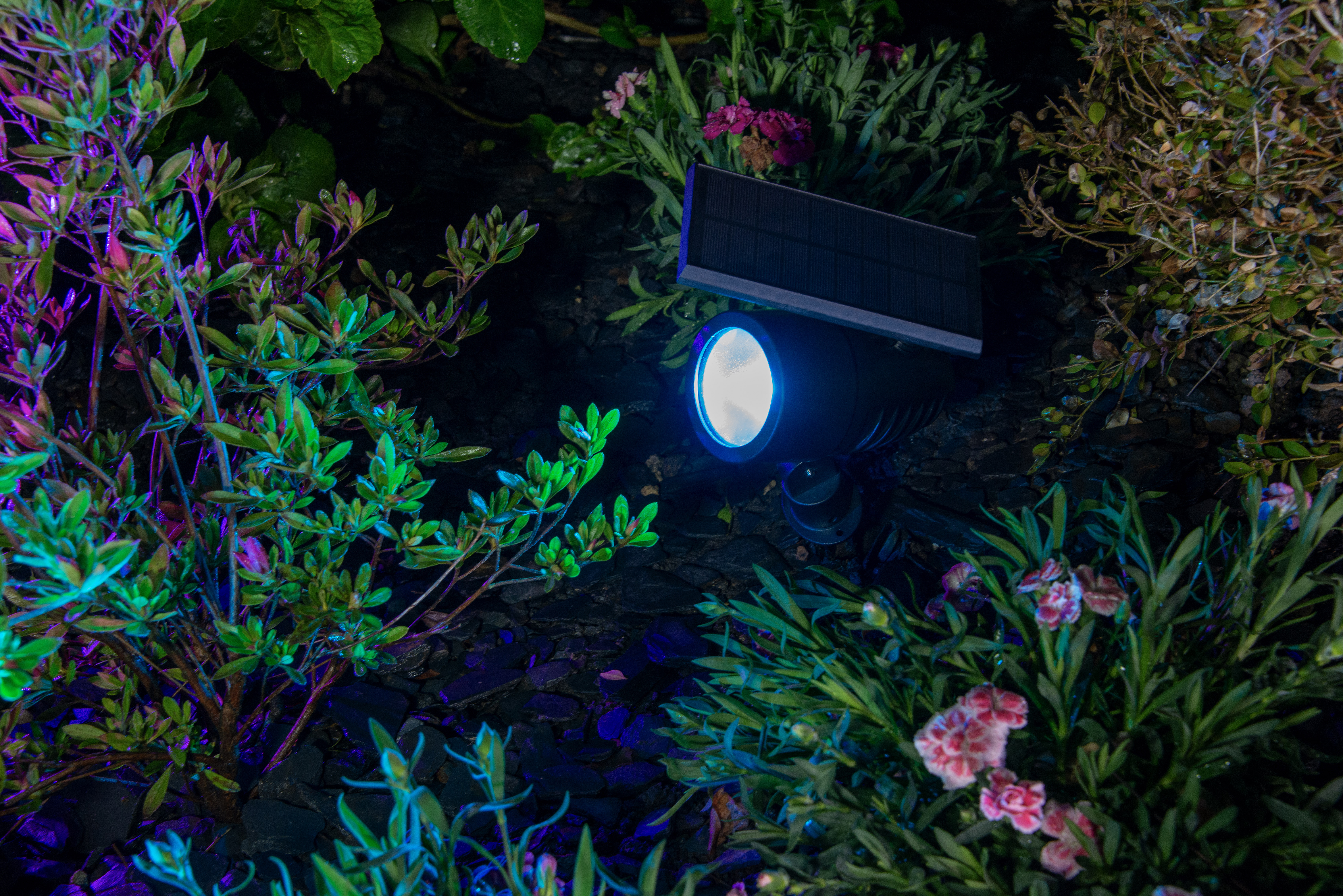

Smart Solar Spot close-up RGB 04
Application pictures

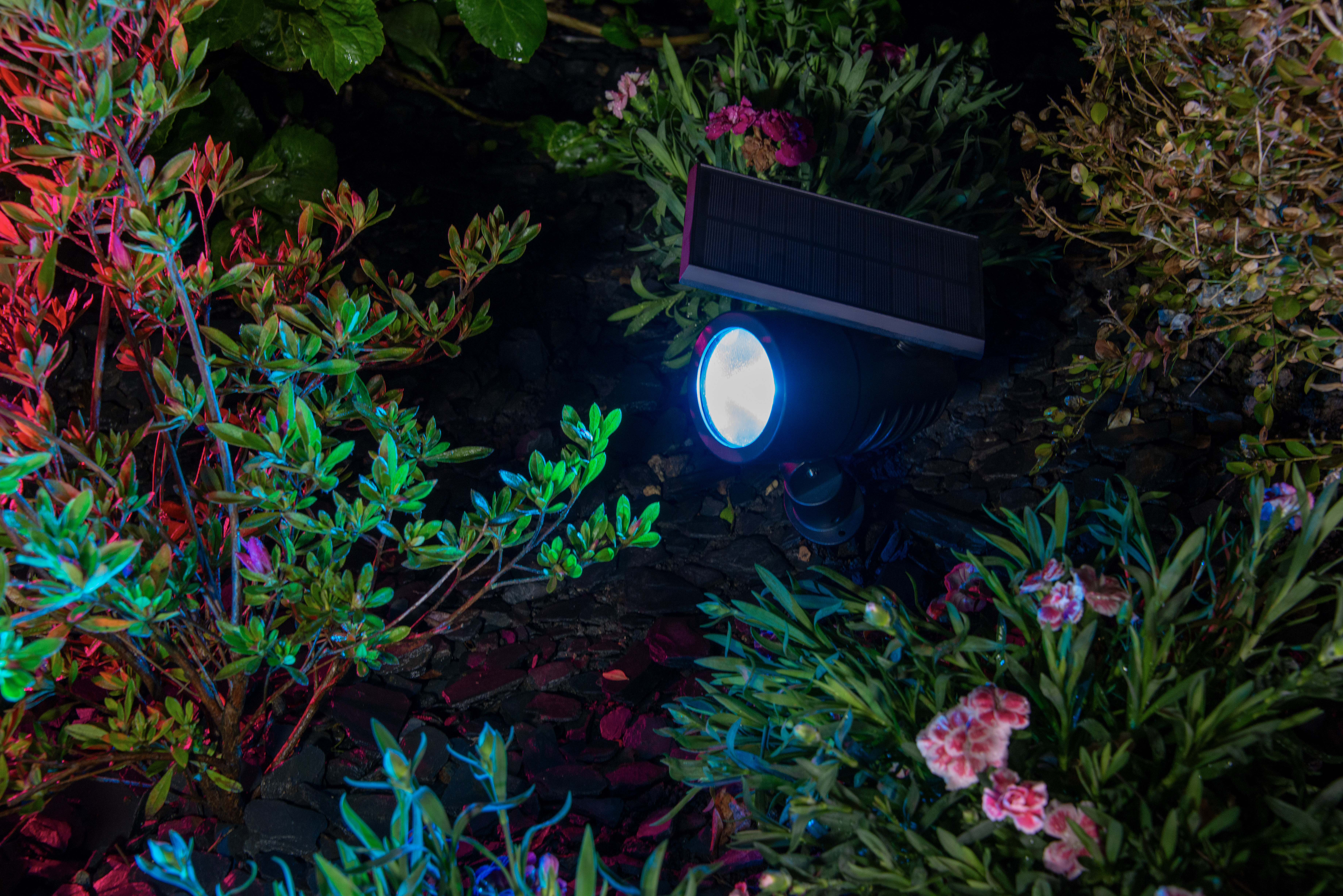

Smart Solar Spot close-up RGB 05

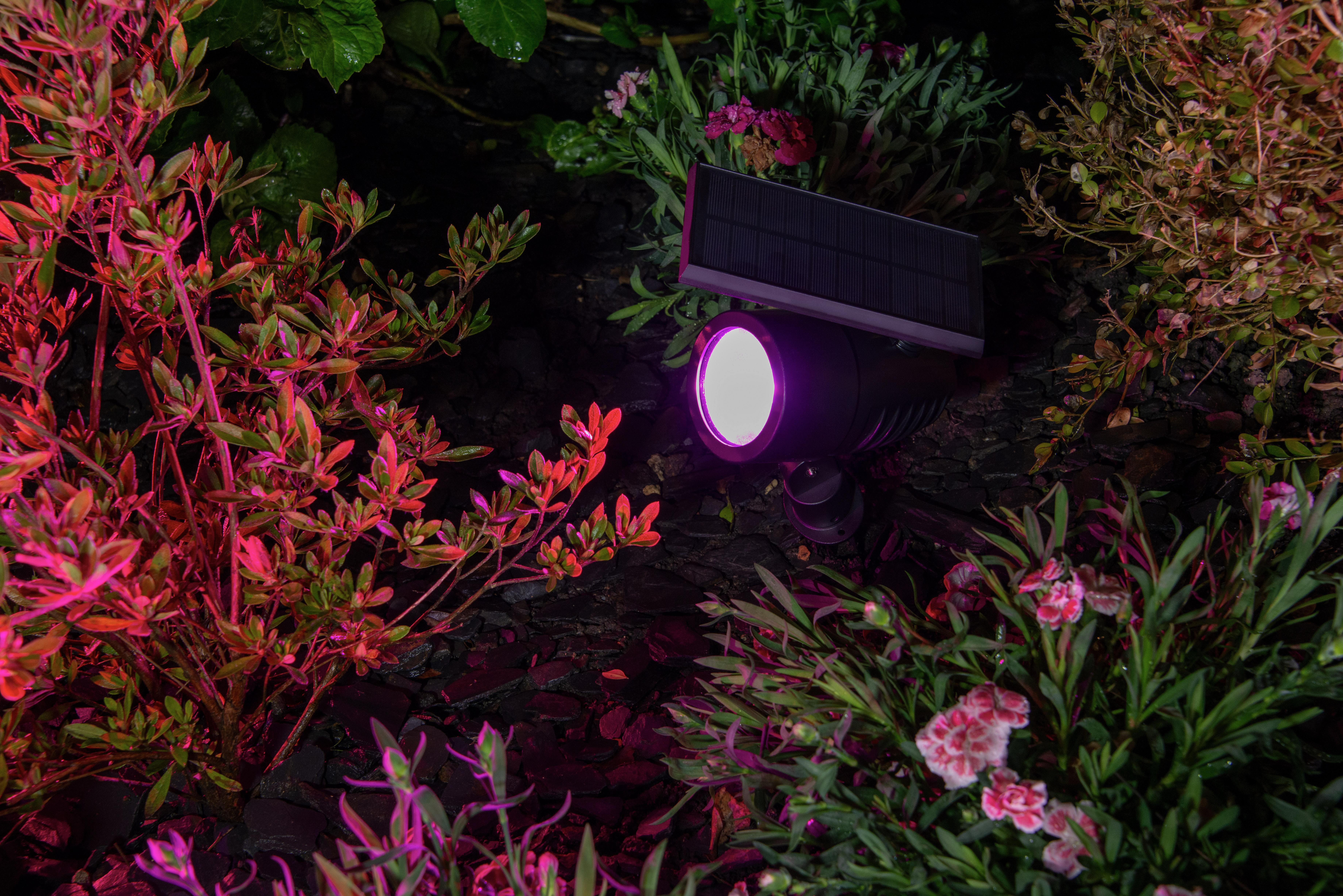

Application pictures
Smart Solar Spot close-up RGB 06
Application pictures
Smart Solar Spot close-up RGB 07
Application pictures

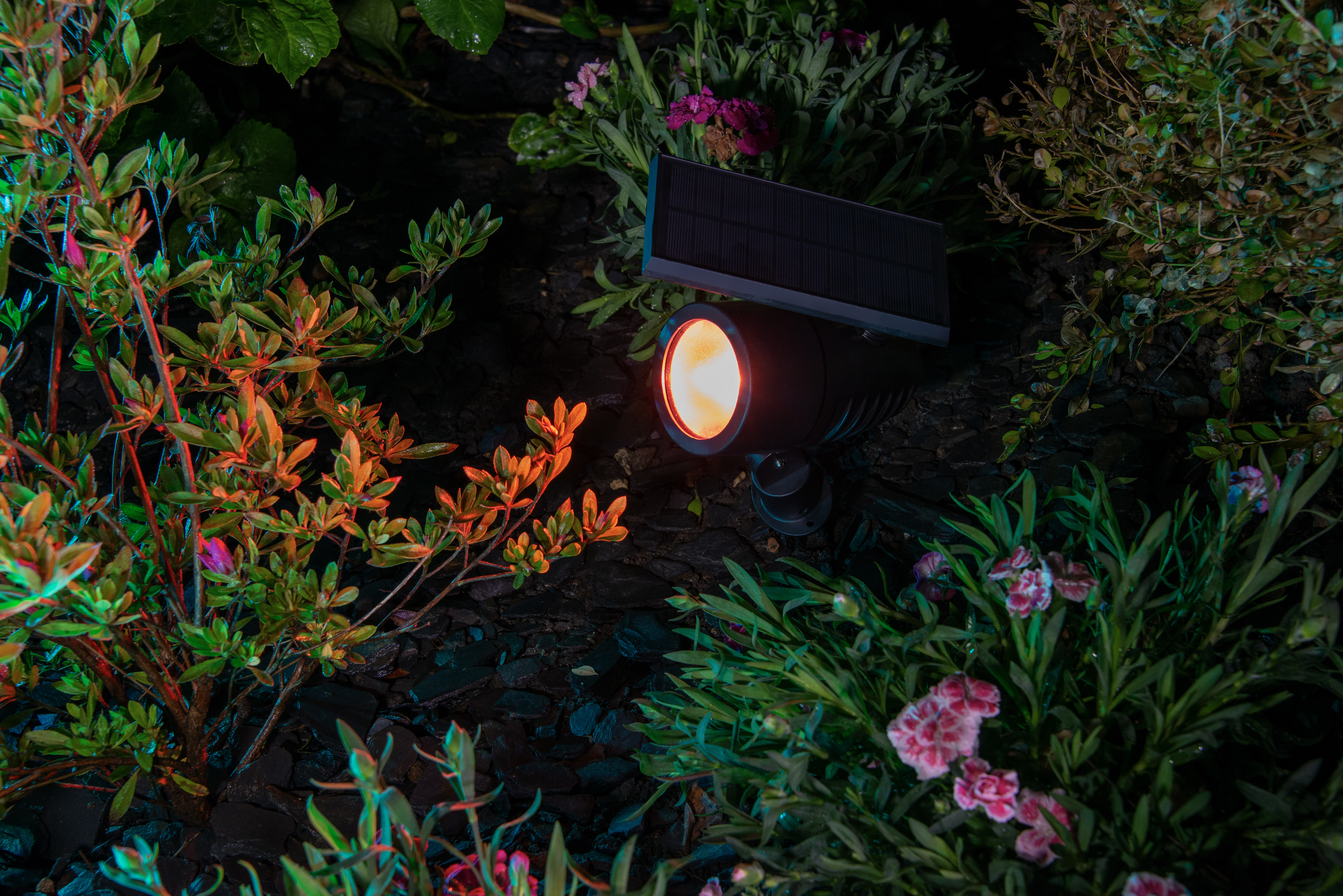

Smart Solar Spot close-up RGB 08
Application pictures
Smart Solar Spot close-up RGB 09
Application pictures
Smart Solar Spot close-up RGB 10
Application pictures
Smart Solar Spot close-up RGB 11

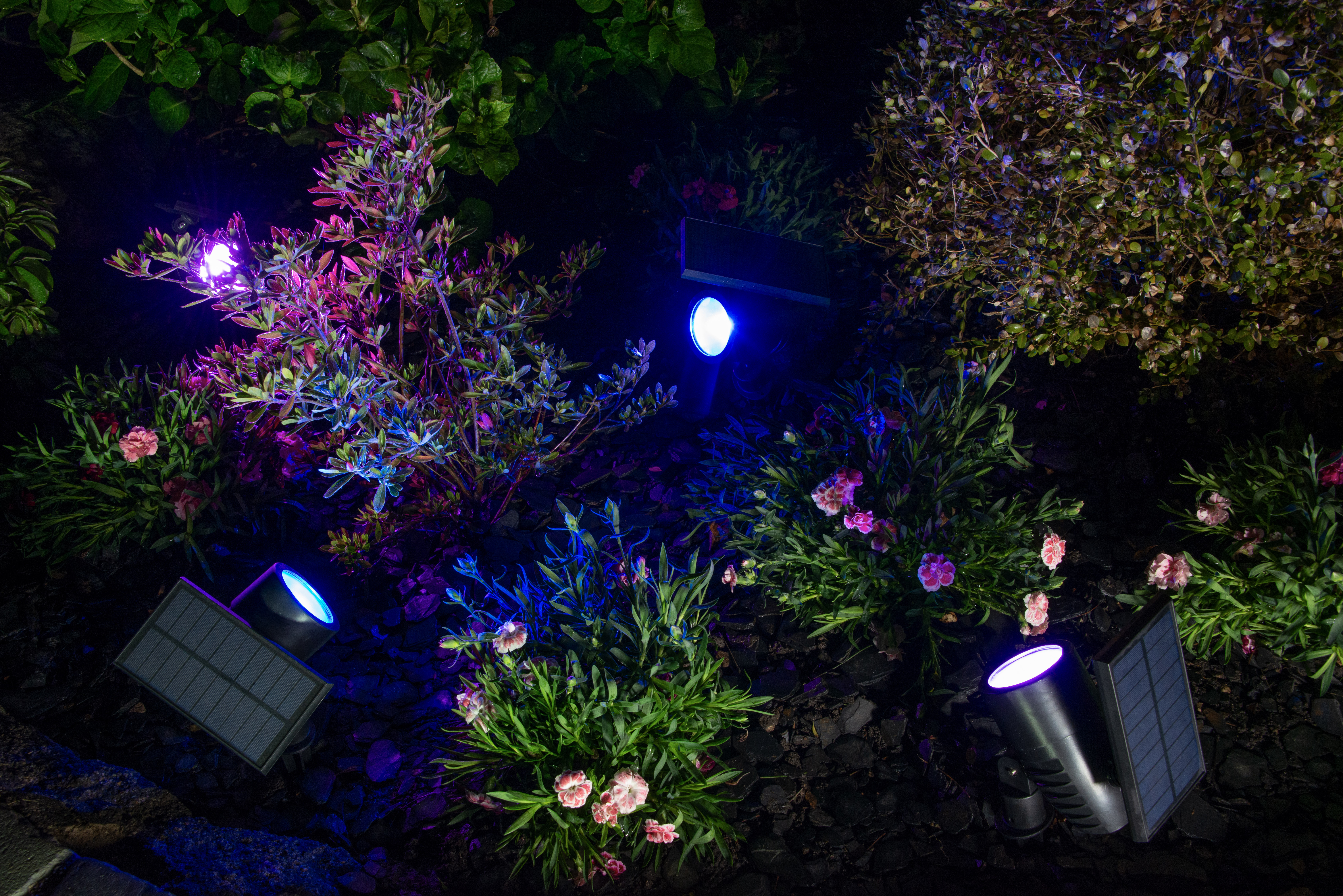

Application pictures
Smart Solar Spot close-up RGB 12
Application pictures
Smart Solar Spot close-up RGB 13
Application pictures

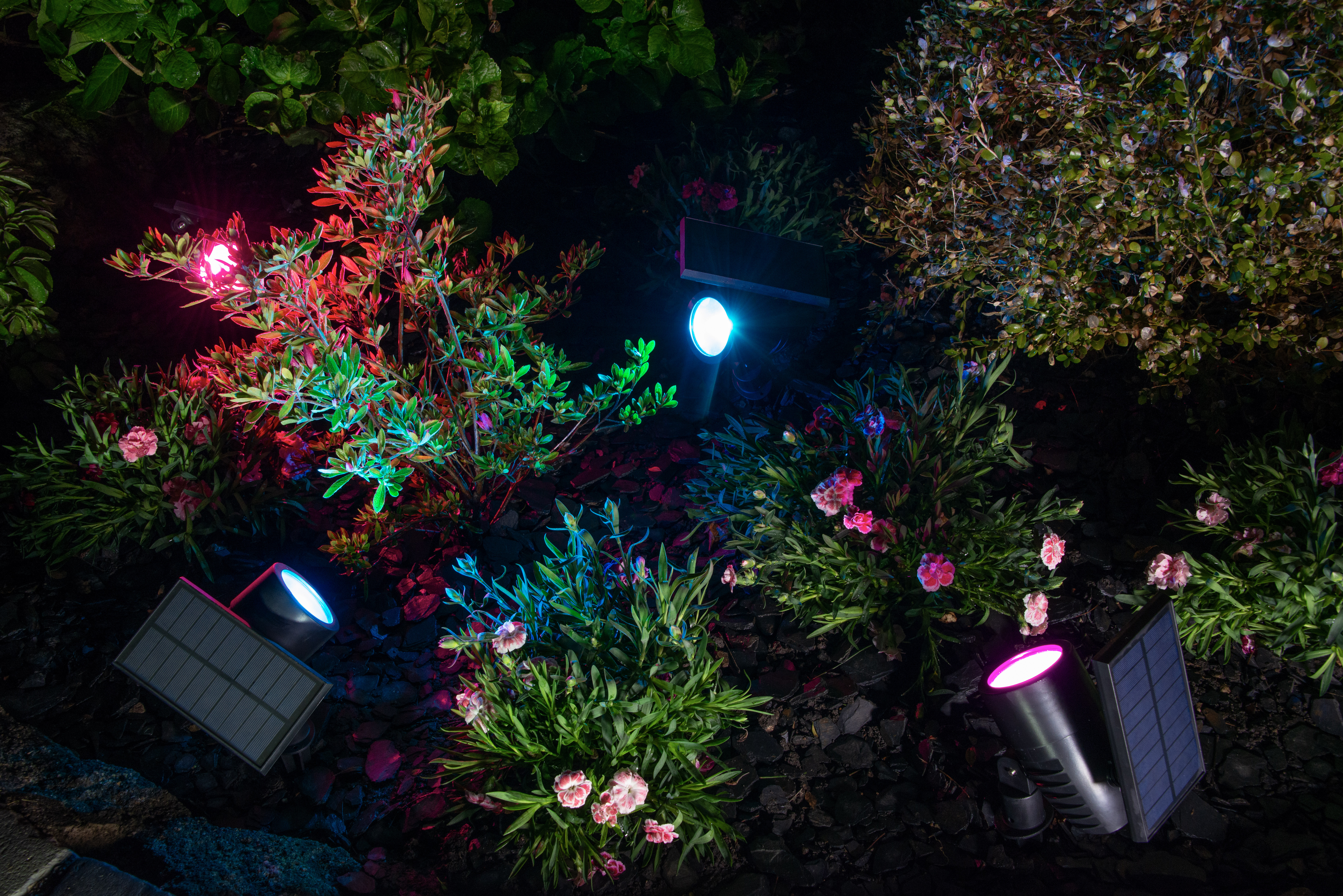

Smart Solar Spot close-up RGB 14
Application pictures
Smart Solar Spot close-up RGB 15
Application pictures

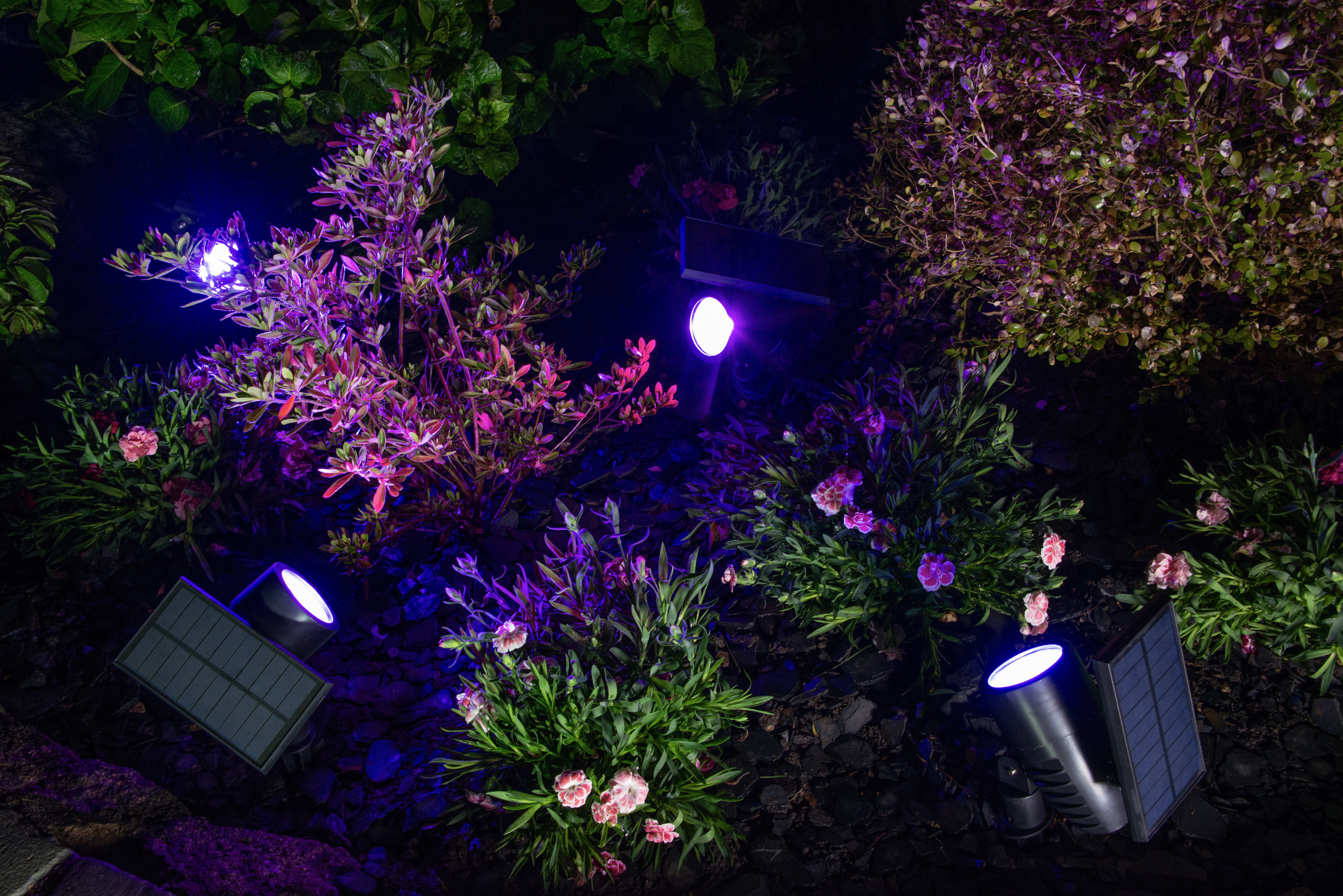

Smart Solar Spot close-up RGB 16

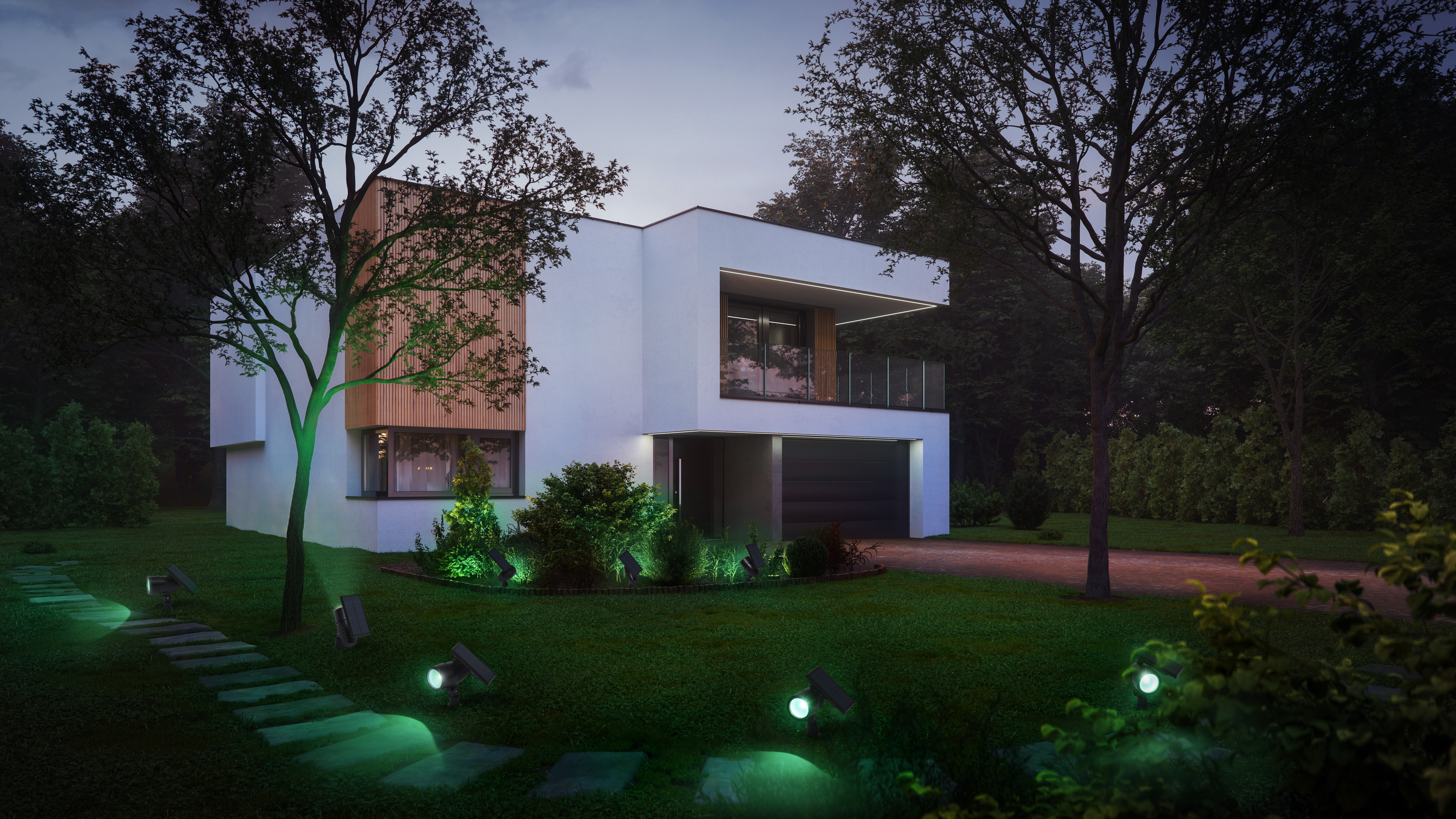

Application pictures Getty
SMART+ Outdoor Solar Spot Light IP44 RGBW
EAN ELDAS number
4058075763883 941005160
