Phase out
UVC T8 LAMPS

UVC T8 30 W G13

GTIN: 4058075502642 Sleeve / 1 Show all packages
Download data sheet
Contact sales
Our warranty conditions

PRODUCT DETAILS

Product benefits
  • Effective and environment-friendly disinfection without chemicals
  • Low mercury content
  • Ozone-free
  • Long lifetime (10 800 h) due to special coating
Areas of application
  • Air purification
  • Water purification
  • Surface sterilization
Product features
  • High UV-C radiance at 254 nm
Safety advice
  • Lamp emits ultraviolet light. Eyes and skin should not be exposed to direct or reflected ultraviolet light due to possibility of serious injury. This lamp is in Risk Group 3 per ANSI/IESNARP-27.3-96. Protect eyes and skin by clothing, gloves, opaque materials, and ordinary window glass. This lamp should be not used for general lighting applications.
Electrical data
Nominal wattage 30 W
Nominal voltage 96 V
Nominal current 370 mA
Operating frequency 50…60 Hz
Mains frequency 50…60 Hz
Photometrical data
Radiated power 200…280 nm (UVC) 12.6 W
Light technical data
Starting time 30.0 s
Dimensions & Weight
Overall length 908.80 mm
Length 908.80 mm
Length with base excl. base pins/connection 893.40 mm
Outer bulb [PICOS] T26
Diameter 25.50 mm
Tube diameter 25,5 mm
Product weight 120.00 g
Temperatures & operating conditions
Ambient temperature range +10…+50 °C
Lifespan
Nominal lamp life time 10800 h
Additional product data
Base (standard designation) G13
Mercury content 3.0 mg
Capabilities
Dimmable No
Burning position Any
Certificates & Standards
Energy consumption 30.00 kWh/1000h
Standards CE
Photobiological safety group acc. to EN62778 RG3
Country-specific categorizations
Order reference UVC T8 30W G13
PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS
Quantity of precious metals 0 mg
Quantity of rare earths 0 mg
Minimum rate of recycled material in packaging 80 % 1)
Minimum percentage of recycled content in the product 0 % 1)
Product recyclability Mostly recyclable product 1)
Packaging recyclability Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage Yes
List of substances of very high concern in concentrations greater than 0.1% in mass percentage Lead (7439-92-1)
1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)
Product code Packaging unit (Pieces/Unit) Dimensions (length x width x height) Gross weight Volume
4058075502642 Sleeve
1		 905 mm x 28 mm x 27 mm 136.00 g 0.68 dm³
4058075502659 Shipping box
25		 930 mm x 151 mm x 149 mm 3701.00 g 20.92 dm³
Product image: white background, diagonal
LEDVANCE TIBERA UVC tube
JPG (1.08 MB)
Product line drawing with letters
324360_FLUORESCENT LAMP (BASIC T8/LUMILUX T8) G13 BASE
SVG (5.67 KB)
Application pictures

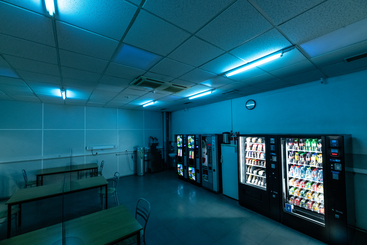

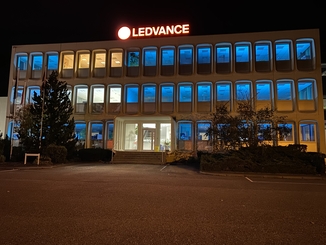

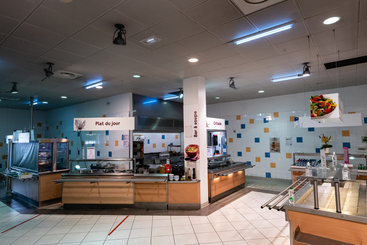

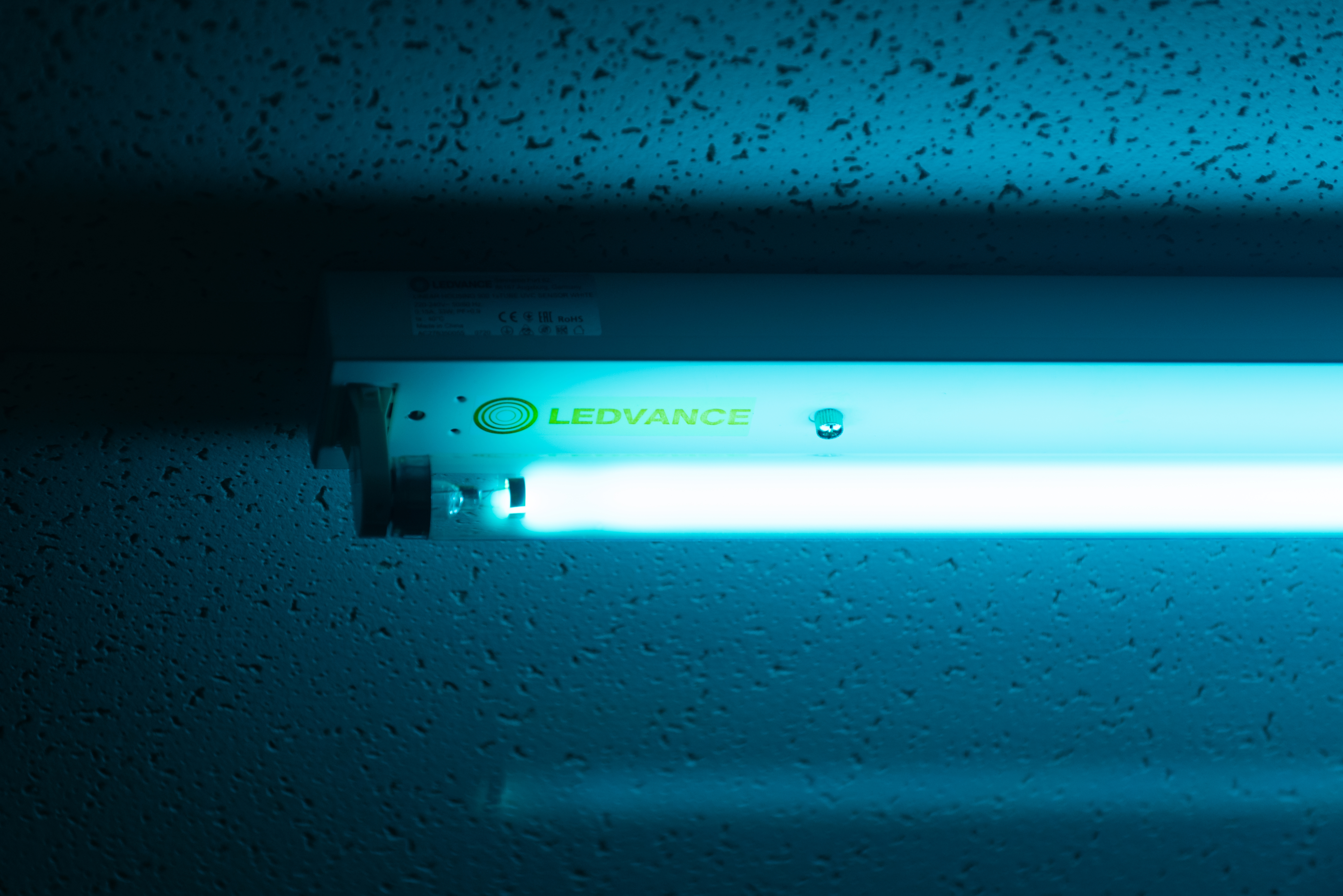

UV-C installation at LEDVANCE MOSLHEIM
JPG (32.09 MB)
Application pictures

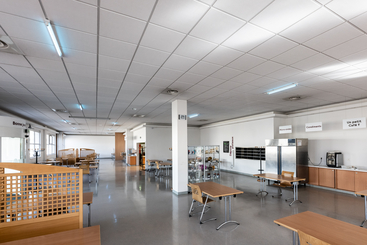

UV-C installation at LEDVANCE MOSLHEIM
JPG (59.09 MB)
Application pictures

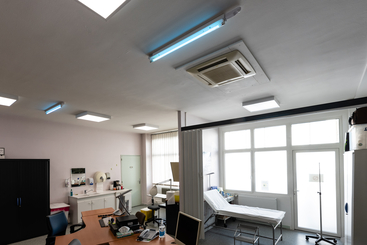

UV-C installation at LEDVANCE MOSLHEIM
JPG (19.44 MB)
Application pictures

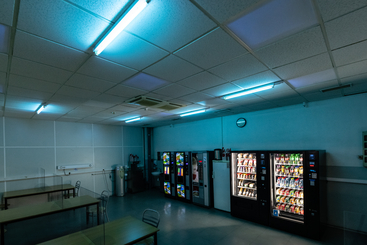

UV-C installation at LEDVANCE MOSLHEIM
JPG (31.11 MB)
Application pictures

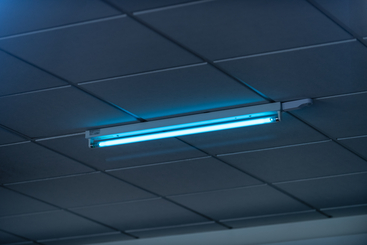

UV-C installation at LEDVANCE MOSLHEIM
JPG (14.65 MB)
Application pictures

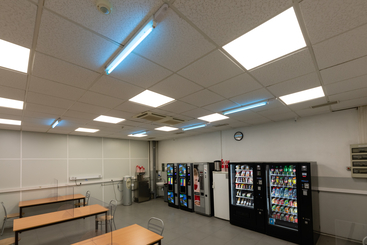

UV-C installation at LEDVANCE MOSLHEIM
JPG (35.02 MB)
Application pictures

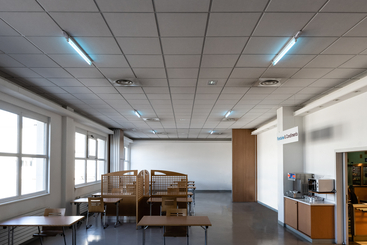

UV-C installation at LEDVANCE MOSLHEIM
JPG (27.49 MB)
Application pictures

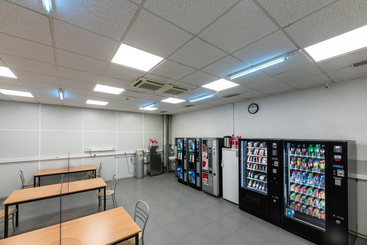

UV-C installation at LEDVANCE MOSLHEIM
JPG (25.08 MB)
Application pictures
UV-C installation at LEDVANCE MOSLHEIM
JPG (20.15 MB)
Application pictures
UV-C installation at LEDVANCE MOSLHEIM
JPG (14.59 MB)
Application pictures
UV-C installation at LEDVANCE MOSLHEIM
JPG (15.66 MB)
Application pictures
UV-C installation at LEDVANCE MOSLHEIM
JPG (3.2 MB)
EAN STK number
4058075502642 4933202
