LED VALUE LINEAR HIGHBAY

LED VALUE LINEAR HIGHBAY 100W 865 NW

GTIN: 4058075660212 Folding box / 1 Show all packages
Download data sheet
Contact sales
Our warranty conditions

PRODUCT DETAILS

Product benefits
  • Energy savings thanks to system efficacy up to 135 lm/W
  • 1-10 dimming provides additional energy saving
  • 3 kinds of beam angle available, Narrow (60°), Wide (90°) and High rack optic (30° x 90°), can meet different application requirements
  • IP44, can be used in indoor wet environment
  • Low maintenance costs thanks to long lifetime 50,000 hrs @ 35 ℃
Areas of application
  • Factory
  • Warehouses
  • Distribution centre
  • Other high ceiling indoor application
Product features
  • Available in 4 lengths: 252 mm, 491 mm, 730 mm and 969 mm
  • Available with wattage: 50 W, 100 W, 150 W and 200 W
  • Surge protection: up to 4 kV (L/N-PE), 2 kV (L-N)
  • Available in sling suspended and bracket mounted
  • Certificate: CB, RoHS
Electrical data
Nominal wattage 100.00 W
Nominal voltage 100…240 V
Mains frequency 50…60 Hz
Nominal current 1100.000 mA
Max. number of luminaires per miniature circuit breaker B16 2
Max. number of luminaires per miniature circuit breaker C16 2
Power factor λ > 0.90
Total harmonic distortion < 20 %
Protection class I
Photometrical data
Luminous flux 13000 lm
Luminous efficacy 130 lm/W
Color temperature 6500 K
Light color (designation) Daylight
Color rendering index Ra 80
Beam angle 60 °
Dimensions & Weight
Length 491.00 mm
Height 70.00 mm
Width 129.00 mm
Product weight 1400.00 g
Materials & Colors
Product color Gray
Housing color Gray
Body material Aluminum
Glow Wire Test according to IEC 60695-2-12 650 °C
Mercury content 0.0 mg
Application & Mounting
Ambient temperature range -20…+45 °C
Type of connection Terminal
Type of protection IP44
Protection class IK (shock resistance) IK06
Dimmable Yes
Type of dimming 1-10V
Mounting type Suspended/Surface
Application environment Indoor
Mounting length 491 mm
Mounting width 129 mm
With light source Yes
Replaceable light source No
Certificates & Standards
Ball shot safe No
Replaceable light source (EPREL) Not replaceable
Additional product data
Number of illuminants no
PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS
Minimum rate of recycled material in packaging 80 % 1)
Minimum percentage of recycled content in the product 0 % 1)
Product recyclability Mostly recyclable product 1)
Packaging recyclability Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage No
1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)
Product code Packaging unit (Pieces/Unit) Dimensions (length x width x height) Gross weight Volume
4058075660212 Folding box
1		 540 mm x 105 mm x 155 mm 1601.00 g 8.79 dm³
4058075660229 Shipping box
6		 555 mm x 345 mm x 330 mm 10598.00 g 63.19 dm³

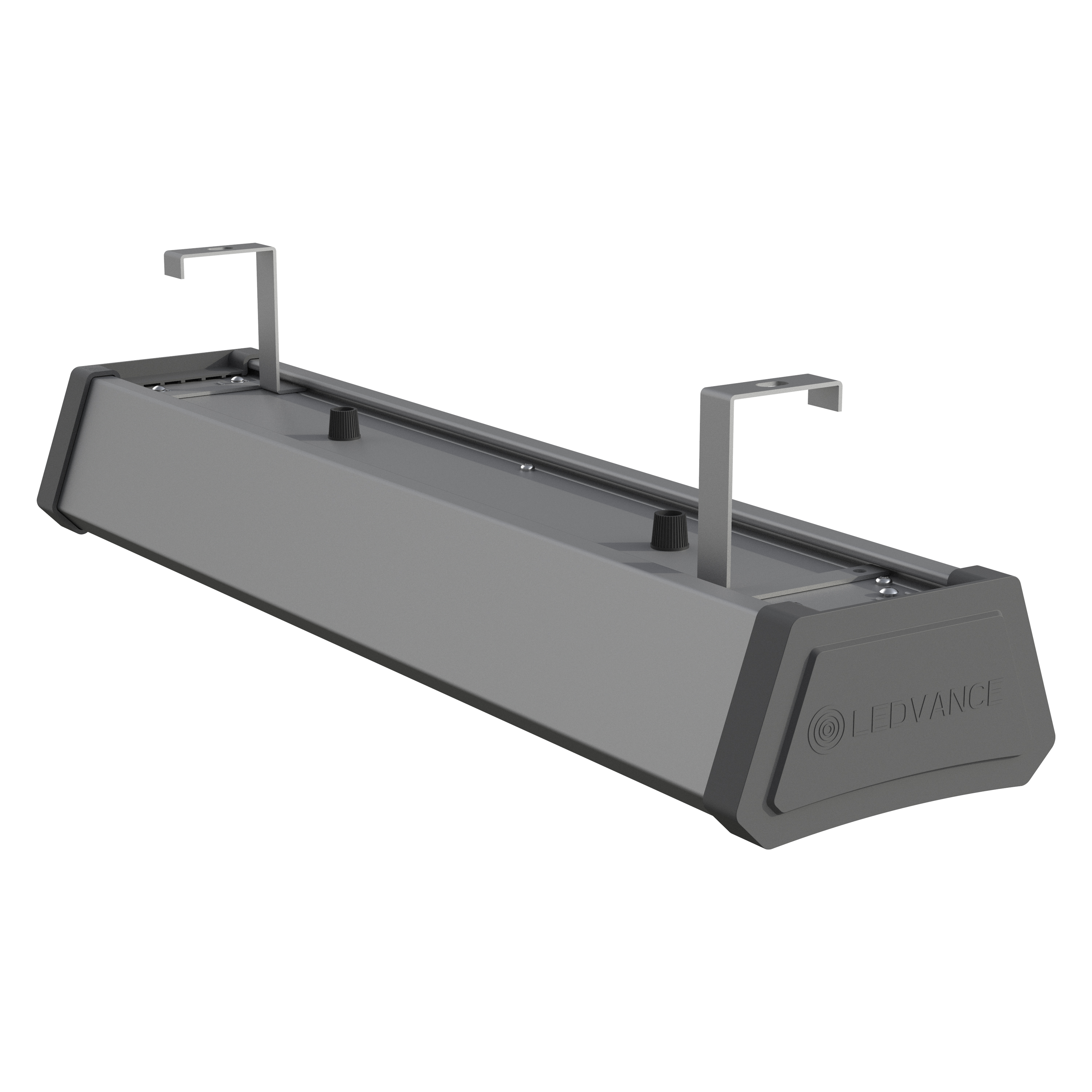

Product image: white background, diagonal
LDVAL LINEAR HB 100W
JPG (1.05 MB)

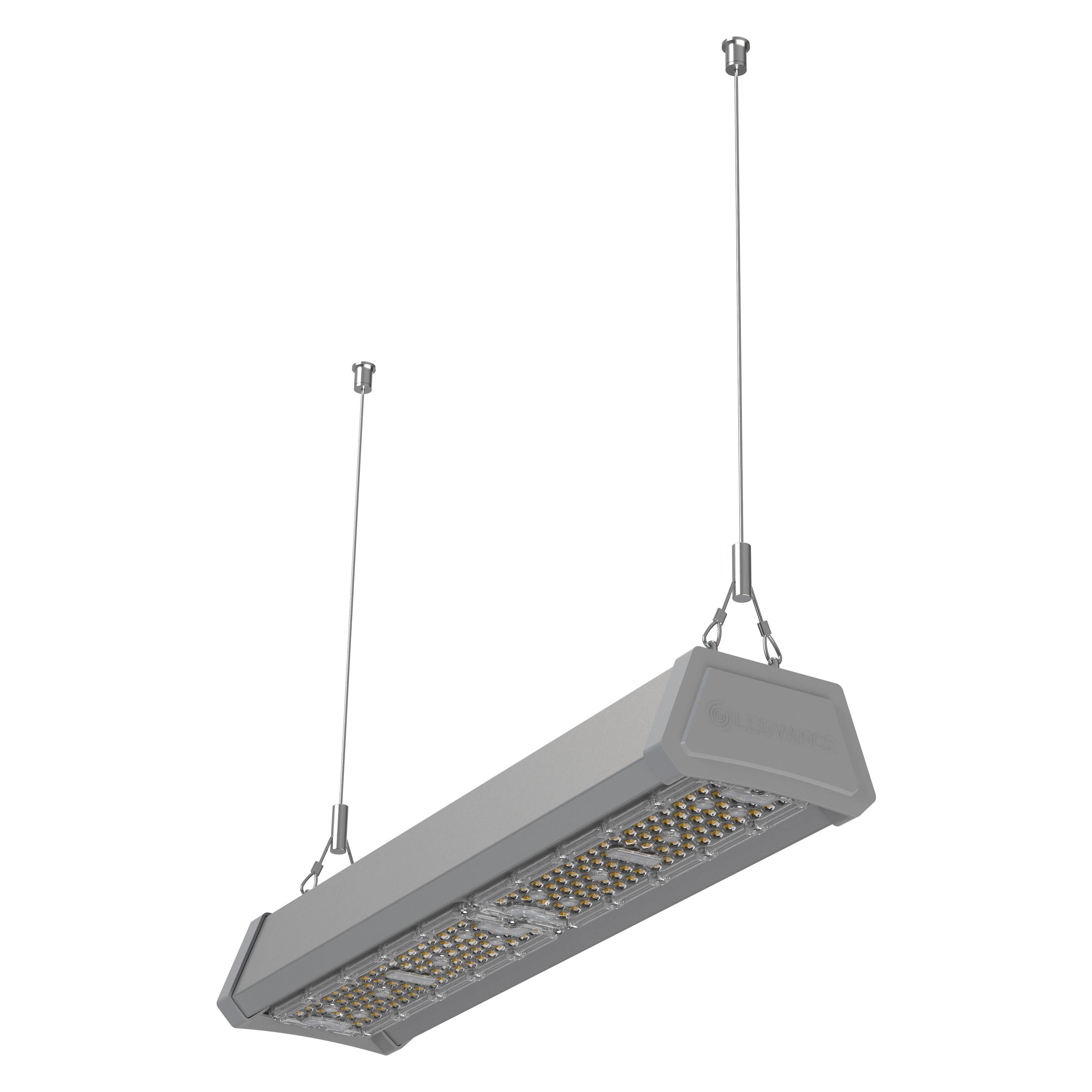

Product image: white background, diagonal, alternative image
LDVAL LINEAR HB 100W
JPG (1.54 MB)

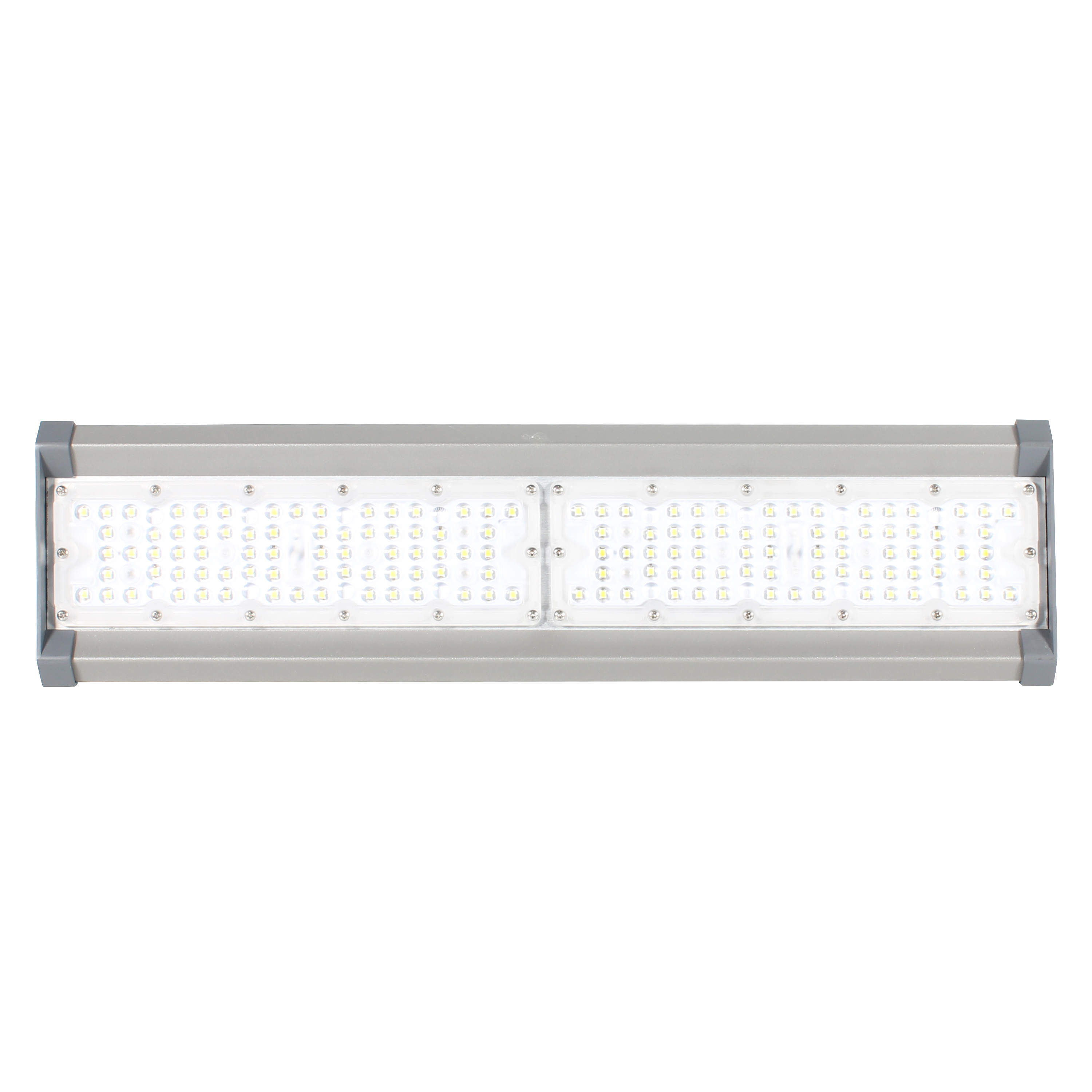

Product image: white background, upright, alternative image
LDVAL LINEAR HB 100W
JPG (1.36 MB)
Product image: white background, spacial
LDVAL LINEAR HB 100W
JPG (1.18 MB)

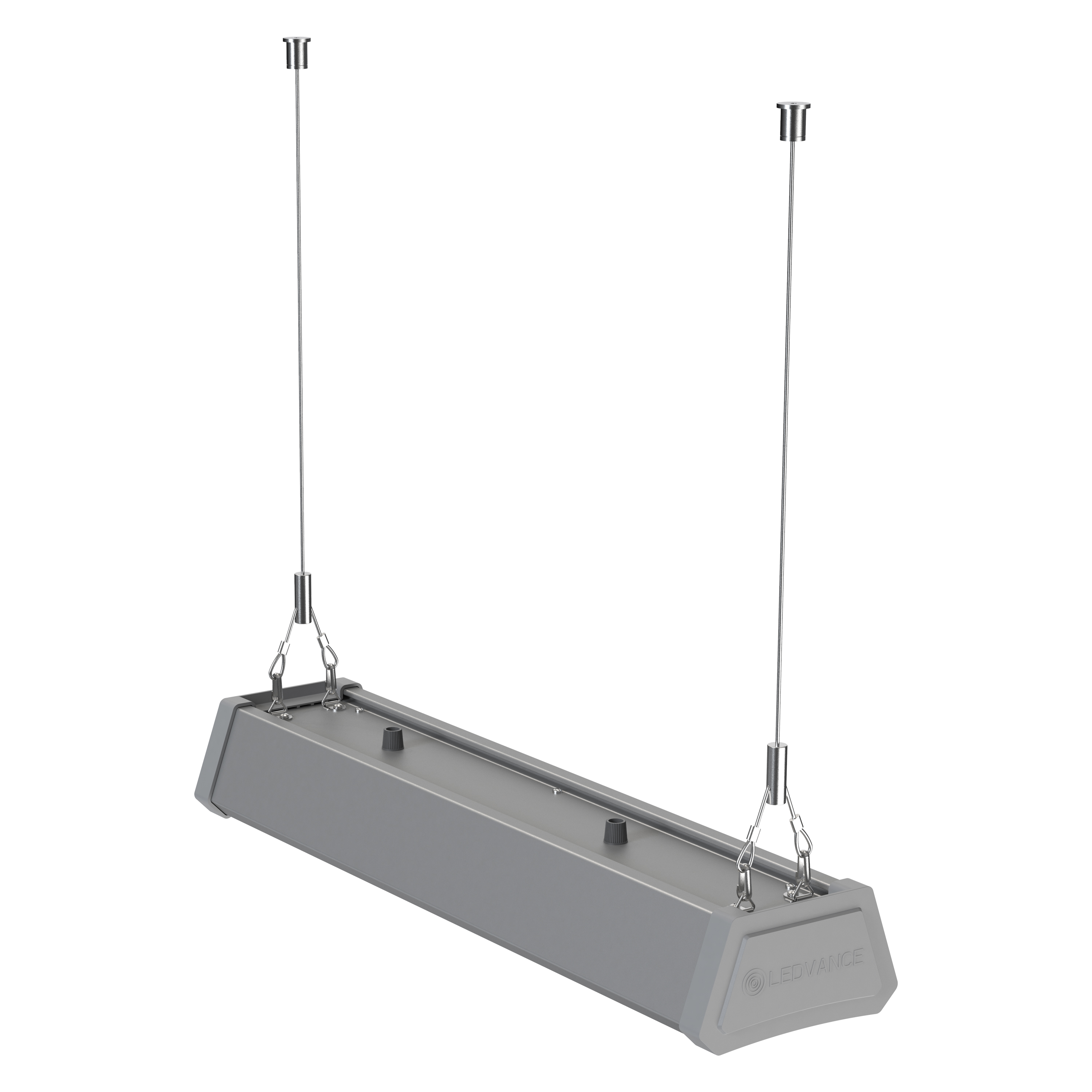

Product image: white background, with accessory, alternative image
