STERIWHITE AIRQ600

STERIWHITE AIRQ600 W

GTIN: 4260732190059 Shipping box / 1 Show all packages
Download data sheet
Contact sales
Our warranty conditions

PRODUCT DETAILS

Product features
  • Extremely quiet, no annoying air flow
  • Energy-efficient
  • Low-maintenance
  • Easy operation
  • Modern design
  • One performance level 600 m³/h at <39 dB (A)
  • Made in Germany
Electrical data
Nominal wattage 300.00 W
Nominal voltage 230 V
Mains frequency 50 Hz
Protection class I
Operating mode Integrated driver
UV & Air cleaning
Maximum disinfection volume flow 600 m³/h
Air circulation 600 m³/h
UV radiated power 204 W
UV-C source lifetime 16000 h
Noise level in UV-C disinfection mode < 39 dB
Suitable for room space up to 70 m²
Dimensions & Weight
Length 315.00 mm 1)
Height 860.00 mm 1)
Width 860.00 mm 1)
Product weight 53000.00 g
Cable length 3000 mm
1) The dimension can vary depending on type of mounting variant
Materials & Colors
Product color White
Body material Steel
Mercury content 0.0 mg
Application & Mounting
Ambient temperature range 0…+40 °C
Type of connection Plug type C (EU)
Protection class IK (shock resistance) IK03
Dimmable No
Mounting type Surface
Mounting location Wall, Ceiling
Certificates & Standards
Standards CE
Product code Packaging unit (Pieces/Unit) Dimensions (length x width x height) Gross weight Volume
4260732190059 Shipping box
1		 1,200 mm x 800 mm x 1,500 mm 80000.00 g 1440.00 dm³
Legal information
Informationstext 18 Abs 4 ElektroG
PDF (435.15 KB)

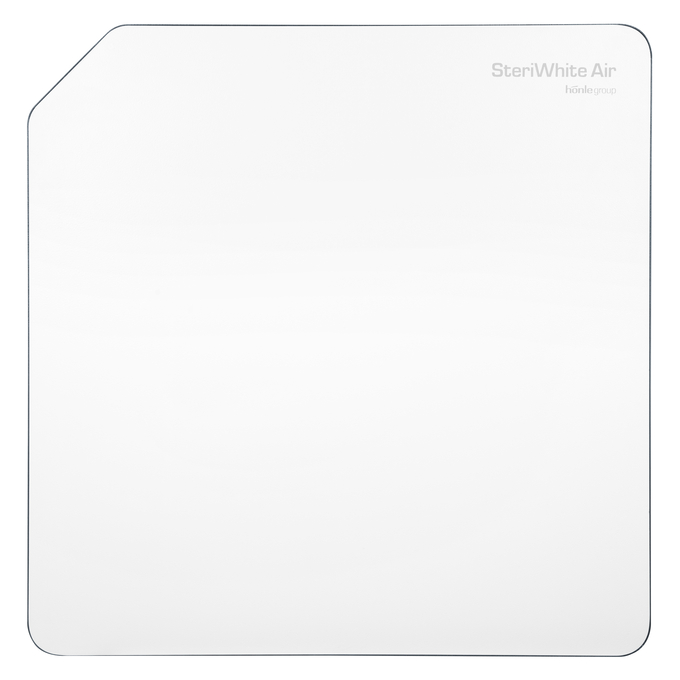

Product image: white background, upright
STERIWHITE AIRQ600 W
JPG (2.5 MB)

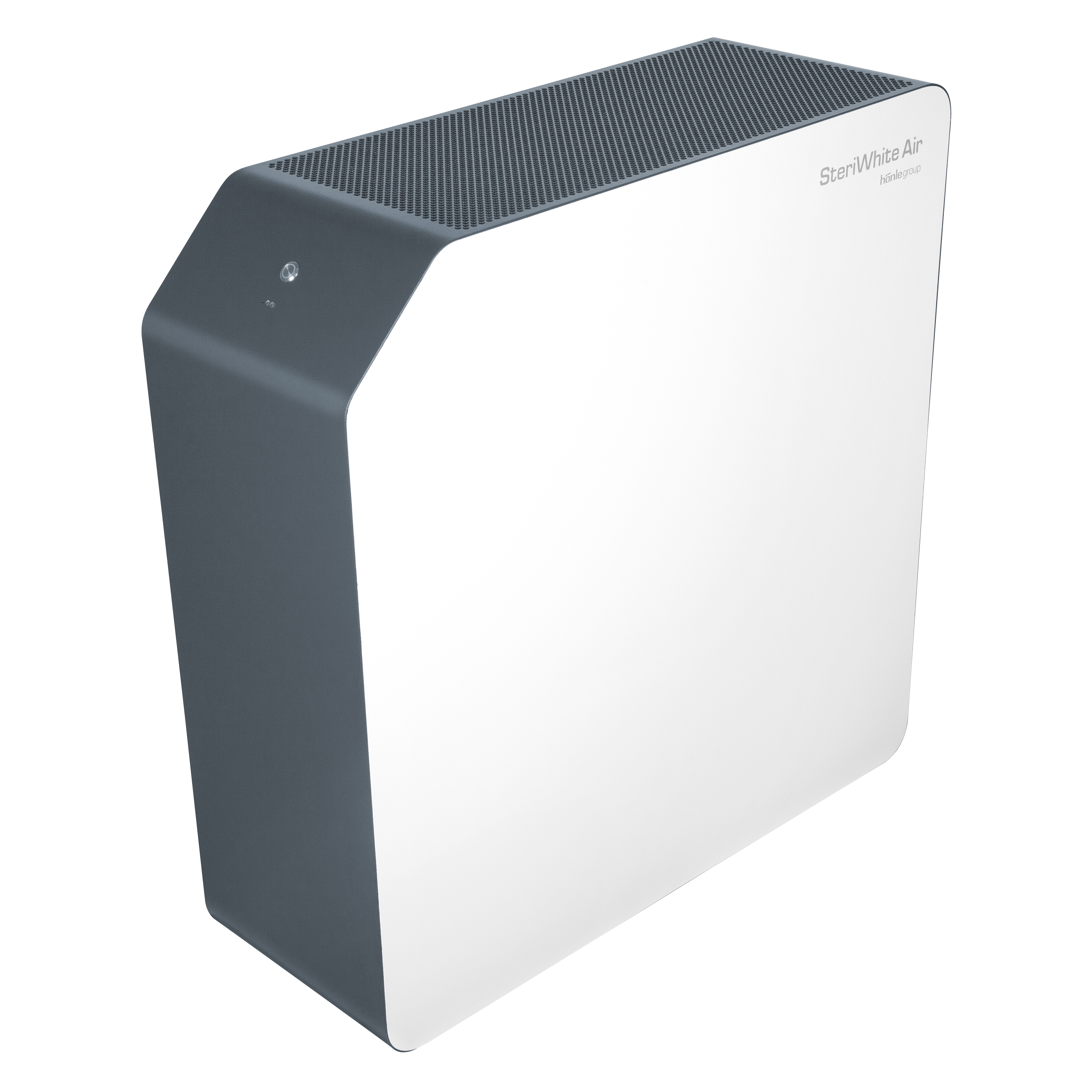

Product image: white background, spacial
STERIWHITE AIRQ600 W
JPG (2.39 MB)
Product line drawing with letters
STERIWHITE AIRQ600 W
SVG (8.29 KB)
Product line drawing with numbers
STERIWHITE AIRQ600 R / STERIWHITE AIRQ600 W
SVG (15.65 KB)
Product line drawing - technical
STERIWHITE AIRQ600 W
SVG (3.85 KB)
Application pictures

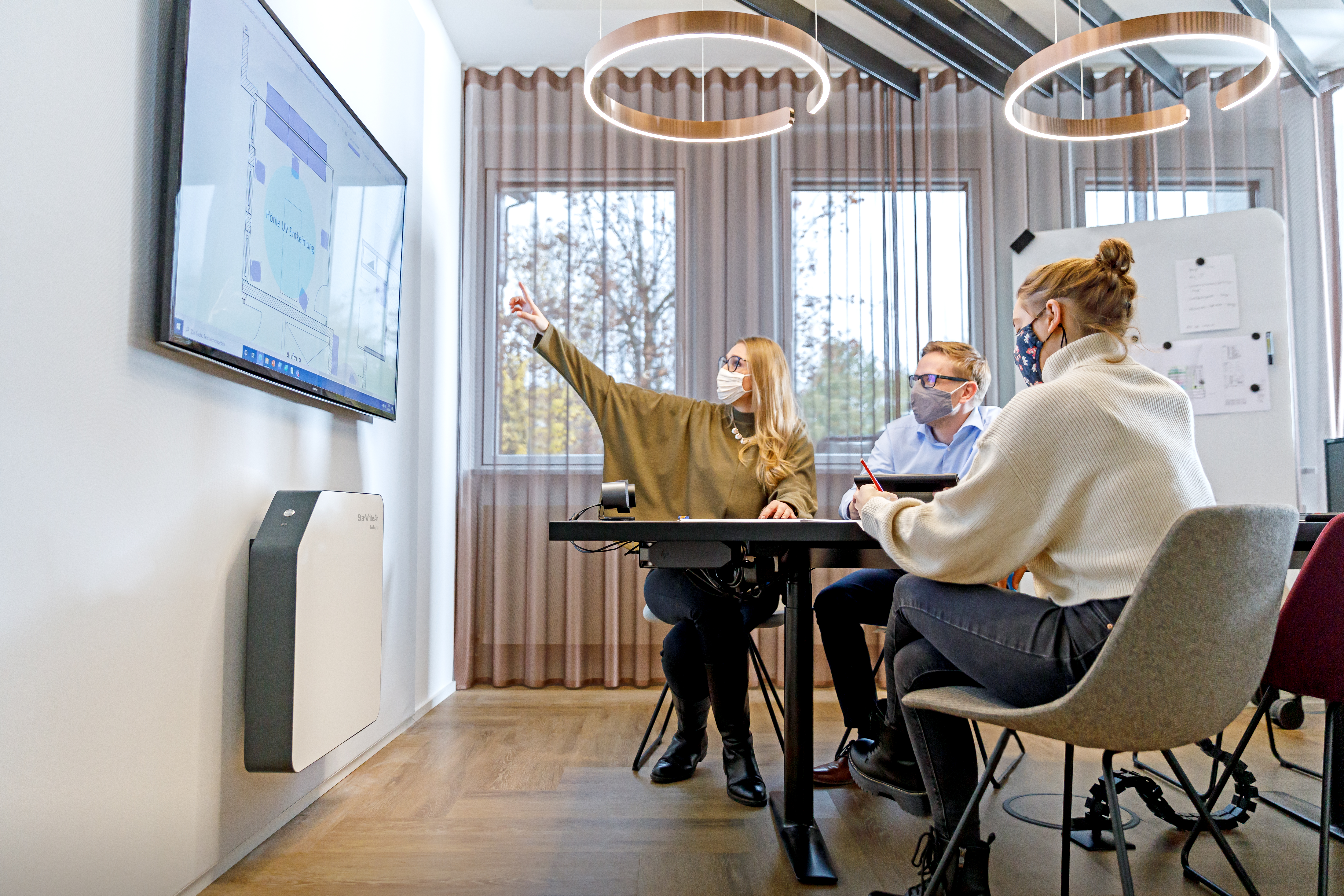

UV-C Hoenle Office 2 Anwendung
JPG (20.49 MB)
Application pictures
Case Study: UVC air disinfection Middle School Garching
JPG (16.63 MB)
Application pictures
Case Study: UVC air disinfection Middle School Garching
JPG (15.49 MB)
Application pictures
Case Study: UVC air disinfection Middle School Garching
JPG (19.69 MB)
Application pictures
Case Study: UVC air disinfection Middle School Garching
JPG (13.13 MB)
Application pictures
Case Study: UVC air disinfection Middle School Garching
JPG (21.66 MB)
Application pictures
Case Study: UVC air disinfection Middle School Garching
JPG (13.13 MB)
Application pictures
Case Study: Middle School Garching
JPG (24.57 MB)
EAN STK number ELDAS number
4260732190059 8304607 907530050
