LED TUBE T9 C 22 EM VALUE 11W 840 G10Q | LED TUBE T9 EM VALUE | LEDVANCE

LED TUBE T9 EM VALUE

LED TUBE T9 C 22 EM VALUE 11W 840 G10Q

GTIN: 4099854042461 Folding box / 1 Show all packages

Download data sheet

Our warranty conditions

Fast Light Calculation Tool
The fast way to plan lighting projects

PRODUCT DETAILS

Product benefits

Quick, simple and safe replacement without rewiring
Energy savings of up to 50 % (compared to T9 fluorescent lamp)
Also suitable for operation at low temperatures
Operation directly on 230 V AC mains possible

Areas of application

General illumination within ambient temperatures from -20…+45 °C
Corridors, stairways, parking garages
Domestic applications
Decorative applications

Product features

LED alternative to classic T9 fluorescent lamps in CCG luminaires
Uniform illumination
Lifetime up to 30,000 h
Mercury-free and RoHS compliant

Legal advice

When used to replace a T9 fluorescent lamp the total energy efficiency and light distribution depends on the design of the lighting system.

Safety advice

Not suitable for operation with electronic control gear.
Operation in outdoor applications in suitable damp-proof luminaires possible according to data sheet and installation instruction.
All electrical connections must be made by a qualified person.
Disconnect mains before installation.
Lamp not suitable for emergency operation.

References / Links

For current information see www.ledvance.com/ledtube

Electrical data

Nominal wattage	11 W
Construction wattage	11.00 W
Nominal voltage	220…240 V
Operating mode	CCG, AC Mains
Nominal current	51 mA
Type of current	AC
Inrush current	11 A
Operating frequency	50/60 Hz
Mains frequency	50/60 Hz
Max. lamp number on MCB B10 A	25
Max. lamp number on MCB B10 A - CCG without compensation	94
Max. lamp number on MCB B10 A - CCG with compensation	16
Max. lamp number on MCB B16 A	31
Max. lamp number on MCB B16 A - CCG without compensation	150
Max. lamp number on MCB B16 A - CCG with compensation	20
Total harmonic distortion	< 20 %
Power factor λ	> 0.90

Photometrical data

Luminous flux	1320 lm
Luminous efficacy	120 lm/W
Lumen main.fact.at end of nom.life time	0.96
Light color (designation)	Cool White
Color temperature	4000 K
Color rendering index Ra	80
Light color	840
Standard deviation of color matching	≤6 sdcm
Rated LLMF at 6,000 h	0.80
Flickering metric (Pst LM)	1
Stroboscope effect metric (SVM)	0.4

Light technical data

Beam angle	110 °
Warm-up time (60 %)	0.00 s
Starting time	< 0.5 s

Dimensions & Weight

Overall length	212.00 mm
Diameter	212.00 mm
Product weight	158.00 g

Temperatures & operating conditions

Ambient temperature range	-20…+45 °C ¹⁾
Maximum temperature at tc test point	75 °C

¹⁾ Temperature surrounding the lamp - for enclosed luminaires: temperature inside of the luminaire

Lifespan

Lifespan L70/B50 at 25 °C	30000 h
Number of switching cycles	200000
Lumen maintenance at end of service lifetime	0.96
Rated lamp survival factor at 6,000 h	≥ 0.90

Additional product data

Base (standard designation)	G10q
Mercury content	0.0 mg
Mercury-free	Yes

Capabilities

Dimmable

No

Certificates & Standards

Energy efficiency class	E ¹⁾
Energy consumption	11.00 kWh/1000h
Type of protection	IP20
Standards	CE, EAC, UKCA
Photobiological safety group acc. to EN62778	RG0

¹⁾ Energy efficiency class (EEC) on a scale of A (highest efficiency) to G (lowest efficiency)

Country-specific categorizations

Order reference

LEDTUBE T9C EM

LOGISTICAL DATA

Temperature range at storage

-20…+80 °C

Energy labelling regulation data acc EU 2019/2015

Lighting technology used	LED
Non-directional or directional	NDLS
Mains or non-mains	MLS
Light source cap-type (or other electric interface)	G10q
Connected light source (CLS)	No
Color-tuneable light source	No
Envelope	No
High luminance light source	No
Anti-glare shield	No
Correlated colour temperature type	SINGLE_VALUE
Claim of equivalent power	Yes
Length	212.00 mm
Height	212.00 mm
Width	212.00 mm
Chromaticity coordinate x	0.3818
Chromaticity coordinate y	0.3797
R9 Colour rendering index	1
Beam angle correspondence	SPHERE_360
Survival factor	0.9
Displacement factor	0.9
LED light source replaces a fluorescent light source	No
EPREL ID	1340165
Model number	AC45071,AC45071

Product code	Packaging unit (Pieces/Unit)	Dimensions (length x width x height)	Gross weight	Volume
4099854042461	Folding box 1	38 mm x 220 mm x 224 mm	229.00 g	1.87 dm³
4099854042478	Shipping box 10	397 mm x 251 mm x 255 mm	2840.00 g	25.41 dm³

User instruction / safety instructions
LED TUBE T9C EM

Legal information
Informationstext 18 Abs 4 ElektroG

PDF (435.15 KB)

Declarations of conformity UKCA
UKCA declaration_LEDTUBE T9C EM

PDF (140.33 KB)

Product image: white background, diagonal with LEDVANCE logo
LEDTUBE T9C EM 22W 12W G10Q

Product image: white background, diagonal
LEDTUBE T9C EM 22 12W G10Q

JPG (448.36 KB)

Product image: white background, upright LEDVANCE logo
LEDTUBE T9C EM 22W 12W G10Q

Product image: white background, upright
LEDTUBE T9C EM 22 12W G10Q

JPG (583.79 KB)

Product line drawing with letters
LED TUBE T9 C EM V 22

Product line drawing with numbers
LED TUBE T9 C EM V 22

Product line drawing - technical
LED TUBE T9 C EM V 22

Combo Shot = Product Beauty Shot + Packaging Image
FC1 LED TUBE T9 C EM 22 ba120 11W 840 G10q

JPG (490.88 KB)

Packaging image, frontal
FC1 LED TUBE T9 C EM 22 ba120 11W 840 G10q

JPG (599.65 KB)

Packaging image, spacial
FC1 LED TUBE T9 C EM 22 ba120 11W 840 G10q

JPG (612.76 KB)

Energy Label 2021 UK
EL-4099854042461-AC450 71

IES file (IES)
LEDTUBE T9C EM V 22 11W 840 G10Q

LDT file (Eulumdat)
LEDTUBE T9C EM V 22 11W 840 G10Q LEDV

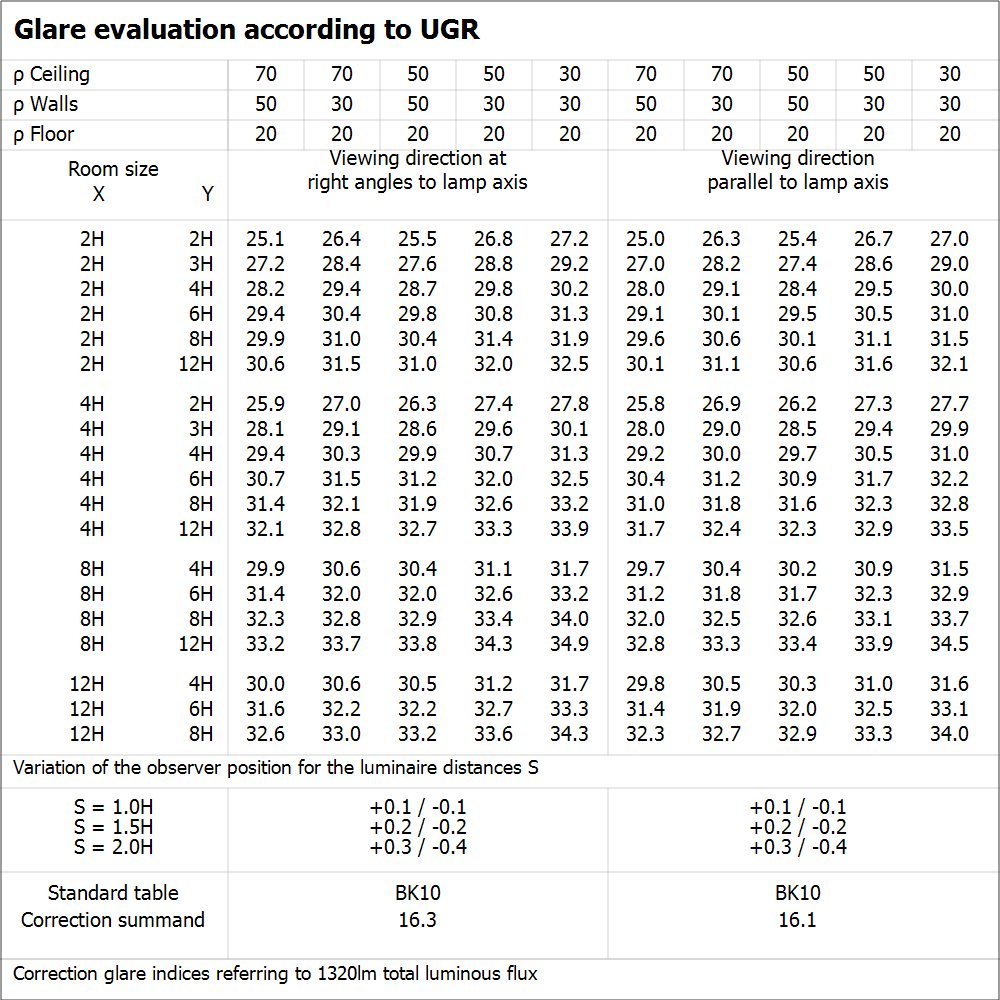

UGR file (UGR table)
