WORKLIGHT BATTERY 18V POWER FOR ALL ALLIANCE
Worklight Battery Power for all Alliance 15W 840 Black
GTIN: 4058075843226
Folding box / 1
Show all packages
Our warranty conditions
PRODUCT DETAILS
Product benefits
- High Quality Worklight compatible with 18V Power for All Alliance Accu by BOSCH
- Worklight fits to the 18V accu platform that includes many devices from many different brands from the DIY category
Areas of application
- Renovation
- Garages
- Basement
- Workshops
Product features
- Worklight with swiveling head
- Click-DIM version: dimmable in three steps by repeated switching
Safety advice
- To reduce the risk of strangulation the flexible wiring connected to this luminaire shall be effectively fixed to the wall if the wiring is within arm’s reach.
Electrical data
| Nominal wattage | 15.00 W |
| Nominal voltage | 18 V |
| Nominal current | 830.000 mA |
| Protection class | III |
| Operating mode | Battery |
Photometrical data
| Luminous flux | 1300 lm |
| Luminous efficacy | 86 lm/W |
| Color temperature | 6500 K |
| Light color (designation) | Cool Daylight |
| Color rendering index Ra | ≥80 |
| Standard deviation of color matching | < 6 sdcm |
| Luminous intensity | 650 cd |
| Flickering metric (Pst LM) | <1 |
| Stroboscope effect metric (SVM) | <0.9 |
| Photobiological safety group acc. to EN62778 | RG1 |
| Beam angle | 100 ° |
Dimensions & Weight
| Length | 200.00 mm |
| Height | 236.00 mm |
| Width | 195.00 mm |
| Product weight | 1080.00 g |
Materials & Colors
| Product color | Black |
| Housing color | Black |
| Body material | Aluminum |
| Cover material | Acrylonitrile butadiene styrene (ABS) |
| Glow Wire Test according to IEC 60695-2-12 | 650 °C |
| Mercury content | 0.0 mg |
Application & Mounting
| Ambient temperature range | -10…+40 °C |
| Temperature range at storage | -20…+60 °C |
| Type of protection | IP20 |
| Protection class IK (shock resistance) | IK06 |
| Dimmable | Yes |
| Mounting type | Surface |
| Application environment | Indoor |
| With light source | Yes |
| Replaceable light source | No |
Lifespan
| Lifespan L70/B50 at 25 °C | 15000 h 1) |
| Number of switching cycles | 7500 |
1) t[h]: L70 / B50 @ 25 °C (Ta), t[h]: L80 / B10 @ 25 °C (Ta), t[h]: L90 / B10 @ 25 °C (Ta)
Certificates & Standards
| Standards | CE, UKCA |
| Luminaire with limited surface temperature, "D sign" | No |
| Replaceable light source (EPREL) | Not replaceable |
PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS
| Quantity of precious metals | Contains at least 10 mg |
| Quantity of rare earths | Contains at least 1 mg |
| Minimum rate of recycled material in packaging | 80 % 1) |
| Minimum percentage of recycled content in the product | 0 % 1) |
| Product recyclability | Mostly recyclable product 1) |
| Packaging recyclability | Mostly recyclable packaging 1) |
| List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage | No |
| Contains substances of very high concern in concentrations greater than 0.1% by mass percentage | No |
1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)
| Product code | Packaging unit (Pieces/Unit) | Dimensions (length x width x height) | Gross weight | Volume |
|---|---|---|---|---|
| 4058075843226 | Folding box 1 |
222 mm x 184 mm x 191 mm | 1231.00 g | 7.80 dm³ |
| 4058075843233 | Shipping box 4 |
456 mm x 385 mm x 216 mm | 5770.00 g | 37.92 dm³ |
User instruction / safety instructions
WORKLIGHT BAT 15W 865 DIM POWER4ALL
WORKLIGHT BAT 15W 865 DIM POWER4ALL
Legal information
WORKLIGHT BAT 15W 865 DIM POWER4ALL
WORKLIGHT BAT 15W 865 DIM POWER4ALL
Declarations of conformity
WORKLIGHT BATTERY LUM
WORKLIGHT BATTERY LUM

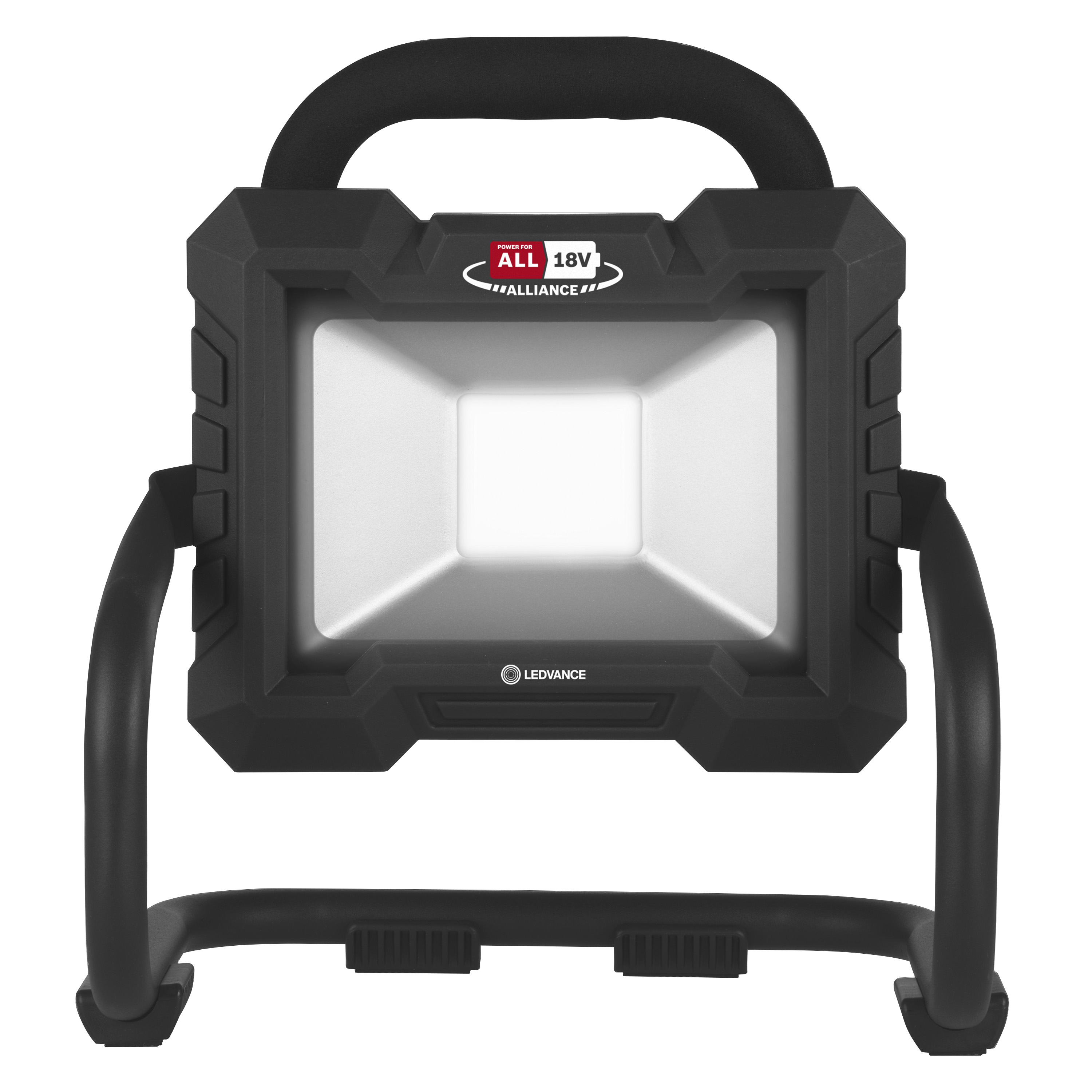

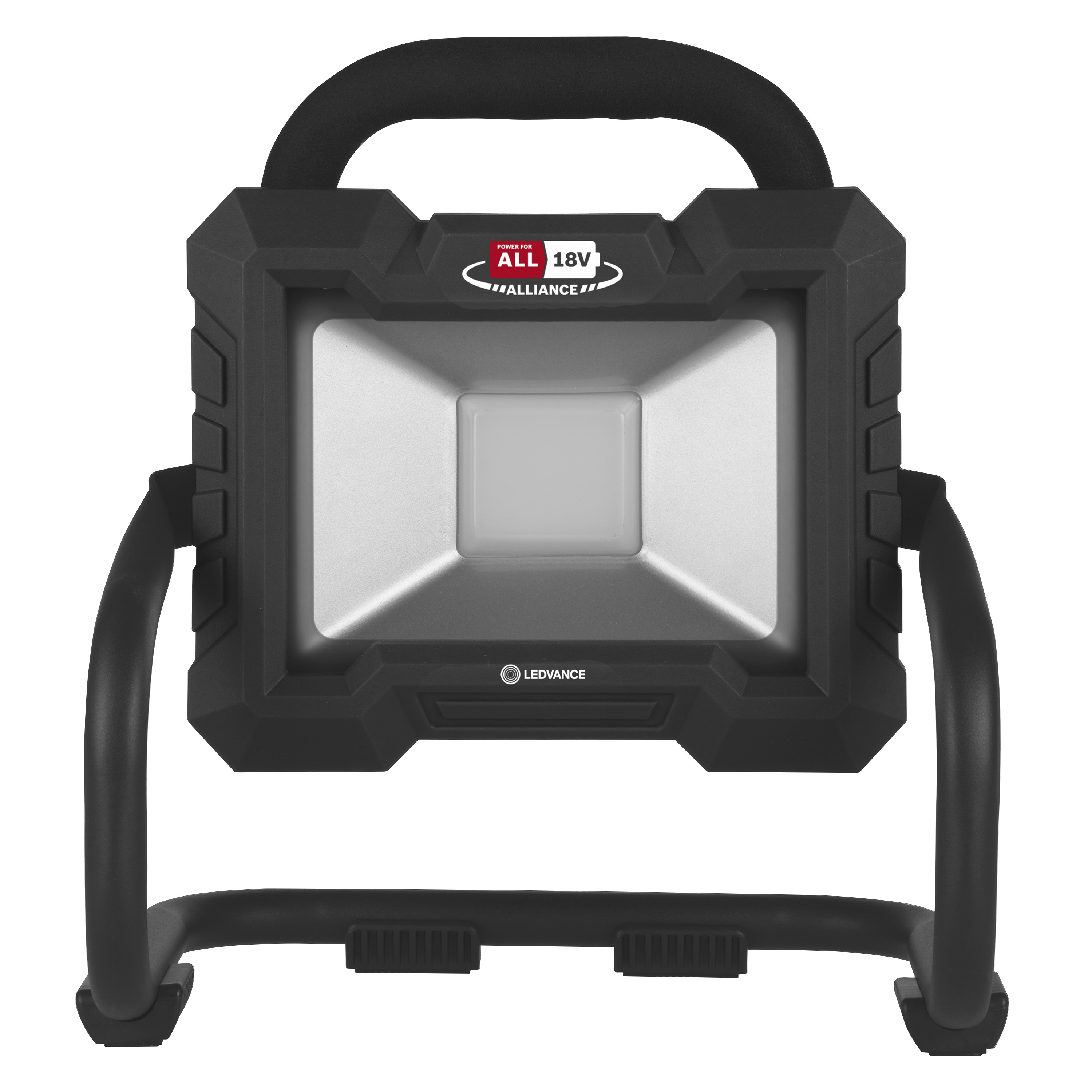

Product image: white background, upright
WORKLIGHT BAT 15W 840 POWER4ALL
WORKLIGHT BAT 15W 840 POWER4ALL

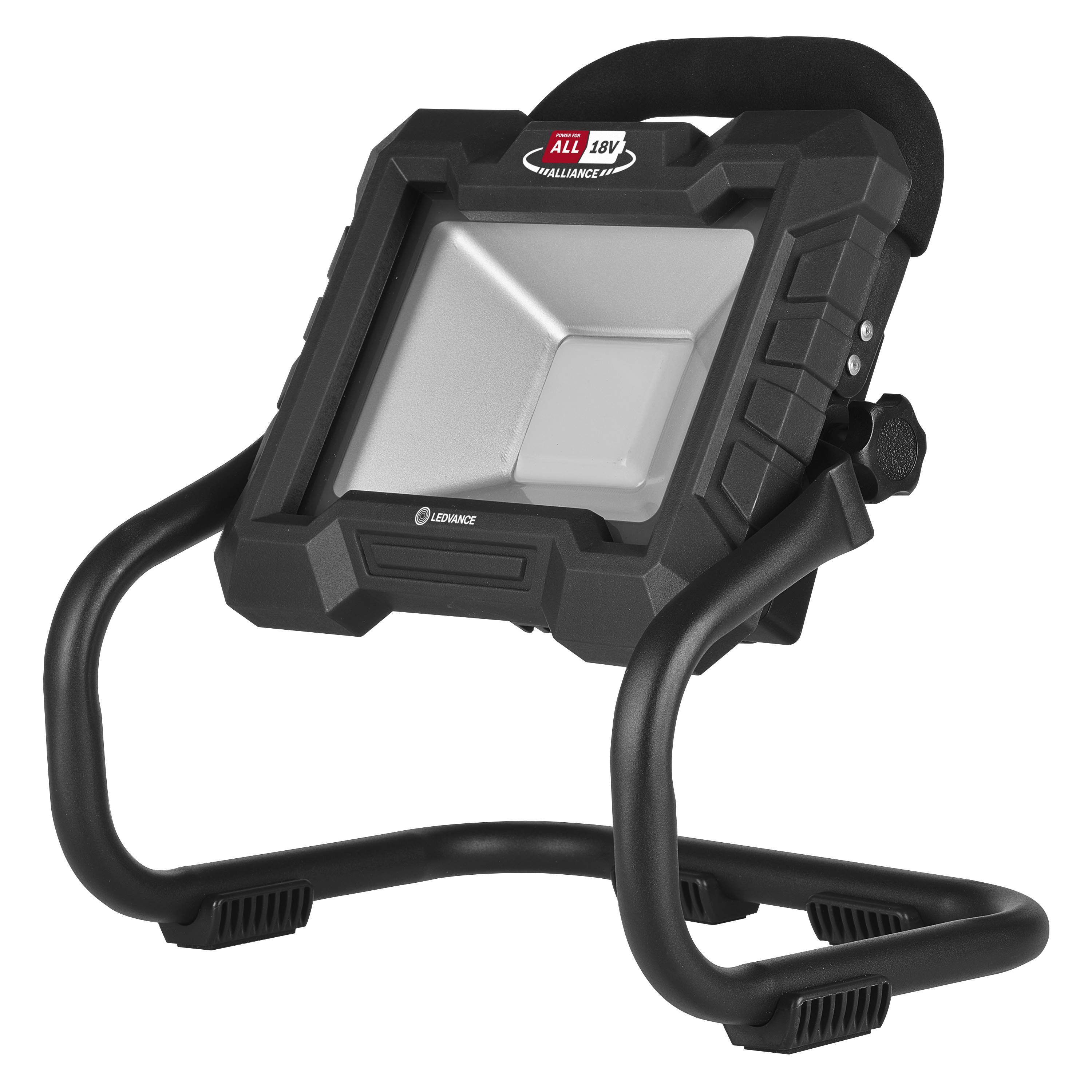

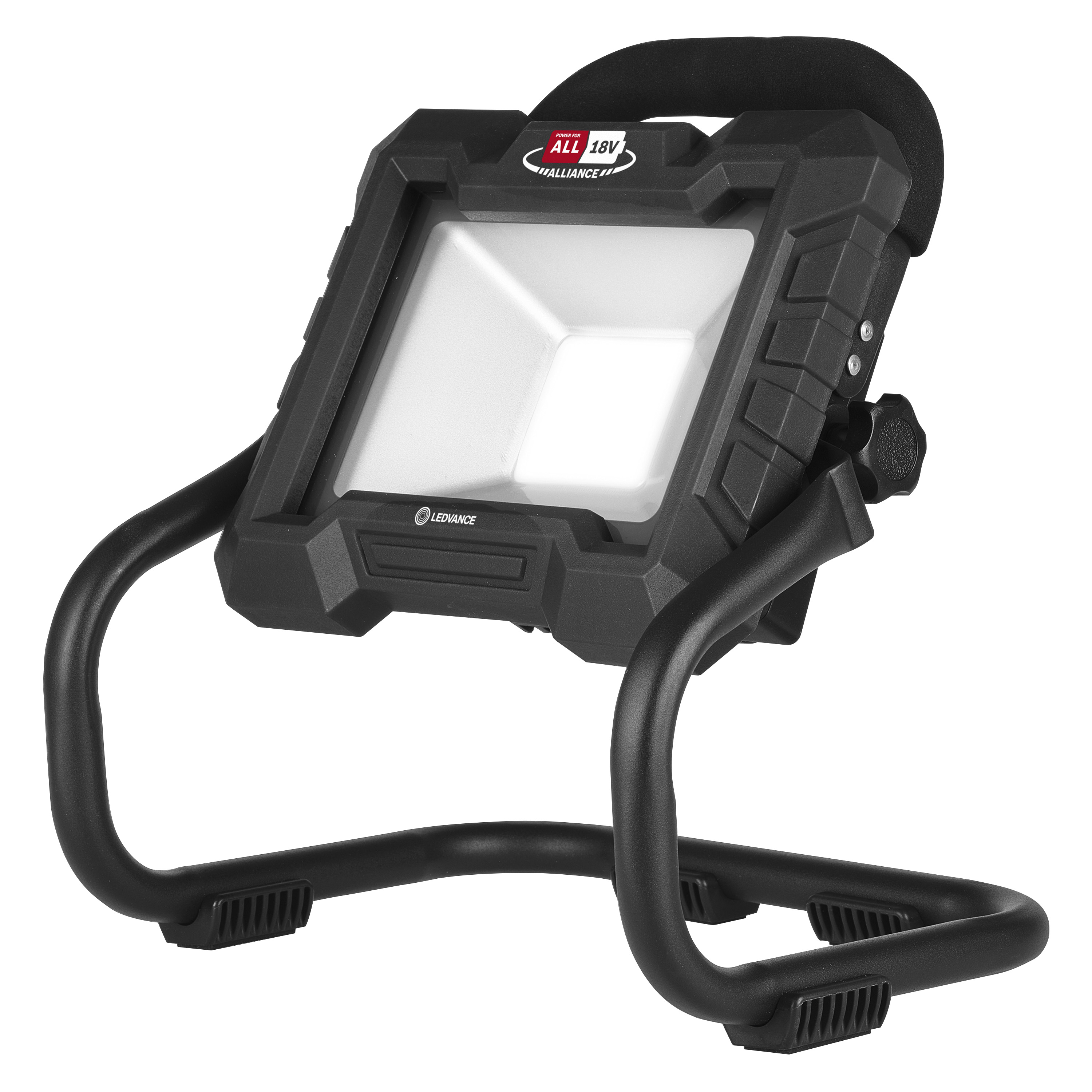

Product image: white background, upright, alternative image
WORKLIGHT BAT 15W 840 POWER4ALL
WORKLIGHT BAT 15W 840 POWER4ALL
Product image: white background, upright, alternative image
WORKLIGHT BAT 15W 840 POWER4ALL
WORKLIGHT BAT 15W 840 POWER4ALL

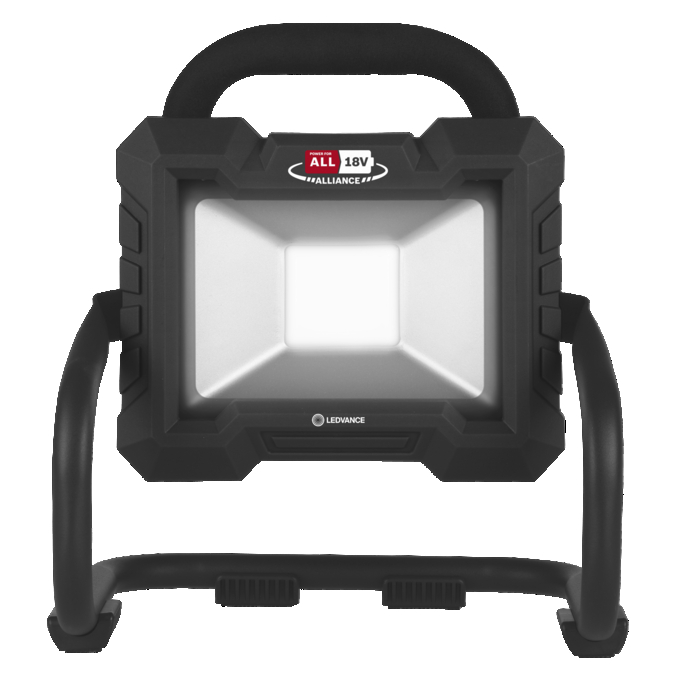

Product image: white background, upright, switched on
WORKLIGHT BAT 15W 840 POWER4ALL
WORKLIGHT BAT 15W 840 POWER4ALL
Product line drawing with letters
WORKLIGHT BAT 15W 840 POWER4ALL
WORKLIGHT BAT 15W 840 POWER4ALL
Product line drawing, front, no dimensions
WORKLIGHT BAT 15W 840 POWER4ALL
WORKLIGHT BAT 15W 840 POWER4ALL

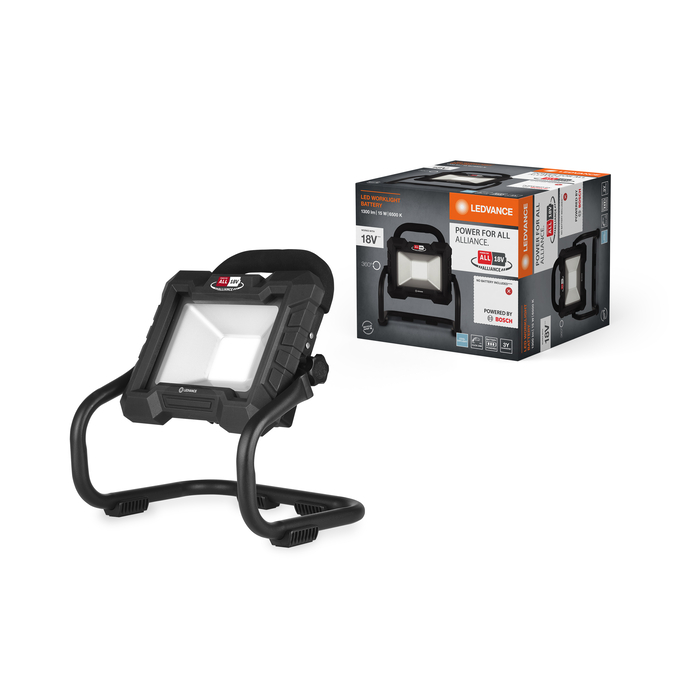

Combo Shot = Product Beauty Shot + Packaging Image
LUM FC WL BAT 15W P4A
LUM FC WL BAT 15W P4A
Packaging image, frontal
LUM FC WL BAT 15W P4A
LUM FC WL BAT 15W P4A

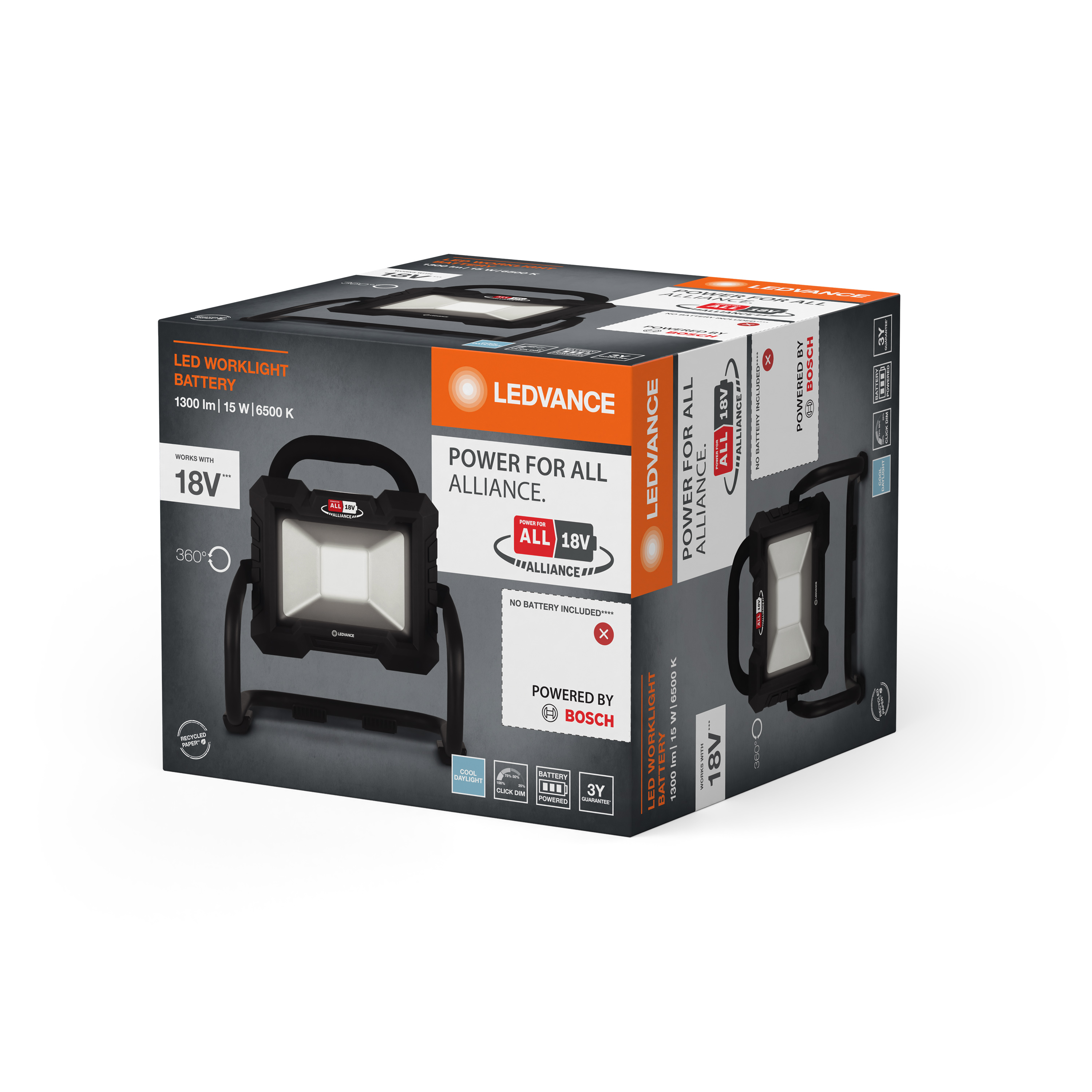

Packaging image, spacial
LUM FC WL BAT 15W P4A
LUM FC WL BAT 15W P4A
Application pictures
Bosch Alliance Outdoor Worklight Frontside with Visible Battery
Bosch Alliance Outdoor Worklight Frontside with Visible Battery
Application pictures

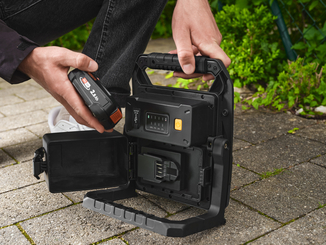

Bosch Alliance Outdoor Worklight Backside with Visible Battery
Bosch Alliance Outdoor Worklight Backside with Visible Battery
Application pictures

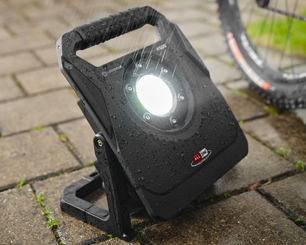

Bosch Alliance Outdoor Worklight Close-Up Frontside wet
Bosch Alliance Outdoor Worklight Close-Up Frontside wet
Application pictures

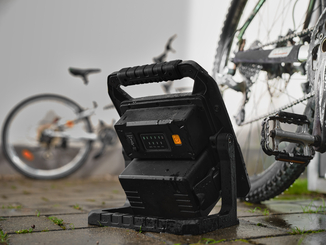

Bosch Alliance Outdoor Worklight Close-Up Backside wet
Bosch Alliance Outdoor Worklight Close-Up Backside wet
Application pictures
Bosch Alliance Outdoor Worklight at Bike Repair 1
Bosch Alliance Outdoor Worklight at Bike Repair 1
Application pictures
Bosch Alliance Outdoor Worklight at Bike Repair 2
Bosch Alliance Outdoor Worklight at Bike Repair 2
Application pictures
Bosch Alliance Outdoor Worklight at Bike Repair 3 wet
Bosch Alliance Outdoor Worklight at Bike Repair 3 wet
Application pictures

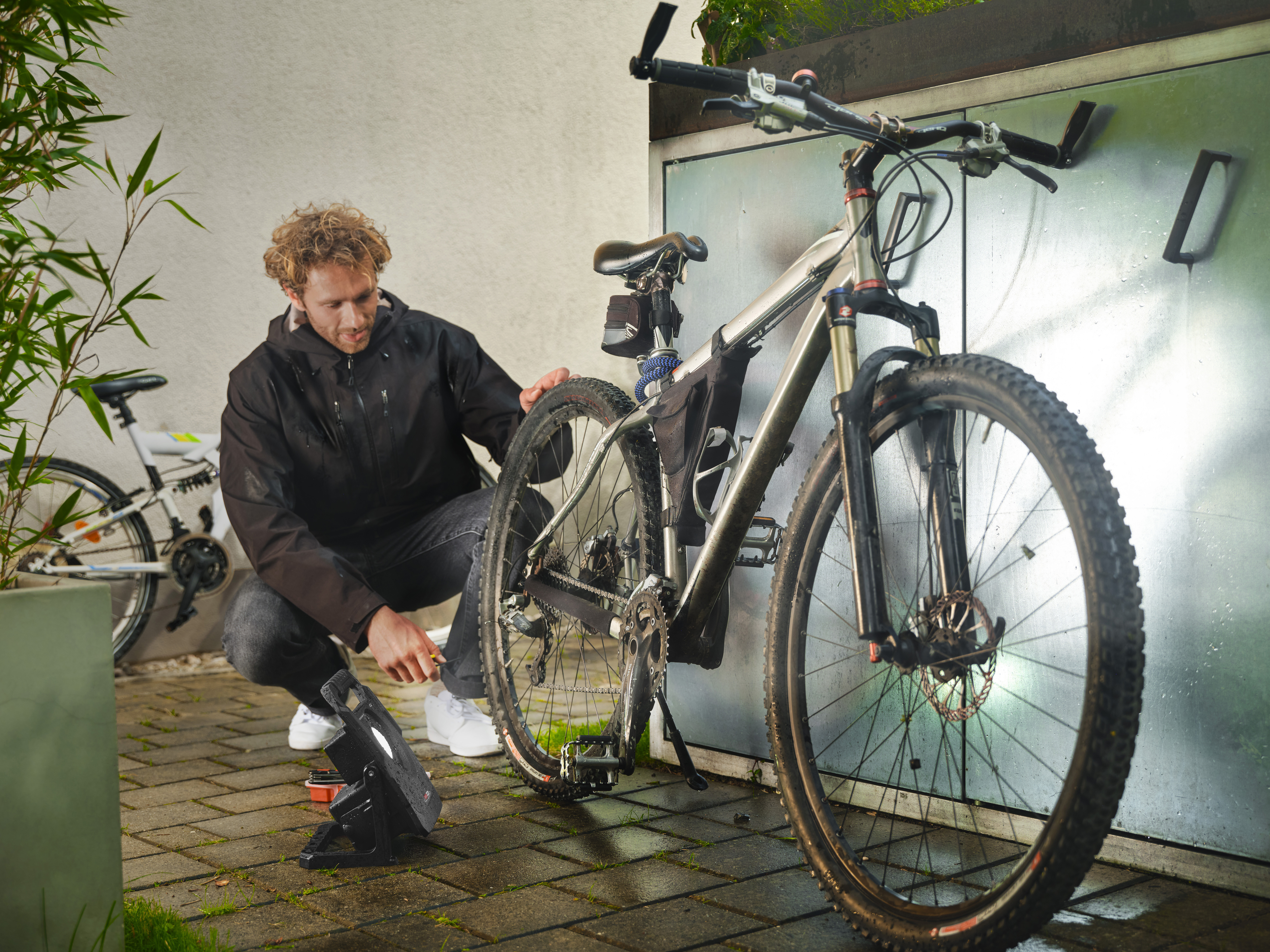

OSRAM Bosch Worklight Battery at bike repair wet
OSRAM Bosch Worklight Battery at bike repair wet
Application pictures
OSRAM Bosch Worklight Battery at bike repair wet 2
OSRAM Bosch Worklight Battery at bike repair wet 2
Application pictures

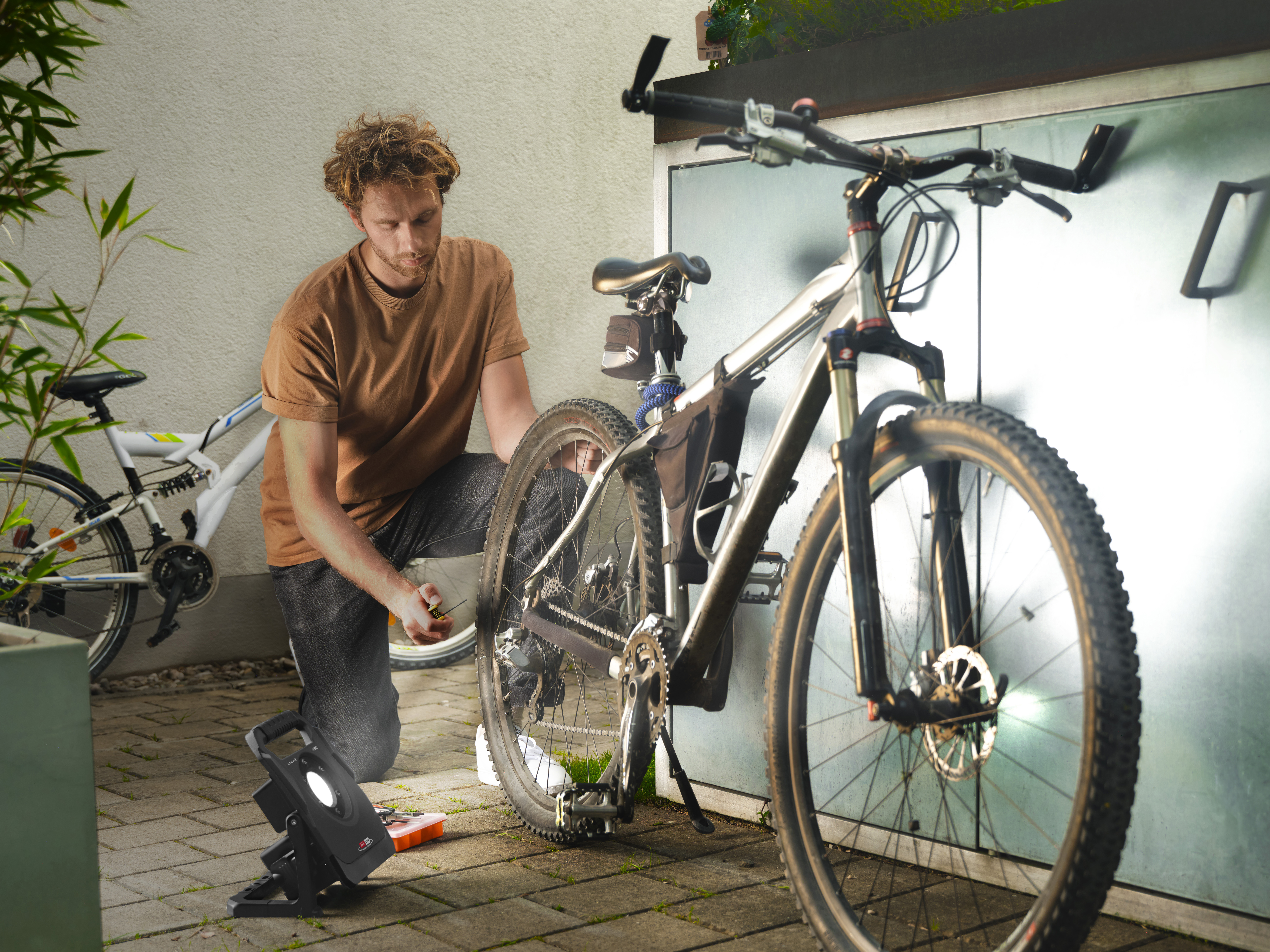

OSRAM Bosch Worklight Battery bike repair dry
OSRAM Bosch Worklight Battery bike repair dry
Application pictures

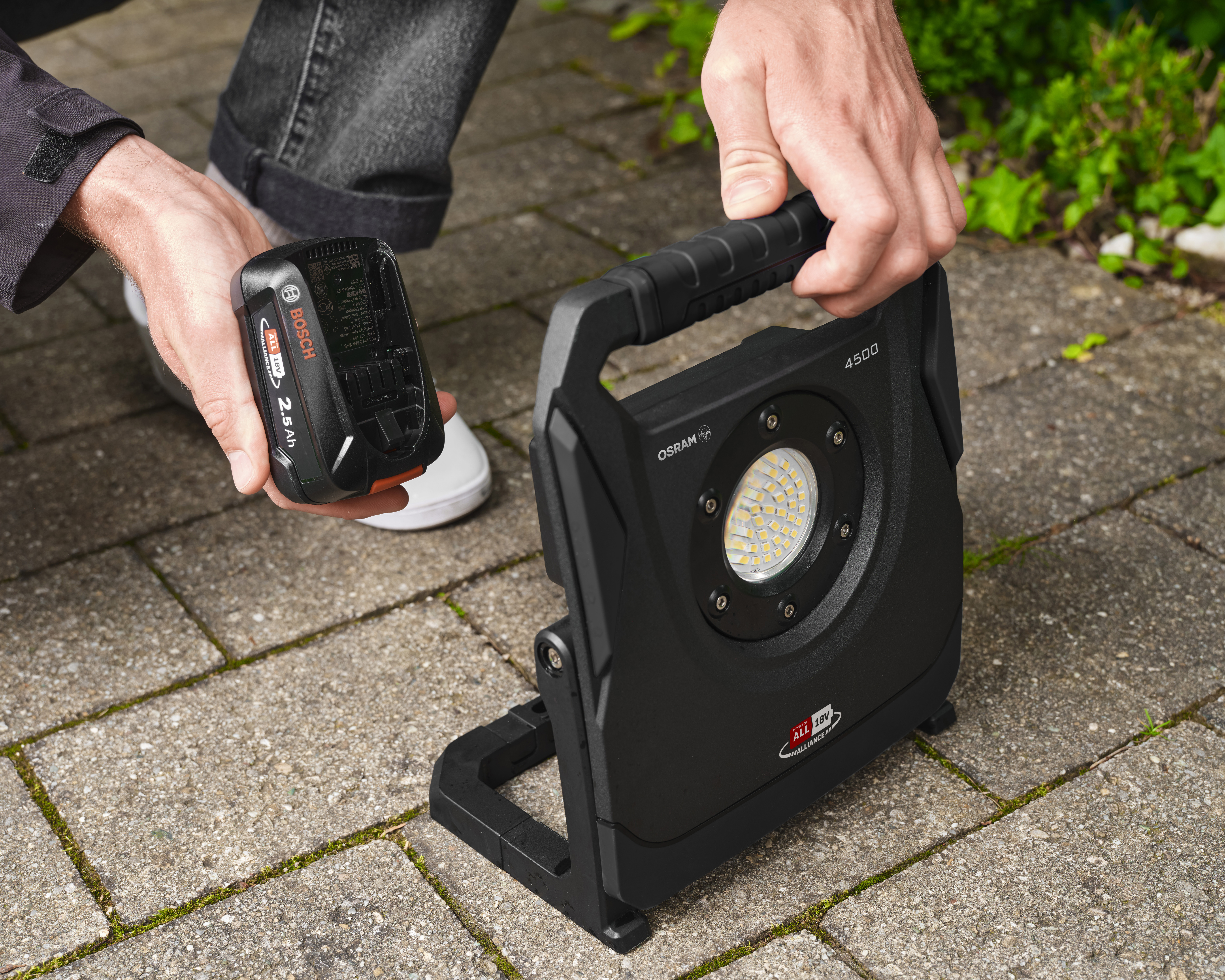

OSRAM Bosch Worklight Battery Outdoor Close-Up
