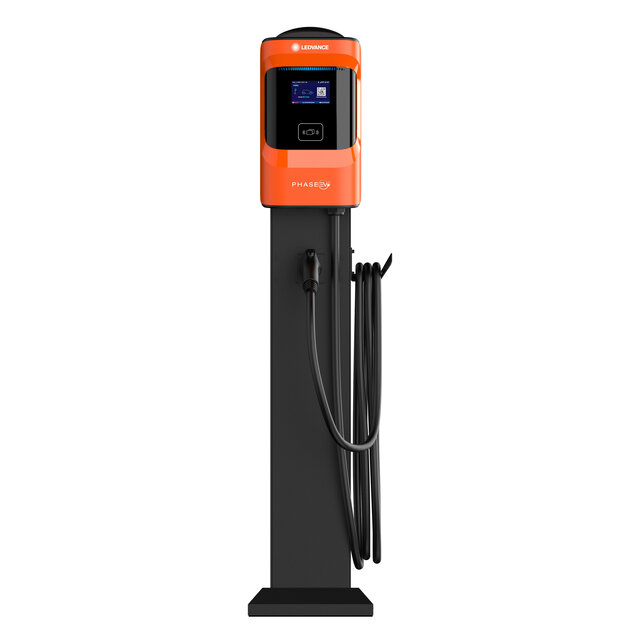

LEDVANCE ENTERS NEXT PHASE WITH

PHASE EV™ LEVEL 2 COMMERCIAL CHARGER

The LEDVANCE PHASE EV™ Charger is the ultimate solution for fast and efficient EV charging. Plus, with an industry-leading 5-year warranty included, you can be confident in your investment for years to come.

Contact us

WHY LEDVANCE PHASE EV™

main product highlights

The PHASE EV is the ideal solution for electric vehicle owners looking for a reliable and convenient way to charge their cars. With its rugged hardware, smart software, and advanced features, this charging station is a game-changer in the EV industry. The NEMA 4 enclosure certified for indoor and outdoor use, IK08 impact protection, and IP66 ingress protection make the PHASE EV one of the toughest chargers on the market. No matter where you install it, you can trust it to perform reliably and safely, ensuring your vehicle is charged and ready to go when you are.

EXPLORE OUR RESOURCES

PHASE EV Commercial Specification Sheet
PDF File (1.64 MB)

product highlights

Rugged NEMA 4 enclosure certified for indoor and outdoor use

  • IK08 impact protection
  • IP66 ingress protectio
Color changing bar shows status of the PHASE EV

  • Greeen - Available for Charging
  • Blue - Charging/In Operation
  • Purple - Charging Complete
  • Red - Service Needed
AmpUp Community Manager offers advanced yet easy-touse tools that help set up and manage your station(s)
RFID allows for flexible, personalized charging options
Affordably priced L2 Charger offers fast charging through powerful software

gallery



SPECIFICATIONS

Cable length SAE J1772 (Type 1 connector)
Display 4.3in LCD w/charging status light bar
Cable length 25ft
Display 4.3in LCD w/charging status light bar
Interfaces Ethernet, 4G, Wi-Fi
SIM card SIM card slot – 4G SIM Card (AmpUp, shipped installed)
User authentication RFID, QR code, App
Back-end protocol OCPP 1.6, upgradeable to OCPP 2.0.1
Software upgrade Over-the-air (OTA)
Software provider AmpUp
Power supply voltage AC level 2, 208/240V
Rated frequency 50Hz/60Hz
Rated current Up to 48A – 16/32/40/48 amp selectable
Power output Max 11.5kW
Input connection Hardwired – terminal lug screws
Primary wire gauge 8 AWG
Power requirements 208V single phase/240V single or split phase
Metering Embedded metering +/- 1% accuracy – revenue grade
Ground fault protection Standard
Over voltage protection Standard – 6kV surge suppression
Over current protection Standard
Environmental rating NEMA 4 enclosure (UL50E), IK08 impact protection
Ingress protection IP66
Dimensions (H x W x D) 16.34" x 9.45" x 5.59" (415mm x 240mm x 117mm)
Weight 19.8–22 lbs (9–10kg)
Operating temp -22°F to 122°F (-30°C to 50°C)
Storage temp -40°F to 167°F (-40°C to 75°C)
Cooling Natural cooling – fanless
Paint UV protection
Standards ETL (UL2594, UL2231, UL1998, UL991)
EMC FCC Part 15 Class B
ENERGY STAR® (EVSE v1.1) Yes
Warranty 5-Year warranty
Explore resources

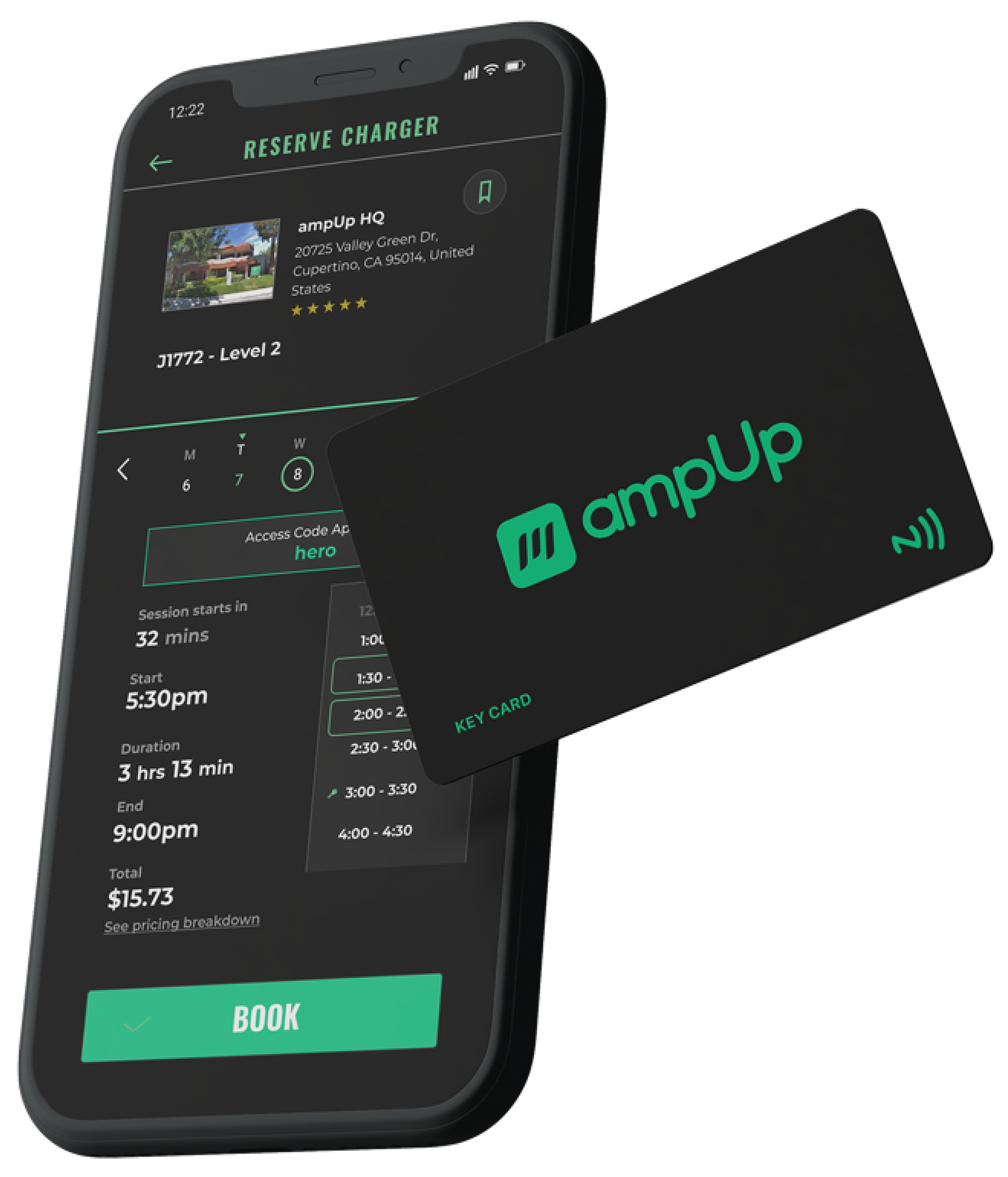

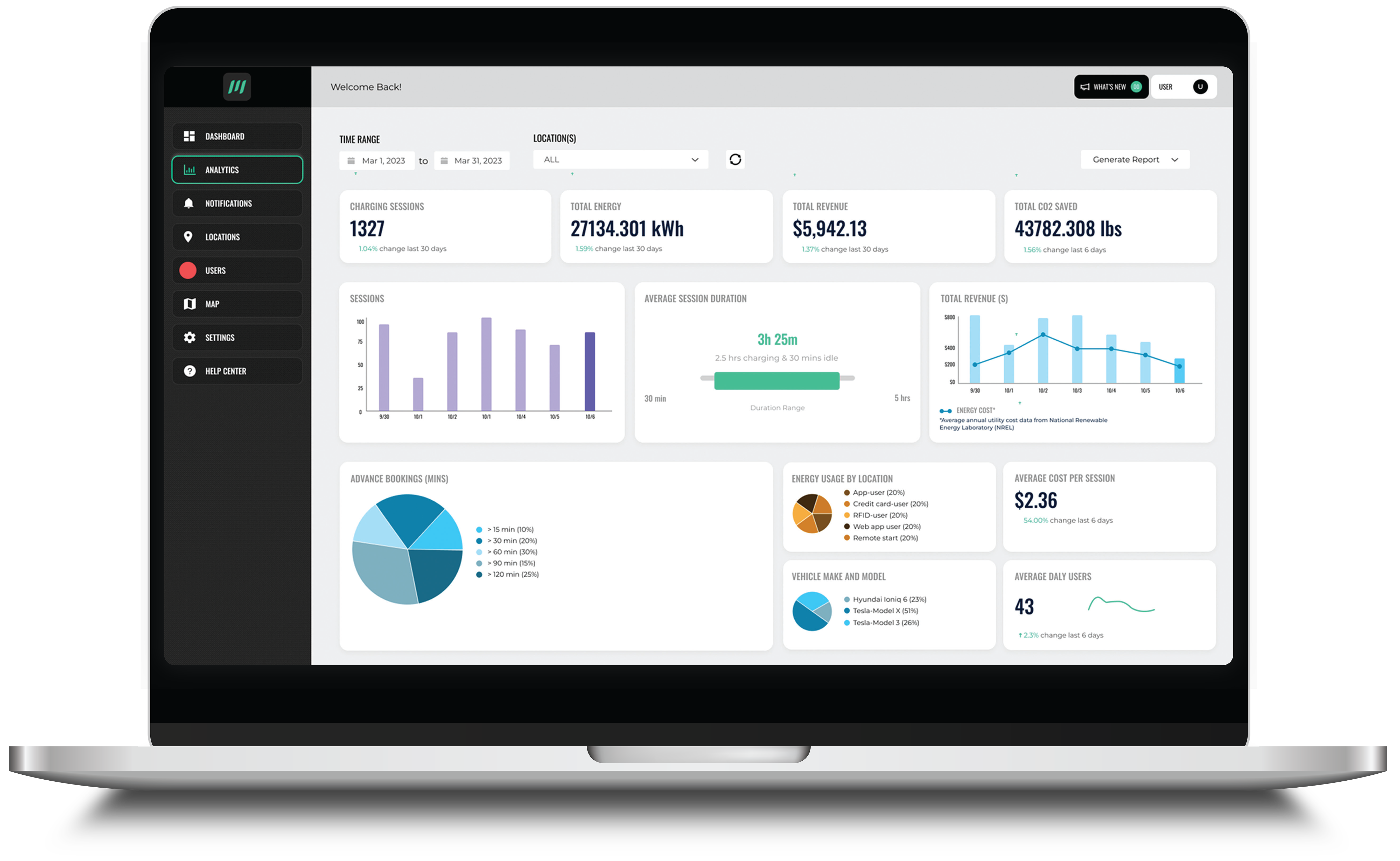

Ampup software for Phase EV™

Empowering Your Business

We’re thrilled to bring you a cutting-edge management solution integrated with Phase EV. AmpUp software revolutionizes the way you handle operations, empowering you with a user-friendly interface and a comprehensive suite of features to streamline your business processes. Let’s delve into the key benefits AmpUp brings to your fingertips.

KEY FEATURES

Our trusted partner AmPup brings you a comprehensive software offering that includes multi-site management, real-time analytics, smart scheduling, advanced access control, and the ability to create user groups. With AmPup's innovative features, you can optimize your operations and achieve remarkable efficiency.

  • Multi-site management
  • Real-time analytics
  • Smart scheduling
  • Advanced access contro
  • Create user groups


Benefit from RFID access, effective power load management, automated reporting, and tiered pricing capabilities. Plus, enjoy peace of mind with our 24/7 customer support, ensuring you always have the assistance you need.

  • RFID access
  • Power load management
  • Automated reporting
  • Tiered pricing capability
  • 24/7 Customer support

Contact us today to discover how our feature-rich solution can empower your business and drive growth. Together, let’s revolutionize the way you manage your Phase EV operations.
