LEDVANCE ENTERS NEXT PHASE WITH

48 AMP LEVEL 2 RESIDENTIAL CHARGING STATION

Introducing the smart residential PHASE EV™ electric vehicle charging station, perfect for single-family homes, multi-family residences, dealerships, and small service stations.

Contact us

WHY LEDVANCE PHASE EV™

main product highlights

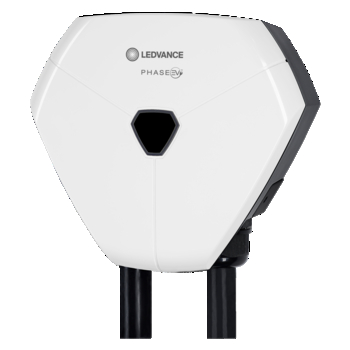

The smart residential PHASE EV™ electric vehicle charging
station is perfect for use in single family and multi-family
homes. It is also ideal for use in dealerships and small service
stations. The residential PHASE EV station can be used as
a Plug & Play charger or can be controlled and monitored
using the free SYLVANIA WiFi App.

EXPLORE OUR RESOURCES

BENEFITS & FEATURES

  • Level 2 fast charging with 11.5kW maximum power output
  • Up to 42 miles of range per hour of charge
  • SAE J1772 charging connector
  • 25-foot charging cable
  • The SYLVANIA Smart WiFi App gives users ultimate flexibility over their use and monitoring of the PHASE EV charger, including setting various charge modes, scheduling the charging sessions to take advantage of off-peak utility rates, and tracking their energy usage
  • Built-in WiFi (802.11 b/g/n/2.4GHz) /Bluetooth® Connectivity
  • Rugged NEMA 4X Enclosure
  • IK10 impact protection
  • IP65
  • Dynamic LED light shows the status of the charger: standby mode, vehicle connected, charging in progress, charge complete, and fault indicator
  • Charging handle cradle with integrated cable management included
Explore resources

product highlights

  • Level 2 fast charging with 11.5kW maximum power output @48A
  • Up to 42 miles of range per hour of charge
  • Plug & Play or can be controlled using the SYLVANIA Smart WiFi App
  • Built-in WiFi (802.11 b/g/n/2.4GHz) / Bluetooth Connectivity
  • Rugged NEMA 4X Enclosure
  • IK10 impact protection
  • IP65
  • Dynamic LED light shows the status of the charger: standby mode, vehicle connected, charging in progress, charge complete, and fault indicator
  • Charging handle cradle with integrated cable management included
  • SAE J1772™ connector
  • 25ft charging cable

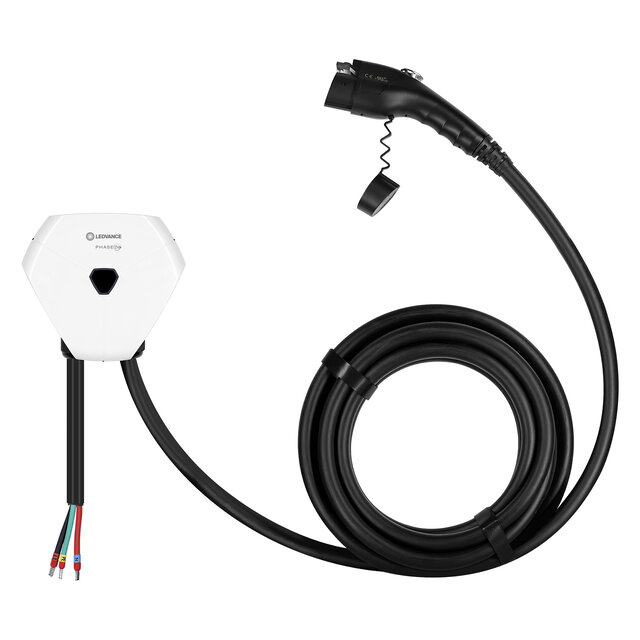

  • Hardwired (unit comes wired with a 28" input cable)
  • 208-240 VAC
  • 60 Hz
  • 11.5 kW max. output power
  • @240 VAC
  • 48A max. output current
  • Output current can be adjusted between 1 and 48 amps using the SYLVANA Smart WiFi App
  • 22°F to 122°F (-30°C to 50°C)
  • cETLus
  • FCC
  • ENERGY STAR®
  • RoHS
  • UL2594 compliant
  • NEC625 compliant
  • WiFi (802.11 b/g/n/2.4GHz)
  • Bluetooth®
  • Controlled via the SYLVANIA
  • Smart WiFi App
  • Plug & Play operation is possible
  • Must be hardwired to a local Junction Box with a 2-pole 60A breaker at the electrical panel
  • Charger has a 28" 6AWG input cable
  • Charger mounts to a wall with included mounted bracket
  • Charging handle holster with integrated cable wrap is included for neat storage
  • 3-year
  • NLB Trusted Warranty Program

gallery



SPECIFICATIONS

Charging mode Level 2

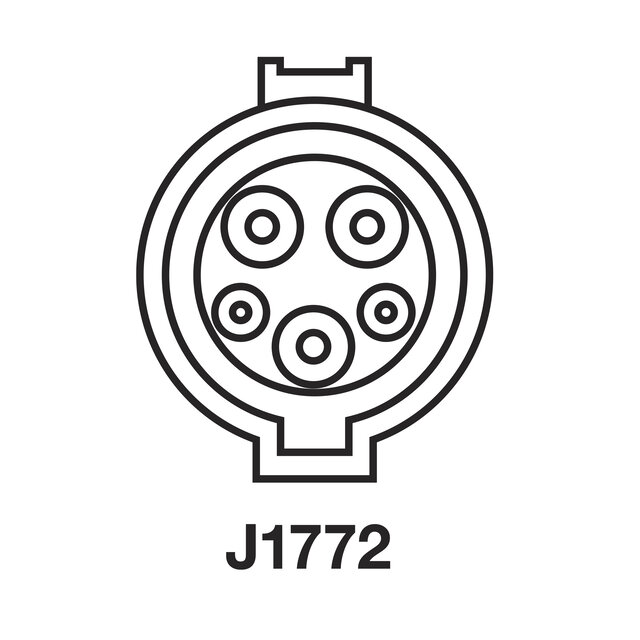

Vehicle connection SAE J1772 (Type 1 connector)
Charging Cable length 25ft
Display 4.3in LCD w/charging status light bar
Wireless Connectivity Built-in WIFI (802.11 b/g/n/2.4GHz) / Bluetooth Connectivity
Firmware Over-the-air (OTA) upgradeable firmware
Center LED Indicator Dynamic LED lights show charging status: standby, Device connectivity, charging in progress, fault indicator
Power supply voltage AC level 2, 208/240V
Rated frequency 60Hz
Rated input current 48A Max
Power output Max 11.5kW at 240 VAC
Input connection Hardwired — by licensed electrician
Primary wire gauge 6AWG
Power requirements 208V (single phase), 240V (single phase), 60 Amp Double Pole Breaker
Over current protection Standard
Ground fault protection Standard
Over voltage protection Standard
Environmental rating NEMA 4 enclosure, IK10 impact protection
Ingress protection IP65
Dimensions Main Enclosure (W × H × D) 8.3in × 7.7in × 3.3in (211mm × 196mm × 84.5mm)
Storage temp -22°F to 122°F (-30°C to 50°C)
Operating temp -22°F to 122°F (-30°C to 50°C)
Standards ETL, UL2594 compliant, NEC625 compliant
EMC FCC Part 15 Class B, ICES-003
ENERGY STAR® (EVSE v1.1) Yes
Warranty 3 Year Limited Product Warranty

LEDVANCE PHASE EV Residential Level 2 Charger – Installation Video
