Full Guide on LED Panel Light

LED panel light is the top choice for illuminating T-bar grid ceilings due to their efficient and high-quality lighting output. Suited for a wide range of settings, including offices, schools, churches, healthcare facilities, and other spaces with T-bar grid ceilings.

Explore our comprehensive guide to discover essential considerations and tips for selecting the best LED panel light tailored to your requirements.

Understanding LED Panel Light

In the lighting industry, LED panel light is a type of flat lighting product. They use LED as the core light-emitting component. These panels can stably convert electrical signals into uniform visible light. They are mainly used to replace traditional fluorescent lamps, grille lamps, and other lighting equipment. LED panels are widely applied in offices, classrooms, hospitals, and commercial spaces, providing bright and comfortable lighting effects for the environment.

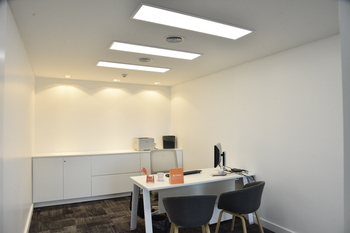

led panel light

How Does LED Panel Light Works


The core of an LED panel light's operation is to steadily convert electricity into uniform light. After we plug in the power supply, the alternating current at home or in the shopping mall will pass through the driver power supply. The driver power supply will change it into low-voltage direct current that the LED beads can use. It will then output a stable current to the LED beads. This current follows the parameters set in advance.


When current passes through the semiconductor chip inside the lamp bead, electrons and holes in the chip combine together. This process releases energy. The energy then becomes the light that we can see. Finally, the light from all the lamp beads is integrated through structures such as light conduction and diffusion. This forms a uniform and stable planar light that meets our lighting needs.

Advantages of  LED Panel Light​​​

Compared with previous fluorescent lamps and grille lamps, LED panel light used for lighting can be widely promoted in the industry. This is mainly because they have many advantages.

​​Energy Efficiency: The luminous efficiency of LED beads is very high, reaching over 100 lumens per watt, which is twice that of traditional fluorescent lamps. Under the same brightness, the power consumption of LED panel light is only half that of fluorescent lamps.​​

Long Lifespan: LED panel light lasts much longer than incandescent or fluorescent light. It can reach up to 50,000 hours. This helps reduce maintenance and replacement costs.

Uniform Light Distribution: Flat panel LED light gives even illumination across its surface and helps reduce glare and eyestrain.
Slim Profile: Flat panel LED light has a sleek and slim shape and fits well in tight spaces and adds a modern look.

Low Maintenance: LED panel light needs little upkeep due to its durable design and long life.

Low Heat Emission: LED panel light gives off very little heat. This improves energy efficiency and keeps indoor spaces cooler.

Common Types of LED Panel Light

Edge-Lit LED Panel:
This panel has LEDs placed along the edges. The light moves toward the center and spreads evenly. It has a slim design. People often use it in offices, schools, and commercial areas.

Back-Lit LED Panel
This panel places LEDs behind the light surface. It gives soft and even lighting and works well in photography and video production.


Direct-Lit LED Panel
Direct-lit LED panel light spreads LEDs across the whole surface. It gives strong brightness and even light. It suits large areas like offices, classrooms, and retail stores.

Color Tunable LED Panel
Color tunable LED panels let users change the color temperature. It usually ranges from warm white to cool white and fits well in offices, shops, and healthcare spaces.

RGB LED Panel
This panel uses red, green, and blue LEDs. It can create many colors and is used for decoration, entertainment, and mood lighting. You’ll see it in theaters, clubs, events, and homes.
led panel

Emergency LED Panel
The emergency LED panel includes a backup battery. It stays on during power cuts and is applied in safety and emergency lighting systems.

Surface-Mounted LED Panel
Surface-mounted LED panel mounts directly onto surfaces like ceilings. It doesn’t need recessed installation.

Custom LED Panel
Some makers offer custom options. Users can choose size, shape, color temperature, and brightness. This helps meet specific needs and preferences.

Application for LED Panel Lights

In the lighting industry, LED panel lights have a particularly wide range of applications and have become one of the mainstream lighting products.

Office

In terms of office lighting, embedded LED panel light is the main choice. They can be adapted to the ceiling structure of office buildings and corporate offices, and also coordinate well with office furniture. Uniform light can reduce the shadows on the desk, making employees work more efficiently. Nowadays, when many enterprises renovate or transform their offices, they will give priority to replacing them with LED panel lights.

School

In the field of educational lighting, most classrooms and libraries in schools use recessed or ceiling-mounted LED panel light. The features of no flicker and uniform light can protect students' eyesight and prevent eye discomfort caused by the flicker of traditional fluorescent lamps. Some products can also be dimmed, adjusting the brightness of the lamp according to the brightness of the natural light outside to achieve intelligent eye protection.

Healthcare


In terms of medical lighting, LED panel lights with high color rendering index are needed in hospital consultation rooms, wards and examination rooms. A high color rendering index enables doctors to accurately determine the color of a patient's skin and the condition of their wounds. Moreover, soft light can make patients less nervous. LED panel light can also be used around operating rooms to meet hygiene requirements.



led panel light in hospital

Retail Store

In commercial lighting, ceiling-mounted or recessed LED panel lights are commonly used above the shelves in shopping malls and supermarkets. Bright and well-colored light can make the color and texture of goods stand out more, attract customers' attention and enhance the shopping experience. LED panel lights are commonly used in underground garages to adapt to damp environments and ensure stable lighting for 24 hours.

What to Consider When Choosing LED Panel Light

When choosing LED panel light, there is no need to blindly pursue high prices. The key is to select based on the usage scenarios and requirements, mainly considering these aspects.
  • Purpose of the space: First, determine where the LED panel light will be installed. The lighting needs vary by setting. Offices need general illumination. Kitchens need task lighting. Living rooms may need ambient lighting. Each space requires different brightness, color temperature, and beam angle. Make sure the LED panel light matches the lighting needs of the space.
  • Color Temperature: LED panel lights come in various color temperatures ranging​​ from​ ​warm white to cool white​. Determine the ambiance you want to create in your space and choose the color temperature accordingly. Warmer temperatures create a cozy atmosphere, while cooler temperatures are suitable for task-oriented areas.
  • Size and Shape: Measure the space where you plan to install the LED panel light. Choose panels that match the size and shape of the area. Common sizes include 1×4 feet, 2×2 feet, and 2×4 feet.
  • Installation and Compatibility: Check if the panel is easy to install. Make sure it works with your ceiling type or surface mount. Look for products that include mounting hardware and clear instructions.
  • Warranty and After-Sales Support: Choose LED panel light from trusted manufacturers. Make sure they offer a warranty and reliable support after purchase.

LEDVANCE LED Panel Light​​


If you seek a premier supplier of LED panels, LEDVANCE​ stands as your optimal selection. Our product line features cutting-edge technology and premium materials, delivering energy-efficient lighting solutions renowned for their unparalleled performance and durability. Whether for commercial, office, or industrial settings, our LED panels guarantee reliability and longevity, ensuring optimal illumination and productivity for your business. Click now to explore how LEDVANCE Panels can transform your environment.
