LEDVANCE LINK™ HARDWIRED LUMINAIRE / ZONE CONTROLLER

LINK POWER PACK 6A UNV BLE

NAED: 62631
Download data sheet
Contact sales
Our warranty conditions

PRODUCT DETAILS

Product features
  • Commission and configure with LEDVANCE LINK™ app
  • Control using either the LEDVANCE LINK™ app or the wireless controller
  • Grouping and Zoning: Wirelessly group luminaires to act in sync with each other
  • Scene Control: Preset various scenes for individual or group of luminaires using the app and/or wireless/wired controllers
  • QR Code for Admin/Guest control: Using the LEDVANCE LINK™ app, Admin and Guest QR codes for each zone can be generated. Allows copying the settings to another phone/tablet by scanning this QR code
  • Allows setting time-based schedules and high-end and low-end trim through the LEDVANCE LINK™ app
Electrical data
Nominal wattage 360.00 W
Nominal voltage 120…277 V
Mains frequency 60 Hz
Dimensions & Weight
Length 81.78 mm
Width 43.43 mm
Height 31.75 mm
Product weight 93.2 g
Capabilities
Dimmable Yes
Certificates & Standards
Protection class II
Type of protection IP66
Product code Packaging unit (Pieces/Unit) Dimensions (length x width x height) Gross weight Volume
0046135626319 Folding box
1		 57 mm x 50 mm x 110 mm 118.00 g 0.31 dm³
4058075777132 Shipping box
50		 300 mm x 265 mm x 230 mm 6145.00 g 18.29 dm³
Product information bulletin
DATASHEET LEDVANCE LINK BLUETOOTH MESH LINE VOLTAGE CONTROLLER/POWERPACK
PDF (580.92 KB)

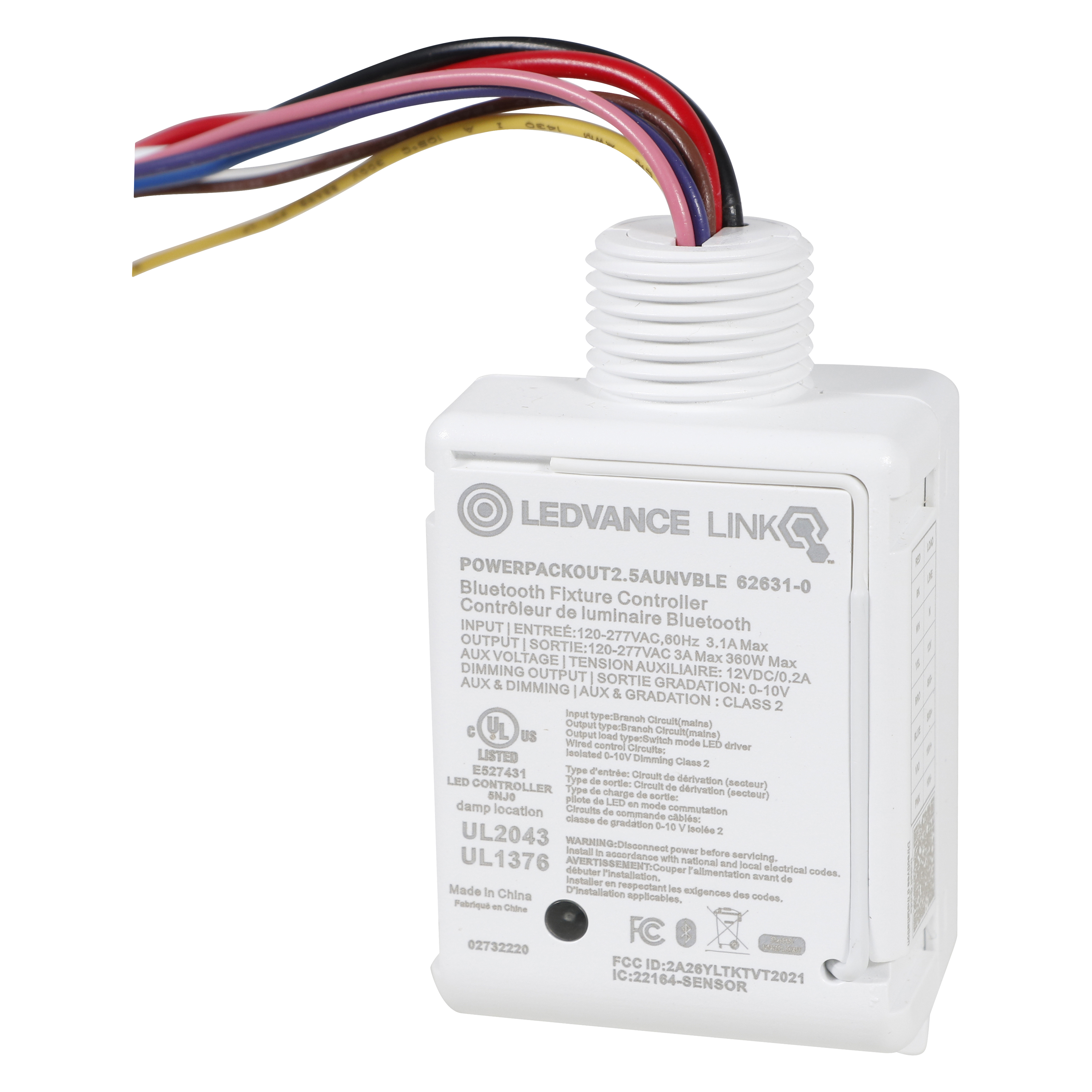

Product image: white background, upright
LEDVANCE Link Power Pack
JPG (1.44 MB)

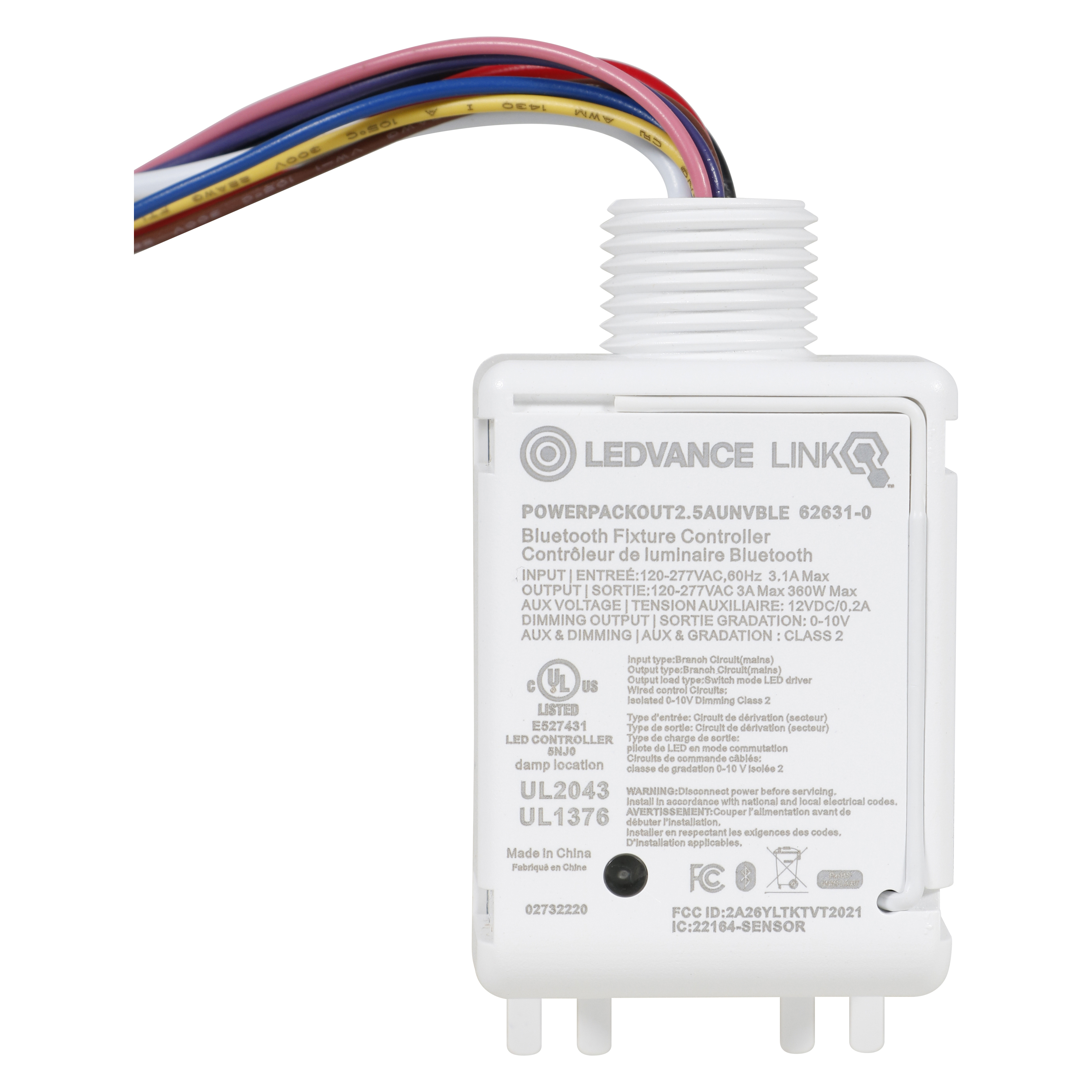

Beauty Shot
LEDVANCE Link Power Pack
JPG (2.08 MB)
