LEDVANCE LINK™ HARDWIRED LUMINAIRE / ZONE CONTROLLER

LINK POWER PACK 20A UNV BLE

NAED: 63827
Download data sheet
Contact sales
Our warranty conditions

PRODUCT DETAILS

Product features
  • Commission and configure with LEDVANCE LINK™ app
  • Control using either the LEDVANCE LINK™ app or the wireless controller
  • Grouping and Zoning: Wirelessly group luminaires to act in sync with each other
  • Scene Control: Preset various scenes for individual or group of luminaires using the app and/or wireless/wired controllers
  • QR Code for Admin/Guest control: Using the LEDVANCE LINK™ app, Admin and Guest QR codes for each zone can be generated. Allows copying the settings to another phone/tablet by scanning this QR code
  • Allows setting time-based schedules and high-end and low-end trim through the LEDVANCE LINK™ app
Electrical data
Nominal wattage 5540.00 W
Nominal voltage 120…277 V
Mains frequency 50…60 Hz
Dimensions & Weight
Length 68.58 mm
Width 3.90 mm
Height 45.72 mm
Product weight 125.00 g
Capabilities
Dimmable Yes
Certificates & Standards
Protection class II
Type of protection IP66
Product code Packaging unit (Pieces/Unit) Dimensions (length x width x height) Gross weight Volume
4099854201189 Folding box
1
4099854182440 Shipping box
50		 480 mm x 250 mm x 280 mm 9285.00 g 33.60 dm³
Product information bulletin
DATASHEET LEDVANCE LINK BLUETOOTH LOW ENERGY MESH LINE VOLTAGE 20A LOAD CONTROLLER
PDF (444.87 KB)

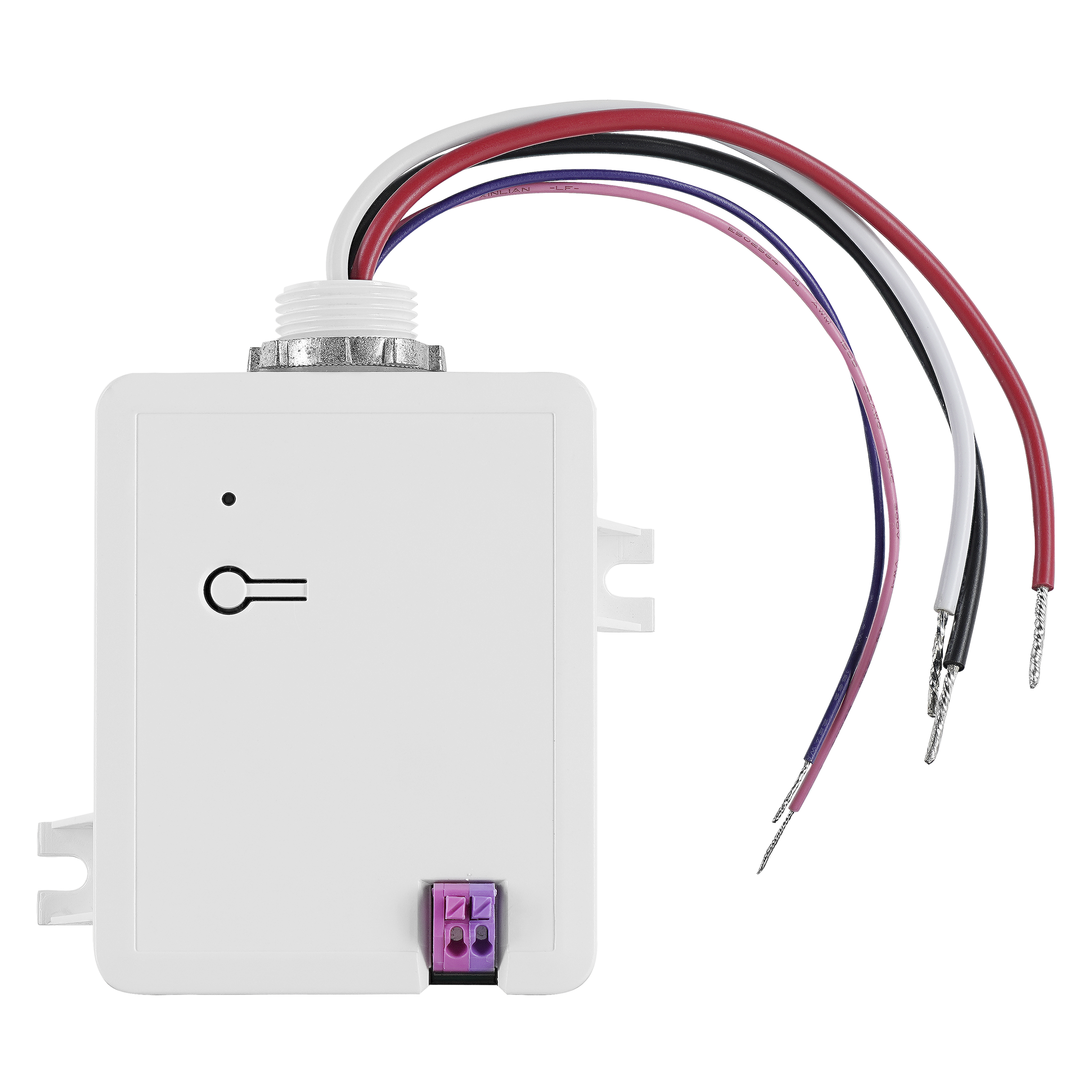

Product image: white background, diagonal
ZONE CONTROLLER 1AUNVBLE
JPG (2.61 MB)
Product image: white background, upright
ZONE CONTROLLER 1AUNVBLE
JPG (4.16 MB)
