SYLVANIA ULTRA A19 Lamps

ULTRA LED A19 9W DIM FR 5000K 4PK

NAED: 78040
Download data sheet
Contact sales
Our warranty conditions

PRODUCT DETAILS

Areas of application
  • Downlights, pendant fixtures, table lamps, wall sconces
  • Healthcare, hospitality, residential, retail
  • Indoor and outdoor
  • Suitable for rough service
Product features
  • 15,000 hours lifetime (L70)
  • RoHS compliant, mercury and lead free
  • UV and IR free
  • Reduces energy consumption up to 85 %
  • Last up to 20 times longer than incandescent lamps
  • No warm-up time, instant-on with full light output and stable color
  • Dimmable down to 10 %
  • Approved for enclosed fixtures
Safety advice
  • Suitable for damp locations.
  • Not for use with emergency light fixtures or exit lights.
  • -4°F and + 113°F (-20°C and +45°C)
Electrical data
Nominal wattage 9 W
Construction wattage 9.00 W
Nominal voltage 120 V
Claimed equiv. conventional lamp power 60 W
Operating frequency 50…60 Hz
Mains frequency 50…60 Hz
Photometrical data
Luminous flux 800 lm
Luminous efficacy 88 lm/W
Color temperature 5000 K
Color rendering index Ra 80
Light color 850
Dimensions & Weight
Overall length 107.54 mm
Diameter 59.99 mm
Product weight 53.00 g
Temperatures & operating conditions
Ambient temperature range -20…+45 °C
Additional product data
Base (standard designation) E26
Mercury content 0.0 mg
Mercury-free Yes
Product remark All technical parameters apply to the entire lamp, Due to the complex production process for light-emitting diodes, the typical values shown for the technical LED parameters are purely statistical values that do not necessarily match the actual technical parameters of each individual product, which can vary from the typical value
Capabilities
Dimmable Yes
Certificates & Standards
Standards CSA, FTC, FCC, cULus, RoHS
Country-specific categorizations
Order reference 9W/850 120V 6X4
Energy labelling regulation data acc EU 2019/2015
Light source cap-type (or other electric interface) E26
Length 107.54 mm
Height 59.99 mm
Width 59.99 mm
Product information bulletin
ULTRA LED A-line Lamps
PDF (258.61 KB)

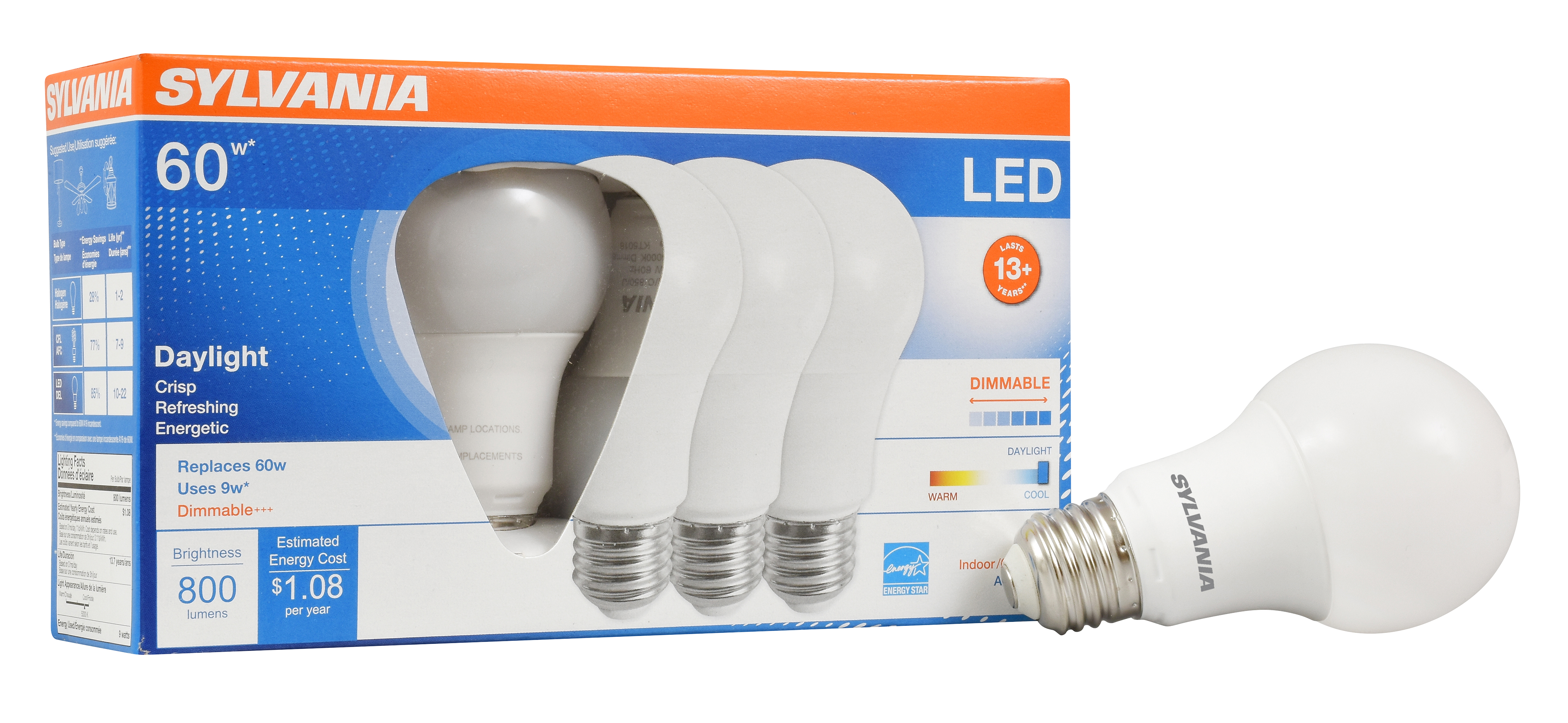

Packaging image, beauty shot
04613578040 bb Beauty Shot
JPG (3.14 MB)

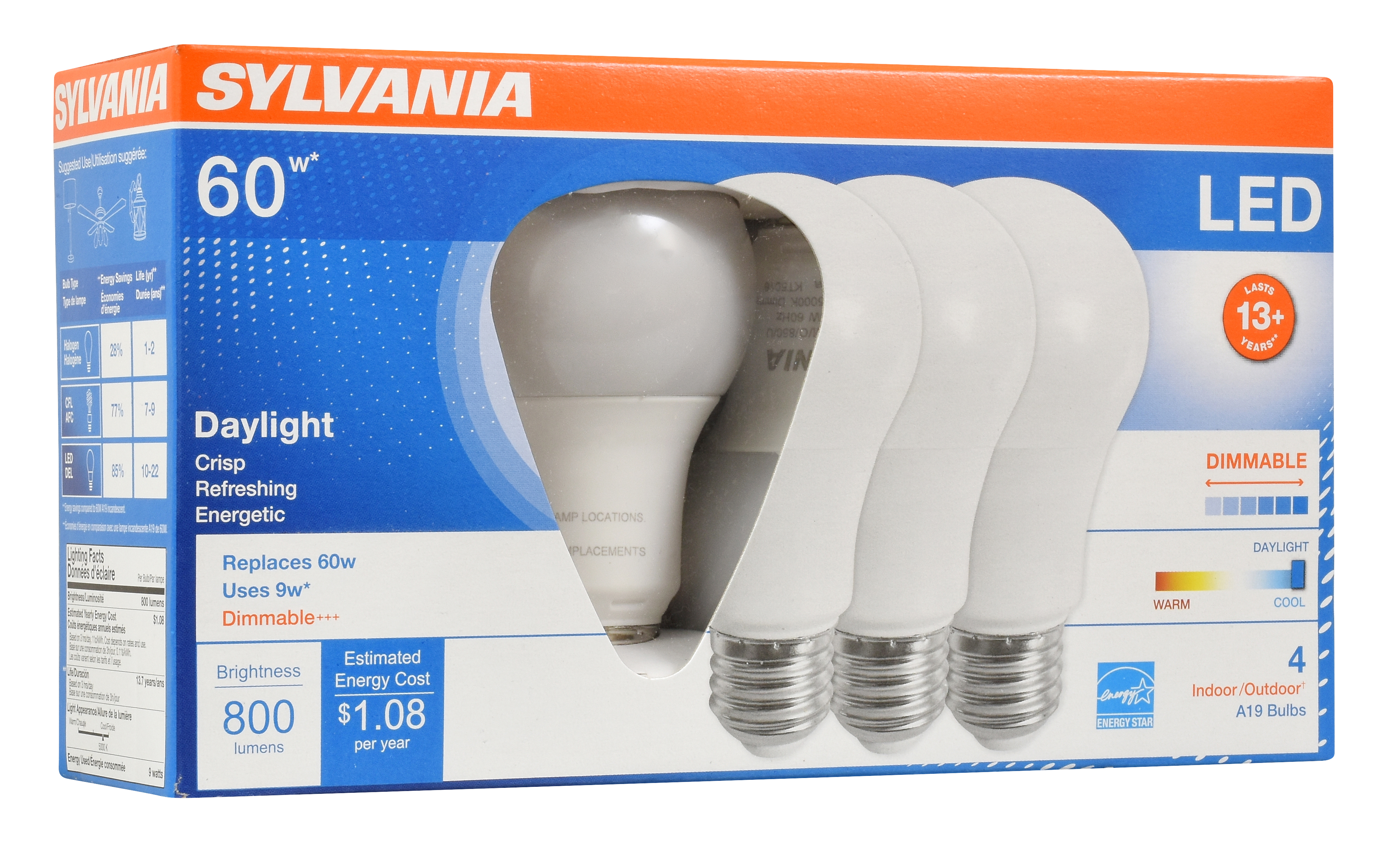

Packaging image, spacial
