SYLVANIA ULTRA A19 Lamps

ULTRA LED A19 12W DIM FR 3000K 1PK

NAED: 40044
Download data sheet
Contact sales
Our warranty conditions

PRODUCT DETAILS

Areas of application
  • Downlights, pendant fixtures, table lamps, wall sconces
  • Healthcare, hospitality, residential, retail
  • Indoor and outdoor
  • Suitable for rough service
Product features
  • 15,000 hours lifetime (L70)
  • RoHS compliant, mercury and lead free
  • UV and IR free
  • Reduces energy consumption up to 85 %
  • Last up to 20 times longer than incandescent lamps
  • No warm-up time, instant-on with full light output and stable color
  • Dimmable down to 10 %
  • Approved for enclosed fixtures
Safety advice
  • Suitable for damp locations.
  • Not for use with emergency light fixtures or exit lights.
  • -4°F and + 113°F (-20°C and +45°C)
Electrical data
Nominal wattage 12 W
Construction wattage 12.00 W
Nominal voltage 120 V
Claimed equiv. conventional lamp power 75 W
Operating frequency 50…60 Hz
Mains frequency 50…60 Hz
Photometrical data
Luminous flux 1100 lm
Luminous efficacy 91 lm/W
Color temperature 3000 K
Color rendering index Ra 80
Light color 830
Dimensions & Weight
Overall length 107.00 mm
Diameter 60.00 mm
Product weight 94.00 g
Temperatures & operating conditions
Ambient temperature range -20…+40 °C
Additional product data
Base (standard designation) E26
Mercury content 0.0 mg
Mercury-free Yes
Product remark All technical parameters apply to the entire lamp, Due to the complex production process for light-emitting diodes, the typical values shown for the technical LED parameters are purely statistical values that do not necessarily match the actual technical parameters of each individual product, which can vary from the typical value
Capabilities
Dimmable Yes
Certificates & Standards
Standards RoHS, CSA, FTC, FCC, cULus
Country-specific categorizations
Order reference 12W/830 120V 6X
Energy labelling regulation data acc EU 2019/2015
Light source cap-type (or other electric interface) E26
Length 107.00 mm
Height 60.00 mm
Width 60.00 mm
Product information bulletin
ULTRA LED A-line Lamps
PDF (258.61 KB)

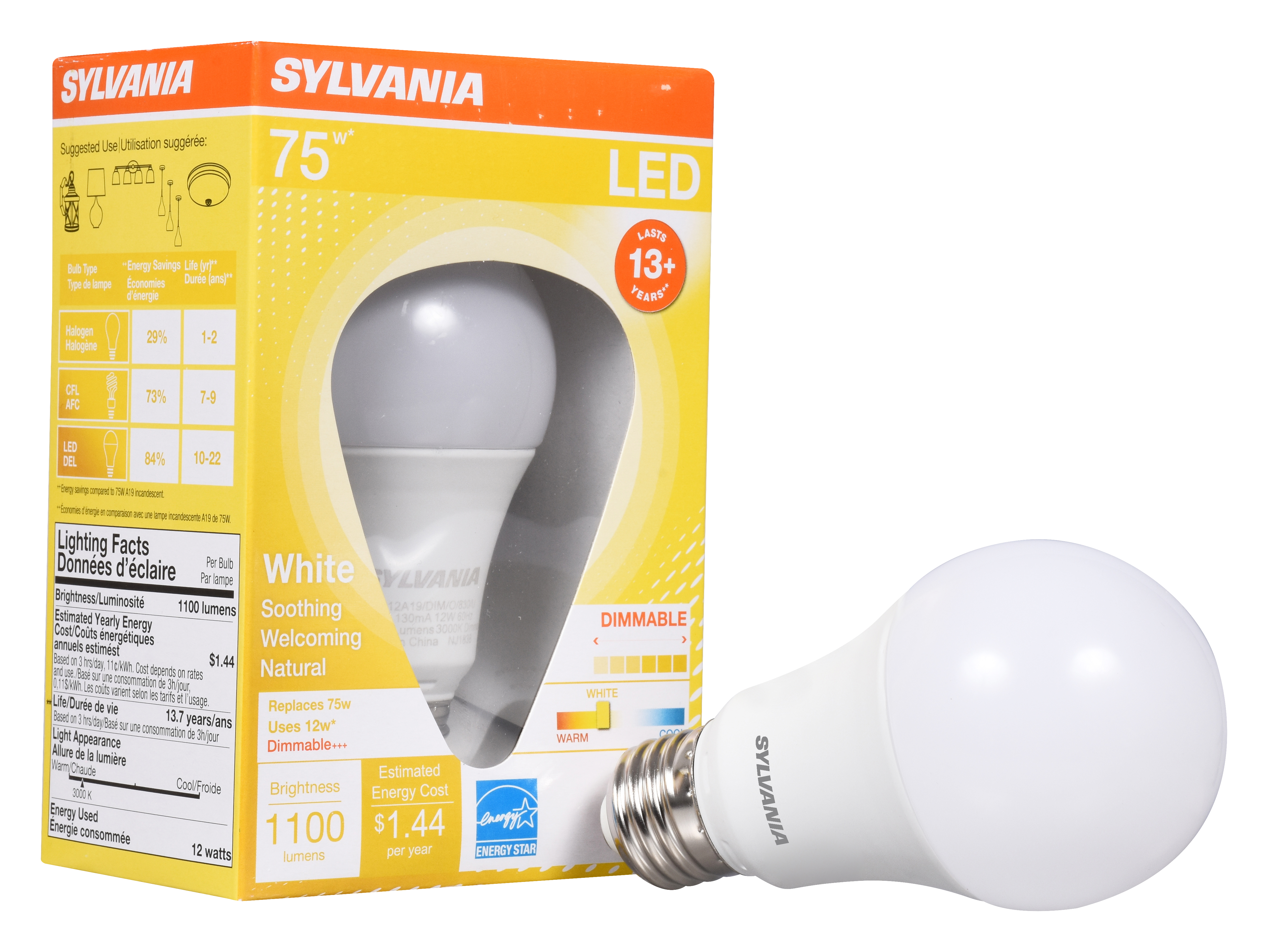

Packaging image, beauty shot
04613540044 bb Beauty Shot
JPG (5.28 MB)

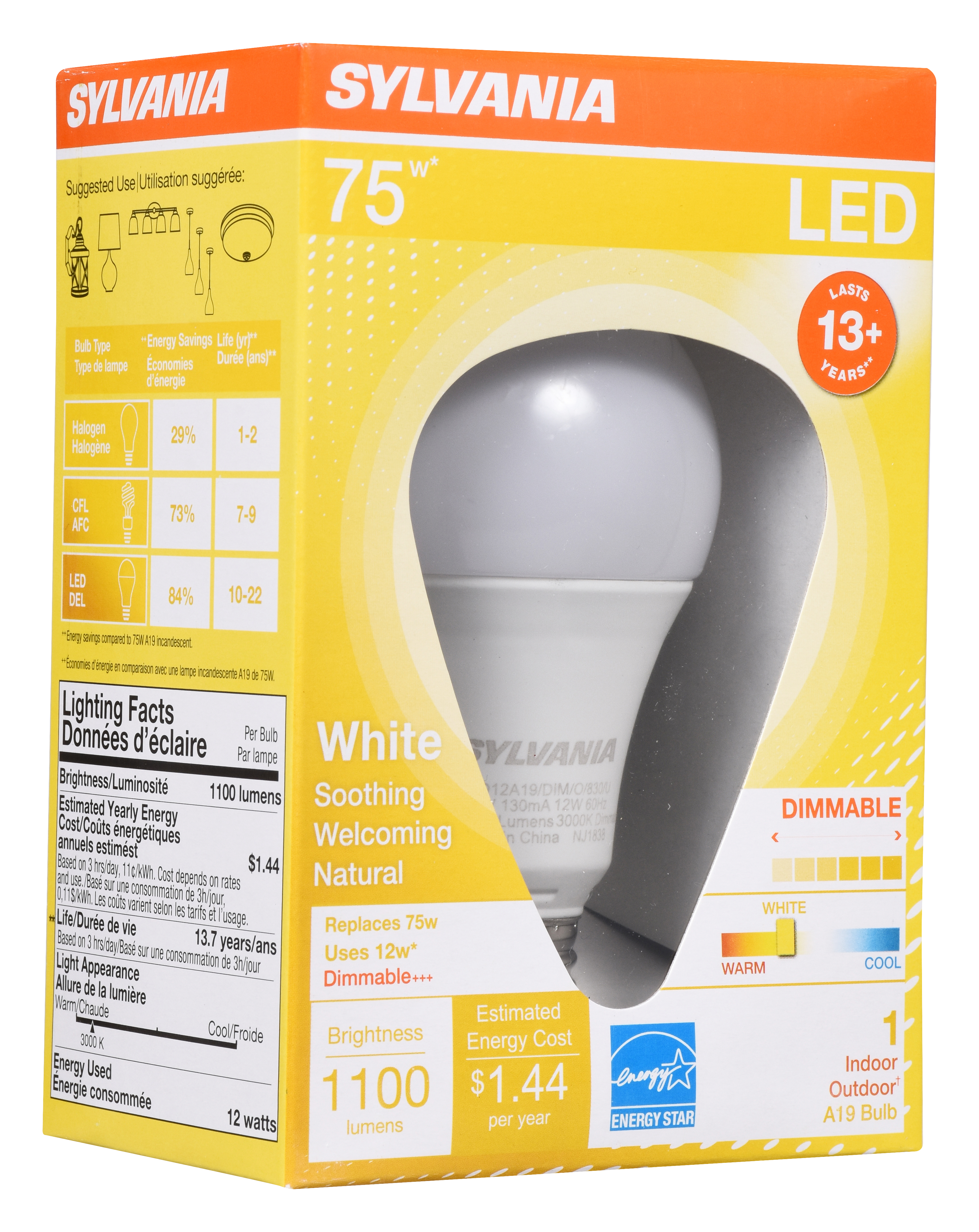

Packaging image, spacial
04613540044 bt Package Shot
JPG (6.93 MB)
