PRODUCT DETAILS
Areas of application
- Downlights, pendant fixtures, table lamps, wall sconces
- Healthcare, hospitality, residential, retail
Product features
- Lasts up to 11 times longer than incandescent lamps
- No warm-up time, instant-on with full light output and stable color
- CRI 80
- 7,700 hours (L70)
Safety advice
- Approved for use in totally enclosed fixtures.
- Suitable for damp locations.
- Non-dimmable.
- -4°F and + 113°F (-20°C and +45°C)
Electrical data
| Nominal wattage | 9 W |
| Construction wattage | 9.00 W |
| Nominal voltage | 120 V |
| Claimed equiv. conventional lamp power | 60 W |
| Operating frequency | 50…60 Hz |
| Mains frequency | 50…60 Hz |
Photometrical data
| Luminous flux | 750 lm |
| Luminous efficacy | 83 lm/W |
| Color temperature | 3000 K |
| Color rendering index Ra | 80 |
| Light color | 830 |
Dimensions & Weight
| Overall length | 110.01 mm |
| Diameter | 60.00 mm |
| Product weight | 50.00 g |
Temperatures & operating conditions
| Ambient temperature range | -20…+40 °C |
Additional product data
| Base (standard designation) | E26 |
| Mercury-free | Yes |
| Product remark | All technical parameters apply to the entire lamp, Due to the complex production process for light-emitting diodes, the typical values shown for the technical LED parameters are purely statistical values that do not necessarily match the actual technical parameters of each individual product, which can vary from the typical value |
Capabilities
| Dimmable | No |
Country-specific categorizations
| Order reference | 9W/830 120V 3X8 |
Energy labelling regulation data acc EU 2019/2015
| Light source cap-type (or other electric interface) | E26 |
| Length | 110.01 mm |
| Height | 60.00 mm |
| Width | 60.00 mm |
Product information bulletin
ECOLED A19
ECOLED A19

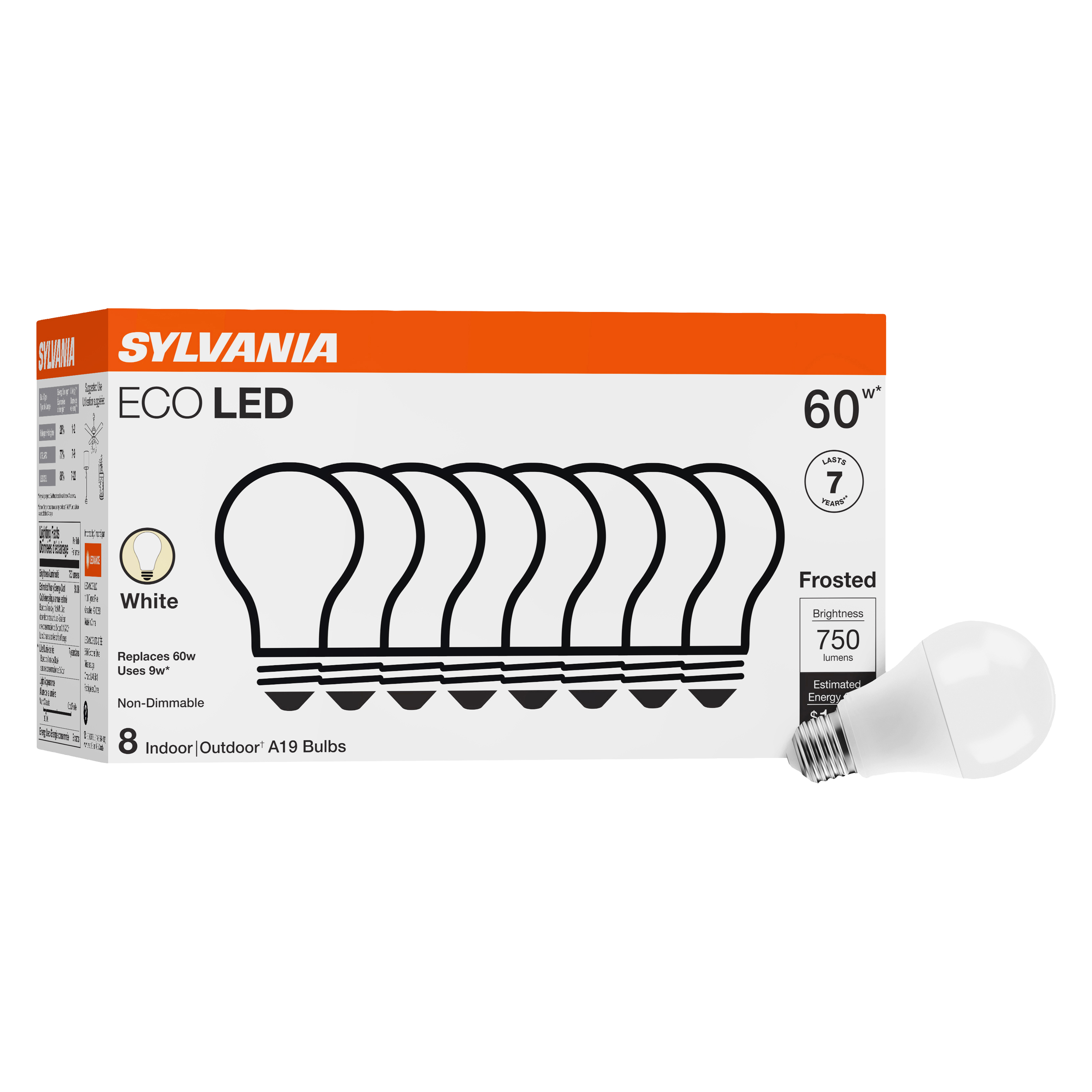

Combo Shot = Product Beauty Shot + Packaging Image
ECO LED A19 9W 750 LM 3000K FROSTED
ECO LED A19 9W 750 LM 3000K FROSTED

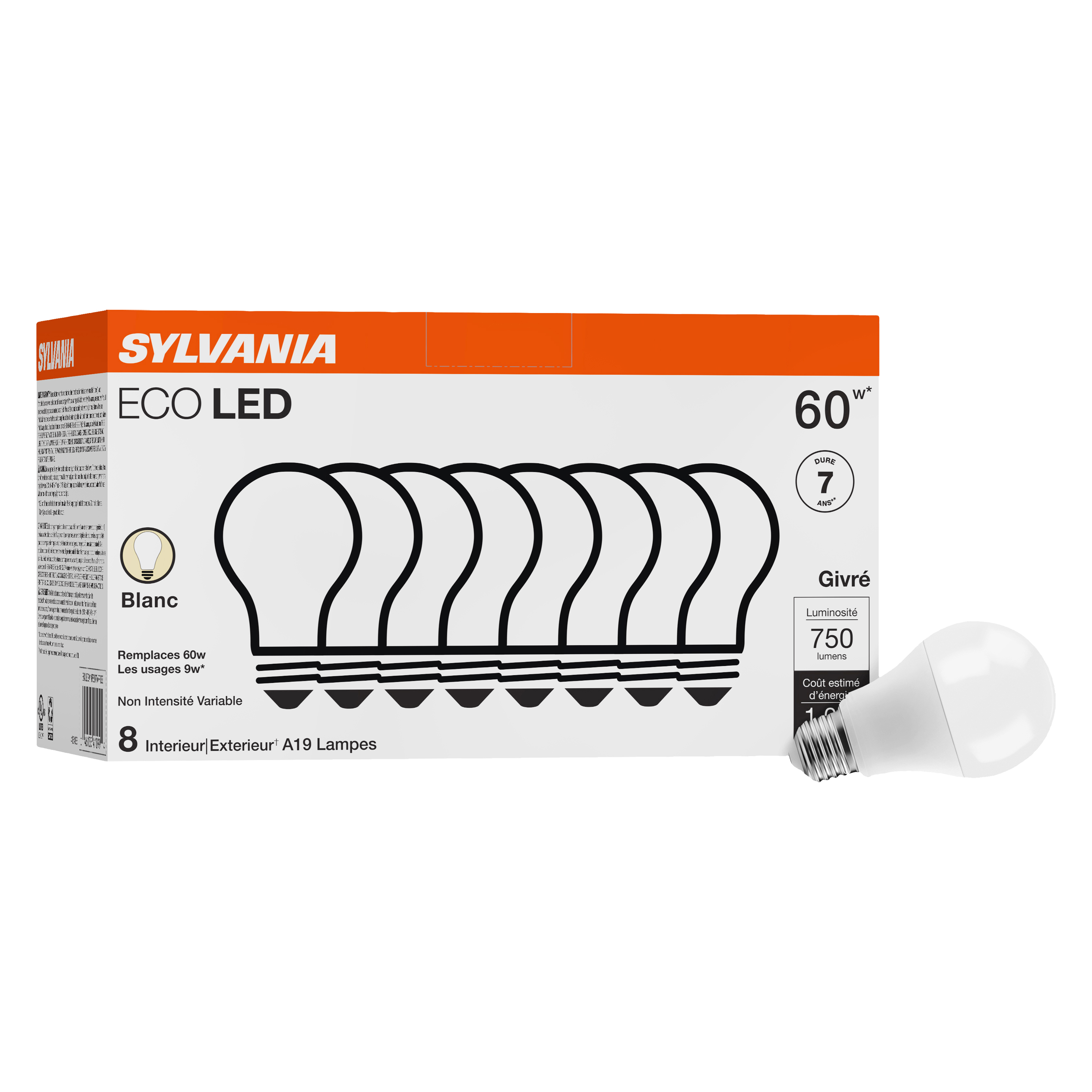

Combo Shot = Product Beauty Shot + Packaging Image
ECO LED A19 9W 750 LM 3000K FROSTED
ECO LED A19 9W 750 LM 3000K FROSTED

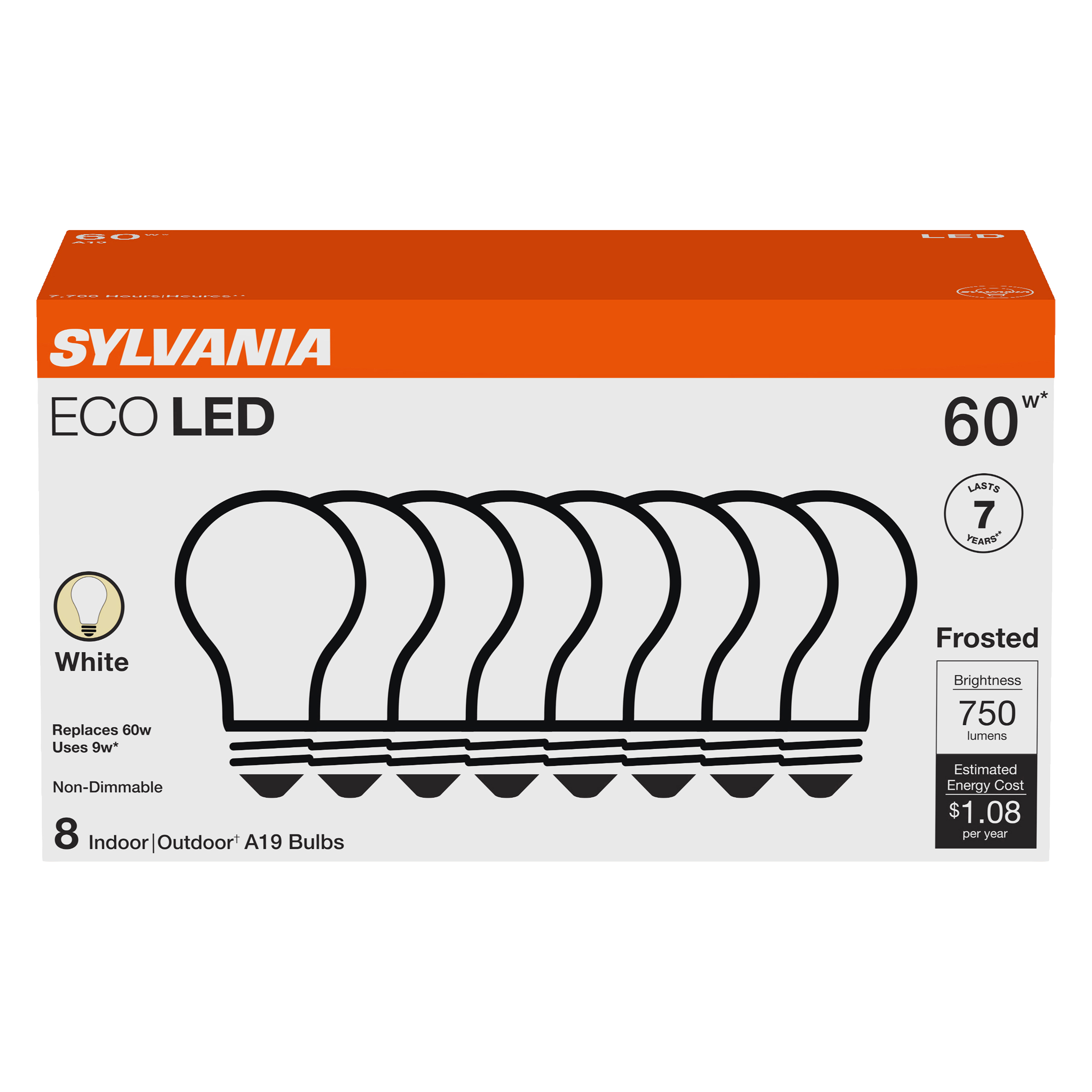

Packaging image, frontal
ECO LED A19 9W 750 LM 3000K FROSTED
ECO LED A19 9W 750 LM 3000K FROSTED

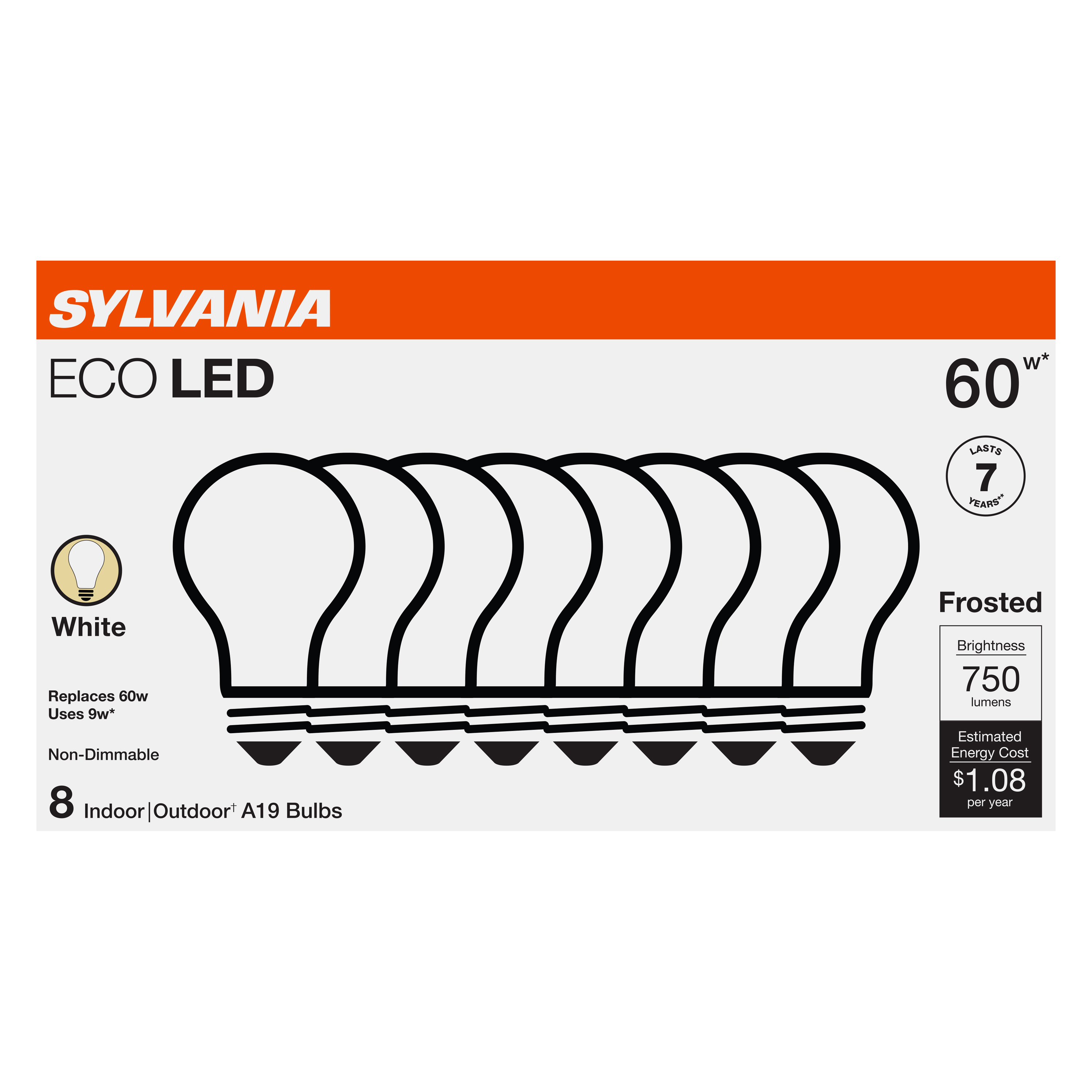

Packaging image, frontal
ECO LED A19 9W 750 LM 3000K FROSTED
ECO LED A19 9W 750 LM 3000K FROSTED

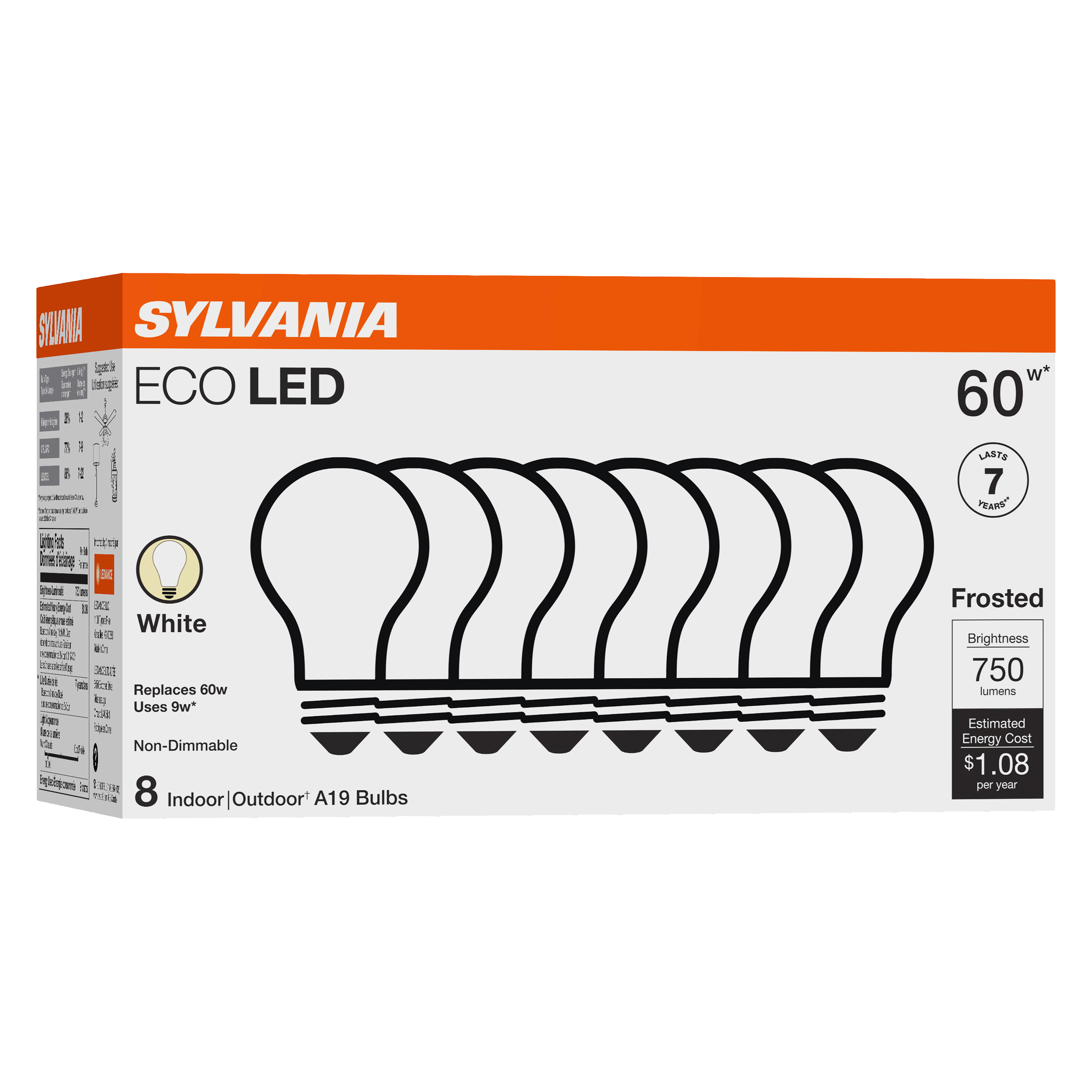

Packaging image, spacial
