SYLVANIA Contactor Series Reflectors
Contractor Series Reflectors BR30 8W DIM 10YR 5000K 2PK
NAED: 73956
Our warranty conditions
PRODUCT DETAILS
Areas of application
- Downlights, pendant fixtures, table lamps, wall sconces
- Healthcare, hospitality, residential, retail
Product features
- 11,000 hours lifetime (L70)
- CRI of 80 ensures good color definition
- No warm-up time, instant-on with full light output and stable color
- Dimmable down to 10 %
Safety advice
- -4°F to +104°F (-20°C to +40°C)
- Not for use with emergency light fixtures or exit lights.
- Not for use in totally enclosed fixtures.
Electrical data
| Nominal wattage | 8 W |
| Construction wattage | 8.00 W |
| Nominal voltage | 120 V |
| Claimed equiv. conventional lamp power | 65 W |
| Type of current | AC |
| Operating frequency | 50…60 Hz |
| Mains frequency | 50…60 Hz |
Photometrical data
| Luminous flux | 650 lm |
| Luminous efficacy | 81 lm/W |
| Light color (designation) | Daylight |
| Color temperature | 5000 K |
| Color rendering index Ra | 80 |
| Light color | 850 |
Dimensions & Weight
| Overall length | 127.00 mm |
| Diameter | 95.00 mm |
| Product weight | 80.00 g |
Additional product data
| Base (standard designation) | E26 |
| Mercury content | 0.0 mg |
| Mercury-free | Yes |
| Product remark | All technical parameters apply to the entire lamp, Due to the complex production process for light-emitting diodes, the typical values shown for the technical LED parameters are purely statistical values that do not necessarily match the actual technical parameters of each individual product, which can vary from the typical value |
Capabilities
| Dimmable | Yes |
Country-specific categorizations
| Order reference | 8W/850 120V 6X2 |
Energy labelling regulation data acc EU 2019/2015
| Light source cap-type (or other electric interface) | E26 |
| Length | 127.00 mm |
| Height | 95.00 mm |
| Width | 95.00 mm |
Product information bulletin
Contractor Series LED Reflector Lamps
Contractor Series LED Reflector Lamps

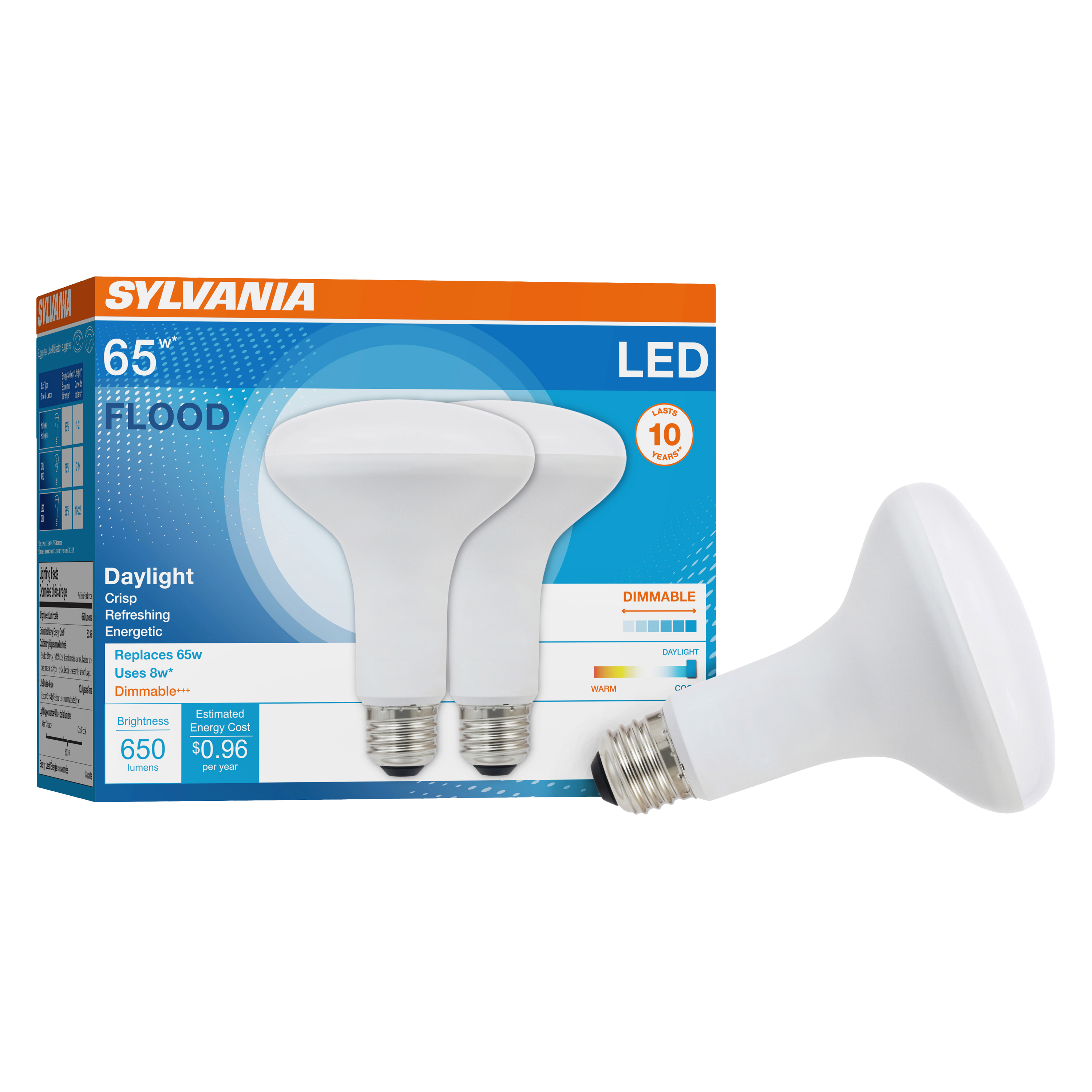

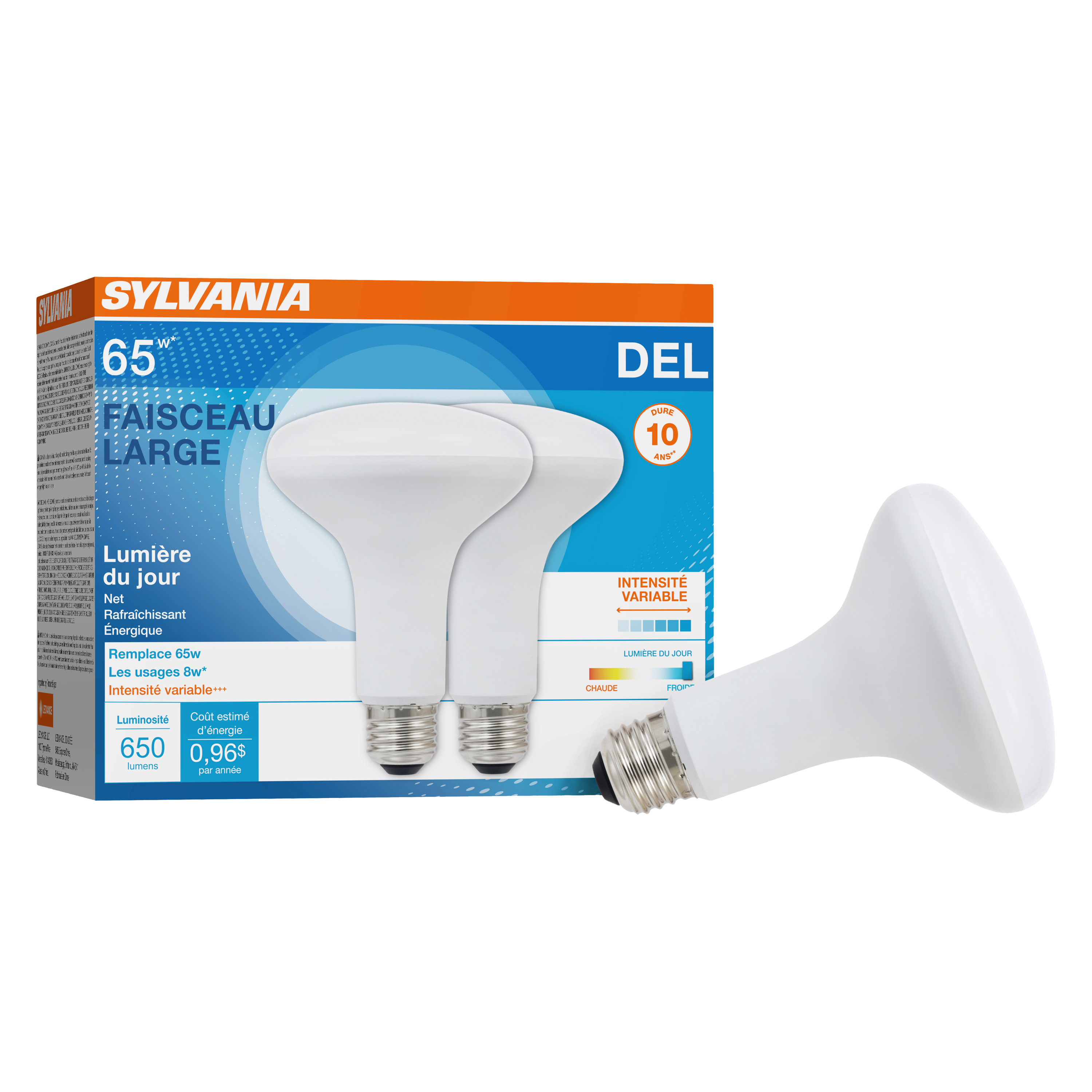

Combo Shot = Product Beauty Shot + Packaging Image
LED BR30, 8W, Dimmable, 80CRI, 650 Lumen, 5000K
LED BR30, 8W, Dimmable, 80CRI, 650 Lumen, 5000K
Combo Shot = Product Beauty Shot + Packaging Image
LED BR30, 8W, Dimmable, 80CRI, 650 Lumen, 5000K
LED BR30, 8W, Dimmable, 80CRI, 650 Lumen, 5000K

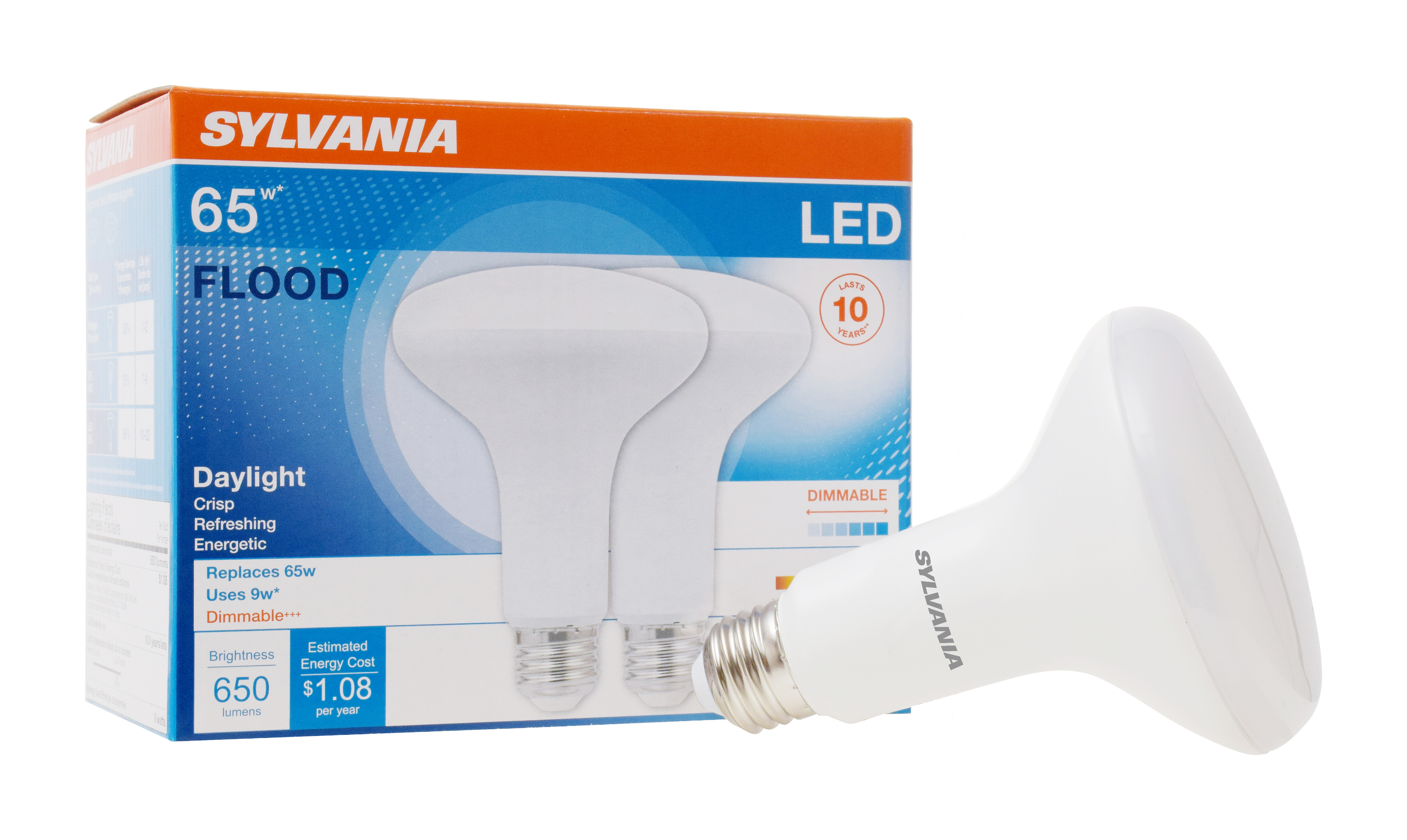

Packaging image, beauty shot
04613573956 bb Beauty Shot
04613573956 bb Beauty Shot

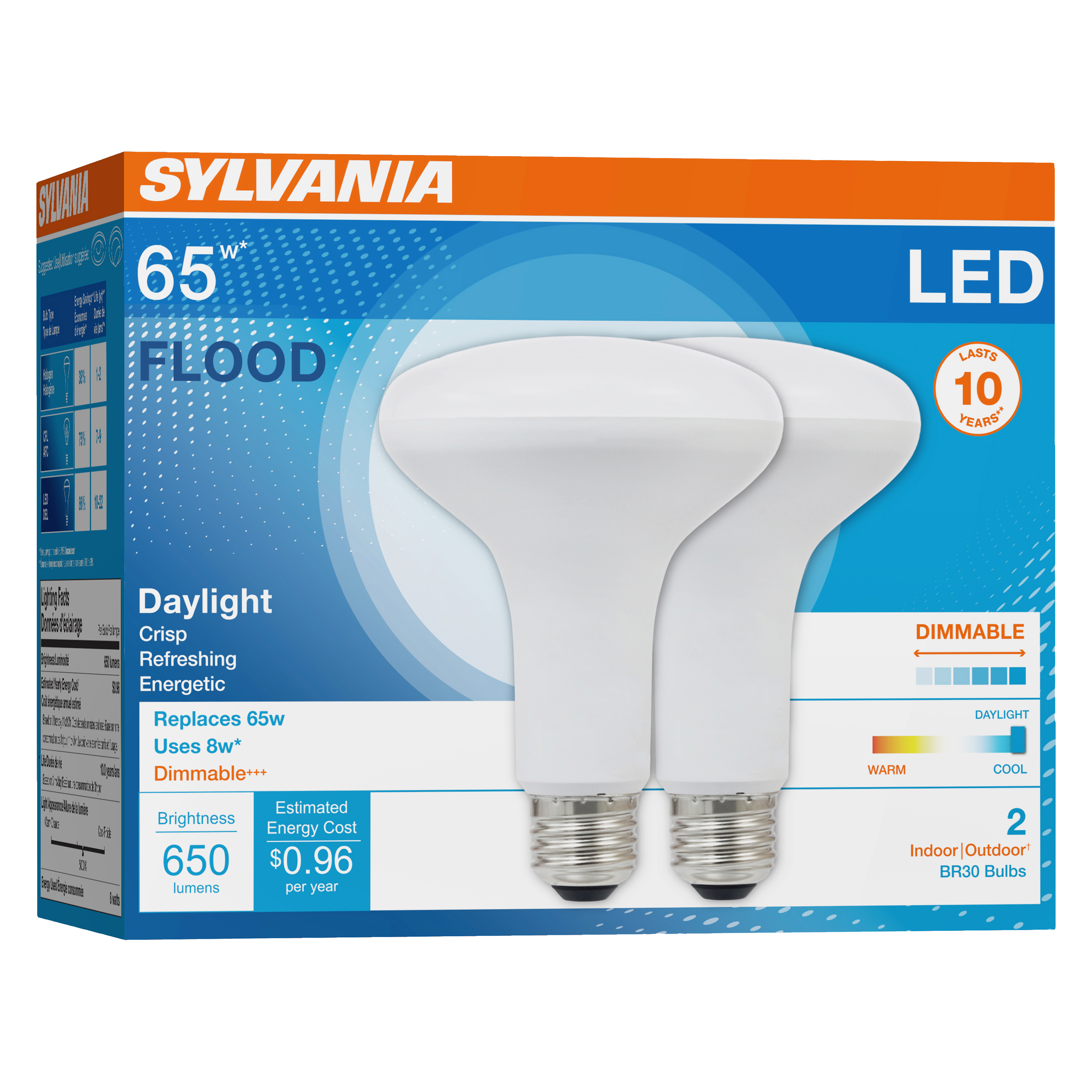

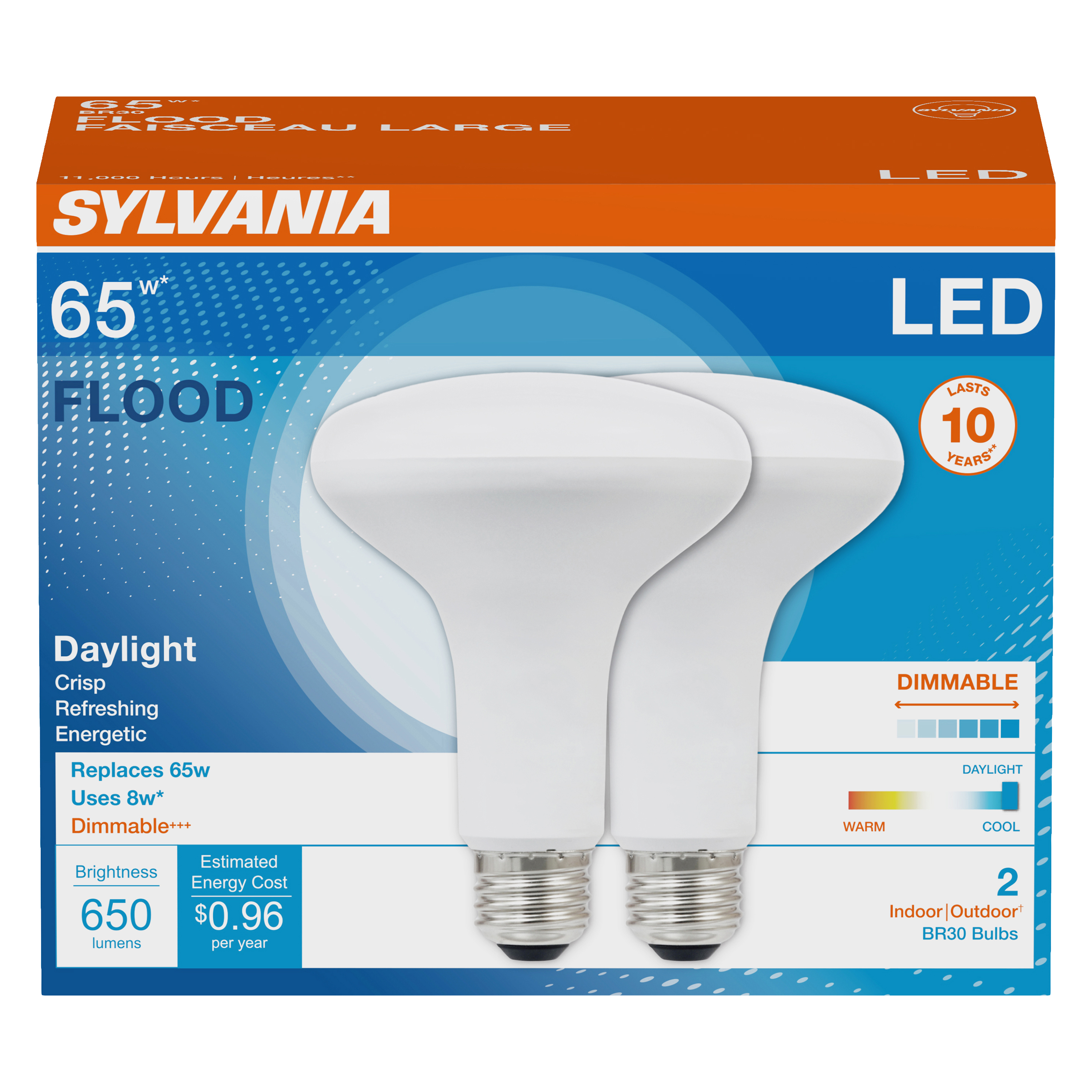

Packaging image, frontal
LED BR30, 8W, Dimmable, 80CRI, 650 Lumen, 5000K
LED BR30, 8W, Dimmable, 80CRI, 650 Lumen, 5000K

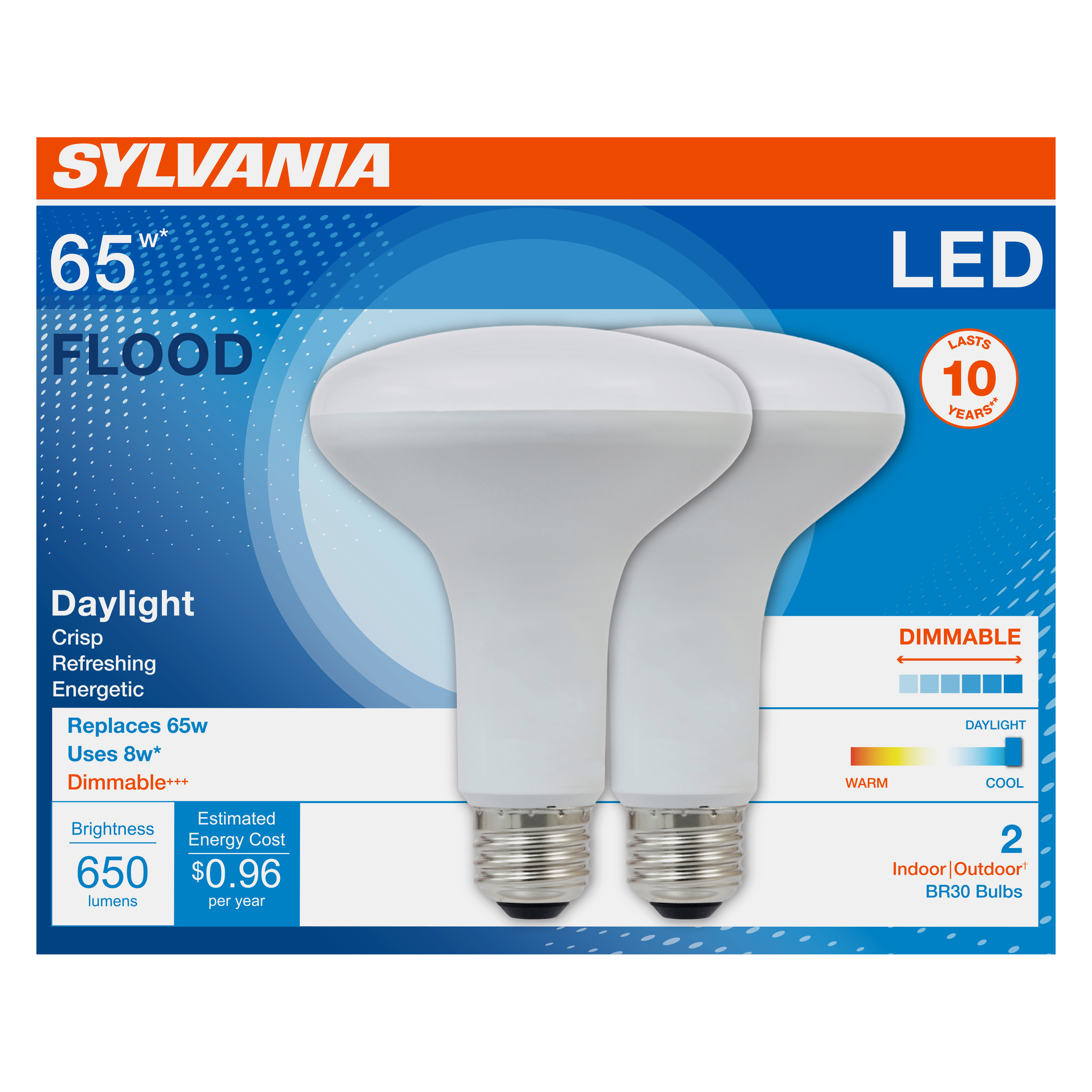

Packaging image, frontal
LED BR30, 8W, Dimmable, 80CRI, 650 Lumen, 5000K
LED BR30, 8W, Dimmable, 80CRI, 650 Lumen, 5000K

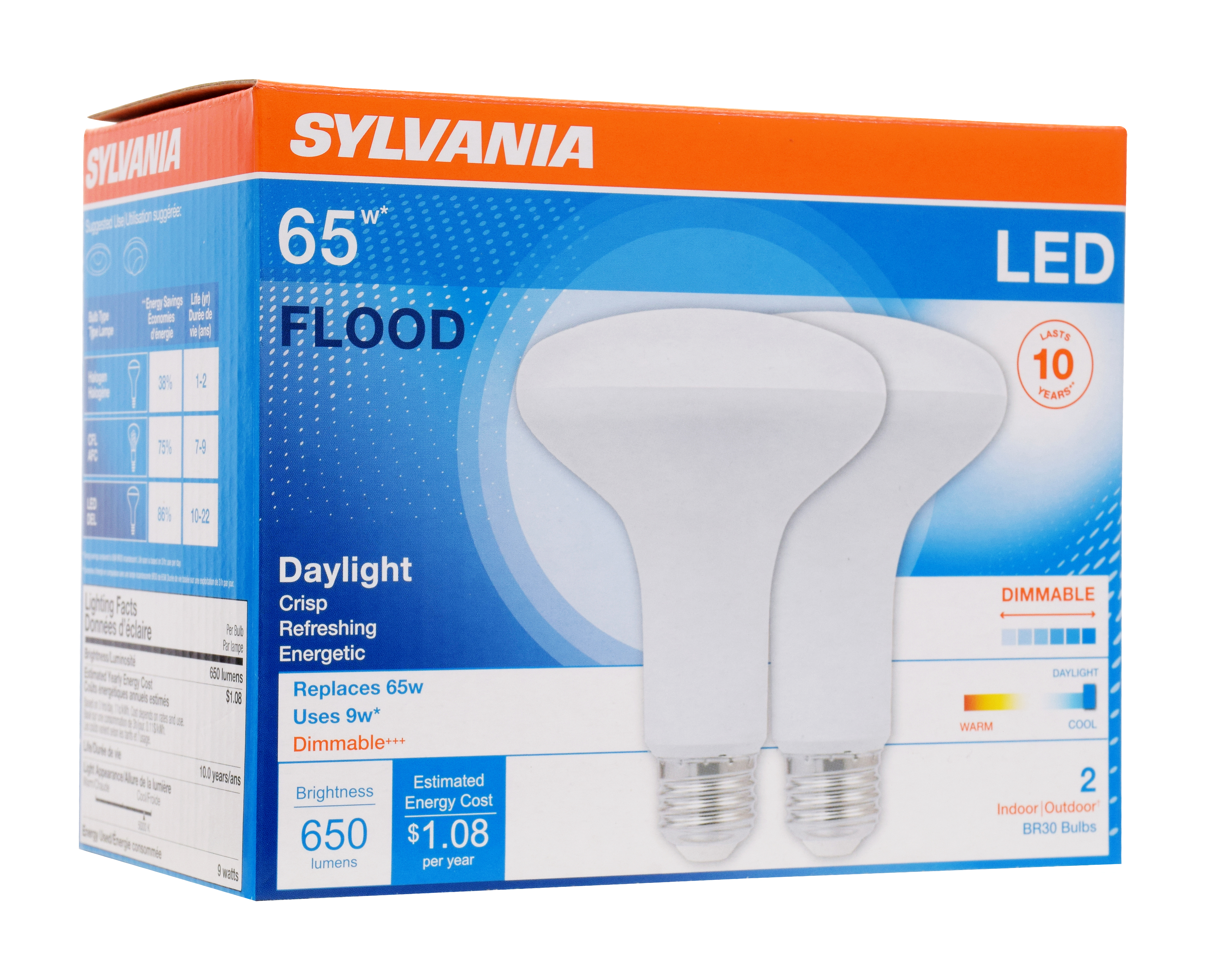

Packaging image, spacial
04613573956 bt Package Shot
04613573956 bt Package Shot
Packaging image, spacial
LED BR30, 8W, Dimmable, 80CRI, 650 Lumen, 5000K
LED BR30, 8W, Dimmable, 80CRI, 650 Lumen, 5000K
