SYLVANIA Contactor Series Reflectors
Contractor Series Reflectors R20 5W DIM 10YR 3500K 2PK
NAED: 78030
Our warranty conditions
PRODUCT DETAILS
Areas of application
- Downlights, pendant fixtures, table lamps, wall sconces
- Healthcare, hospitality, residential, retail
Product features
- 11,000 hours lifetime (L70)
- CRI of 80 ensures good color definition
- No warm-up time, instant-on with full light output and stable color
- Dimmable down to 10 %
Safety advice
- -4°F to +104°F (-20°C to +40°C)
- Not for use with emergency light fixtures or exit lights.
- Not for use in totally enclosed fixtures.
Electrical data
| Nominal wattage | 5 W |
| Construction wattage | 5.00 W |
| Nominal voltage | 120 V |
| Claimed equiv. conventional lamp power | 50 W |
Photometrical data
| Luminous flux | 325 lm |
| Luminous efficacy | 65 lm/W |
| Light color (designation) | Warm White |
| Color temperature | 3500 K |
| Color rendering index Ra | 80 |
| Light color | 835 |
Dimensions & Weight
| Overall length | 95.00 mm |
| Diameter | 64.01 mm |
| Product weight | 53.00 g |
Temperatures & operating conditions
| Ambient temperature range | -20…+45 °C |
Additional product data
| Base (standard designation) | E26 |
| Mercury content | 0.0 mg |
| Mercury-free | Yes |
| Product remark | All technical parameters apply to the entire lamp, Due to the complex production process for light-emitting diodes, the typical values shown for the technical LED parameters are purely statistical values that do not necessarily match the actual technical parameters of each individual product, which can vary from the typical value |
Capabilities
| Dimmable | Yes |
Country-specific categorizations
| Order reference | LED5R20DIM83510 |
Energy labelling regulation data acc EU 2019/2015
| Light source cap-type (or other electric interface) | E26 |
| Length | 95.00 mm |
| Height | 64.01 mm |
| Width | 64.01 mm |
Product information bulletin
Contractor Series LED Reflector Lamps
Contractor Series LED Reflector Lamps

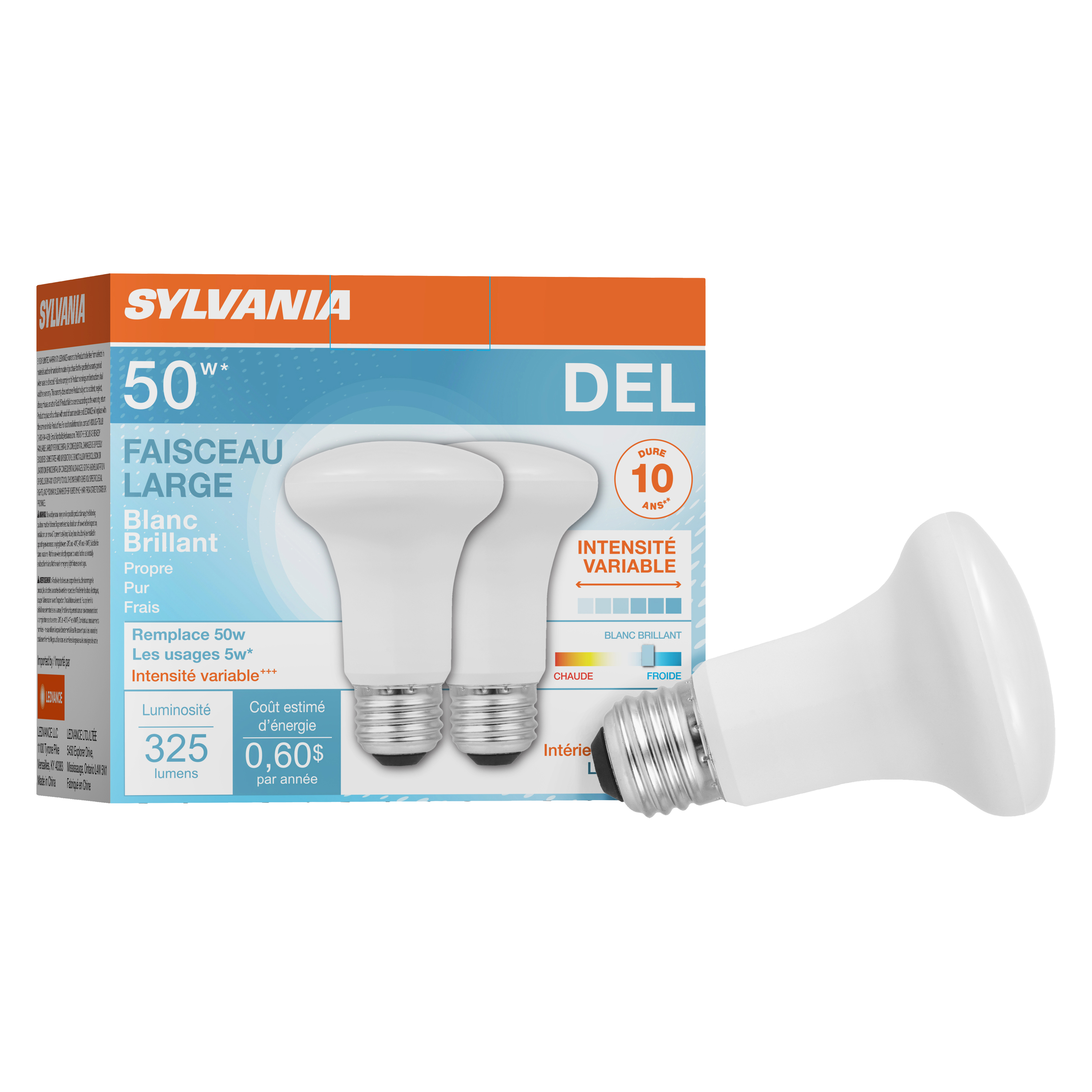

Combo Shot = Product Beauty Shot + Packaging Image
LED R20, 5W, Dimmable, CRI, 325 Lumen, 3500K
LED R20, 5W, Dimmable, CRI, 325 Lumen, 3500K
Combo Shot = Product Beauty Shot + Packaging Image
LED R20, 5W, Dimmable, CRI, 325 Lumen, 3500K
LED R20, 5W, Dimmable, CRI, 325 Lumen, 3500K

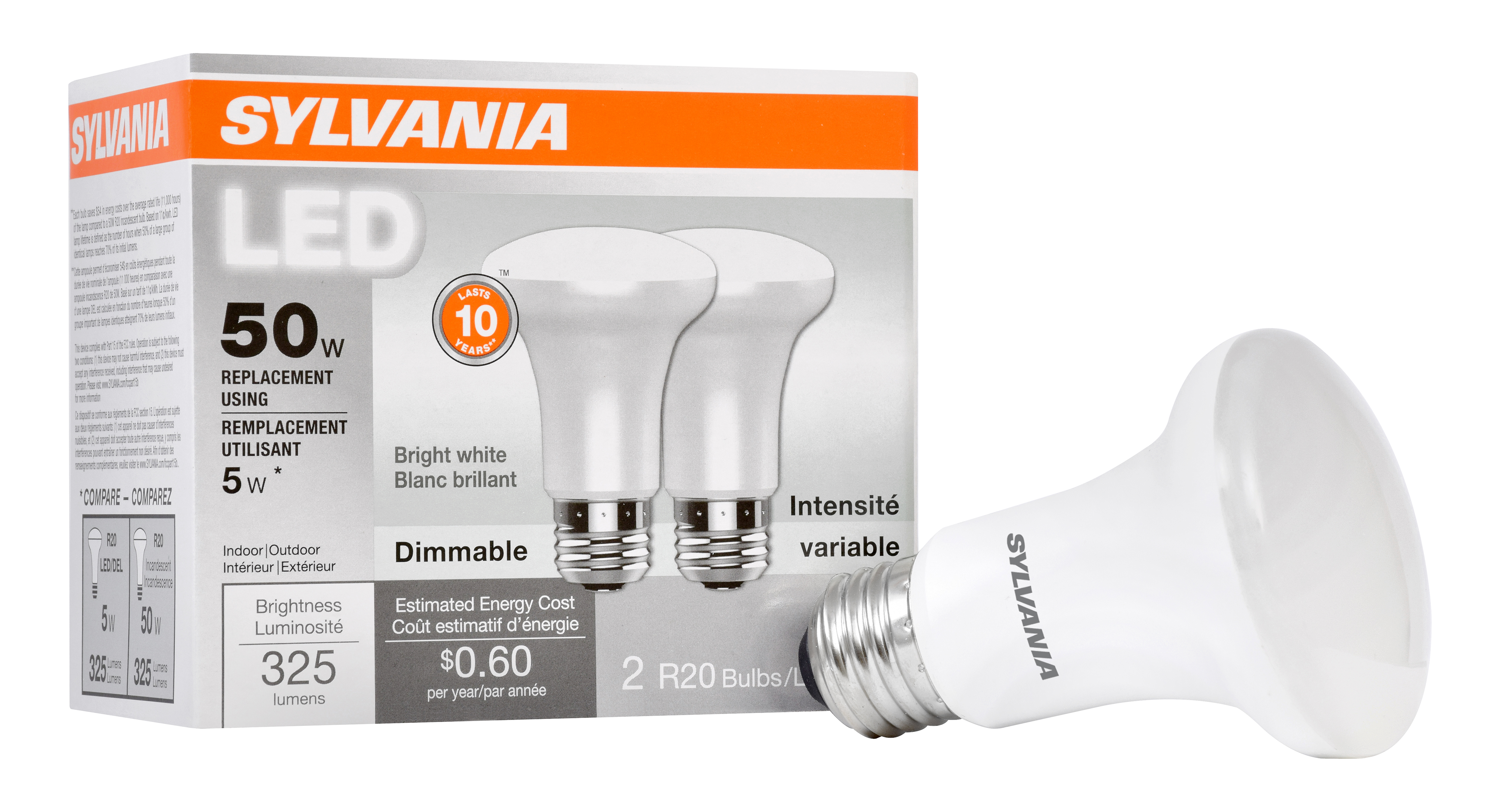

Packaging image, beauty shot
04613578030 bb Beauty Shot
04613578030 bb Beauty Shot

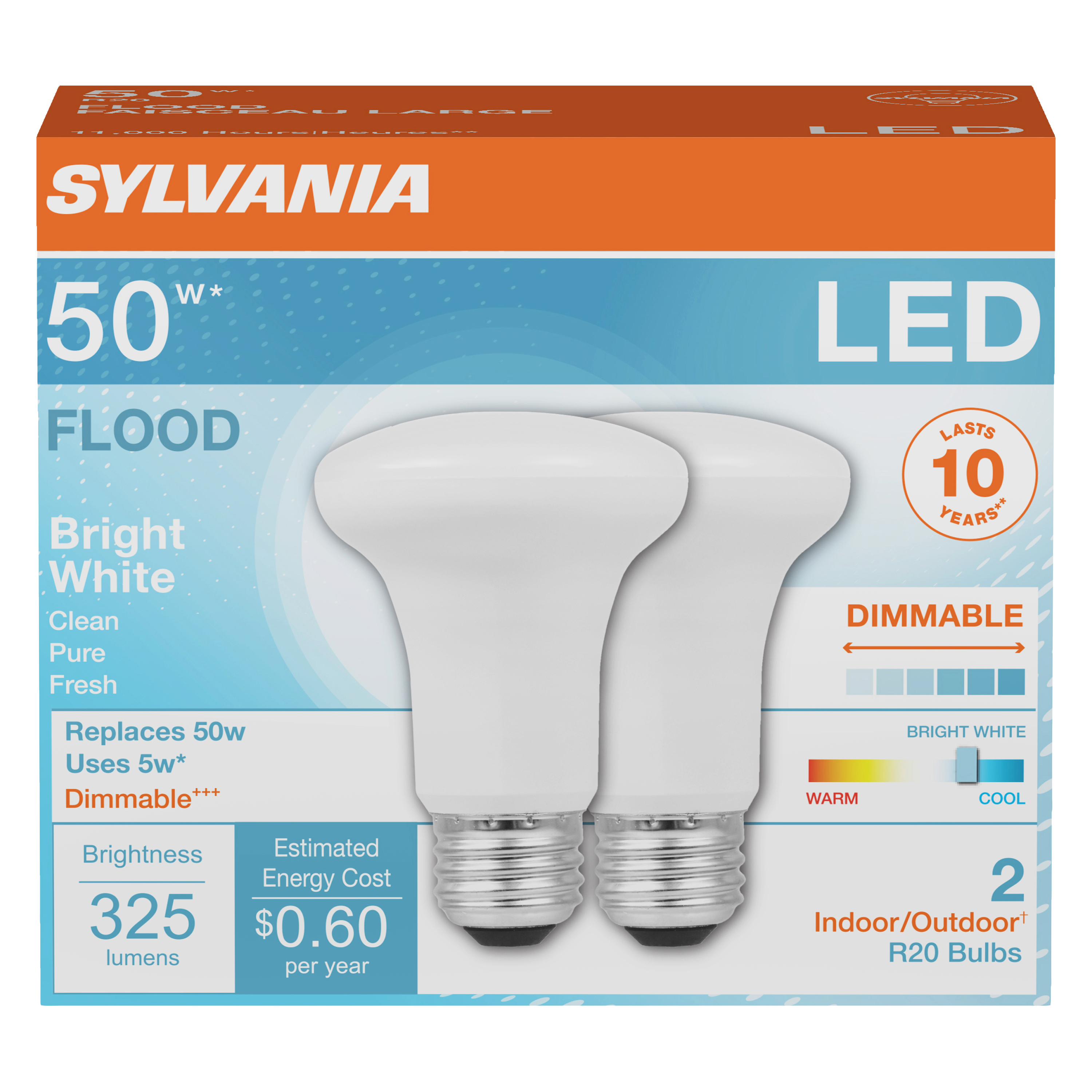

Packaging image, frontal
LED R20, 5W, Dimmable, CRI, 325 Lumen, 3500K
LED R20, 5W, Dimmable, CRI, 325 Lumen, 3500K
Packaging image, frontal
LED R20, 5W, Dimmable, CRI, 325 Lumen, 3500K
LED R20, 5W, Dimmable, CRI, 325 Lumen, 3500K

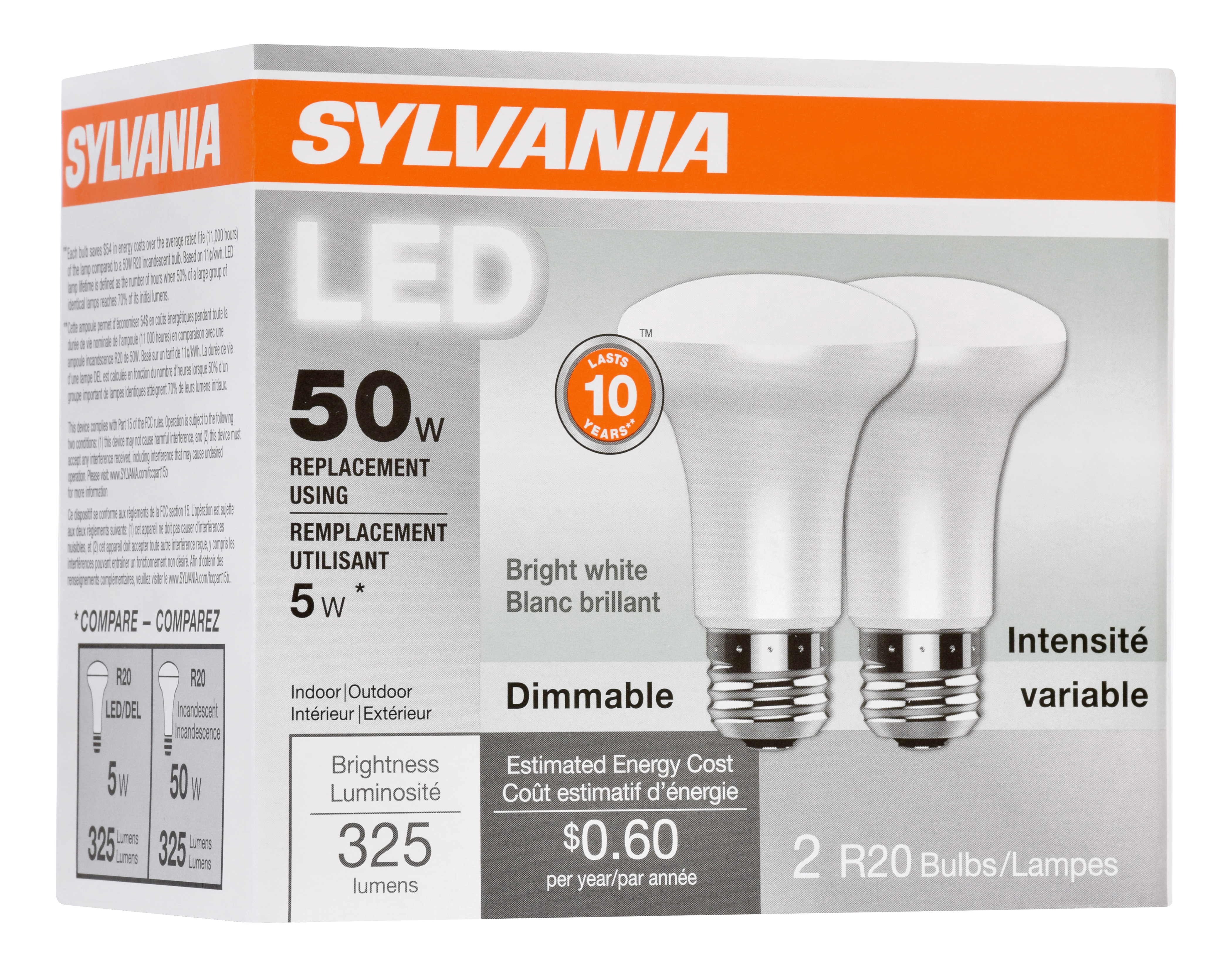

Packaging image, spacial
