SYLVANIA Contactor Series Reflectors

Contractor Series Reflectors R20 5W DIM 10YR 5000K 2PK

NAED: 73991
Contact sales
Our warranty conditions

PRODUCT DETAILS

Areas of application
  • Downlights, pendant fixtures, table lamps, wall sconces
  • Healthcare, hospitality, residential, retail
Product features
  • 11,000 hours lifetime (L70)
  • CRI of 80 ensures good color definition
  • No warm-up time, instant-on with full light output and stable color
  • Dimmable down to 10 %
Safety advice
  • -4°F to +104°F (-20°C to +40°C)
  • Not for use with emergency light fixtures or exit lights.
  • Not for use in totally enclosed fixtures.
Electrical data
Nominal wattage 5 W
Construction wattage 5.00 W
Nominal voltage 120 V
Claimed equiv. conventional lamp power 50 W
Photometrical data
Luminous flux 325 lm
Luminous efficacy 65 lm/W
Light color (designation) Daylight
Color temperature 5000 K
Color rendering index Ra 80
Light color 850
Dimensions & Weight
Overall length 95.00 mm
Diameter 64.01 mm
Product weight 53.00 g
Additional product data
Base (standard designation) E26
Mercury-free Yes
Product remark All technical parameters apply to the entire lamp, Due to the complex production process for light-emitting diodes, the typical values shown for the technical LED parameters are purely statistical values that do not necessarily match the actual technical parameters of each individual product, which can vary from the typical value
Capabilities
Dimmable Yes
Country-specific categorizations
Order reference LED5R20DIM85010
Energy labelling regulation data acc EU 2019/2015
Light source cap-type (or other electric interface) E26
Length 95.00 mm
Height 64.01 mm
Width 64.01 mm
Product information bulletin
Contractor Series LED Reflector Lamps
PDF (311.5 KB)

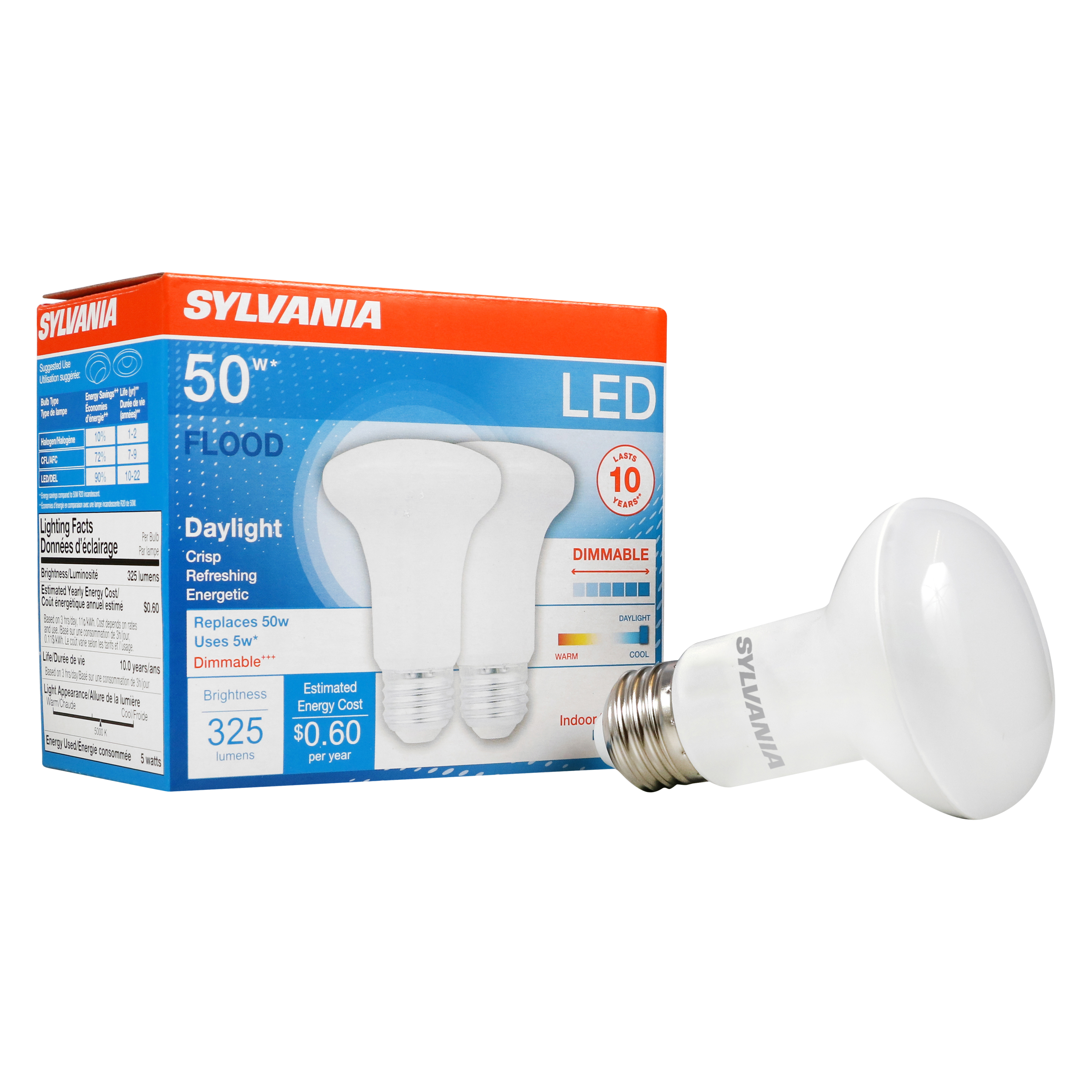

Combo Shot = Product Beauty Shot + Packaging Image
LED R20, 5W, Dimmable, CRI, 325 Lumen, 5000K
JPG (1.91 MB)

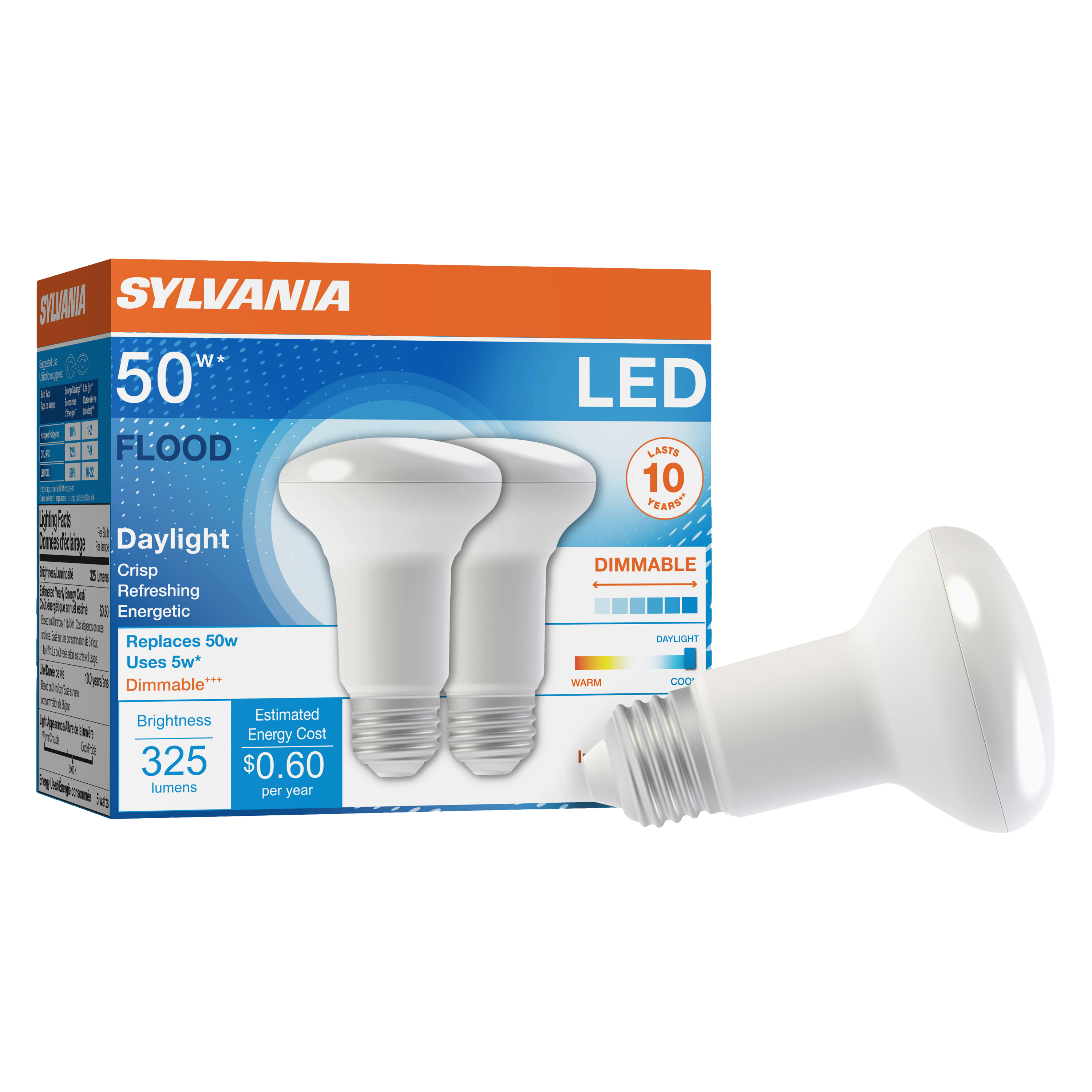

Combo Shot = Product Beauty Shot + Packaging Image
LED R20, 5W, Dimmable, CRI, 325 Lumen, 5000K
JPG (1.96 MB)

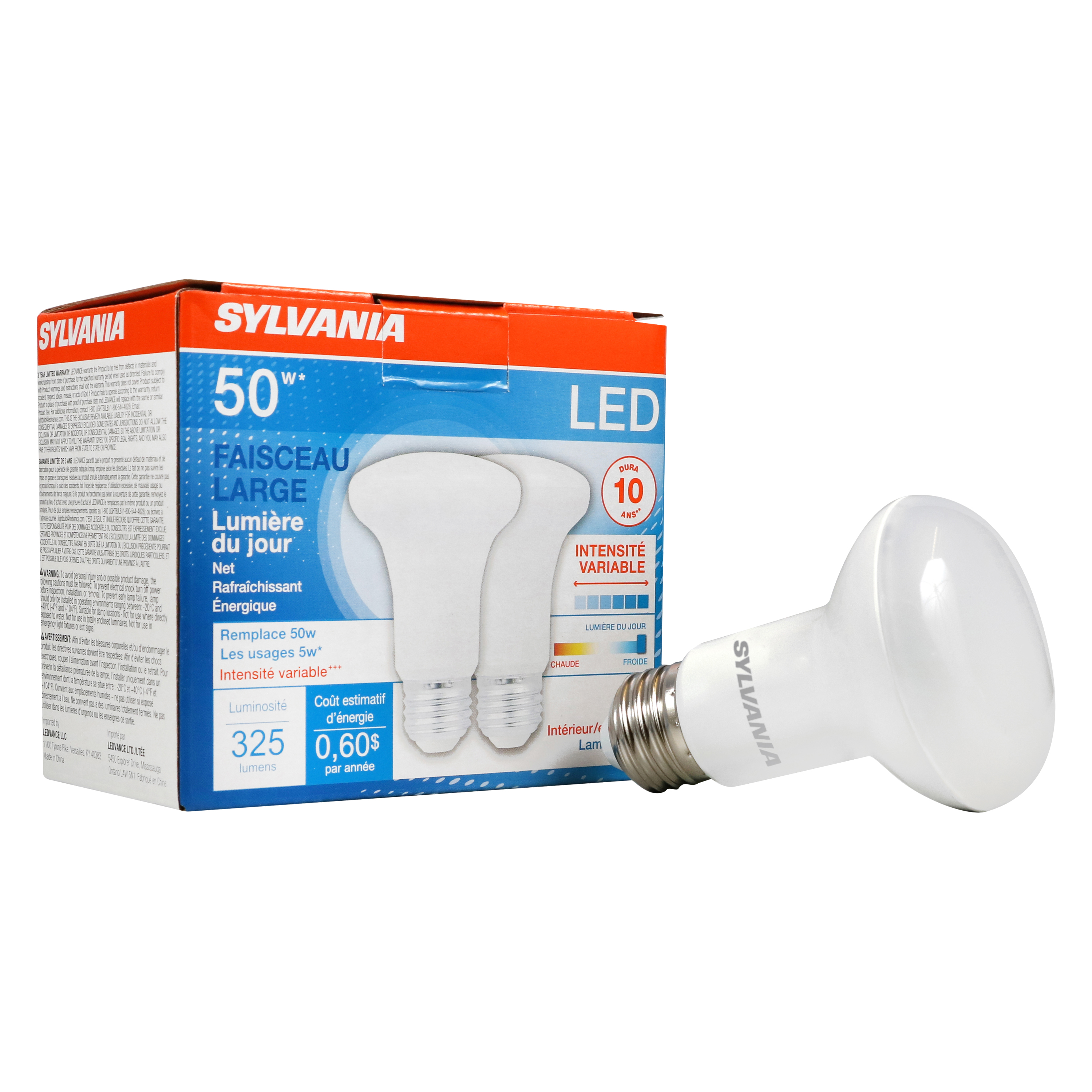

Packaging image, beauty shot
LED R20 Daylight Flood Light
JPG (2.31 MB)

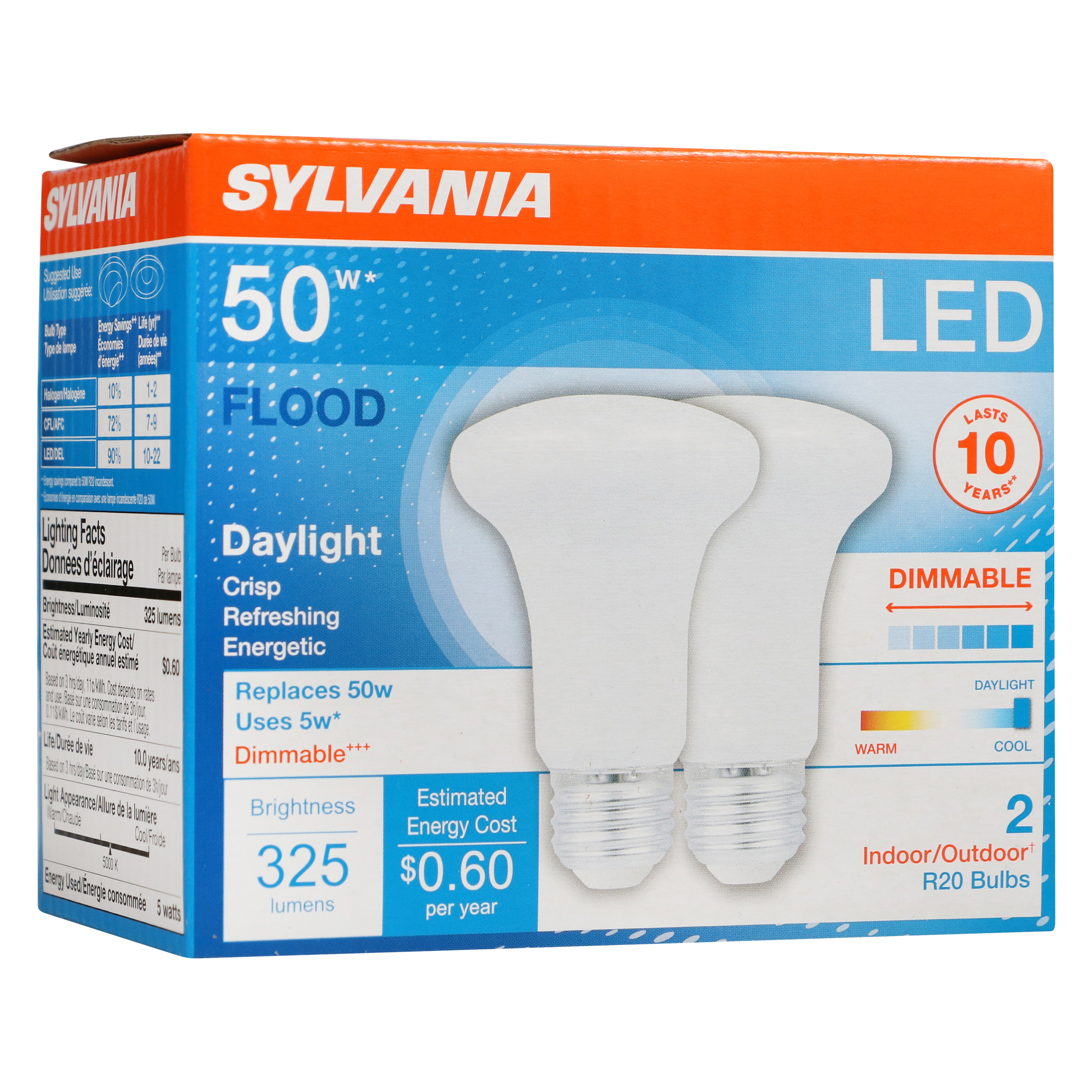

Packaging image, beauty shot
LED R20 Daylight Flood Light
JPG (2.34 MB)

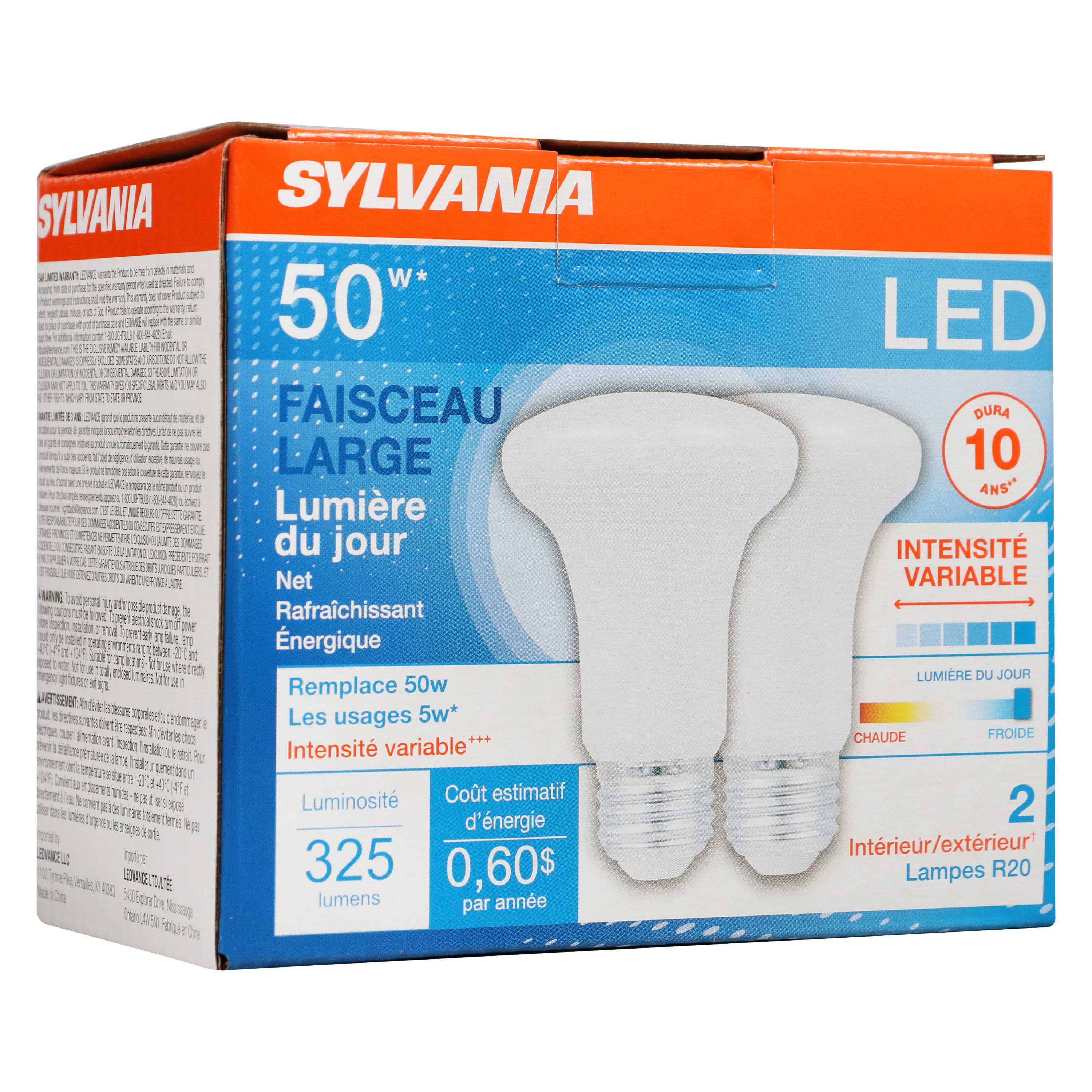

Packaging image, frontal
LED R20, 5W, Dimmable, CRI, 325 Lumen, 5000K
JPG (2.61 MB)

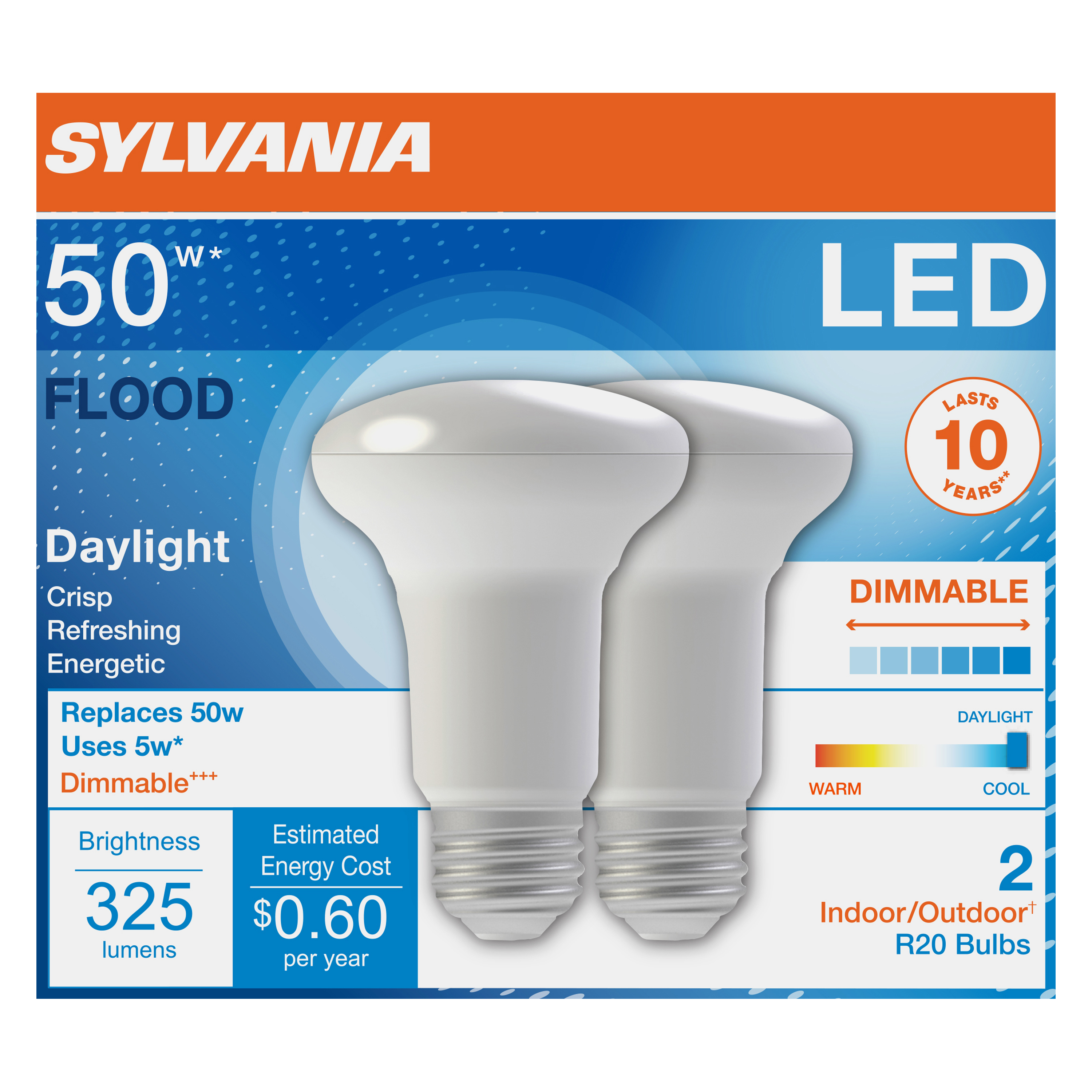

Packaging image, frontal
LED R20, 5W, Dimmable, CRI, 325 Lumen, 5000K
JPG (2.38 MB)

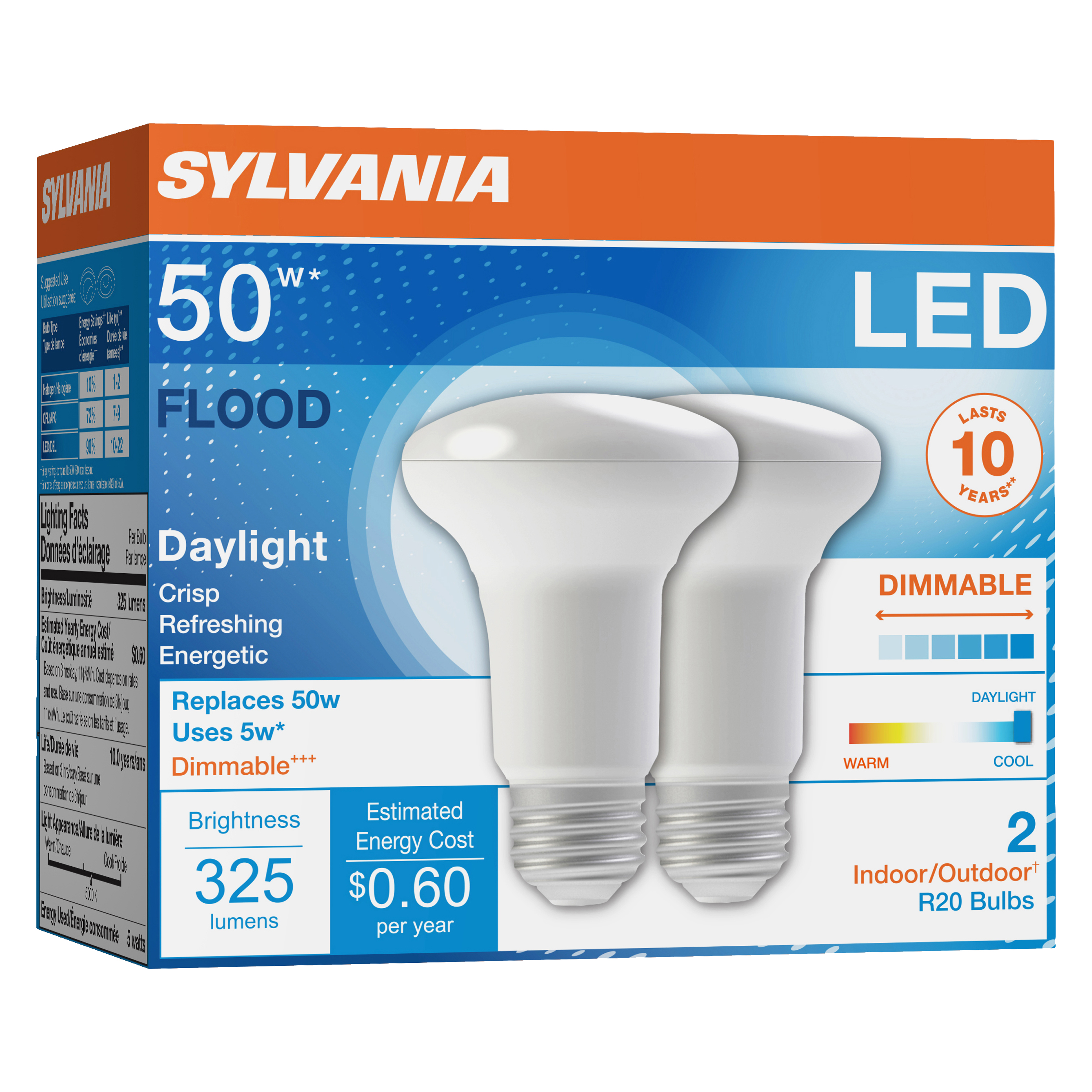

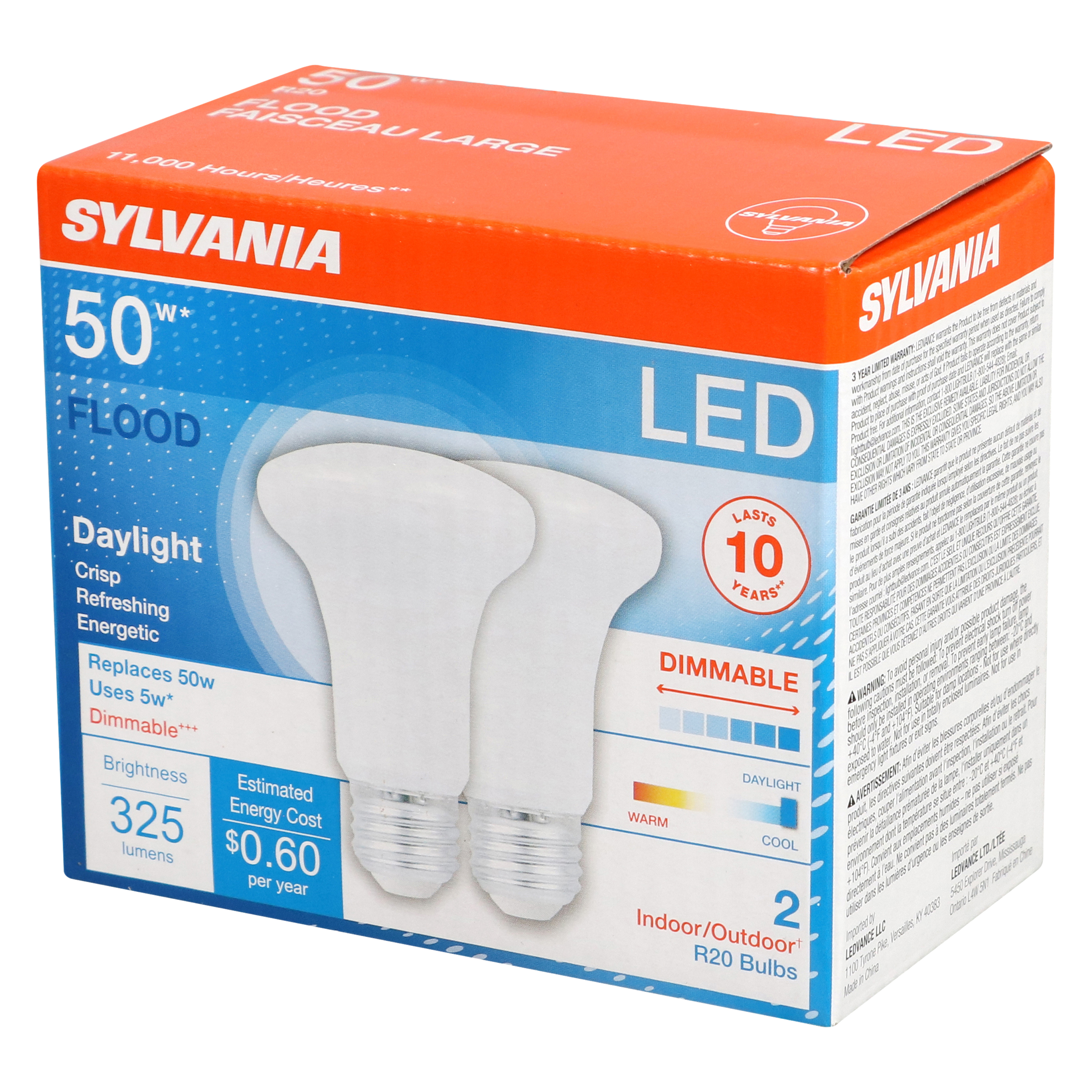

Packaging image, spacial
LED R20 Daylight Flood Light
JPG (3.91 MB)
Packaging image, spacial
LED R20 Daylight Flood Light
JPG (4.71 MB)
Packaging image, spacial
LED R20 Daylight Flood Light
JPG (4.97 MB)

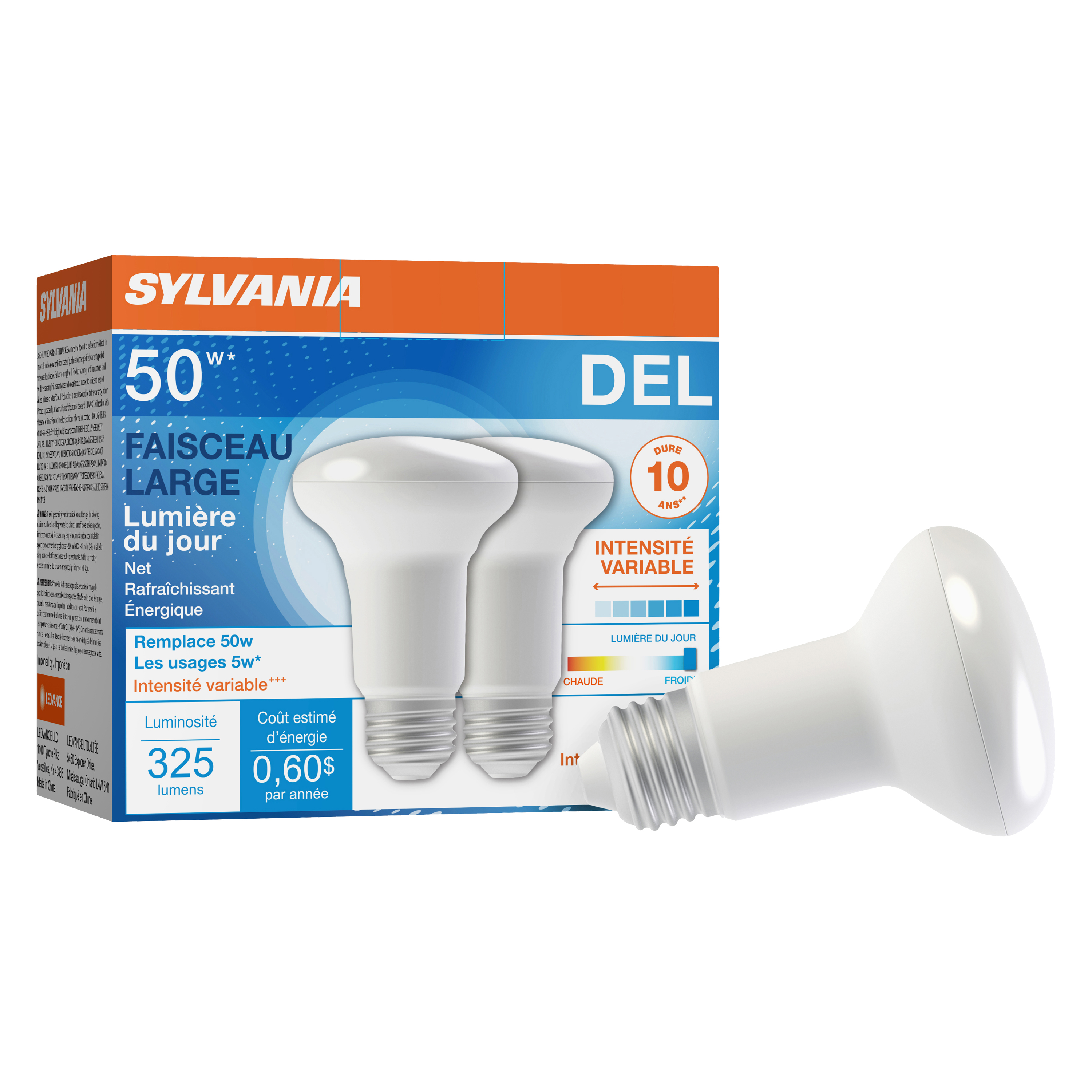

Packaging image, spacial
