SYLVANIA Contactor Series Reflectors

Contractor Series Reflectors BR40 12W DIM 10YR 5000K 2PK

NAED: 79624
Download data sheet
Contact sales
Our warranty conditions

PRODUCT DETAILS

Areas of application
  • Downlights, pendant fixtures, table lamps, wall sconces
  • Healthcare, hospitality, residential, retail
Product features
  • 11,000 hours lifetime (L70)
  • CRI of 80 ensures good color definition
  • No warm-up time, instant-on with full light output and stable color
  • Dimmable down to 10 %
Safety advice
  • -4°F to +104°F (-20°C to +40°C)
  • Not for use with emergency light fixtures or exit lights.
  • Not for use in totally enclosed fixtures.
Electrical data
Nominal wattage 12 W
Construction wattage 12.00 W
Nominal voltage 120 V
Operating frequency 50…60 Hz
Mains frequency 50…60 Hz
Photometrical data
Luminous flux 1050 lm
Luminous efficacy 87 lm/W
Color temperature 5000 K
Color rendering index Ra 80
Light color 850
Dimensions & Weight
Overall length 122.00 mm
Diameter 123.95 mm
Product weight 169.00 g
Additional product data
Base (standard designation) E26
Mercury-free Yes
Product remark All technical parameters apply to the entire lamp, Due to the complex production process for light-emitting diodes, the typical values shown for the technical LED parameters are purely statistical values that do not necessarily match the actual technical parameters of each individual product, which can vary from the typical value
Country-specific categorizations
Order reference 12W/827 120V 6X
Energy labelling regulation data acc EU 2019/2015
Light source cap-type (or other electric interface) E26
Length 122.00 mm
Height 123.95 mm
Width 123.95 mm
Product information bulletin
Contractor Series LED Reflector Lamps
PDF (311.5 KB)

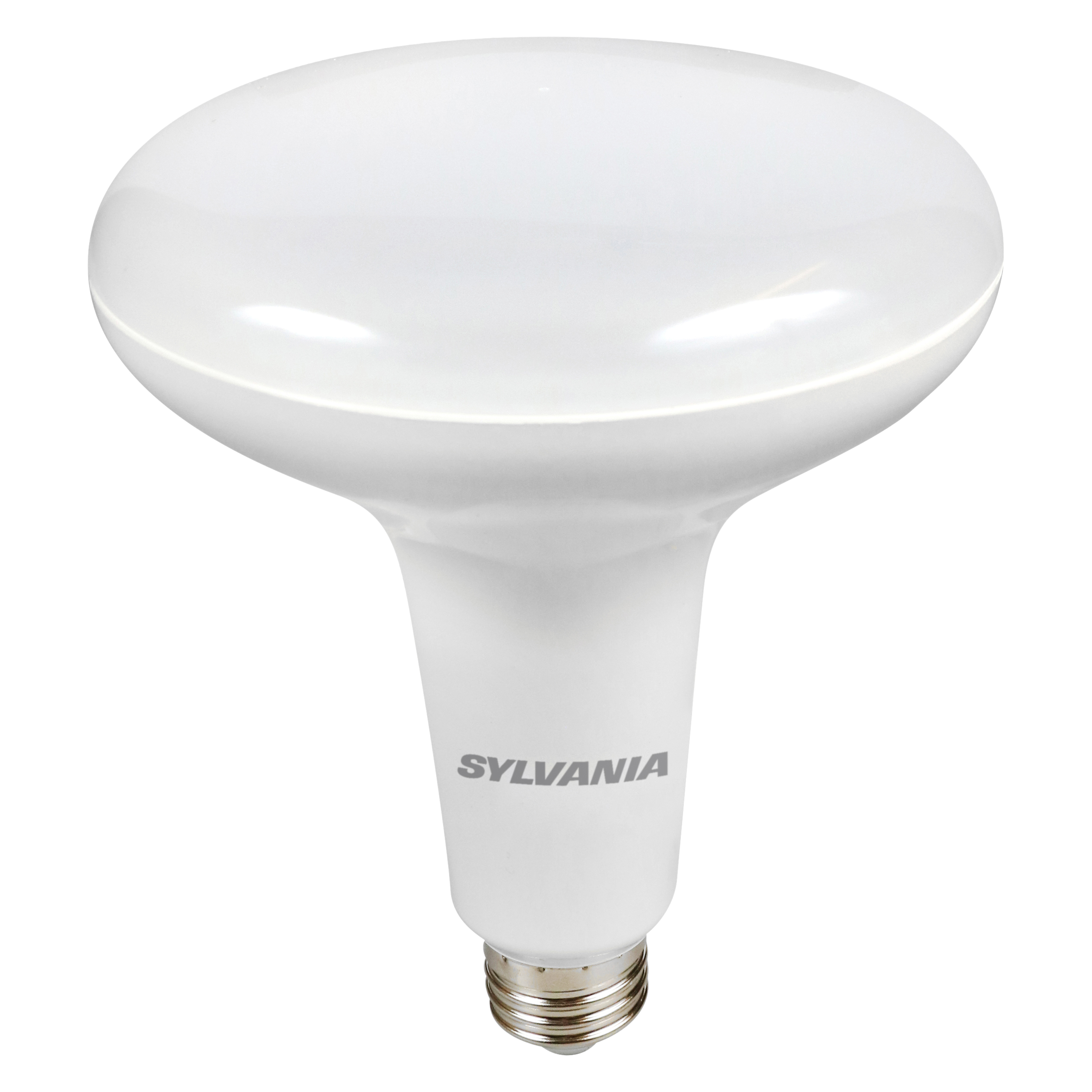

Product image: white background, upright
LED BR40 Daylight Flood Light
JPG (1.6 MB)

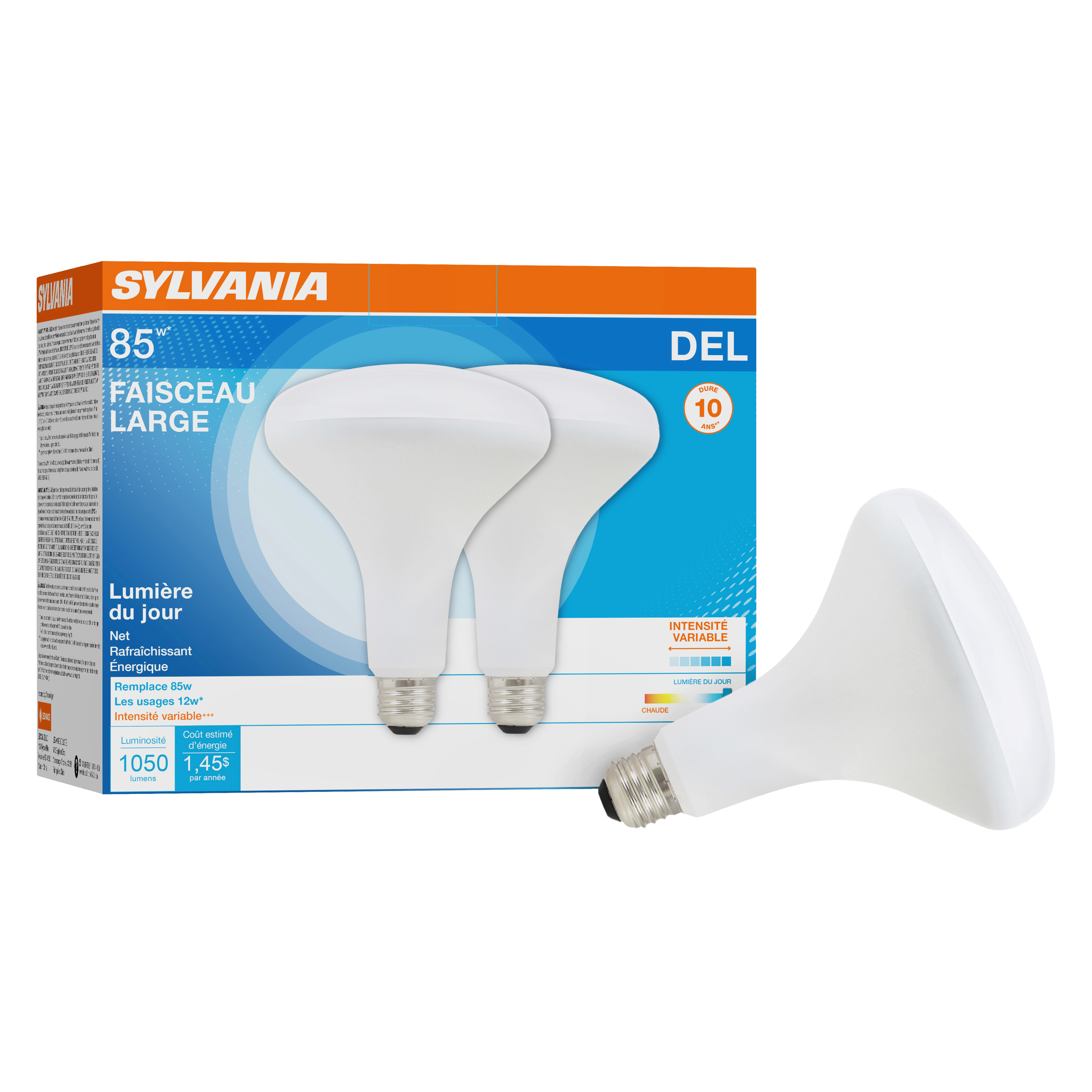

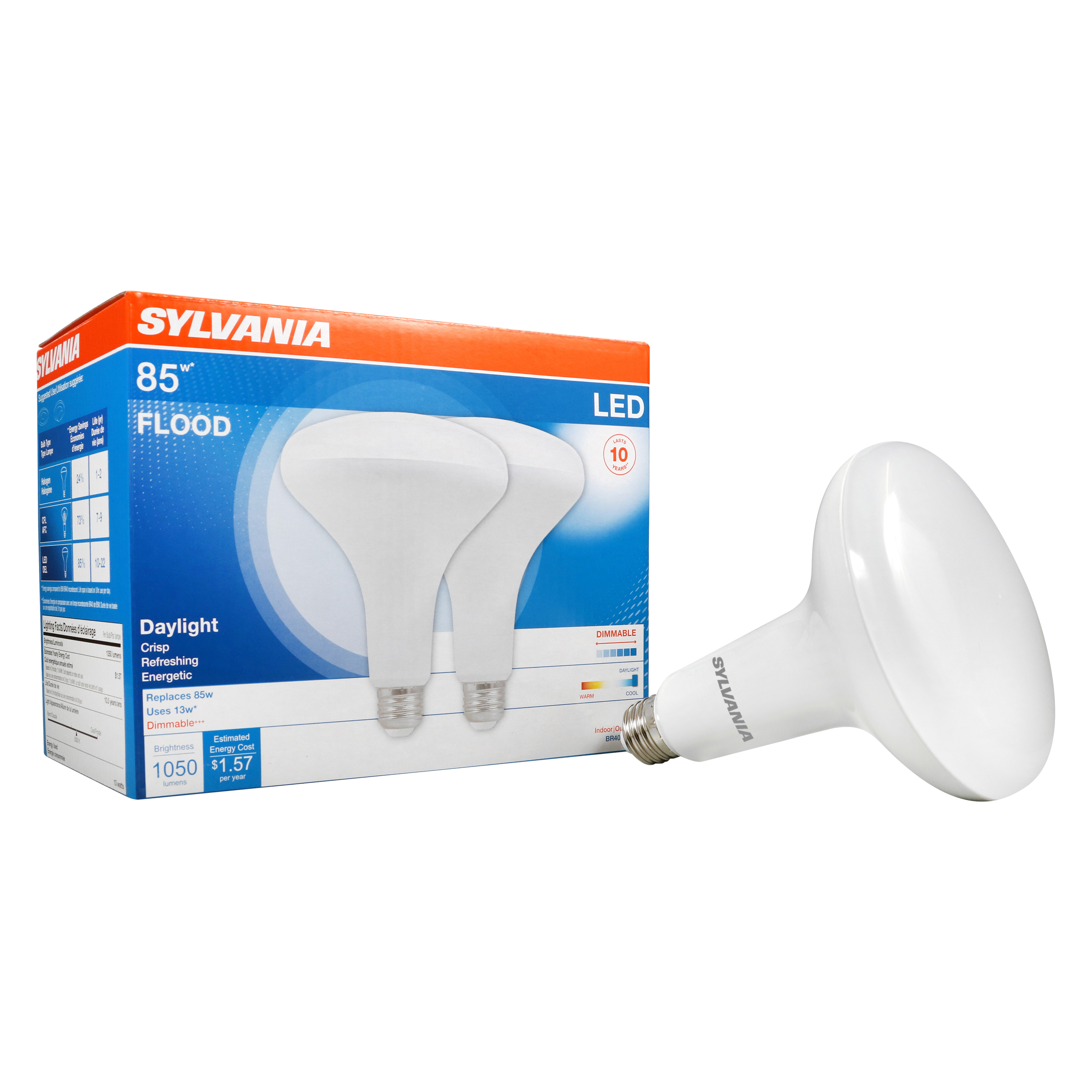

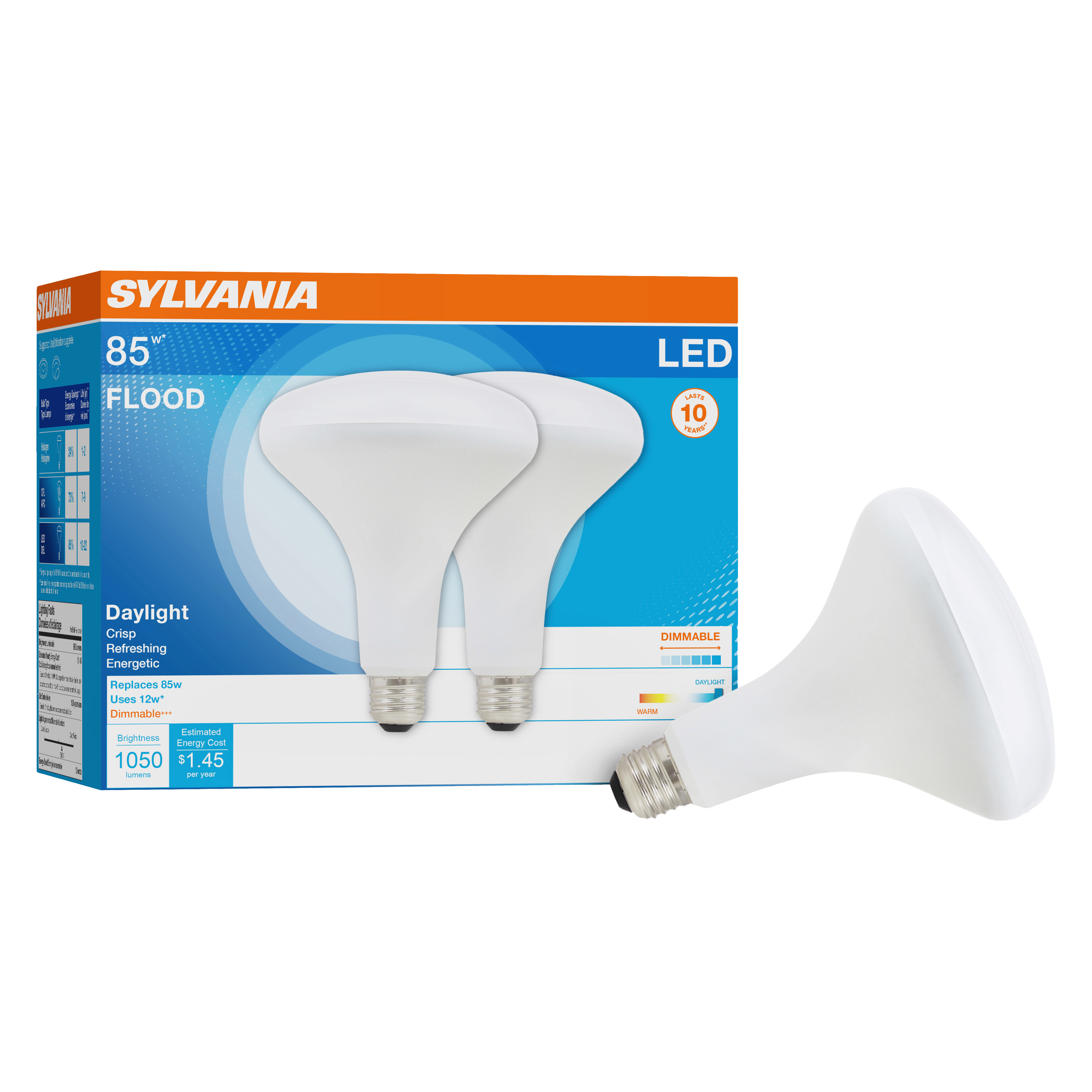

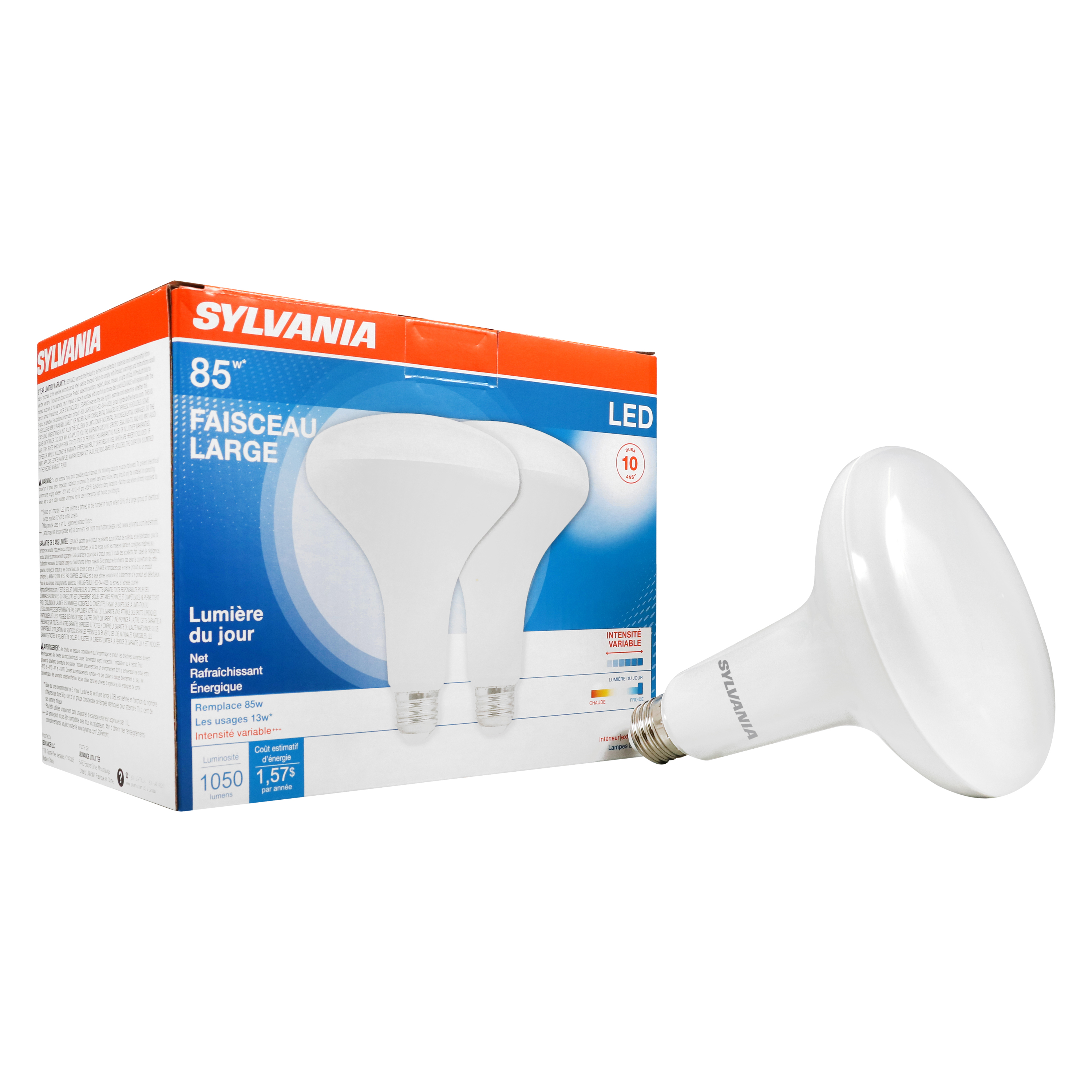

Combo Shot = Product Beauty Shot + Packaging Image
LED BR40, 12W, Dimmable, 80CRI, 1050 Lumen, 5000K
JPG (1.79 MB)
Combo Shot = Product Beauty Shot + Packaging Image
LED BR40, 12W, Dimmable, 80CRI, 1050 Lumen, 5000K
JPG (1.88 MB)

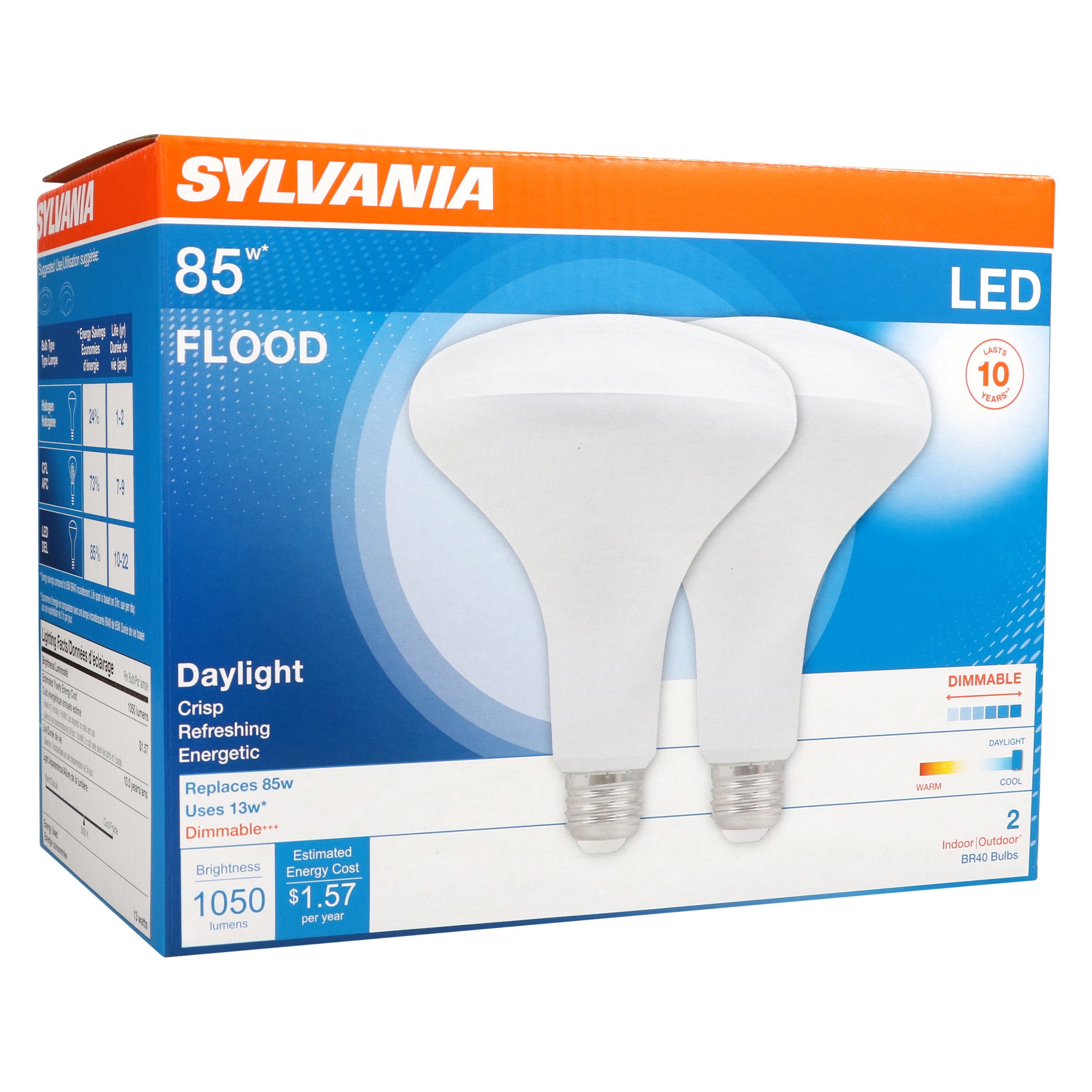

Packaging image, beauty shot
LED BR40 Daylight Flood Light
JPG (2.02 MB)
Packaging image, beauty shot
LED BR40 Daylight Flood Light
JPG (1.96 MB)

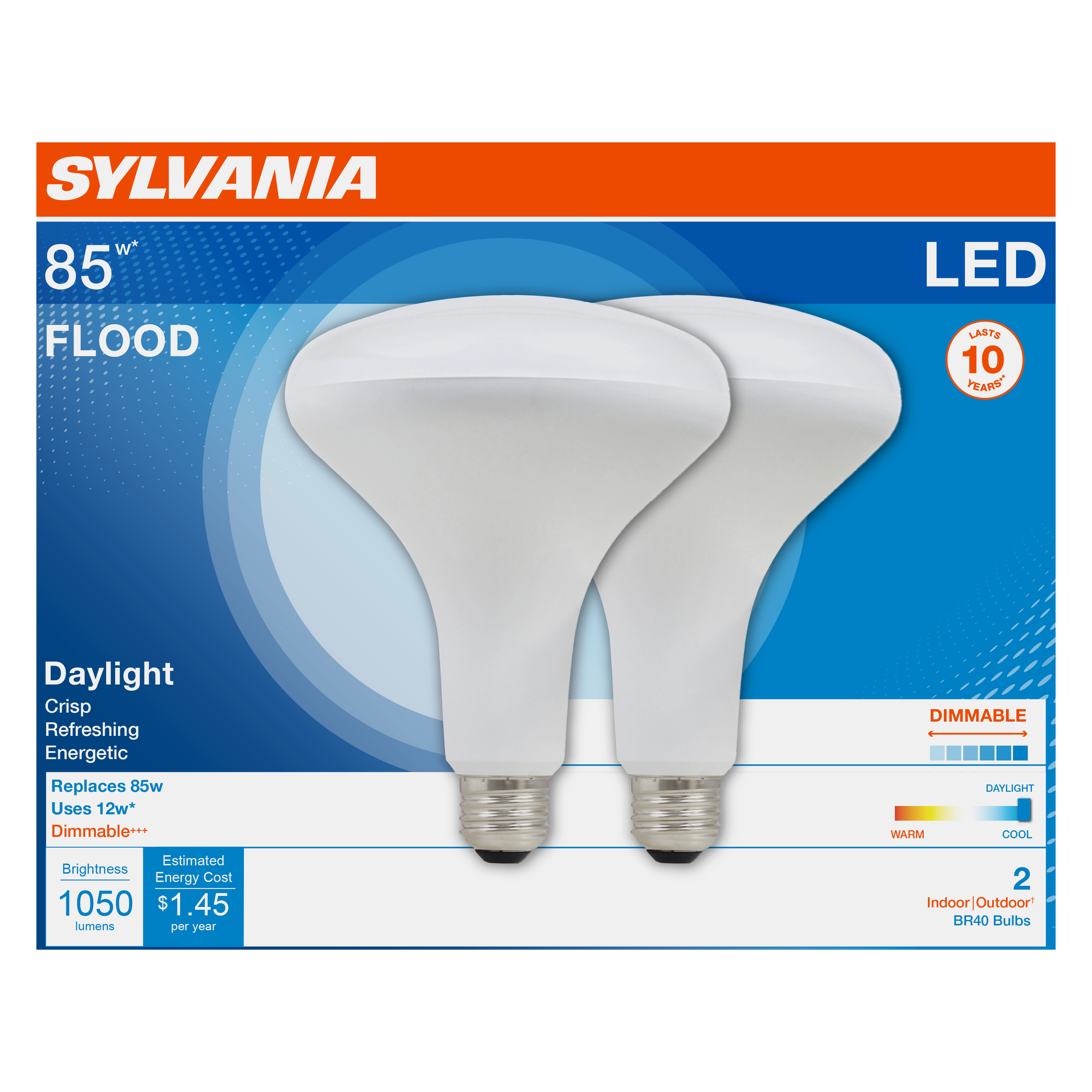

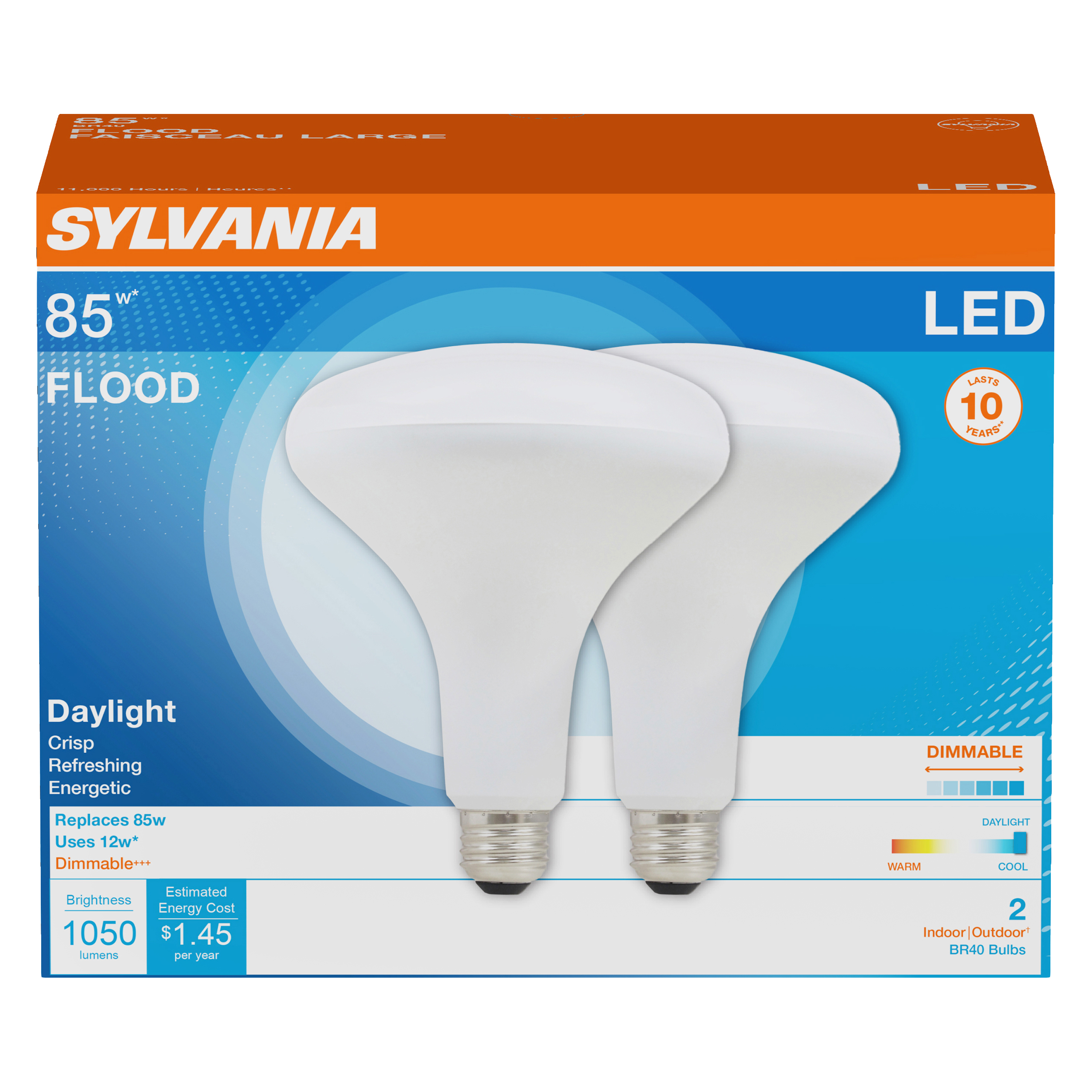

Packaging image, frontal
LED BR40, 12W, Dimmable, 80CRI, 1050 Lumen, 5000K
JPG (2.33 MB)
Packaging image, frontal
LED BR40, 12W, Dimmable, 80CRI, 1050 Lumen, 5000K
JPG (2.25 MB)

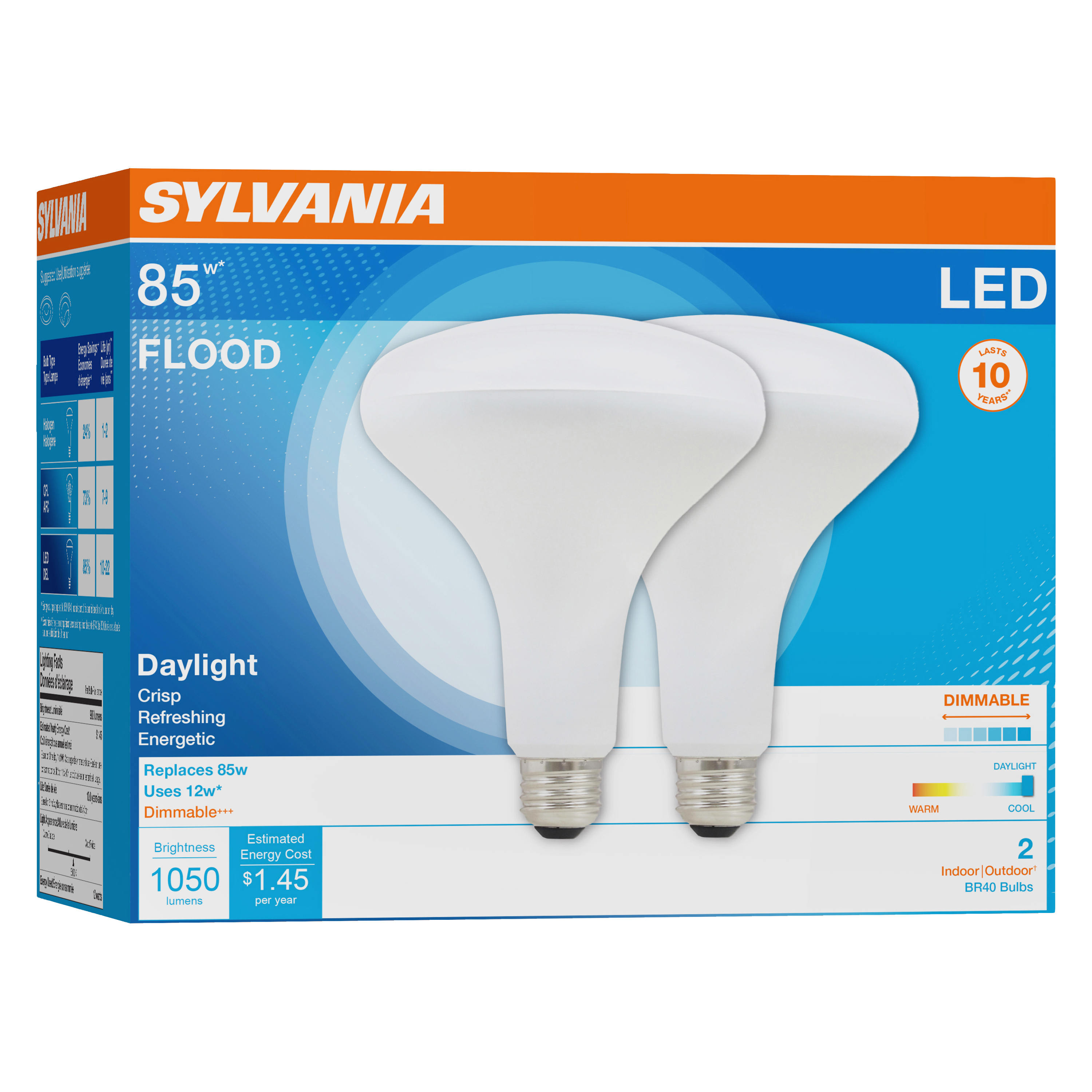

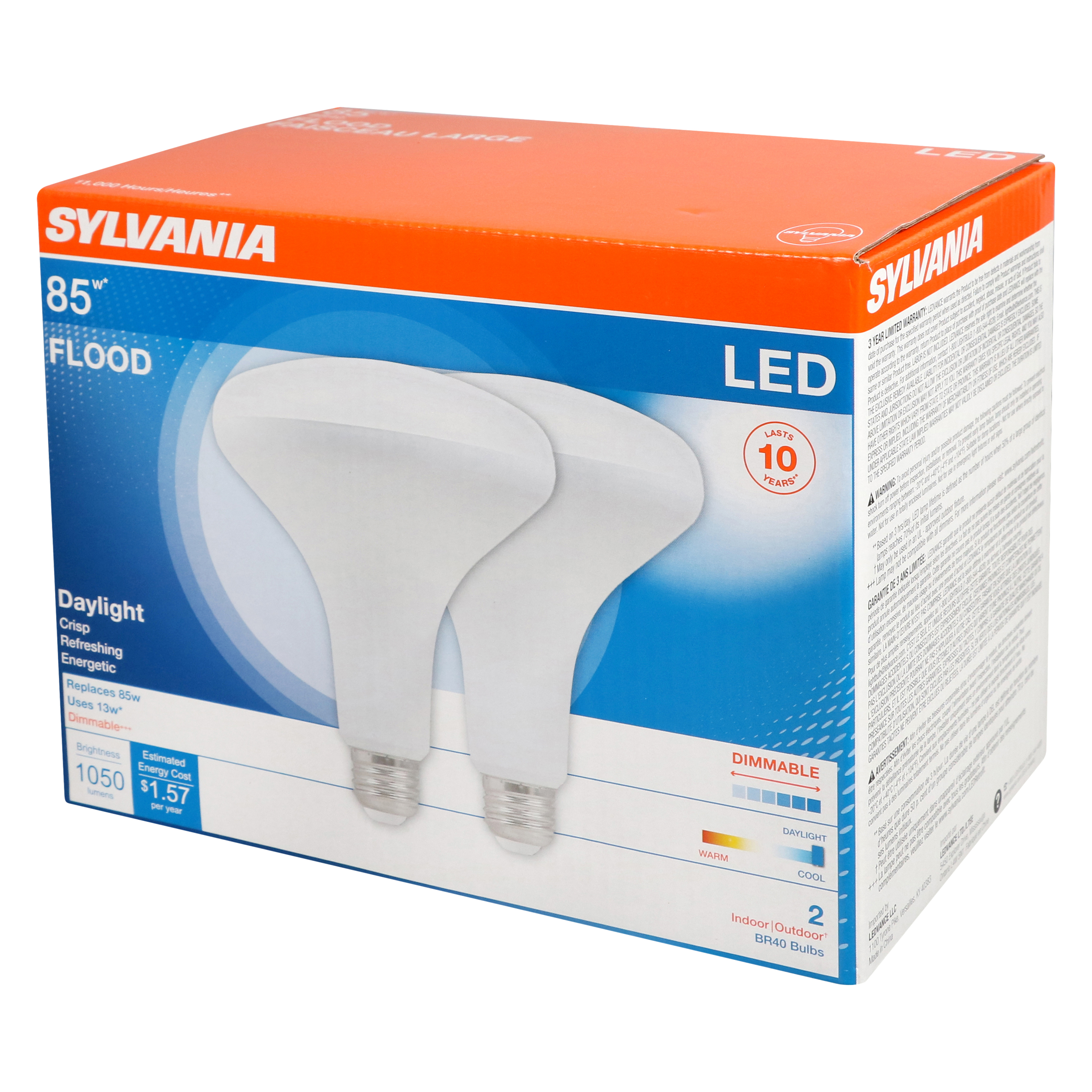

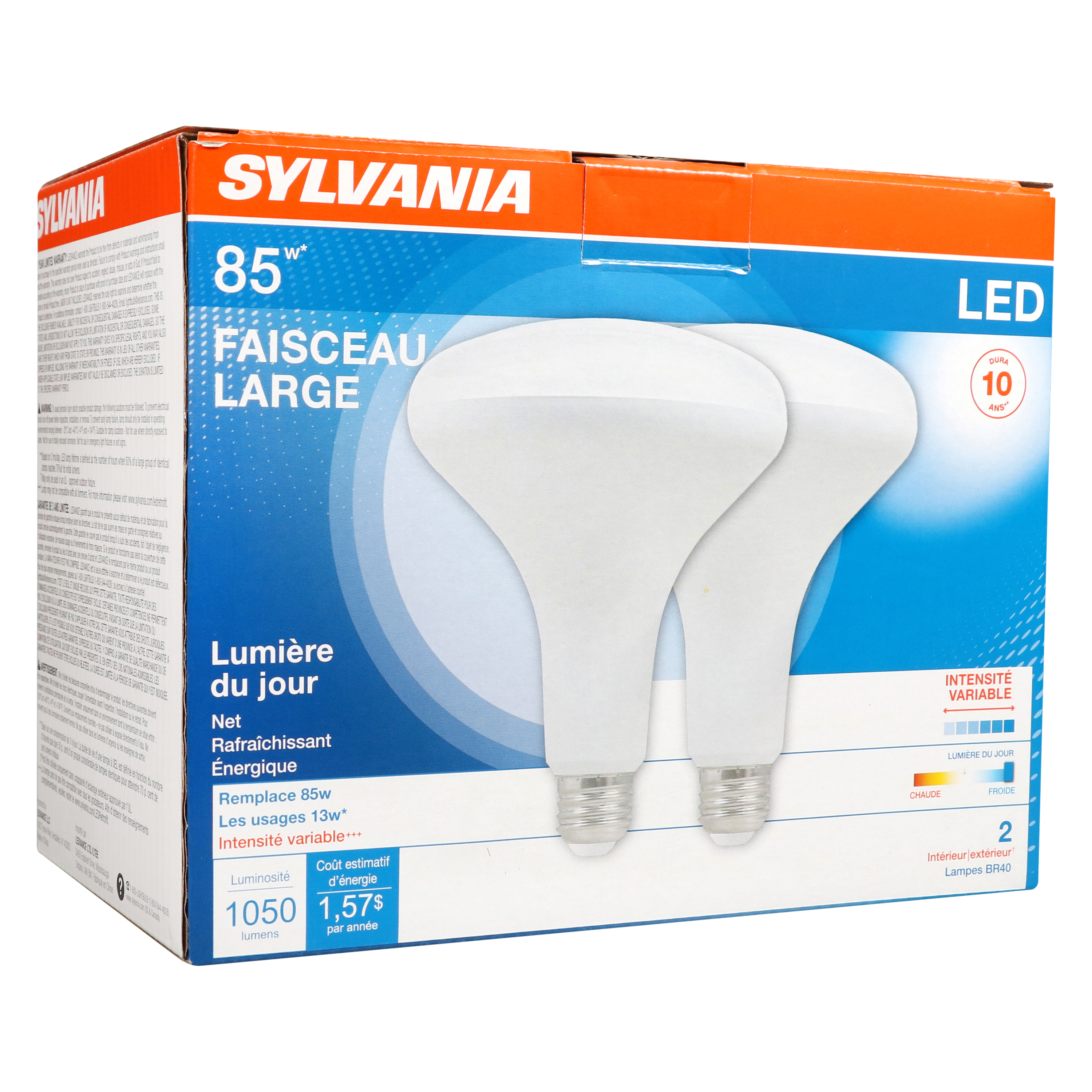

Packaging image, spacial
