SYLVANIA Contactor Series Reflectors
Contractor Series Reflectors R20 5W DIM 10YR 3000K 2PK
NAED: 40339
Our warranty conditions
PRODUCT DETAILS
Areas of application
- Downlights, pendant fixtures, table lamps, wall sconces
- Healthcare, hospitality, residential, retail
Product features
- 11,000 hours lifetime (L70)
- CRI of 80 ensures good color definition
- No warm-up time, instant-on with full light output and stable color
- Dimmable down to 10 %
Safety advice
- -4°F to +104°F (-20°C to +40°C)
- Not for use with emergency light fixtures or exit lights.
- Not for use in totally enclosed fixtures.
Electrical data
| Nominal wattage | 5 W |
| Construction wattage | 5.00 W |
| Nominal voltage | 120 V |
| Claimed equiv. conventional lamp power | 50 W |
Photometrical data
| Luminous flux | 325 lm |
| Luminous efficacy | 65 lm/W |
| Color temperature | 3000 K |
| Color rendering index Ra | 80 |
| Light color | 830 |
Dimensions & Weight
| Overall length | 95.00 mm |
| Diameter | 64.01 mm |
| Product weight | 53.00 g |
Additional product data
| Base (standard designation) | E26 |
| Mercury content | 0.0 mg |
Capabilities
| Dimmable | Yes |
Country-specific categorizations
| Order reference | 5W/830 120V 6X2 |
Energy labelling regulation data acc EU 2019/2015
| Light source cap-type (or other electric interface) | E26 |
| Length | 95.00 mm |
| Height | 64.01 mm |
| Width | 64.01 mm |
Product information bulletin
Contractor Series LED Reflector Lamps
Contractor Series LED Reflector Lamps

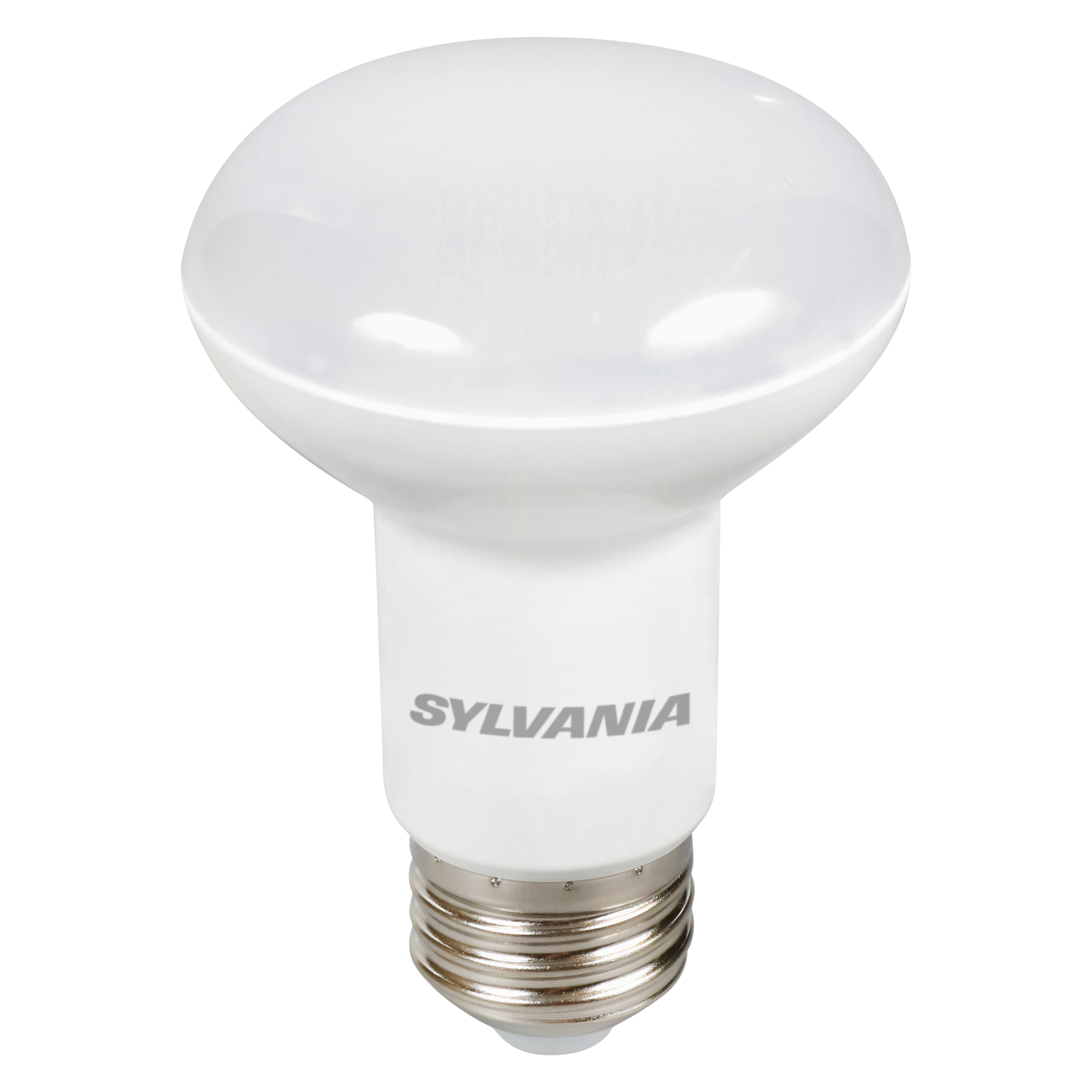

Product image: white background, upright
LED R20 Flood Light
LED R20 Flood Light

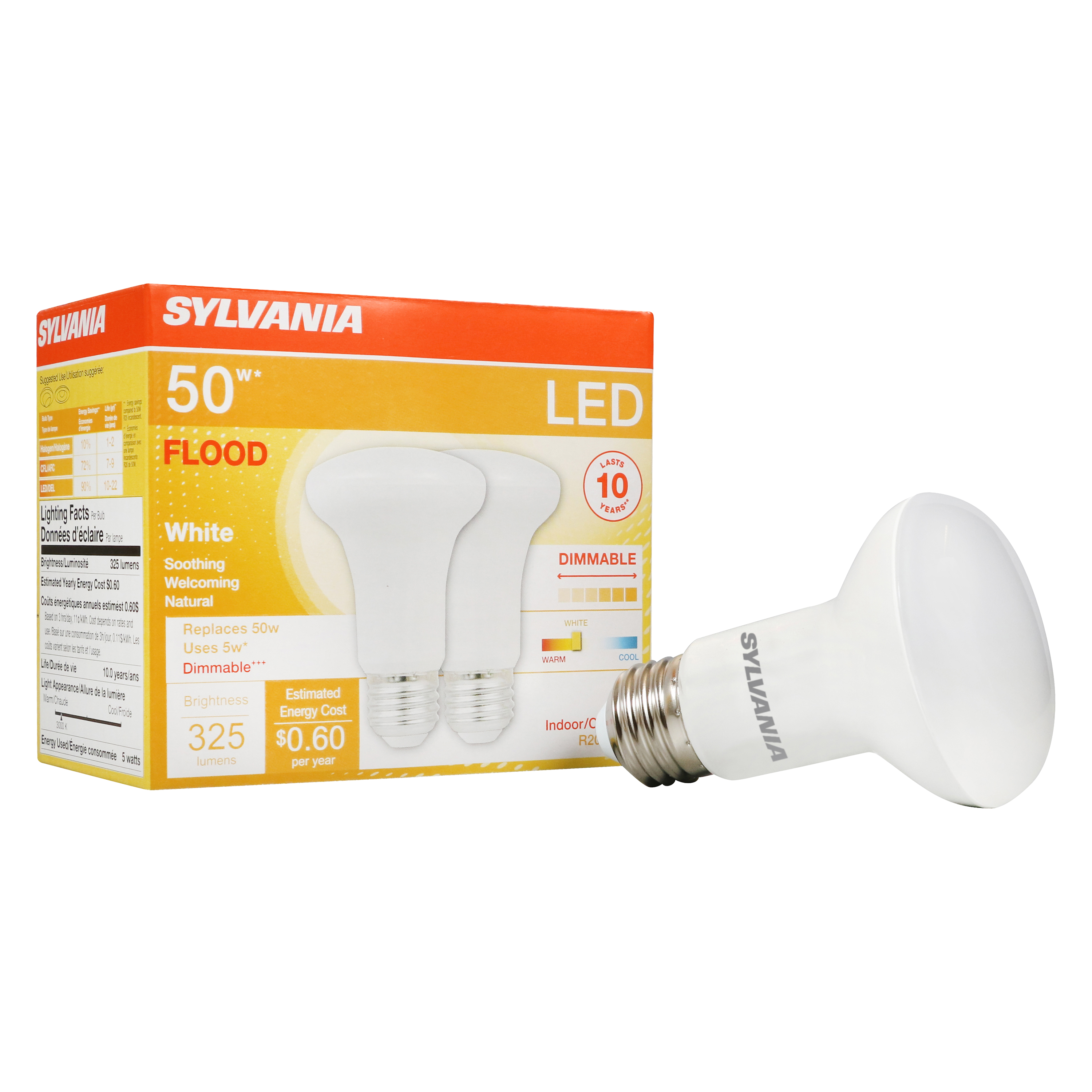

Combo Shot = Product Beauty Shot + Packaging Image
LED R20, 5W, Dimmable, 80CRI, 325 Lumen, 3000K
LED R20, 5W, Dimmable, 80CRI, 325 Lumen, 3000K

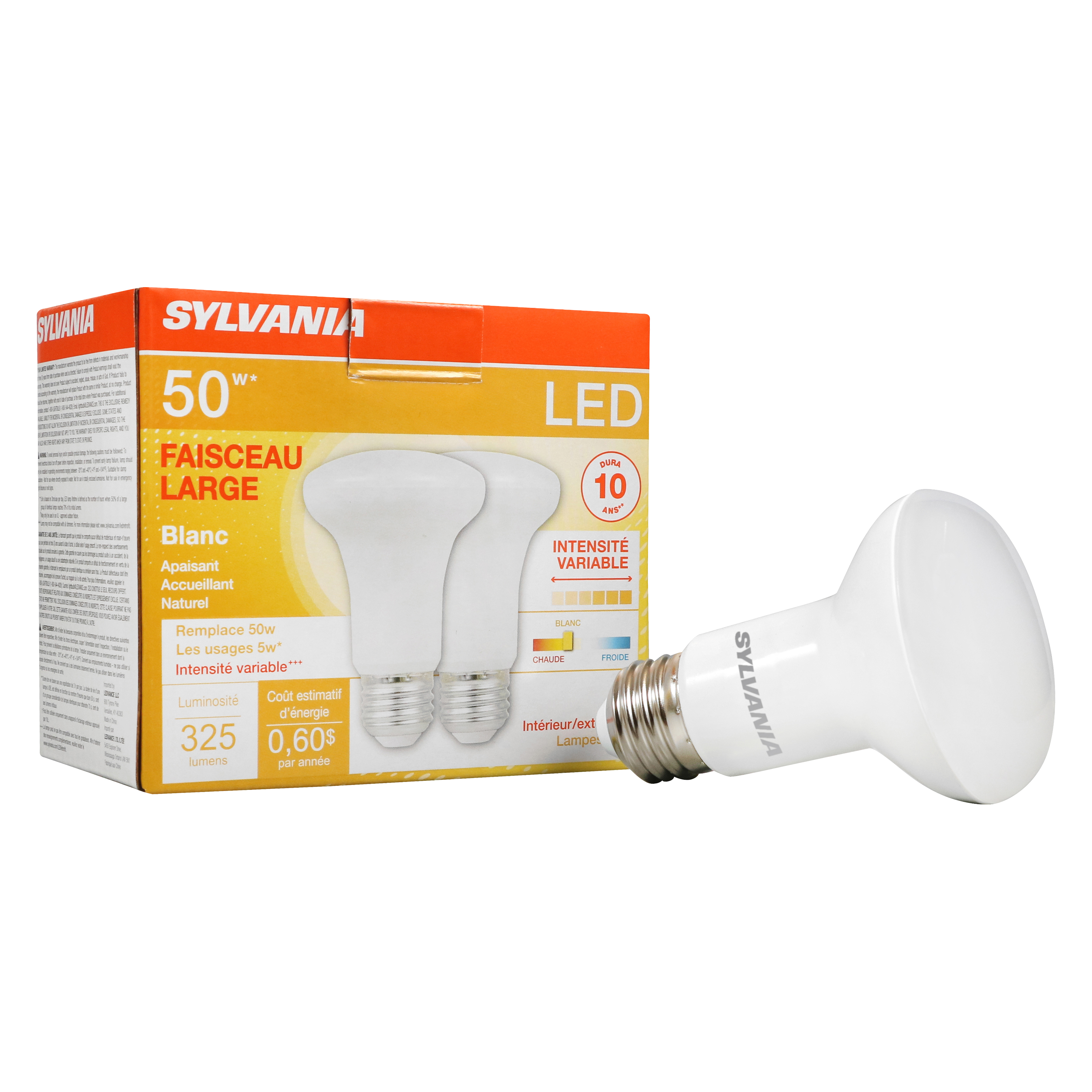

Combo Shot = Product Beauty Shot + Packaging Image
LED R20, 5W, Dimmable, 80CRI, 325 Lumen, 3000K
LED R20, 5W, Dimmable, 80CRI, 325 Lumen, 3000K
Packaging image, beauty shot
LED R20 Flood Light
LED R20 Flood Light
Packaging image, beauty shot
LED R20 Flood Light
LED R20 Flood Light

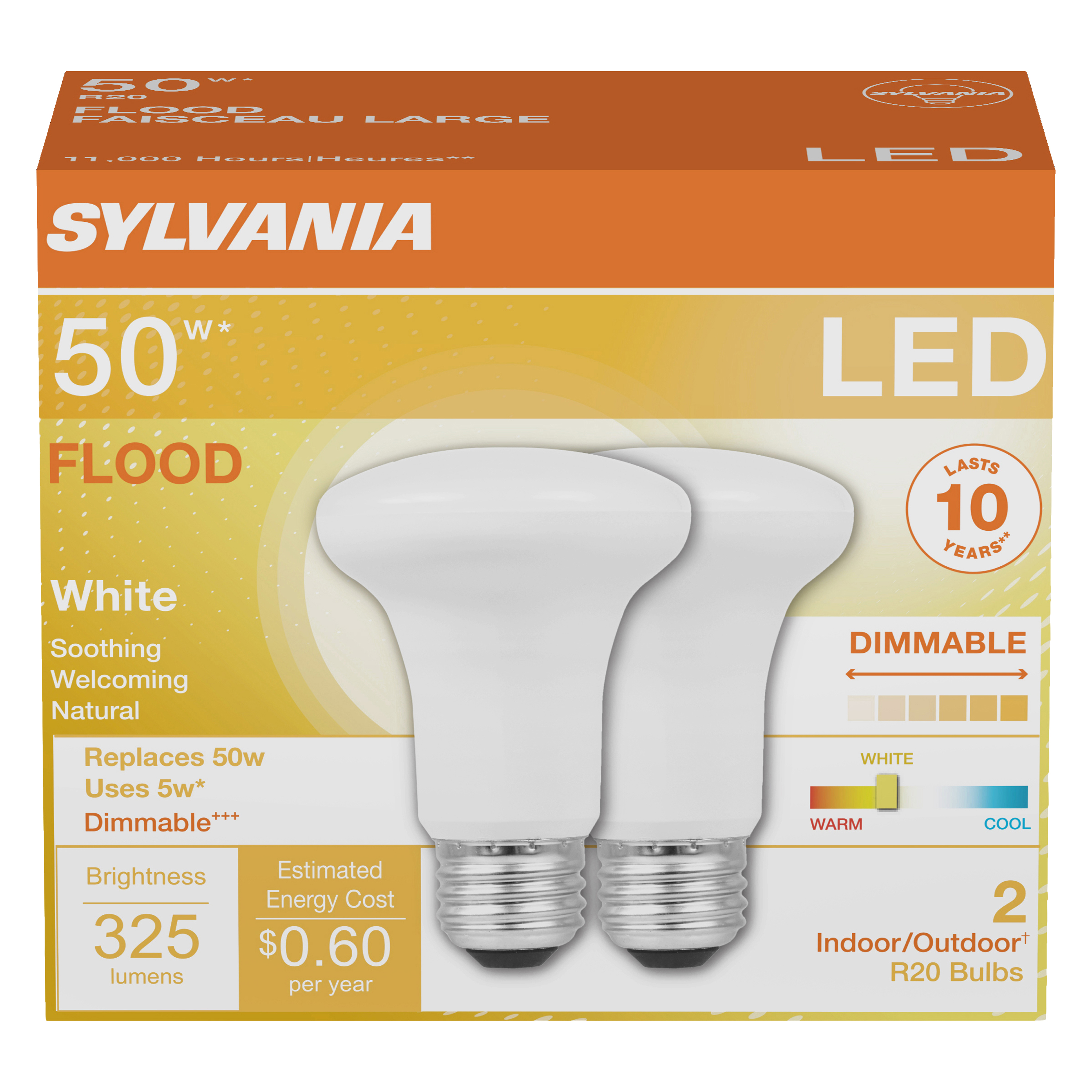

Packaging image, frontal
LED R20, 5W, Dimmable, 80CRI, 325 Lumen, 3000K
LED R20, 5W, Dimmable, 80CRI, 325 Lumen, 3000K
Packaging image, frontal
LED R20, 5W, Dimmable, 80CRI, 325 Lumen, 3000K
LED R20, 5W, Dimmable, 80CRI, 325 Lumen, 3000K

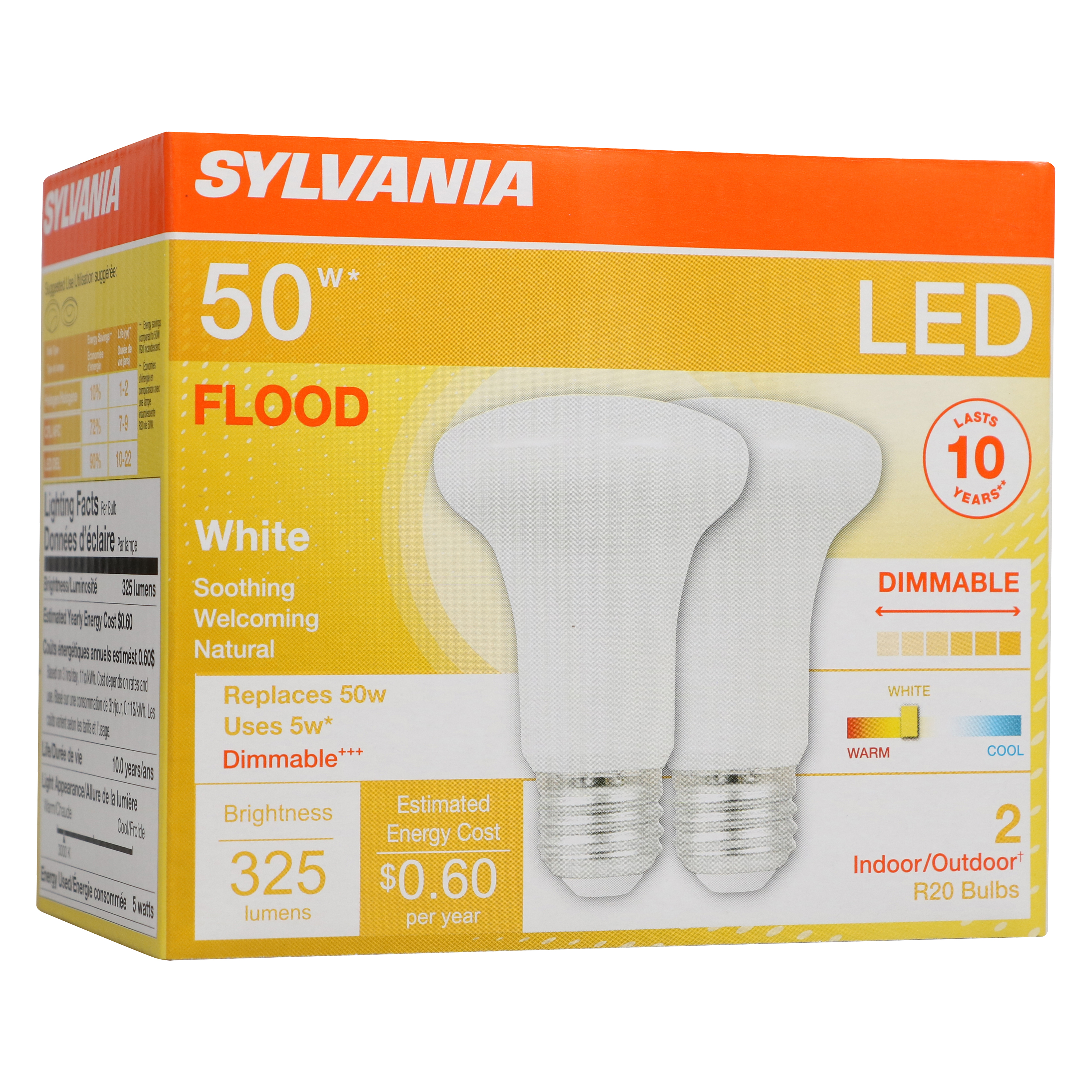

Packaging image, spacial
LED R20 Flood Light
LED R20 Flood Light

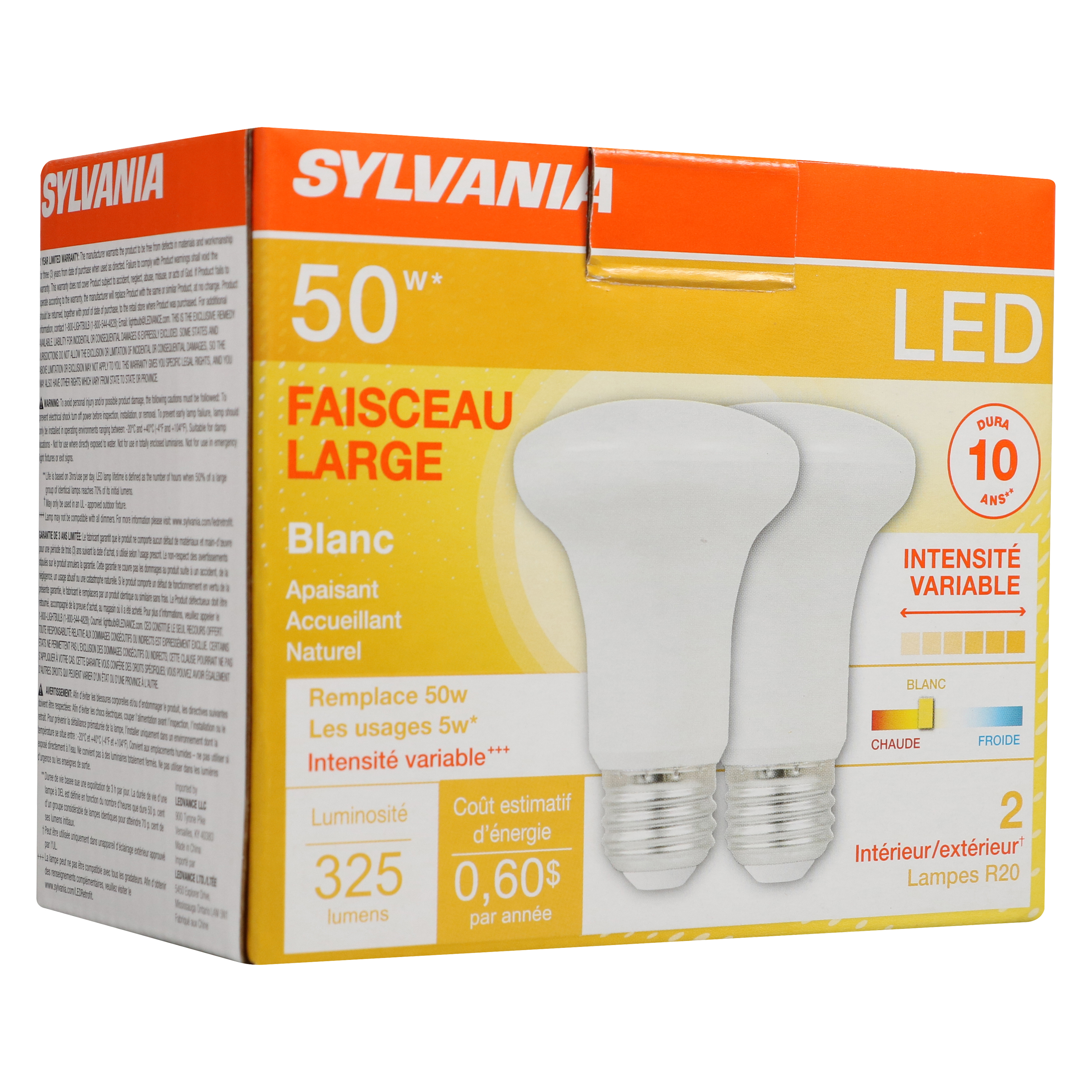

Packaging image, spacial
LED R20 Flood Light
LED R20 Flood Light

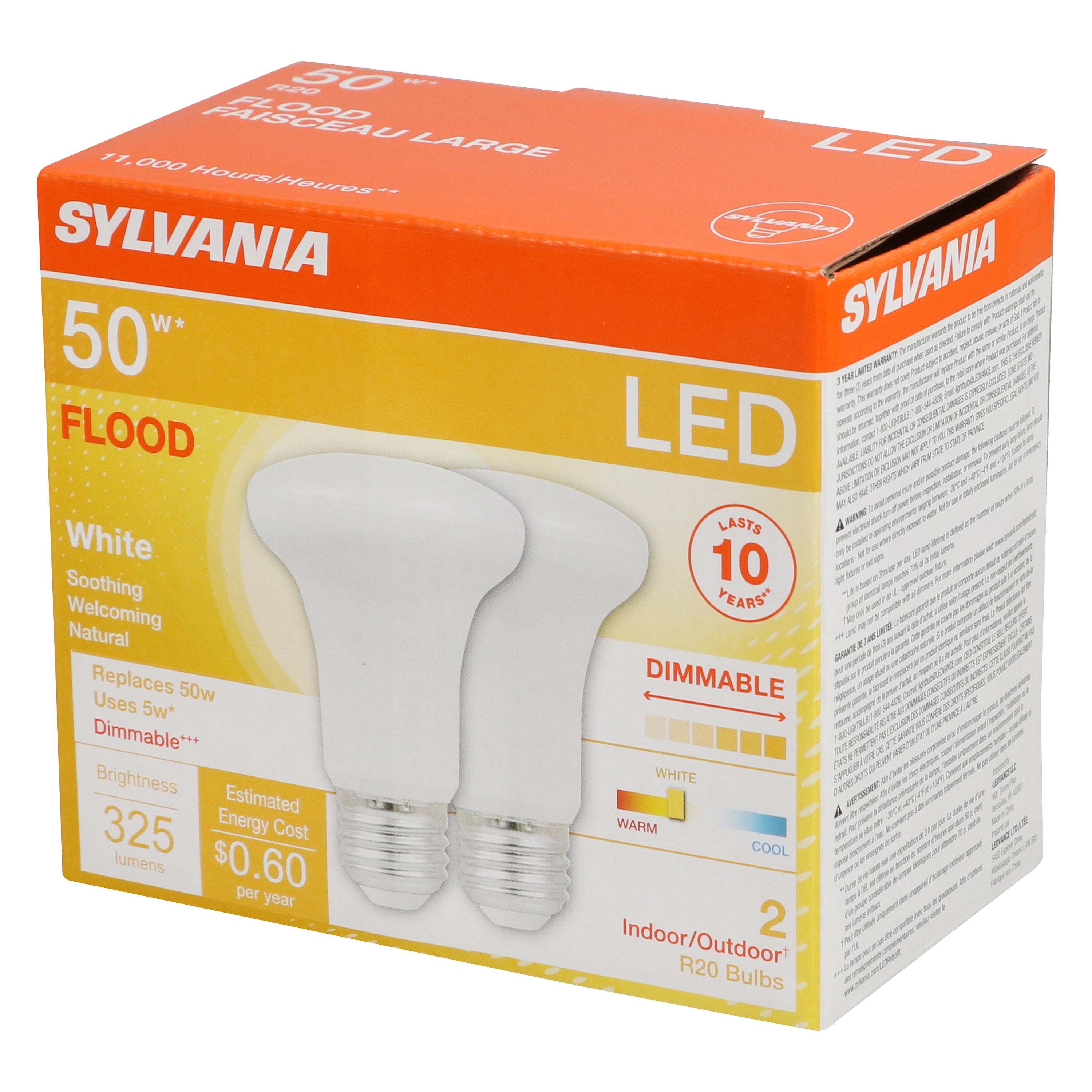

Packaging image, spacial
