SYLVANIA Contactor Series Reflectors

Contractor Series Reflectors BR30 9W DIM 10YR 4000K 2PK

NAED: 41103
Download data sheet
Contact sales
Our warranty conditions

PRODUCT DETAILS

Areas of application
  • Downlights, pendant fixtures, table lamps, wall sconces
  • Healthcare, hospitality, residential, retail
Product features
  • 11,000 hours lifetime (L70)
  • CRI of 80 ensures good color definition
  • No warm-up time, instant-on with full light output and stable color
  • Dimmable down to 10 %
Safety advice
  • -4°F to +104°F (-20°C to +40°C)
  • Not for use with emergency light fixtures or exit lights.
  • Not for use in totally enclosed fixtures.
Electrical data
Nominal wattage 9 W
Construction wattage 9.00 W
Nominal voltage 120 V
Claimed equiv. conventional lamp power 65 W
Photometrical data
Luminous flux 650 lm
Luminous efficacy 72 lm/W
Color temperature 4000 K
Color rendering index Ra 80
Light color 840
Dimensions & Weight
Overall length 127.00 mm
Diameter 95.00 mm
Product weight 80.00 g
Additional product data
Base (standard designation) E26
Capabilities
Dimmable Yes
Country-specific categorizations
Order reference 9W/840 120V 6X2
Energy labelling regulation data acc EU 2019/2015
Light source cap-type (or other electric interface) E26
Length 127.00 mm
Height 95.00 mm
Width 95.00 mm
Product information bulletin
Contractor Series LED Reflector Lamps
PDF (311.5 KB)

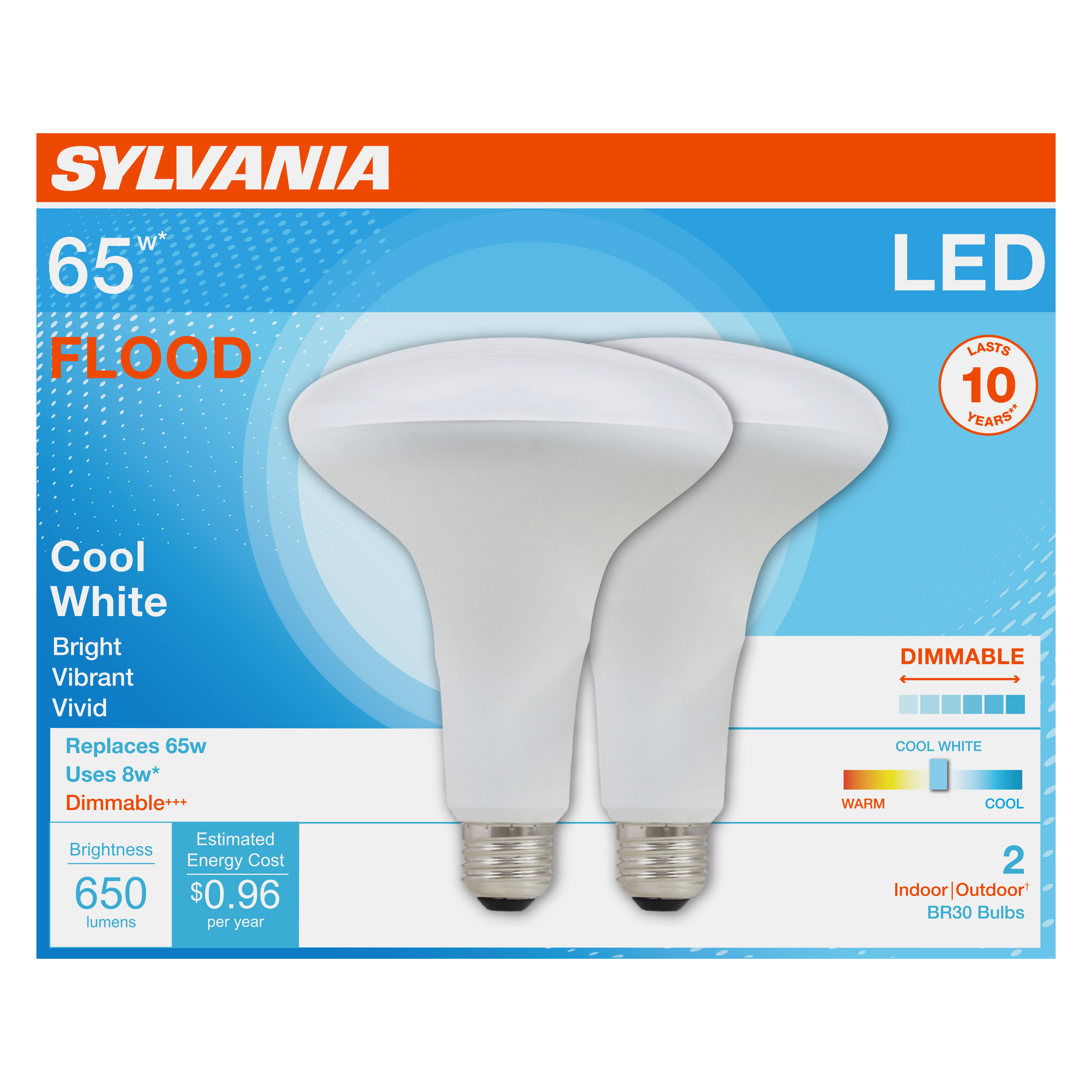

Combo Shot = Product Beauty Shot + Packaging Image
LED BR30, 9W, Dimmable, 80CRI, 650 Lumen, 4000K
JPG (1.84 MB)

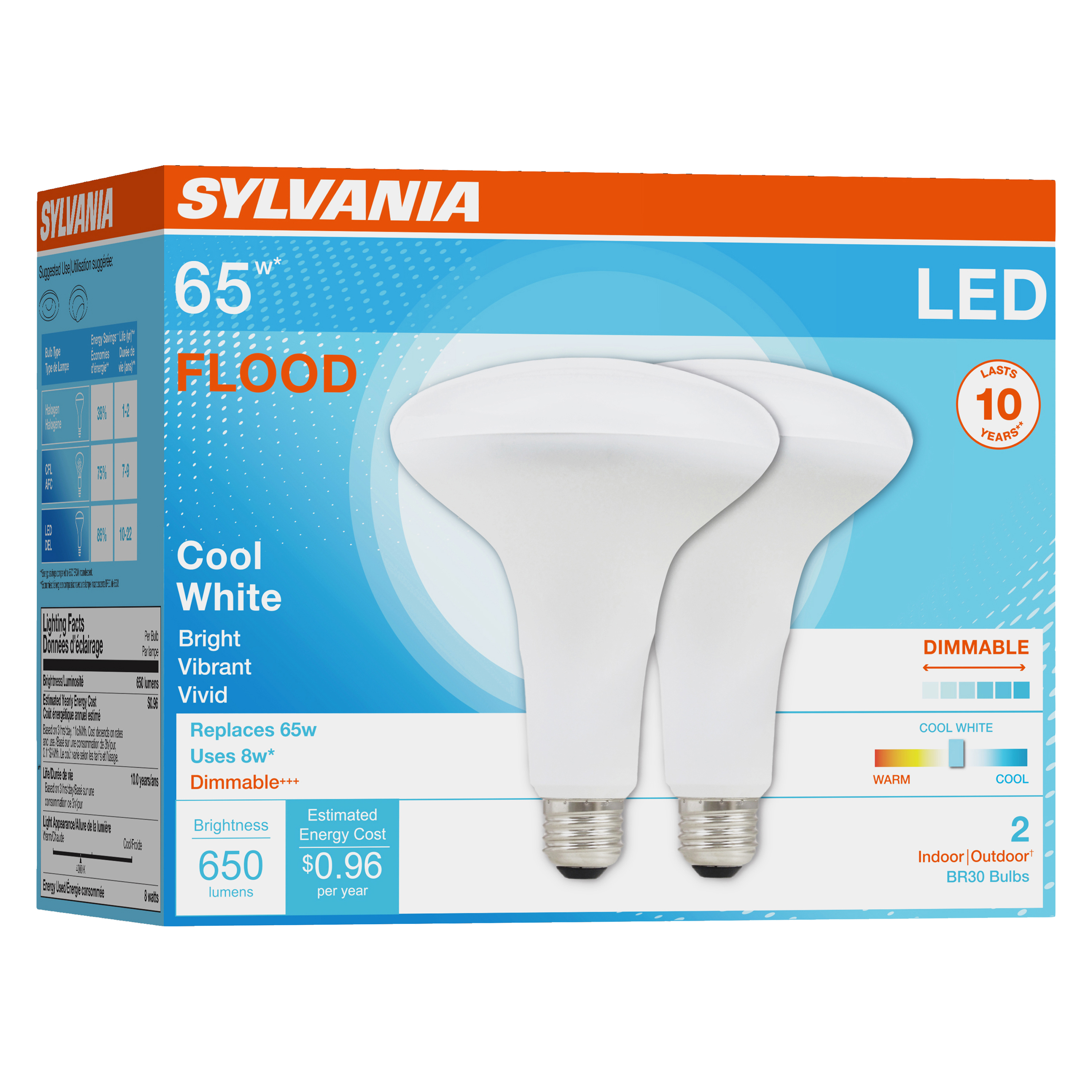

Combo Shot = Product Beauty Shot + Packaging Image
LED BR30, 9W, Dimmable, 80CRI, 650 Lumen, 4000K
JPG (1.88 MB)

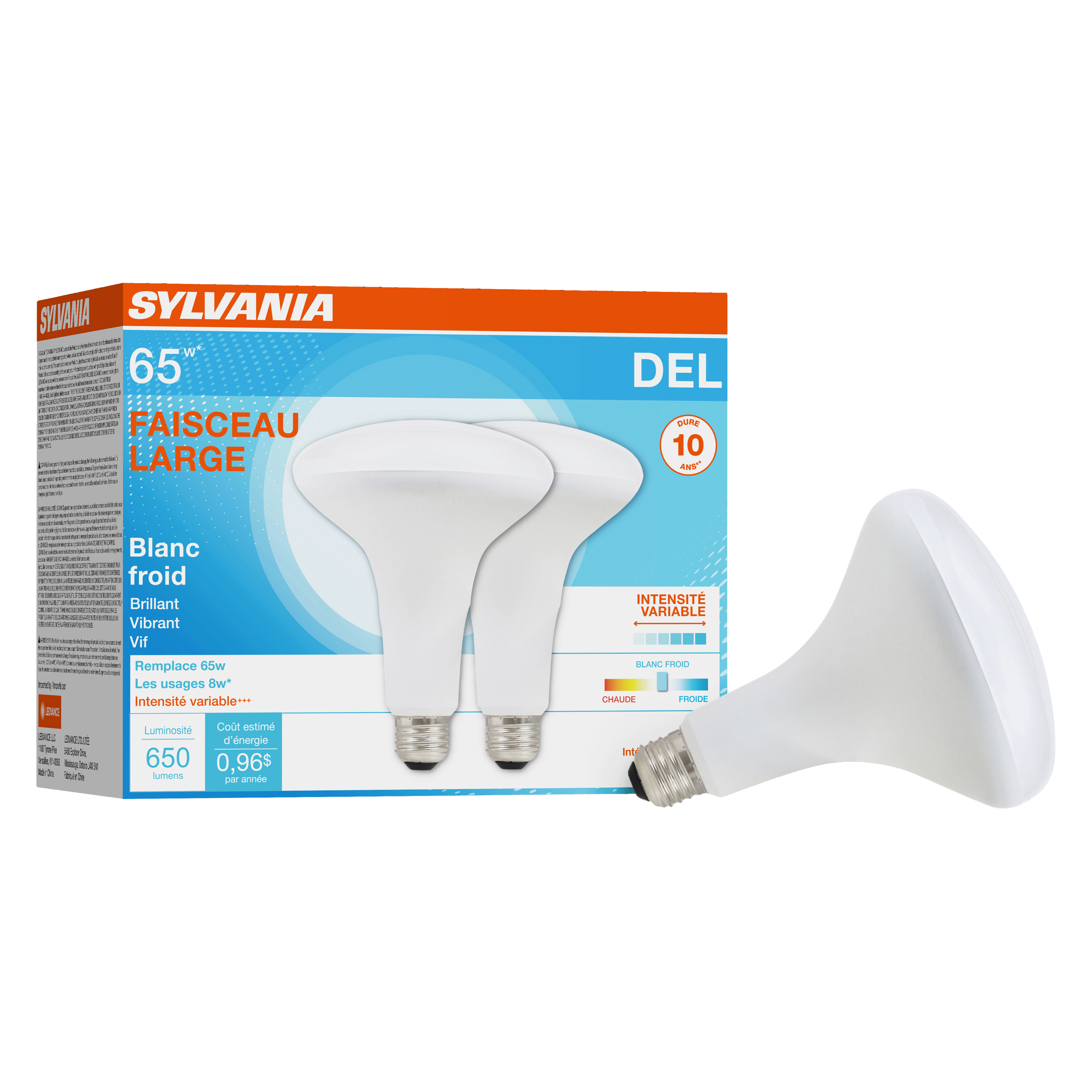

Packaging image, frontal
LED BR30, 9W, Dimmable, 80CRI, 650 Lumen, 4000K
JPG (2.44 MB)

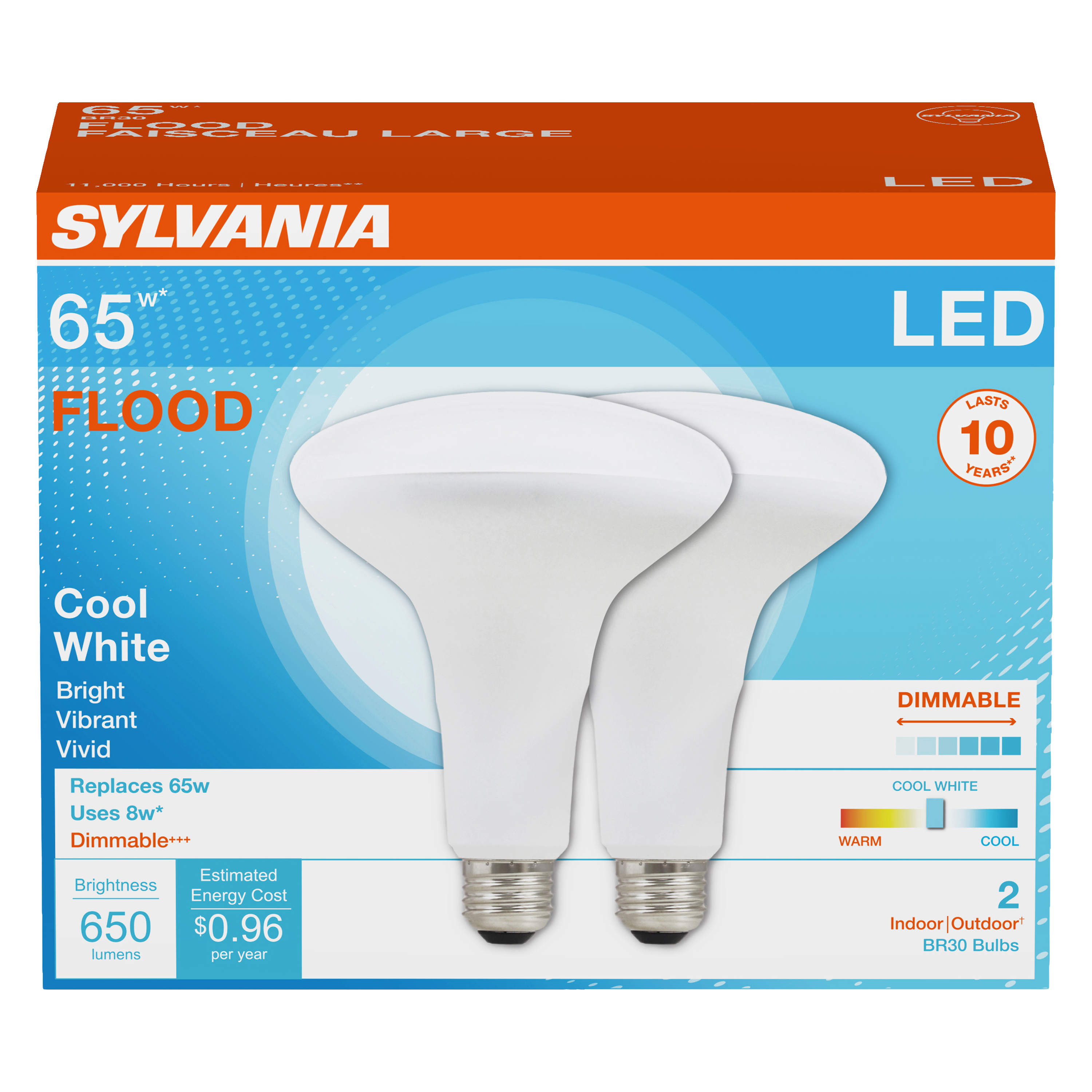

Packaging image, frontal
LED BR30, 9W, Dimmable, 80CRI, 650 Lumen, 4000K
JPG (2.33 MB)

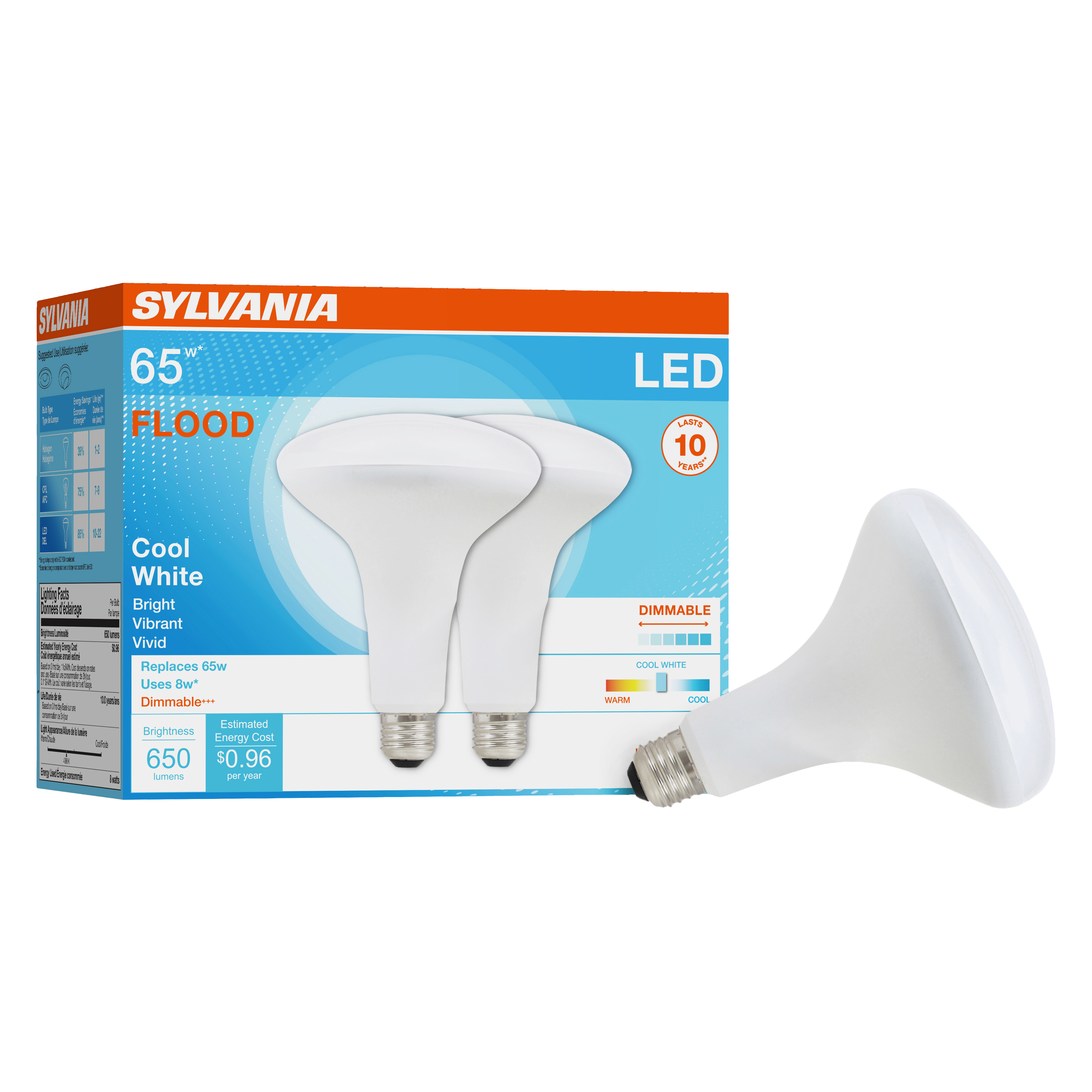

Packaging image, spacial
LED BR30, 9W, Dimmable, 80CRI, 650 Lumen, 4000K
JPG (2.34 MB)
