SYLVANIA Contactor Series Reflectors

Contractor Series Reflectors BR40 12W DIM 10YR 4000K 2PK

NAED: 41108
Download data sheet
Contact sales
Our warranty conditions

PRODUCT DETAILS

Areas of application
  • Downlights, pendant fixtures, table lamps, wall sconces
  • Healthcare, hospitality, residential, retail
Product features
  • 11,000 hours lifetime (L70)
  • CRI of 80 ensures good color definition
  • No warm-up time, instant-on with full light output and stable color
  • Dimmable down to 10 %
Safety advice
  • -4°F to +104°F (-20°C to +40°C)
  • Not for use with emergency light fixtures or exit lights.
  • Not for use in totally enclosed fixtures.
Electrical data
Nominal wattage 12 W
Construction wattage 12.00 W
Nominal voltage 120 V
Claimed equiv. conventional lamp power 85 W
Photometrical data
Luminous flux 900 lm
Luminous efficacy 75 lm/W
Color temperature 4000 K
Color rendering index Ra 80
Light color 840
Dimensions & Weight
Overall length 122.00 mm
Diameter 151.31 mm
Product weight 169.00 g
Additional product data
Base (standard designation) E26
Mercury content 0.0 mg
Capabilities
Dimmable Yes
Country-specific categorizations
Order reference 12W/840 120V 6X
Energy labelling regulation data acc EU 2019/2015
Light source cap-type (or other electric interface) E26
Length 122.00 mm
Height 151.31 mm
Width 151.31 mm
Product information bulletin
Contractor Series LED Reflector Lamps
PDF (311.5 KB)

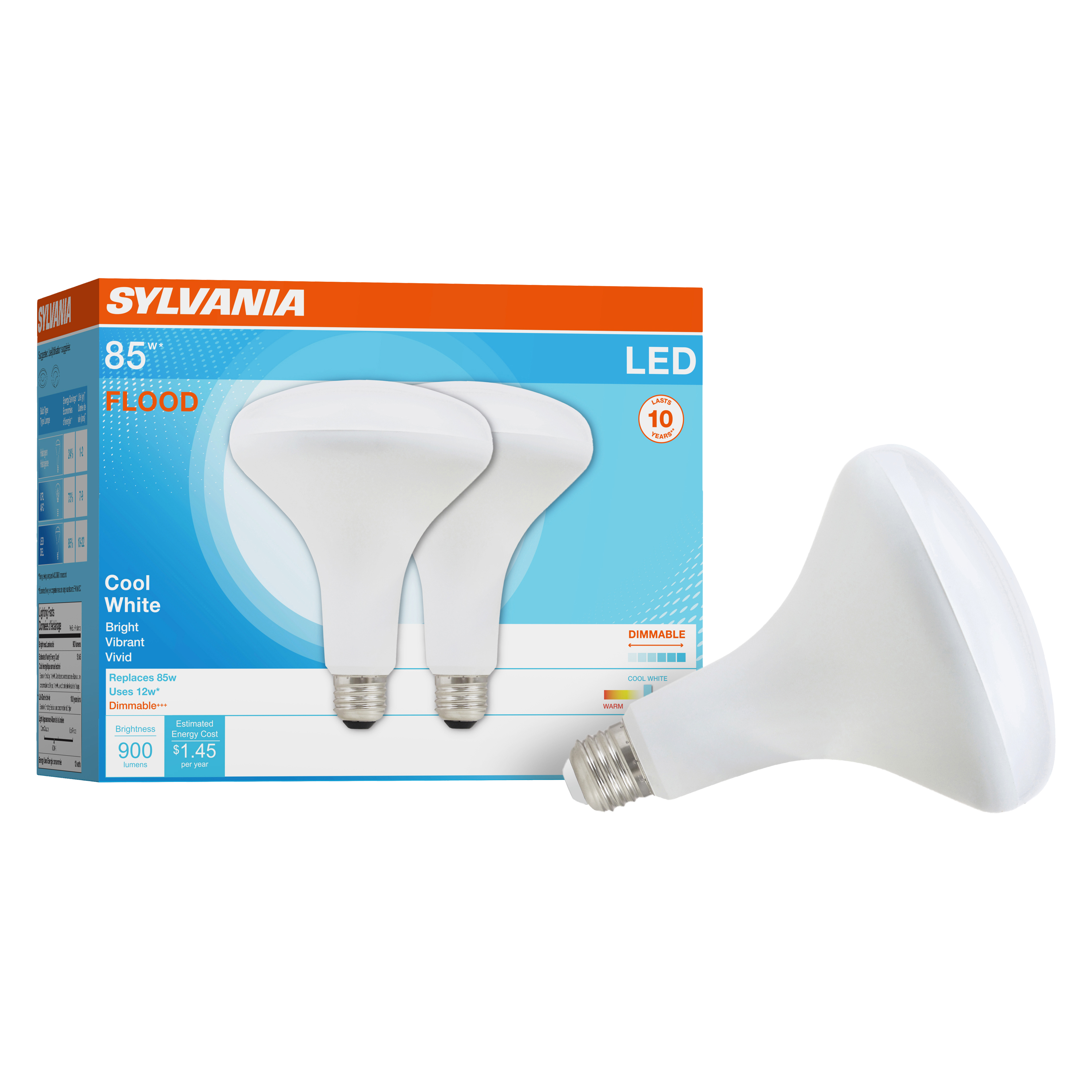

Combo Shot = Product Beauty Shot + Packaging Image
LED BR40, 13W, Dimmable, 80CRI, 900 Lumen, 4000K
JPG (1.78 MB)

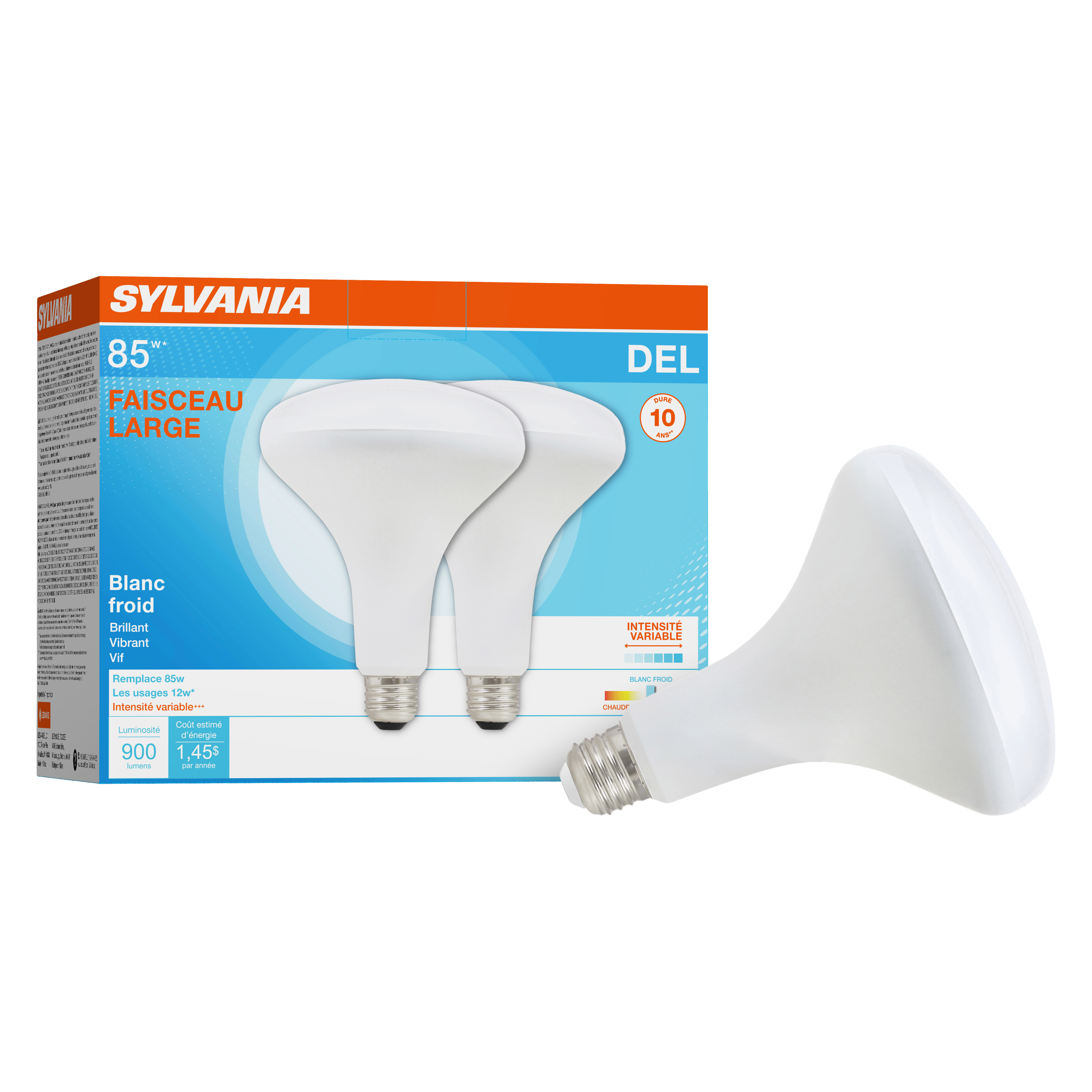

Combo Shot = Product Beauty Shot + Packaging Image
LED BR40, 13W, Dimmable, 80CRI, 900 Lumen, 4000K
JPG (1.85 MB)

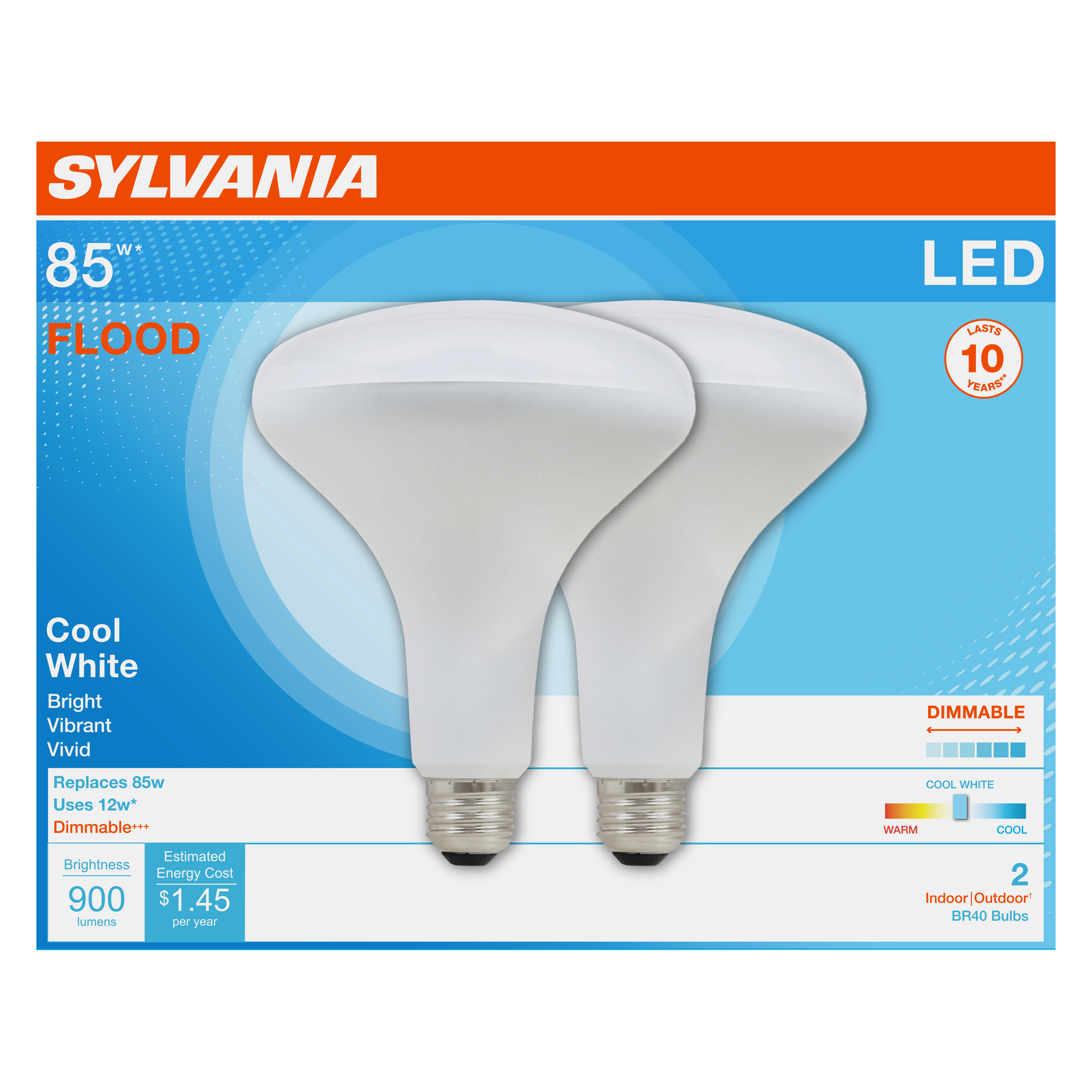

Packaging image, frontal
LED BR40, 13W, Dimmable, 80CRI, 900 Lumen, 4000K
JPG (2.31 MB)

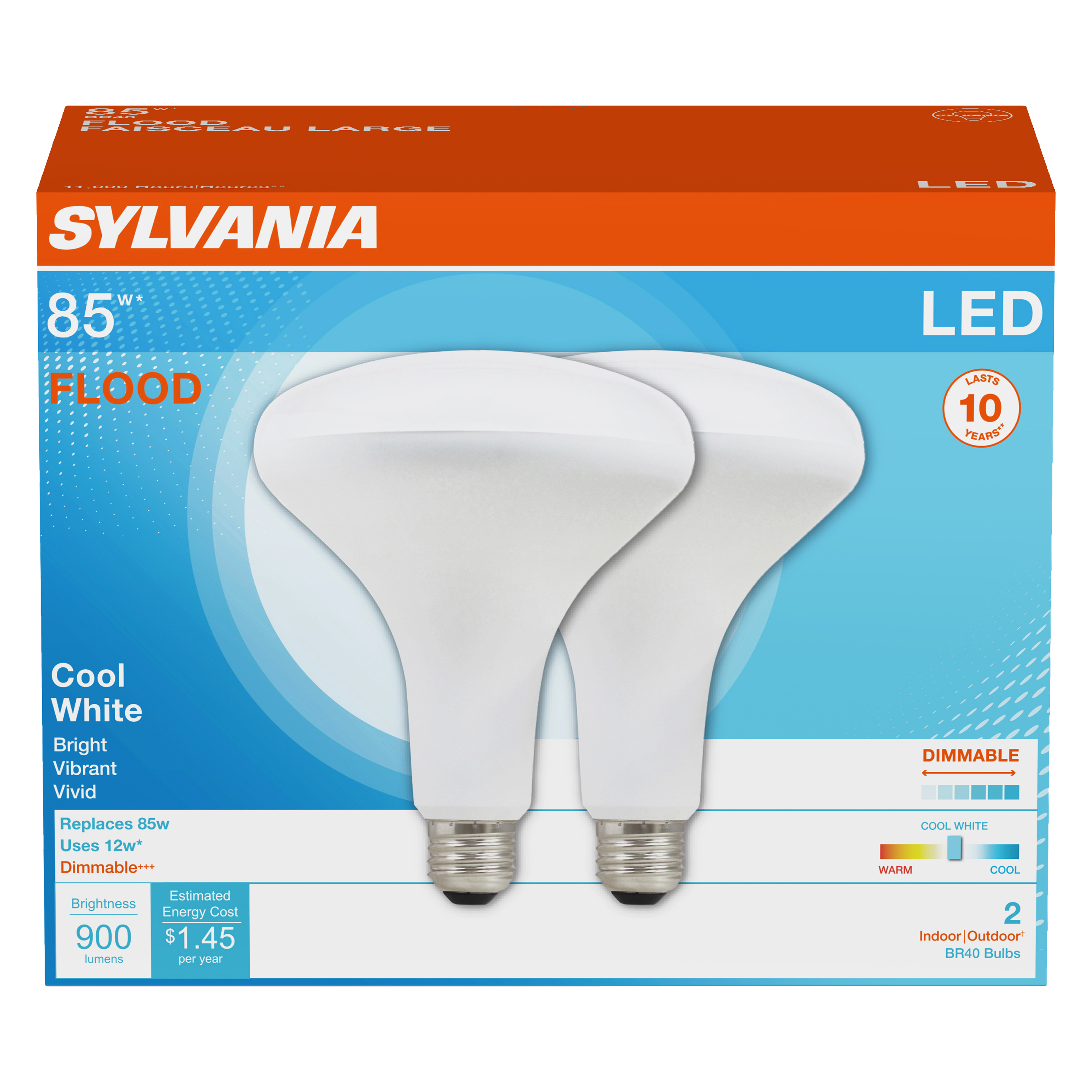

Packaging image, frontal
LED BR40, 13W, Dimmable, 80CRI, 900 Lumen, 4000K
JPG (2.22 MB)

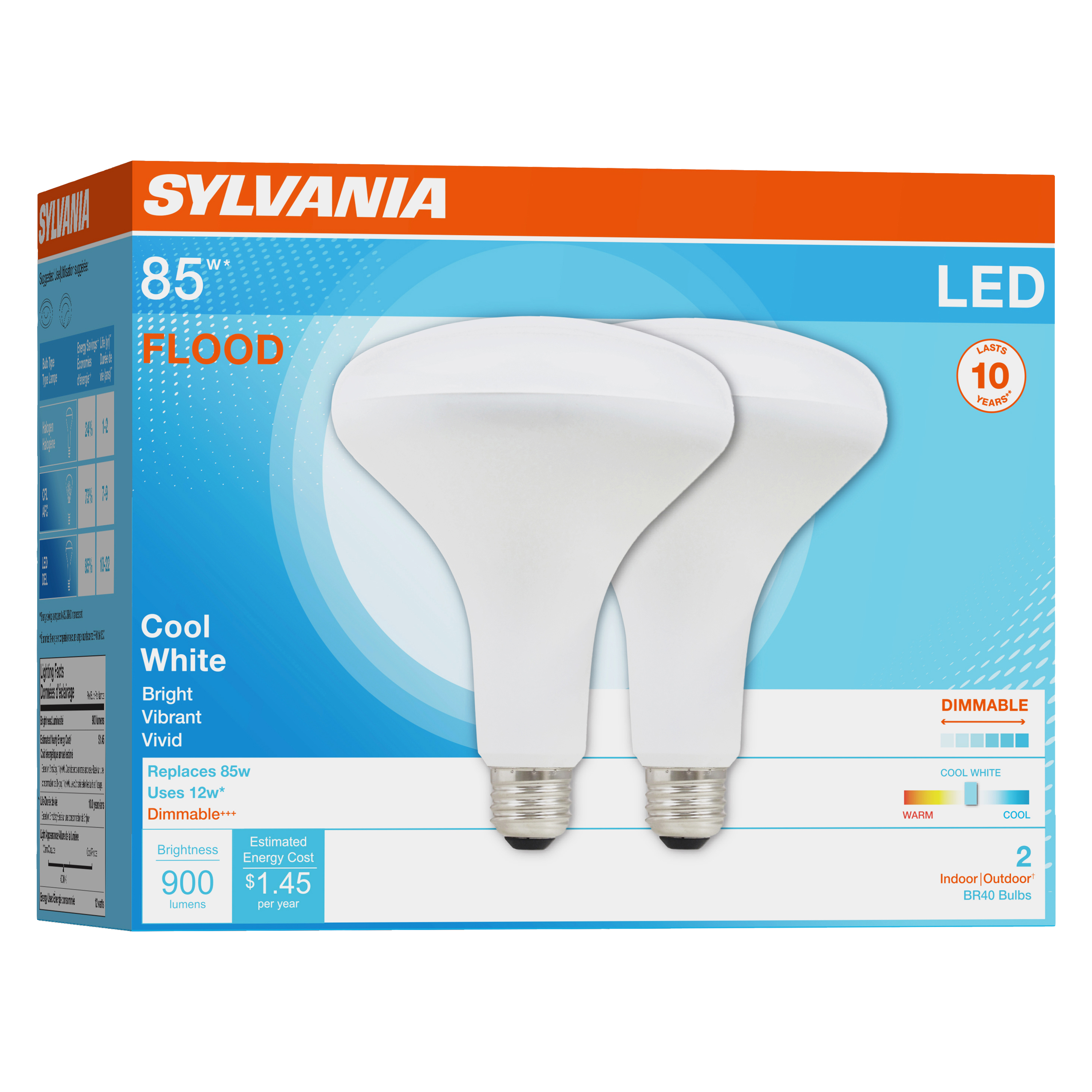

Packaging image, spacial
LED BR40, 13W, Dimmable, 80CRI, 900 Lumen, 4000K
JPG (2.19 MB)
