SYLVANIA High Ouput Reflectors

High Output Reflector R20 7W DIM HO 2700K 1PK

NAED: 40462
Contact sales
Our warranty conditions

PRODUCT DETAILS

Areas of application
  • Downlights, pendant fixtures, table lamps, wall sconces
  • Healthcare, hospitality, residential, retail
  • General lighting, recessed downlights, track lighting, wall washers
  • Art galleries, museums, offices, restaurants
Product features
  • Long life up to 25,000 hours (L70)
  • CRI of 80 ensures good color definition
  • UV and IR free
  • RoHS compliant, mercury and lead free
  • Energy savings up to 90 %
  • Dimmable down to 10 %
Safety advice
  • Suitable for damp locations – not for use where directly exposed to water.
  • -4°F to +104°F (-20°C to +40°C)
  • Not for use with emergency light fixtures or exit lights.
  • Not for use in totally enclosed fixtures.
Electrical data
Nominal wattage 6 W
Construction wattage 6.00 W
Nominal voltage 120 V
Claimed equiv. conventional lamp power 50 W
Photometrical data
Luminous flux 525 lm
Luminous efficacy 87 lm/W
Color temperature 2700 K
Color rendering index Ra 80
Light color 827
Dimensions & Weight
Overall length 95.00 mm
Diameter 63.00 mm
Product weight 150.00 g
Additional product data
Base (standard designation) E26
Mercury content 0.0 mg
Capabilities
Dimmable Yes
Country-specific categorizations
Order reference 7W/827 120V 6X1
Energy labelling regulation data acc EU 2019/2015
Light source cap-type (or other electric interface) E26
Correlated colour temperature type SINGLE_VALUE
Length 95.00 mm
Height 63.00 mm
Width 63.00 mm
Product information bulletin
ULTRA LED HO Reflector Lamps
PDF (478.8 KB)
Product image: white background, upright
LED R20
TIF (2.41 MB)

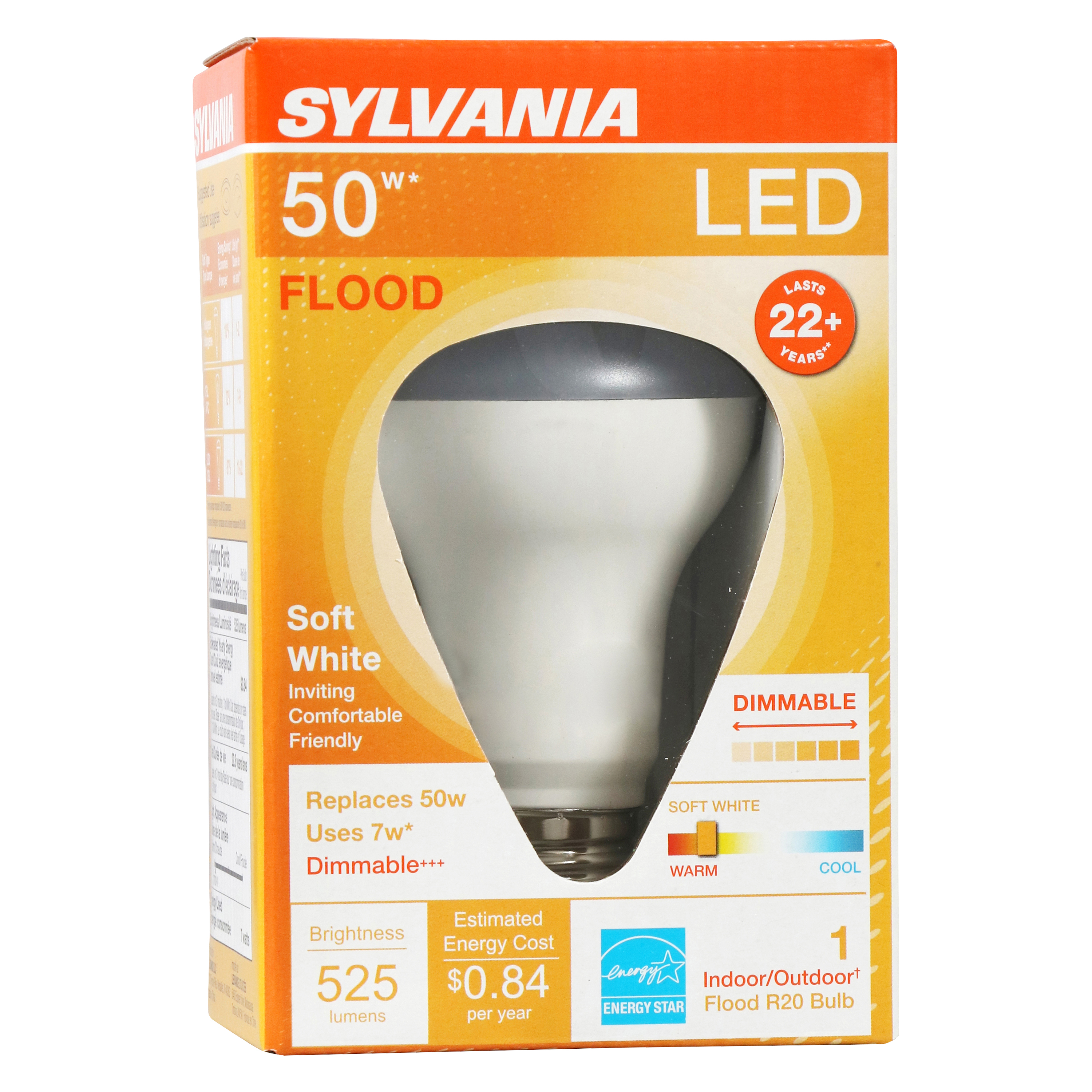

Packaging image, beauty shot
LED Flood R20 7W Soft White
JPG (2.83 MB)

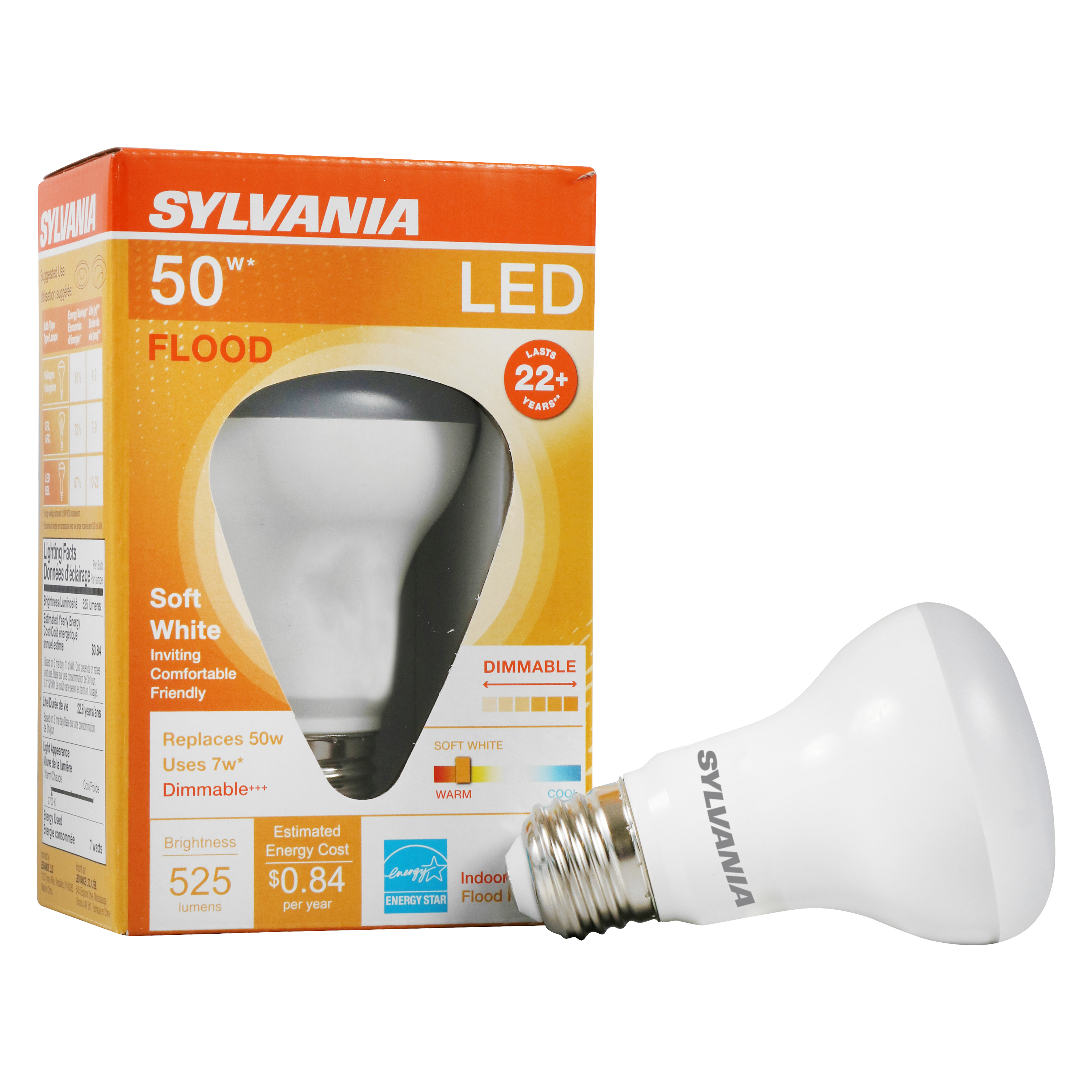

Packaging image, beauty shot
LED Flood R20 7W Soft White
JPG (2.76 MB)

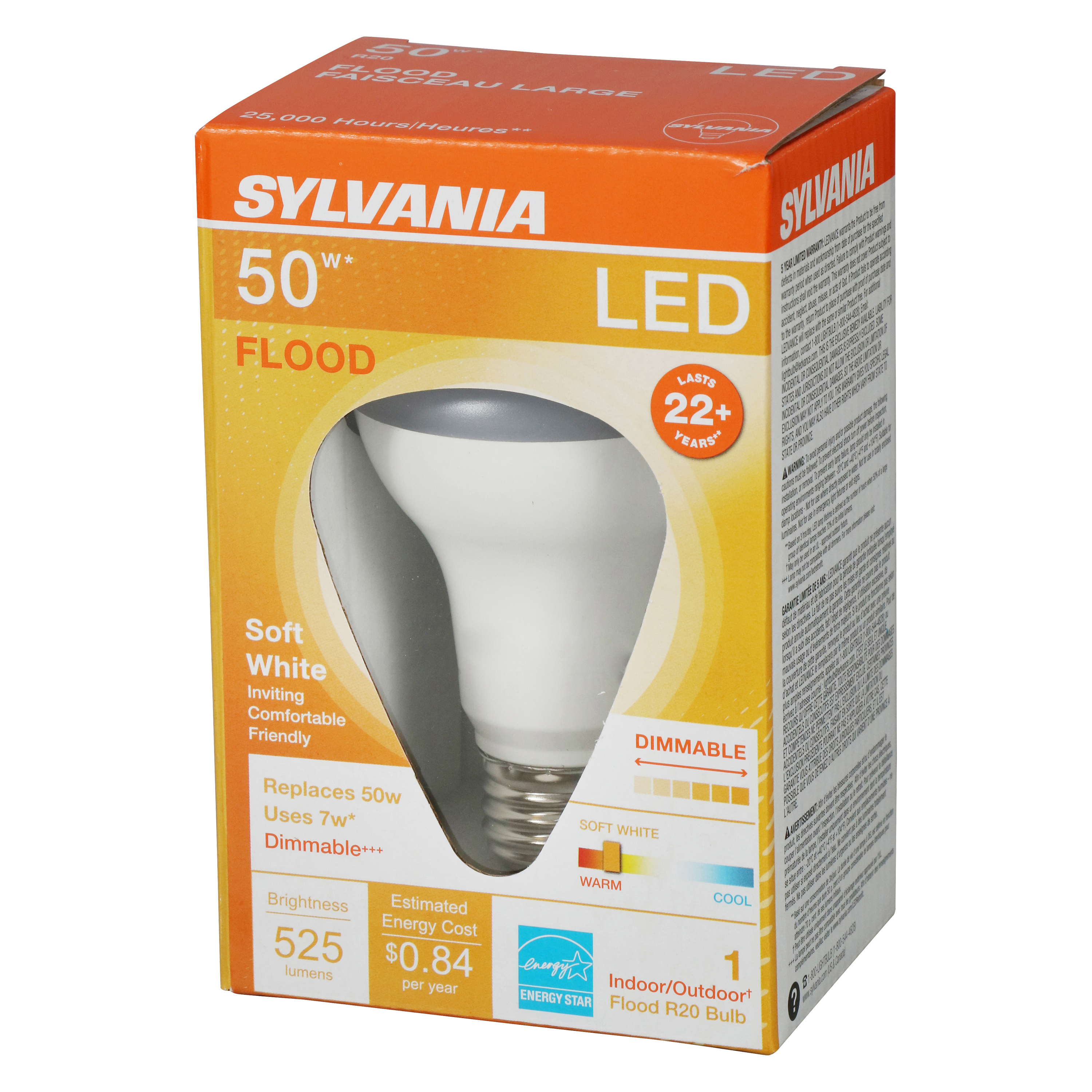

Packaging image, spacial
LED Flood R20 7W Soft White
JPG (3.7 MB)

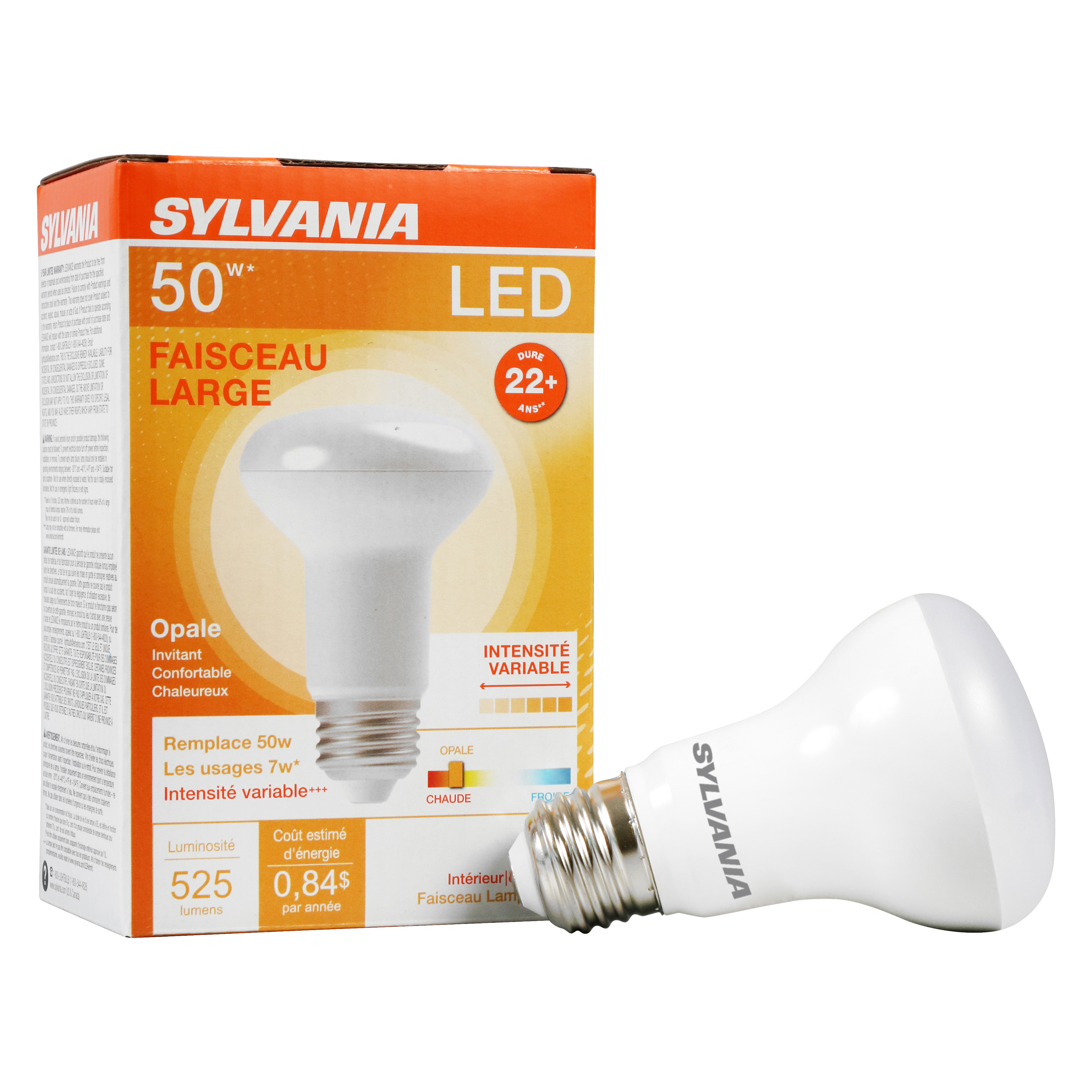

Packaging image, spacial
LED Flood R20 7W Soft White
JPG (3.57 MB)

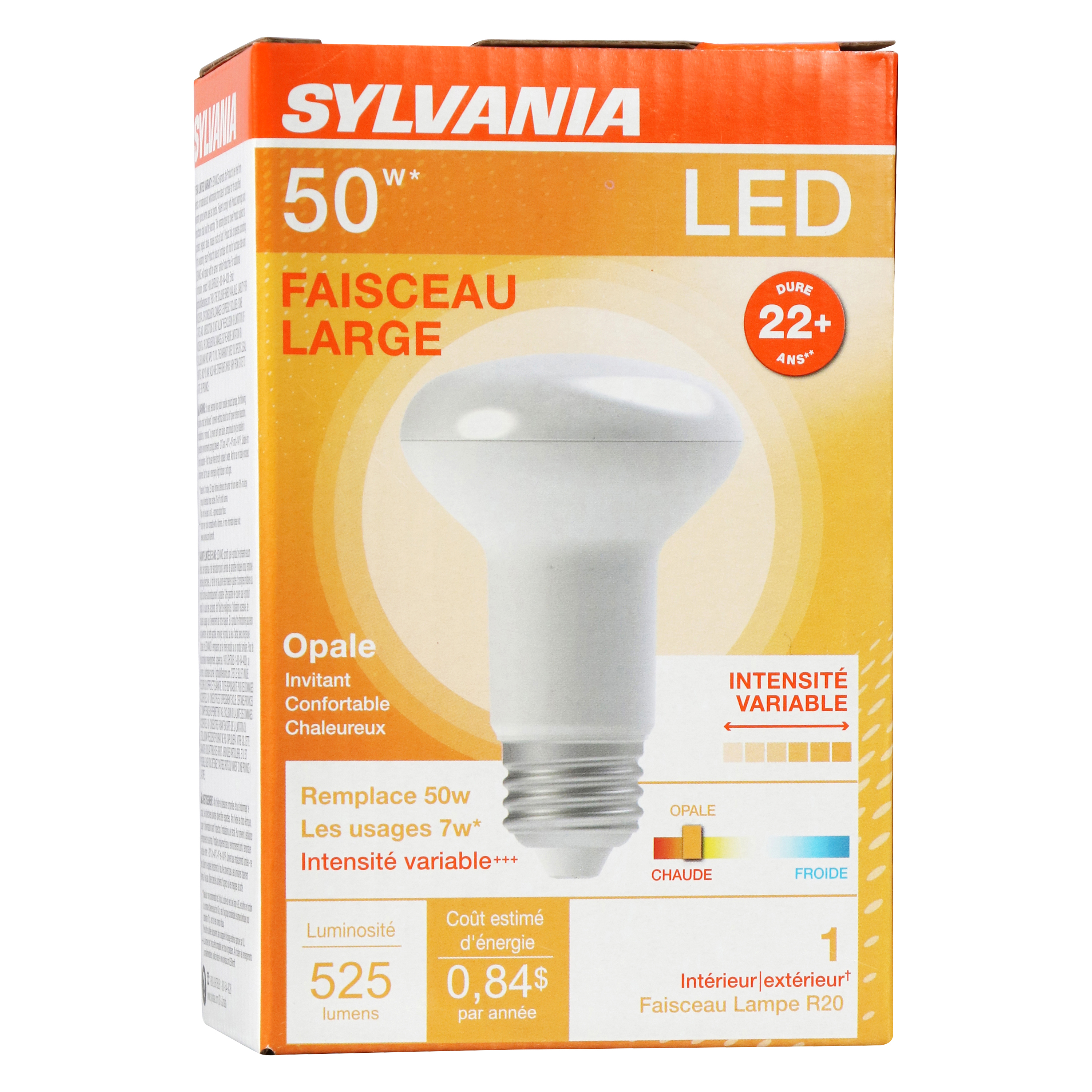

Packaging image, spacial
