SYLVANIA High Ouput Reflectors

High Output Reflector BR30 9W DIM HO 5000K 1PK

NAED: 40461
Download data sheet
Contact sales
Our warranty conditions

PRODUCT DETAILS

Areas of application
  • Downlights, pendant fixtures, table lamps, wall sconces
  • Healthcare, hospitality, residential, retail
  • General lighting, recessed downlights, track lighting, wall washers
  • Art galleries, museums, offices, restaurants
Product features
  • Long life up to 25,000 hours (L70)
  • CRI of 80 ensures good color definition
  • UV and IR free
  • RoHS compliant, mercury and lead free
  • Energy savings up to 90 %
  • Dimmable down to 10 %
Safety advice
  • Suitable for damp locations – not for use where directly exposed to water.
  • -4°F to +104°F (-20°C to +40°C)
  • Not for use with emergency light fixtures or exit lights.
  • Not for use in totally enclosed fixtures.
Electrical data
Nominal wattage 9 W
Construction wattage 9.00 W
Nominal voltage 120 V
Claimed equiv. conventional lamp power 65 W
Photometrical data
Luminous flux 800 lm
Luminous efficacy 88 lm/W
Color temperature 5000 K
Color rendering index Ra 80
Light color 850
Dimensions & Weight
Overall length 126.01 mm
Diameter 95.00 mm
Product weight 185.00 g
Additional product data
Base (standard designation) E26
Mercury content 0.0 mg
Capabilities
Dimmable Yes
Country-specific categorizations
Order reference 9W/850 120V 6X1
Energy labelling regulation data acc EU 2019/2015
Light source cap-type (or other electric interface) E26
Length 126.01 mm
Height 95.00 mm
Width 95.00 mm
Product information bulletin
ULTRA LED HO Reflector Lamps
PDF (478.8 KB)

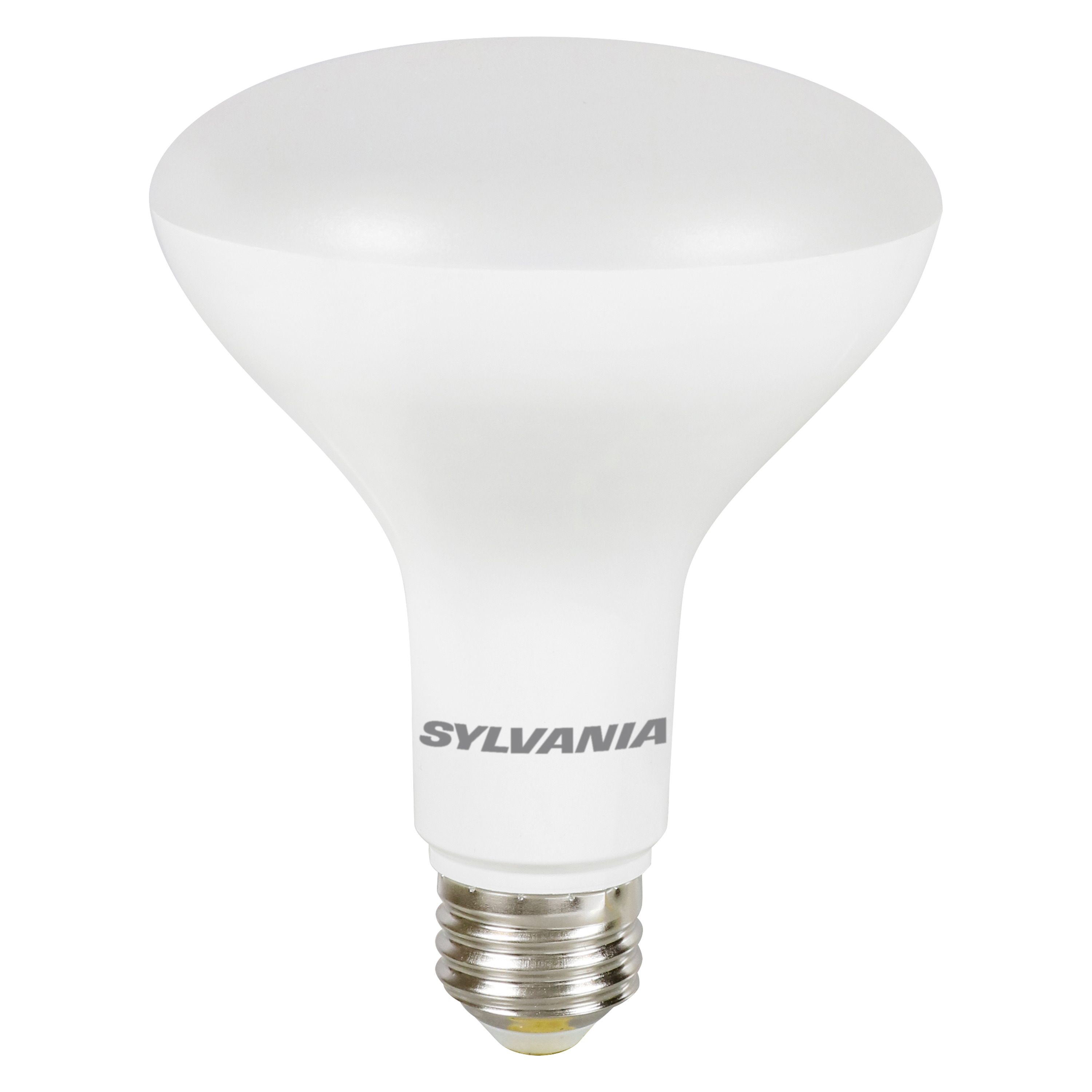

Product image: white background, upright
LED Flood BR30
JPG (1.35 MB)

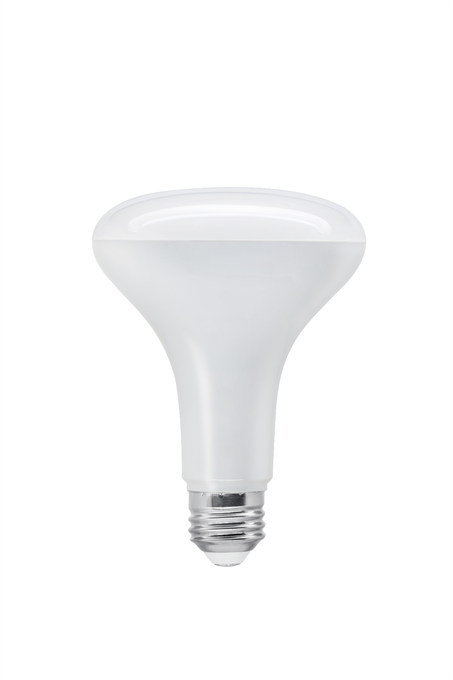

Product image: white background, upright
LED BR30 Lamp
TIF (408.24 KB)

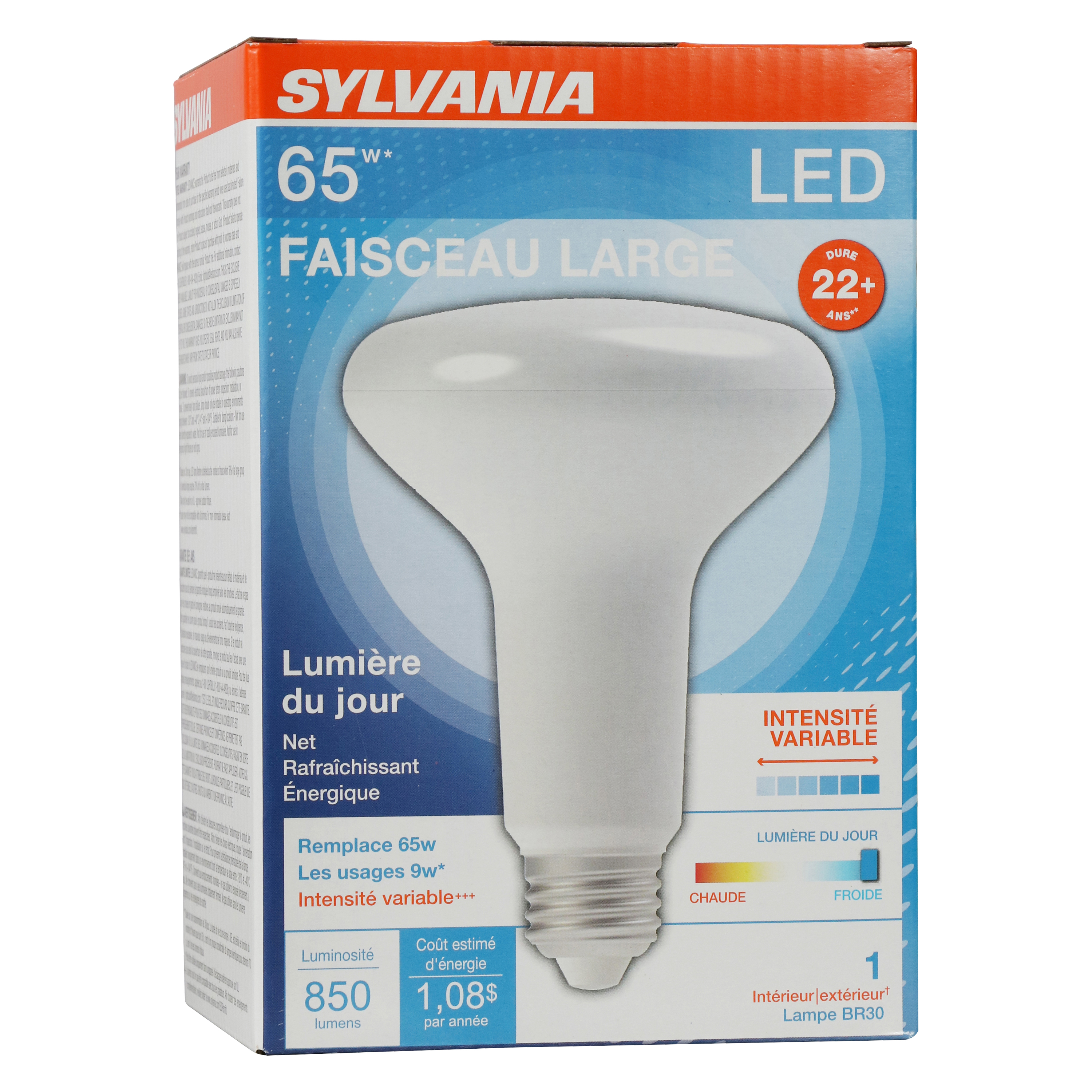

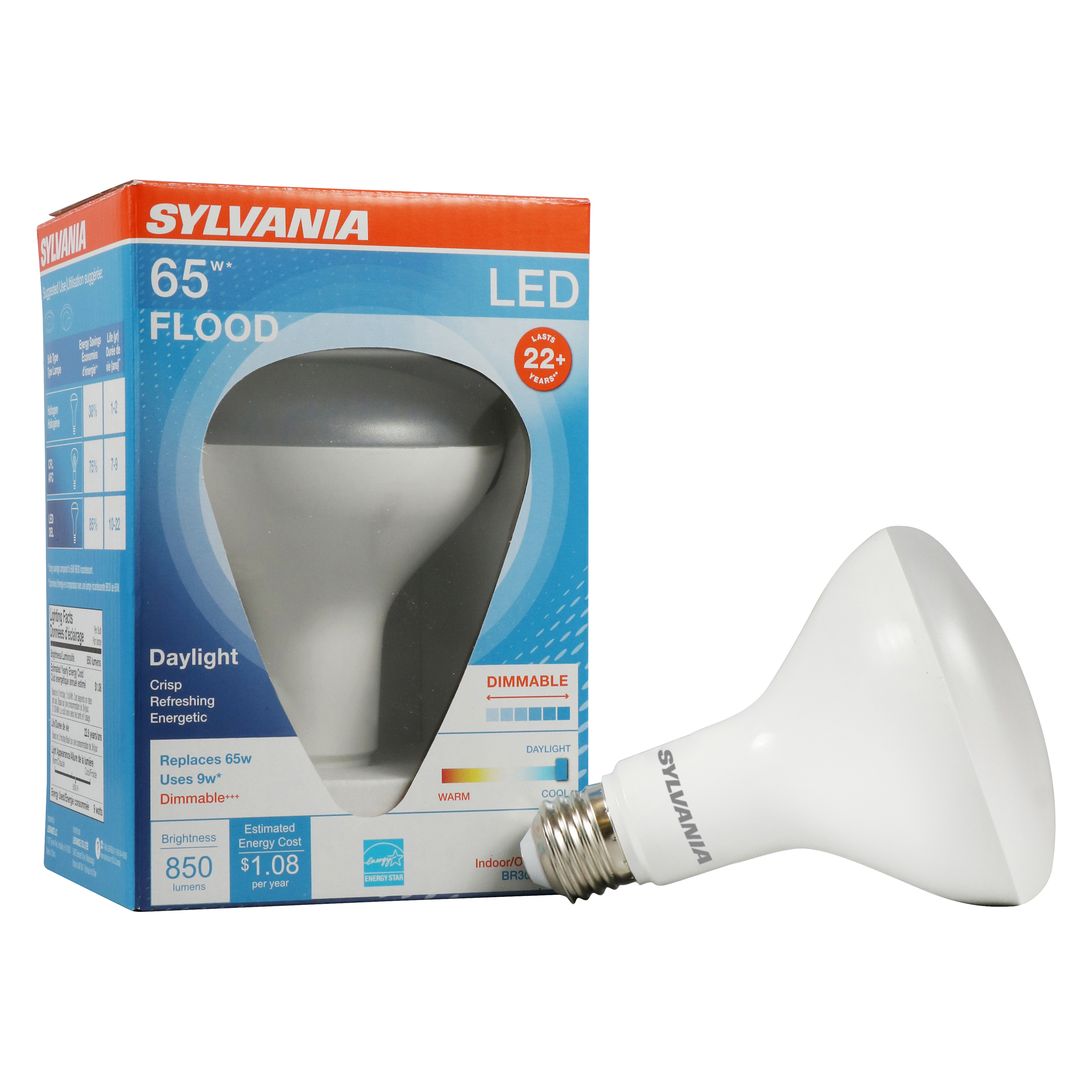

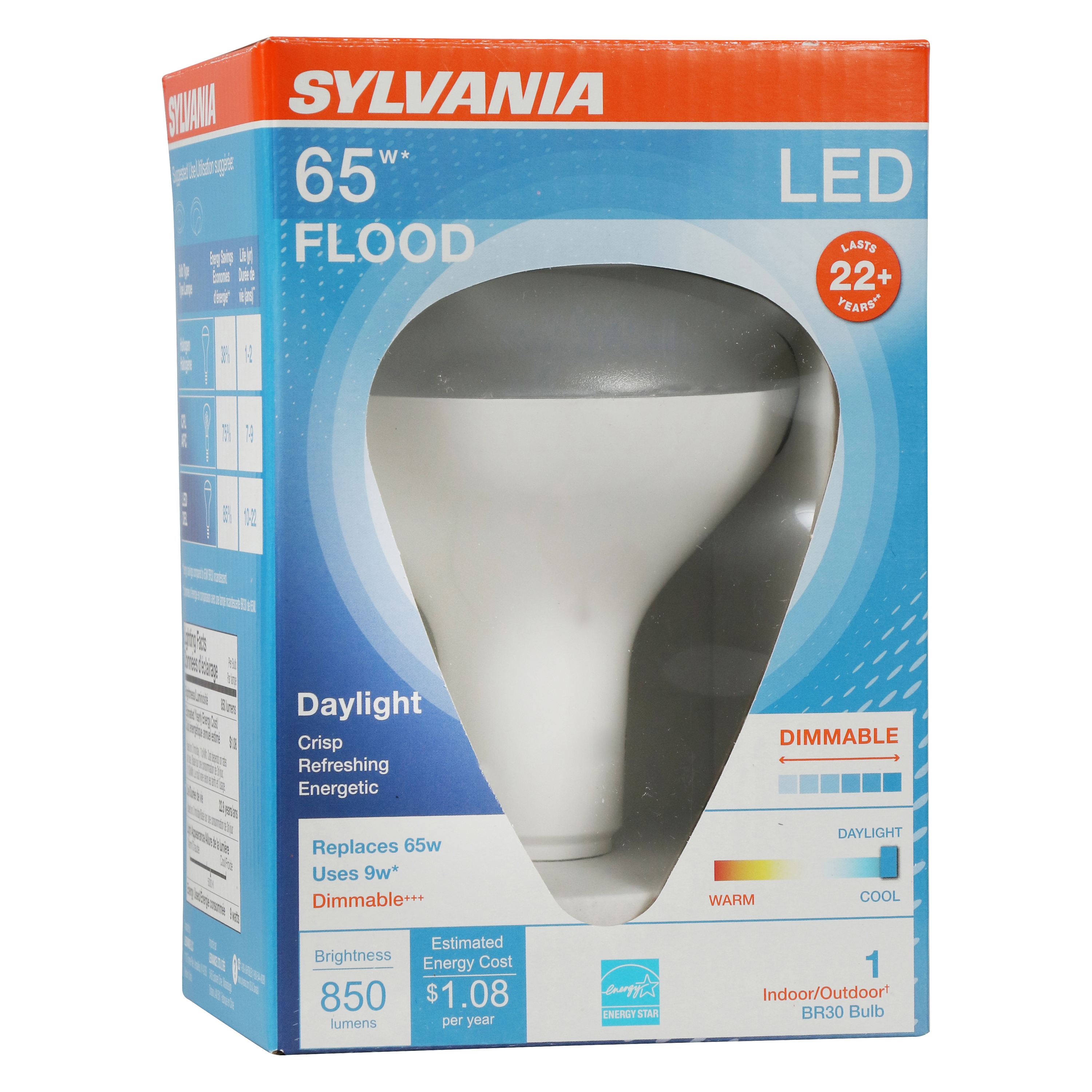

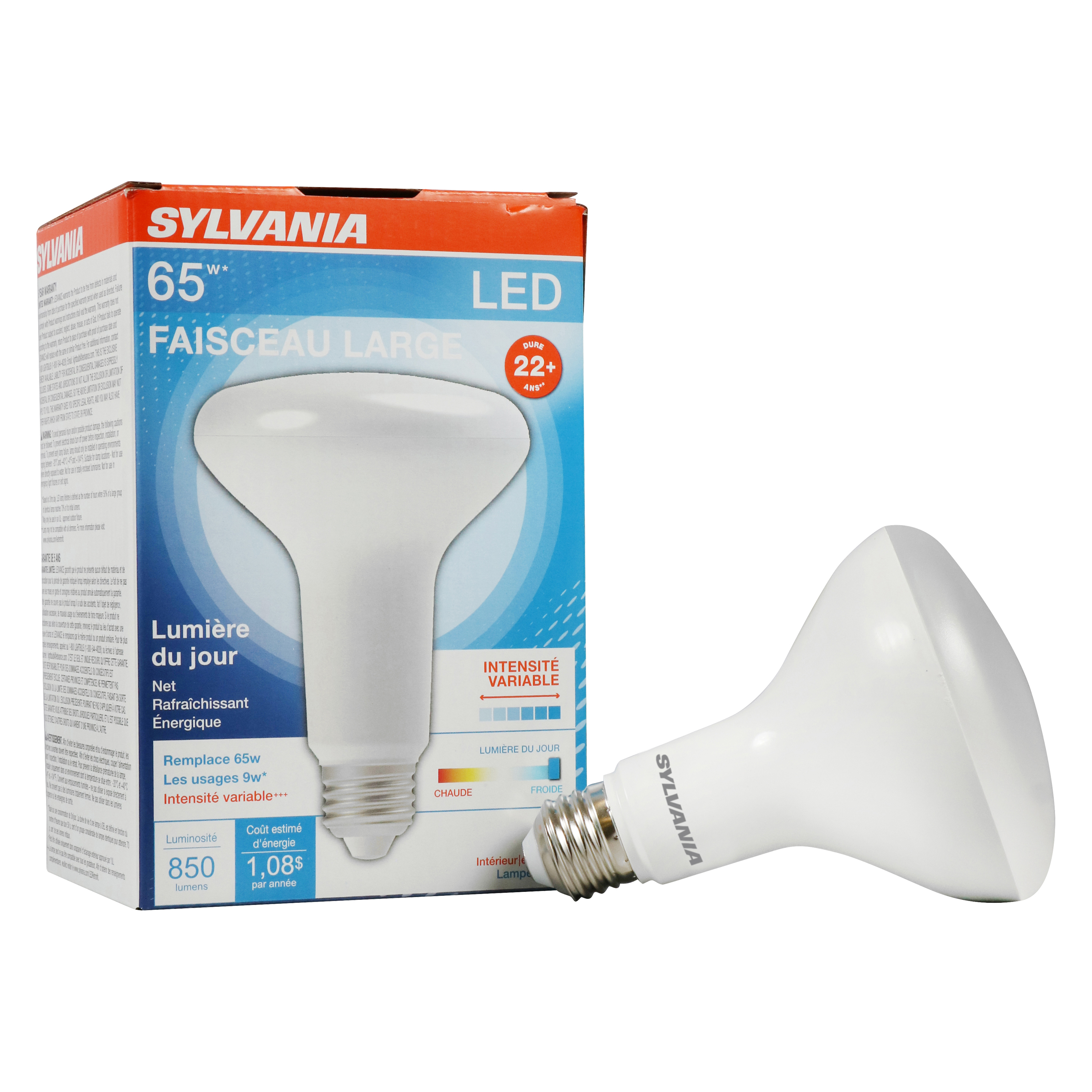

Packaging image, beauty shot
LED Flood BR30 9W Daylight
JPG (2.47 MB)
Packaging image, beauty shot
LED Flood BR30 9W Daylight
JPG (2.45 MB)
Packaging image, spacial
LED Flood BR30 9W Daylight
JPG (3.74 MB)
Packaging image, spacial
LED Flood BR30 9W Daylight
JPG (3.67 MB)
Packaging image, spacial
LED Flood BR30 9W Daylight
JPG (3.63 MB)
