SYLVANIA TruWave Reflectors
TruWave Reflector BR30 7W DIM 3500K 2PK
NAED: 41154
Our warranty conditions
PRODUCT DETAILS
Areas of application
- Downlights, pendant fixtures, table lamps, wall sconces
- Healthcare, hospitality, residential, retail
Product features
- 90+ CRI without compromising efficacy
- Controls blue wavelengths for lower glare and reduced eye strain to improve readability
- 15,000 hours lifetime (L70)
- Supports an improved sleep-wake cycle
- Clean light color rendering for seeing realistic, vivid colors
- Dimmable down to 10 %
- Low Flicker percentage
Safety advice
- Suitable for use in dry and damp locations.
- Not for use with emergency light fixtures or exit lights.
- Not for use in enclosed fixtures.
- -4°F to +104°F (-20°C to +40°C)
- California Title 20 Certified.
Electrical data
| Nominal wattage | 7 W |
| Construction wattage | 7.00 W |
| Nominal voltage | 120 V |
| Claimed equiv. conventional lamp power | 65 W |
Photometrical data
| Luminous flux | 650 lm |
| Luminous efficacy | 92 lm/W |
| Color temperature | 3500 K |
| Color rendering index Ra | 90 |
| Light color | 935 |
Dimensions & Weight
| Overall length | 127.00 mm |
| Diameter | 95.00 mm |
| Product weight | 80.00 g |
Additional product data
| Base (standard designation) | E26 |
| Mercury content | 0.0 mg |
Capabilities
| Dimmable | Yes |
Country-specific categorizations
| Order reference | 7,5W/935 120V 6 |
Energy labelling regulation data acc EU 2019/2015
| Light source cap-type (or other electric interface) | E26 |
| Length | 127.00 mm |
| Height | 95.00 mm |
| Width | 95.00 mm |
Product information bulletin
LED550 TruWave Technology Reflector Family
LED550 TruWave Technology Reflector Family
Product image: white background, spacial
LED BR30 7W Dimmable 650 LM 3500K E26 Frosted 90CRI
LED BR30 7W Dimmable 650 LM 3500K E26 Frosted 90CRI

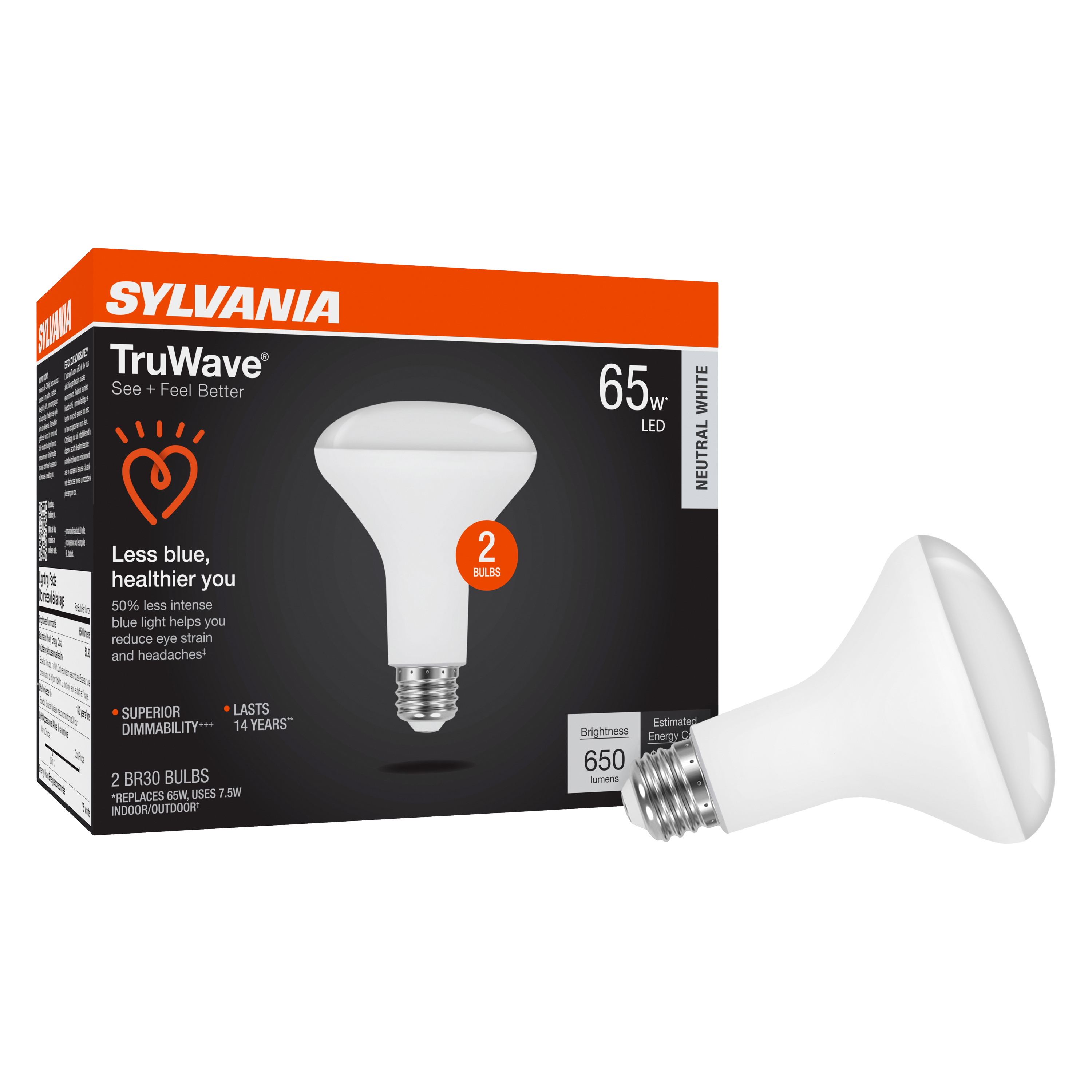

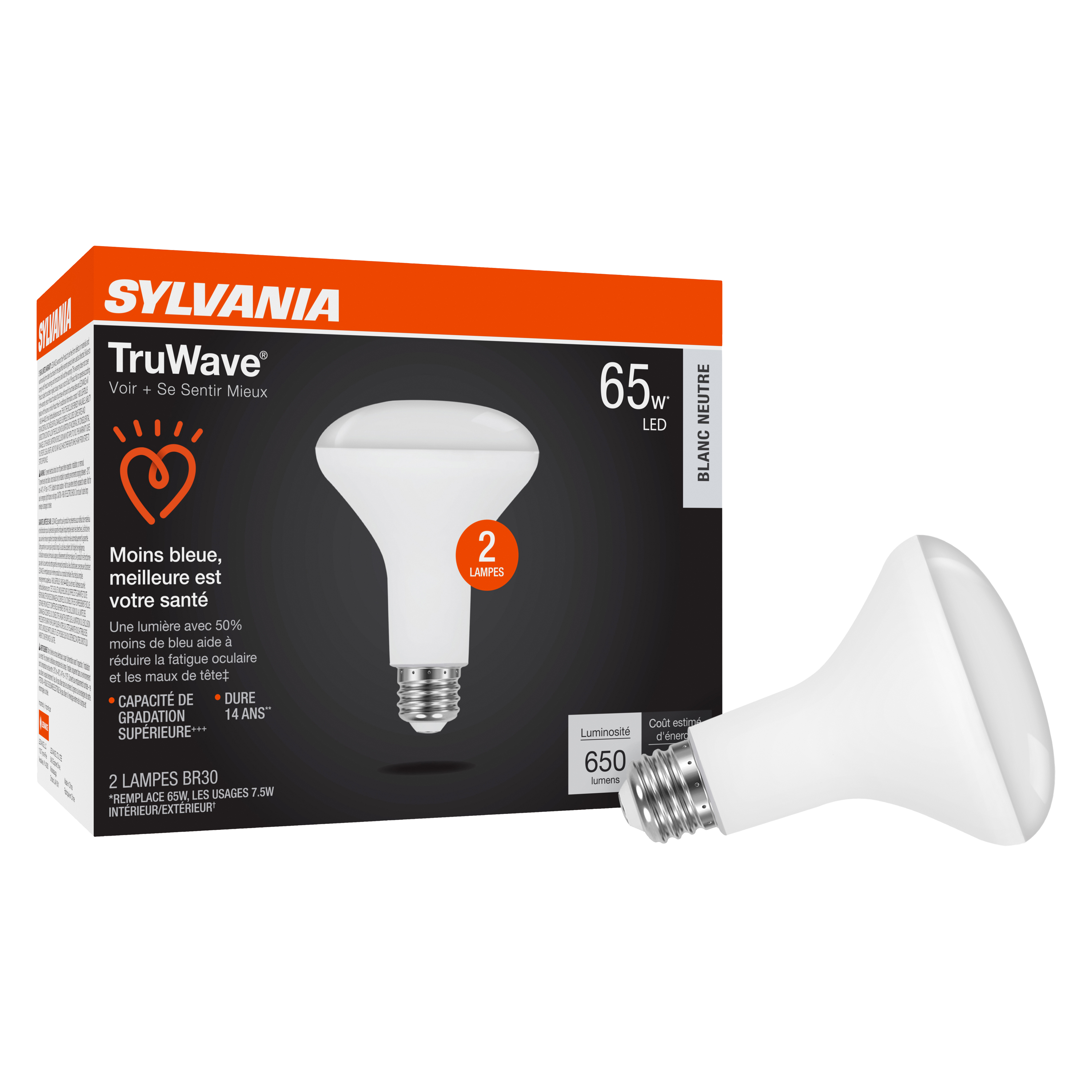

Combo Shot = Product Beauty Shot + Packaging Image
LED BR30 7W Dimmable 650 LM 3500K E26 Frosted 90CRI
LED BR30 7W Dimmable 650 LM 3500K E26 Frosted 90CRI
Combo Shot = Product Beauty Shot + Packaging Image
LED BR30 7W Dimmable 650 LM 3500K E26 Frosted 90CRI
LED BR30 7W Dimmable 650 LM 3500K E26 Frosted 90CRI

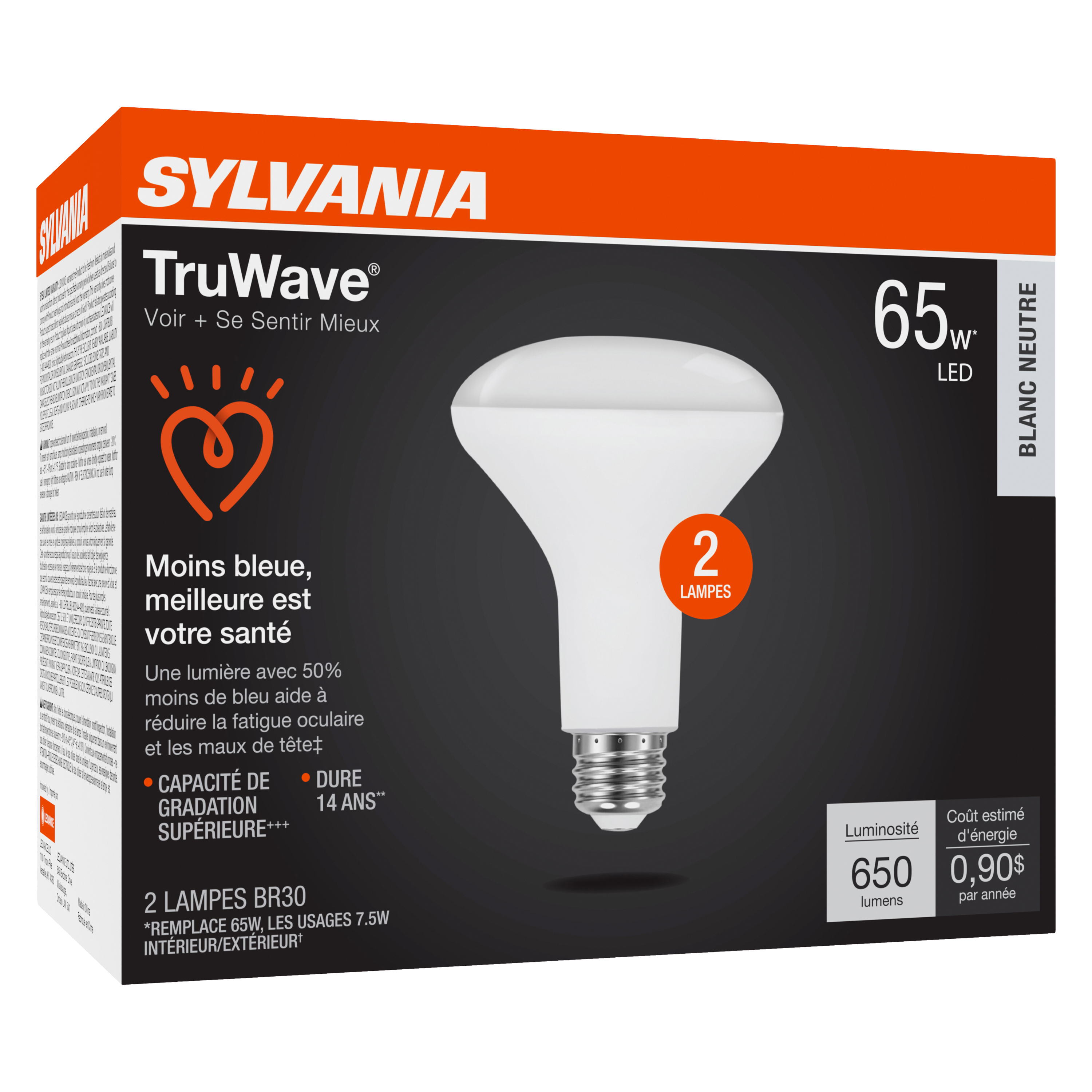

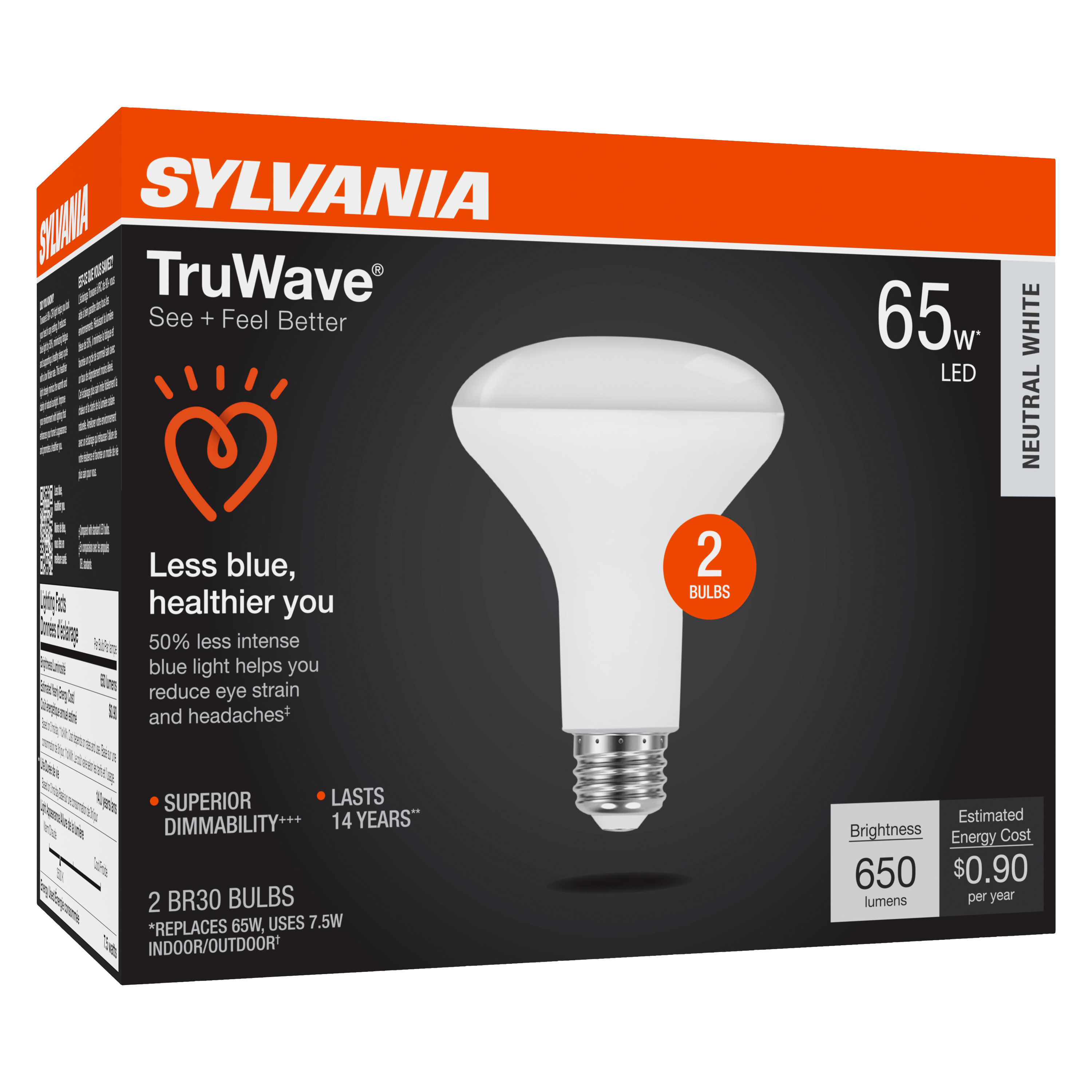

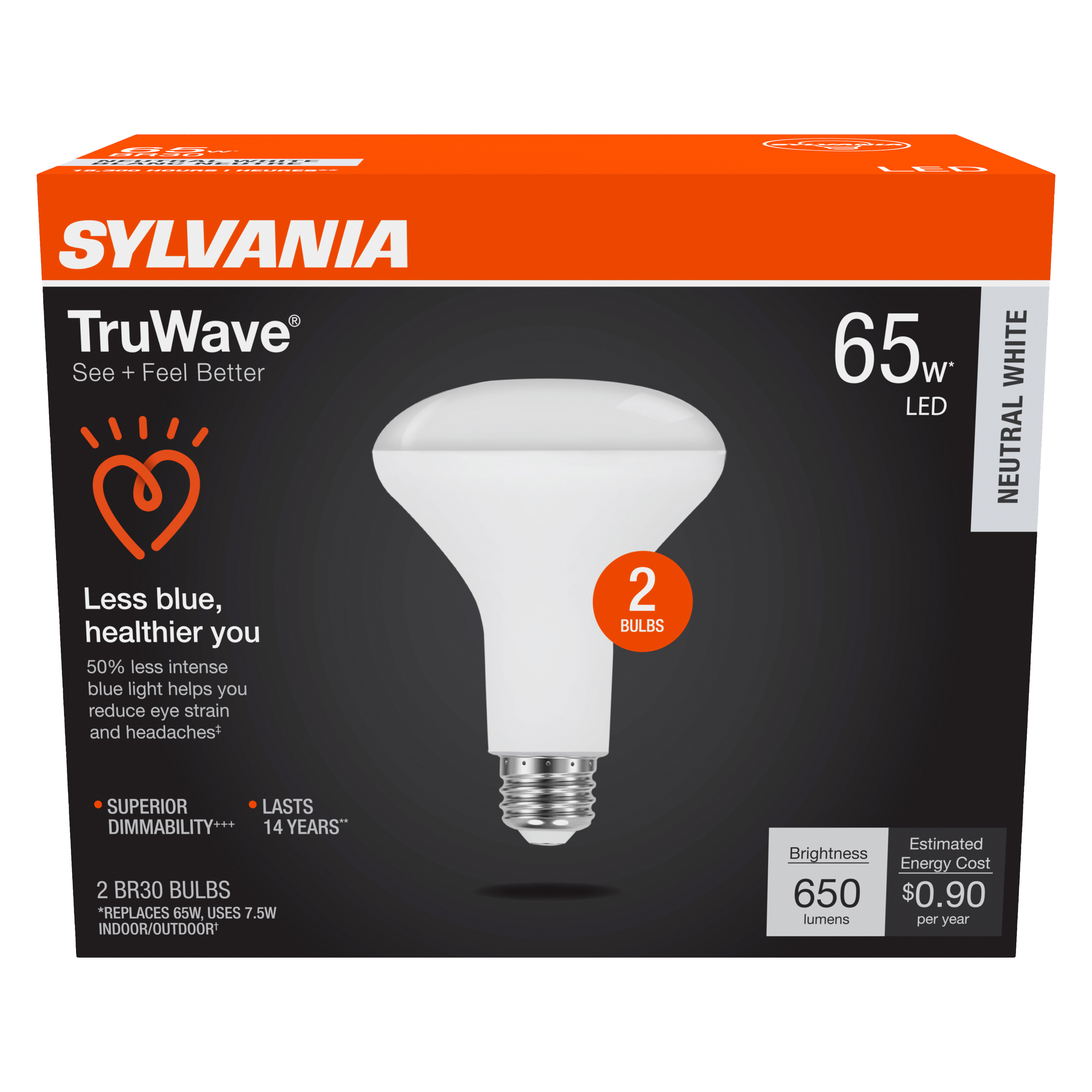

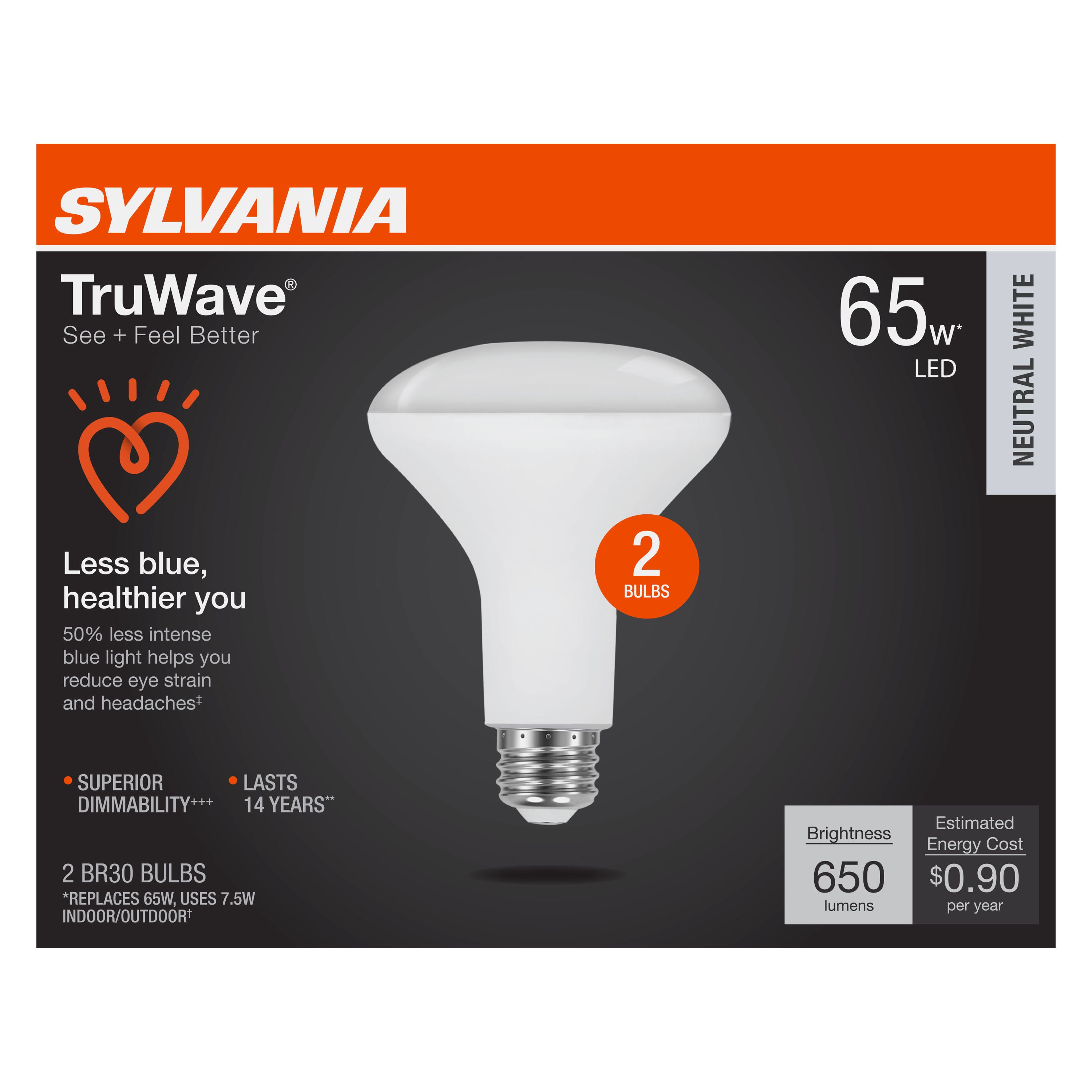

Packaging image, frontal
LED BR30 7W Dimmable 650 LM 3500K E26 Frosted 90CRI
LED BR30 7W Dimmable 650 LM 3500K E26 Frosted 90CRI
Packaging image, frontal
LED BR30 7W Dimmable 650 LM 3500K E26 Frosted 90CRI
LED BR30 7W Dimmable 650 LM 3500K E26 Frosted 90CRI
Packaging image, spacial
LED BR30 7W Dimmable 650 LM 3500K E26 Frosted 90CRI
LED BR30 7W Dimmable 650 LM 3500K E26 Frosted 90CRI
IES files (IES, additional)
LED7.5BR30DIM927TLRP
LED7.5BR30DIM927TLRP
