SYLVANIA Specialty LED Lamps

SPECIALTY LED LAMPS C7 1W 3000K FR 1PK

NAED: 74672
Contact sales
Our warranty conditions

PRODUCT DETAILS

Areas of application
  • Downlights, pendant fixtures, table lamps, wall sconces
  • Healthcare, hospitality, residential, retail
  • Residential and commercial
Product features
  • Available in a variety of shapes, sizes, and base configurations
  • Available in 3000K CCT
  • RoHS compliant, mercury and lead free
  • UV and IR free
Safety advice
  • Suitable for damp locations.
  • Non-dimmable.
  • -4°F to +113°F (-20°C to +45°C)
  • Not for use with emergency light fixtures or exit lights.
Electrical data
Nominal wattage 1 W
Construction wattage 1.00 W
Nominal voltage 120 V
Claimed equiv. conventional lamp power 5 W
Operating frequency 50…60 Hz
Mains frequency 50…60 Hz
Photometrical data
Luminous flux 30 lm
Luminous efficacy 30 lm/W
Color temperature 3000 K
Color rendering index Ra 80
Light color 830
Dimensions & Weight
Overall length 51.56 mm
Diameter 35.05 mm
Product weight 5.00 g
Temperatures & operating conditions
Ambient temperature range -20…+45 °C
Additional product data
Base (standard designation) E12
Mercury content 0.0 mg
Mercury-free Yes
Product remark All technical parameters apply to the entire lamp, Due to the complex production process for light-emitting diodes, the typical values shown for the technical LED parameters are purely statistical values that do not necessarily match the actual technical parameters of each individual product, which can vary from the typical value
Capabilities
Dimmable No
Certificates & Standards
Standards RoHS, FCC, FTC, cETLus, CSA
Country-specific categorizations
Order reference 1W/830 120V 6XB
Energy labelling regulation data acc EU 2019/2015
Light source cap-type (or other electric interface) E12
Length 51.56 mm
Height 35.05 mm
Width 35.05 mm
PRODUCT DATASHEET
Insert Sheet - LED Specialty Lamps
PDF (184.97 KB)
Product information bulletin
SYLVANIA LED Micro Specialty Lamps
PDF (1.01 MB)

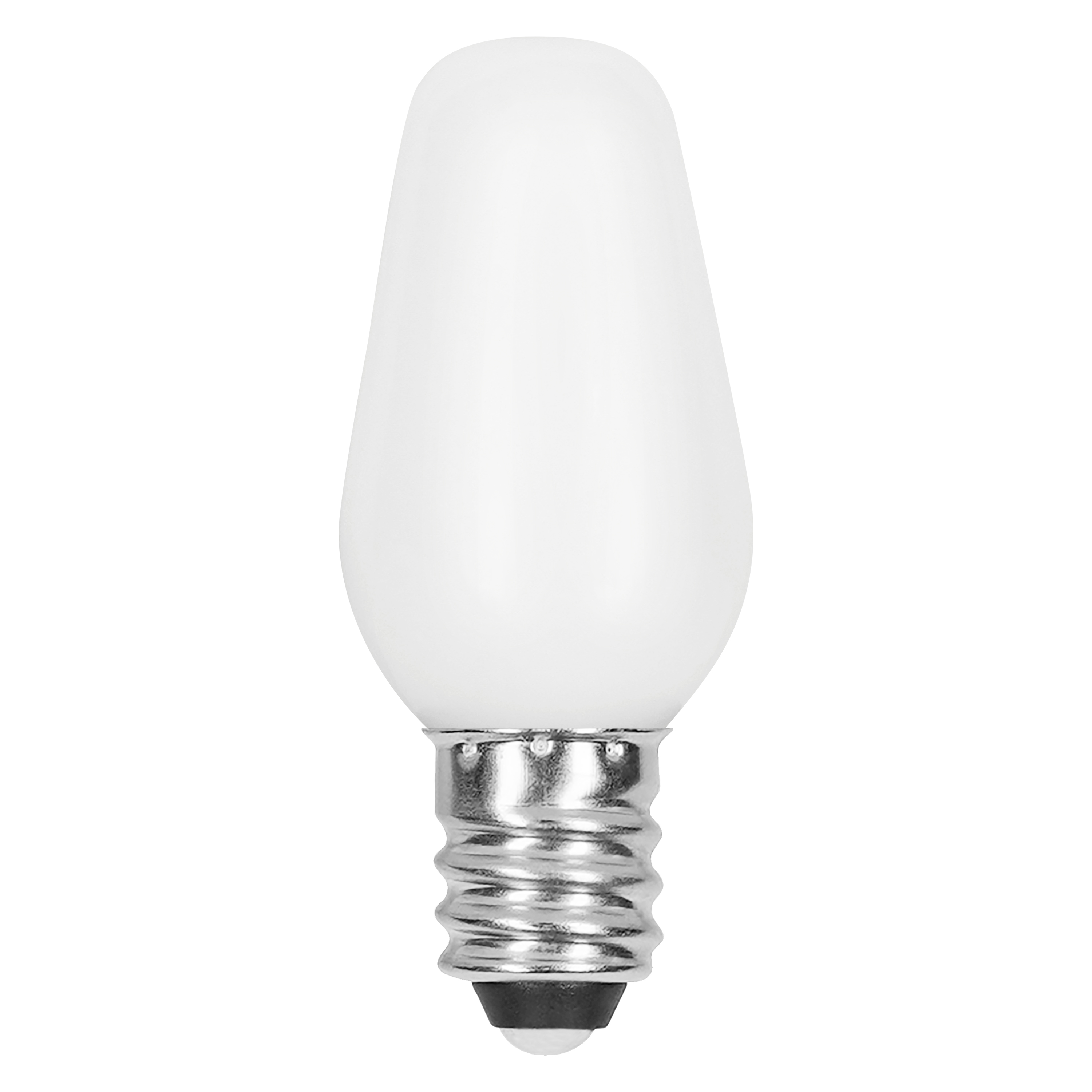

Product image: white background, upright
SYLVANIA LED C7 Speciality Lamp
TIF (994.66 KB)

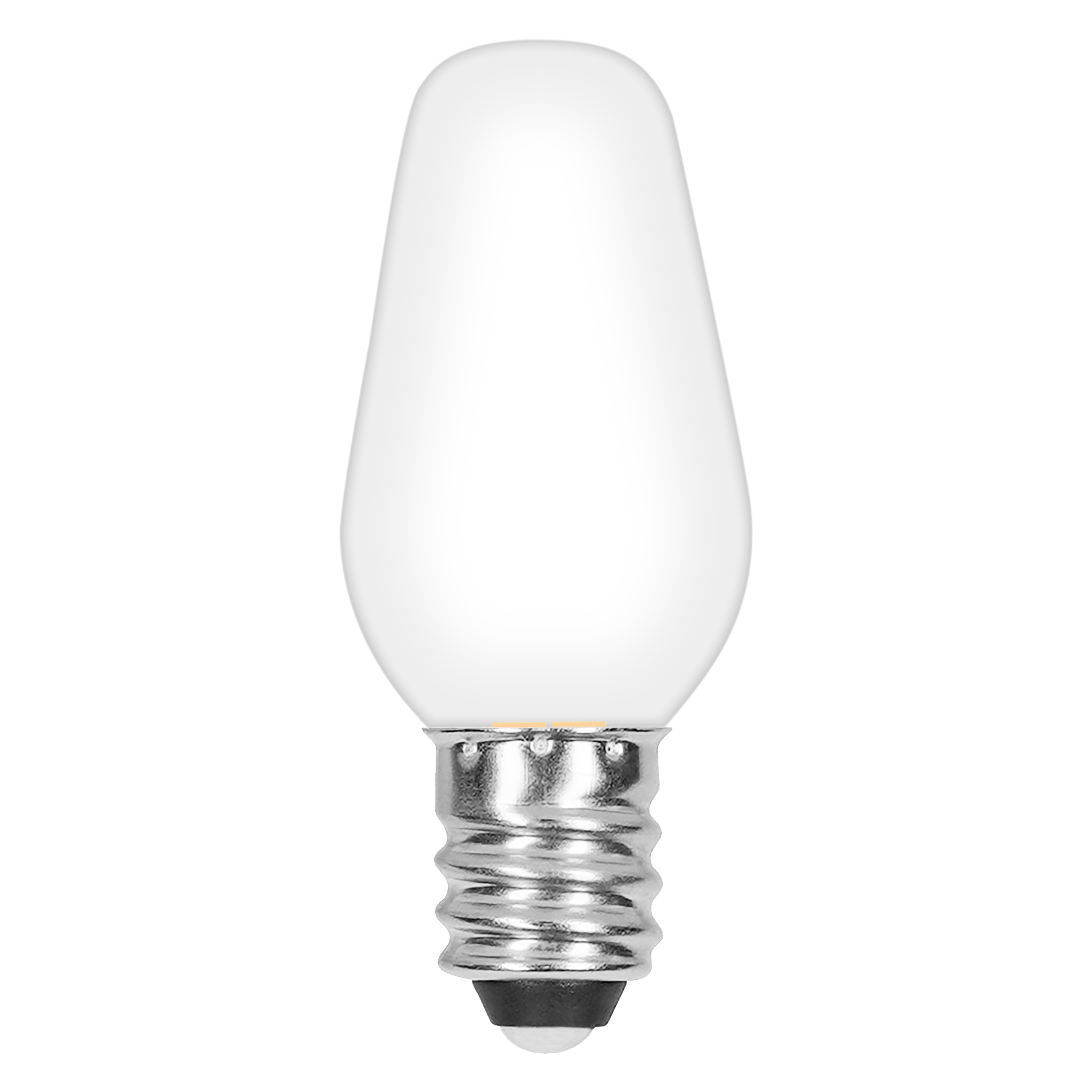

Product image: white background, upright
SYLVANIA LED C7 Speciality Lamp ON
JPG (846.52 KB)

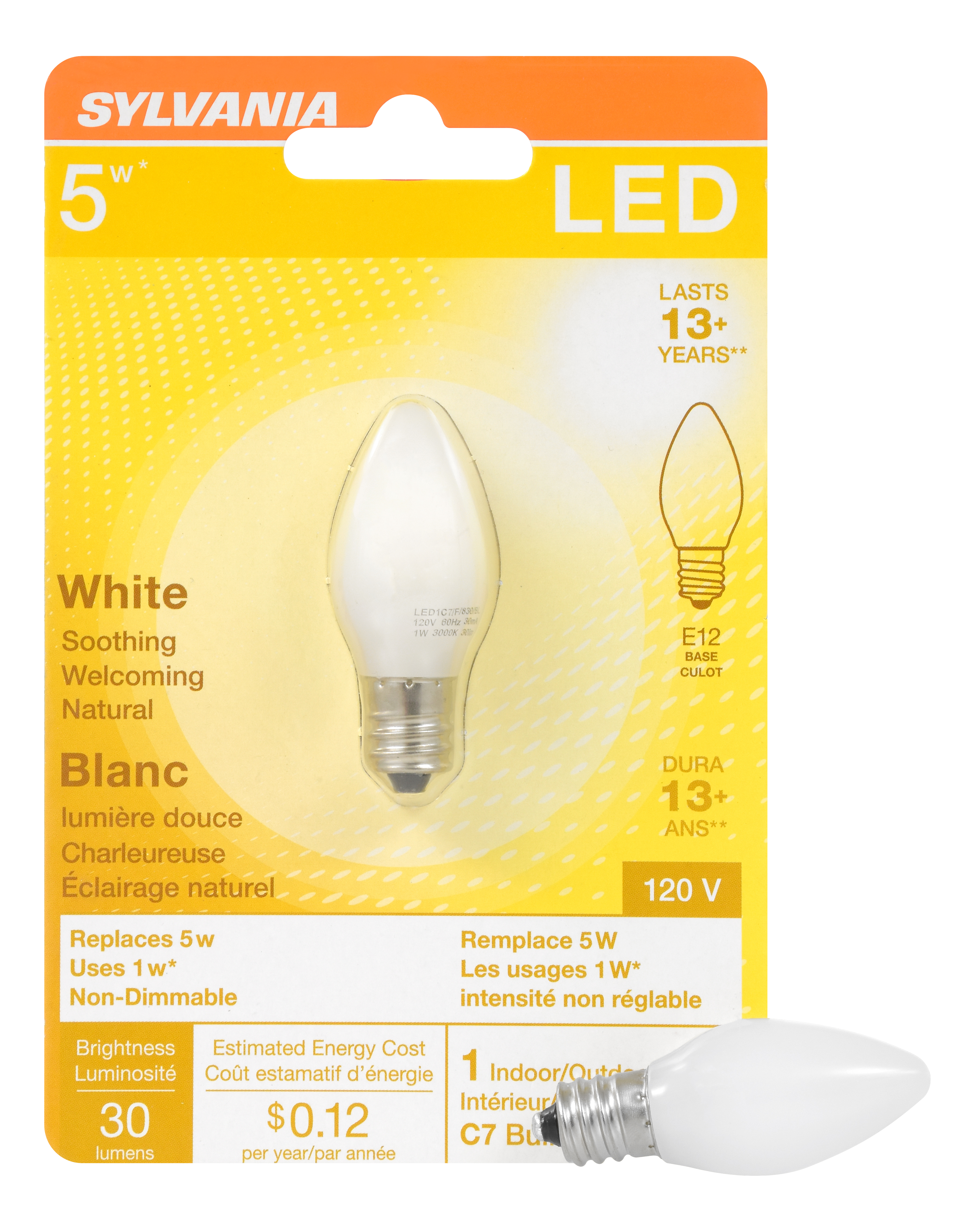

Packaging image, beauty shot
04613574672 bb Beauty Shot
JPG (7.18 MB)
Packaging image, frontal
LED Night Light Frosted 1W C7 C7 EN/FR
TIF (82.91 MB)

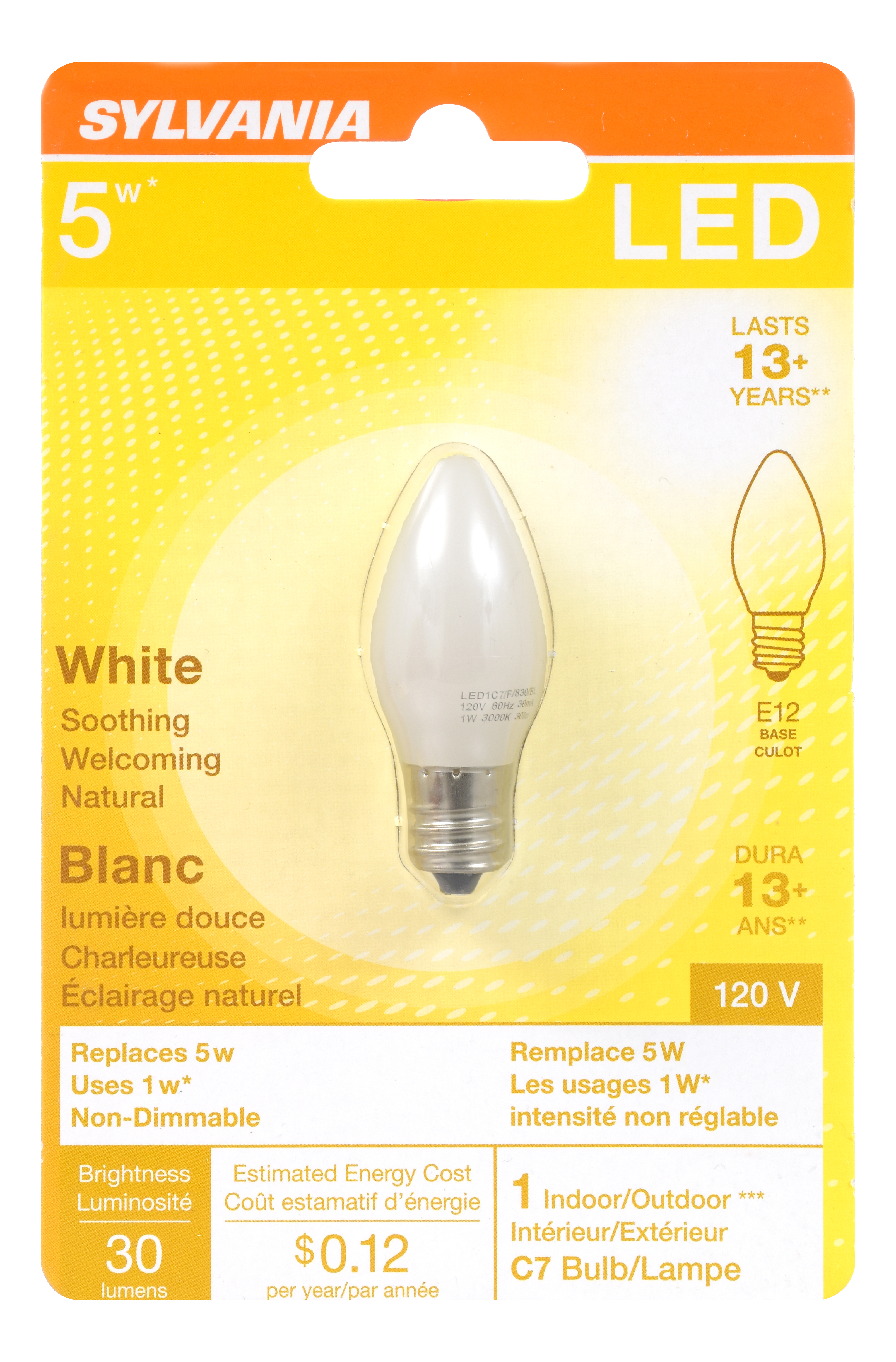

Packaging image, frontal
