FLOODLIGHT HAZARDOUS LOCATION

HAZ FLOOD 300 HUV D 8 50 GR

NAED: 66829
Download data sheet
Contact sales
Our warranty conditions

PRODUCT DETAILS

Areas of application
  • Power plants
  • Heavy industrial sites
  • Loading docks
  • Chemical processing facilities
Product features
  • Explosion-proof construction: prevents ignition of gases, vapors, or dust
  • Certified for Hazardous Areas: UL844 and CSA 22.2 No. 137 compliant
  • Copper-free aluminum housing resists corrosion and cools in harsh conditions
  • Tempered glass lens for superior heat resistance
  • Selectable wattage and lumen outputs
  • 5000K
  • Tool-free wiring: faster installation and maintenance, no need for special tools
  • IP66 | IK08
Equipment / Accessories
  • Yoke mount
Extended installation guide
INSTALL MANUAL HAZARDOUS LOCATION FLOODLIGHT
PDF (904.19 KB)
Product information bulletin
LEDLUM249 LEDVANCE Luminaires FloodLight HAZARDOUS LOCATION
PDF (975.77 KB)
Electrical data
Nominal wattage 300.00 W
Nominal voltage 347…480 V
Photometrical data
Luminous flux 45000 lm
Luminous efficacy 150 lm/W
Color temperature 5000 K
Color rendering index Ra 80
Dimensions & Weight
Length 420.00 mm
Height 254.00 mm
Width 300.00 mm
Product weight 16150.00 g
Materials & Colors
Product color Gray
Housing color Gray
Body material Aluminum
Mercury content 0.0 mg
Application & Mounting
Dimmable Yes
Type of dimming 0-10V
Mounting type Surface
Application environment Outdoor
Replaceable light source No
Certificates & Standards
Replaceable light source (EPREL) Not replaceable
Product code Packaging unit (Pieces/Unit) Dimensions (length x width x height) Gross weight Volume
4099854606991 Shipping box
1		 537 mm x 485 mm x 351 mm 16755.00 g 91.42 dm³

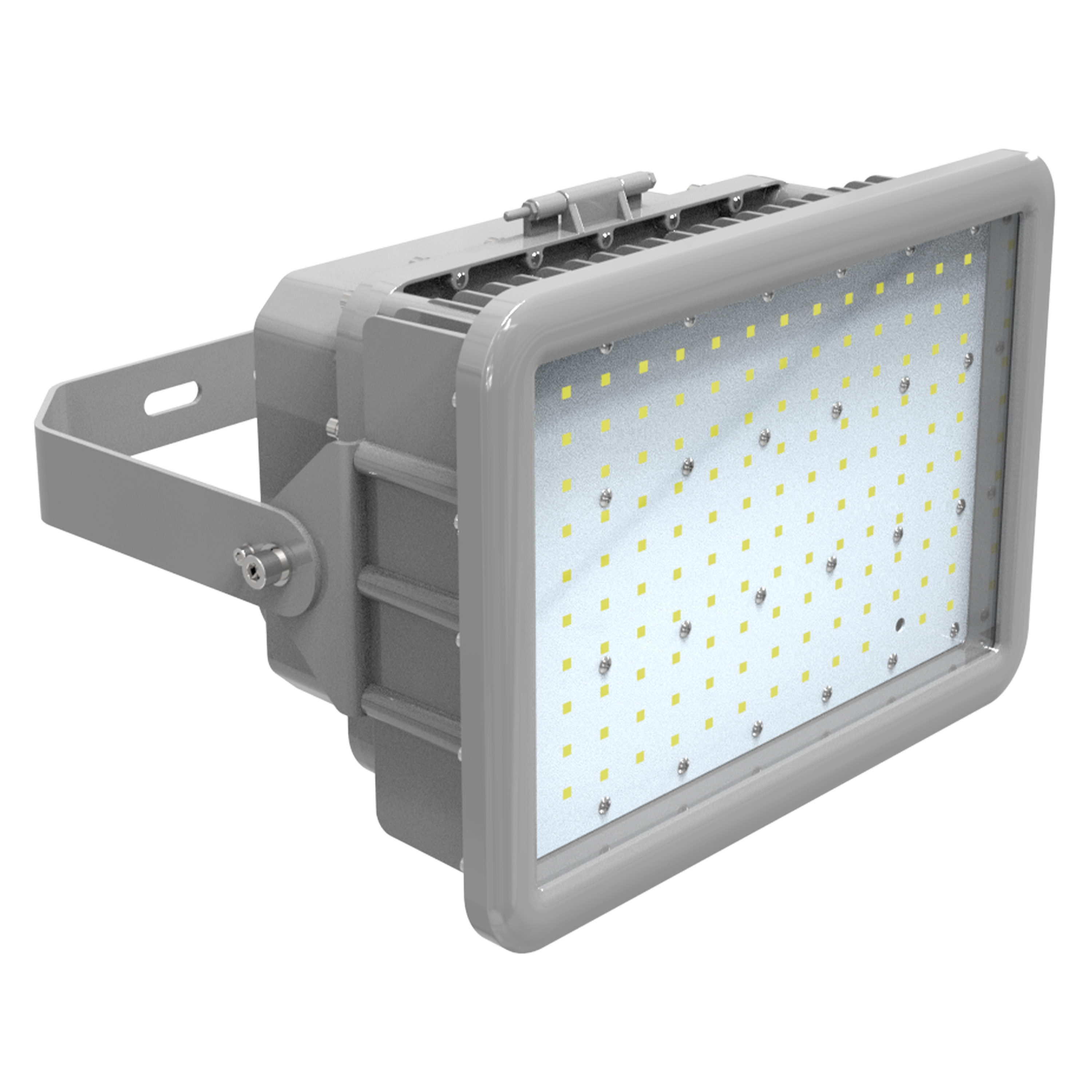

Product image: white background, diagonal
floodlight hazardous 300w cool diagonal
JPG (1.56 MB)
IES file (IES)
HAZARDOUS LOCATION FLOODLIGHT IES FILES
ZIP (7.04 MB)
