LINEAR SLOT VALUE

LINEAR SLOT VALUE 4 ft WH Direct Light Ceiling/Suspended/Recessed

NAED: 62453
Download data sheet
Contact sales
Our warranty conditions

PRODUCT DETAILS

Areas of application
  • Offices
  • Lobbies
  • Waiting rooms
  • Hospitality
  • Retail
Product features
  • Selectable CCTs: 3000/4000/5000K
  • Direct or Direct/Indirect
  • Accessories available for suspended, surface or recessed mounting are available
  • Linkable
  • Sleek and modern design
  • Two different finishes
  • CRI > 80
Equipment / Accessories

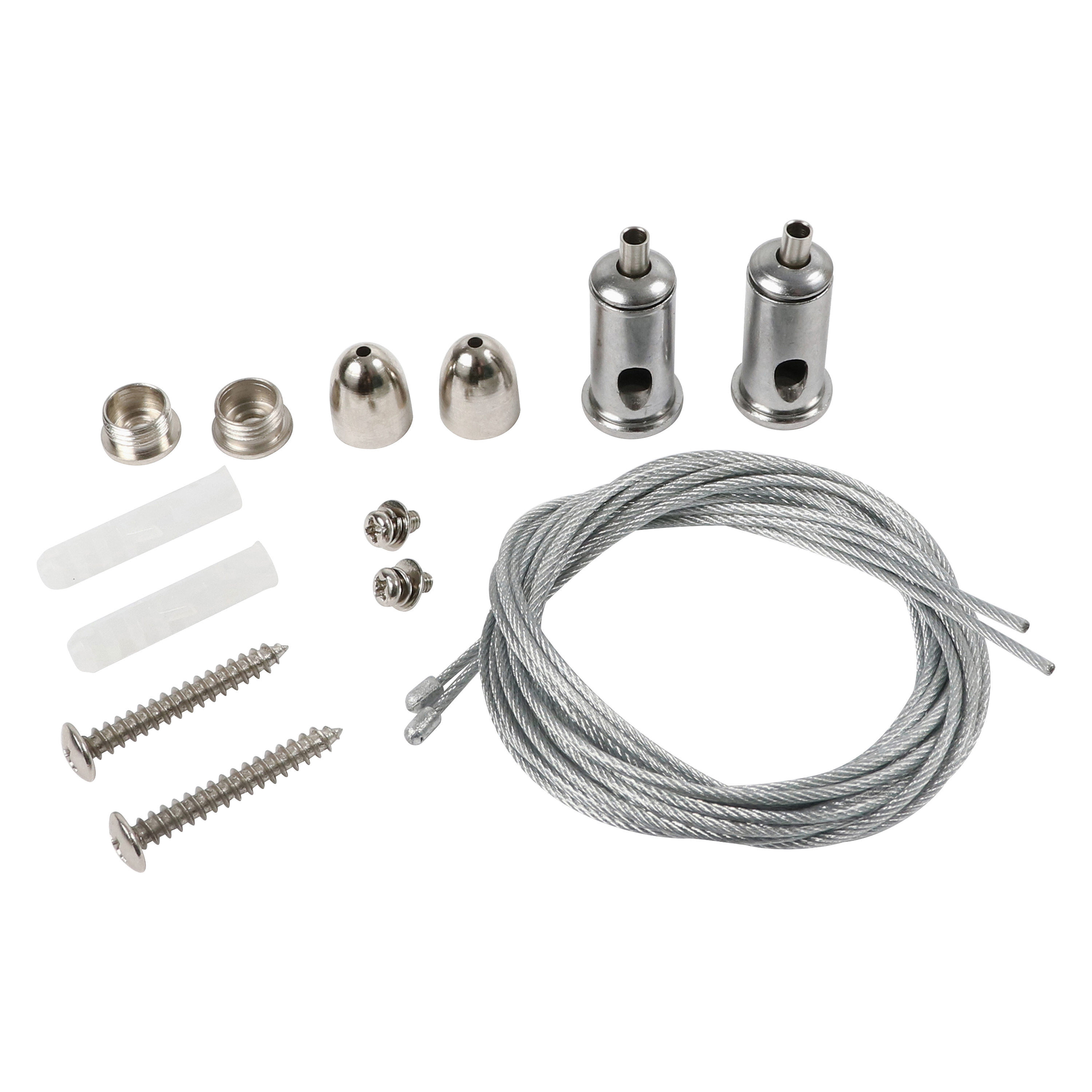

  • Suspended Mount Kit - available with all SKUs aside wall mount version
  • Wall Mount Kit - available for all wall mounting version only
Safety advice
  • Connect up to 700W
Product information bulletin
LEDLUM154 CCT SELECTABLE LINEAR SLOT
PDF (3.91 MB)
Product information bulletin
CCT SELECTABLE LINEAR SLOT
PDF (2.03 MB)
Electrical data
Nominal wattage 34.00 W
Nominal voltage 120…347 V
Photometrical data
Luminous flux 3400 lm
Luminous efficacy 100 lm/W
Color temperature 3000 … 4000 K
Color rendering index Ra > 80
Dimensions & Weight
Length 1270.00 mm
Height 255.00 mm
Width 310.00 mm
Product weight 2600.00 g
Materials & Colors
Product color White
Housing color White
Body material Aluminum
Mercury content 0.0 mg
Application & Mounting
Dimmable Yes
Type of dimming 0-10V
Mounting type Surface
Application environment Indoor
Replaceable light source No
Certificates & Standards
Replaceable light source (EPREL) Not replaceable
Product code Packaging unit (Pieces/Unit) Dimensions (length x width x height) Gross weight Volume
0046135624537 Folding box
1		 1,250 mm x 95 mm x 116 mm 2952.00 g 13.78 dm³
4058075746459 Shipping box
6		 1,270 mm x 310 mm x 255 mm 18401.00 g 100.39 dm³

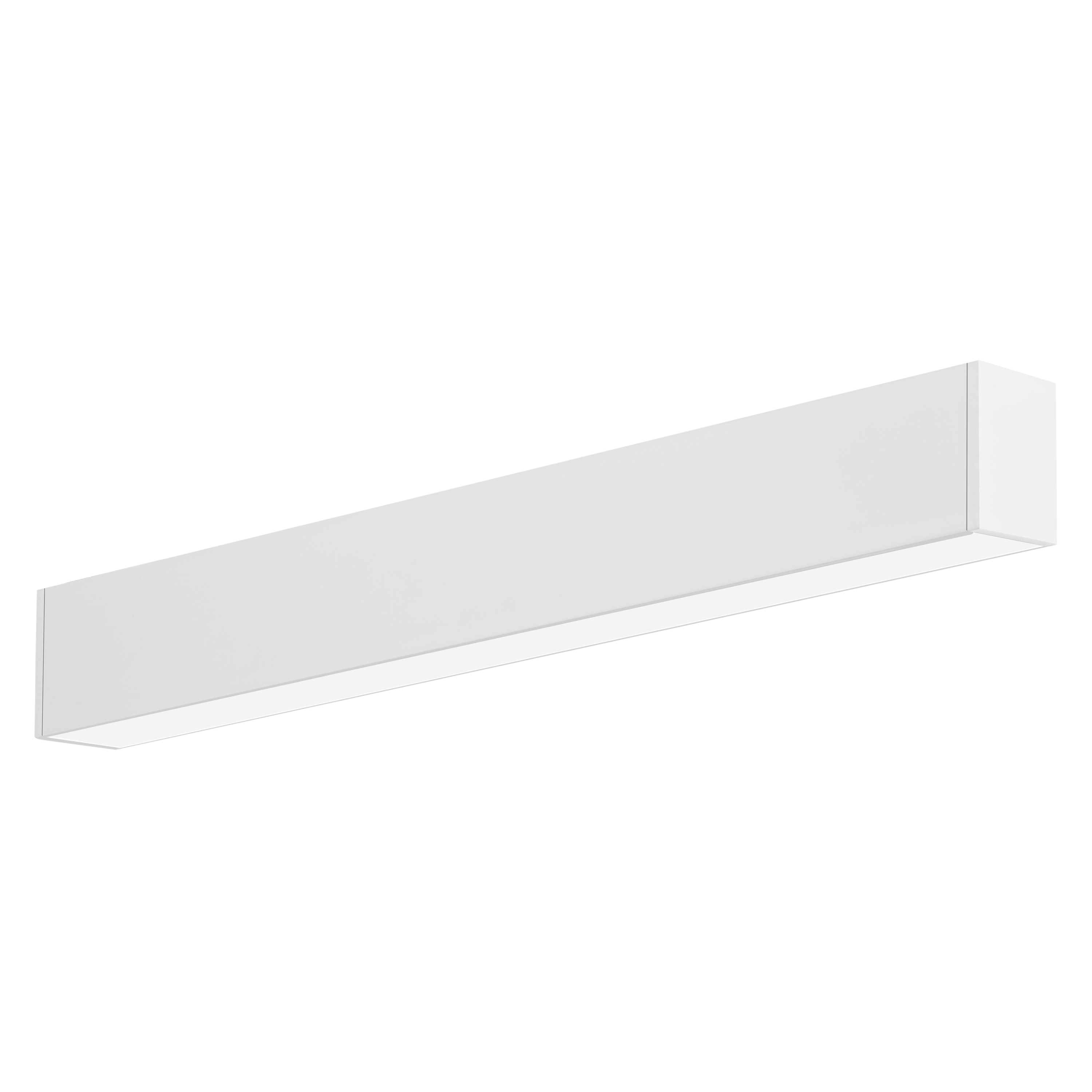

Product image: white background, diagonal
Value Class Linear Slot 24"
JPG (846.24 KB)

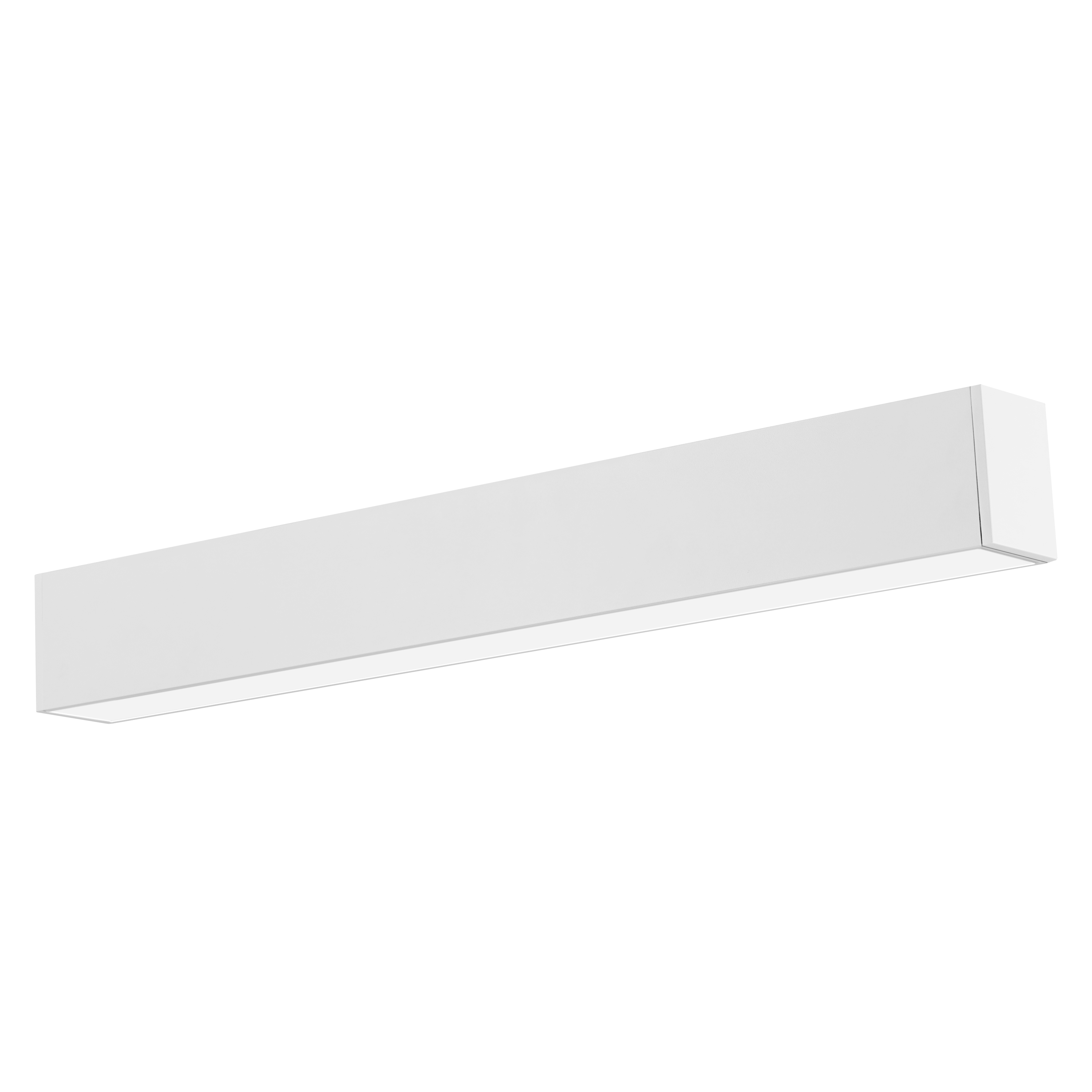

Product image: white background, diagonal
Value Class Linear Slot
JPG (856.32 KB)

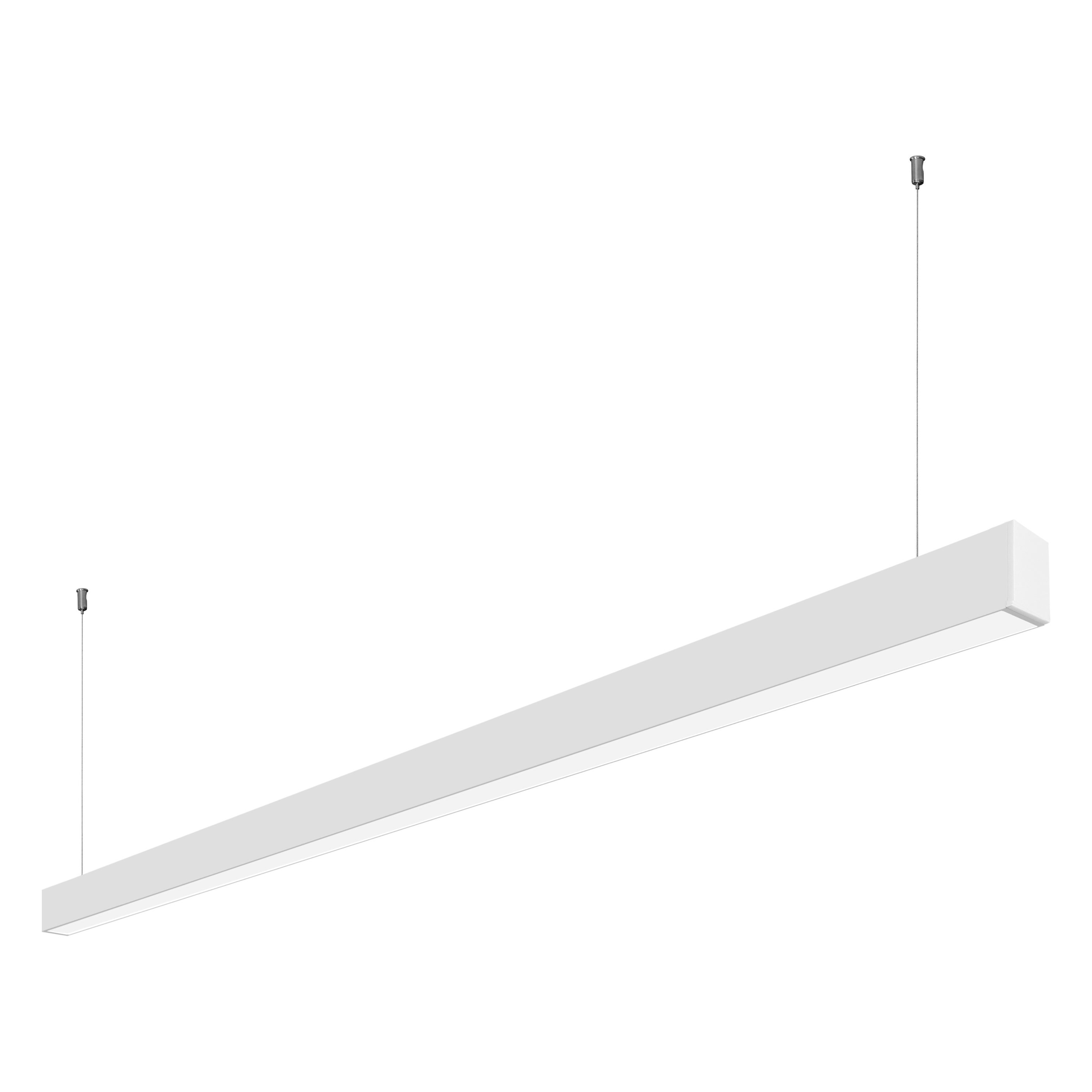

Product image: white background, diagonal
Linear Slot Value Class 48"
JPG (744.32 KB)

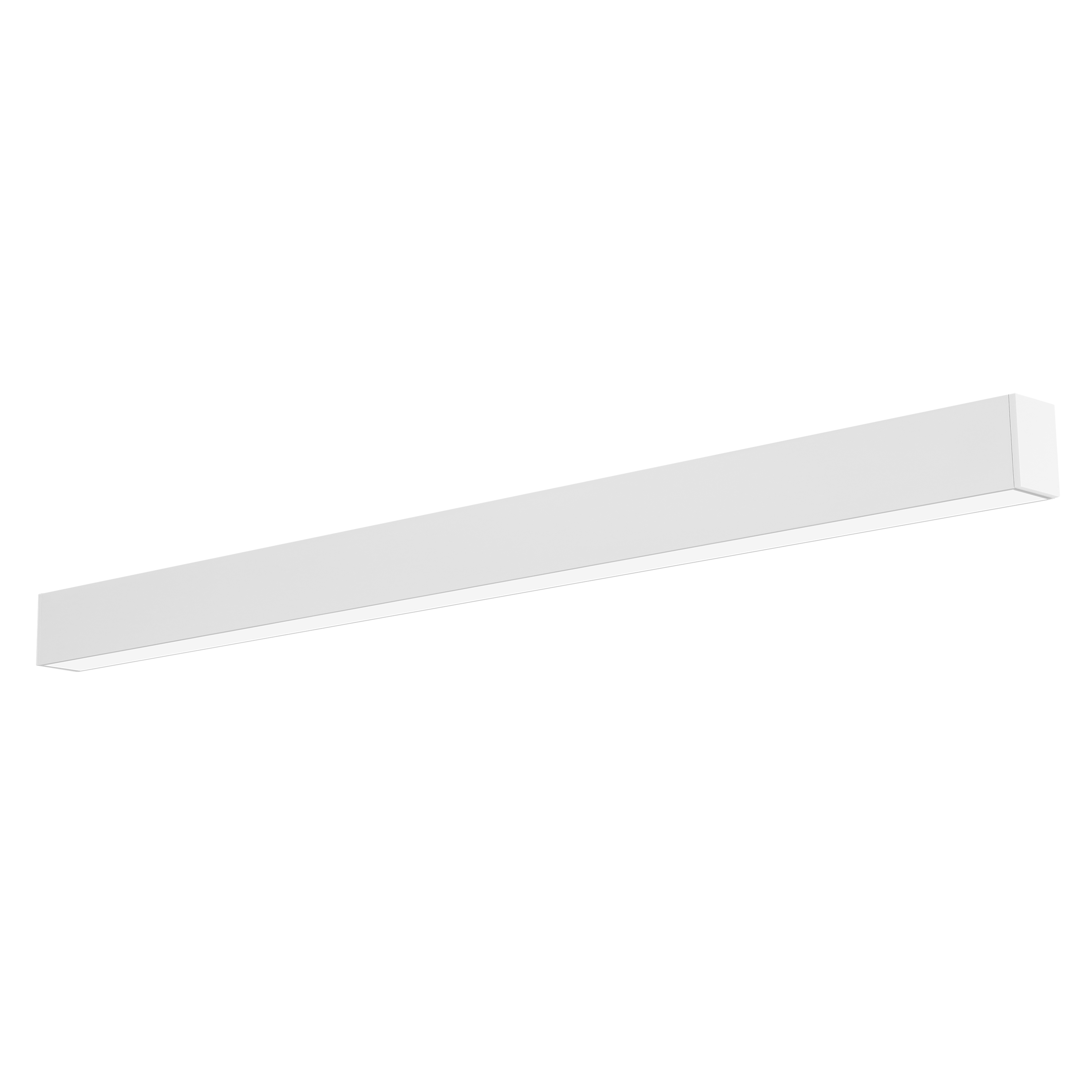

Product image: white background, diagonal
Linear Slot Value Class 48"
JPG (691.8 KB)

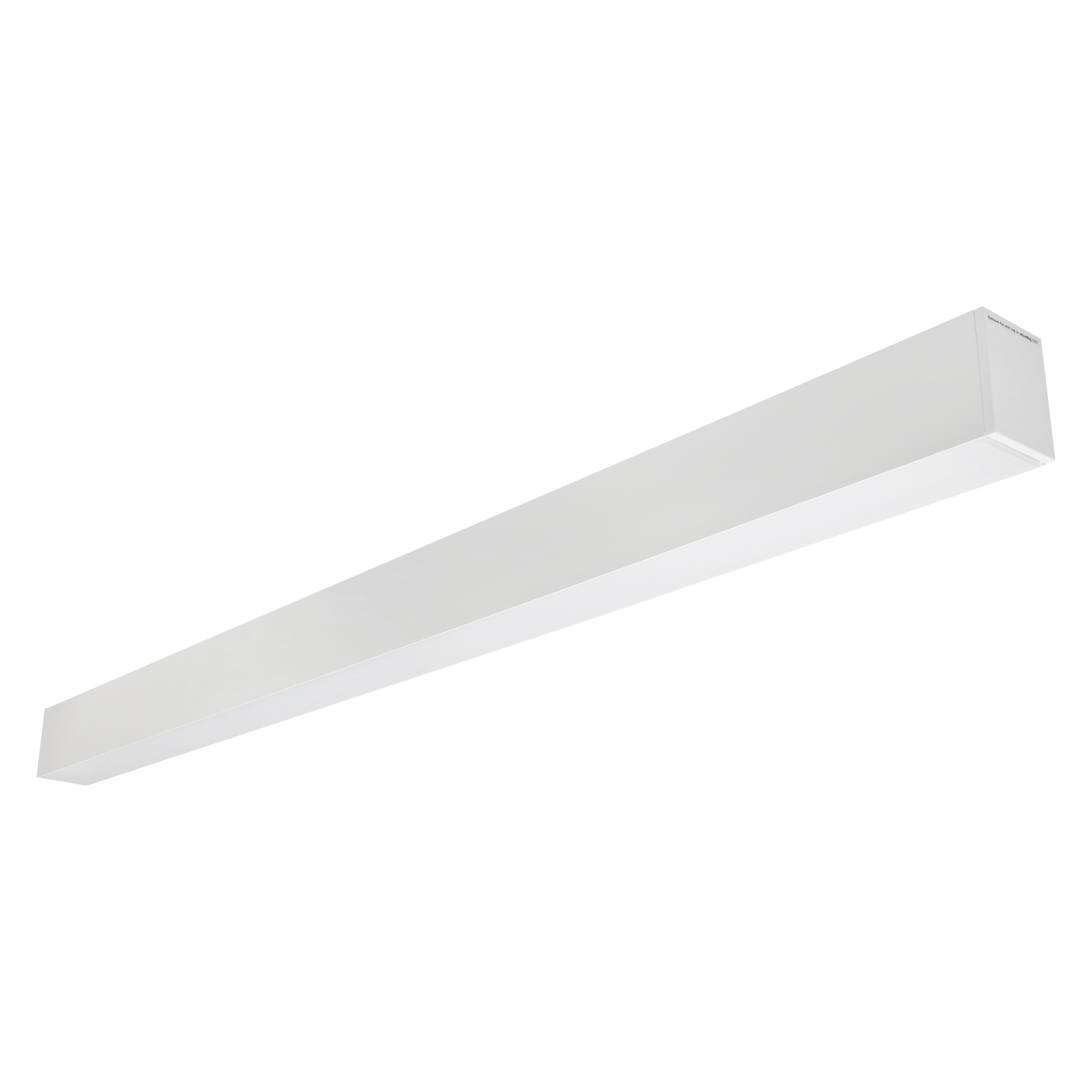

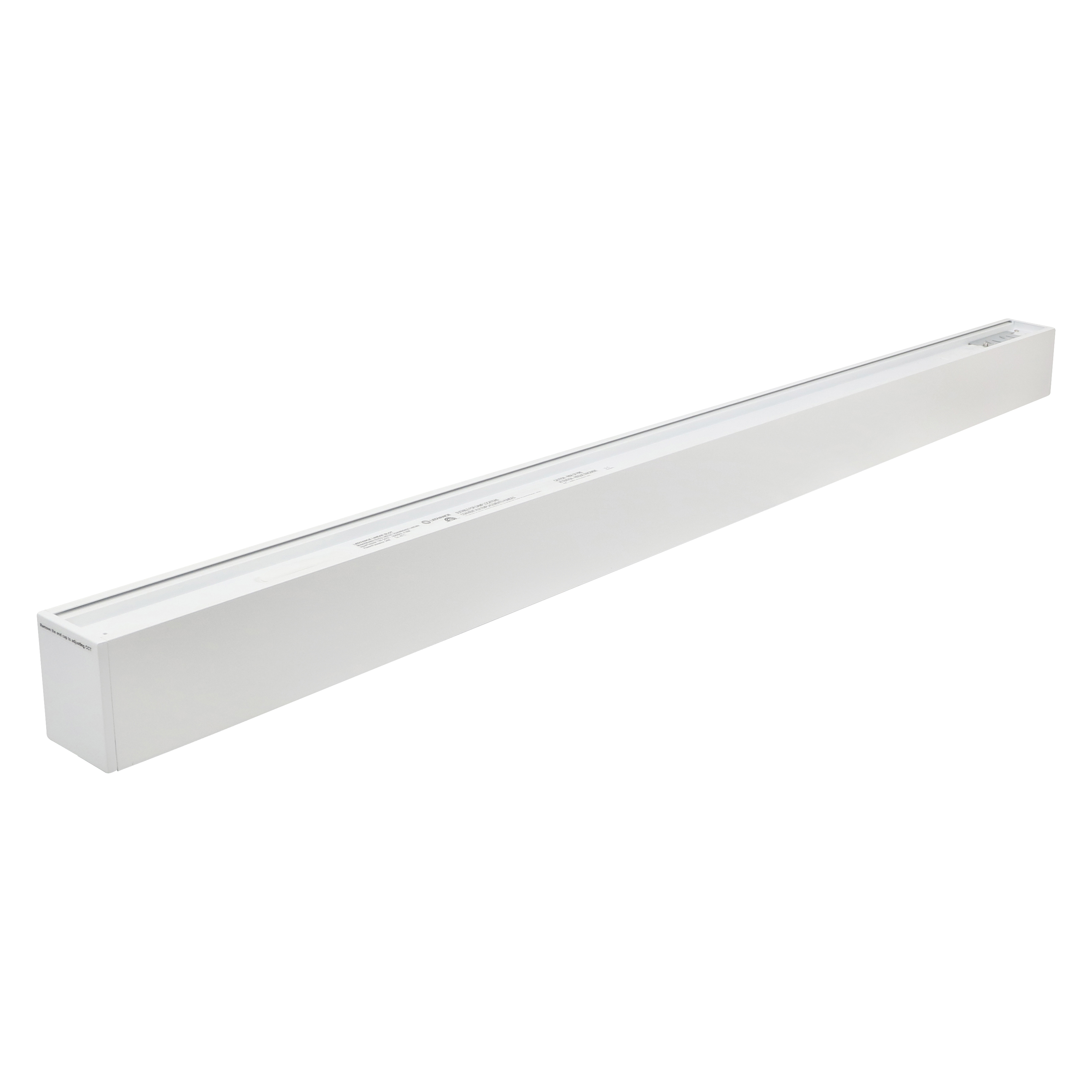

Product image: white background, diagonal
Linear Slot 1A 4'
JPG (947.98 KB)
Product image: white background, diagonal, alternative image
Linear Slot 1A 4'
JPG (907.4 KB)

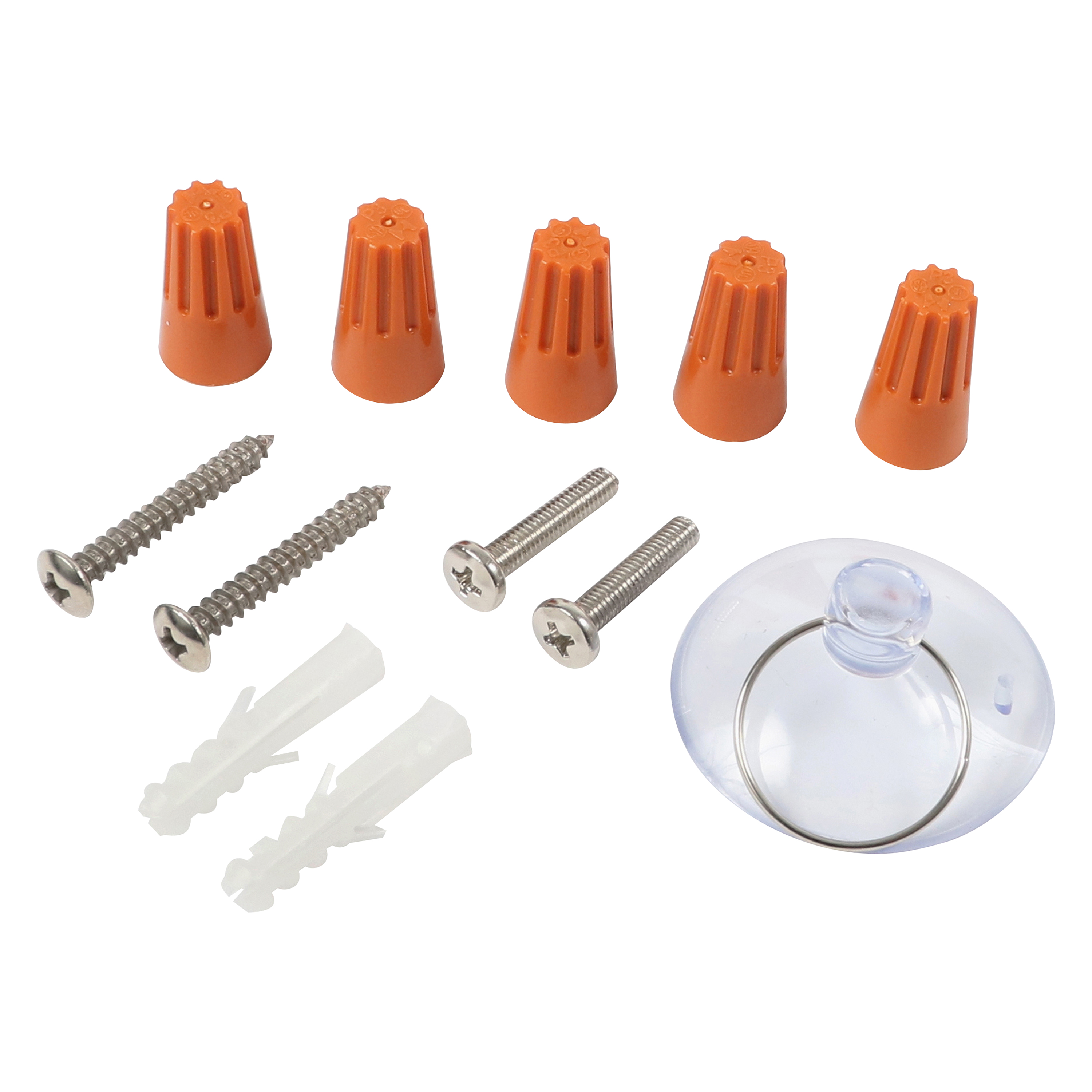

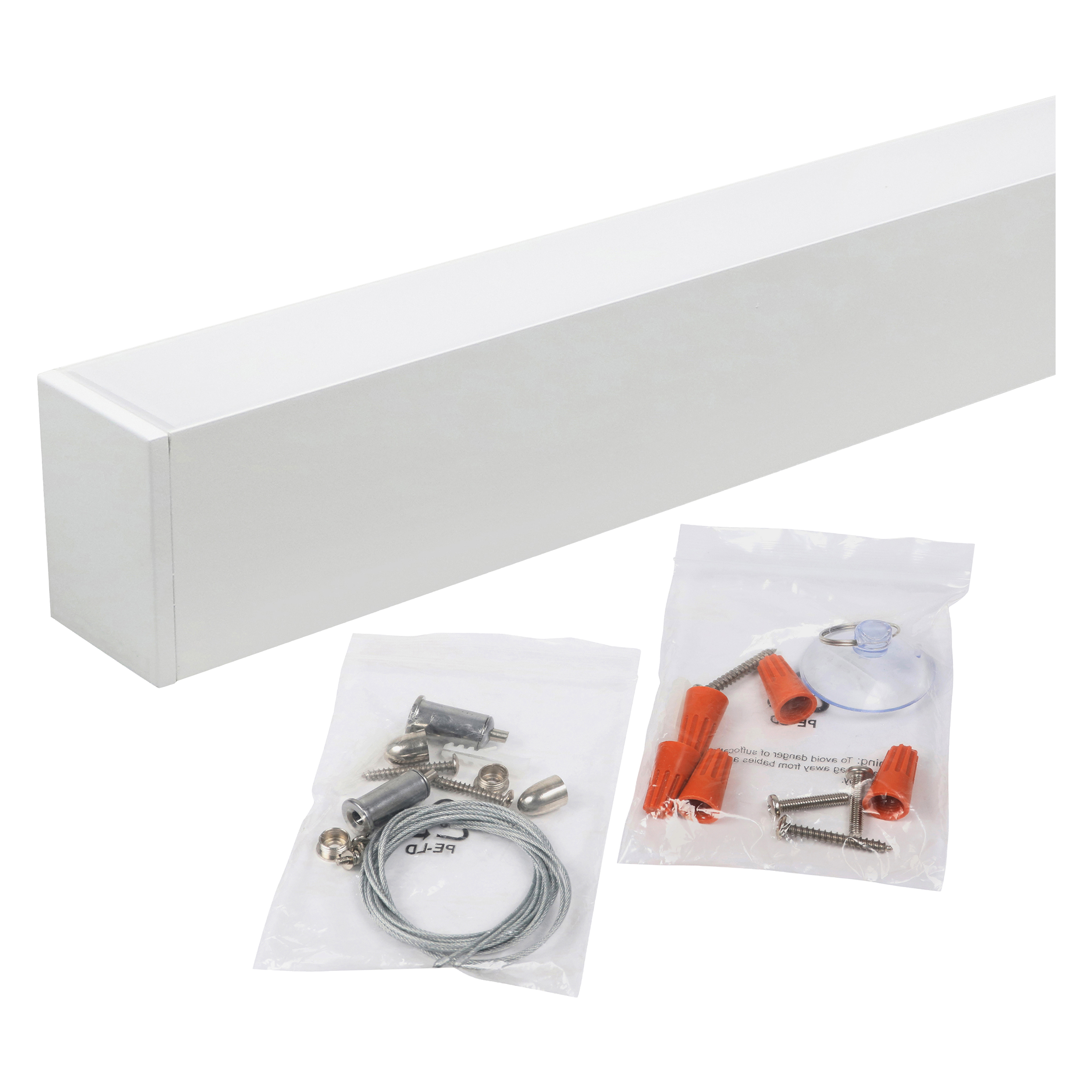

Product image: white background, with accessory, alternative image
Linear Slot 1A 4'
JPG (1.98 MB)
Product image: white background, with accessory, alternative image
Linear Slot 1A 4'
JPG (1.52 MB)
Product image: white background, with accessory, alternative image
Linear Slot 1A 4'
JPG (1.57 MB)

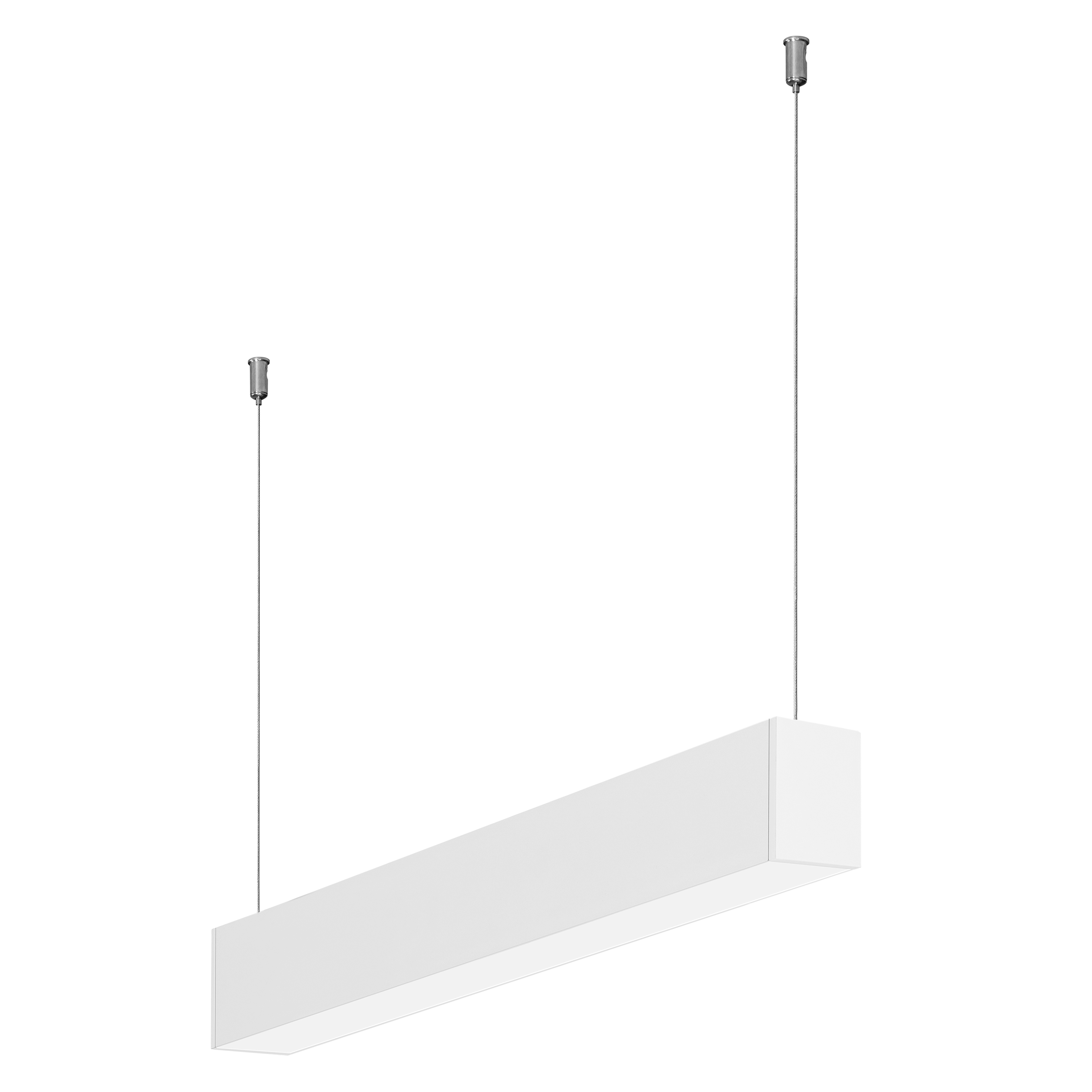

Beauty Shot

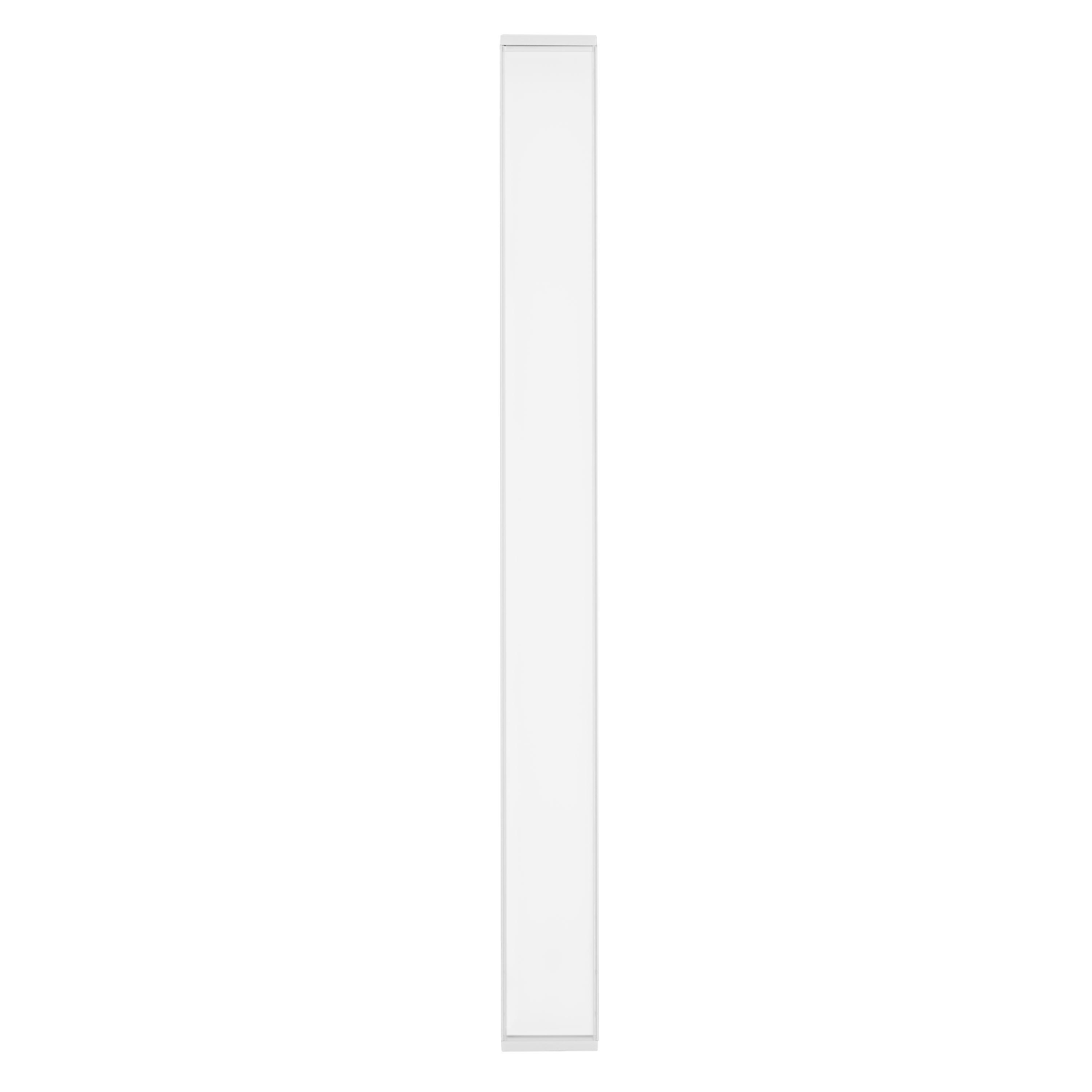

Value Class Linear Slot 24"
JPG (843.52 KB)

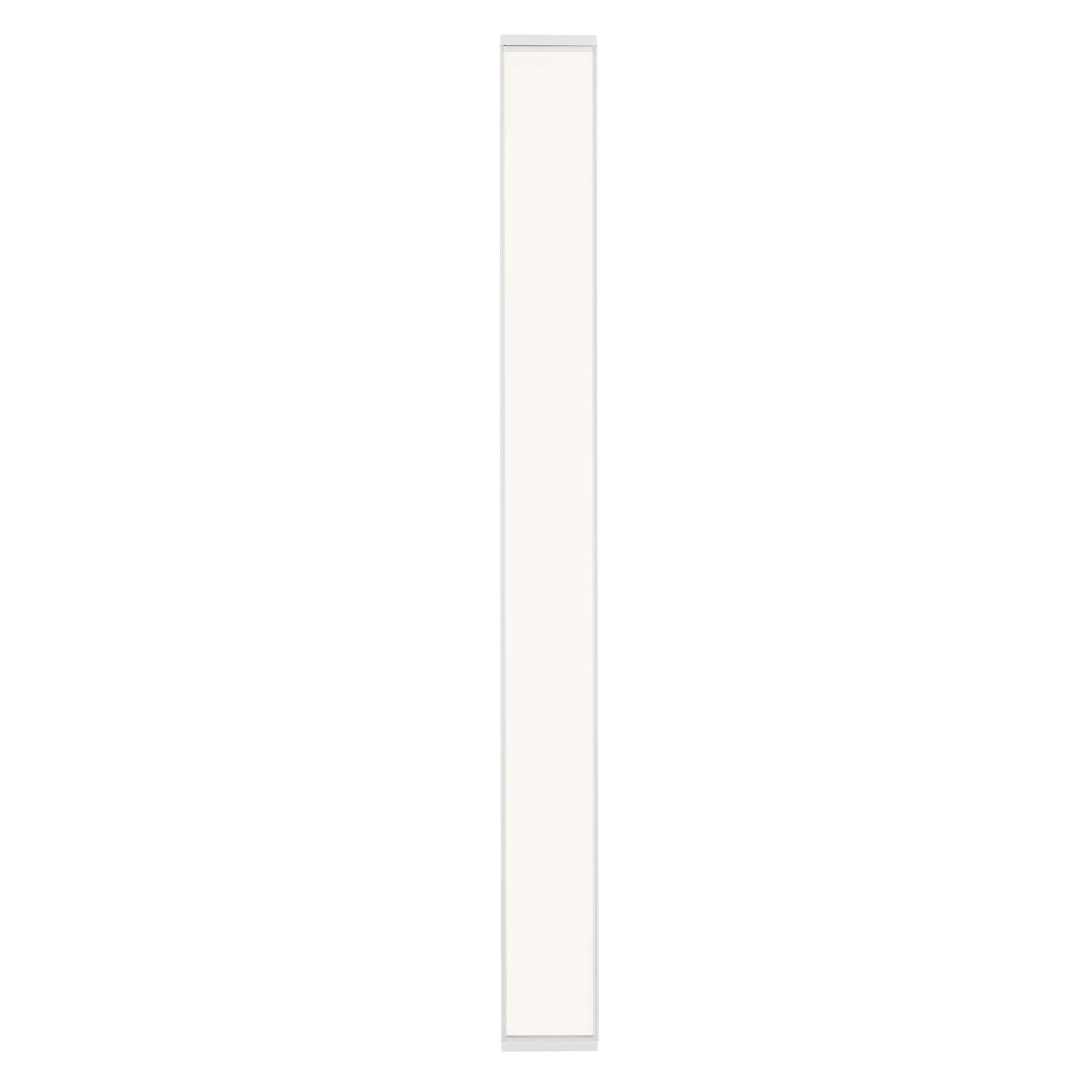

Beauty Shot
Value Class Linear Slot 24" - 3000K
JPG (851.96 KB)

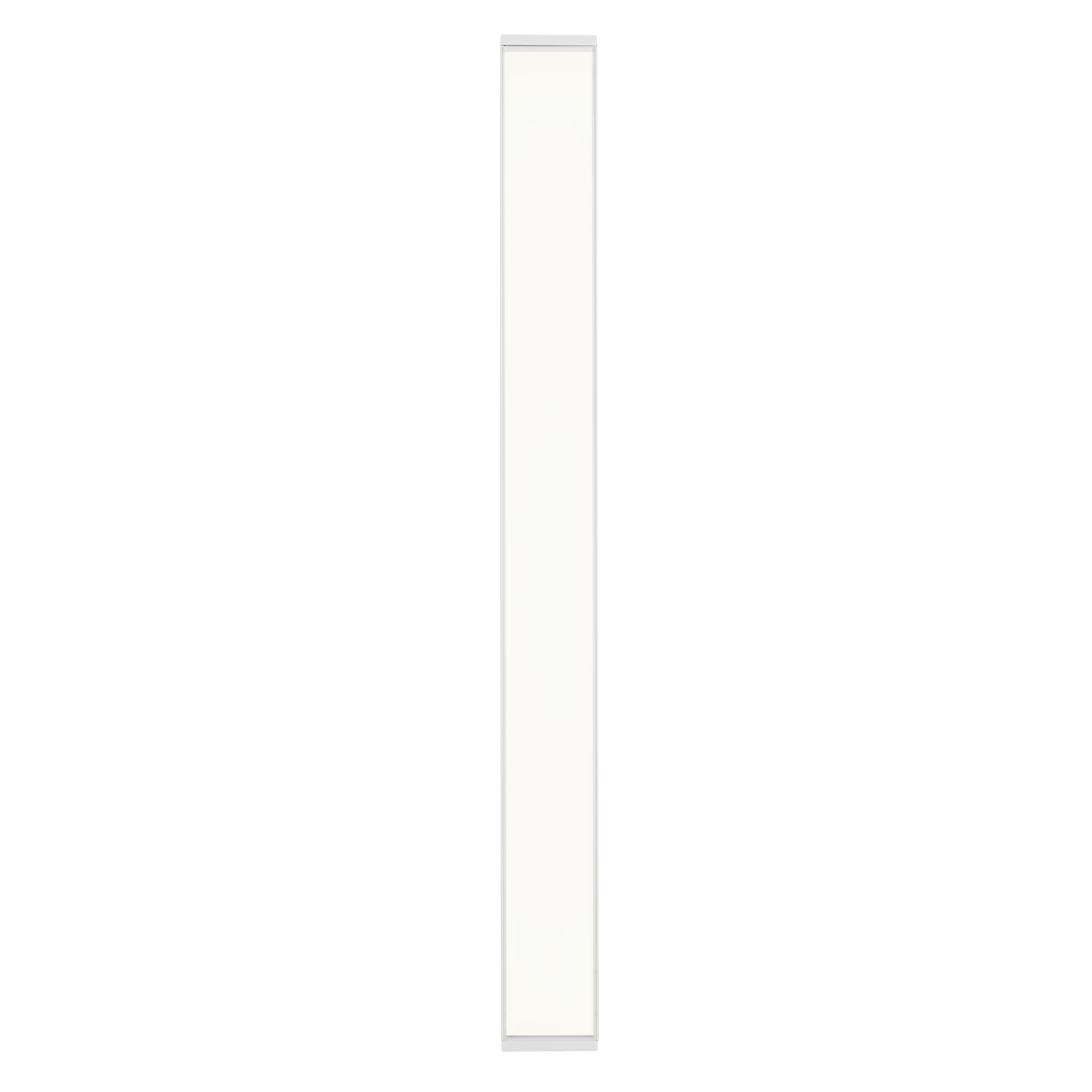

Beauty Shot
Value Class Linear Slot 24" - 3500K
JPG (849.67 KB)

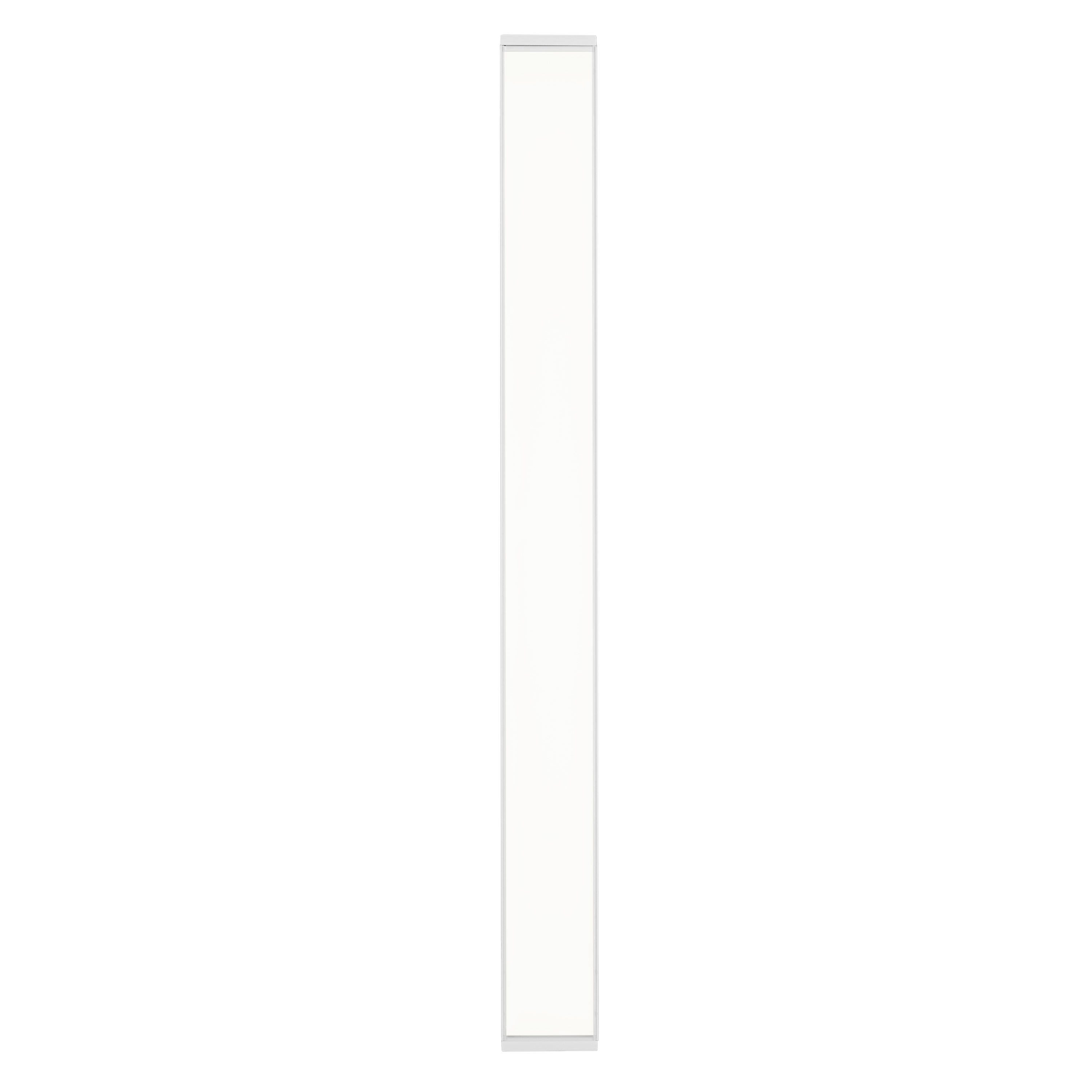

Beauty Shot

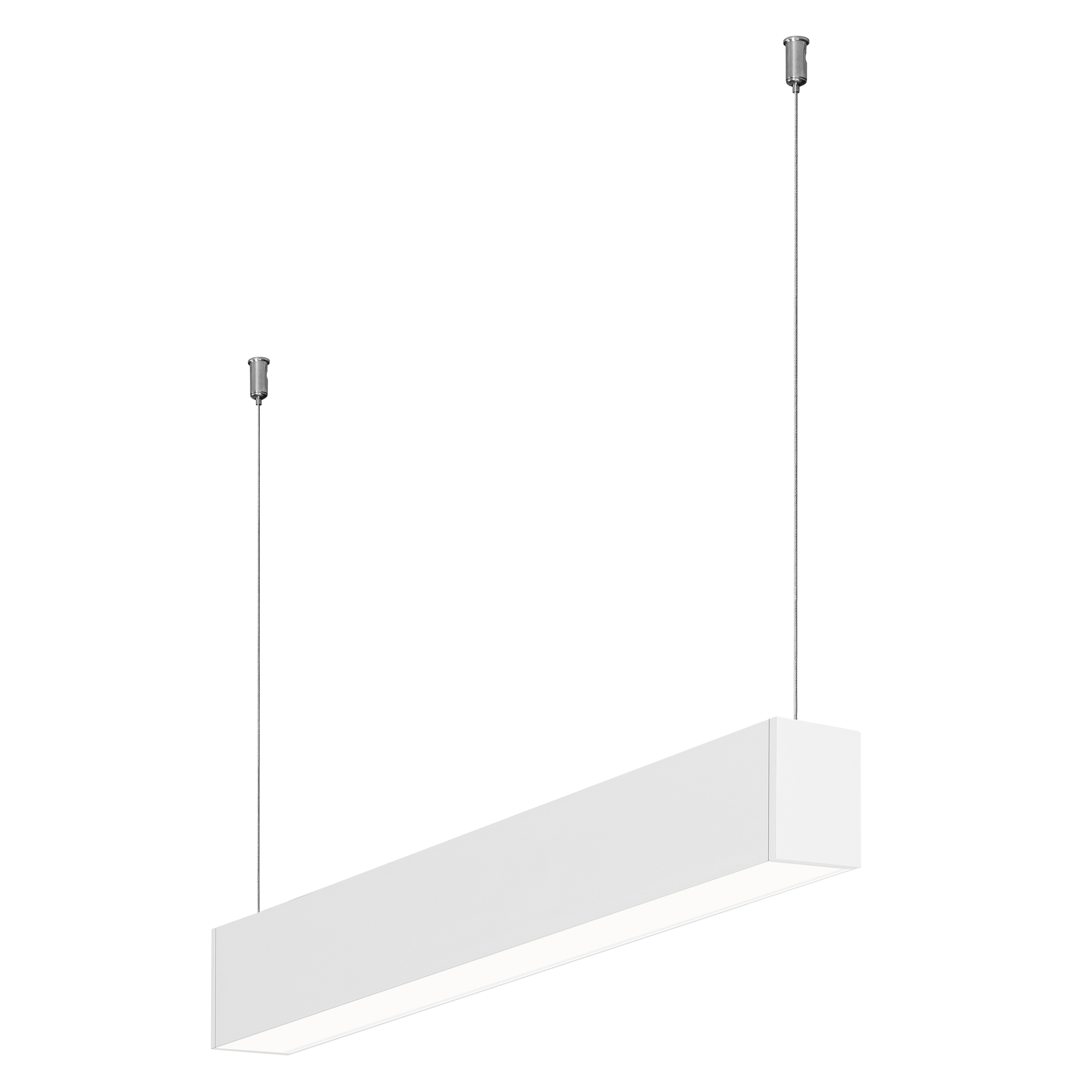

Value Class Linear Slot 24" - 4000K
JPG (848.97 KB)
Beauty Shot
Value Class Linear Slot 24"
JPG (696 KB)
Beauty Shot
Value Class Linear Slot 24" - 3000K
JPG (687.63 KB)
Beauty Shot
Value Class Linear Slot 24" - 3500K
JPG (675.31 KB)
Beauty Shot
Value Class Linear Slot 24" - 4000K
JPG (673.08 KB)

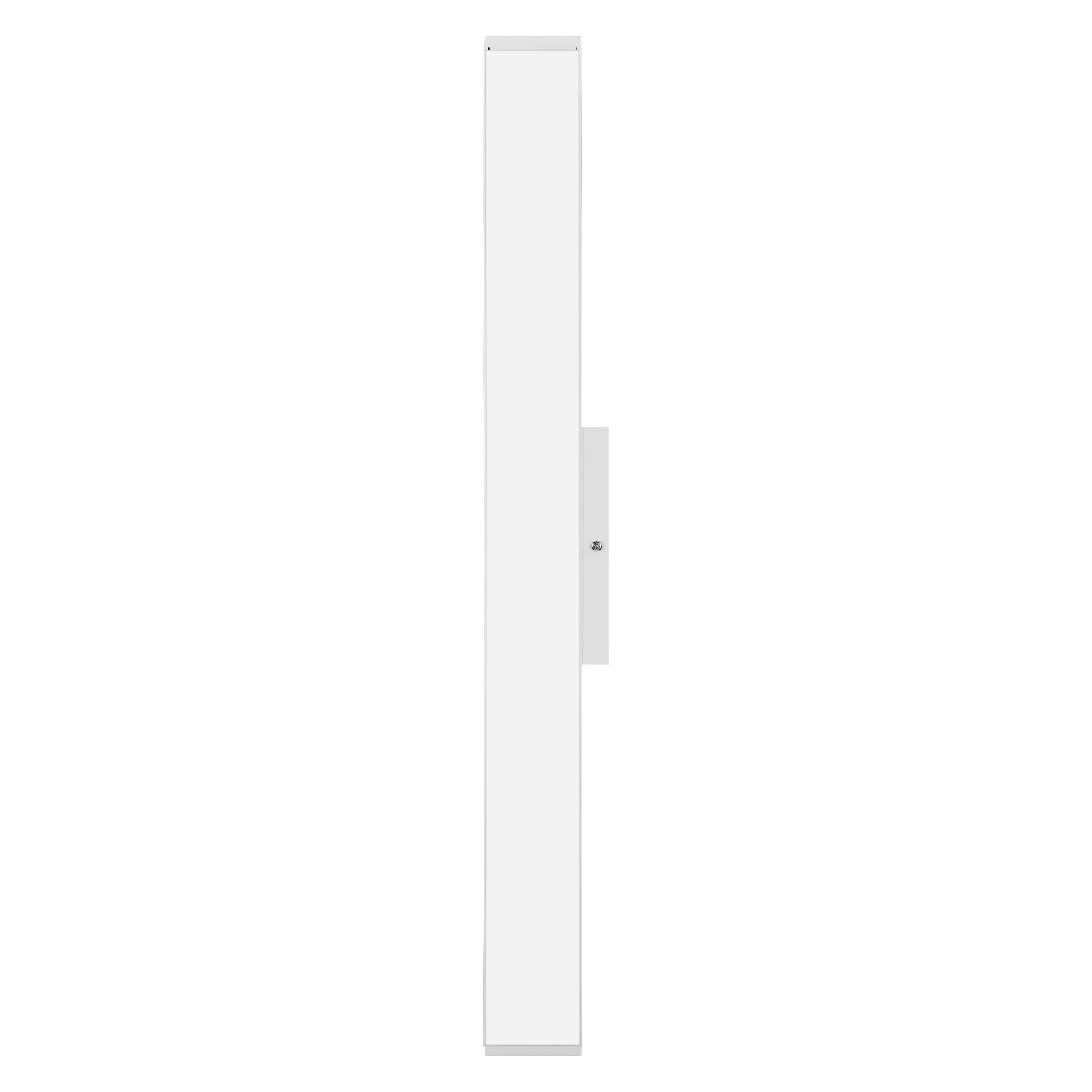

Beauty Shot

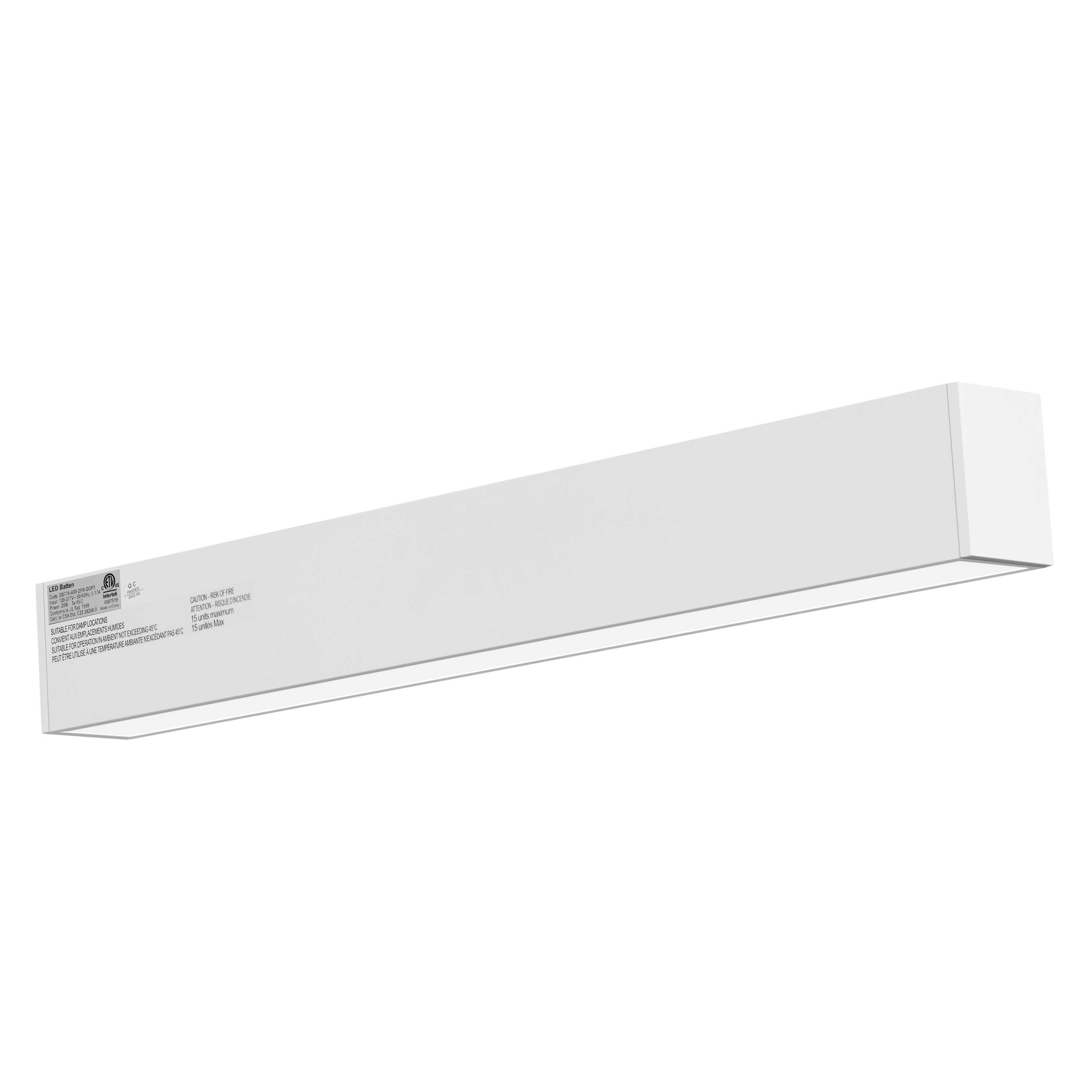

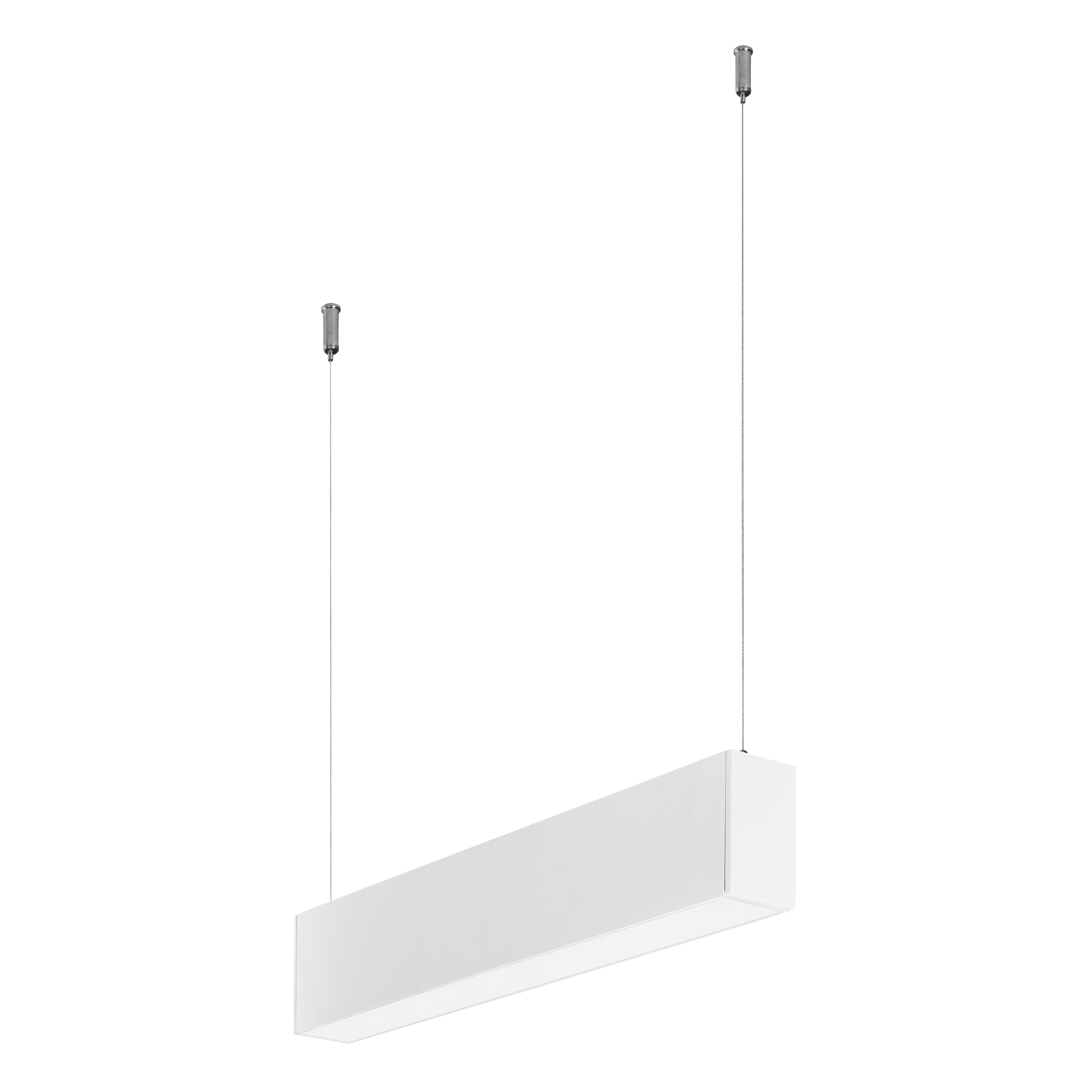

Value Class Linear Slot
JPG (751.98 KB)
Beauty Shot

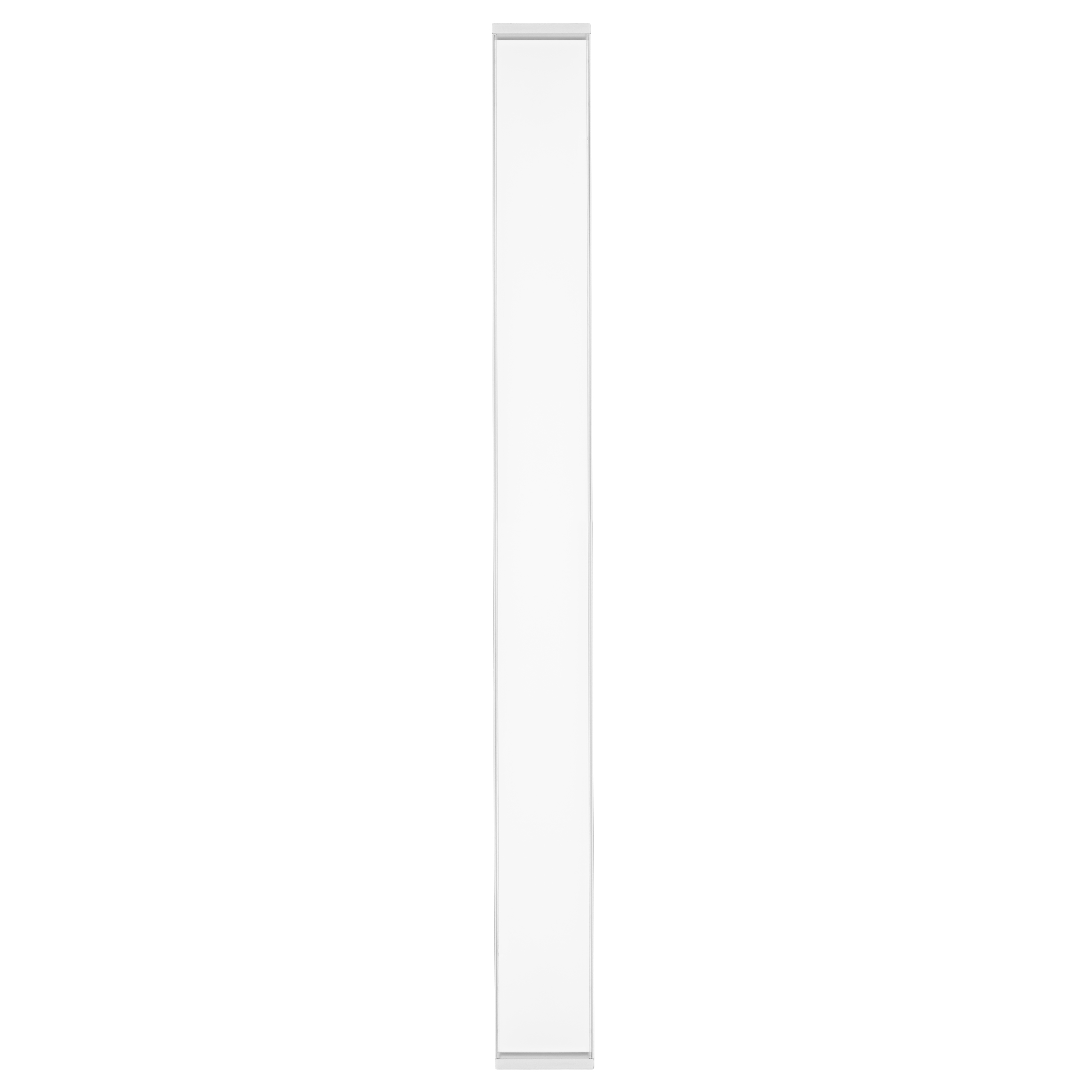

Value Class Linear Slot
JPG (650.45 KB)

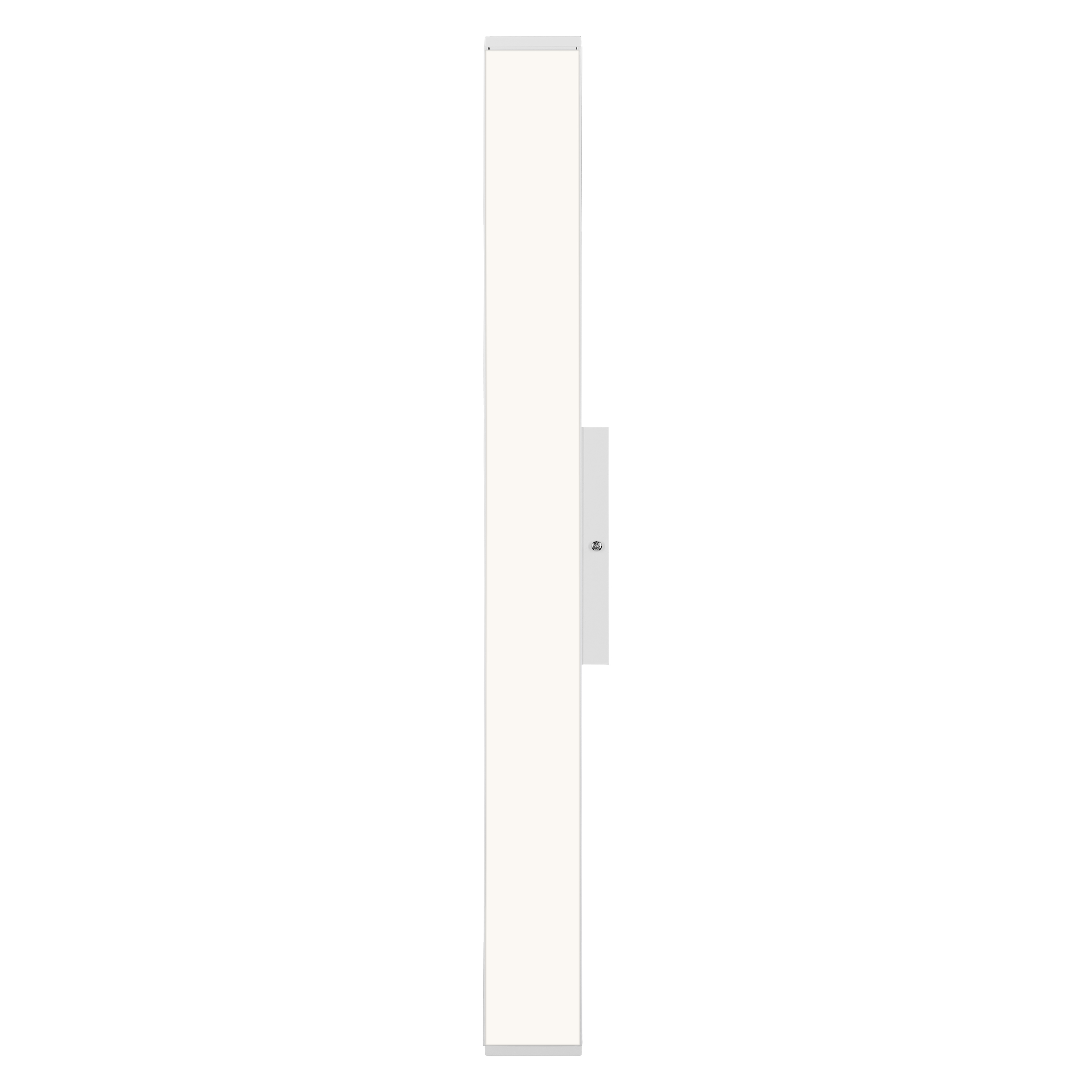

Beauty Shot
Value Class Linear Slot - 3000K
JPG (657.38 KB)
Beauty Shot

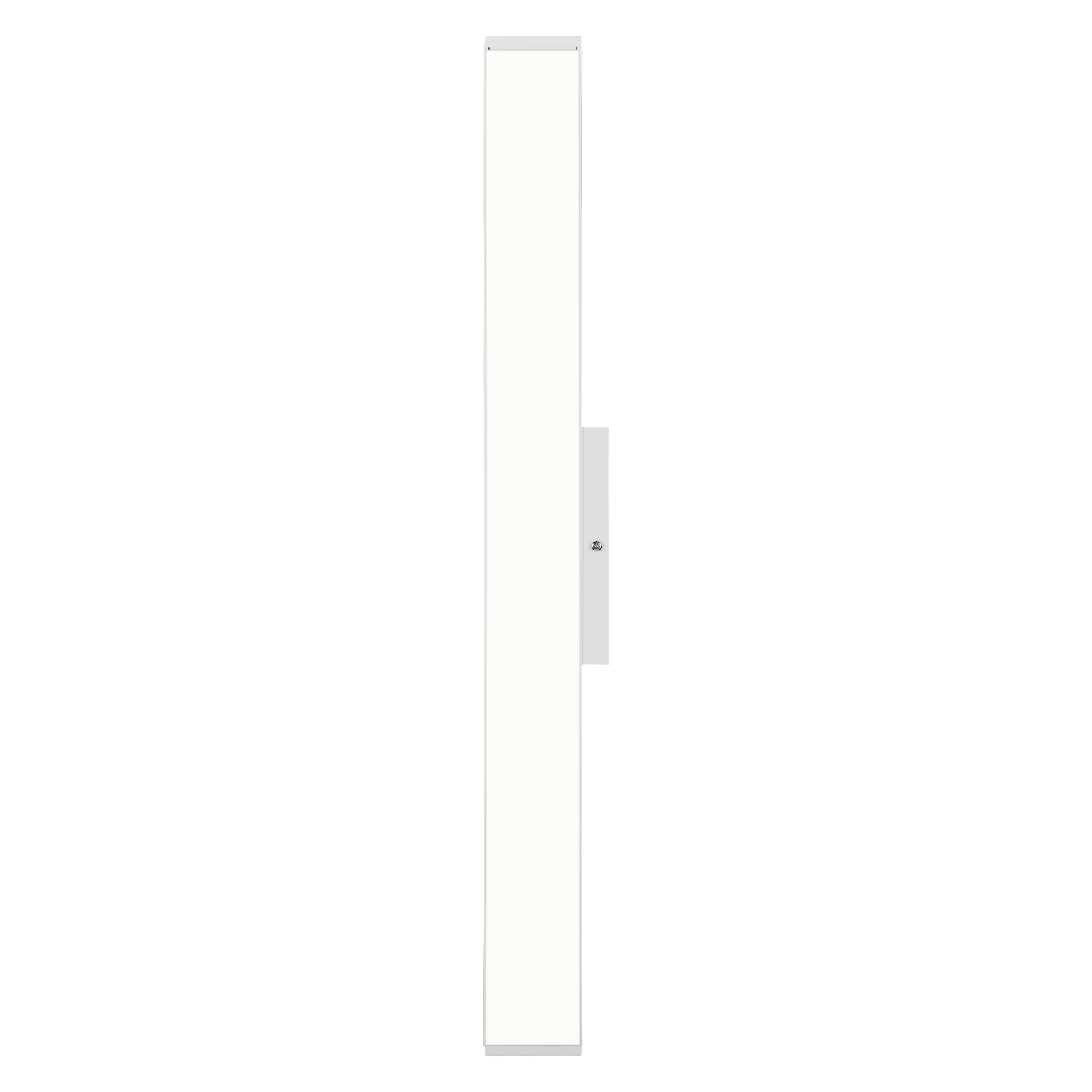

Value Class Linear Slot - 3500K
JPG (654.12 KB)

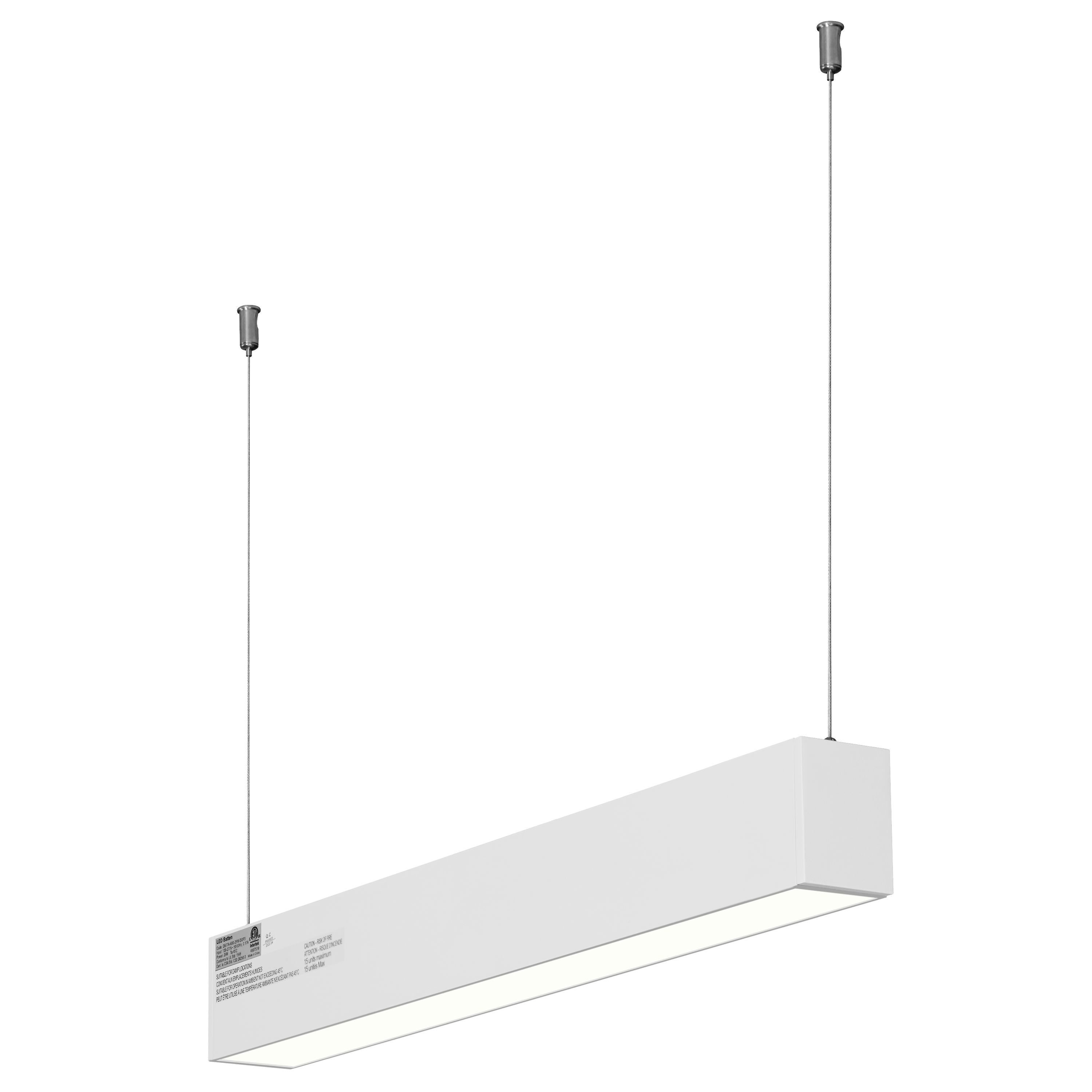

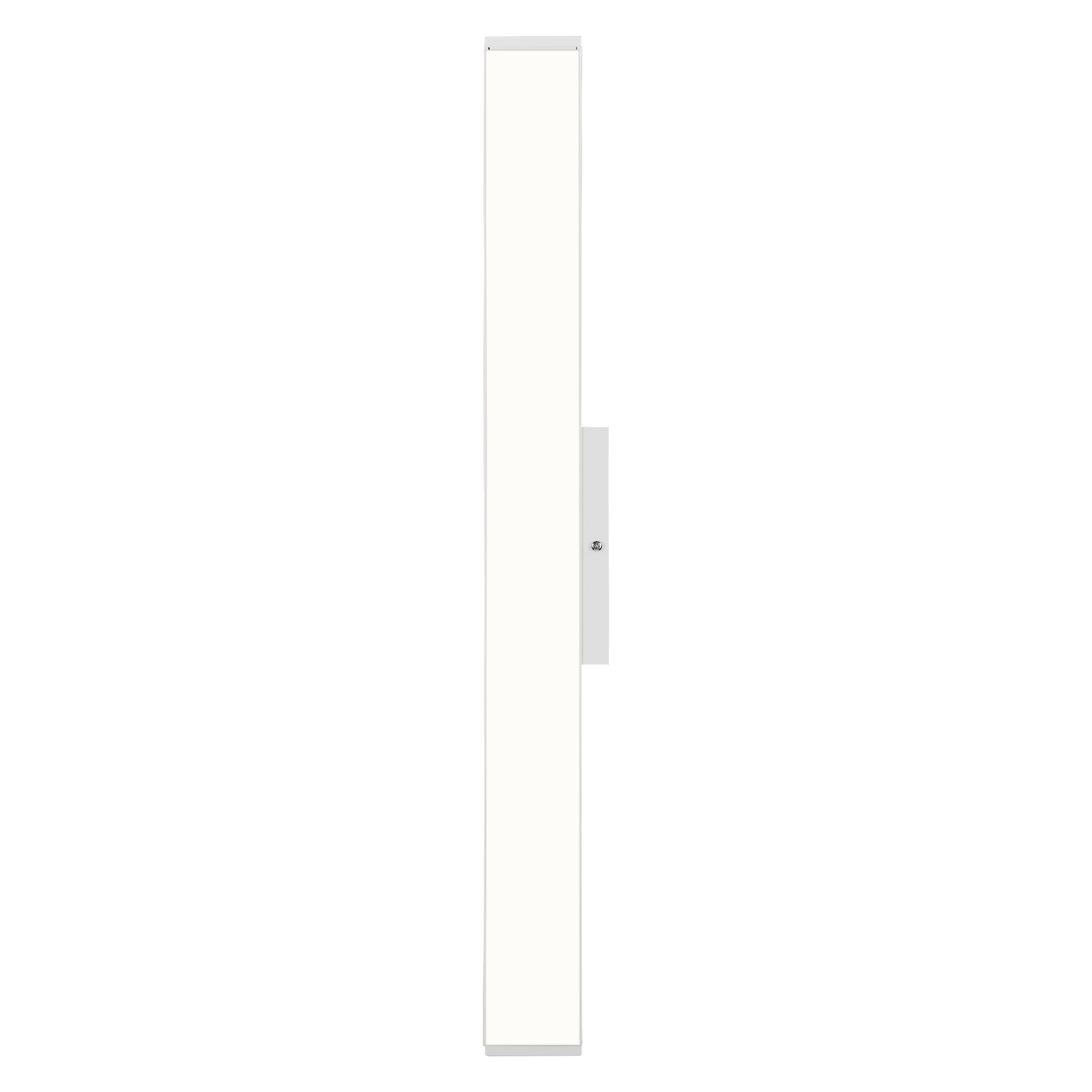

Beauty Shot
Value Class Linear Slot - 4000K
JPG (653.72 KB)
Beauty Shot
Value Class Linear Slot
JPG (893.43 KB)
Beauty Shot

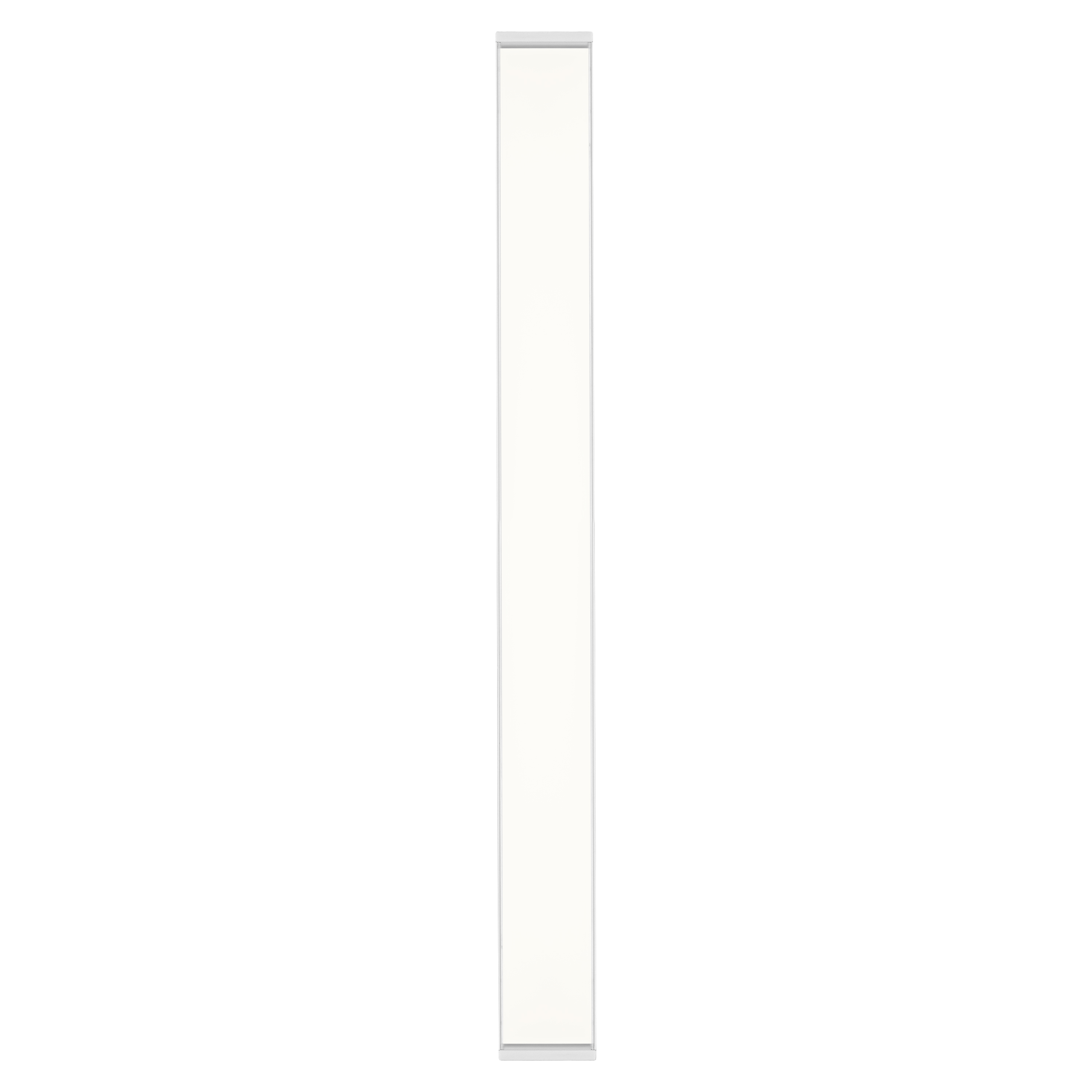

Value Class Linear Slot - 4000K
JPG (847.84 KB)
Beauty Shot
Value Class Linear Slot
JPG (709.38 KB)
Beauty Shot

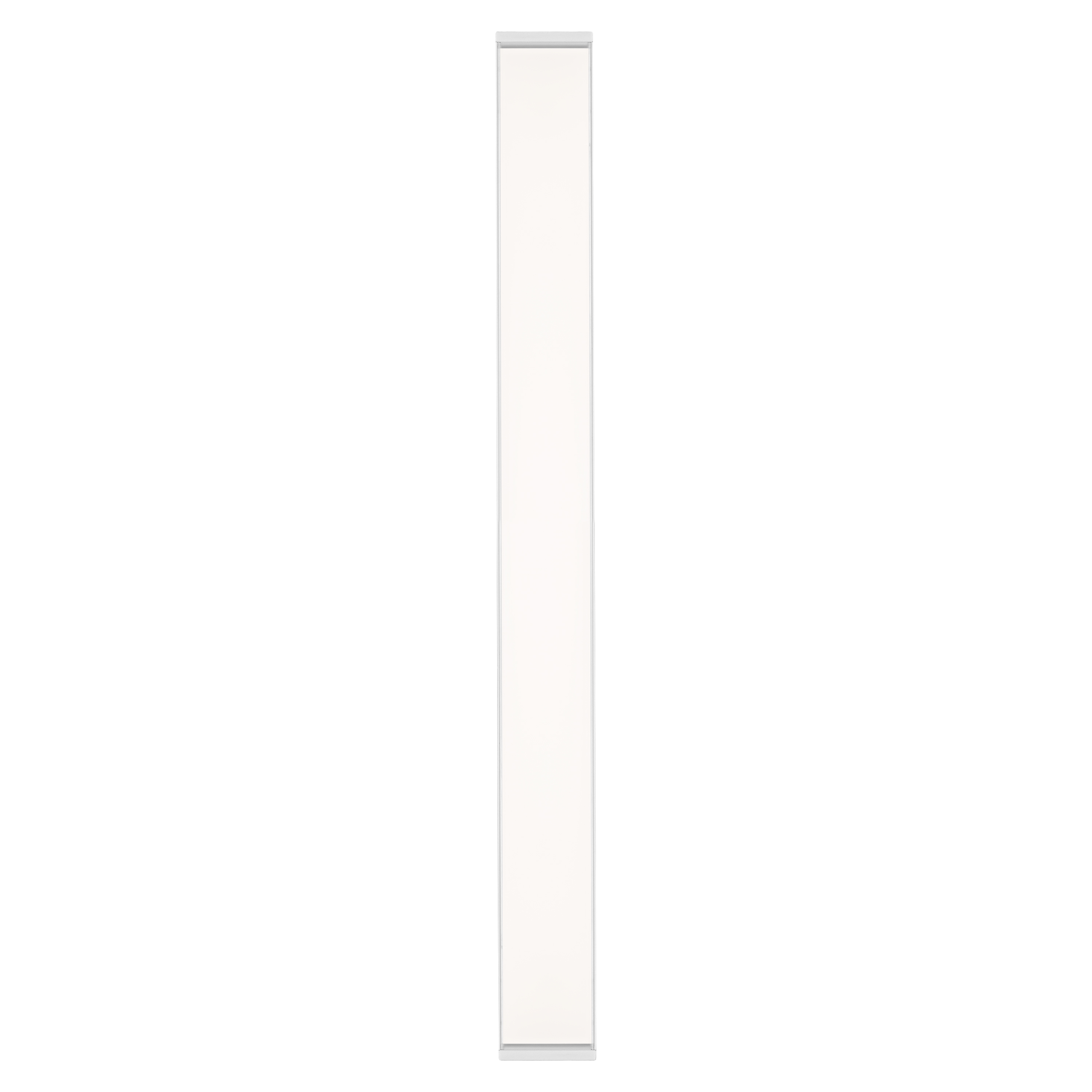

Value Class Linear Slot - 3000K
JPG (699.87 KB)
Beauty Shot
Value Class Linear Slot -3500K
JPG (703.37 KB)
Beauty Shot
Value Class Linear Slot - 4000K
JPG (687.89 KB)
Beauty Shot

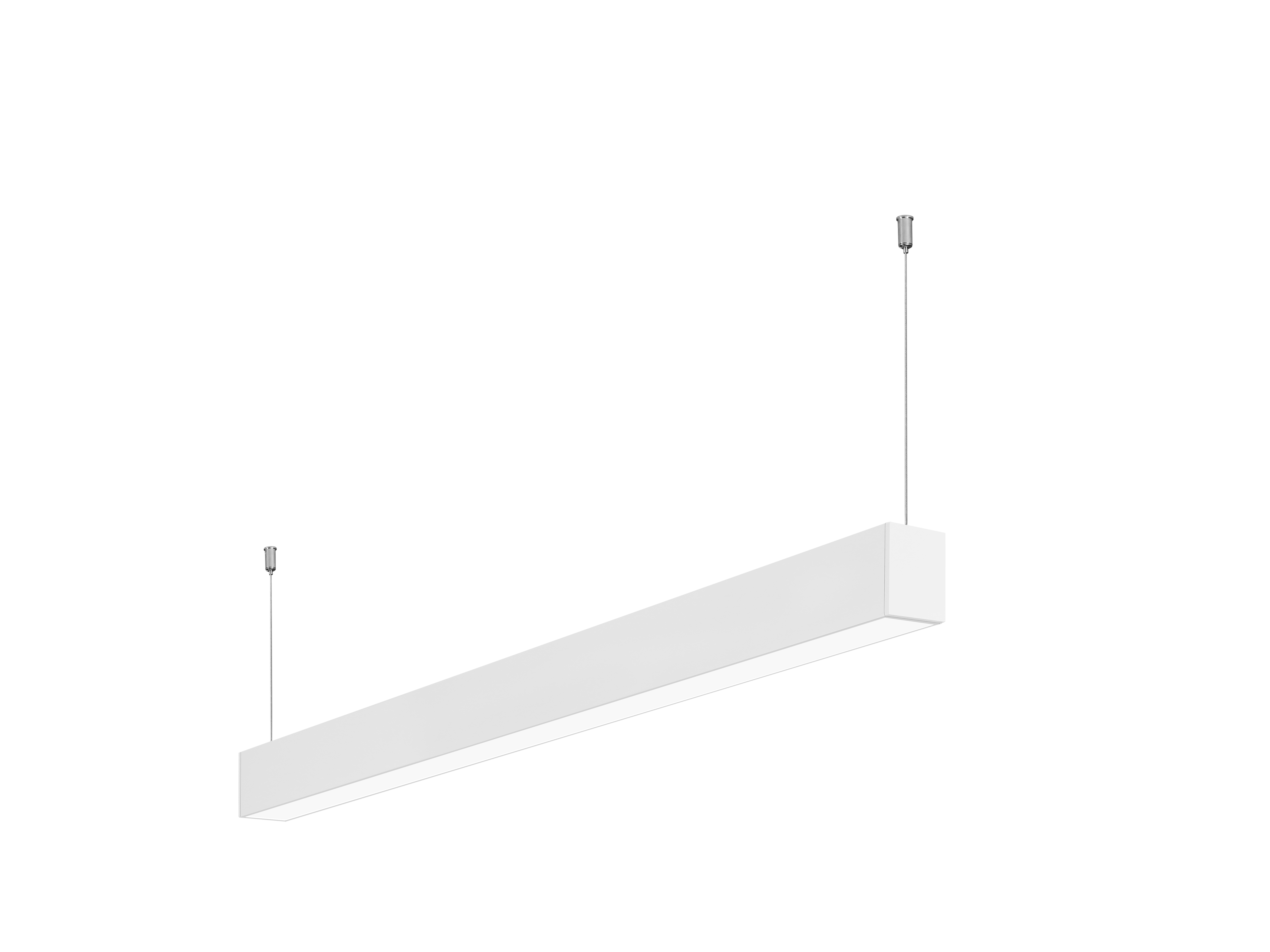

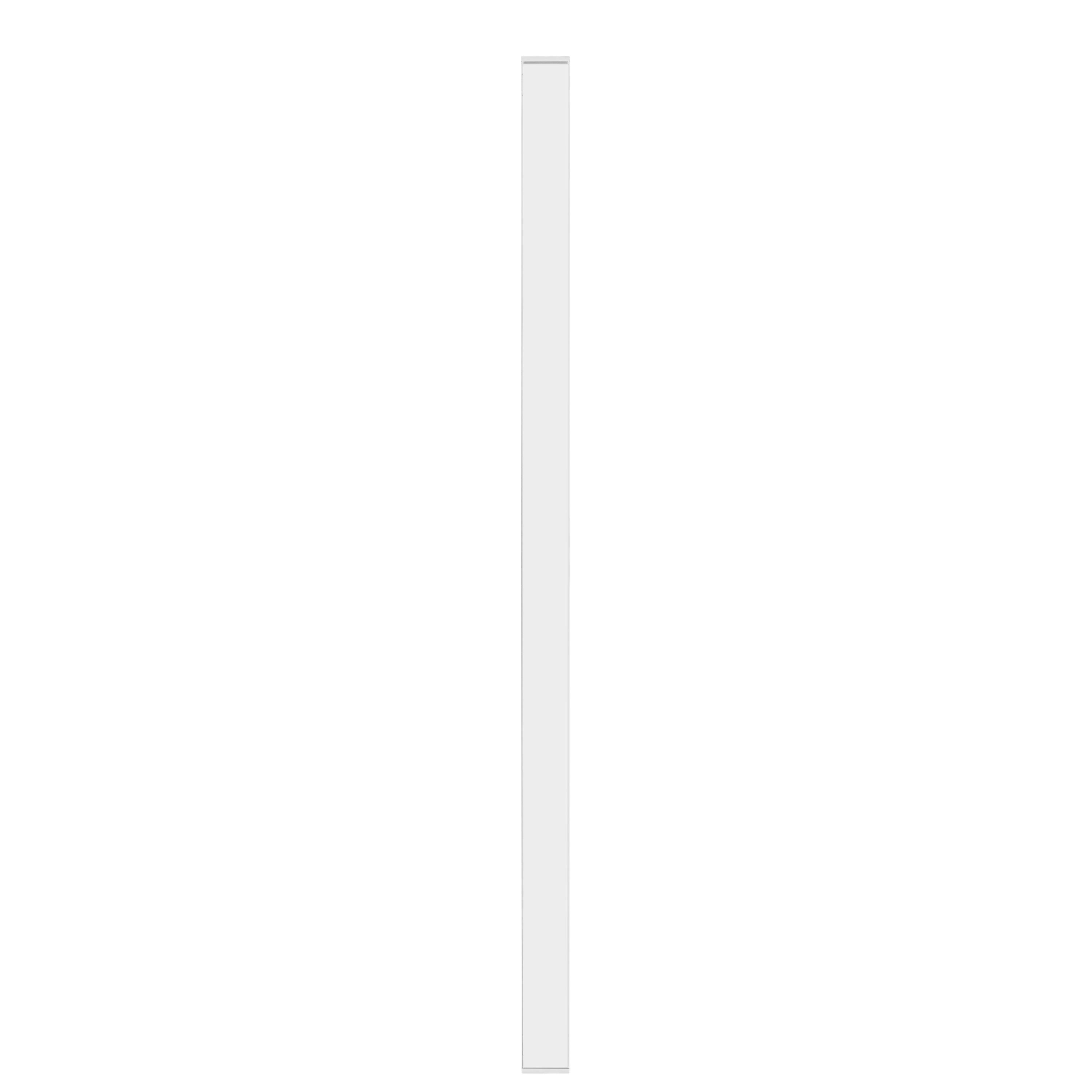

Linear Slot Value Class 48"
JPG (4.29 MB)

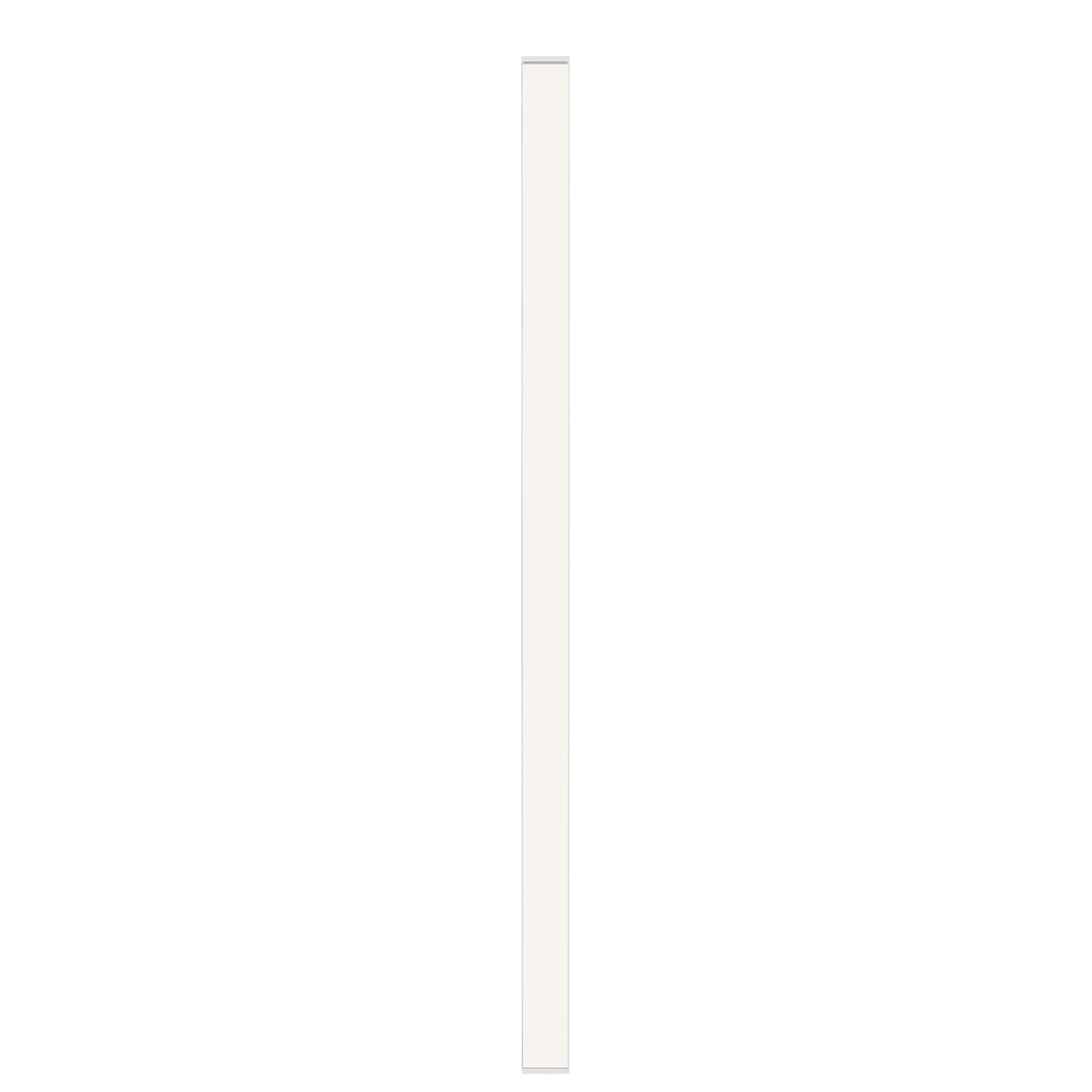

Beauty Shot

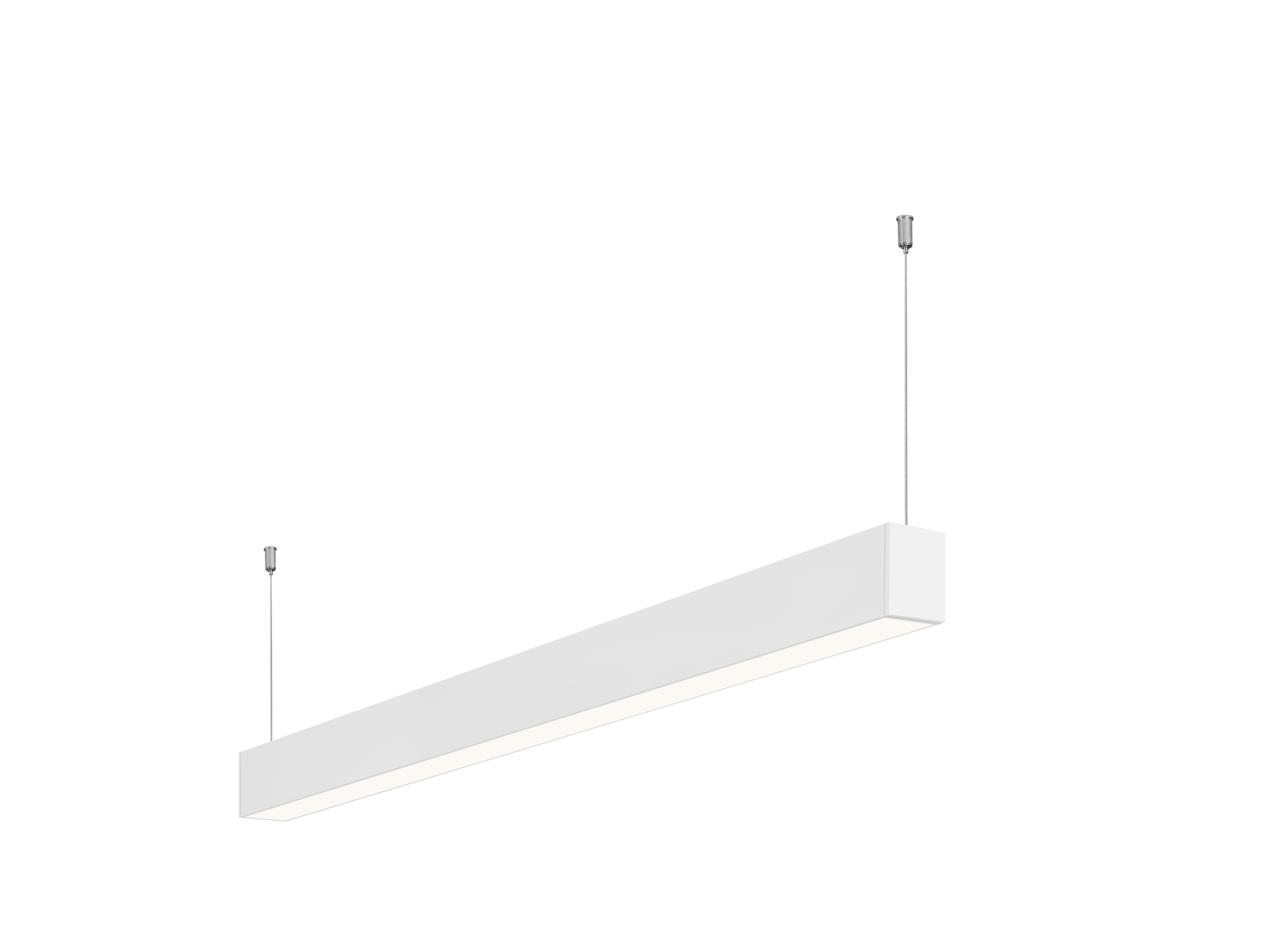

Linear Slot Value Class 48" - 3000K
JPG (4.3 MB)
Beauty Shot
Linear Slot Value Class 48" - 3000K
JPG (692.84 KB)

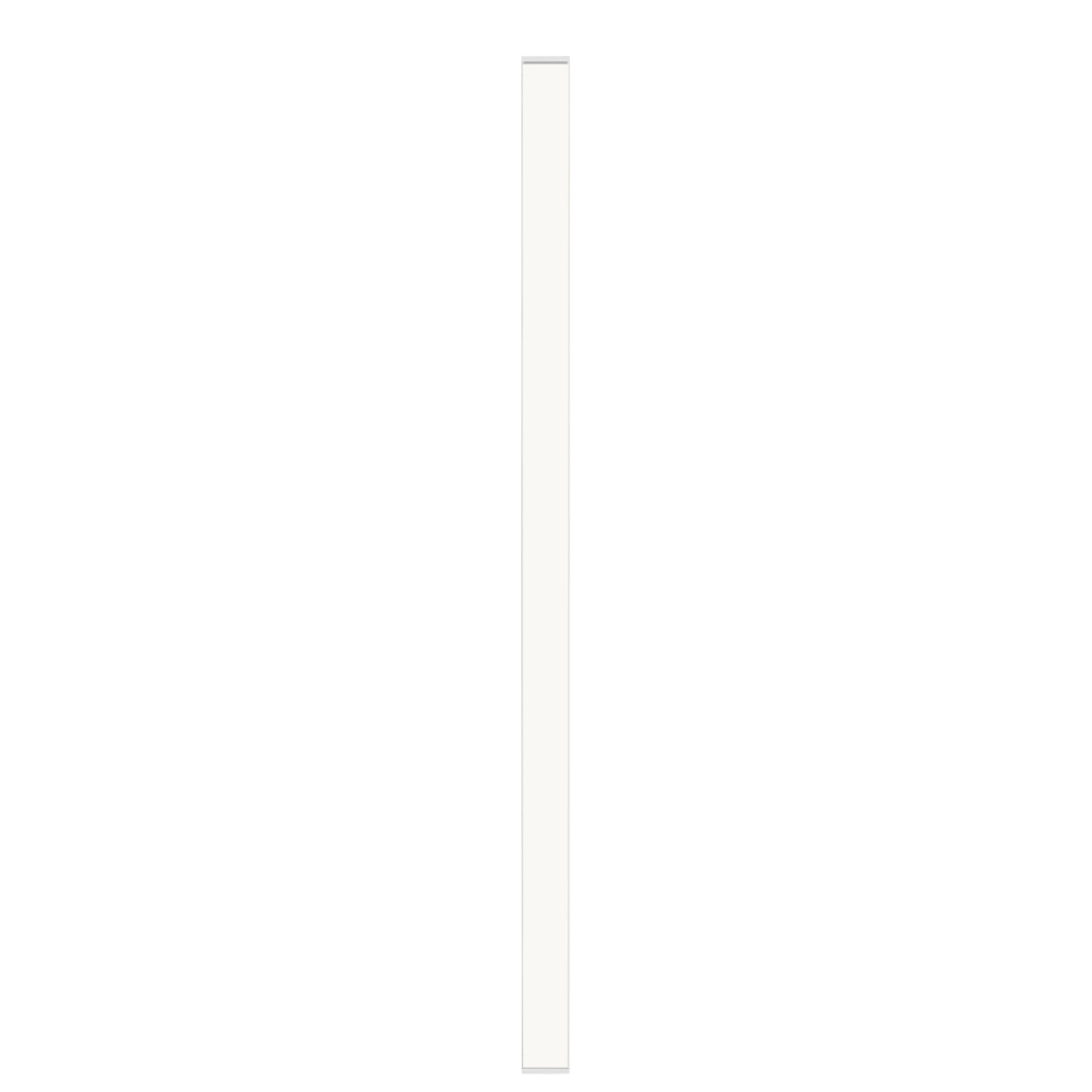

Beauty Shot
Linear Slot Value Class 48" - 3500K
JPG (4.29 MB)
Beauty Shot
Linear Slot Value Class 48" - 3500K
JPG (691.46 KB)
Beauty Shot
Linear Slot Value Class 48" - 4000K
JPG (689.51 KB)
Beauty Shot
Linear Slot Value Class 48" - 4000K
JPG (4.29 MB)
Beauty Shot
Linear Slot Value Class 48"
JPG (631.55 KB)
Beauty Shot
Linear Slot Value Class 48" - 3000K
JPG (635.86 KB)
Beauty Shot
Linear Slot Value Class 48" - 3500K
JPG (634.11 KB)
Beauty Shot

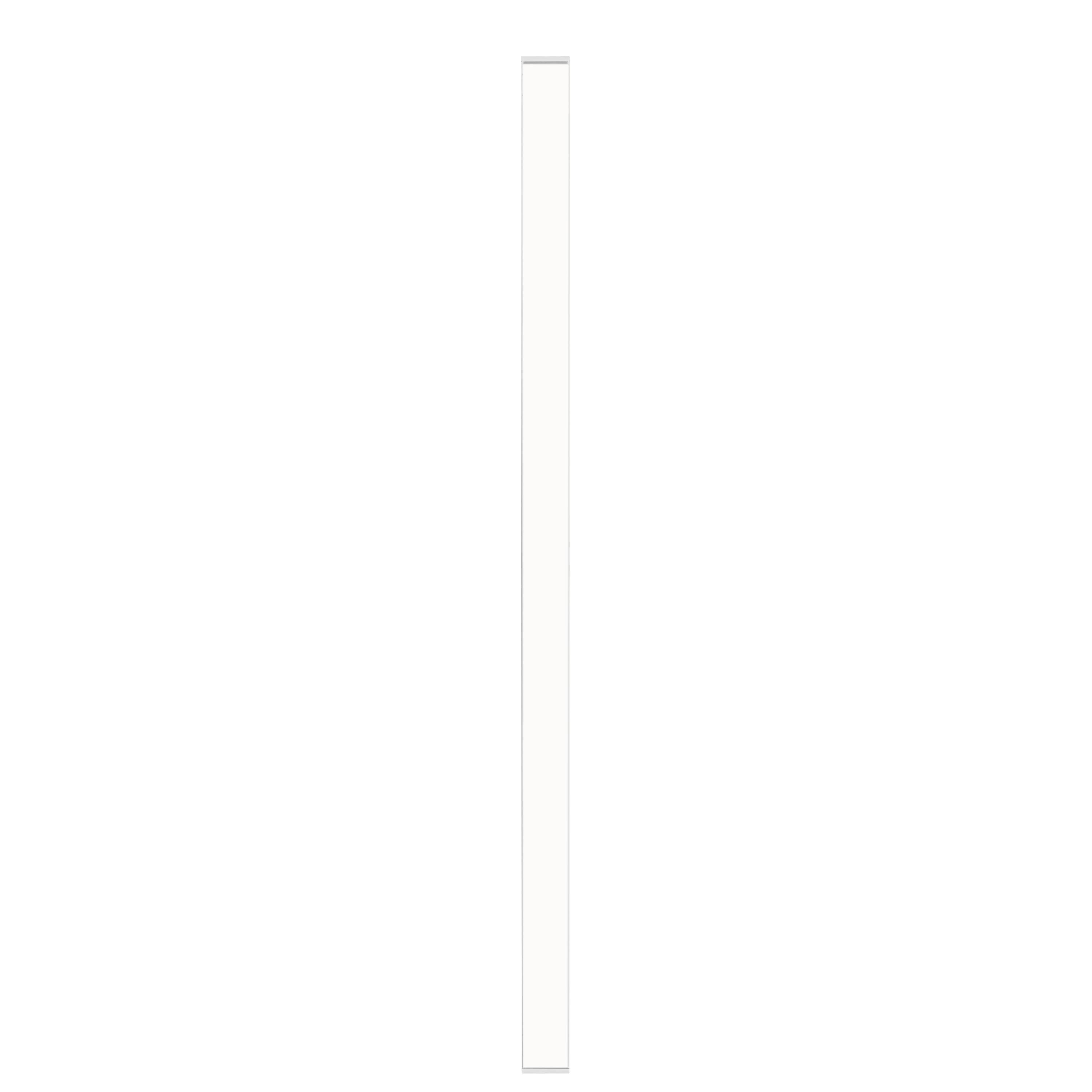

Linear Slot Value Class 48" - 4000k
JPG (633.37 KB)

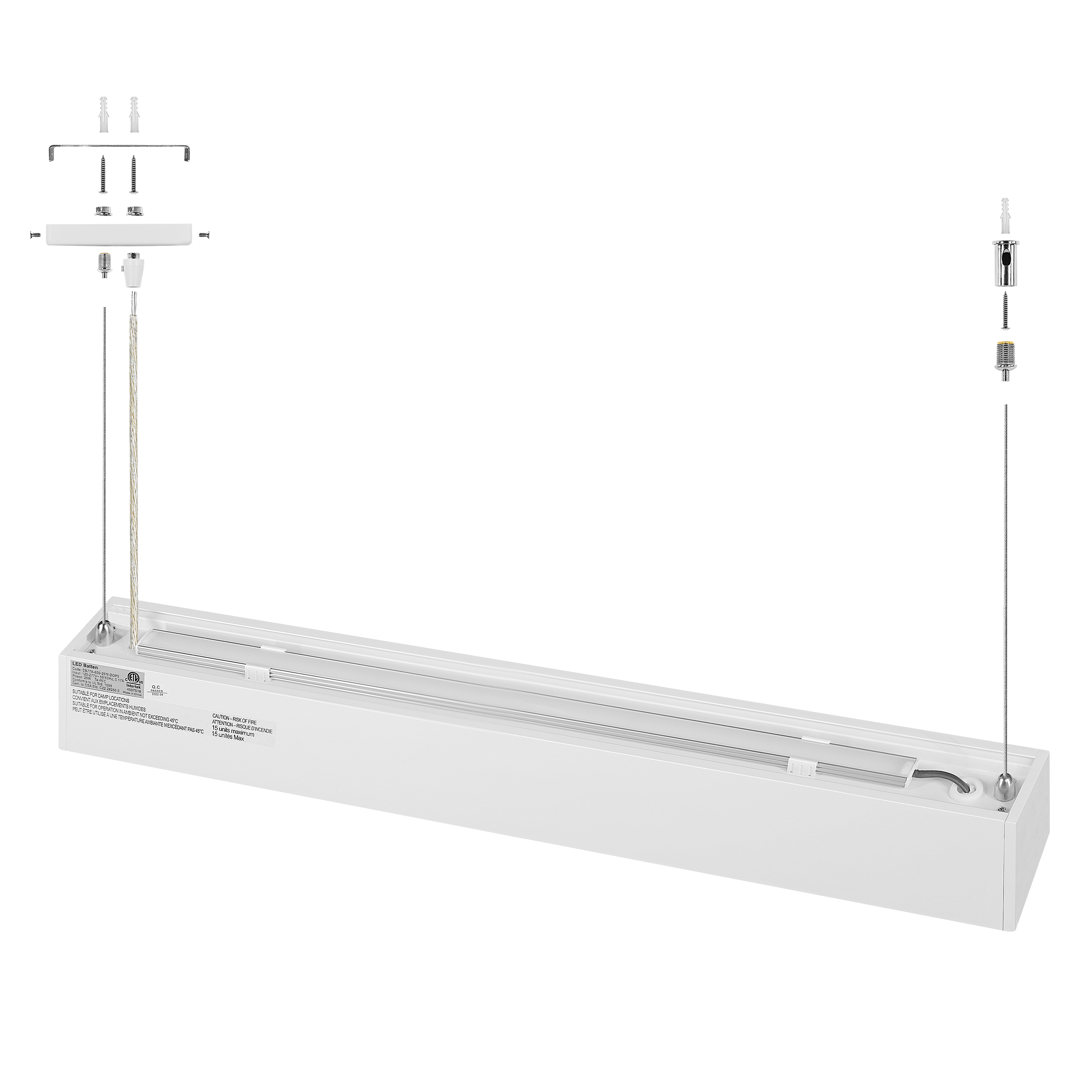

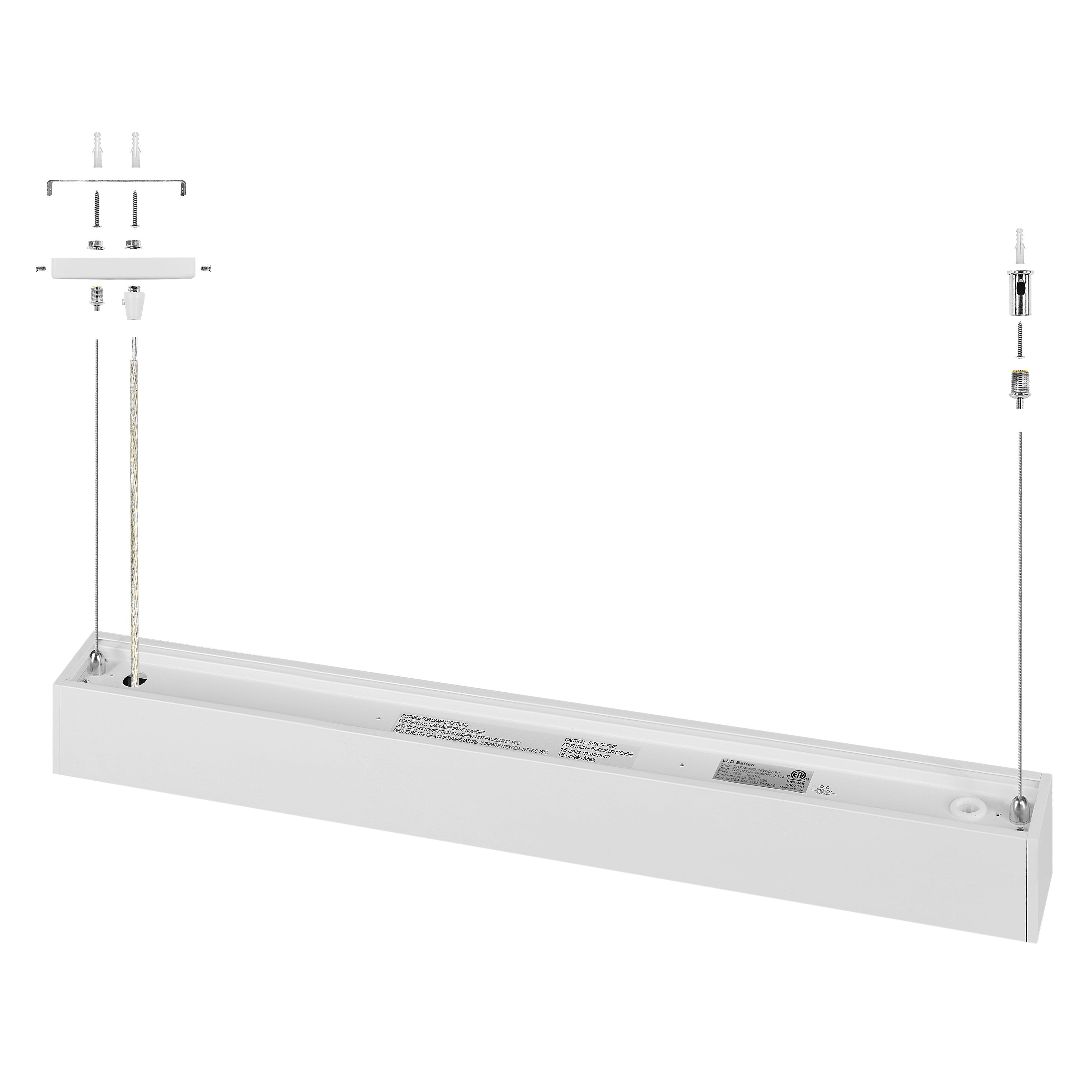

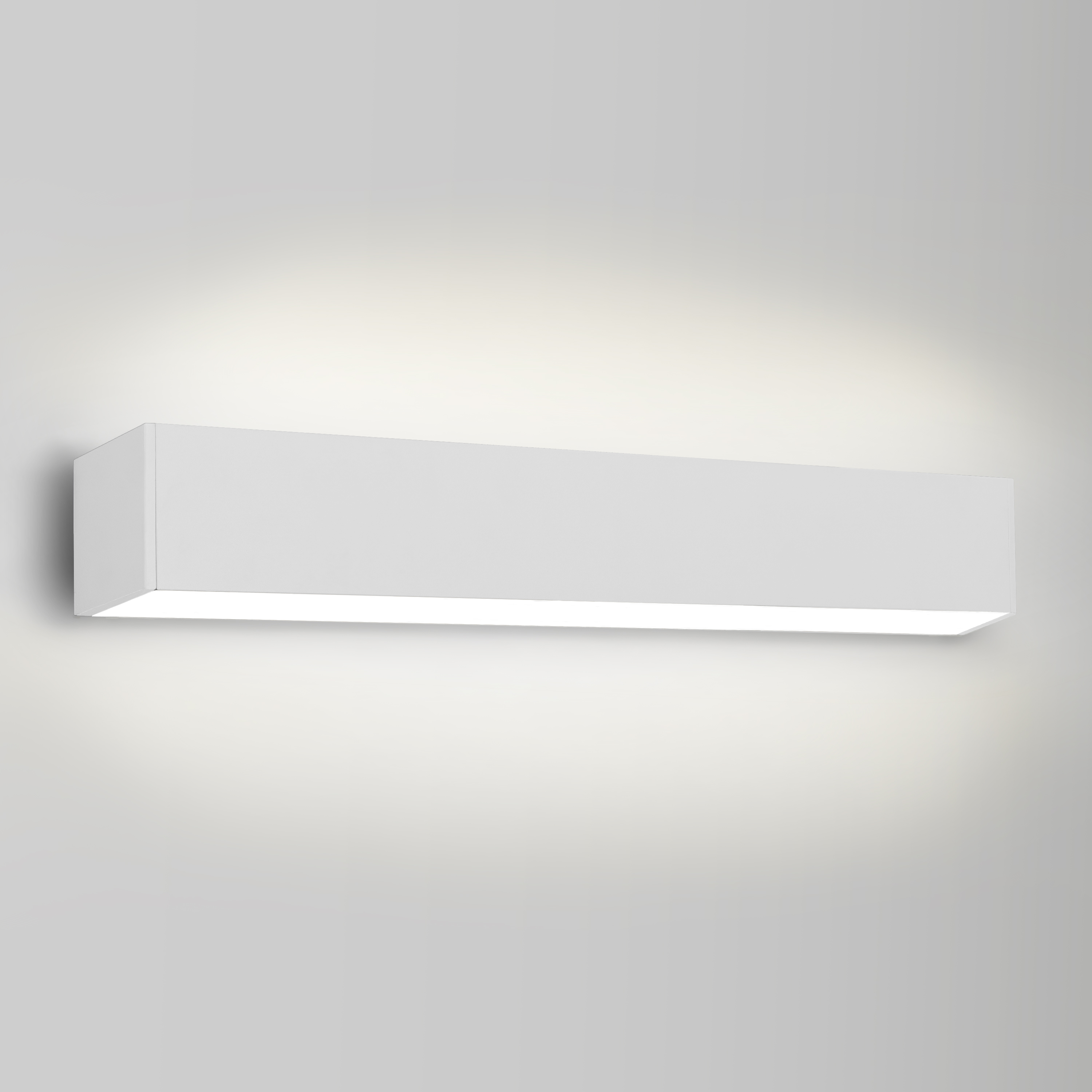

Beauty Shot

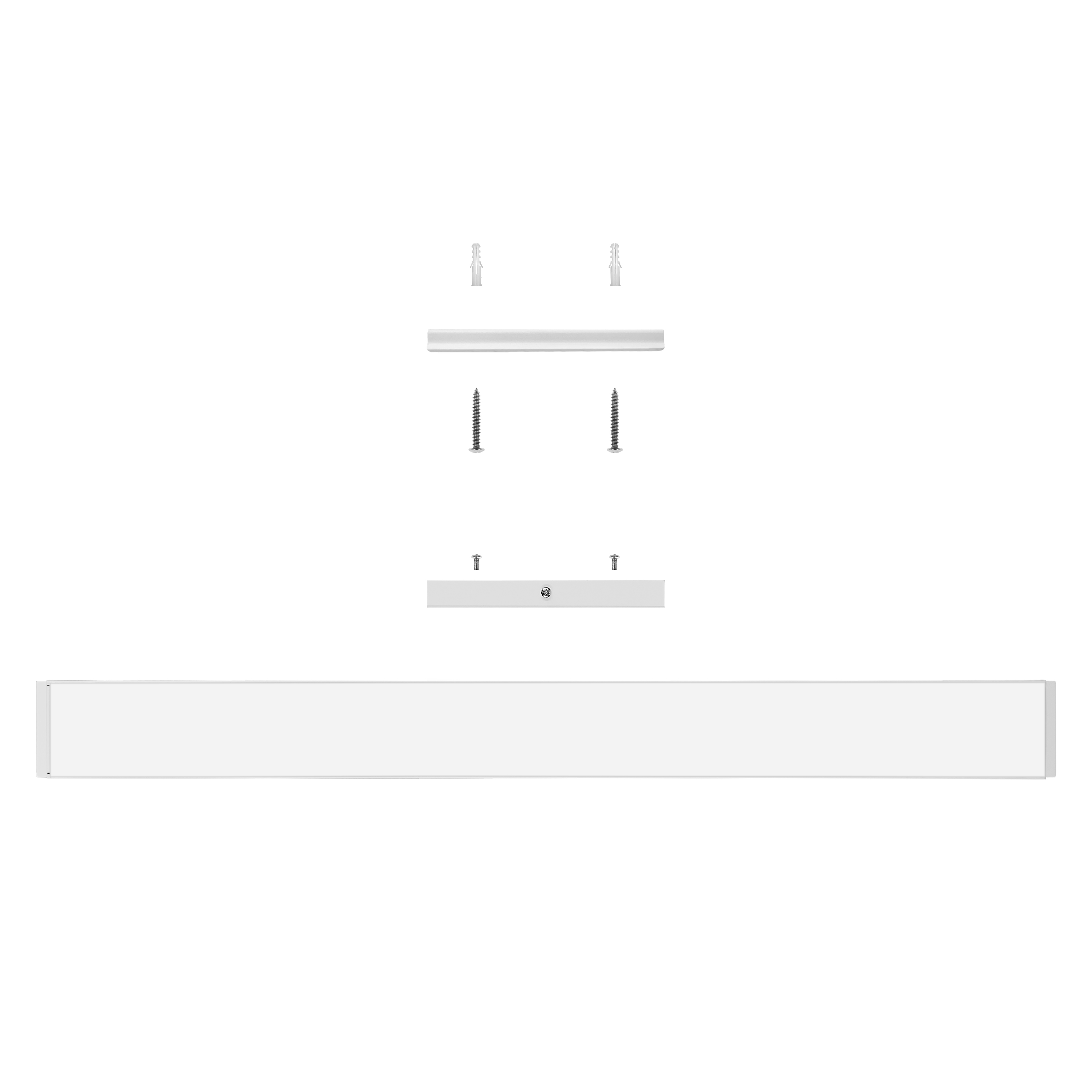

Linear Slot1A 24" application images
JPG (1.19 MB)
Beauty Shot
Linear Slot1A 24" application images
JPG (1.21 MB)
Beauty Shot
Linear Slot1A 24" application images
JPG (682.94 KB)
Beauty Shot
Linear Slot1A 24" application images
JPG (1.24 MB)

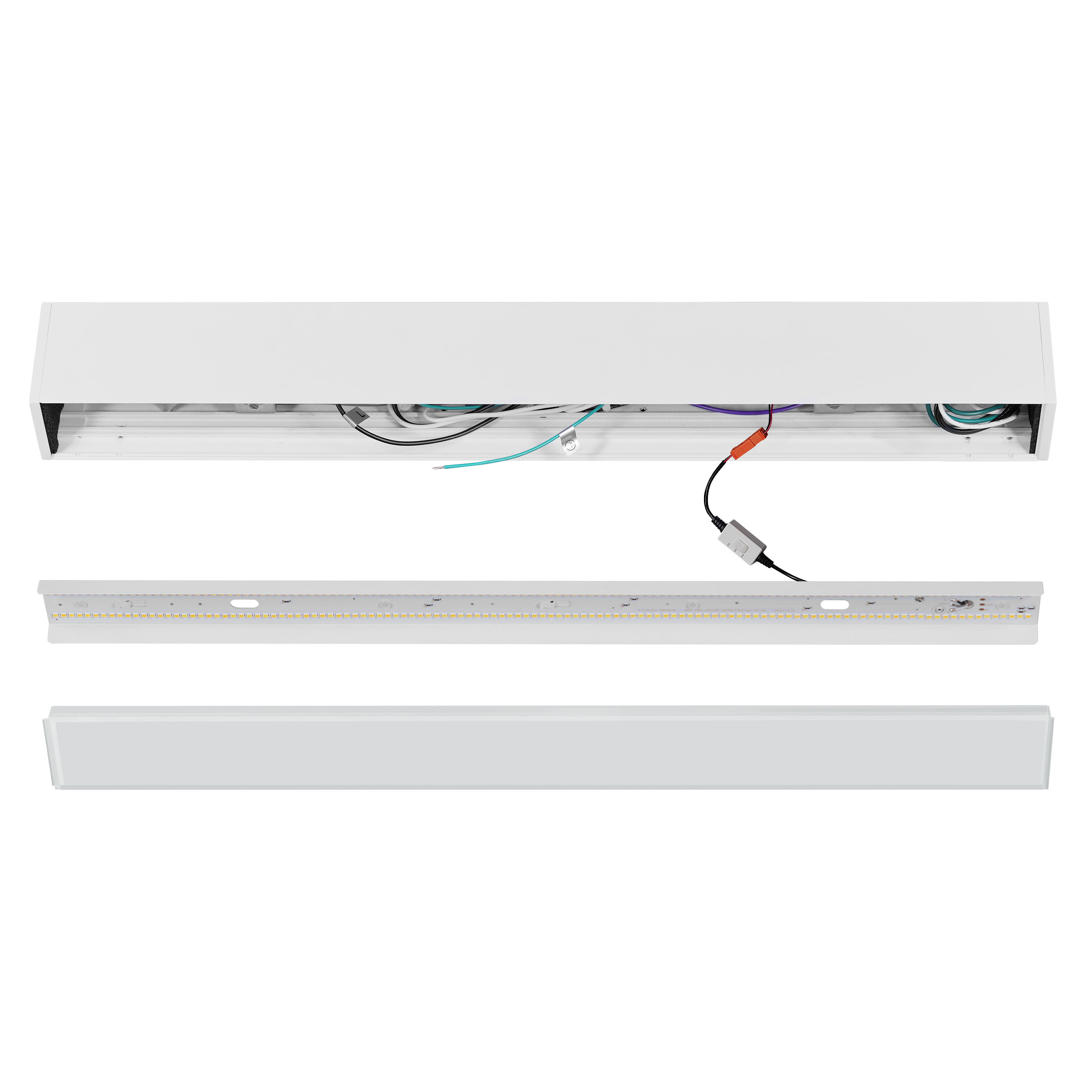

Beauty Shot
CCT Switch LNSLOT1A
JPG (1.24 MB)
Beauty Shot
4' Canopy Mounting LNSLOT1A
PSD (16.89 MB)

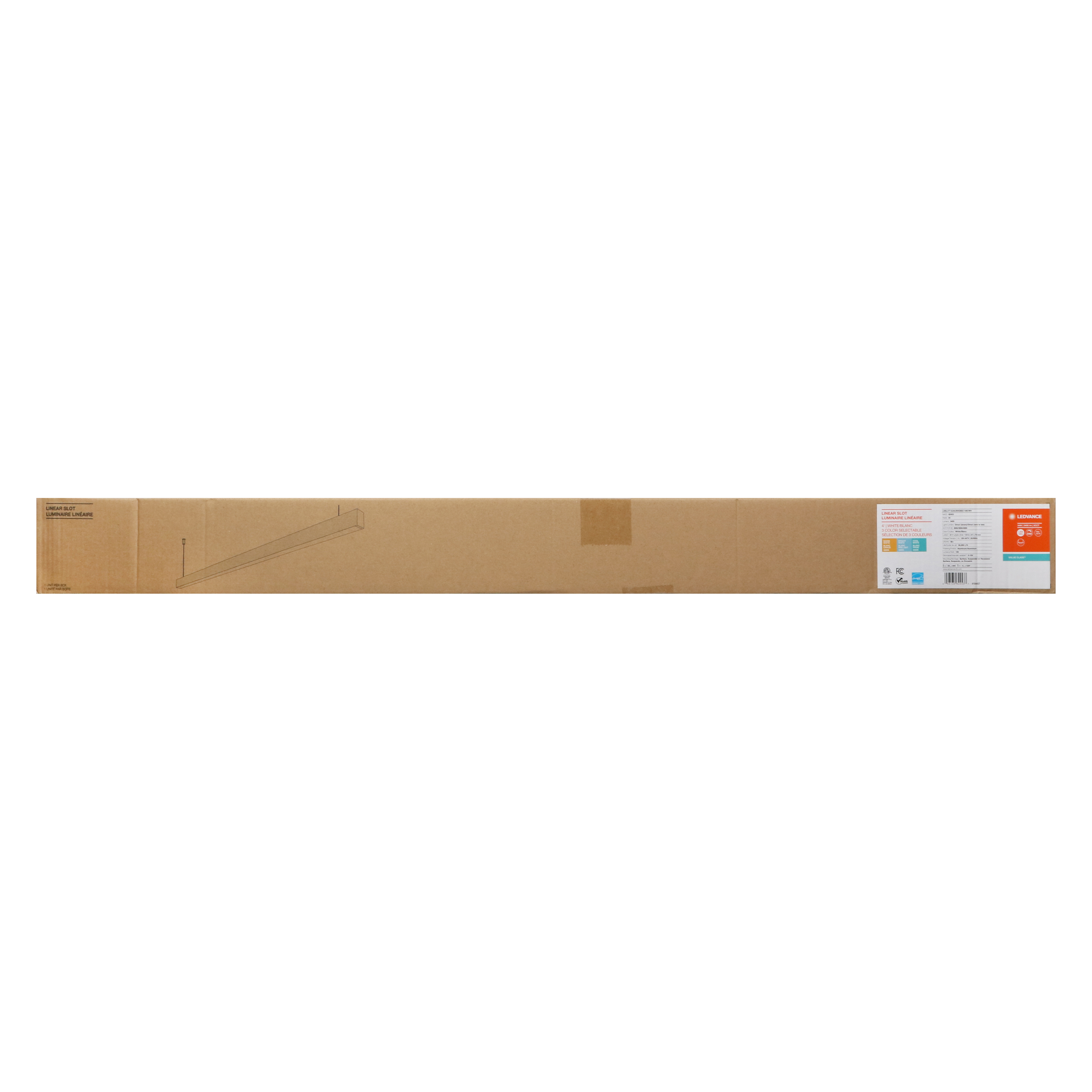

Packaging image, frontal
Linear Slot 1A 4'
JPG (981.2 KB)
IES file (IES)
Value Class CCT Selectable Linear Slot IES FILES
ZIP (1.78 MB)
IES files (IES, additional)
IES FILE AND LM79 LNSLOT1A
ZIP (20.7 MB)
