LINEAR SLOT VALUE

LINEAR SLOT VALUE 2 ft BL Direct Light Ceiling/Suspended/Recessed

NAED: 63728
Download data sheet
Contact sales
Our warranty conditions

PRODUCT DETAILS

Areas of application
  • Offices
  • Lobbies
  • Waiting rooms
  • Hospitality
  • Retail
Product features
  • Selectable CCTs: 3000/4000/5000K
  • Direct or Direct/Indirect
  • Accessories available for suspended, surface or recessed mounting are available
  • Linkable
  • Sleek and modern design
  • Two different finishes
  • CRI > 80
Equipment / Accessories
  • Suspended Mount Kit - available with all SKUs aside wall mount version
  • Wall Mount Kit - available for all wall mounting version only
Safety advice
  • Connect up to 700W
Product information bulletin
LEDLUM154 CCT SELECTABLE LINEAR SLOT
PDF (3.91 MB)
Electrical data
Nominal wattage 18.00 W
Nominal voltage 120…277 V
Photometrical data
Luminous flux 1800 lm
Luminous efficacy 100 lm/W
Color temperature 3000 … 4000 K
Color rendering index Ra > 80
Dimensions & Weight
Length 660.00 mm
Height 255.00 mm
Width 310.00 mm
Product weight 1350.00 g
Materials & Colors
Product color Black
Housing color Black
Body material Aluminum
Mercury content 0.0 mg
Application & Mounting
Dimmable Yes
Type of dimming 0-10V
Mounting type Surface
Application environment Indoor
Replaceable light source No
Certificates & Standards
Replaceable light source (EPREL) Not replaceable
Product code Packaging unit (Pieces/Unit) Dimensions (length x width x height) Gross weight Volume
0046135637285 Folding box
1		 640 mm x 95 mm x 116 mm 1708.00 g 7.05 dm³
4099854167003 Shipping box
6		 660 mm x 310 mm x 255 mm 10816.00 g 52.17 dm³
Product image: white background, with accessory, alternative image

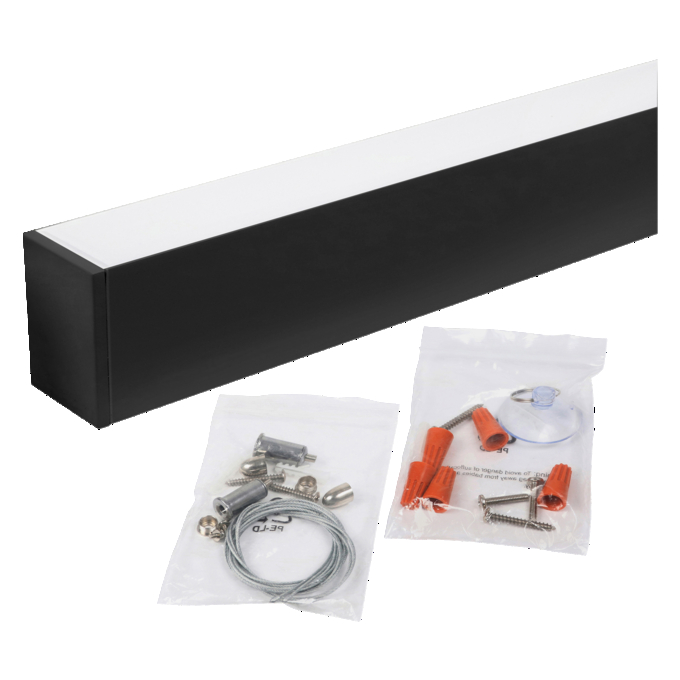

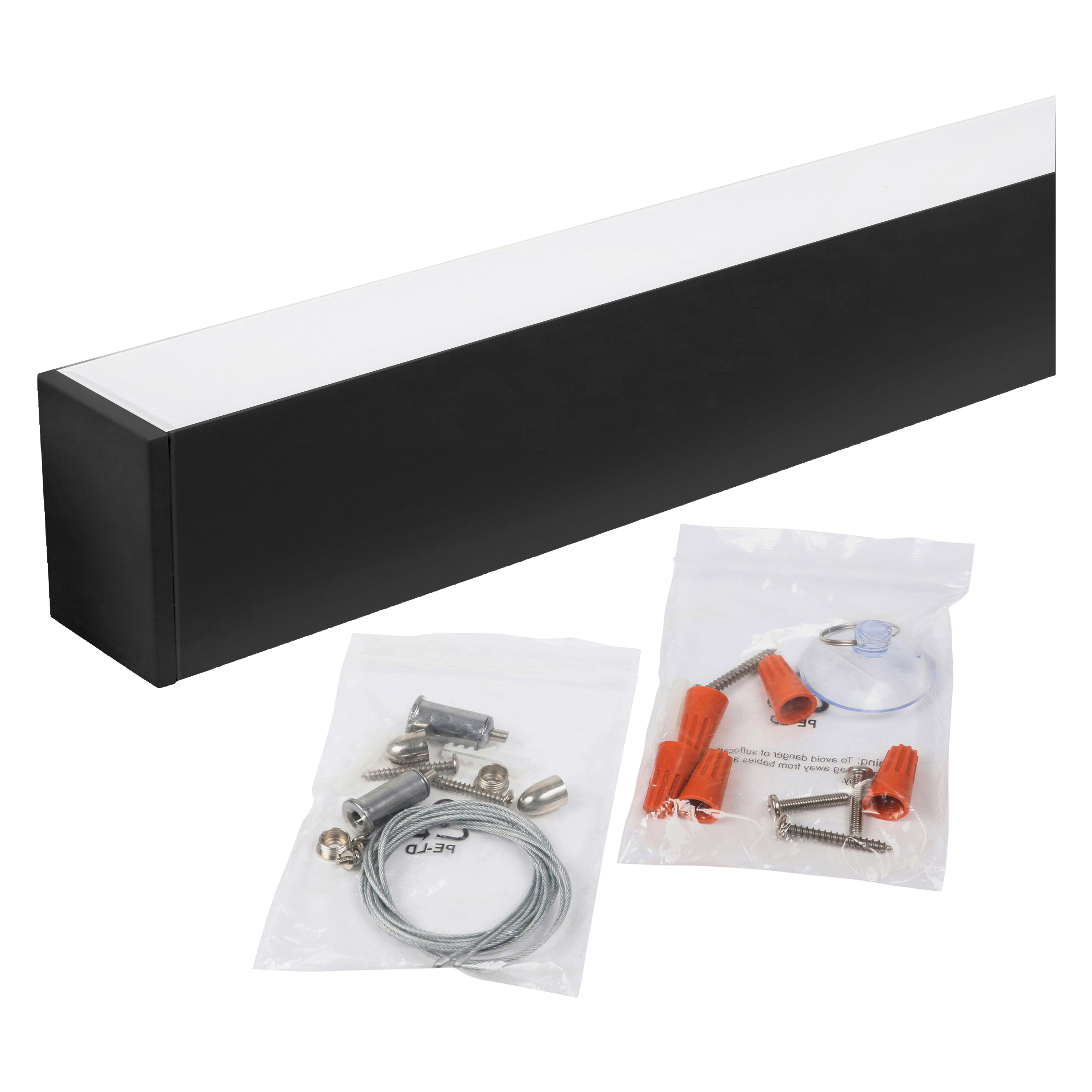

Value Class Linear Slot 2ft accessory
JPG (2.01 MB)
IES file (IES)
18W 2ft linear slot 1A, 120-277V and 0-10V dimmable. CCT selectable
ZIP (17.04 KB)
IES file (IES)
Value Class CCT Selectable Linear Slot IES FILES
ZIP (1.78 MB)
