LINEAR SLOT VALUE
LINEAR SLOT VALUE 2 ft BL Direct Indirect Light Wall
NAED: 63730
Our warranty conditions
PRODUCT DETAILS
Areas of application
- Offices
- Lobbies
- Waiting rooms
- Hospitality
- Retail
Product features
- Selectable CCTs: 3000/4000/5000K
- Direct or Direct/Indirect
- Accessories available for suspended, surface or recessed mounting are available
- Linkable
- Sleek and modern design
- Two different finishes
- CRI > 80
Equipment / Accessories
- Suspended Mount Kit - available with all SKUs aside wall mount version
- Wall Mount Kit - available for all wall mounting version only
Safety advice
- Connect up to 700W
Product information bulletin
LEDLUM154 CCT SELECTABLE LINEAR SLOT
LEDLUM154 CCT SELECTABLE LINEAR SLOT
Electrical data
| Nominal wattage | 24.00 W |
| Nominal voltage | 120…347 V |
Photometrical data
| Luminous flux | 2400 lm |
| Luminous efficacy | 100 lm/W |
| Color temperature | 3000 … 4000 K |
| Color rendering index Ra | > 80 |
Dimensions & Weight
| Length | 660.00 mm |
| Height | 255.00 mm |
| Width | 310.00 mm |
| Product weight | 1600.00 g |
Materials & Colors
| Product color | Black |
| Housing color | Black |
| Body material | Aluminum |
| Mercury content | 0.0 mg |
Application & Mounting
| Dimmable | Yes |
| Type of dimming | 0-10V |
| Mounting type | Surface |
| Application environment | Indoor |
| Replaceable light source | No |
Certificates & Standards
| Replaceable light source (EPREL) | Not replaceable |
| Product code | Packaging unit (Pieces/Unit) | Dimensions (length x width x height) | Gross weight | Volume |
|---|---|---|---|---|
| 0046135637308 | Folding box 1 |
640 mm x 95 mm x 116 mm | 1958.00 g | 7.05 dm³ |
| 4099854167027 | Shipping box 6 |
660 mm x 310 mm x 255 mm | 12316.00 g | 52.17 dm³ |

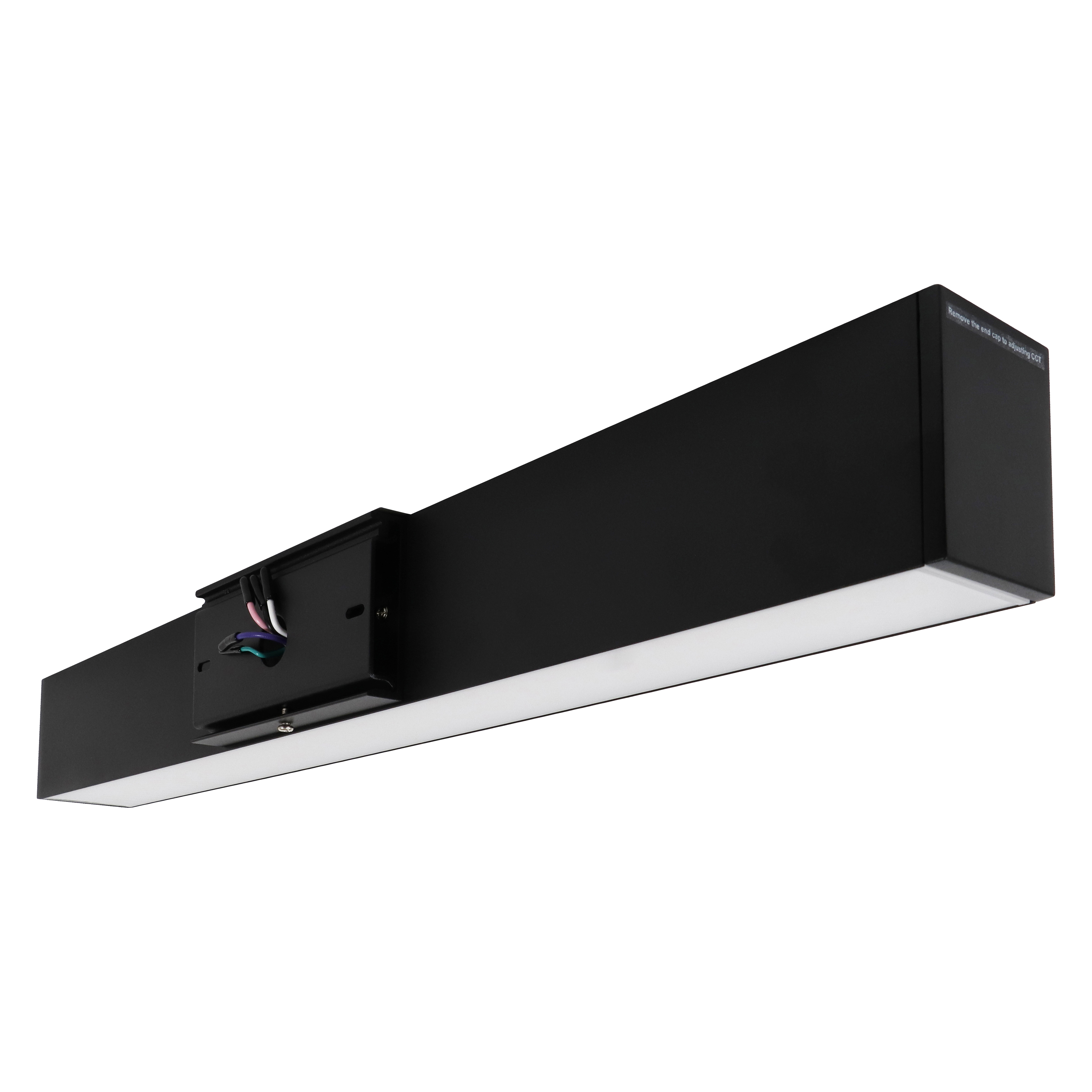

Product image: white background, diagonal
24W 2ft linear slot 1A, 120-347V and 0-10V dimmable
24W 2ft linear slot 1A, 120-347V and 0-10V dimmable

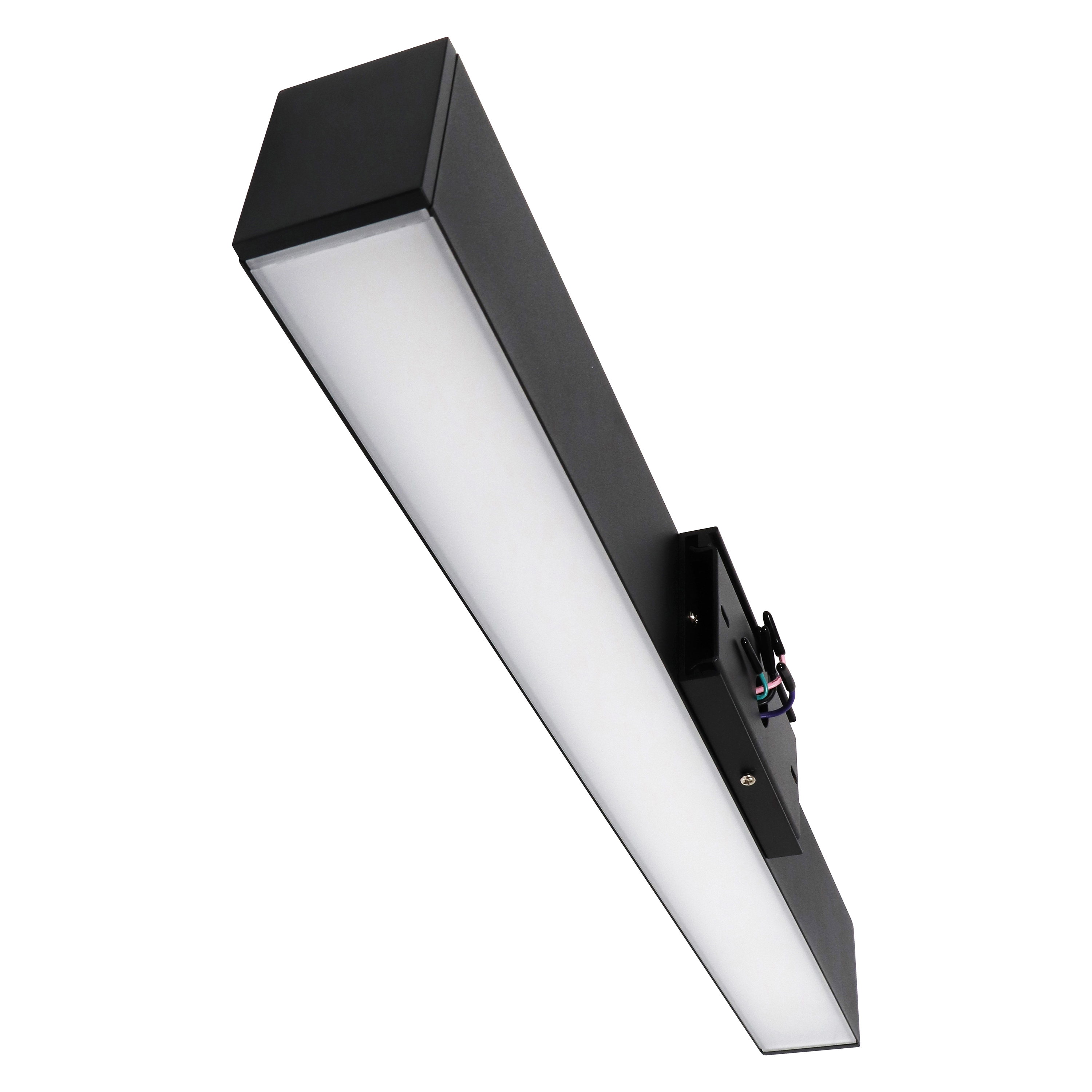

Product image: white background, diagonal, alternative image
24W 2ft linear slot 1A, 120-347V and 0-10V dimmable
24W 2ft linear slot 1A, 120-347V and 0-10V dimmable

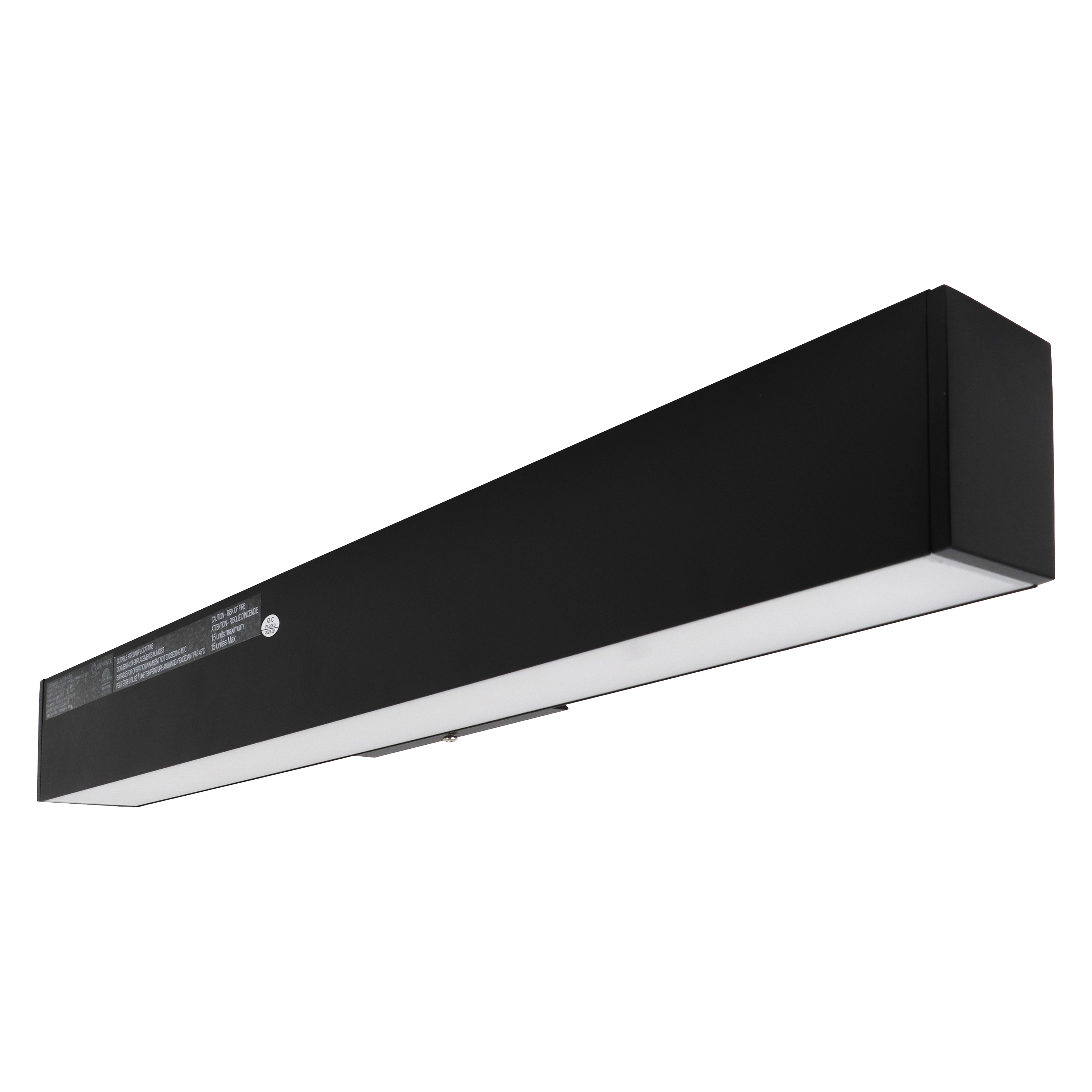

Product image: white background, spacial
24W 2ft linear slot 1A, 120-347V and 0-10V dimmable
24W 2ft linear slot 1A, 120-347V and 0-10V dimmable
IES file (IES)
24W 2ft linear slot 1A, 120-347V and 0-10V dimmable IES FILES
24W 2ft linear slot 1A, 120-347V and 0-10V dimmable IES FILES
IES file (IES)
Value Class CCT Selectable Linear Slot IES FILES
Value Class CCT Selectable Linear Slot IES FILES
