SYLVANIA MICRODISK SLIM CCT SELECTABLE
LEDMD SLIM SELECT 2A 12" 5CCT 2000LM 120V
NAED: 65526
Our warranty conditions
PRODUCT DETAILS
Areas of application
- Residential
- New installations or retrofit of existing installations
Product features
- Canless recessed flush mount downlight with remote driver design for easy installation
- 1/2" height allows installation directly under joists
- Selectable CCTs: 2700/3000/3500/4000/5000K
- Flicker-free dimming, Phase-cut
- Up to 80 LPW
- Energy savings up to 92 %
- Available in 120VAC
- Beam Angle of 112° FWHM
- 90 CRI, R9>50
Equipment / Accessories
- Luminaire with interconnected cable to galvanized steel remote driver wiring enclosure via FT6 cable
- 3 Push-on Wire Terminals
Safety advice
- Suitable for indoor, dry, and wet locations.
- IC Rated.
- Not intended for use with emergency light luminaires or exit lights.
- Suitable for use in closets, compliant with NFPA 70, NEC section 410.16 (A)(3) and 410.16 (C)(5).
- For use in housings that can structurally support a lamp weighing one pound.
- Max Ceiling Thickness 0.37" (9.4 mm).
Product information bulletin
ValueLED Selectable Slim MICRODISK
ValueLED Selectable Slim MICRODISK
Electrical data
| Nominal wattage | 27.00 W |
| Nominal voltage | 120 V |
Photometrical data
| Luminous flux | 2000 lm |
| Luminous efficacy | 75 lm/W |
| Color temperature | 2700 … 5000 K |
| Color rendering index Ra | 90 |
Dimensions & Weight
| Diameter | 330.00 mm |
| Height | 23.37 mm |
| Product weight | 820.00 g |
Materials & Colors
| Product color | White |
| Housing color | White |
| Body material | Aluminum|Plastic |
| Mercury content | 0.0 mg |
Application & Mounting
| Dimmable | Yes |
| Type of dimming | PHASE CUT |
| Mounting type | Recessed |
| Application environment | Indoor |
| Replaceable light source | No |
Certificates & Standards
| Replaceable light source (EPREL) | Not replaceable |
| Product code | Packaging unit (Pieces/Unit) | Dimensions (length x width x height) | Gross weight | Volume |
|---|---|---|---|---|
| 0046135655265 | Folding box 1 |
50 mm x 333 mm x 333 mm | 912.00 g | 5.55 dm³ |
| 10046135655262 | Shipping box 4 |
350 mm x 225 mm x 357 mm | 3930.00 g | 28.11 dm³ |
| Product image | Product name | EAN |
|---|---|---|
| MD EXT CABLE 6FT WH | 0046135608988 | |
| MD EXT CABLE 10FT WH | 0046135608995 | |
| MD EXT CABLE 20FT WH | 0046135609008 | |
|
SLIM MD FRAME | 0046135629594 |
|
MD FRAME T-GRID | 0046135637438 |

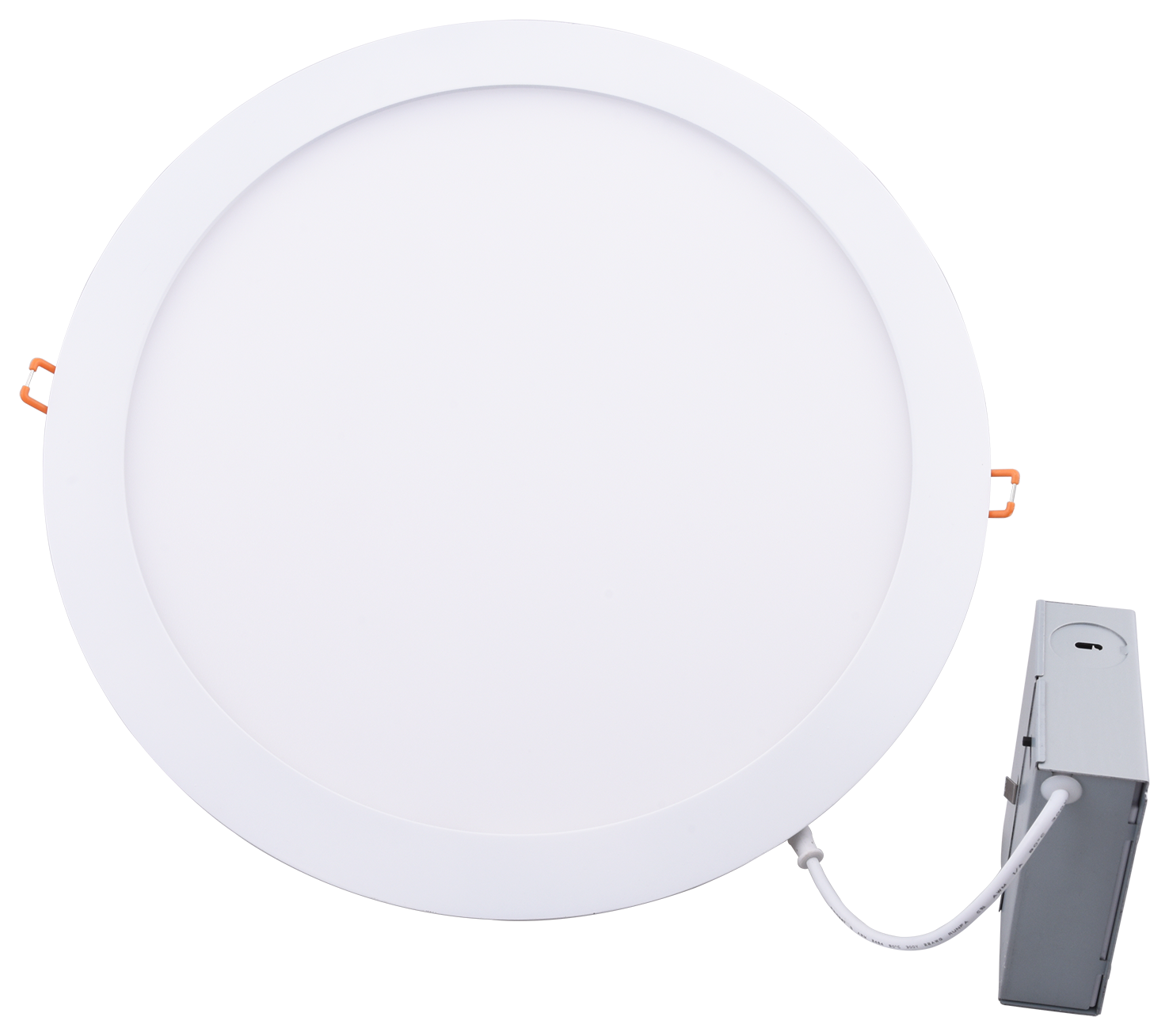

Product image: white background, upright

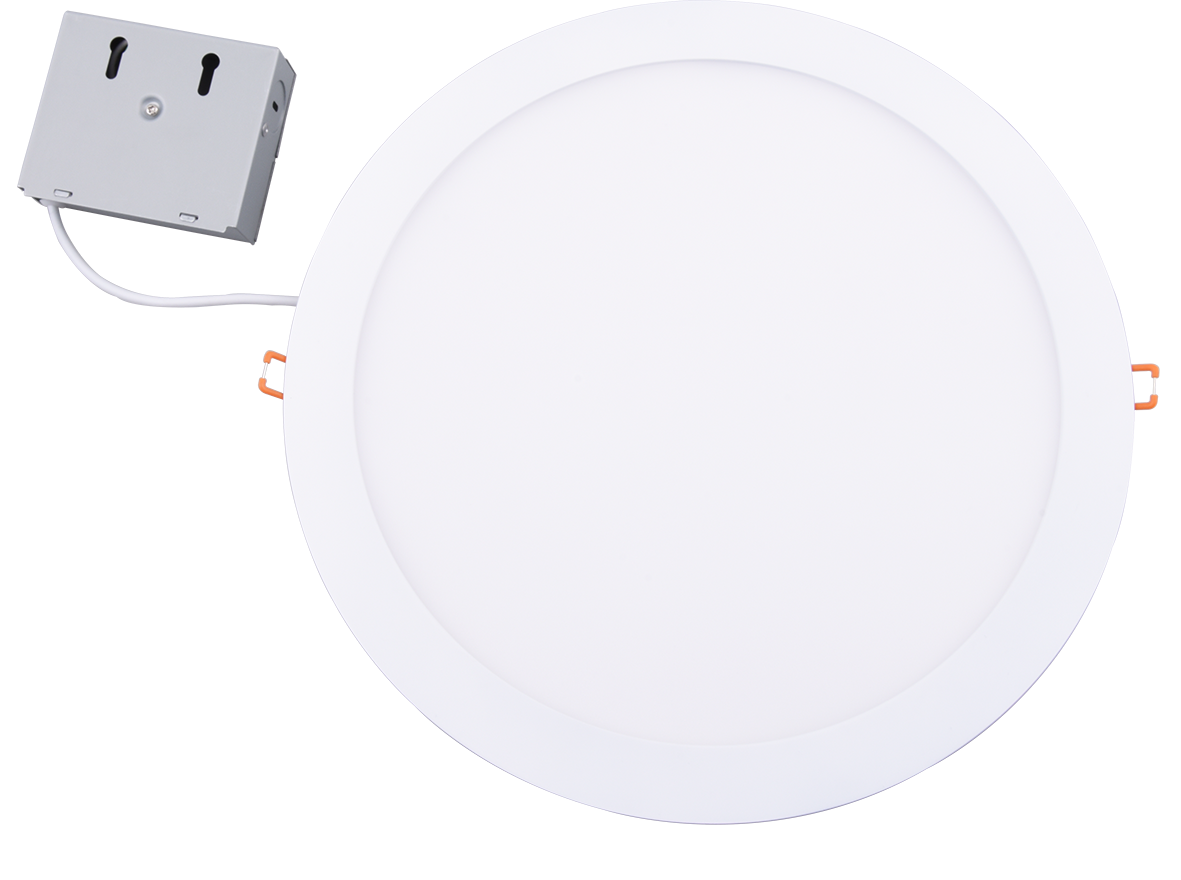

Slim Microdisc 12"
Slim Microdisc 12"

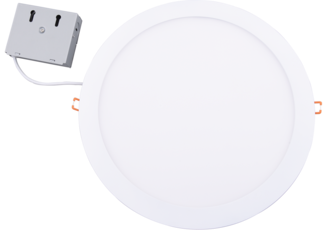

Beauty Shot

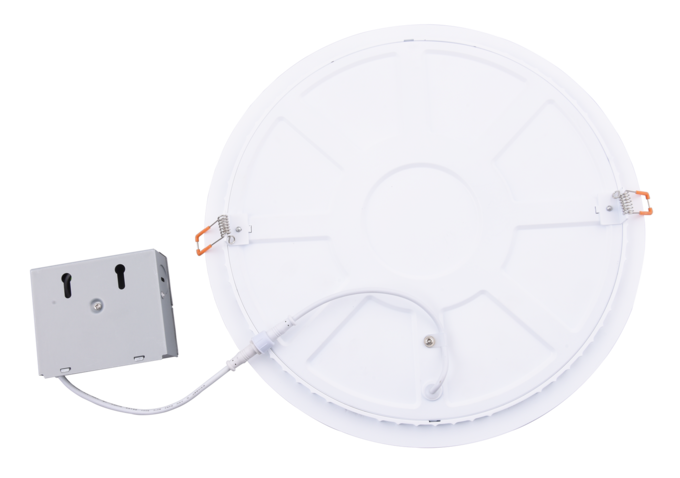

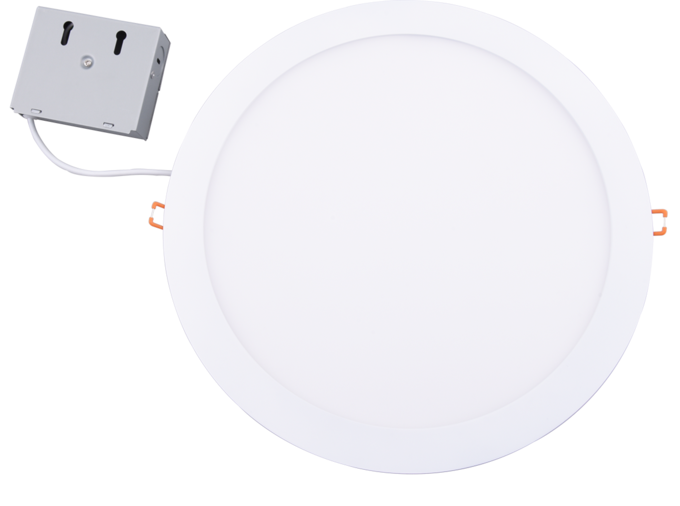

Slim Microdisc 12"
Slim Microdisc 12"
IES files (IES, additional)
Downlight Photometric Data
Downlight Photometric Data
