SYLVANIA MICRODISK SLIM CCT SELECTABLE

LEDMD SLIM SELECT 2A 4" 5CCT 800LM 120V

NAED: 61404
Download data sheet
Contact sales
Our warranty conditions

PRODUCT DETAILS

Areas of application
  • Residential
  • New installations or retrofit of existing installations
Product features
  • Canless recessed flush mount downlight with remote driver design for easy installation
  • 1/2" height allows installation directly under joists
  • Selectable CCTs: 2700/3000/3500/4000/5000K
  • Flicker-free dimming, Phase-cut
  • Up to 80 LPW
  • Energy savings up to 92 %
  • Available in 120VAC
  • Beam Angle of 112° FWHM
  • 90 CRI, R9>50
Equipment / Accessories
  • Luminaire with interconnected cable to galvanized steel remote driver wiring enclosure via FT6 cable
  • 3 Push-on Wire Terminals
Safety advice
  • Suitable for indoor, dry, and wet locations.
  • IC Rated.
  • Not intended for use with emergency light luminaires or exit lights.
  • Suitable for use in closets, compliant with NFPA 70, NEC section 410.16 (A)(3) and 410.16 (C)(5).
  • For use in housings that can structurally support a lamp weighing one pound.
  • Max Ceiling Thickness 0.37" (9.4 mm).
Product information bulletin
ValueLED Selectable Slim MICRODISK
PDF (661.39 KB)
Electrical data
Nominal wattage 13.00 W
Nominal voltage 120 V
Photometrical data
Luminous flux 800 lm
Luminous efficacy 61 lm/W
Color temperature 2700 … 5000 K
Color rendering index Ra 90
Dimensions & Weight
Diameter 125.00 mm
Height 22.86 mm
Product weight 264.00 g
Materials & Colors
Product color White
Housing color White
Body material Plastic
Application & Mounting
Dimmable Yes
Type of dimming PHASE CUT
Mounting type Recessed
Replaceable light source No
Certificates & Standards
Replaceable light source (EPREL) Not replaceable
Product code Packaging unit (Pieces/Unit) Dimensions (length x width x height) Gross weight Volume
0046135614040 Folding box
1		 68 mm x 183 mm x 181 mm 377.00 g 2.23 dm³
10046135614047 Shipping box
4		 284 mm x 195 mm x 198 mm 1723.00 g 11.01 dm³

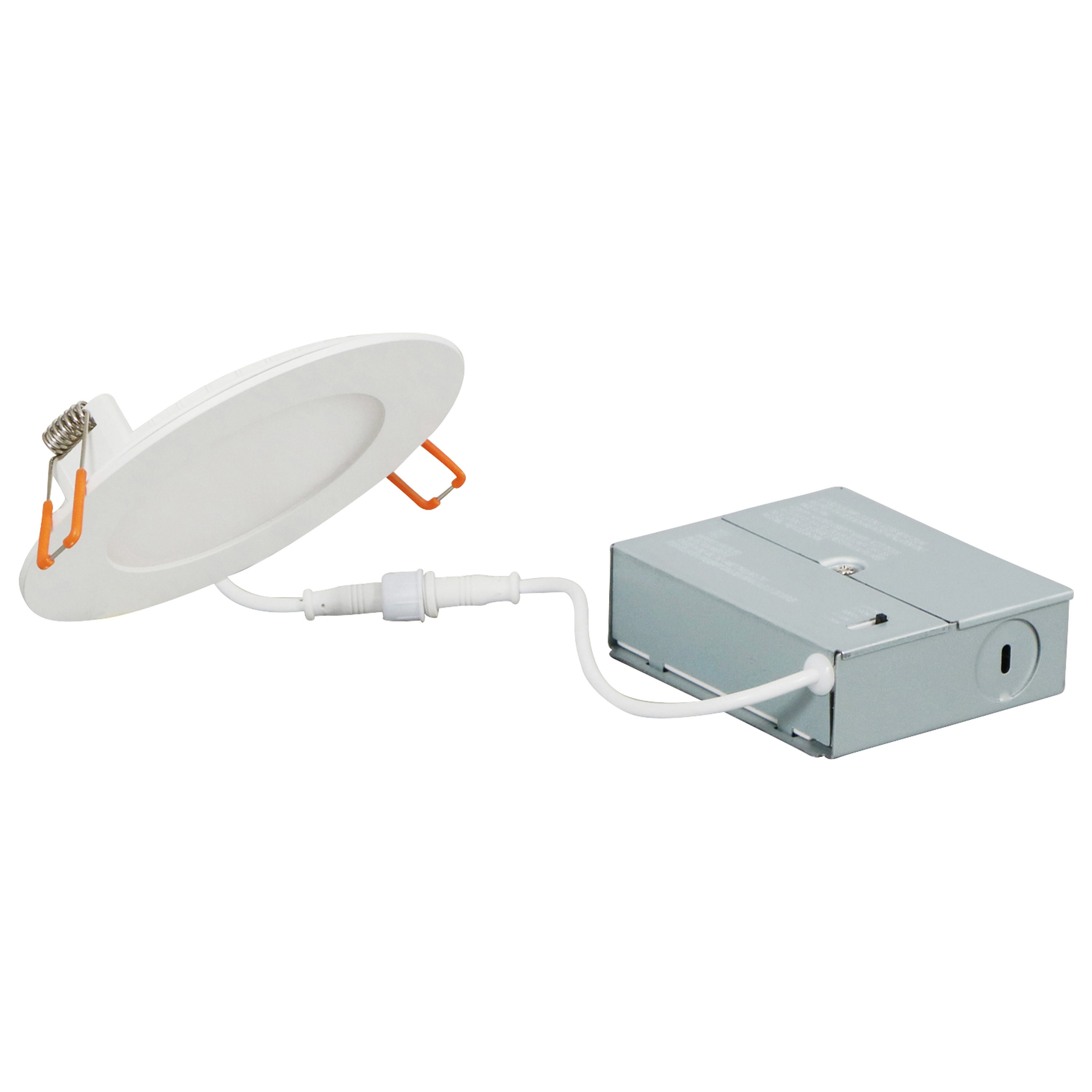

Product image: white background, horizontal
LED Slim Microdisc 4 inch
JPG (1.05 MB)

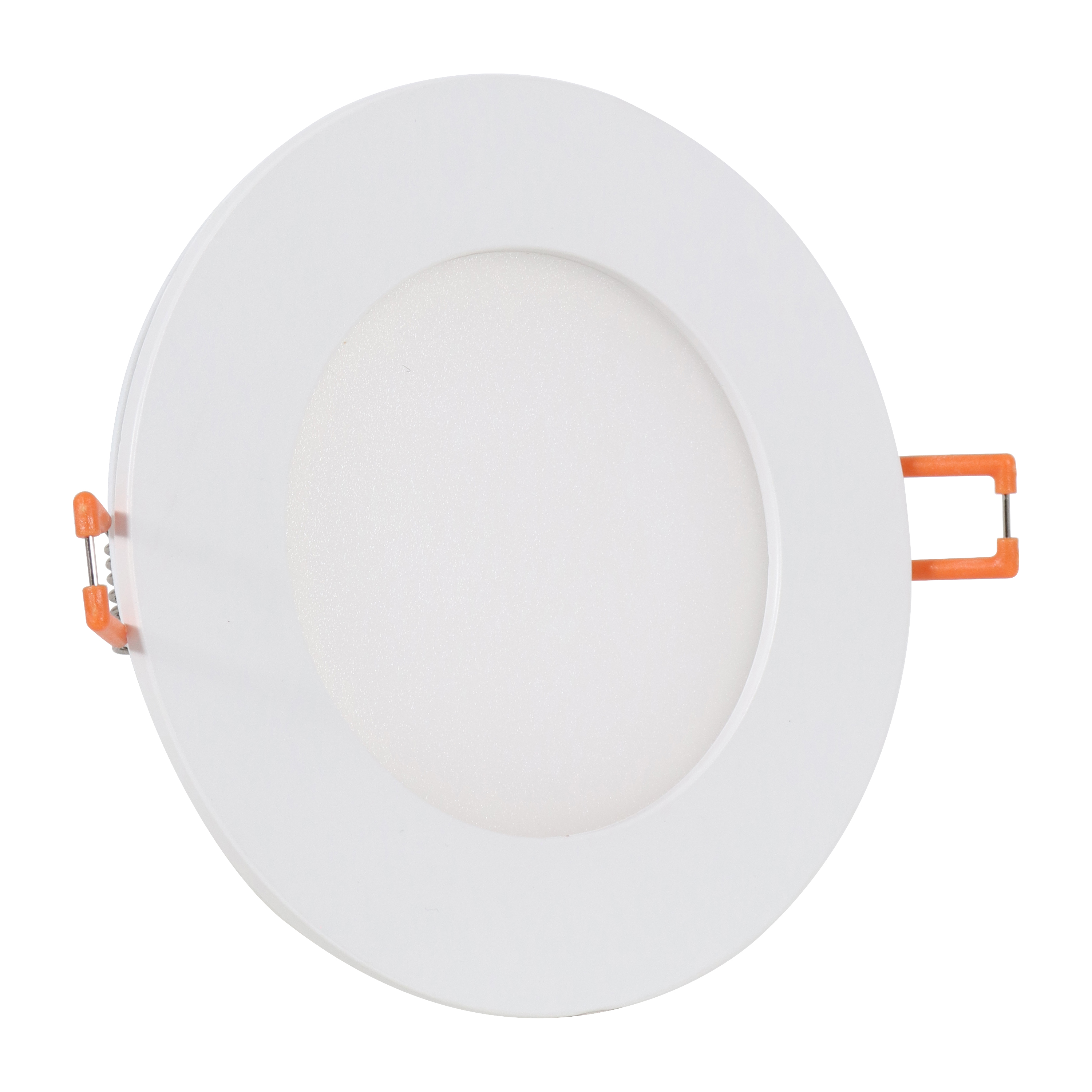

Product image: white background, spacial
Slim MicroDisk 4inches 800 lumens 5 CCT selectable
JPG (1.98 MB)

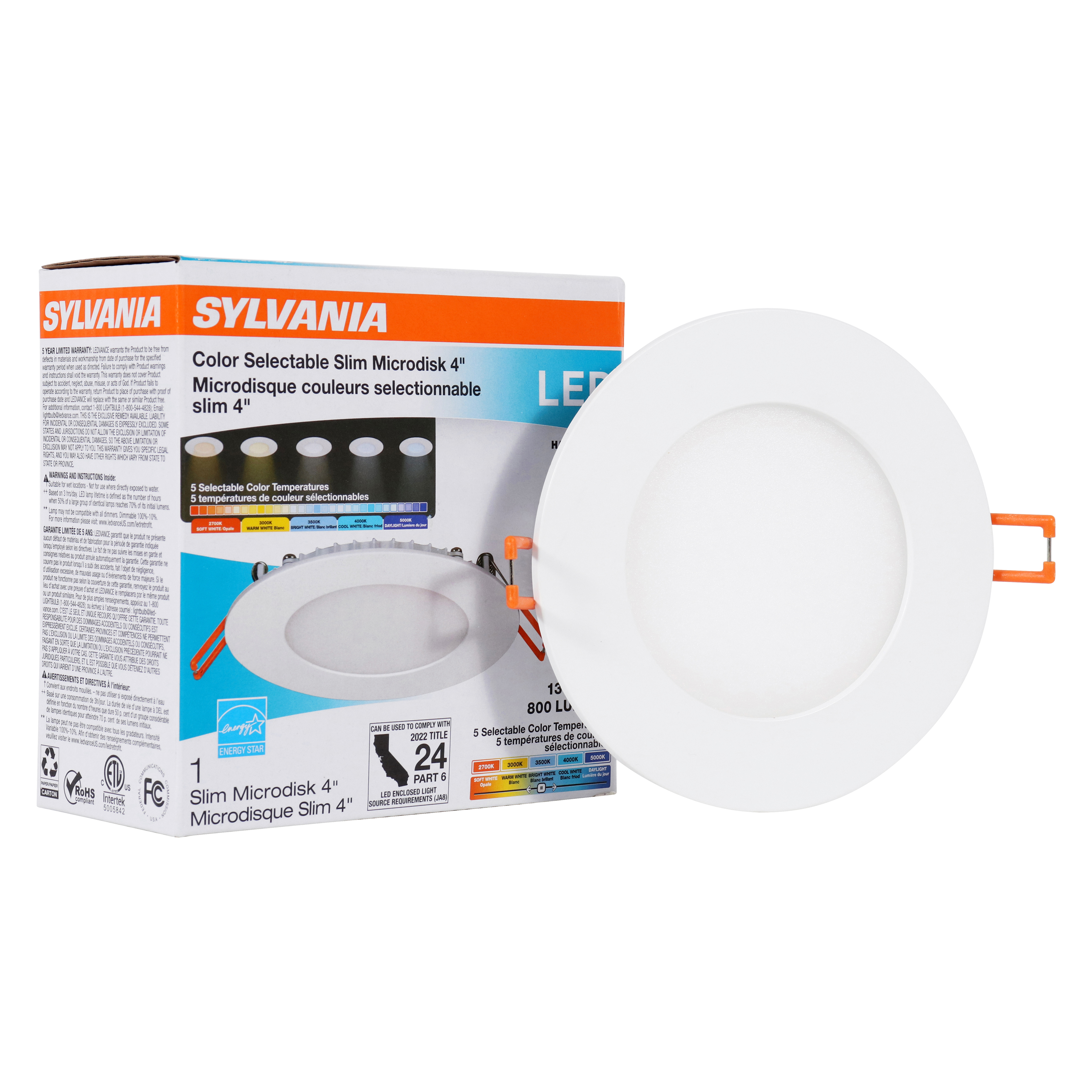

Combo Shot = Product Beauty Shot + Packaging Image
Slim MicroDisk 4inches 800 lumens 5 CCT selectable
JPG (2.48 MB)
Packaging image, frontal
Slim MicroDisk 4inches 800 lumens 5 CCT selectable
JPG (4.87 MB)
Packaging image, spacial
Slim MicroDisk 4inches 800 lumens 5 CCT selectable
JPG (4.82 MB)
