MICRODISK SLIM PERFORMANCE CCT SELECTABLE

LEDMD SLIM SELECT 3A 3" 5CCT 500LM 120V WH

NAED: 63053
Download data sheet
Contact sales
Our warranty conditions

PRODUCT DETAILS

Areas of application
  • Residential
  • Commercial applications
  • New installations or retrofit of existing installations
  • Closets
  • Cabinet lighting
Product features
  • Canless recessed flush mount downlight with remote driver design for easy installation
  • 1/2" height allows installation directly under joists
  • Selectable CCTs: 2700/3000/3500/4000/5000K
  • Flicker-free dimming
  • Up to 87 LPW
  • Energy savings up to 92 %
  • Beam Angle of 110° FWHM
  • 90 CRI, R9>50
Equipment / Accessories
  • Luminaire with interconnected cable to galvanized steel remote driver wiring enclosure via 16in (400mm) FT6 cable
Safety advice
  • Suitable for wet locations.
  • Suitable for use in closets, compliant with NFPA 70, NEC section 410.16 (A)(3) and 410.16 (C)(5).
  • IC Rated.
  • Max Ceiling Thickness 1.18" (30 mm).
Product information bulletin
SLIM CCT SELECTABLE MICRODISK LEDLUM178
PDF (1.55 MB)
Electrical data
Nominal wattage 6.50 W
Nominal voltage 120 V
Photometrical data
Luminous flux 500 lm
Luminous efficacy 62 lm/W
Color temperature 2700 … 5000 K
Color rendering index Ra 90
Dimensions & Weight
Diameter 100.00 mm
Height 22.86 mm
Product weight 150.00 g
Materials & Colors
Product color White
Housing color White
Body material Plastic
Mercury content 0.0 mg
Application & Mounting
Dimmable Yes
Type of dimming PHASE CUT
Mounting type Recessed
Replaceable light source No
Certificates & Standards
Replaceable light source (EPREL) Not replaceable
Product code Packaging unit (Pieces/Unit) Dimensions (length x width x height) Gross weight Volume
0046135630538 Folding box
1		 82 mm x 104 mm x 135 mm 212.00 g 1.15 dm³
10046135630535 Shipping box
6		 258 mm x 215 mm x 152 mm 1415.00 g 8.43 dm³

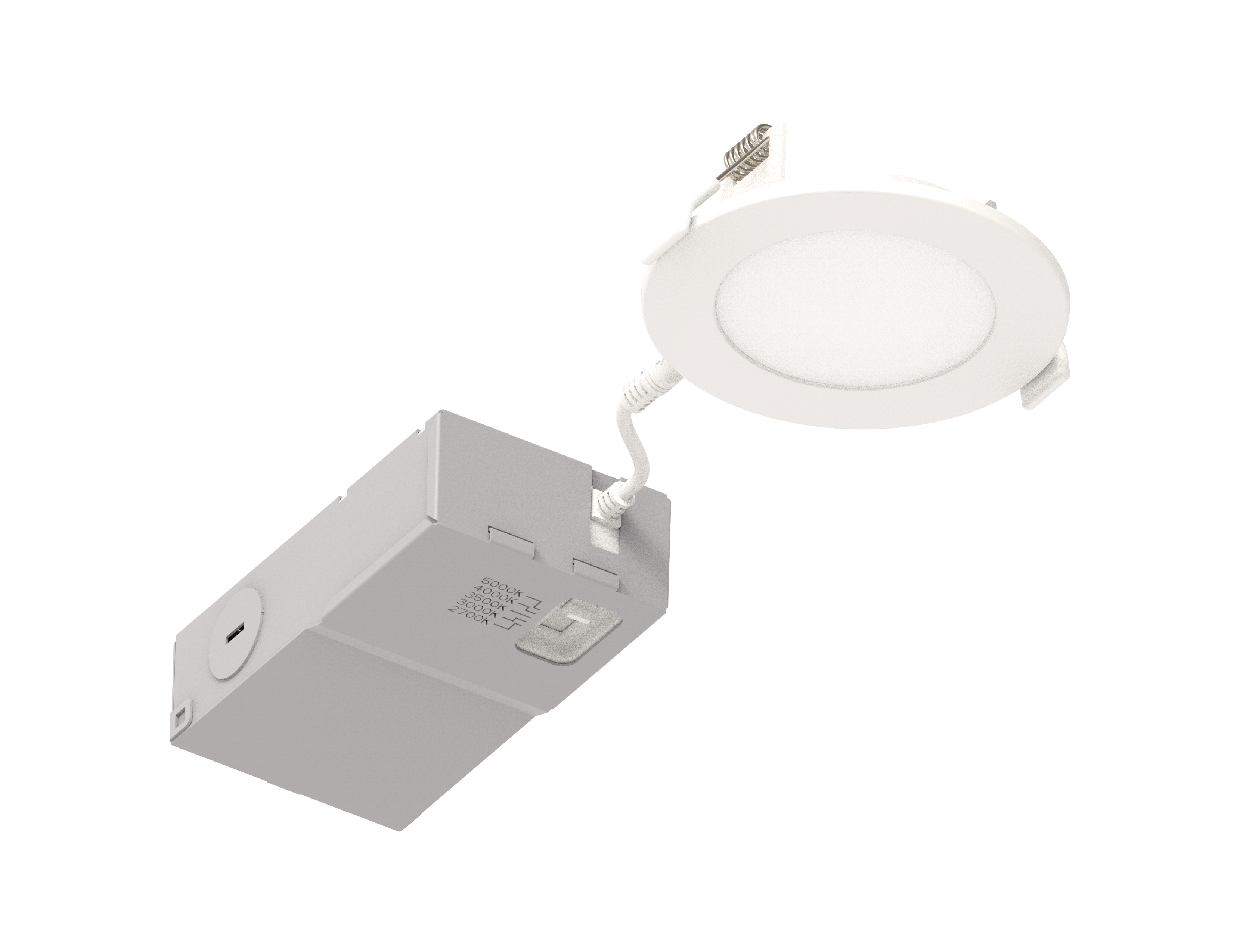

Beauty Shot
LEDVANCE Performance Class Downlight 3"
PNG (2.74 MB)
IES file (IES)
SLIM CCT SELECTABLE MICRODISK IES FILES
ZIP (40.15 KB)
