MICRODISK SLIM PERFORMANCE CCT SELECTABLE
LEDMD SLIM SELECT 3A 6" 5CCT 800LM 120V WH
NAED: 63055
Our warranty conditions
PRODUCT DETAILS
Areas of application
- Residential
- Commercial applications
- New installations or retrofit of existing installations
- Closets
- Cabinet lighting
Product features
- Canless recessed flush mount downlight with remote driver design for easy installation
- 1/2" height allows installation directly under joists

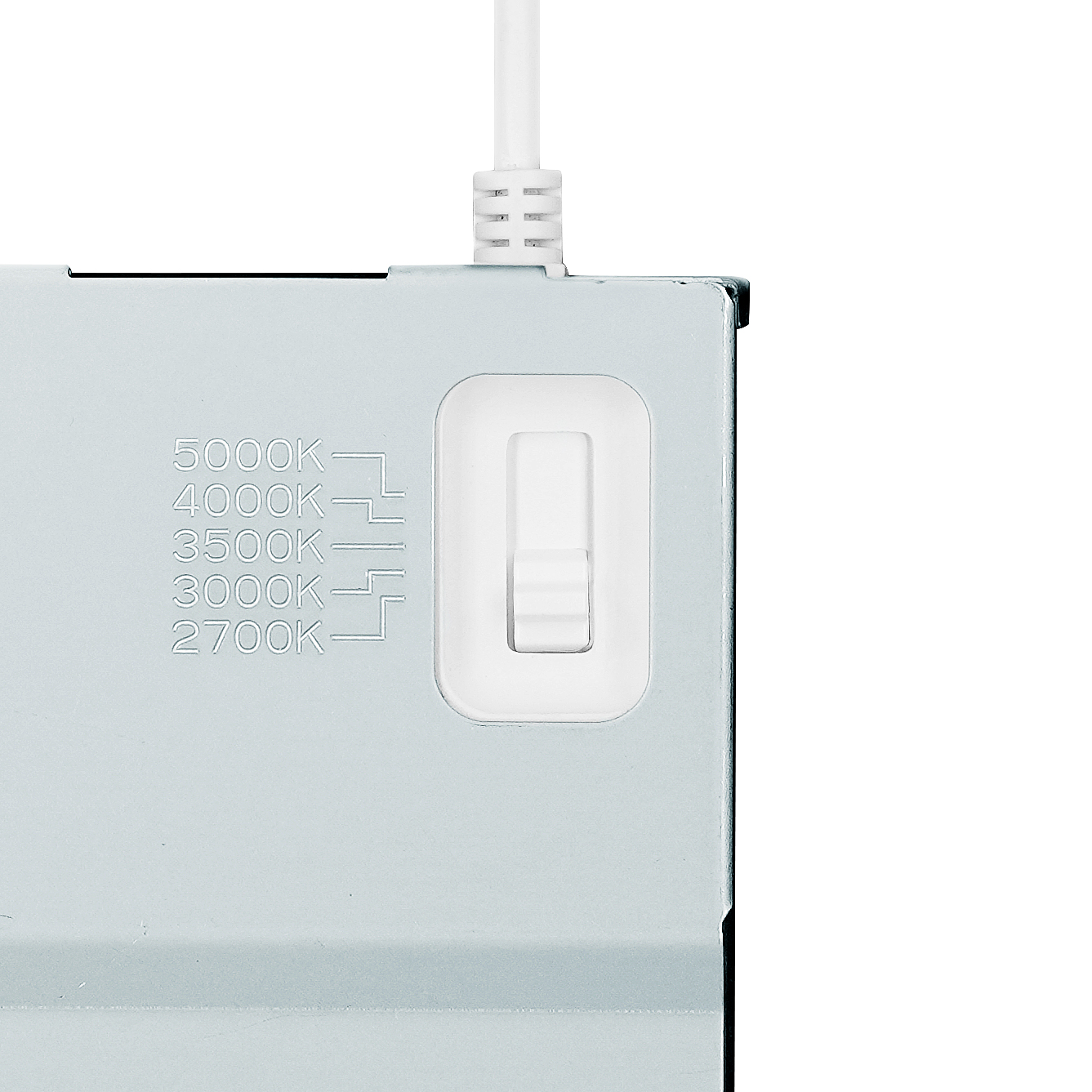

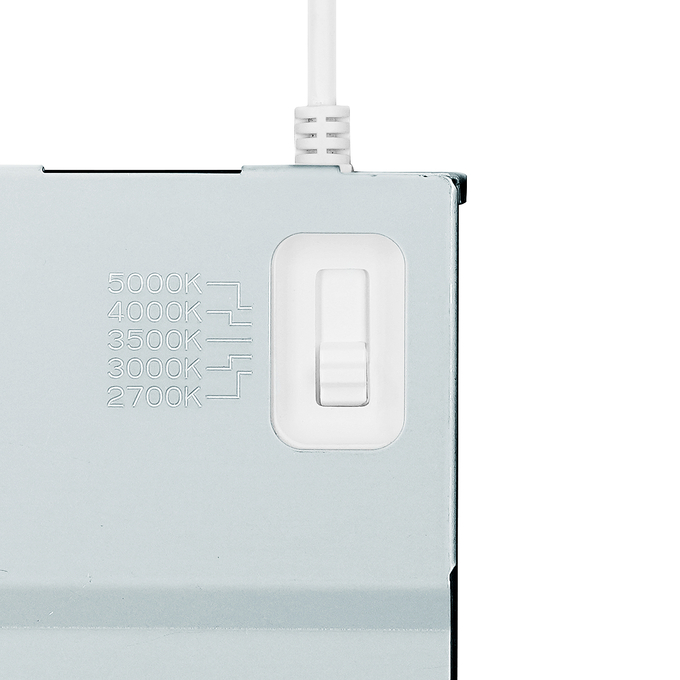

- Selectable CCTs: 2700/3000/3500/4000/5000K
- Flicker-free dimming
- Up to 87 LPW
- Energy savings up to 92 %
- Beam Angle of 110° FWHM
- 90 CRI, R9>50
Equipment / Accessories

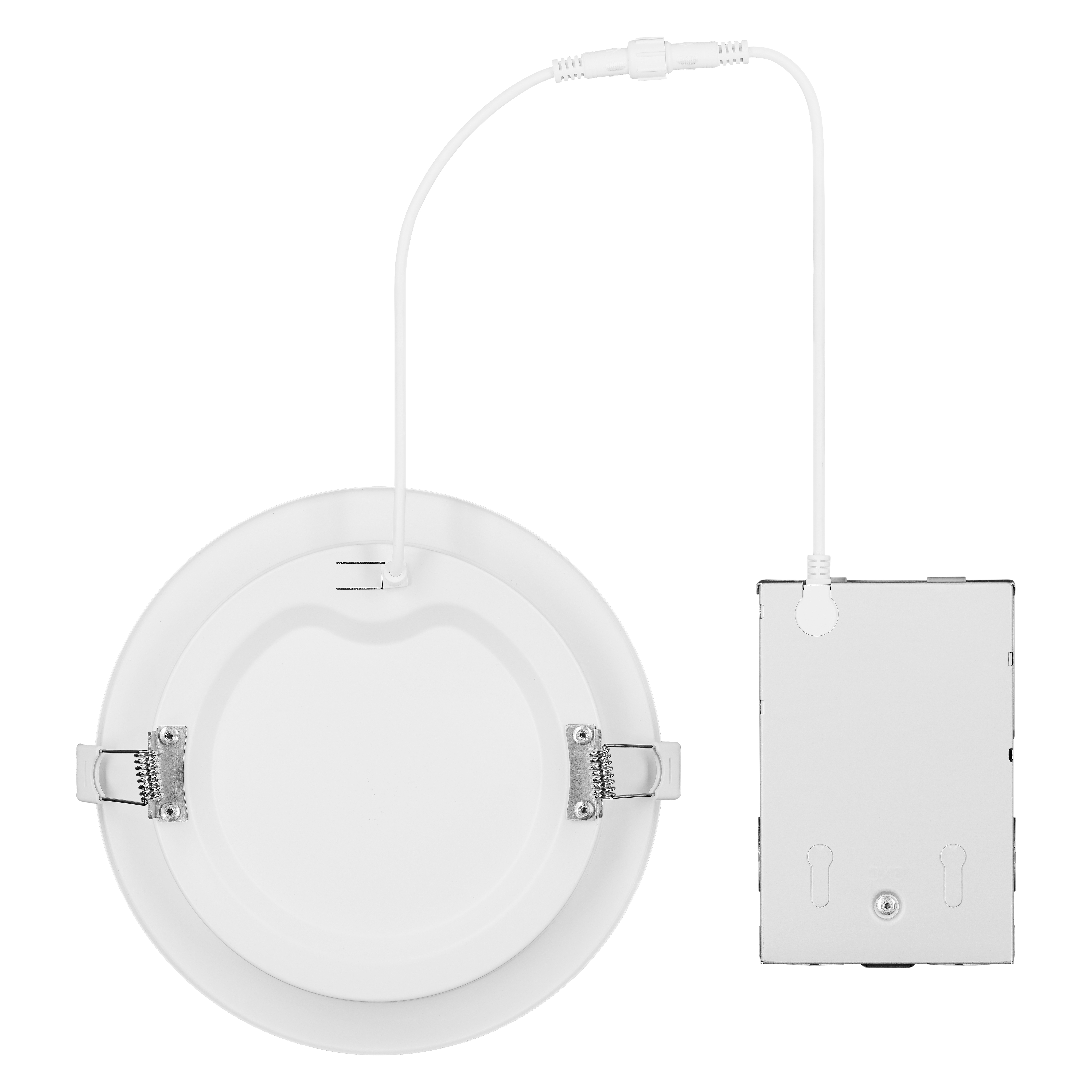

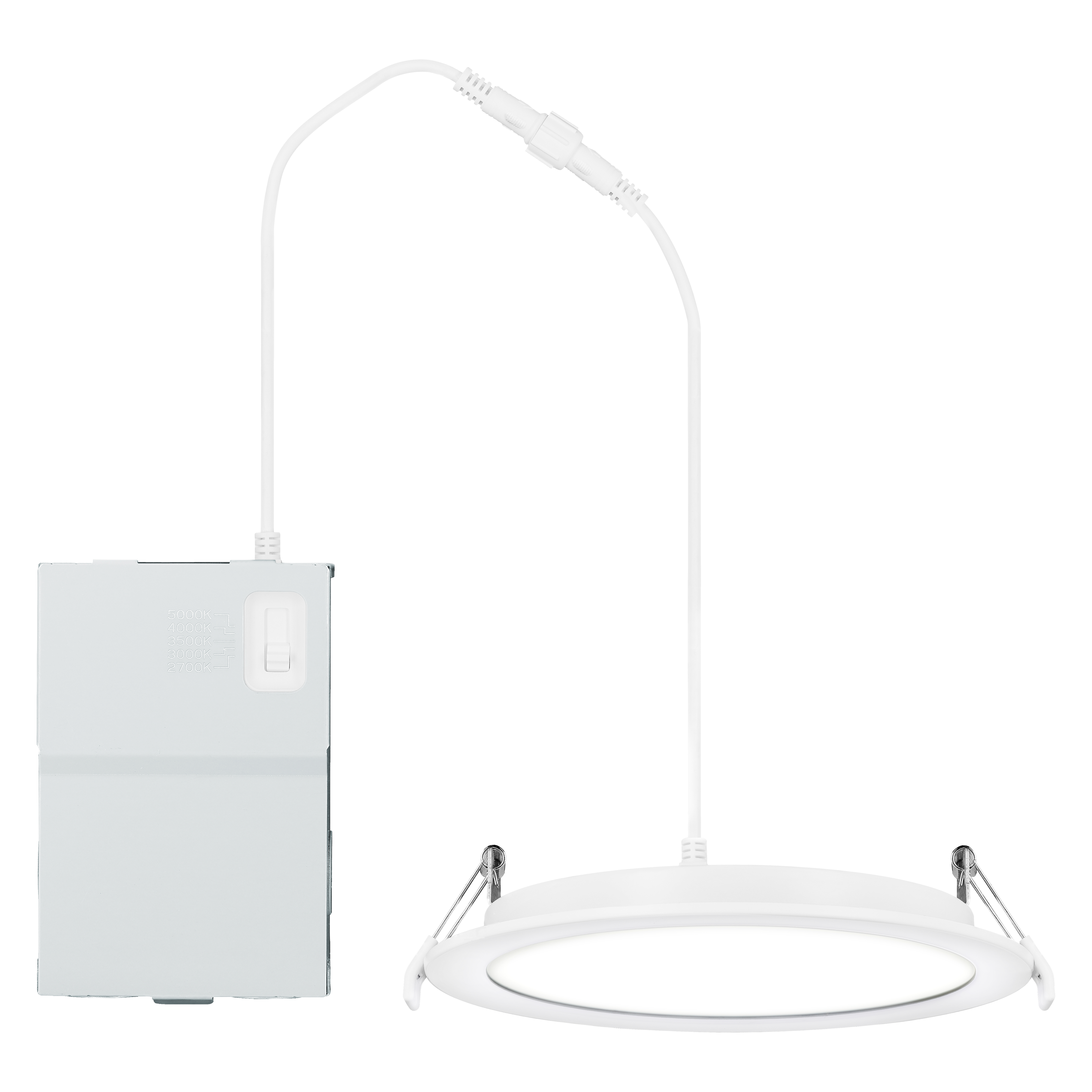

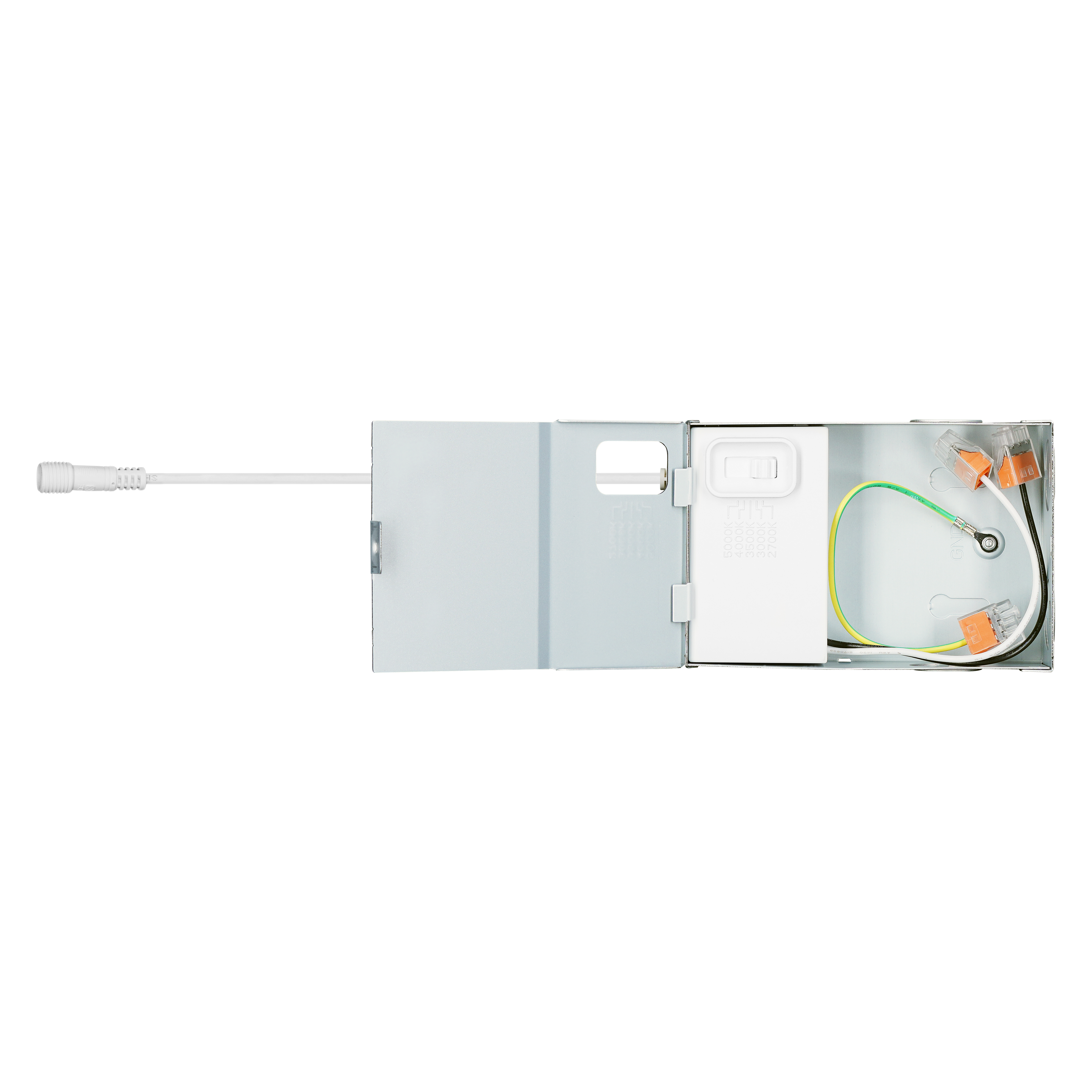

- Luminaire with interconnected cable to galvanized steel remote driver wiring enclosure via 16in (400mm) FT6 cable
Safety advice
- Suitable for wet locations.
- Suitable for use in closets, compliant with NFPA 70, NEC section 410.16 (A)(3) and 410.16 (C)(5).
- IC Rated.
- Max Ceiling Thickness 1.18" (30 mm).
Product information bulletin
SLIM CCT SELECTABLE MICRODISK LEDLUM178
SLIM CCT SELECTABLE MICRODISK LEDLUM178
Electrical data
| Nominal wattage | 10.00 W |
| Nominal voltage | 120 V |
Photometrical data
| Luminous flux | 800 lm |
| Luminous efficacy | 75 lm/W |
| Color temperature | 2700 … 5000 K |
| Color rendering index Ra | 90 |
Dimensions & Weight
| Diameter | 175.00 mm |
| Height | 23.50 mm |
| Product weight | 302.00 g |
Materials & Colors
| Product color | White |
| Housing color | White |
| Body material | Plastic |
| Mercury content | 0.0 mg |
Application & Mounting
| Dimmable | Yes |
| Type of dimming | PHASE CUT |
| Mounting type | Recessed |
| Application environment | Indoor |
| Replaceable light source | No |
Certificates & Standards
| Replaceable light source (EPREL) | Not replaceable |
| Product code | Packaging unit (Pieces/Unit) | Dimensions (length x width x height) | Gross weight | Volume |
|---|---|---|---|---|
| 0046135630552 | Folding box 1 |
64 mm x 177 mm x 180 mm | 377.00 g | 2.04 dm³ |
| 10046135630559 | Shipping box 6 |
401 mm x 185 mm x 196 mm | 2681.00 g | 14.54 dm³ |

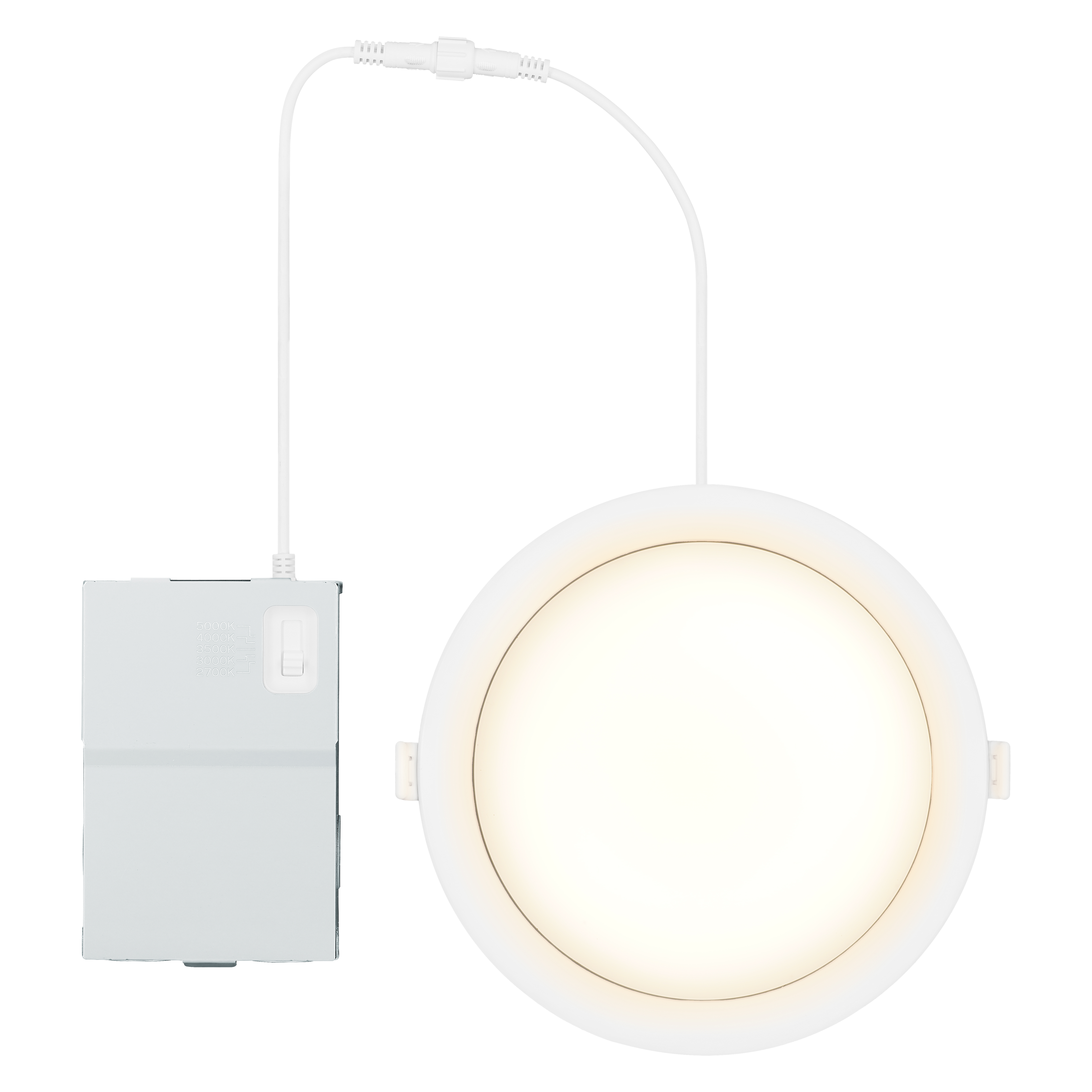

Beauty Shot

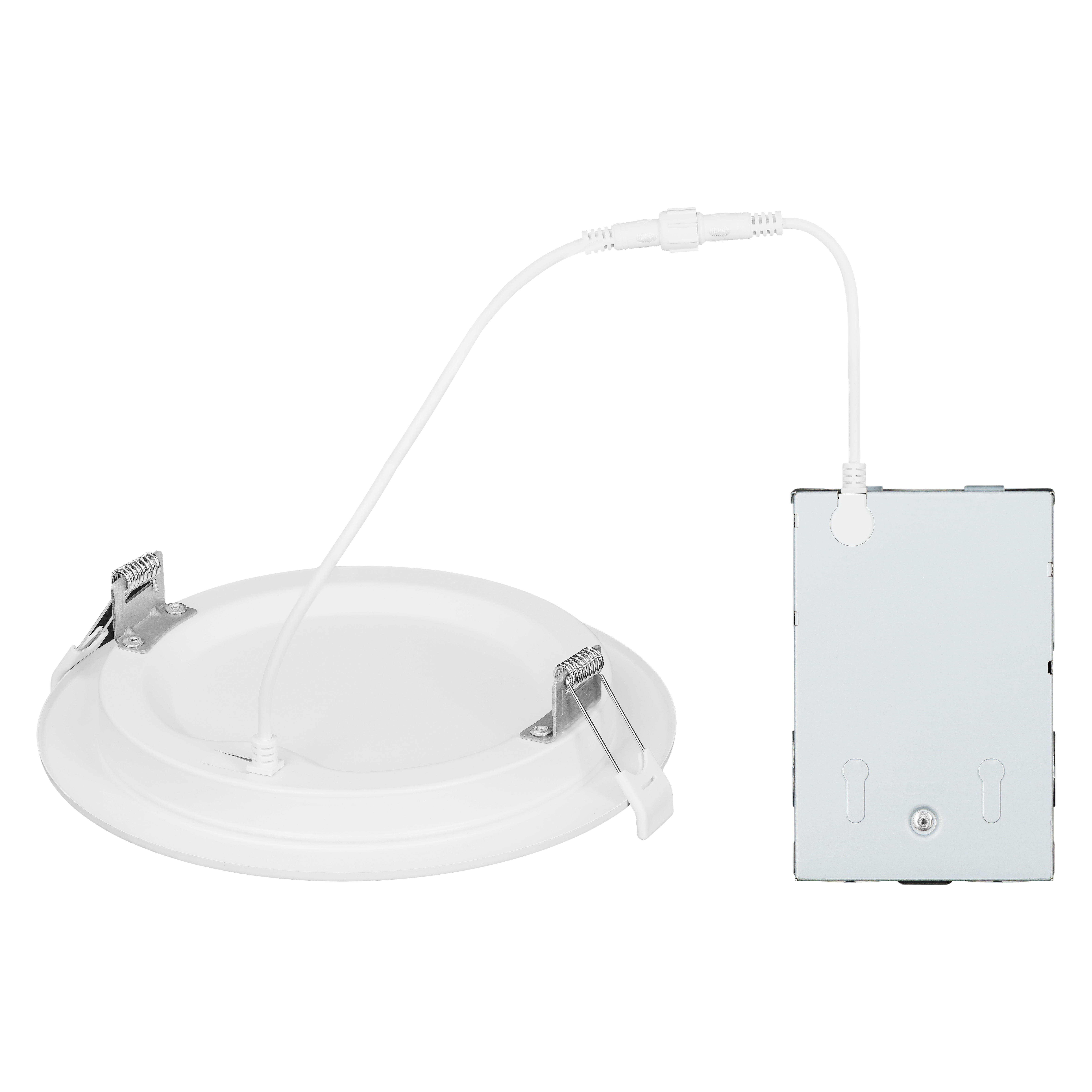

LEDVANCE Performance Class Slim Microdisk 6"
LEDVANCE Performance Class Slim Microdisk 6"

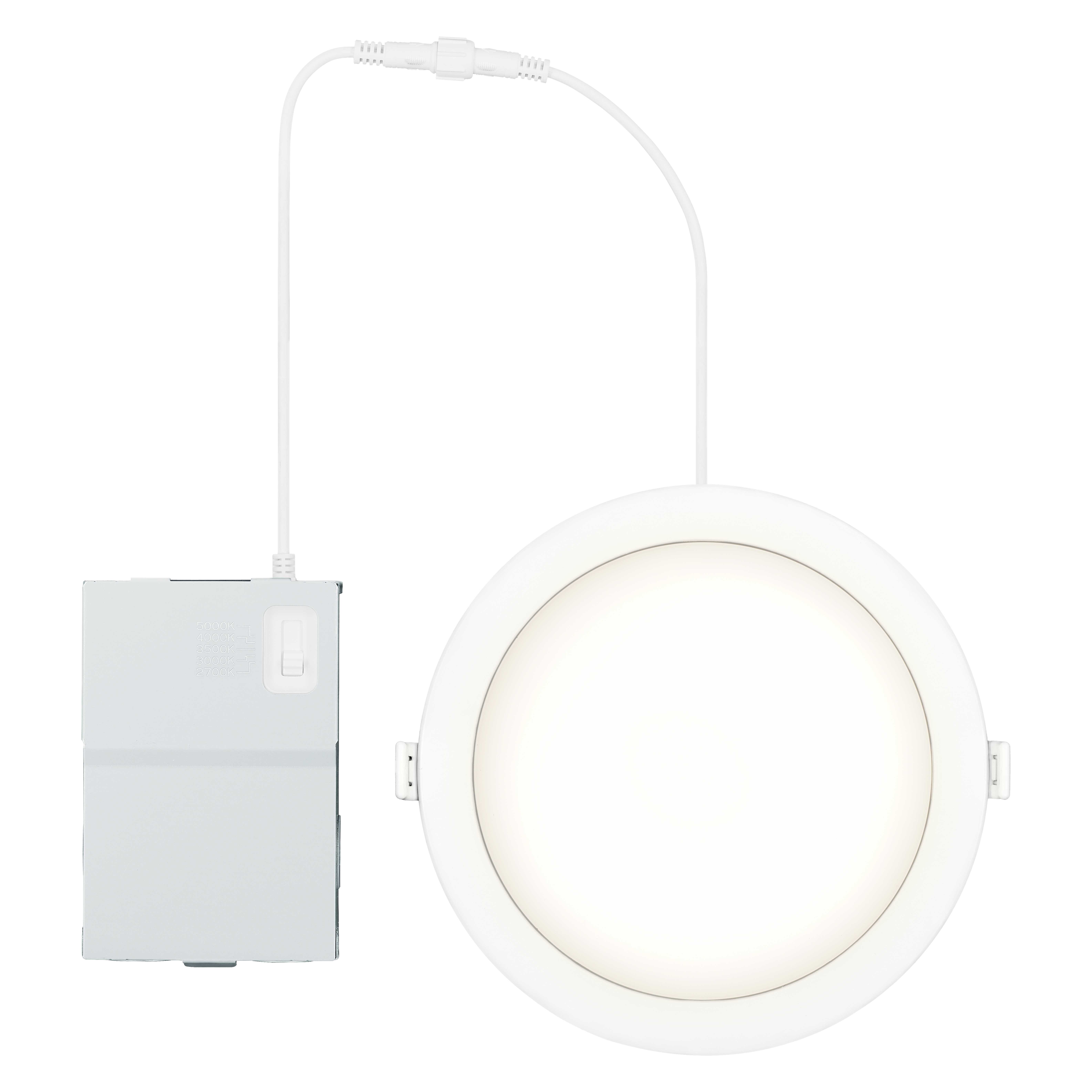

Beauty Shot

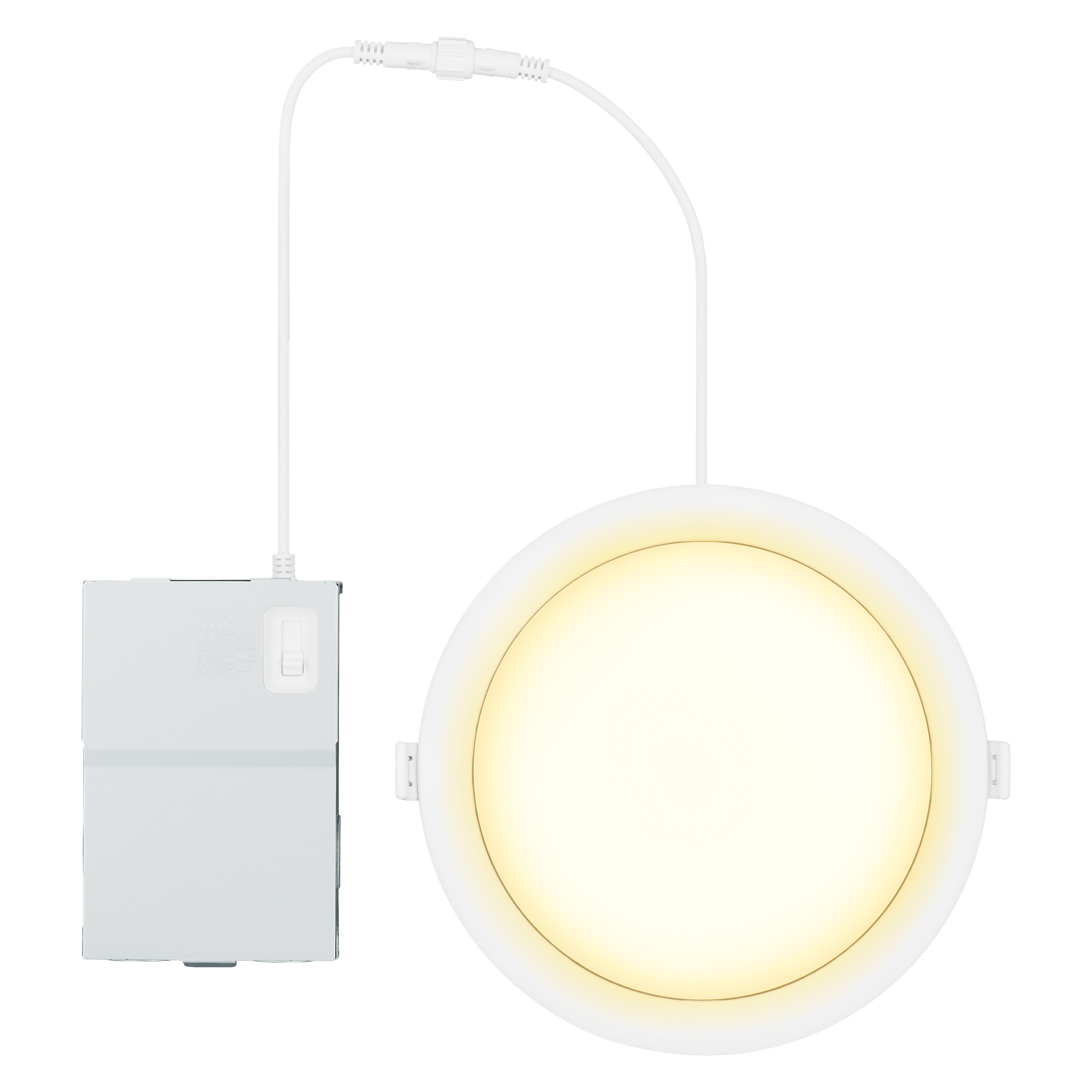

LEDVANCE Performance Class Slim Microdisk 6"
LEDVANCE Performance Class Slim Microdisk 6"

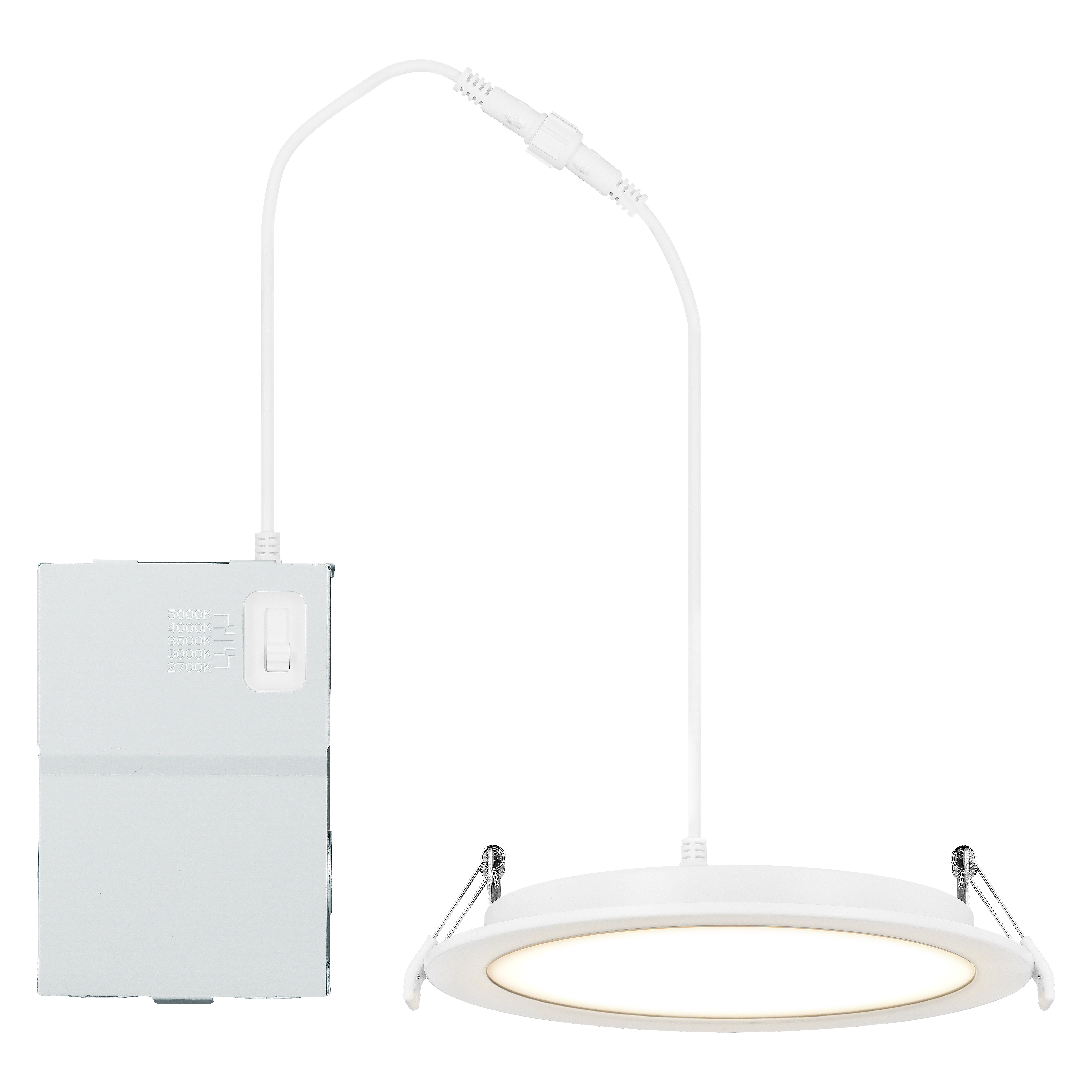

Beauty Shot

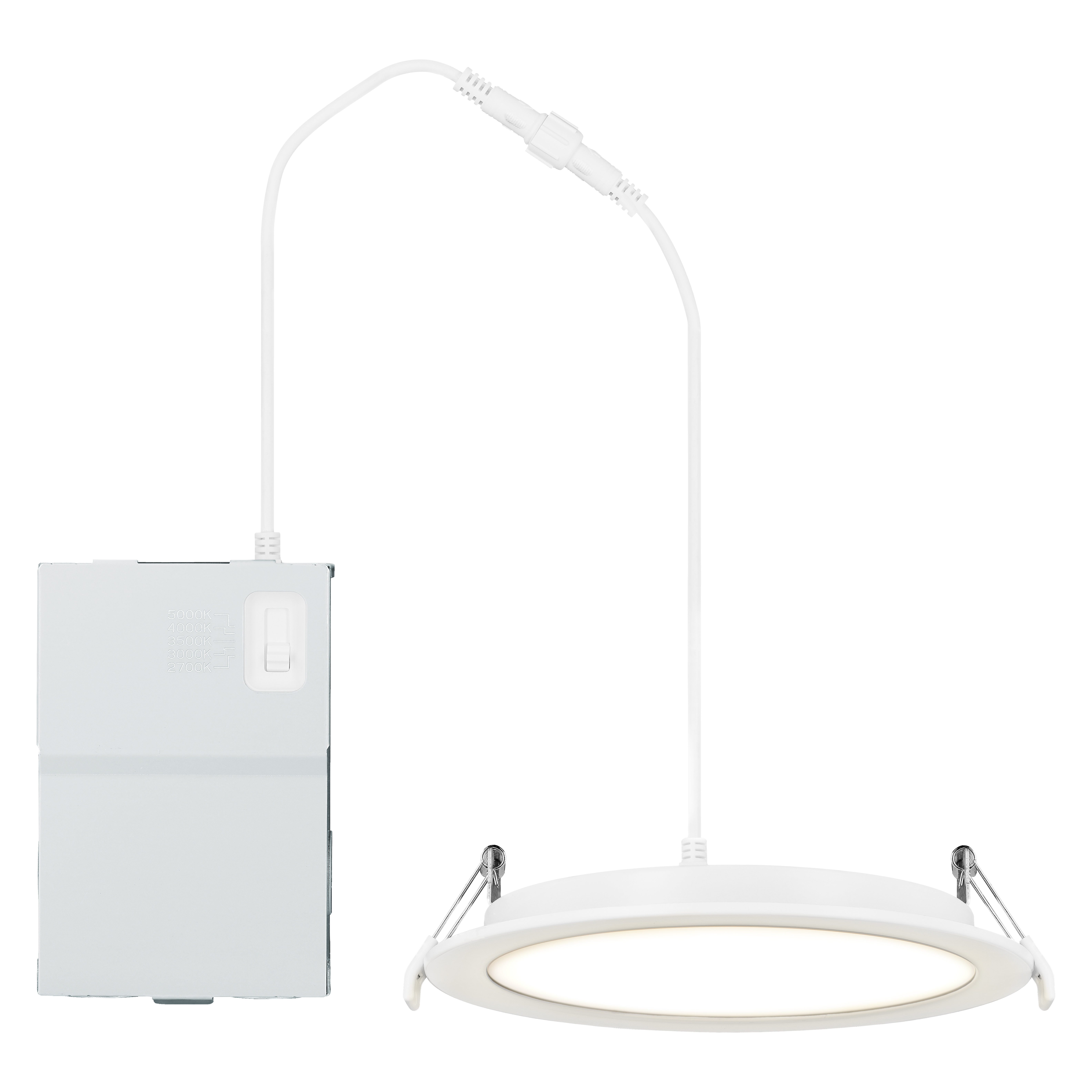

LEDVANCE Performance Class Slim Microdisk 6"
LEDVANCE Performance Class Slim Microdisk 6"
Beauty Shot

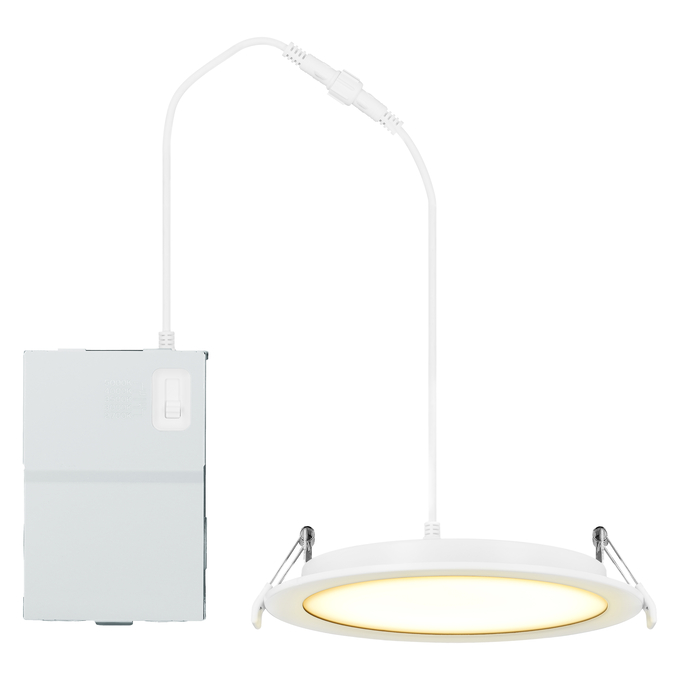

LEDVANCE Performance Class Slim Microdisk 6"
LEDVANCE Performance Class Slim Microdisk 6"

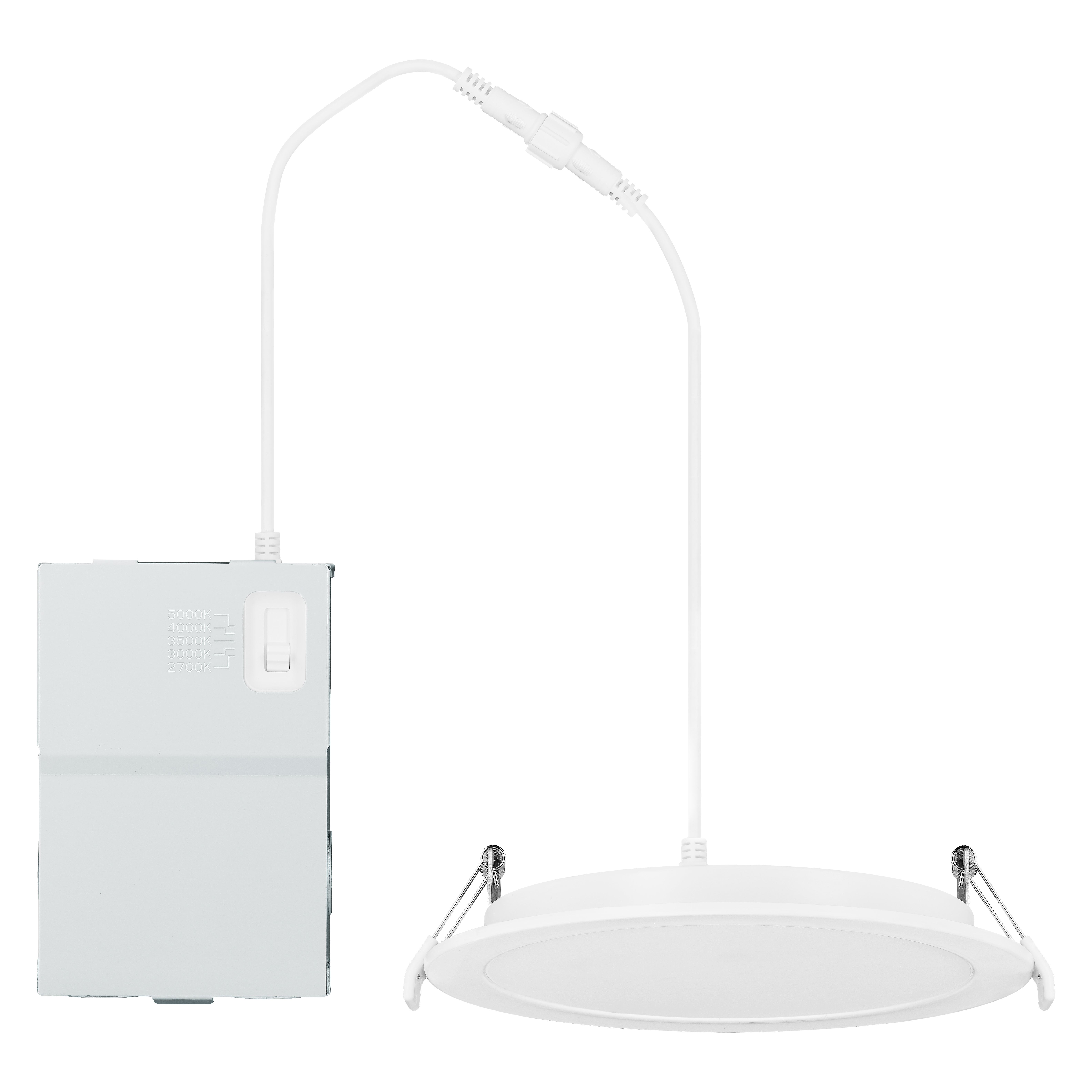

Beauty Shot

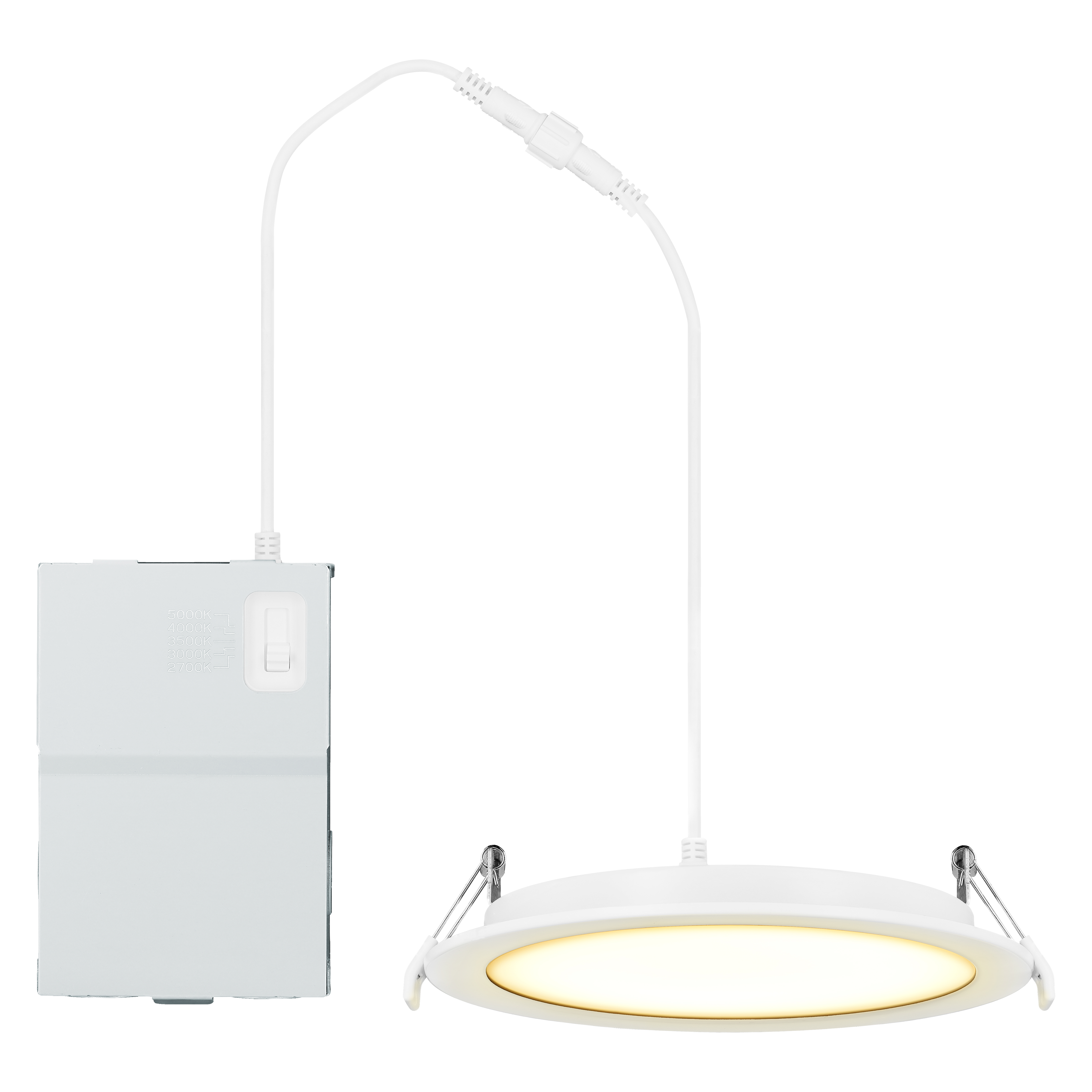

LEDVANCE Performance Class Slim Microdisk 6"
LEDVANCE Performance Class Slim Microdisk 6"

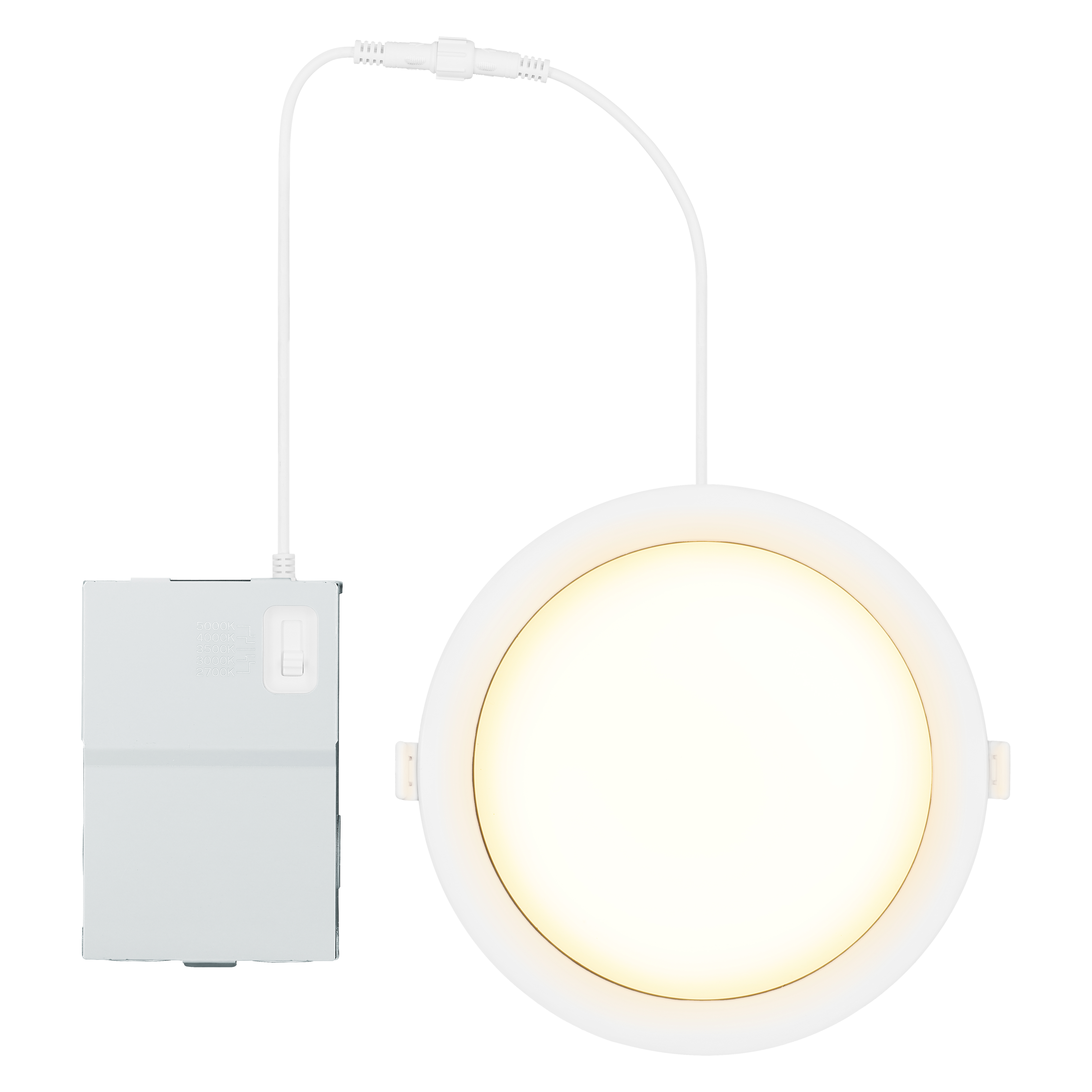

Beauty Shot

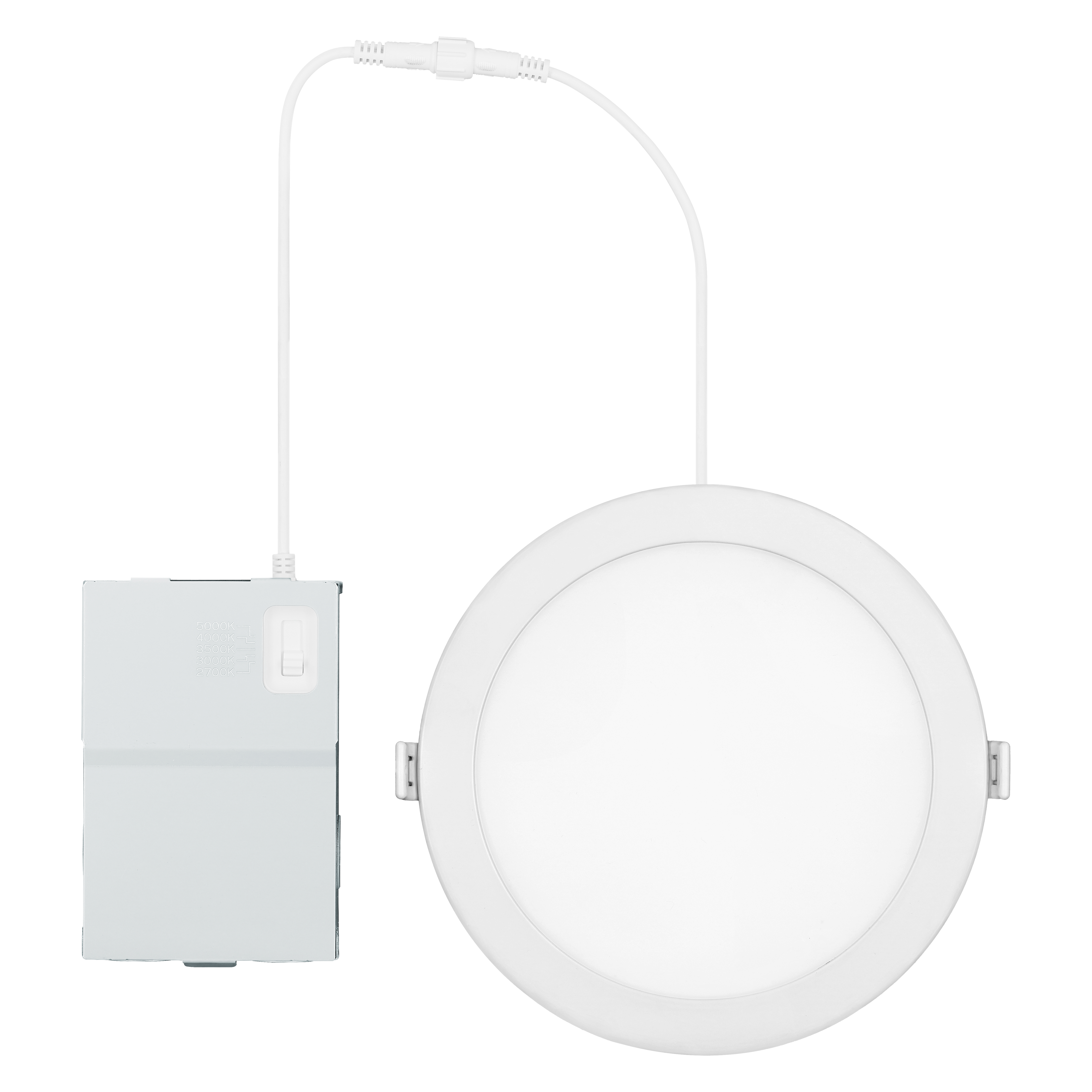

LEDVANCE Performance Class Slim Microdisk 6"
LEDVANCE Performance Class Slim Microdisk 6"
Beauty Shot
LEDVANCE Performance Class Slim Microdisk 6"
LEDVANCE Performance Class Slim Microdisk 6"

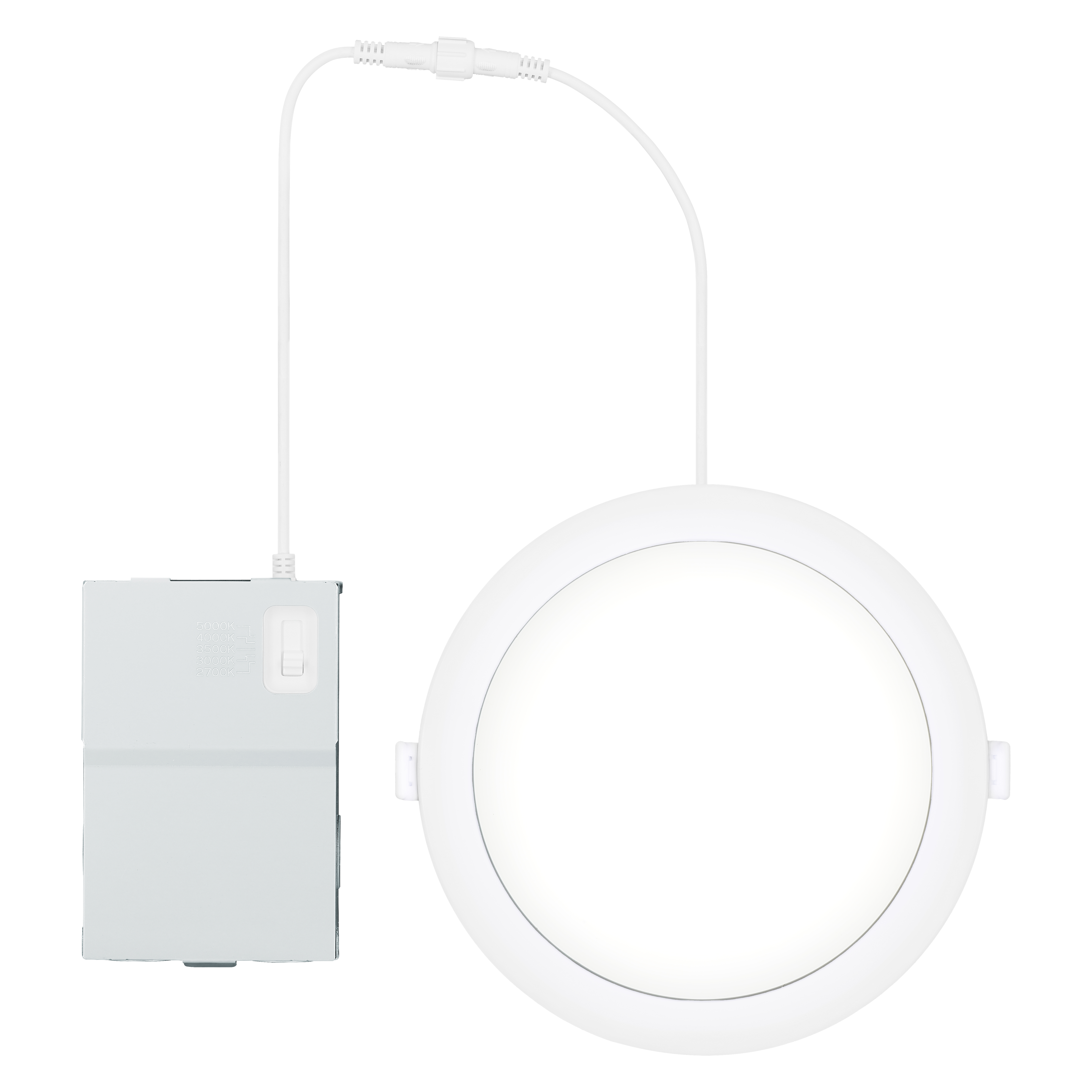

Beauty Shot
LEDVANCE Performance Class Slim Microdisk 6"
LEDVANCE Performance Class Slim Microdisk 6"
Beauty Shot
LEDVANCE Performance Class Slim Microdisk 6"
LEDVANCE Performance Class Slim Microdisk 6"
Beauty Shot
LEDVANCE Performance Class Slim Microdisk 6"
LEDVANCE Performance Class Slim Microdisk 6"
Beauty Shot
LEDVANCE Performance Class Slim Microdisk 6"
LEDVANCE Performance Class Slim Microdisk 6"
Beauty Shot
LEDVANCE Performance Class Slim Microdisk 6"
LEDVANCE Performance Class Slim Microdisk 6"
Beauty Shot
LEDVANCE Performance Class Slim Microdisk 6"
LEDVANCE Performance Class Slim Microdisk 6"
Beauty Shot
LEDVANCE Performance Class Slim Microdisk 6"
LEDVANCE Performance Class Slim Microdisk 6"
Beauty Shot
LEDVANCE Performance Class Slim Microdisk 6"
LEDVANCE Performance Class Slim Microdisk 6"
Beauty Shot
LEDVANCE Performance Class Slim Microdisk 6"
LEDVANCE Performance Class Slim Microdisk 6"
Beauty Shot

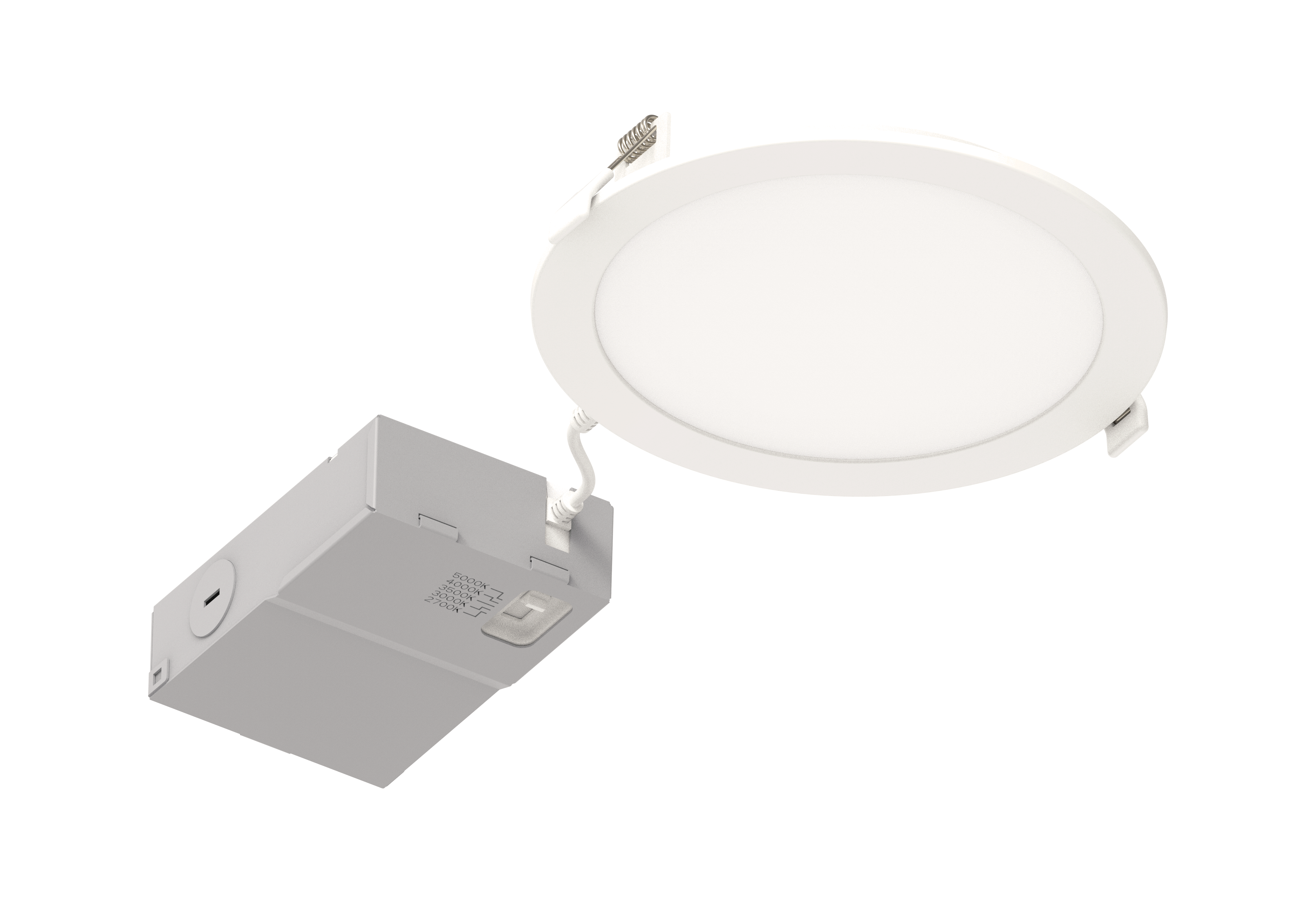

LEDVANCE Performance Class Downlight 6"
