DOWNLIGHT LIGHT DISK KIT CCT SELECTABLE

LED LIGHT DISK 5CCT 1200LM

NAED: 62447
Download data sheet
Contact sales
Our warranty conditions

PRODUCT DETAILS

Areas of application
  • Residential
Product features
  • Lasts up to 25x longer than incandescent lamps
  • Available in 120VAC
  • Up to 75 LPW
  • Energy savings up to 85 %
  • Flicker-free dimming, phase-cut down to 10 %
  • Uniform, glare free illumination distribution
Safety advice
  • Suitable for indoor dry, damp and wet locations.
Product information bulletin
LED LIGHT DISK
PDF (929.5 KB)
Electrical data
Nominal wattage 16.00 W
Nominal voltage 120 V
Photometrical data
Luminous flux 1200 lm
Luminous efficacy 75 lm/W
Color temperature 2700 … 5000 K
Color rendering index Ra 90
Dimensions & Weight
Diameter 190.50 mm
Height 31.00 mm
Product weight 240.00 g
Materials & Colors
Product color White
Housing color White
Body material Polycarbonate (PC)|Acrylonitrile butadiene styrene (ABS)
Mercury content 0.0 mg
Application & Mounting
Dimmable Yes
Type of dimming PHASE CUT
Mounting type Surface
Application environment Indoor
Replaceable light source No
Holder designation E26
Product code Packaging unit (Pieces/Unit) Dimensions (length x width x height) Gross weight Volume
0046135624476 Folding box
1		 197 mm x 48 mm x 197 mm 350.00 g 1.86 dm³
10046135624473 Shipping box
4		 210 mm x 210 mm x 220 mm 1661.00 g 9.70 dm³

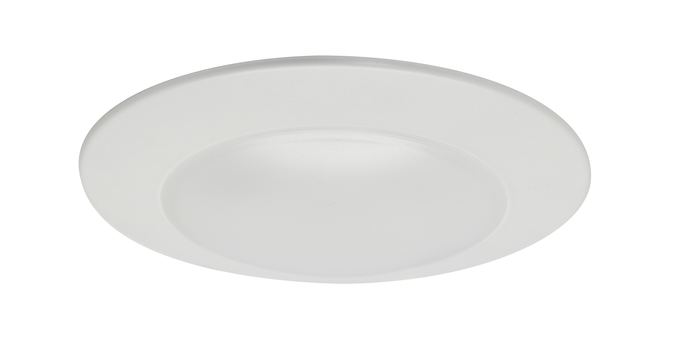

Product image: white background, horizontal
LIGHT DISK- HANGING
TIF (3.3 MB)
Product image: white background, upright
LIGHT DISK- FRONT
TIF (5.64 MB)

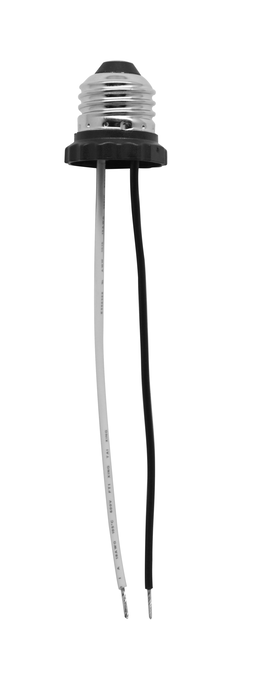

Product image: white background, with accessory, alternative image
LIGHT DISK ACCESSORIES
TIF (5.69 MB)
Product image: white background, with accessory, alternative image
LIGHT DISK ACCESSORIES
TIF (790.72 KB)

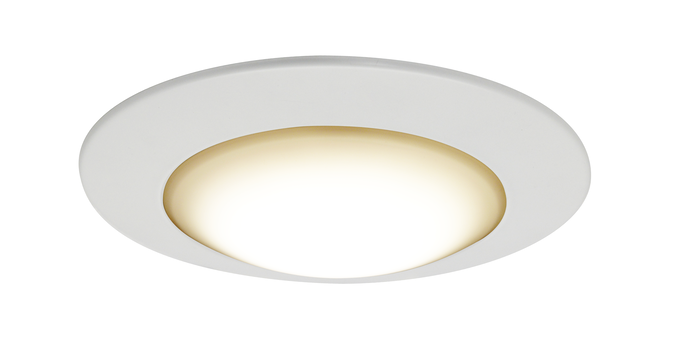

Beauty Shot
LIGHT DISK- CCT3000K
TIF (3.08 MB)
IES files (IES, additional)
Performance Class Light Disk
ZIP (10.07 MB)
