DOWNLIGHT RETROFIT SELECTABLE
RT SELECT 1AS 4" 5CCT BA LM SELECT
NAED: 65737
Our warranty conditions
PRODUCT DETAILS
Areas of application
- Residential
- Bedrooms
- Kitchens
- Bathrooms
Product features
- Integrated white trim, E26 medium base socket adapter
- Selectable CCTs: 2700/3000/3500/4000/5000K
- Available in 120VAC
- Up to 100 LPW
- Energy savings up to 89 %
- Flicker-free dimming, phase-cut down to 10 %
- Color trim rings available as optional accessory
- No warm-up time, instant-on with full light output
Safety advice
- Suitable for indoor dry, damp and wet locations.
- For use in housings that can structurally support a lamp weighing one pound.
- RT5/6 designed to install in standard 5" and 6" insulated and non-insulated housings.
- Not intended for use with emergency light luminaires or exit lights.
Product information bulletin
DUAL SELECTABLE SCREW-BASE DOWNLIGHT
DUAL SELECTABLE SCREW-BASE DOWNLIGHT
Electrical data
| Nominal wattage | 7.00 W |
| Nominal voltage | 120 V |
Photometrical data
| Luminous flux | 500 … 700 lm |
| Luminous efficacy | 100 lm/W |
| Color temperature | 2700 … 5000 K |
| Color rendering index Ra | 90 |
Dimensions & Weight
| Diameter | 128.00 mm |
| Height | 62.00 mm |
| Product weight | 170.00 g |
Materials & Colors
| Product color | White |
| Housing color | White |
| Body material | Polycarbonate (PC) |
| Mercury content | 0.0 mg |
Application & Mounting
| Type of connection | WAGO |
| Dimmable | Yes |
| Type of dimming | PHASE CUT |
| Mounting type | Recessed |
| Replaceable light source | No |
| Holder designation | E26 |
| Product code | Packaging unit (Pieces/Unit) | Dimensions (length x width x height) | Gross weight | Volume |
|---|---|---|---|---|
| 0046135657375 | Folding box 1 |
137 mm x 79 mm x 142 mm | 225.00 g | 1.54 dm³ |
| 10046135657372 | Shipping box 4 |
280 mm x 165 mm x 152 mm | 1052.00 g | 7.02 dm³ |

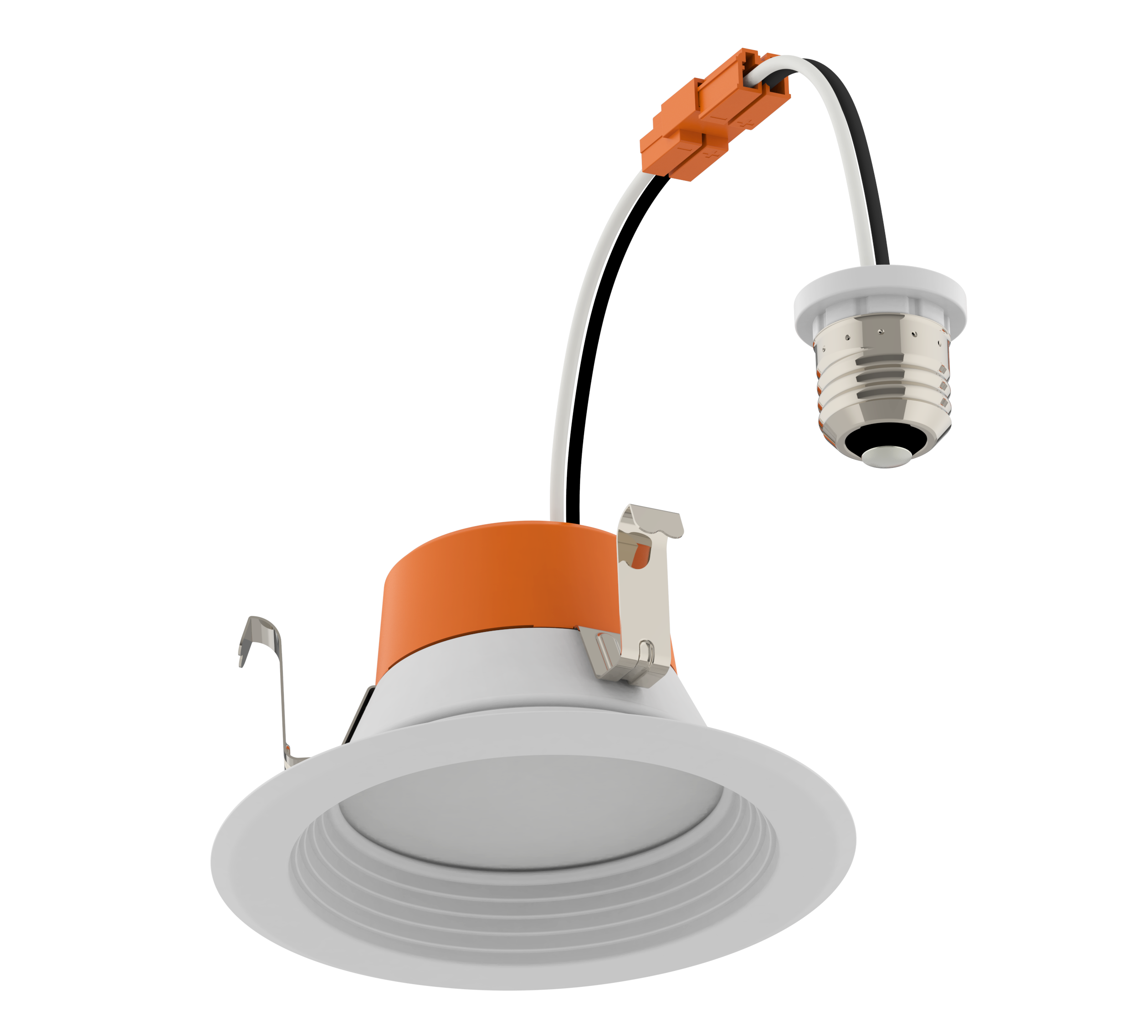

Product image: white background, upright
DUAL SELECTABLE BAFFLE LED RT 4 INCH
DUAL SELECTABLE BAFFLE LED RT 4 INCH
Packaging image, beauty shot
RT4 Dual Selectable
RT4 Dual Selectable

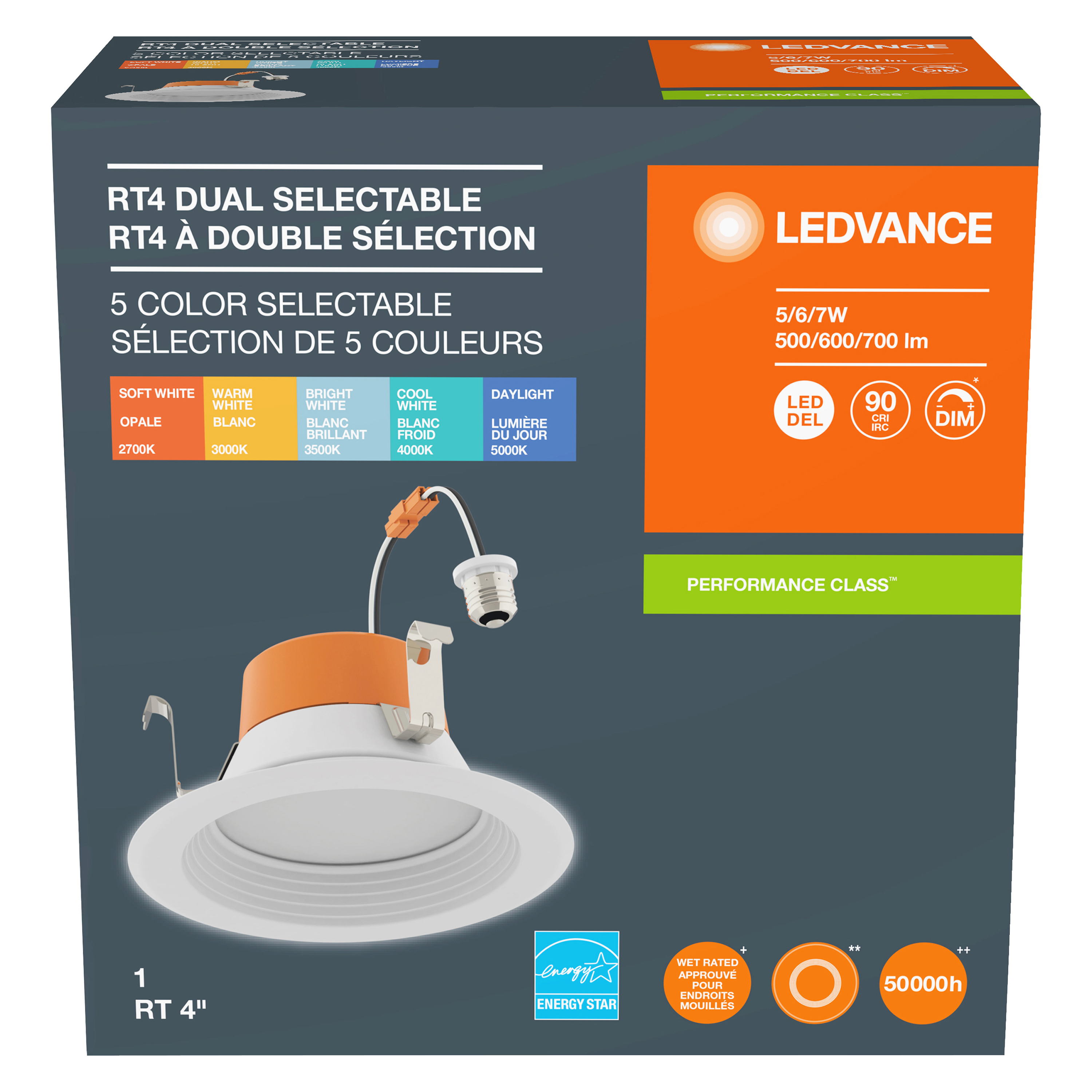

Packaging image, frontal
RT4 Dual Selectable
RT4 Dual Selectable

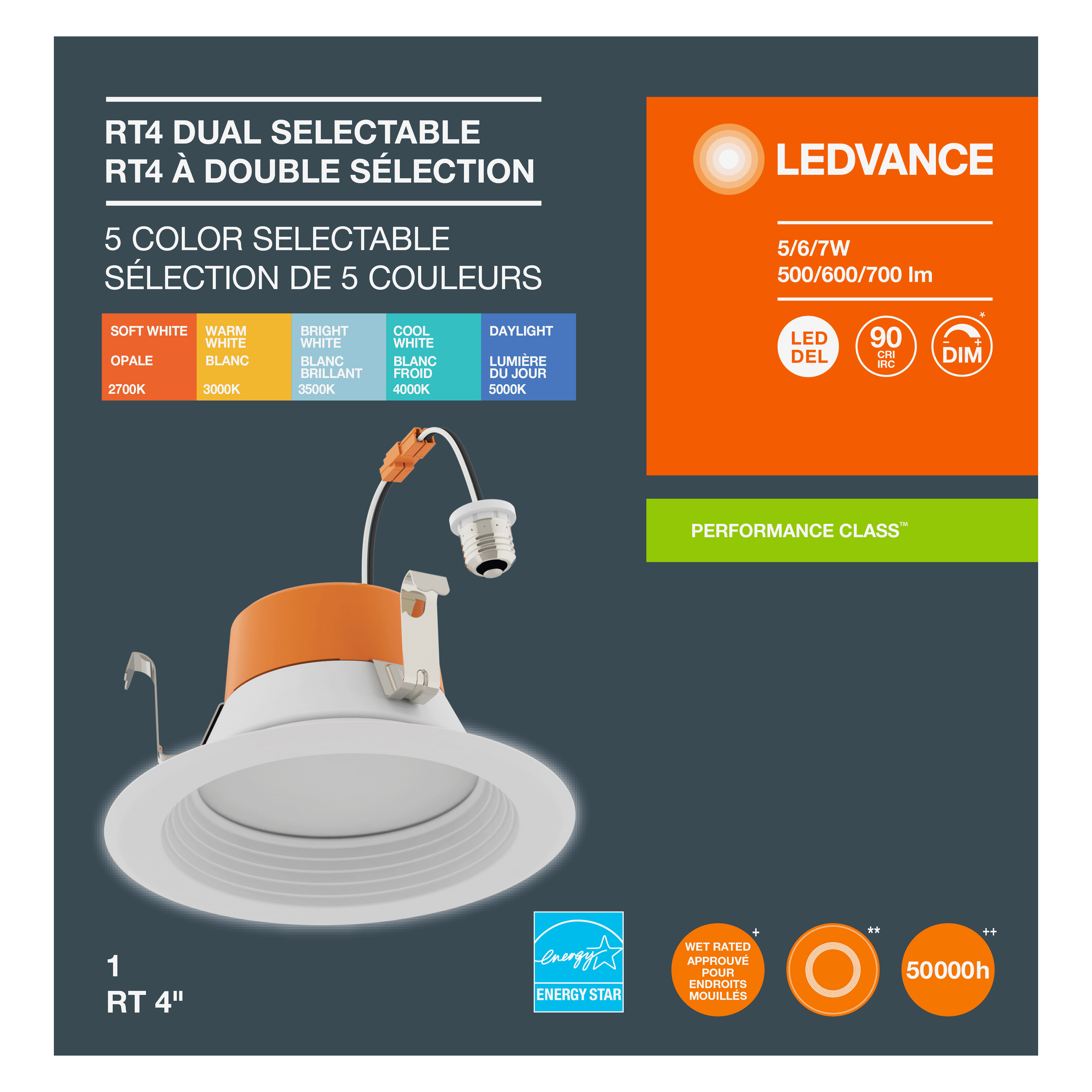

Packaging image, frontal
RT4 Dual Selectable
RT4 Dual Selectable

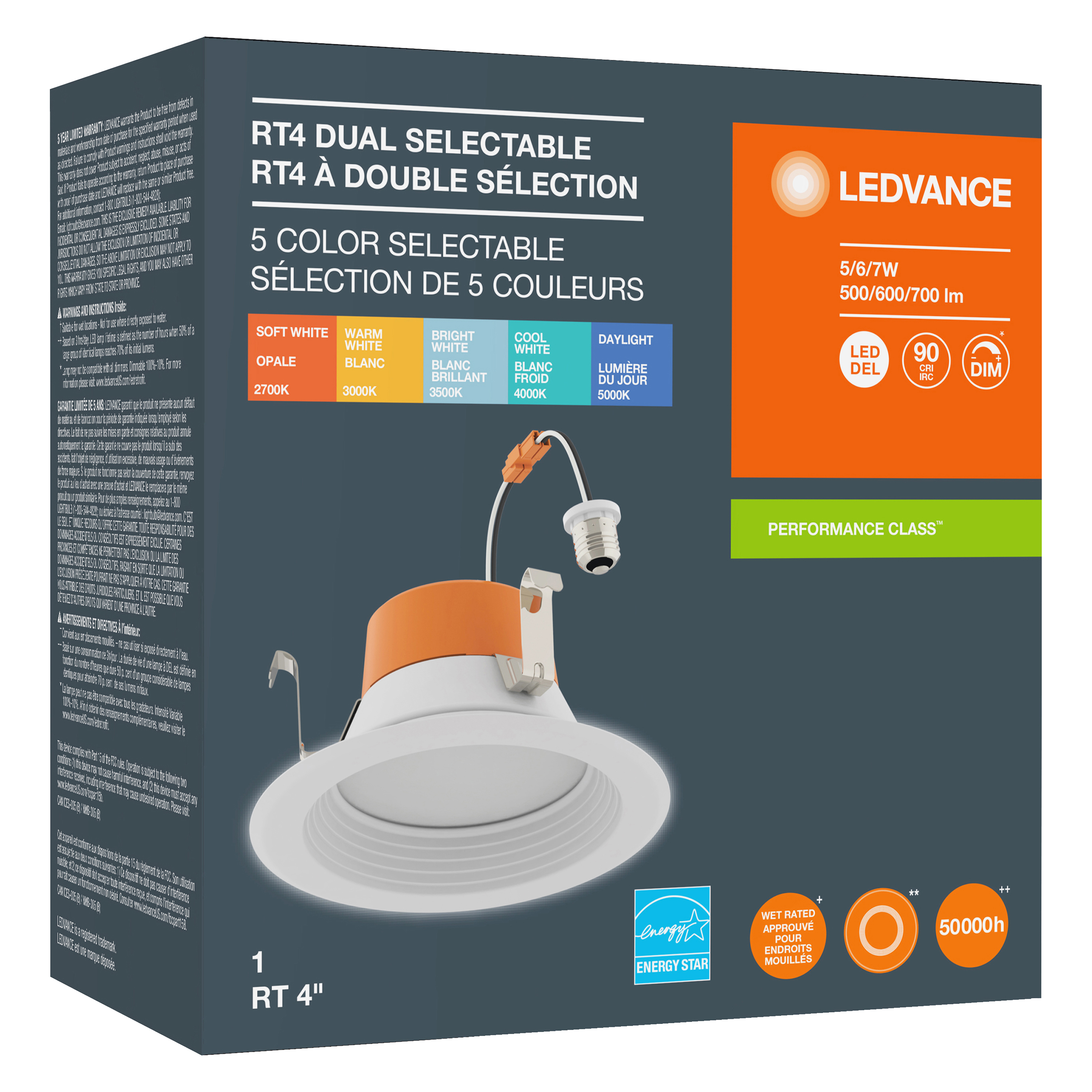

Packaging image, spacial
RT4 Dual Selectable
RT4 Dual Selectable
IES files (IES, additional)
LEDRT1A .ies ZIP
LEDRT1A .ies ZIP
