DOWNLIGHT RETROFIT SELECTABLE

RT SELECT 1A 4" 5CCT 650LM SM

NAED: 62866
Our warranty conditions

PRODUCT DETAILS

Areas of application
  • Residential
  • Bedrooms
  • Kitchens
  • Bathrooms
Product features
  • Integrated white trim, E26 medium base socket adapter
  • Selectable CCTs: 2700/3000/3500/4000/5000K
  • Available in 120VAC
  • Up to 100 LPW
  • Energy savings up to 89 %
  • Flicker-free dimming, phase-cut down to 10 %
  • Color trim rings available as optional accessory
  • No warm-up time, instant-on with full light output
Safety advice
  • Suitable for indoor dry, damp and wet locations.
  • For use in housings that can structurally support a lamp weighing one pound.
  • RT5/6 designed to install in standard 5" and 6" insulated and non-insulated housings.
  • Not intended for use with emergency light luminaires or exit lights.
Product information bulletin
DUAL SELECTABLE SCREW-BASE DOWNLIGHT
Electrical data
Nominal wattage 7.00 W
Nominal voltage 120 V
Photometrical data
Luminous flux 650 lm
Luminous efficacy 80 lm/W
Color temperature 2700 … 5000 K
Color rendering index Ra 90
Dimensions & Weight
Diameter 127.00 mm
Height 57.00 mm
Product weight 180.00 g
Materials & Colors
Product color White
Housing color White
Body material Polycarbonate (PC)
Mercury content 0.0 mg
Application & Mounting
Dimmable Yes
Type of dimming PHASE CUT
Mounting type Recessed
Replaceable light source No
Certificates & Standards
Replaceable light source (EPREL) Not replaceable
Product code Packaging unit (Pieces/Unit) Dimensions (length x width x height) Gross weight Volume
0046135628665 Folding box
1
68 mm x 133 mm x 135 mm 228.00 g 1.22 dm³
4099854011801 Shipping box
6
276 mm x 216 mm x 148 mm 1501.00 g 8.82 dm³
Product image: white background, upright
Performance Class LEDVANCE Downlight Smooth
Beauty Shot
Performance Class LEDVANCE Downlight Smooth - 2700K
Beauty Shot

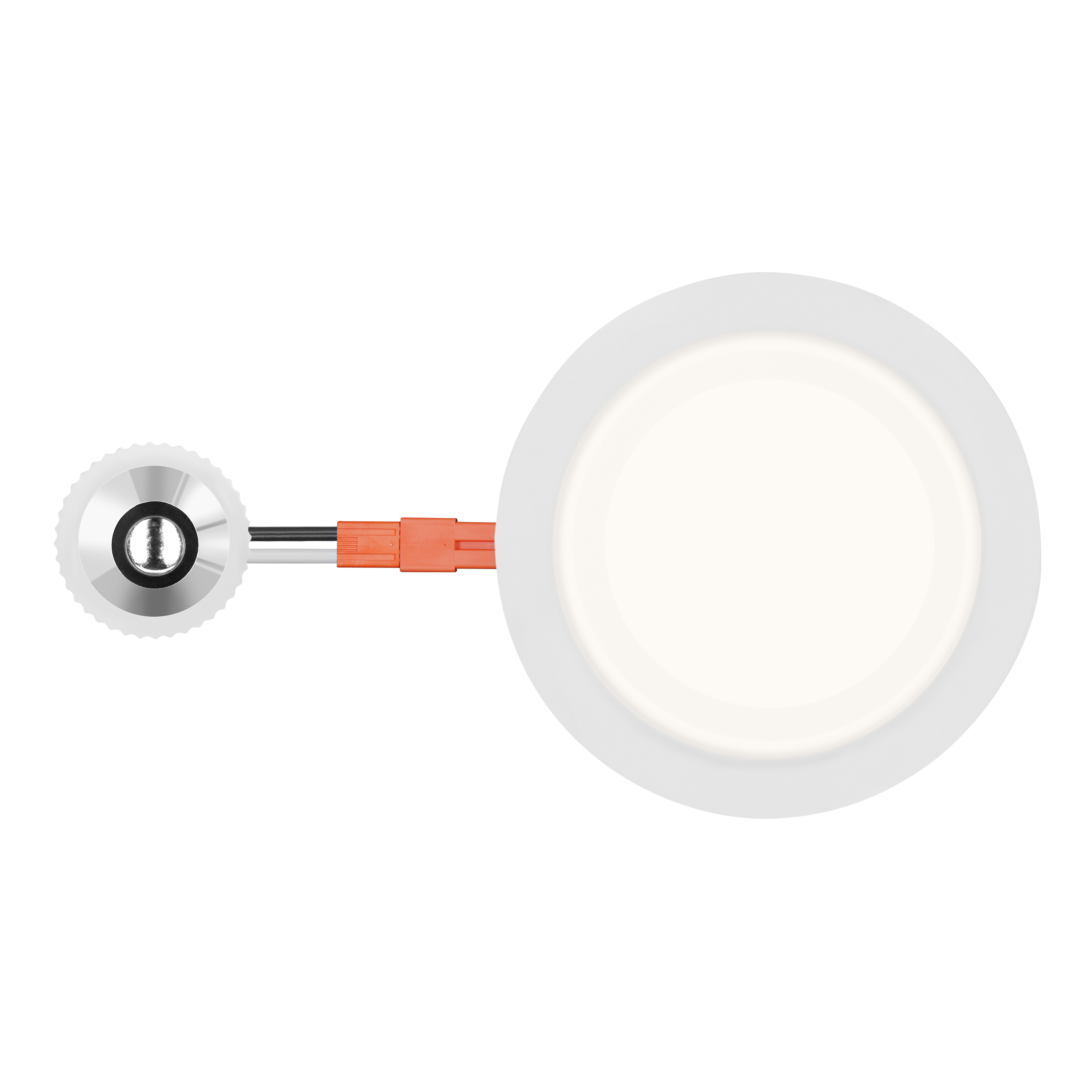

Performance Class LEDVANCE Downlight Smooth - 3000K
Beauty Shot
Performance Class LEDVANCE Downlight Smooth - 3500K
Beauty Shot
Performance Class LEDVANCE Downlight Smooth - 4000K
Beauty Shot

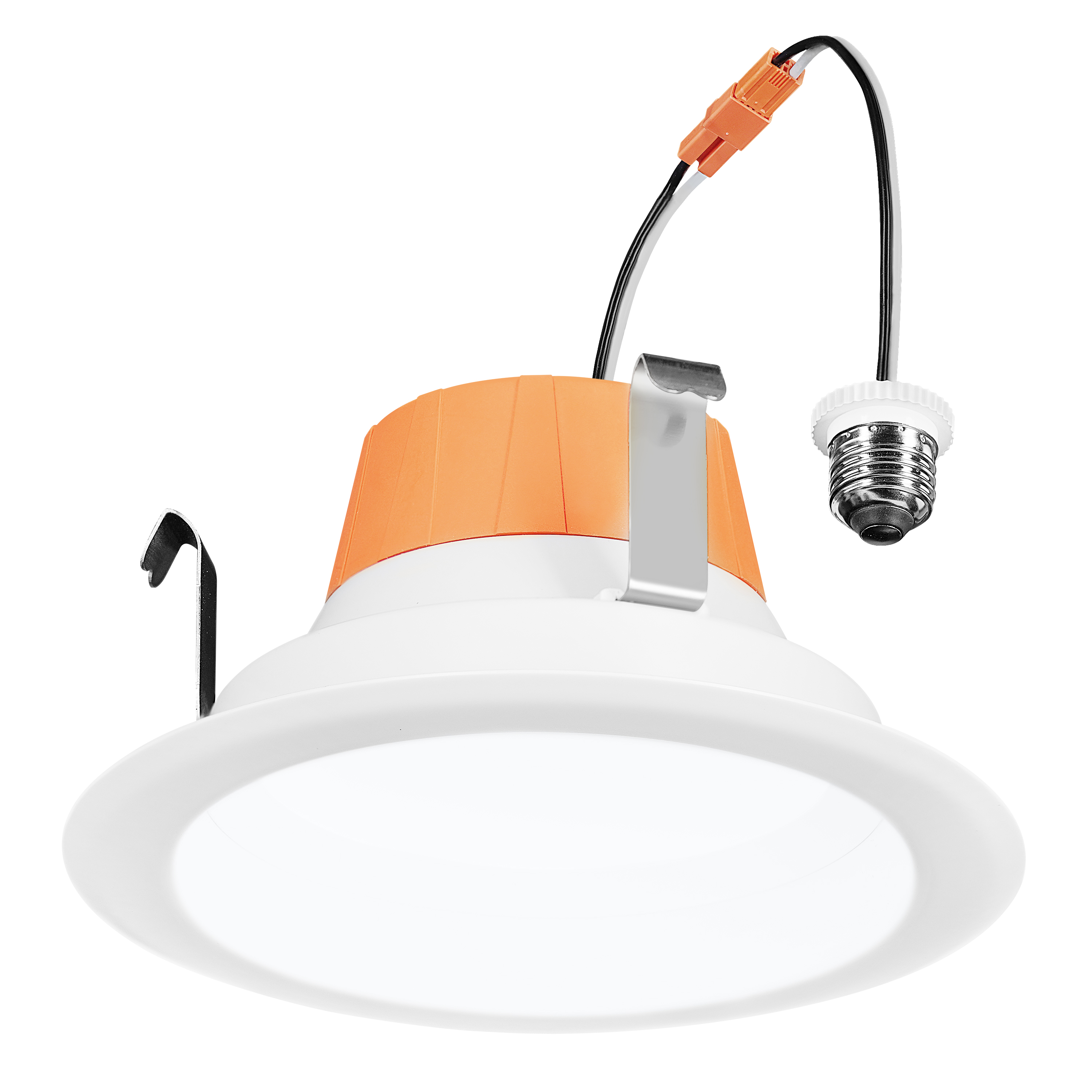

Performance Class LEDVANCE Downlight Smooth - 5000K
