RT SELECT 1A 4" 5CCT 650LM BA | DOWNLIGHT RETROFIT SELECTABLE | LEDVANCE

DOWNLIGHT RETROFIT SELECTABLE

RT SELECT 1A 4" 5CCT 650LM BA

NAED: 62867

Download data sheet

Our warranty conditions

PRODUCT DETAILS

Areas of application

Residential
Bedrooms
Kitchens
Bathrooms

Product features

Integrated white trim, E26 medium base socket adapter
Selectable CCTs: 2700/3000/3500/4000/5000K
Available in 120VAC
Up to 100 LPW
Energy savings up to 89 %
Flicker-free dimming, phase-cut down to 10 %
Color trim rings available as optional accessory
No warm-up time, instant-on with full light output

Safety advice

Suitable for indoor dry, damp and wet locations.
For use in housings that can structurally support a lamp weighing one pound.
RT5/6 designed to install in standard 5" and 6" insulated and non-insulated housings.
Not intended for use with emergency light luminaires or exit lights.

Product information bulletin
DUAL SELECTABLE SCREW-BASE DOWNLIGHT

Electrical data

Nominal wattage	7.00 W
Nominal voltage	120 V

Photometrical data

Luminous flux	650 lm
Luminous efficacy	80 lm/W
Color temperature	2700 … 5000 K
Color rendering index Ra	90

Dimensions & Weight

Diameter	127.00 mm
Height	57.00 mm
Product weight	180.00 g

Materials & Colors

Product color	White
Housing color	White
Body material	Polycarbonate (PC)
Mercury content	0.0 mg

Application & Mounting

Dimmable	Yes
Type of dimming	PHASE CUT
Mounting type	Recessed
Replaceable light source	No

Certificates & Standards

Replaceable light source (EPREL)

Not replaceable

Product code	Packaging unit (Pieces/Unit)	Dimensions (length x width x height)	Gross weight	Volume
0046135628672	Folding box 1	68 mm x 133 mm x 135 mm	228.00 g	1.22 dm³
4099854011818	Shipping box 6	276 mm x 216 mm x 148 mm	1501.00 g	8.82 dm³

Product image	Product name	EAN
	RT TRIM RING RT4 SM BLACK	0046135624988
	RT TRIM RING RT4 SM COPPER	0046135624995
	RT TRIM RING RT4 SM SATIN NICKEL	0046135625008
	RT TRIM RING RT56 SM BLK	0046135625015
	RT TRIM RING RT56 SM COPPER	0046135625022
	RT TRIM RING RT56 SM SATIN NICKEL	0046135625039
	RT TRIM RING RT4 BA BLK	0046135634307
	RT TRIM RING RT4 BA COPPER	0046135634314
	RT TRIM RING RT4 BA SATIN NICKEL	0046135634321
	RT TRIM RING RT56 BA BLK	0046135634338
	RT TRIM RING RT56 BA COPPER	0046135634345
	RT TRIM RING RT56 BA SATIN NICKEL	0046135634352

Product image: white background, upright
Performance Class Downlight Baffled

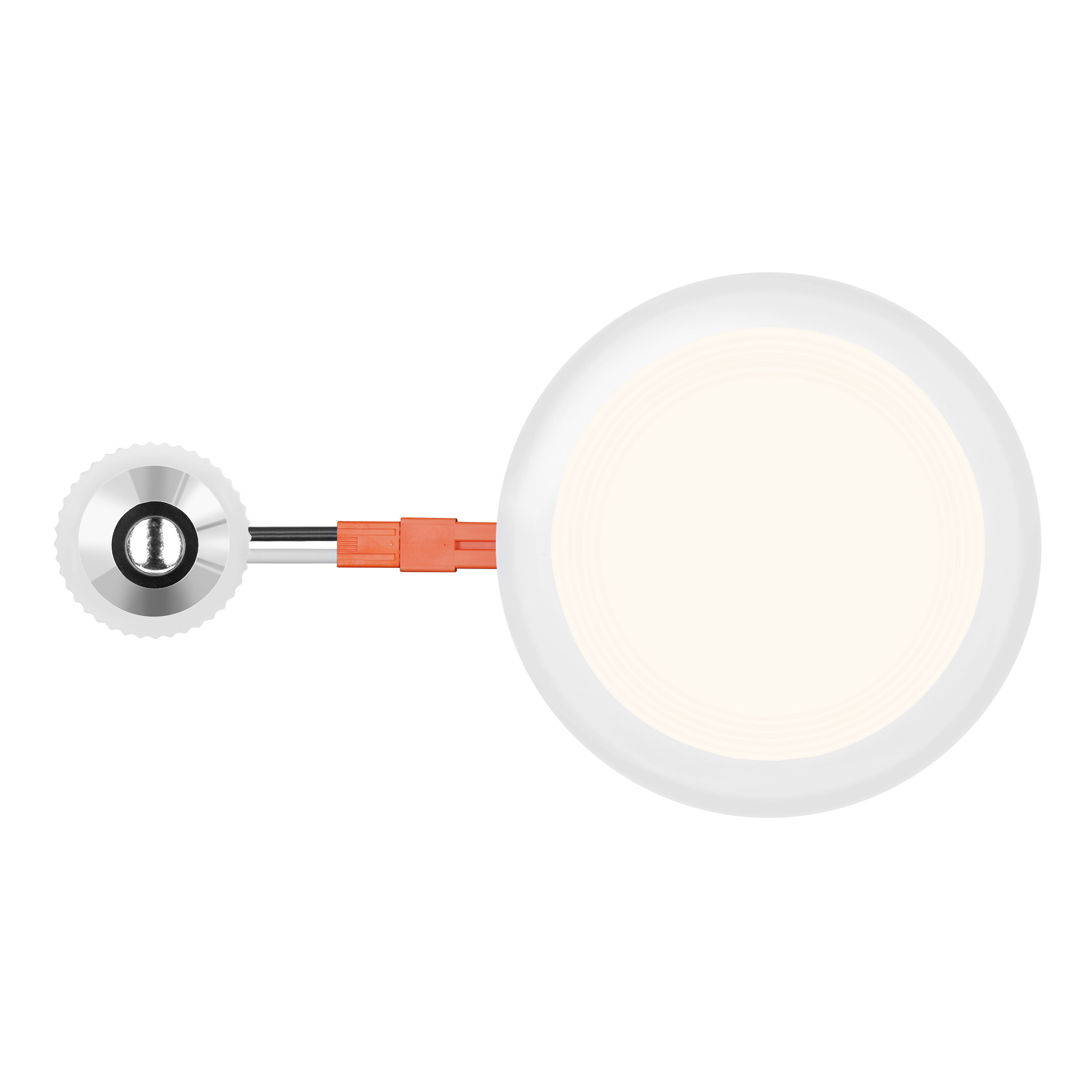

Beauty Shot
Performance Class Downlight Baffled - 2700K

JPG (352.92 KB)

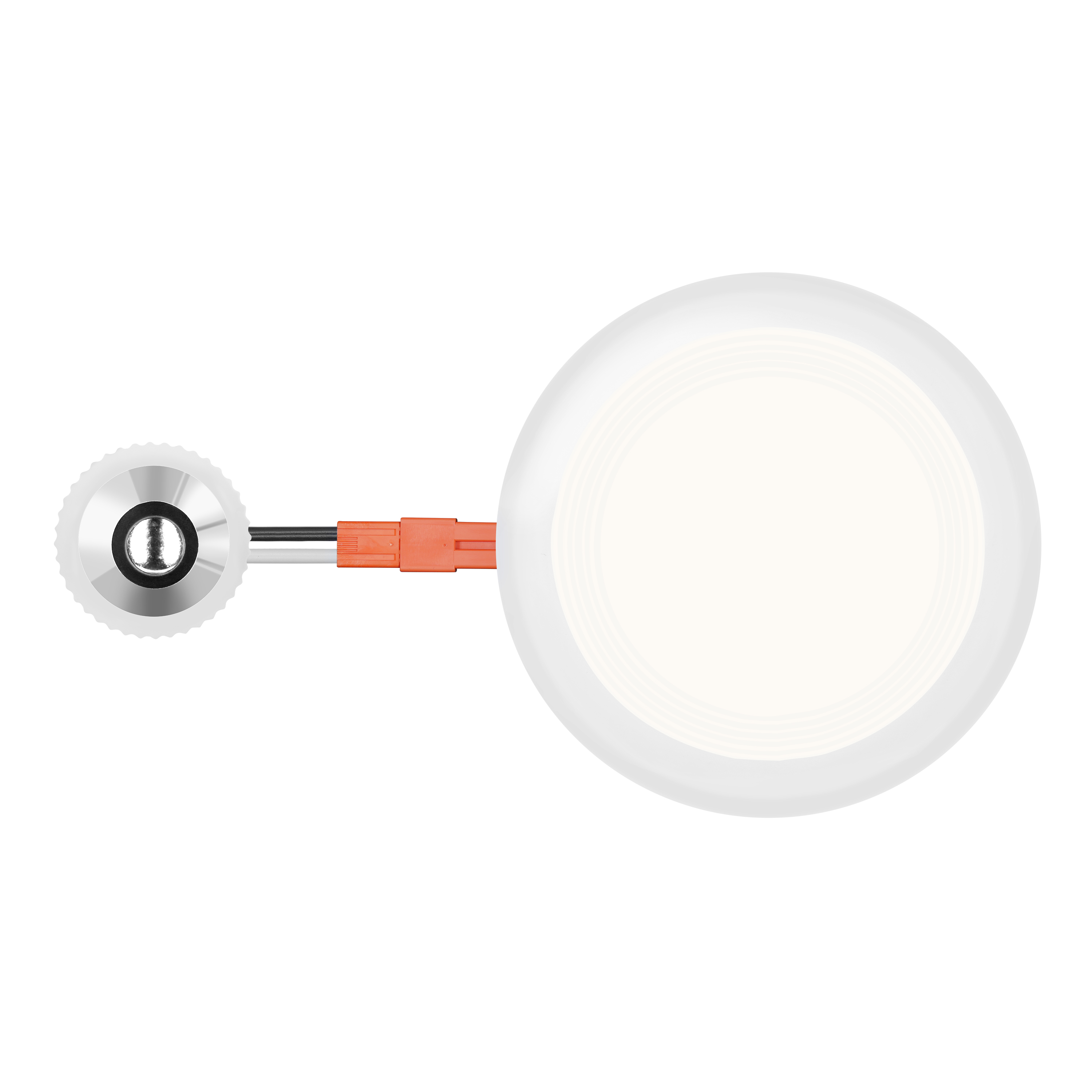

Beauty Shot
Performance Class Downlight Baffled - 3000K

JPG (342.09 KB)

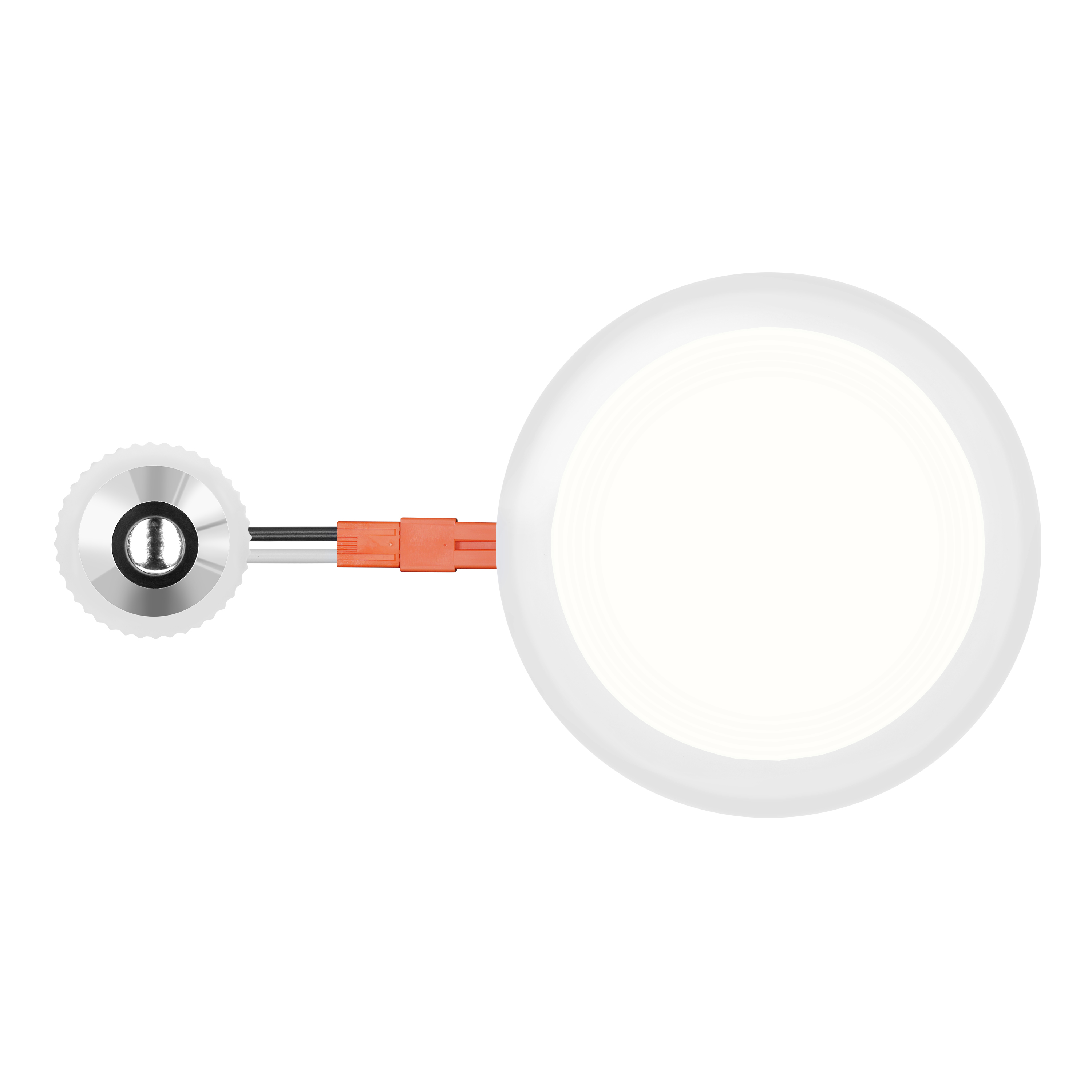

Beauty Shot
Performance Class Downlight Baffled - 3500K

JPG (315.49 KB)

Beauty Shot
Performance Class Downlight Baffled - 4000K

JPG (325.03 KB)

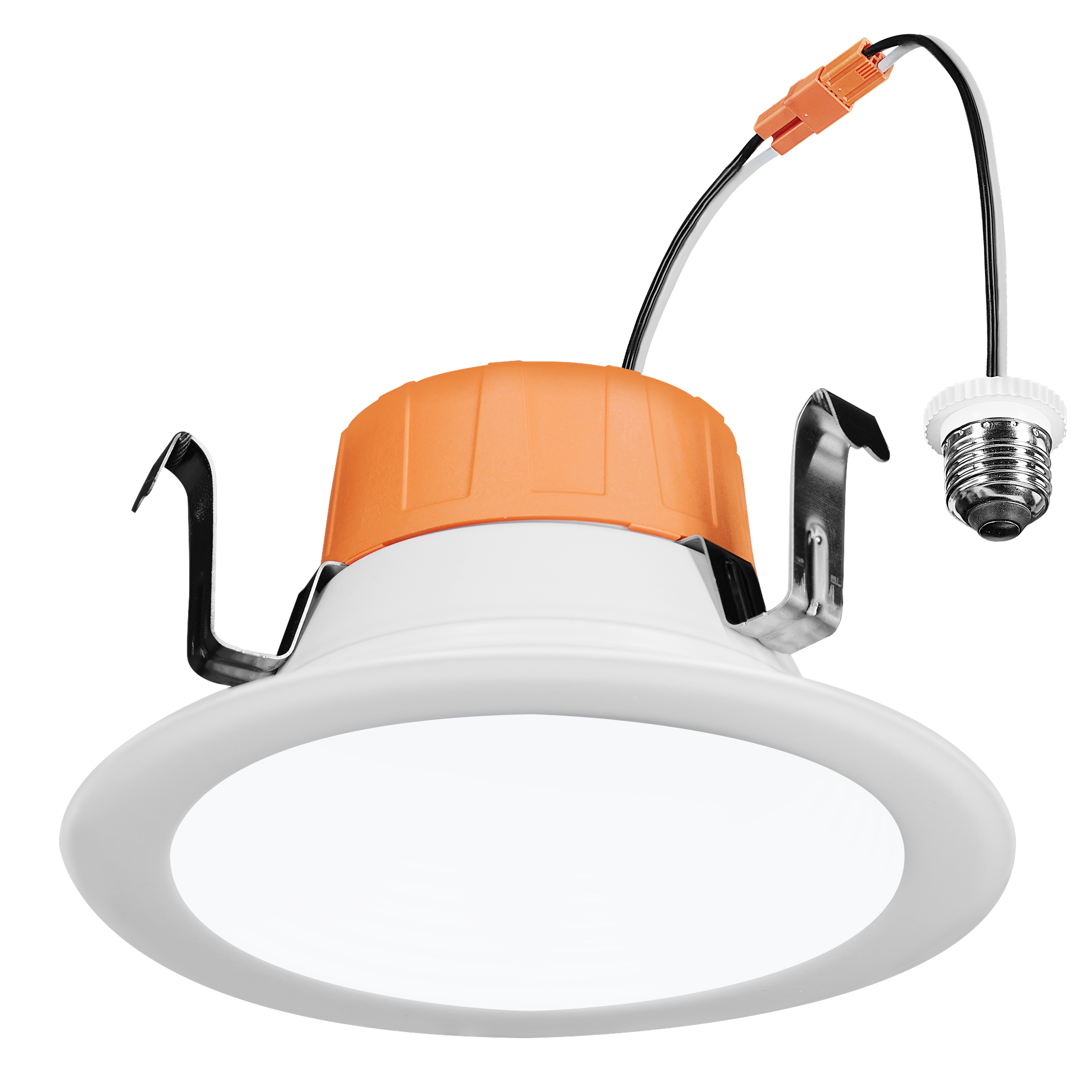

Beauty Shot
