SYLVANIA DOWNLIGHT RETROFIT GIMBAL CCT SELECTABLE

RT GIMBAL 4" 5CCT 700LM

NAED: 65118
Download data sheet
Contact sales
Our warranty conditions

PRODUCT DETAILS

Areas of application
  • Residential
  • Offices
  • Retail
  • Education
Product features
  • Integrated white trim, E26 medium base socket adapter
  • Selectable CCTs: 2700/3000/3500/4000/5000K
  • Available in 120VAC
  • Up to 90 LPW
  • Energy savings up to 88 %
  • Flicker-free dimming, phase-cut down to 10 %
  • Beam angle 110°
Safety advice
  • Suitable for indoor dry, damp and wet locations.
  • Not intended for use with emergency light luminaires or exit lights.
Product information bulletin
Hi-PerformanceLED RT Gimbal
PDF (580.42 KB)
Electrical data
Nominal wattage 8 W
Nominal voltage 120 V
Photometrical data
Luminous flux 700 lm
Luminous efficacy 87 lm/W
Color temperature 2700 K
Color rendering index Ra 90
Dimensions & Weight
Diameter 127.99 mm
Length 63.75 mm
Product weight 200.00 g
Materials & Colors
Mercury content 0.0 mg
Application & Mounting
Dimmable Yes
Replaceable light source No
Holder designation E26
Product code Packaging unit (Pieces/Unit) Dimensions (length x width x height) Gross weight Volume
0046135651182 Folding box
1		 82 mm x 136 mm x 142 mm 277.00 g 1.58 dm³
4058118153022 Shipping box
4		 286 mm x 176 mm x 156 mm 1281.00 g 7.88 dm³

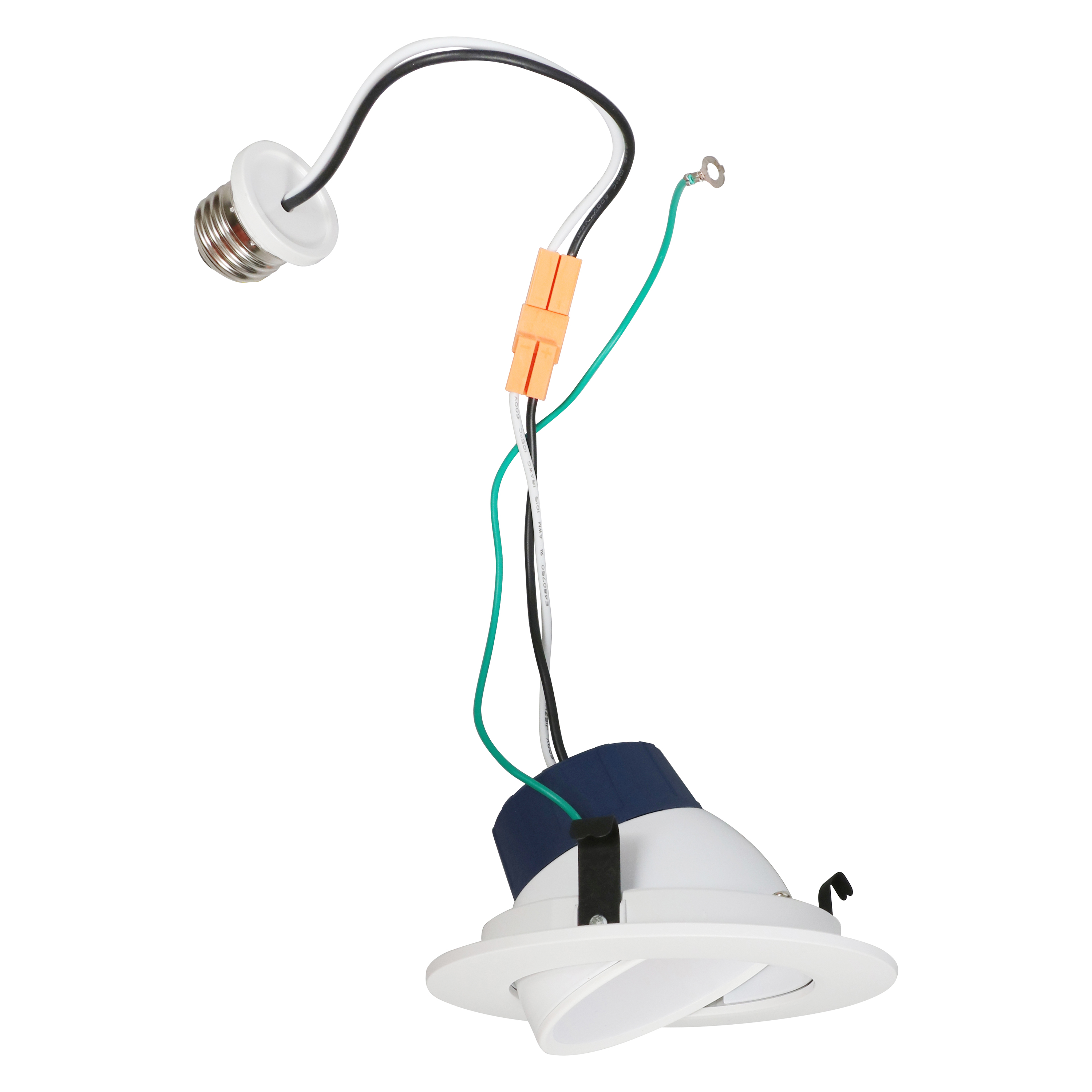

Product image: white background, upright
LED RT4 Gimbal Screw-based Selectable
JPG (599.6 KB)
Packaging image, beauty shot
RT4 Gimbal
JPG (2 MB)
Packaging image, frontal
RT4 Gimbal
JPG (2.13 MB)
Packaging image, frontal
RT4 Gimbal
JPG (2.2 MB)
Packaging image, spacial
RT4 Gimbal
JPG (2.54 MB)
