PRODUCT DETAILS
Product features
- Slim profile, lightweight, easy to install emergency light that replaces traditional incandescent and fluorescent emergency lights
- Bright, energy-efficient LEDs provide energy savings up to 97%
- Offered in watts up to 2W
- Surface mounting
- 6500K color temperature
- CRI > 80
- Optional self-diagnostic and remote capable
Extended installation guide
EXIT & EMERGENCY LIGHT
EXIT & EMERGENCY LIGHT
Product information bulletin
LEDLUM231 LEDVANCE LUMINAIRES EXIT AND EMERGENCY LIGHTING
LEDLUM231 LEDVANCE LUMINAIRES EXIT AND EMERGENCY LIGHTING
Electrical data
| Nominal wattage | 1.50 W |
| Nominal voltage | 120…277 V |
Photometrical data
| Luminous flux | 160 lm |
| Luminous efficacy | 107 lm/W |
| Color temperature | 6500 K |
| Color rendering index Ra | 80 |
Dimensions & Weight
| Length | 307.00 mm |
| Height | 114.00 mm |
| Width | 98.00 mm |
| Product weight | 650.00 g |
Materials & Colors
| Product color | White |
| Housing color | White |
| Mercury content | 0.0 mg |
Application & Mounting
| Dimmable | No |
| Mounting type | Surface |
| Replaceable light source | No |
Certificates & Standards
| Replaceable light source (EPREL) | Not replaceable |
| Product code | Packaging unit (Pieces/Unit) | Dimensions (length x width x height) | Gross weight | Volume |
|---|---|---|---|---|
| 0046135660740 | Folding box 1 |
320 mm x 131 mm x 110 mm | 808.00 g | 4.61 dm³ |
| 4099854335075 | Shipping box 6 |
410 mm x 330 mm x 240 mm | 5207.00 g | 32.47 dm³ |

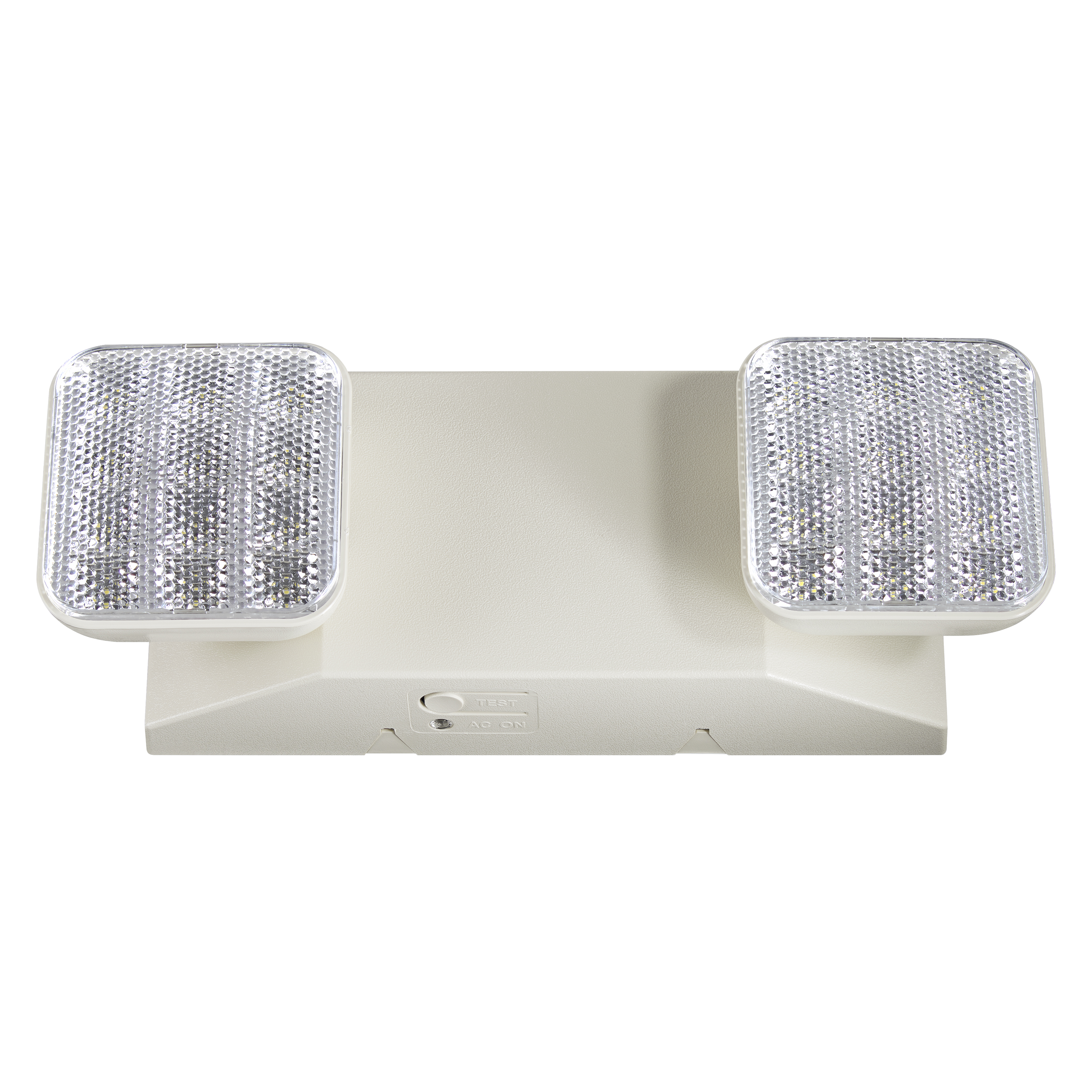

Product image: white background, diagonal
VALUE CLASS EXIT AND EMERGENCY
VALUE CLASS EXIT AND EMERGENCY

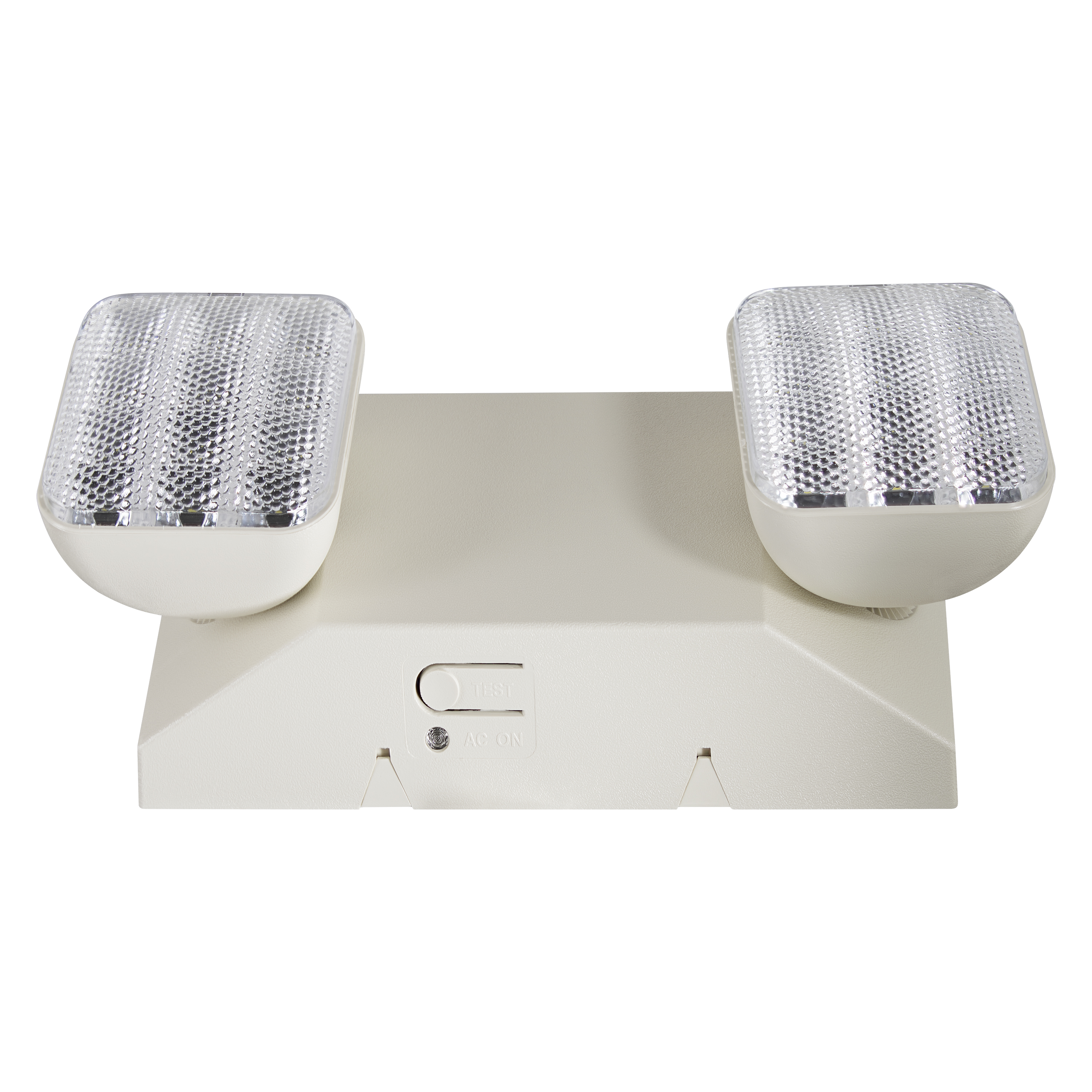

Product image: white background, horizontal
VALUE CLASS EXIT AND EMERGENCY
VALUE CLASS EXIT AND EMERGENCY

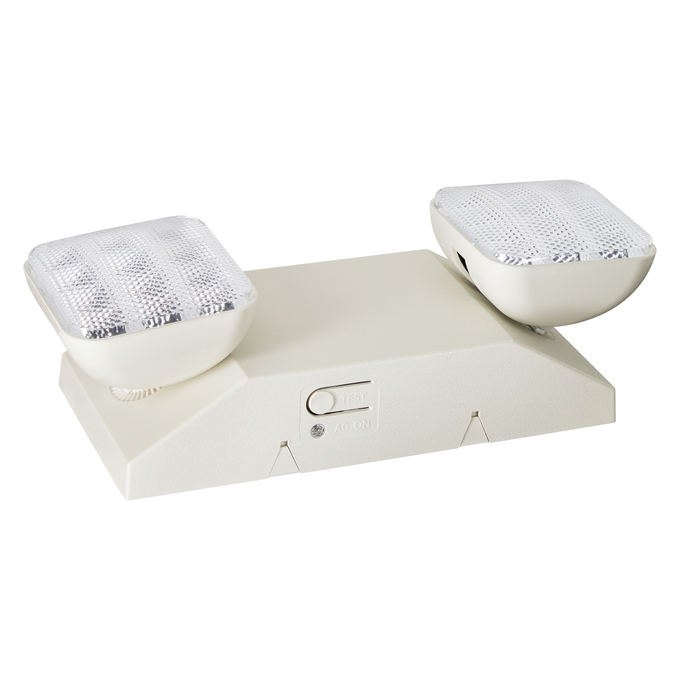

Product image: white background, spacial
