PRODUCT DETAILS
Areas of application
- Emergency illumination of escape routes
- Antipanic lighting
- Offices, education, public buildings
Product features
- Slim profile, lightweight, easy to install exit sign that replaces traditional incandescent and fluorescent exit signs
- Bright, energy-efficient LEDs provide energy savings up to 97%
- Injection-molded thermoplastic housing
- Universal mounting
- 6500K color temperature
- CRI > 80
- Offered in watts up to 3.2W
- Optional self-diagnostic and remote capable
- Both Red and Green letters shipped in exit box (running man is green only)
Product information bulletin
LEDLUM231 LEDVANCE LUMINAIRES EXIT AND EMERGENCY LIGHTING
LEDLUM231 LEDVANCE LUMINAIRES EXIT AND EMERGENCY LIGHTING
Electrical data
| Nominal wattage | 2.00 W |
| Nominal voltage | 120…277 V |
Photometrical data
| Luminous flux | 200 lm |
| Luminous efficacy | 100 lm/W |
| Color temperature | 6500 K |
| Color rendering index Ra | 80 |
Dimensions & Weight
| Length | 418.00 mm |
| Height | 184.00 mm |
| Width | 52.00 mm |
| Product weight | 900.00 g |
Materials & Colors
| Product color | White |
| Housing color | White |
| Mercury content | 0.0 mg |
Application & Mounting
| Dimmable | No |
| Mounting type | Surface |
| Replaceable light source | No |
Certificates & Standards
| Replaceable light source (EPREL) | Not replaceable |
| Product code | Packaging unit (Pieces/Unit) | Dimensions (length x width x height) | Gross weight | Volume |
|---|---|---|---|---|
| 0046135660702 | Folding box 1 |
430 mm x 196 mm x 65 mm | 1058.00 g | 5.48 dm³ |
| 4099854335037 | Shipping box 6 |
445 mm x 405 mm x 205 mm | 6706.00 g | 36.95 dm³ |

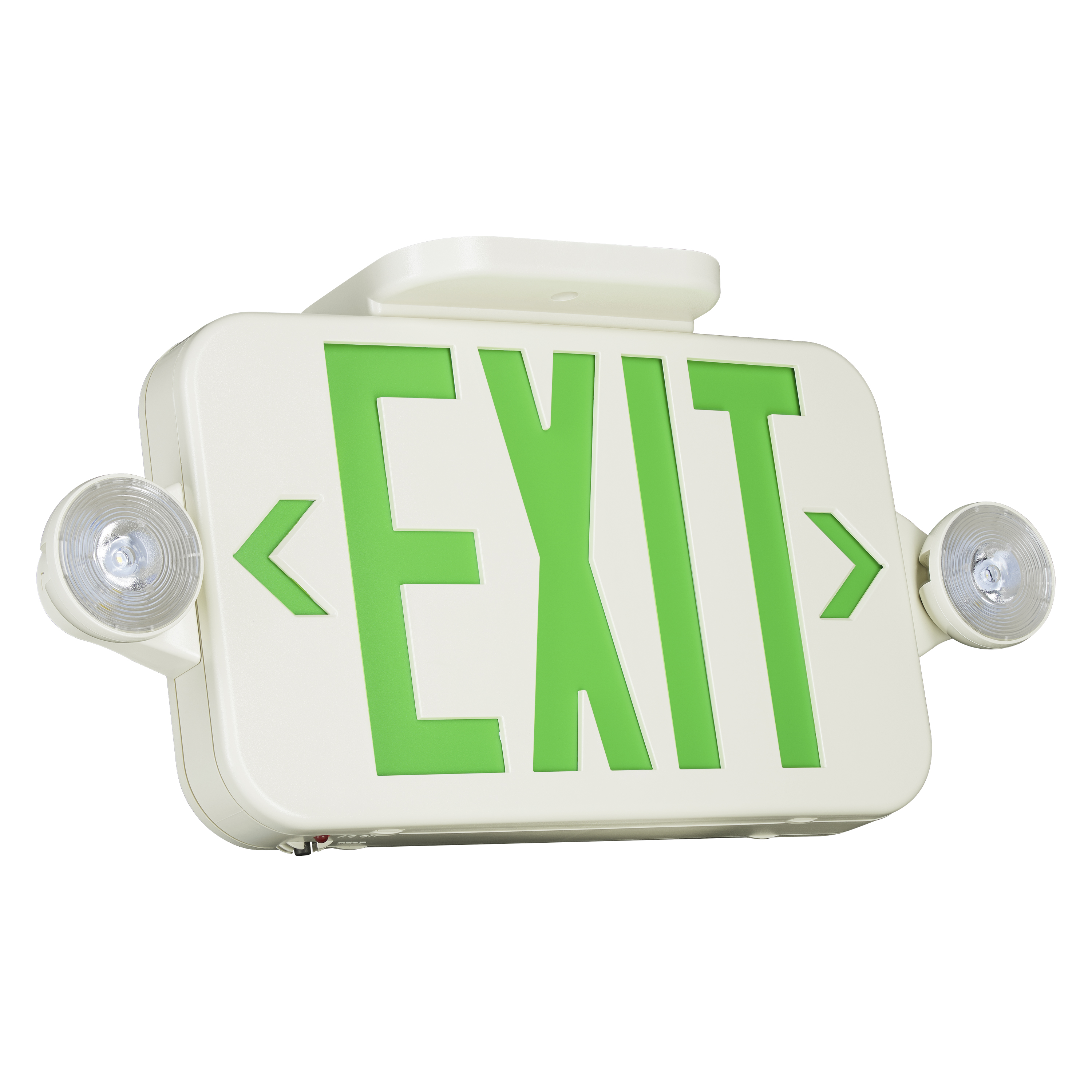

Product image: white background, diagonal
EXIT AND EMERGENCY LIGHTING
EXIT AND EMERGENCY LIGHTING

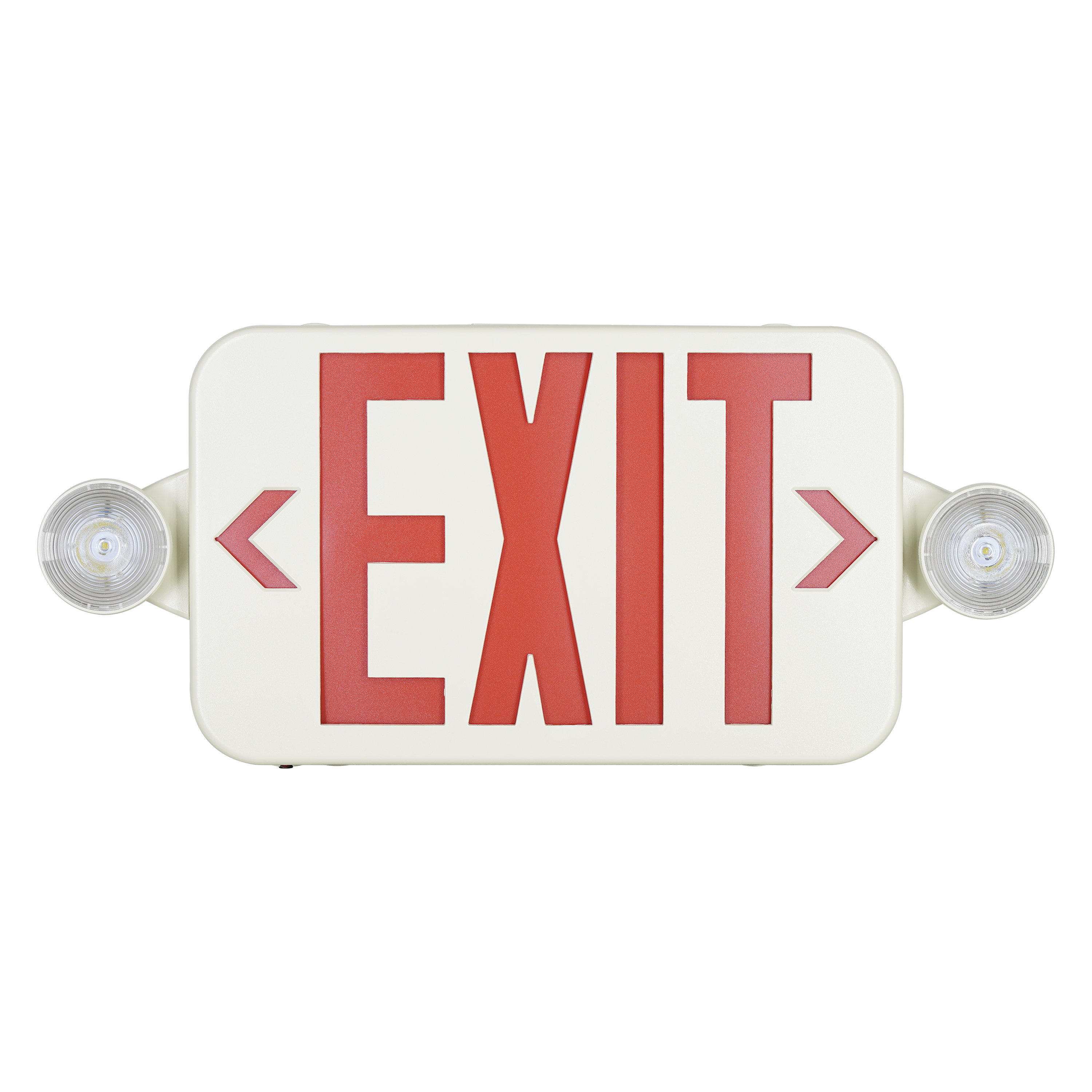

Product image: white background, horizontal
EXIT AND EMERGENCY LIGHTING
EXIT AND EMERGENCY LIGHTING
IES file (IES)
VALUE CLASS EXIT AND EMERGENCY
VALUE CLASS EXIT AND EMERGENCY
